Catalysts 2013, 3(2), 563-583; doi:10.3390/catal3020563
Published: 5 June 2013
Abstract: Steam reforming of light hydrocarbons provides a promising method for hydrogen production. Ni-based catalysts are so far the best and the most commonly used catalysts for steam reforming because of their acceptably high activity and significantly lower cost in comparison with alternative precious metal-based catalysts. However, nickel catalysts are susceptible to deactivation from the deposition of carbon, even when operating at steam-to-carbon ratios predicted to be thermodynamically outside of the carbon-forming regime. Reactivity and deactivation by carbon formation can be tuned by modifying Ni surfaces with a second metal, such as Au through alloy formation. In the present review, we summarize the very recent progress in the design, synthesis, and characterization of supported bimetallic Ni-based catalysts for steam reforming. The progress in the modification of Ni with noble metals (such as Au and Ag) is discussed in terms of preparation, characterization and pretreatment methods. Moreover, the comparison with the effects of other metals (such as Sn, Cu, Co, Mo, Fe, Gd and B) is addressed. The differences of catalytic activity, thermal stability and carbon species between bimetallic and monometallic Ni-based catalysts are also briefly shown.
Production of synthesis gas from natural gas and Fisher-Tropsch synthesis from the synthesis gas have become very important in the chemical industry for reasons related to the soaring petroleum price, depletion of oil reserves, and environmental problems with exhaust gases [1,2,3]. Steam reforming of methane and other hydrocarbons has been an extremely important process for the production of synthesis gas [4,5,6]. Steam reforming is the conventional method to produce synthesis gas from natural gas and is utilized on the industrial scale, which is highly endothermic reaction as indicated below (Equation (1)).
In industry, hydrogen is practically produced from natural gas and mainly used for the ammonia synthesis [7,8,9]. Recently, much attention has been paid to the hydrogen production relating to the fuel cell technology [10,11,12]. Moreover, many efforts have been made in developing dry (CO2) reforming of methane as a practical way to utilize CO2 as a building block in organic syntheses (Equation (2)) [13,14].
It has been pointed out that one problem in methane reforming is carbon deposition on the catalyst surface, which causes the catalyst deactivation. There are two principal carbon deposition pathways for steam reforming of methane: the methane decomposition (Equation (3)) and the CO disproportion (Equation (4)).
The tendency to carbon deposition may depend on the atomic ratio O/C and H/C in the feed gas. Lower H2O/CH4 and H2/CO ratios correspond to higher tendency toward coke formation . This means that the tendency of carbon deposition in the dry reforming of methane is much higher than that in the steam reforming of methane. Coke formation is relatively severe over the catalysts used for CO2 reforming at high temperatures (> 1073 K).
For steam and dry reforming of methane, the catalyst bed has to be heated from the outside of the reactor by the combustion of methane (Equation (5)). Therefore, the reaction rate is limited by the heat transfer and the scale merit of the syngas production by this method is low. Other combined technologies such as autothermal reforming, oxidative reforming, and so on, are used to realize the large-scale synthesis gas production. For example, oxidative steam reforming of methane, in which O2 is introduced to the catalyst bed together with methane and steam, is a promising method for syngas production because the reaction conditions can be adjusted by balancing exothermic combustion and endothermic reforming to an autothermal system.
Reforming of methane with steam and CO2 is catalyzed by various transition and noble metals such as Ni, Co, Ru, Rh, Pd, Pt, etc. The catalytic activity of metal catalysts supported on Al2O3-MgO was reported to follow the order: Ru > Rh > Ir > Ni > Pt . Ni has a comparable activity to noble-metal catalysts, and that higher loading amount of Ni is feasible in terms of the catalyst cost in order to increase the activity per catalyst volume. Although Ni is inferior to noble metals regarding the resistance to carbon deposition and catalyst oxidation, the high resistance to coke formation and catalyst oxidation can be realized by the addition of very small amounts of noble metals. The modification of Ni catalysts with small amounts of noble metals such as Pd, Pt, Ru, Rh and Ir has been well reviewed [1,2,3] and it has been demonstrated as a promising approach to design catalysts with excellent performances for methane reforming.
The present review article is related to the effects of modification of Ni catalysts by other metals (such as Au, Ag, Sn, Cu, Co, Mo, Fe, Gd and B), with particular attention being devoted to bimetallic Ni-Au catalysts. It is well known that the preparation method strongly influences the structure of bimetallic systems. The first part of this work is, therefore, devoted to the structural differences of catalysts prepared by different methods. In the second part, the resistance to coke formation in the steam reforming of methane, as well as the relationship between the catalytic performance and the structure of bimetallic catalysts, are discussed.
2. Preparation and Structure of Ni Catalysts Modified with a Small Amount of Second Metals
Table 1 lists the chemical composition of the main Ni-M catalysts (M = Au, Ag, Sn, Cu, Co, Mo, Fe, Gd and B) for hydrocarbon reforming [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57] recently reported in the literature. Some typical examples are discussed in detail in the present review.
|Table 1. List of Ni catalysts modified with a second metal reported in this review: chemical composition and catalytic reactions.|
|Catalysts||Second metal||Ni content (wt%)||Molar ratio (M/Ni)||Reactions||Second metal effects||Refs.|
|Au/Ni/MgAl2O4||Au||16.5||0.0054||SR of n-butane||C||[17,18,19]|
|Au/Ni/MgAl2O4||Au||8.8||0.0034–0.034||SR of methane||C|||
|Au/Ni/MgAl2O4||Au||8||0.019||SR of methane||C,A|||
|Au-Ni/Al2O3||Au||8||0.038||SR of methane||C,A||[22,23,24]|
|Au-Ni/Al2O3||Au||8||0.075||PO of methane||C,A|||
|Au-Ni/CrAl3O6||Au||5||0.0060–0.12||PO of methane||C,A||[26,27]|
|Au-Ni/MgO-Al2O3||Au||5||0.12||PO of methane||C|||
|AuNiAl LDHs(Cp)||Au||79.5||0.011||SR of methanol||-|||
|Au/Ni/GDC(Dp)||Au||65||0.01–0.04||SR of methane||C|||
|AuNi/YSZ(Cs)||Au||50||0.01–0.05||SR of methane||C|||
|Ag-Ni/Al2O3||Ag||8||0.038||SR of methane||C||[22,23,24]|
|Ag-Ni/Al2O3||Ag||15||0.0036–0.022||SR of methane||C|||
|Ag-Ni/Al2O3||Ag||15||0.011||SR of methane||C|||
|AgNi/YSZ(Cs)||Ag||50||0.01–0.05||SR of methane||C|||
|Ag/Ni/MgAl2O4||Ag||7.93||0.5||SR of butane||C,S|||
|Sn/Ni/Al2O3||Sn||35||0.0049||SR of methane||C|||
|Sn-Ni/MgO-Al2O3||Sn||11.25||0.16||SR of methanol||C|||
|Cu-Ni/Al2O3||Cu||8.72||0.0092||SR of methane||A,S|||
|Cu-Ni/Al2O3||Cu||3–7||0.40–2.16||SR of methanol||S,C|||
|Cu-Ni/Al2O3||Cu||5||0.92||SR of methane||C|||
|Cu-Ni/SiO2||Cu||1.25–3.75||0.33–3||SR of ethanol||A,C,S|||
|Cu-Ni/Al2O3||Cu||-||1||SR of methane||C|||
|Cu-Ni-Mg-Al(Cp)||Cu||-||-||DR of methane||C|||
|Cu/Ni(111) alloy||Cu||-||-||SR of methane||C|||
|Co-Ni-Mg-Al(Cp)||Co||-||1.36||DR of methane||A,C|||
|Co-Ni/YSZ||Co||25,34||0.44,0.92||SR of ethanol||S|||
|Co-Ni/ZrO2||Co||13,8.7||1.00,0.500||DR of methane||A,C,S|||
|MoO3/Ni/Al2O3||Mo||-||-||SR of n-butane||C|||
|MoO3/Ni/Al2O3||Mo||17||0.00048–0.048||SR of n-butane||A,C|||
|Mo/Ni/Al2O3||Mo||60||0.00050–0.0020||SR of methane||A|||
|Fe-Ni(Cp)||Fe||-||0.33–1||SR of ethanol||A,C|||
|B/Ni/Al2O3||B||15||0.18,0.36||SR of methane||C|||
M/Ni, sequential impregnation; M-Ni, co-impregnation; Cp, co-precipitation; Dp, deposition-precipitation; Cs, combustion synthesis; SR, steam reforming; PO, partial oxidation; DR, dry reforming; ATR, autothermal reforming; A, activity; C, coke resistant; S, selectivity.

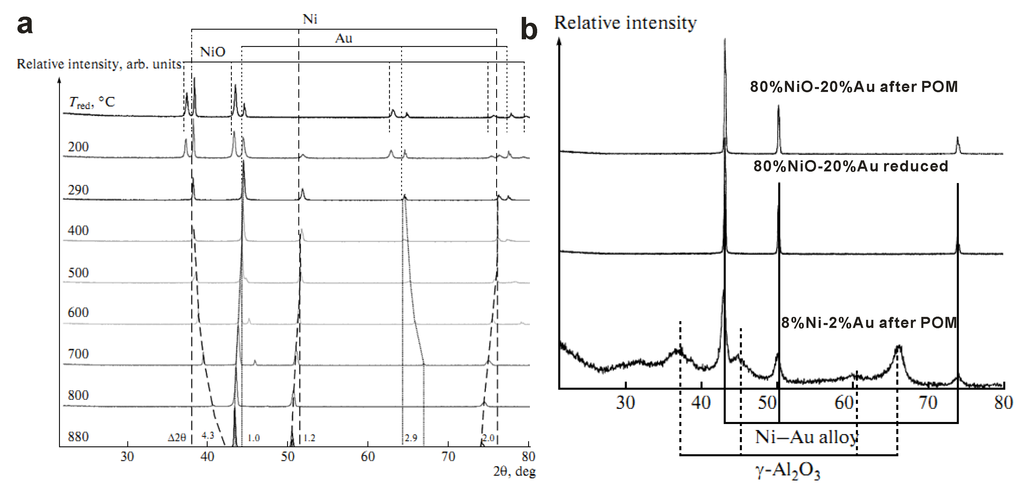

2.1. Ni Metal Particles Modified with Au
Nørskov and co-workers [17,18,19] have reported that Au/Ni surface alloy on the Ni particles (on SiO2 and MgAl2O4) was active for steam reforming and more resistant towards carbon formation than the pure Ni catalysts. The Ni/SiO2 and Ni/MgAl2O4 with high surface area were prepared by precipitation-deposition and pore filling of the spinel support with Ni-nitrate, respectively. The bimetallic Au/Ni catalysts were prepared by carefully impregnating the reduced monometallic Ni catalysts with an aqueous solution containing Au(NH3)4(NO3)3. After filtering, the products were dried in air at 383 K. They described in details how Monte Carlo simulations and various physicochemical characterization tools such as transmission electron microscopy (TEM), in situ extended X-ray absorption fine structure measurements (EXAFS), and X-ray powder diffraction (XRD) were used to get information on the existence of the Au/Ni surface alloy in the small particle system encountered in the supported catalysts . By fitting the back-transformed Au L3 spectrum of silica supported Au/Ni catalyst, the nonzero value of the Au-Ni coordination number was observed and gave evidence for the presence of Ni in the nearest neighbor environment of Au. However, the Au-Au coordination number was larger than what could be expected for an Au surface alloy. Therefore, they took into account that XAFS probed all Au present in the catalyst; also Au presented as large Au particle as evidenced by TEM and XRD results. Linear combinations of calculated Au L3 XAFS functions of bulk Au and Au/Ni surface alloys were compared to the experimental data by varying the amount of Au on Ni in the particles as well as the relative amount of bulk Au. The best fit results in 73% of the Au presented as bulk Au and the remainder of the Au presented as a surface alloy (molar ratio Au/Ni = 0.10) on a Ni particle with a diameter of 1.8 nm. No significant differences were observed between the EXAFS spectra and the Fourier transformed data of the freshly reduced catalyst and the catalyst after steam reforming in diluted n-butane.
King and co-workers  have reported that the addition of small quantities of gold to the surface of supported nickel catalysts has been proved to retard carbon formation during hydrocarbon steam reforming. After Ni/MgAl2O4being impregnated with Au, the sample was dried in ambient air, heated in flowing He at a rate of 1 K/min to 473 K, than held isothermally at 473 K for at least 8 h. Table 2 shows the results of fitting the back-transformed Au L3-edge data with both the Au-Ni and Au-Au first coordination shells. Increasing Au loadings resulted in increased Au-Au interaction and a parallel decrease in Au-Ni interaction. For the 0.1 wt% Au/8.8 wt% Ni sample, an average coordination number was 5.3, with a negligible coordination number of Au-Au interaction. This means that at the lowest Au loading (0.1 wt%), only Au-Ni bonds are detected. Furthermore, the XANES analysis of the Au-Ni/MgAl2O4 catalysts revealed changes in both the Ni K-edge and Au L3-edge white line intensities, indicative of transfer of electronic charge from Au to Ni as a result of surface alloy formation.
|Table 2. Structural parameters derived from fitting Au L3-edge EXAFS data for Au-8.8% Ni/MgAl2O4 after reduction at 500 °C .|
|Au concentration||Au L3-edge fitting Au-Ni||Au L3-edge fitting Au-Au||R factor|
|(%)||C.N.||R (Å)||Δσ2 × 103||ΔE0||C.N.||R (Å)||Δσ2 × 103||ΔE0||(%)|
|0.1||5.3 ± 1.1||2.58 ± 0.01||6.5 ± 1.6||0.2||-||-||-||-||4.7|
|0.2||4.9 ± 1.1||2.59 ± 0.02||7.4 ± 1.6||4.2||4.0 ± 1.3||2.97 ± 0.04||8.3 ± 4.3||5.4||4.9|
|0.4||3.7 ± 0.7||2.58 ± 0.01||5.5 ± 0.1||2.8||6.0 ± 1.5||2.82 ± 0.01||7.7 ± 1.8||4.9||2.1|
|1.0||2.8 ± 0.3||2.57 ± 0.01||4.3 ± 0.7||4.1||7.6 ± 1.0||2.84 ± 0.01||6.5 ± 0.6||6.3||4.7|

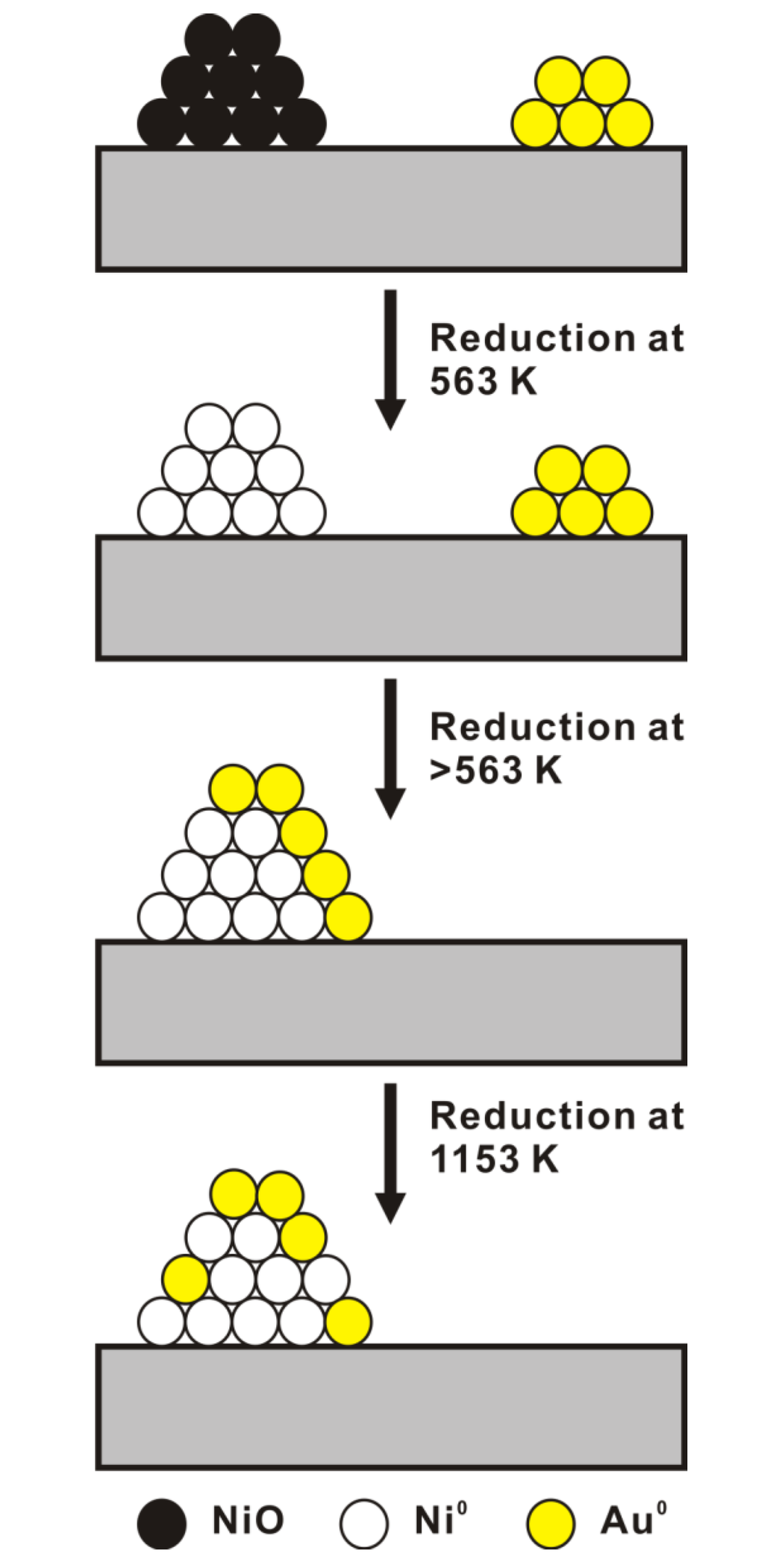

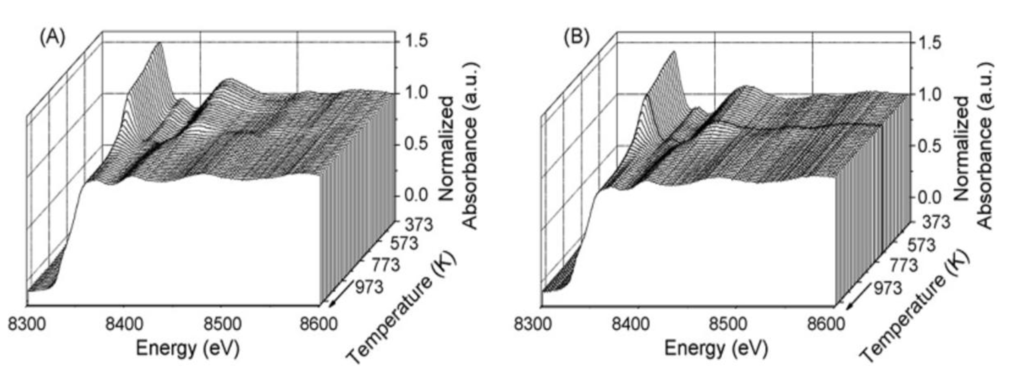

Besides, the pretreatment also will influence the Au-Ni surface alloy formation. Table 3 shows a significant Au-Ni nearest-neighbor interaction when the Ni component is in the reduced state, but there appears to be no interaction between Au and oxidized Ni atoms.
Recently, Lazar et al. [22,23,24] have synthesized the 1.0 wt% Au-7.0 wt% Ni/γ-Al2O3 catalyst by co-impregnation method and found that the addition of Au improved the methane conversion, CO2 selectivity and H2 production at low temperatures (T < 600 °C). The impregnated catalysts were dried at room temperature overnight, calcined in Ar at 823 K and then, reduced in H2 at 823 K. Taking all characterization results (XRD, H2 chemisorption and TEM) into account, they concluded that in the Ni-Au/γ-Al2O3 catalysts prepared by co-impregnation and reduced at 823 K, no significant interaction of Au with Ni has been proved to appear and no formation of a superficial Au-Ni surface alloy was observed . Maniecki et al.  have also prepared 2.0 wt% Au-10.0 wt% Ni/Al2O3 catalysts by co-impregnation method and found that the addition of gold improved catalyst stability and activity in POM reaction. After drying they were calcined for 4 h in air at 673 K. The temperature programmed in situ XRD patterns for NiO-Au mechanical mixture in (5% H2 + 95% Ar) gas mixture is presented in Figure 1a. It can be observed that the reduction of free NiO takes place above 473 K and at the temperature of 563 K only metallic Ni and Au phases are detectable. Further increase of temperature up to 1153K leads to gradual shifts of 2θ values that characterize the Au-Ni alloy formation. Finally, at 1153 K only XRD lines assigned to Au-Ni alloy phase are visible. Figure 1b shows that Au-Ni alloy formation occurs in the mixture of 80 wt% NiO-20 wt% Au after partial oxidation of methane at 1153 K, after reduction in (5% H2 + 95% Ar) stream, at 1153 K, and for 8 wt% Ni-2 wt% Au/Al2O3 catalyst after partial methane oxidation (POM) reaction at 1153 K. One can see that the Au-Ni alloy is formed in the reductive gas atmosphere and after reaction. The formation of Au-Ni alloy during high temperature POM reaction is experimentally proved on 8 wt% Ni-2 wt% Au/Al2O3 catalyst surface. The mechanism of the formation of the bimetallic particles mentioned above is described in Figure 2 on the basis of the above in situ XRD characterization results.
|Table 3. Structural parameters derived from fitting Au L3-edge EXAFS data for Au/MgAl2O4 following either oxidation or reduction, and for Au/Ni/MgAl2O4 after oxidation, all at 500 °C .|
|Catalysts||Pretreatment||C.N.||R (Å)||Δσ2 × 103||ΔE0||R factor (%)|
|0.2% Au/MgO-Al2O3||Reduced at 500 °C||11.3 ± 0.6||2.86 ± 0.002||2.4 ± 0.3||5.62||0.4|
|0.2% Au/MgO-Al2O3||Oxidized at 500 °C||11.0 ± 0.6||2.86 ± 0.002||1.9 ± 0.3||5.62||0.4|
|0.2% Au-8.8% Ni/MgO-Al2O3||Oxidized at 500 °C||11.9 ± 0.9||2.87 ± 0.003||2.0 ± 0.4||4.89||1.0|
2.2. Ni Metal Particles Modified with Ag
Bueno and co-workers have prepared Ni/γ-Al2O3 modified with Ag by co-impregnation method [32,33]. The impregnated samples were dried at 353 K overnight and calcined under flowing air at 723 K for 2 h. Finally, the samples were reduced in H2 flow, heated at 10 K/min and held at 1073 K for 2 h. Figure 3 shows the in situ Ni K-edge XANES-TPR-H2 spectra of the oxidized 5 wt% Ni/γ-Al2O3 and that doped by 0.6 wt% Ag at different temperatures. The results indicate that two different species of Ni (II) are reduced in AgNi/γ-Al2O3. There is no obviously shift in the threshold for reduced catalysts with higher Ag loading, with low contribution of Ag-Ni bonds relative to that of bulk Ni-Ni bonds. However, the presence of Ag changes the surface structure of the Ni sites that may be related to the nucleation and growth of graphitic structure. The catalysts with Ag loading >0.3 wt% submitted to stability tests showed high resistance to coke deposition.

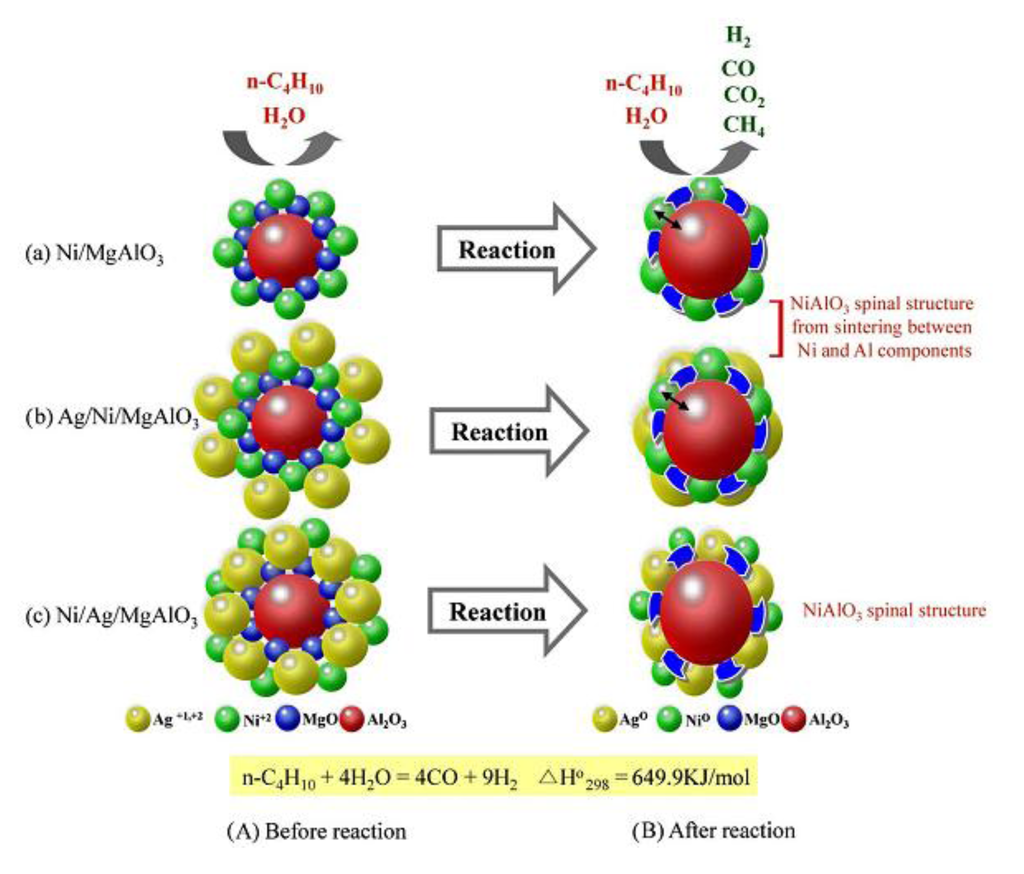

Recently, Kang et al.  have prepared 15 mol% Ag/15 mol% Ni/MgAl2O4 and 15 mol% Ni/15 mol% Ag/MgAl2O4 catalysts by the sequential wetness impregnation method. After being impregnated with Ag or Ni, the sample was dried in ambient air, heated in flowing air at a rate of 10 K/min to 773 K, and then held isothermally at the final temperature for at least 1 h. The reduction of the catalysts were performed in H2 at 973 K for 2 h, followed by cooling to room temperature under Ar. Figure 4 shows the catalytic phase change and n-butane reforming mechanism. The catalytic performances differ according to the order in which the metal precursors are added. Ag is added between Ni and Al in an attempt to decrease the catalytic deactivation induced by the strong sintering between them during n-butane steam reforming, while simultaneously improving the catalytic activity. Consequently, their synergistic effect is different from that between Au and Ni nanoparticles as mentioned above. It gives a new interpretation about the effect of Ag in the bimetallic catalysts.
More recently, a density functional theory study of the effect Ag on the control of Ni-catalyzed carbon formation has been reported . The calculated results indicated that the activation energy for methane dissociation was increased with the Ag coverage on Ni(211) surface than that on pure Ni(111), the active center was transferred from the stepped surface to the close-packed surface. The middle-step sites acted as the nucleation center for the growth of filamentous carbon and therefore had the potential to prevent catalyst nanoparticles from being destroyed. These findings provided a rational interpretation of the experimental observations that Ag/Ni surface alloy exhibited lower catalytic activity towards steam reforming of methane but high resistance to coke formation.
2.3. Ni Metal Particles Modified with Other Metals (Sn, Cu, Co, Mo, Fe, Gd and B)
Linic and co-workers have extensively investigated Ni and Sn-Ni alloy catalysts for hydrocarbons (methane, propane and isooctane) steam reforming [38,39,40,41]. By employing the Density Functional Theory (DFT), calculations on Ni and Sn/Ni catalysts supported over 8 mol% yttria-stabilized zirconia (YSZ) showed they identified Sn-Ni alloy as a potential carbon-tolerant reforming catalyst. Their DFT calculations showed that the formation energy of Sn/Ni surface alloy was lower than the formation energy of Sn bulk alloys or than the formation energy corresponding to pure Sn and Ni phases, therefore, suggesting that the formation of Sn/Ni surface alloy was thermodynamic favorable. It was deduced that Sn could displace Ni atoms from the step-edge sites, which effectively repelled C atoms from the low-coordinated step sites. This result indicated that Sn atoms lower the tendency of the surface alloy to form coke as confirmed in Figure 5b,c. Figure 5d shows the post-reaction STEM micrograph of Ni and Sn/Ni. Ni particles are completely covered with carbon deposits while Sn/Ni is carbon-free. Furthermore, elemental mapping of Sn/Ni particles via line scan (STEM/EDS) suggests surface alloying. Lower panel (Figure 5d) shows that Sn/Ni ratio diminishes as the probe moves from the particle bottom edge upward, indicating the Sn surface enrichment.

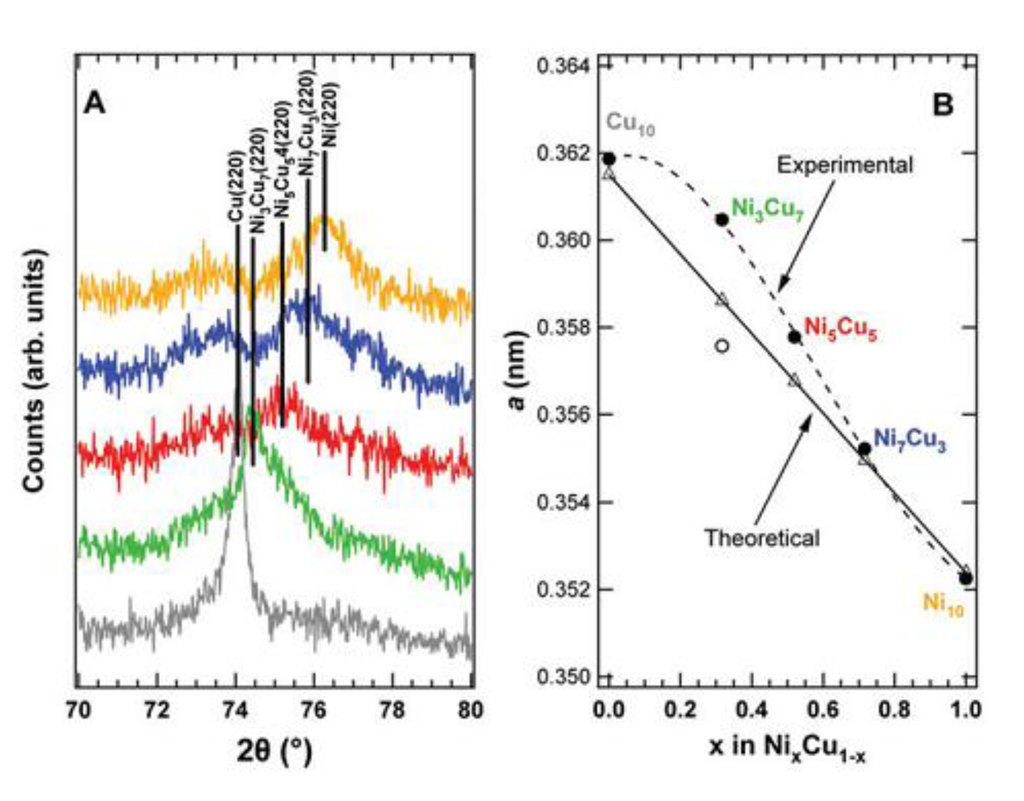

It has been reported that the introduction of Cu in the catalyst formulation suppresses coke deposition and the sintering of the active phase, in steam/dry reforming of hydrocarbons [44,45,46,47,48,49,50]. Fornasiero et al.  have comprehensively studied the methanol and ethanol steam reforming activity of a series of NixCuy/Al2O3 catalysts prepared by wet-impregnation method. Figure 6a shows a progressive shift of the metallic phase peaks. The XRD pattern shows diffraction peaks in an intermediate position, indicating the formation of a Ni-Cu surface alloy. The composition and the number of alloys depend on the Ni:Cu ratio. Figure 6b shows the comparison between the experimental cell parameter a of the metallic phases and the theoretical value calculated by Vegard’s law for intermediate composition. The cell parameter of Ni3Cu7 and Ni5Cu5 is appreciably different with respect to the theoretical values. When the Ni:Cu ratio decreases the lattice parameter increases. There may be two metal phases: a Cu rich alloy and a Ni-rich alloy, existed in the Ni3Cu7. Whereas, only one cubic structure alloy is detectable for the metal phase in the Ni5Cu5. The discrepancy between the observed and theoretical cell parameters suggests that, also in this case, two metal phase alloys could be present.

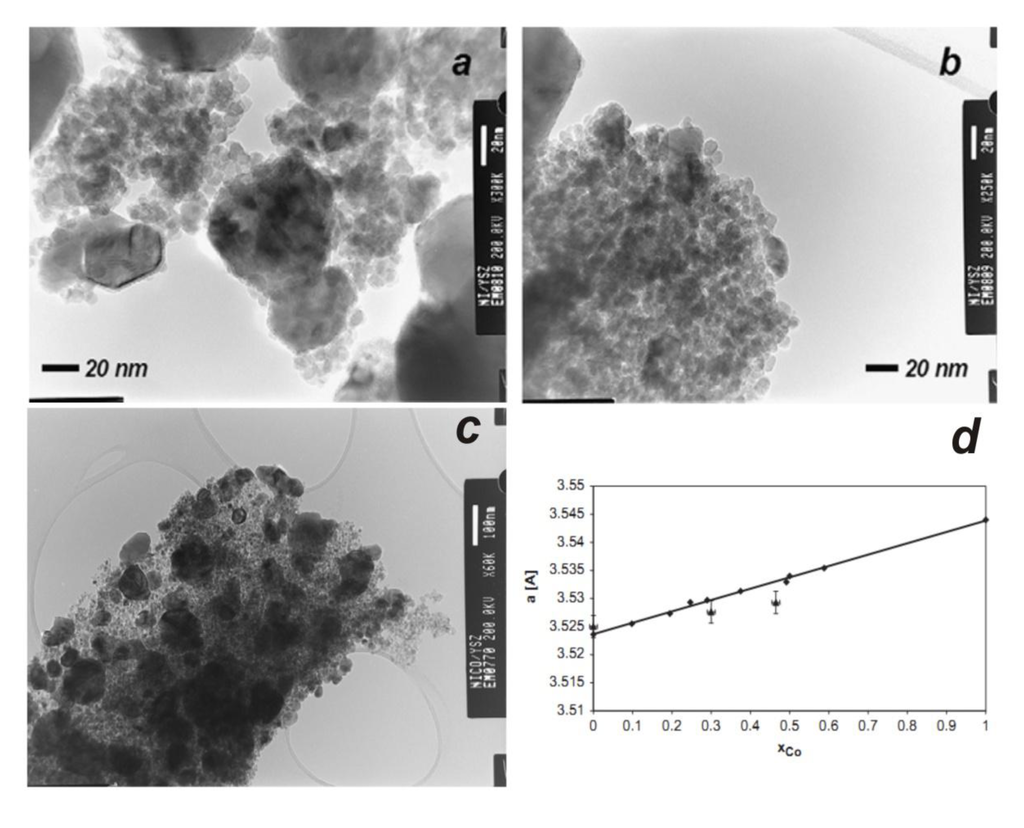

The effect of the addition of Co on Ni-based systems was also studied [51,52]. Ni-Co catalysts with different composition Ni(1−x)Cox (x = 0, 0.32, 0.5) were prepared on yttria-stabilised zirconia (YSZ) as catalysts for ethanol steam reforming. TEM micrographs of the catalysts, 50 wt%Ni/YSZ and Ni(25 wt%)-Co(25 wt%)/YSZ (labeled as Ni25Co25/YSZ) are shown in Figure 7a–c, respectively. The materials are composed of a powder which is heterogeneous in size. As detected by EDS analysis, 50 wt%Ni/YSZ is composed by relatively large Ni clusters (whose crystal size is tens of nm) deposited over small particles of YSZ support, better shown in Figure 7b (crystal size = 5nm). The TEM micrograph of Ni25Co25/YSZ catalyst is shown in Figure 7c. Isolated crystals of Ni-Co alloy, with particle size of 50–100 nm, were detected along with smaller particles mainly constituted by the YSZ support. XRD analysis of the Ni-Co catalysts confirmed the alloy formation, showing a progressive increase of the lattice parameter from 3.524 Å (for pure Ni) up to 3.529 Å determined for Ni1−xCox alloys in agreement with Vegard’s law (Figure 7d). Moreover, Gonzalez-delaCruz et al.  reported that bimetallic Co-Ni catalysts showed a better activity and stability than the nickel monometallic system. They proposed the formation in the bimetallic systems of a more reducible nickel-cobalt alloy phase, which remains completely metallic in contact with the CO2/CH4 reactants at any temperature. The strong synergic effect between Ni and Co sites accounts for the better performance of the bimetallic catalysts.
The promoting effect of small amounts of molybdenum oxide (0.1 wt%) on the resistance to coking of Ni/Al2O3 catalysts for methane and n-butane steam reforming were investigated by Borowiecki and Golebiowski [53,54]. The properties of Ni-Mo catalysts depend on the hydrogen-steam ratio in the reaction mixture which affects the mean degree of oxidation states of MoOx. The addition of Mo to Ni/Al2O3 catalysts for methane steam reforming was recently investigated also by Maluf and Assaf , who found evidence of the transfer of electrons form MoOx species to Ni, leading to an increase in the electron density of metallic Ni, and hence, the catalytic activity.
Interestingly, for the first time, a variety of Ni-Fe mixed oxides derived from Ni-Fe hydrotalcite has been reported by Abelló et al., for ethanol steam reforming . They observed a positive role of iron in nickel-based catalysts in terms of enhanced catalytic activity, improved dispersion of nickel and lower carbon deposition.
The effects of lanthanide promoters (La2O3, CeO2, Pr2O3, Sm2O3 and Gd2O3) on a Ni/Al2O3 catalyst for methane partial oxidation, steam and CO2 reforming were recently addressed by Shao and co-workers . Raman spectroscopy indicated that the addition of lanthanide promoters can reduce the degree of graphitization of carbon deposited over nickel. Moreover, O2-TPO results evidenced that among the investigated systems, GdNi-Al2O3 posses the best coke resistance.
Based on first principle calculations, Saeys and Borgna  proposed that a small amount of boron could possibly enhance the stability of Ni catalysts. Since B and C exhibit similar chemisorptions preferences on Ni catalysts, a small amount of B might selectively block the most stable binding sites. Blocking most active sites first by B, therefore, potentially reduces coke deposition. Supported Ni catalysts were prepared by aqueous slurry impregnation with a nickel nitrate solution to produce Ni content of 15 wt% on a commercial γ-Al2O3 support (BET area: 380 m2/g). After drying at 353 K overnight and calcination at 673 K for 2 h, boric acid was sequentially introduced following the same preparation procedure to produce B content of 0.5 or 1.0 wt%. The XPS spectra (Figure 8) suggest that only B atoms interacting with Ni particles can be reduced, while a significant amount of boron oxide, probably interacting with the γ-Al2O3 support, cannot be reduced. Because γ-Al2O3 without Ni impregnated with 1 wt% B and subjected to the reduction procedure, no shift in the B 1s XPS peak could be found (not shown). The characterization studies indicate that boron might adsorb on both the Ni particles and the γ-Al2O3 support, and that 1 wt% B is sufficient to block the step and subsurface sites.
3. Catalytic Activity of Ni-Au Catalysts and Comparison with Other Ni-Based Bimetallic Systems
Among the above mentioned bimetallic Ni-M systems, some examples have been selected for comments on catalytic activity.
Nørskov and co-workers have proved that Au-Ni surface alloy catalyst is a less reactive but more robust steam reforming catalyst than pure Ni catalyst by experimental tests and theoretical calculations by using CH4 and n-butane as probe molecules [17,18,19]. The Au/Ni catalyst hardly deactivates, whereas the pure Ni catalyst rapidly forms carbon and deactivates. Thus, the Au/Ni catalyst exhibiting the surface alloy is more resistant towards carbon formation than the pure Ni catalyst. King and co-workers then have comprehensively studied the loss of activity as a result of Au promotion, as well as the effect of Au addition on methane steam reforming under typical conditions of industrial reformer operation . They found that carbon formation was not totally suppressed, and with increasing temperature, the effect of Au addition decreased. Addition of 0.4 wt% Au to 8.8 wt% Ni/MgAl2O4 showed a small decrease in catalyst activity and a small increase in catalyst stability for methane steam reforming at 823 K. However, Guczi and co-workers  have recently reported that the addition of 0.5 wt% Au to NiMgAl2O4, although retards the methane dry reforming activity measured in temperature programmed reaction (Figure 9), the activity of the bimetallic Ni-Au system is improved during long time runs. In Figure 10 the concentration and conversion of CO, CO2 and CH4 during overnight reaction at 948 K are displayed for Ni/MgAl2O4 and NiAu/MgAl2O4 catalysts, respectively. Moreover, on the Au containing bimetallic catalyst the formation of carbon nanotubes was retarded or vanished, in the experimental conditions investigated.

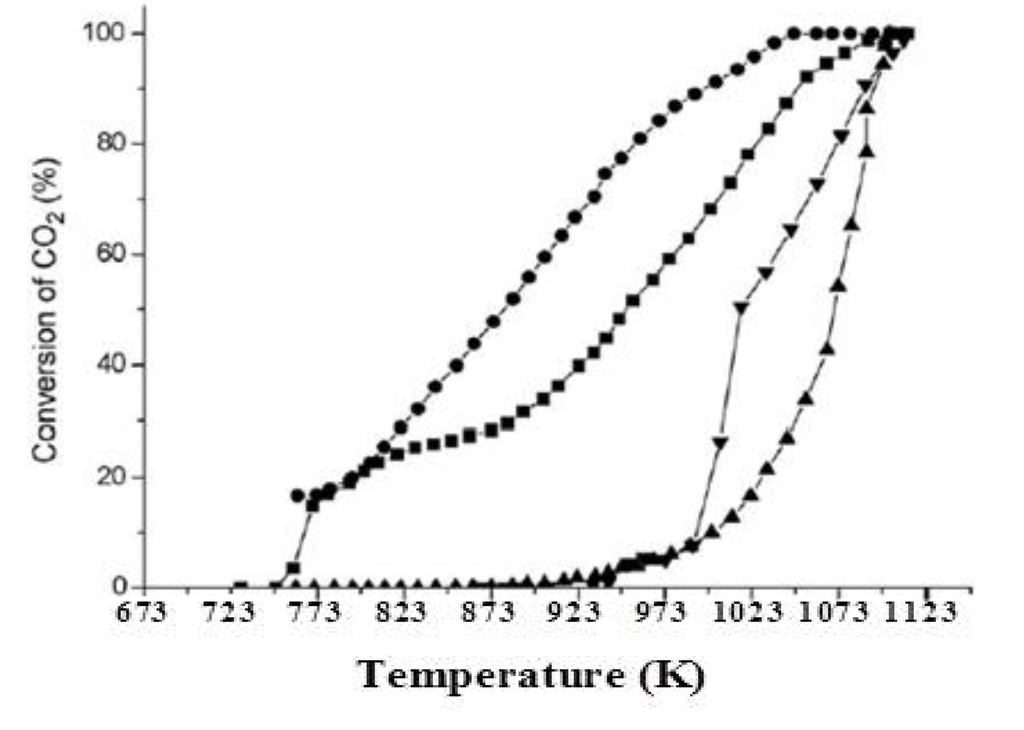

Furthermore, Lazar et al. [22,23,24] have found that the addition of Au to the nickel catalyst improved the methane conversion, CO2 selectivity and hydrogen production at low reaction temperatures (T < 873 K). At 973 K under their working conditions, the additives had no important effect in hydrogen production by methane steam reforming, and the catalysts deactivated. Therefore, the result is very consistent with the report by King et al . On the other hand, Maniecki et al. have reported that the addition of Au to Ni/Al2O3 system improved catalyst stability and activity in partial oxidation of methane to synthesis gas [25,26,27,28]. Based on the results above mentioned, it can be found that there is discrepancy between results reported by different authors with respect to the effect of the addition of gold on catalytic activity of Ni-based catalysts. However, it seems to be confirmed that the addition of gold could improve the resistance of the Ni catalysts towards deactivation due to coke deposition.
Lazar et al. [22,23,24] have reported that the addition of Ag decreased the catalytic properties of Ni catalyst. The catalysts with Ag loading of 0.3 or 0.6 wt% submitted to stability tests showed high resistance to coke deposition reported by Bueno et al. . They further found that at more oxidant conditions (autothermal reforming of methane, ATRM and POM) the redox process led to NiO formation and catalyst deactivation by NiAl2O4 formation . At higher temperatures most probably due to Ag evaporation from Ag doped Ni/YSZ surface, severe anode catalytic and electro-catalytic activity degradation was observed by Neophytides et al. . However, the addition of Ag could reduce the degree of carbon deposition and improve the H2 product selectivity by eliminating the formation of C2 hydrocarbons at temperature less than 1023 K in the butane steam reforming .
Catalytic steam reforming of methane and isooctane over pure Ni and 1% Sn:Ni catalysts are also shown in Figure 5a. The steam to carbon ratios are 0.5 and 1.5 for methane and isooctane, respectively. At 1073 K, the monometallic Ni catalyst rapidly deactivates. Unlike Ni, the Sn-Ni catalyst is active and stable for as long as it is kept on stream, approximately 12 h .

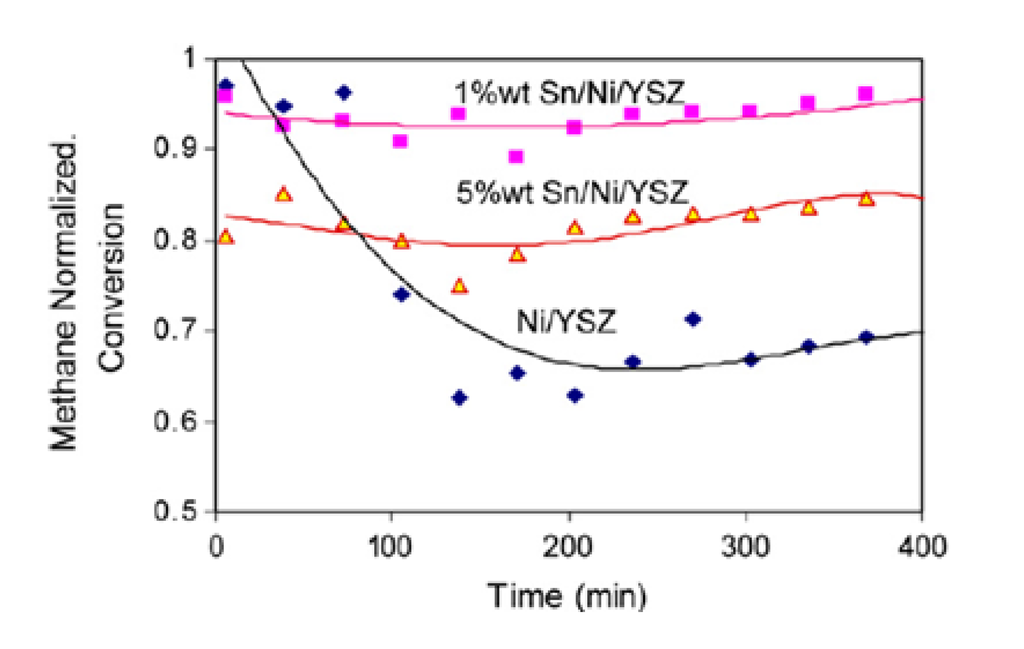

Nikolla et al. have shown that Sn/Ni alloy deposited over YSZ is much more carbon-tolerant than monometallic Ni in the steam reforming of methane, propane and isooctane at moderate steam to carbon ratios . Figure 11 shows the normalized conversion of methane over the 1 wt% and 5 wt% Sn/Ni/YSZ and Ni/YSZ catalysts at a steam-to-carbon ratio of 0.5 and operating temperature of 1073 K. It is evident that Ni/YSZ lost about 45% of its activity after 2h of reaction, whereas the 1wt% Sn/Ni/YSZ was stable for the entire long-run time (15 h). By increasing the Sn loading from 1 to 5 wt%, methane conversion was reduced by ~ 25%, suggesting a negative effect on C-H bond activation.
The introduction of Cu in the Ni catalysts was also investigated for methanol and ethanol steam reforming . The addition of Cu showed a positive effect inhibiting the formation of methane, an undesirable by-product. Although in the ethanol steam reforming the promoter effect of Cu was lesspromising, enhanced stability was observed in the two experiments, indicating a positive role was played by the Cu-Ni bimetallic catalysts.
The effect of the addition of Co on the catalytic activity of Ni/YSZ catalyst for the ethanol steam reforming reaction was also studied by Resini et al. . The addition of Co resulted in the inhibition of the dehydration reaction, as well as of methane production. Furthermore, Co also had an effect on the hydrogen production by increasing it, and thus, apparently favoring methane steam reforming.

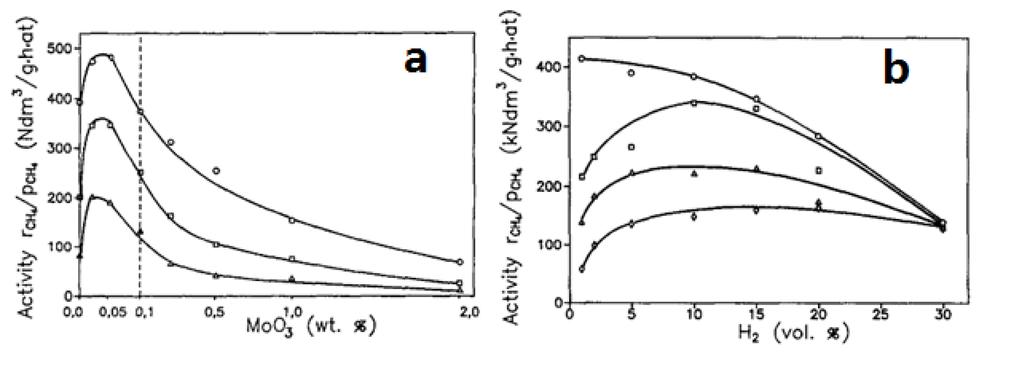

Borowiecki et al. have reported that small amounts of MoO3 (up to 0.1 wt%) caused an increase in activity of doped Ni catalysts . By further increasing the amount of promoter (about 0.5 wt%), a drop occurs (Figure 12a). The catalytic properties of Ni-Mo catalysts depend also on the H2 vol% concentration in the reaction stream. Figure 12b shows the dependence of the methane steam reforming rate on the hydrogen concentration at 873 K for Ni and different Ni-Mo catalysts. The activity of monometallic Ni gradually decreased by increasing hydrogen, while for Ni-Mo catalysts activity maxima were observed as a function of hydrogen content.
Shao and coworkers have, recently, compared the catalytic properties of lanthanide promoters Ni-Al2O3 catalysts, highlighting for GdNi-Al2O3 the best coke resistance and the good stability for methane partial oxidation at 1123 K for 300 h (Figure 13) .

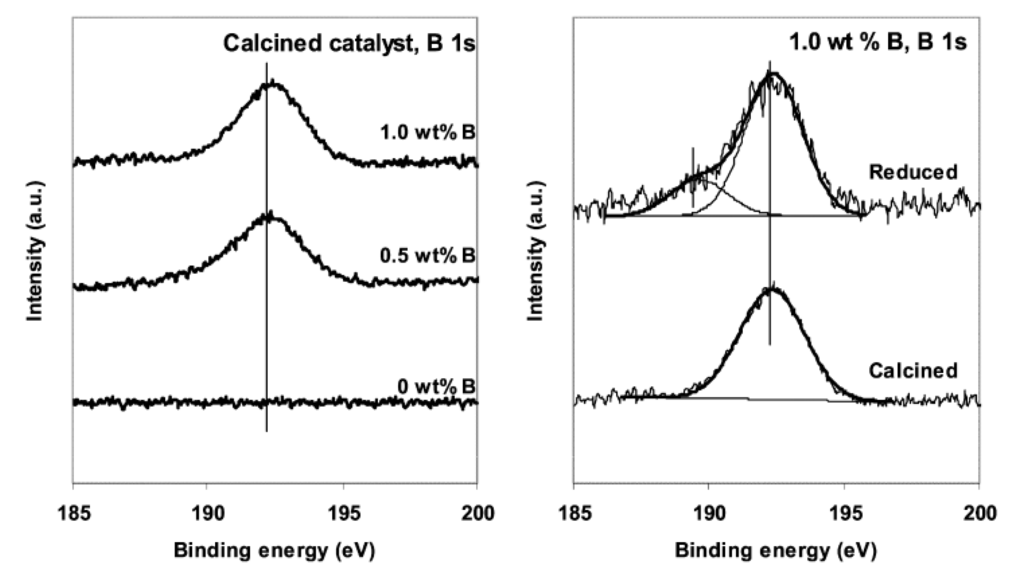

Interestingly, Borgna and Saeys  found that a small amount of boron could enhance the stability without compromising the catalytic activity. Catalytic tests showed that promotion with 1.0 wt% boron reduced the rate of deactivation by a factor of 3 and increased the initial methane conversion from 56% to 61%.
The addition of a small amount of second metals such as Au, Ag, Sn, Cu, Co, et al. to Ni catalysts significantly modifies the properties of metallic Ni particles by the formation of Ni-M bimetallic surface alloys. The structure of bimetallic surface alloys could be changed by choosing different preparation methods or pretreatments.

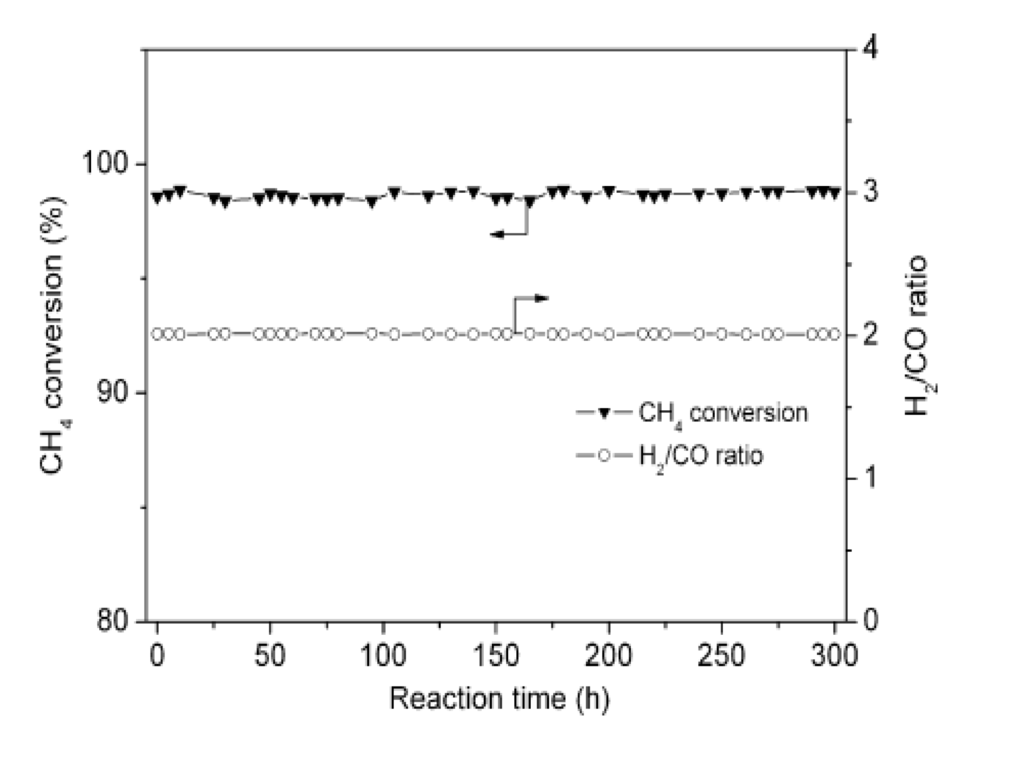

In particular, the addition of a small amount of Au to MgAl2O4-supported Ni catalysts by the sequential impregnation method leads to the formation of Au atoms, which segregated on the surface of the bimetallic particles when the Au loading is high, while well-mixed Au-Ni surface alloys are formed when the Au loading is low (0.1 wt%). The co-impregnation method results in different structures of Au-Ni bimetallic catalysts according to the different authors’ reports. Some authors reported that Au-Ni surface alloys could be also formed on the Ni/Al2O3 catalysts prepared by co-impregnation method. While, some other authors found that no formation of a superficial Au-Ni surface alloy was observed.
Compared to monometallic Ni catalysts, Ni-M bimetallic catalysts exhibit superior catalytic performance in the methane steam reforming, i.e., high activity, high resistance to carbon formation and sintering of metal particles, and high selectivity to H2 product. The improved catalytic performance of Ni catalysts modified with a small amount of second metals has been attributed to the synergic effect between a second metal and Ni by the formation of a superficial bimetallic alloy (such as Ni-Au, Ni-Ag, Ni-Sn, Ni-Cu, Ni-Co, etc.).
As a result, we expect that the following mentioned studies would lead to a further progress in the development of coke resistant bimetallic Ni-based catalysts for steam/dry reforming of methane:
The DFT studies of Ni containing bi/trimetallic alloys or Ni catalysts modified with a second inorganic element would lead to design and preparation of novel Ni-based catalysts;
The comprehensive understanding of the formation mechanisms of bimetallic surface alloys and their effects on catalytic performance and carbon formation would lead to design and preparation of new Ni-based catalysts with improved activity, stability and selectivity;
We feel that the development of novel Ni catalysts modified with a second inorganic element (such as Mo, Fe, Gd and B) should deserve further research studies for steam/dry reforming of methane;
The design of Ni catalysts with selected crystal planes of Ni and Ni-M alloyed particles could find applications in steam/dry reforming of methane.
