The concepts of coupling an anti-cancer drug to a polymer were essentially developed in the early 1980s [8,11]. It took about 20 years for the first polymer-paclitaxel conjugate (PNU166945) to enter a Phase I clinical trial [12]. Polymer-paclitaxel conjugates have been designed to improve the plasma pharmacokinetics by avoiding kidney filtration and to passively target hypervasculature, defective vascular architecture, and an impaired lymphatic drainage of tumor tissues, that is known as “enhanced permeability and retention” effects [13]. Recent clinical advances in polymer-paclitaxel conjugates are credited to co-polymer hydroxypropylmethacrylamide-paclitaxel conjugate (HPMA-PTX) [12] and poly(l-glutamic acid)-paclitaxel conjugate (PG-PTX) [14]. A schematic representation of the chemical structure of HPMA-PTX and PG-PTX is shown in Figure 2 and Figure 3a, respectively. HPMA-PTX is a water-soluble co-polymer in which paclitaxel is covalently bound through an ester bond at its 2′-OH position with an enzymatic degradable linker of Gly-Phe-Leu-Gly peptide. The polymer:paclitaxel ratio was approximately 19:1 (5%) by weight to weight. To improve paclitaxel drug loading, Li et al. [15] changed the polymer backbone to poly(l-glutamic acid). The amount of paclitaxel loading of PG-PTX improved to 20% by weight to weight, but the resulting conjugate contained mixed paclitaxel substitutions at both the C-2′ and C-7 ester positions [15]. With optimization of coupling chemistry of paclitaxel, paclitaxel loading increased to 37% by weight by weight [16]. In a similar platform, poly(lL-γ-glutamylglutamine)-paclitaxel nanoconjugate (PGG-PTX, as shown in Figure 3 (c)), was reported that with an additional glutamic acid as a linker between poly(l-glutamic acid) and paclitaxel, the paclitaxel drug loading was 35% weight by weight, and dissolution of PGG-PTX was faster than that of PG-PTX [17]. Futhermore, the glutamic acid linker provided enough flexibility of the PGG-PTX for self-assembly into nanoparticles whose size remains in the range of 12–15 nm (volume) over the concentration range of 25 to 2,000 μg/mL in saline [17]. Conjugation of paclitaxel can be achieved quantitatively, but it requires highly dried conditions to facilitate the completion of ester coupling in the presence of a 4-dimethylaminopyridine catalyst.

In vitro evaluations of polymer-paclitaxel conjugates have been barely reported, yet polymer-paclitaxel conjugates are less cytotoxicity than that of free paclitaxel against many cancer cell lines [17-19]. Zou et al. [19] reported that a high dose of 1 mmol/L of PG-PTX could not achieve an IC₅₀ value in H-460 cancer cell lines after 24 hours of drug exposure. IC₅₀ value was determined to be 300–1000 nmol/L and 30–100 nmol/L, as paclitaxel equivalents, for PG-PTX after 48 hours and 72–96 hours of drug exposure, respectively, versus 10–30 nmol/L and 3–10 nmol/L for paclitaxel [19]. Van et al. [17] reported that IC₅₀ values in human lung H-460 cancer cell lines were 2.31 μM and 2.25 μM, as paclitaxel equivalents, for PG-PTX and PGG-PTX after 72 hours of drug exposure, respectively, versus 0.15 μM for paclitaxel. The less cytotoxicity of the polymer-paclitaxel conjugates might be a key property to improve their paclitaxel-equivalent dose while maintaining a reasonable toxicity profile for in vivo animal models and clinical developments of chemotherapy versus that of Cremophor and ethanol formulation of paclitaxel.

Polymer-paclitaxel conjugates are expected to prolong their plasma half-life and to have high tumor accumulation due to their slow excretion from kidney and the enhanced permeation and retention effects, respectively. Table 1 shows a comparison of pharmacokinetics (PK) and tumor accumulation of polymer-paclitaxel conjugates with paclitaxel. Li et al. [20] reported that PG-PTX prolonged over 100 times in plasma compared with that of Taxol, and tumor accumulation of PG-PTX was five times higher than that of Taxol. Similar trends were observed with PGG-PTX [21]. PK showed 23 times extended duration of PGG-PTX than that of Taxol, and tumor accumulation of PGG-PTX was seven times higher than that of Taxol [21]. On the basis of the results of PK and tumor accumulation, the findings of prolonged PK and enhanced tumor accumulation of polymer-paclitaxel conjugates could have important efficacy of antitumor activity.

Polymer-paclitaxel conjugates exhibit superior antitumor activity, and in vivo efficacy results of the conjugates have been substantially reported [15,18-20,22,23]. Table 2 shows a summary of pre-clinical efficacy of PGG-PTX, Abraxane (albumin-bound paclitaxel), PG-PTX, and paclitaxel. PGG-PTX demonstrated significant antitumor activity in a well-defined dose-dependent manner with mice-bearing human lung H460 cancer cells, and the conjugate out-performed Abraxane in a number of mouse models [22]. PG-PTX also exhibited significant tumor growth delay after a single i.v. injection at 80 mg/kg (as paclitaxel equivalents) compared with that of paclitaxel in mice bearing murine ovarian OCA-1 carcinoma for two months [15]. Complete tumor regression with a single i.v. dose at 20 mg/kg, as paclitaxel equivalents, of PG-PTX was observed in rat bearing mammary 13762F adenocarcinoma [15]. In addition, mice bearing murine mammary MCa-4, MCa-35, and hepatocellular HCa-1, and soft-tissue Fsa-II cancer showed significant tumor growth delay at 120–160 mg/kg, as paclitaxel equivalents, of PG-PTX (as paclitaxel equivalents) [20]. Mice bearing human ovarian SKOV3ip1 and human breast MDA-MB-435Lung2 cancer had extended survival time and induced tumor regression in 50% of mice at the dose of 120 mg/kg, as paclitaxel equivalents, of PG-PTX [20]. Polymer-paclitaxel conjugates demonstrate excellent tumor growth delays and complete regression in many mouse models.

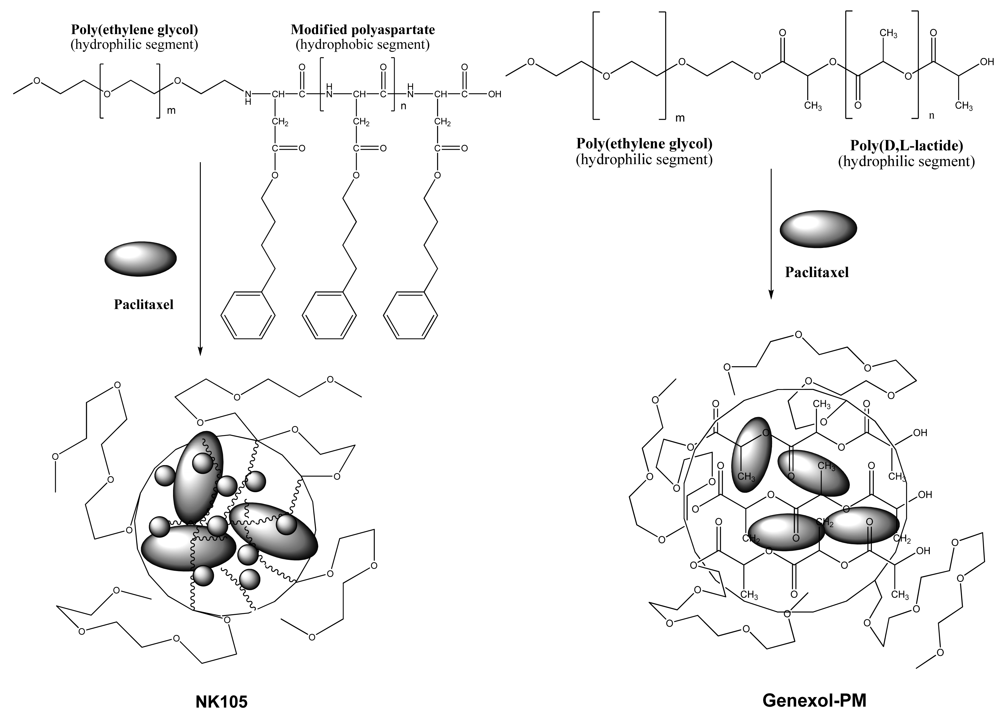

Polymeric micelles are another effective formulation of paclitaxel. Two formulations of polymeric paclitaxel micelles advanced toward clinical developments are NK105 [24] and Genexol-PM [25], and their schematic representation is shown in Figure 4. The polymeric paclitaxel micelles are designed with diblock copolymers featuring hydrophilic segment of polyethylene glycol and hydrophobic portion of modified polyaspartate and poly(D, L-lactide) corresponding to NK105 and Genexol-PM, respectively. The hydrophobic core of the polymeric micelles can entrap free paclitaxel by hydrophobic-hydrophobic interactions. To increase efficiency of paclitaxel entrapment, 4-phenyl-1-butanol was chosen as modified polyaspartate groups after a series of candidate substances was screened [24]. Molecular weight of the NK105 was about 20,000 daltons, which comprises 8,000-dalton polyethylene glycol and 12,000-dalton modified polyaspartate [24]. Genexol-PM comprises of 2,000-dalton monomethoxy poly(ethylene) glycol and 1750-dalton poly(d,l-lactide) [25]. Both polymeric paclitaxel micelles formed stable nano-particles.

In contrast to polymer-paclitaxel conjugates, polymeric paclitaxel micelles exhibit high in vitro cytotoxicity. The polymeric micelles show comparable in vitro cytotoxicity versus that of paclitaxel, against various human cancer cell lines. A summary of their in vitro cytotoxicity is shown in Table 3. Hamaguchi et al. [24] reported that NK105 and paclitaxel were tested on 12 human tumor cell lines derived from lung, gastric, esophagus, colon, breast and ovarian tumors, and the in vitro IC50 values of NK105 and paclitaxel showed similar cytotoxicity activity after 48 and 72 hours of drug exposure. Similar results of in vitro IC₇₀ values of Genexol-PM and paclitaxel were observed with human breast MCF-7 and ovarian OVCAR-3 cancer cell lines [25]. The high cytotoxicity of polymeric paclitaxel micelles indicates that their active drug releases at different rates into the cells compared with the slow drug release of polymer paclitaxel conjugates.

Interestingly, different polymeric paclitaxel micelles possess different plasma pharmacokinetics and tumor accumulation in mouse models compared with that of paclitaxel. Table 4 shows a summary of plasma pharmacokinetics and tumor accumulation of NK105, Genexol-PM, and paclitaxel in mouse models. Hamaguchi et al. [24] reported that when a single i.v. injection of the dose of 50 mg/kg (paclitaxel equivalents) of NK105 and paclitaxel in Colon 26-bearing CDF1 mice was administered, the plasma area under the curve (AUC) of NK105 was 86-fold higher than that of paclitaxel, and at the dose of 100 mg/kg (paclitaxel equivalents) AUC of NK105 was 50-fold higher than that of paclitaxel. The tumor accumulation AUC of NK105 was 24-fold higher than that of paclitaxel at the two doses of 50 mg/kg and 100 mg/kg. However, plasma AUC of Genexol-PM at the dose of 50 mg/kg paclitaxel equivalents was only comparable with that of paclitaxel at the dose of 20 mg/kg [25] in mice-bearing B16 melanoma tumors. Tumor accumulation AUC of Genexol-PM was 1.7-fold higher than that of paclitaxel. The differences in pharmacokinetics and tumor accumulation of the polymeric paclitaxel micelles might result from the different rate of clearance of the polymeric paclitaxel micelles in plasma and from different tumor models.

Unlike the similarity of in vitro cytotoxicity of polymeric paclitaxel micelles, in vivo antitumor activity of polymeric paclitaxel micelles was superior compared with that of paclitaxel. A summary of results of polymeric paclitaxel micelle in vivo efficacy is shown in Table 5. Hamaguchi et al. [24] reported that the antitumor activity of NK105 administered at a 25 mg/kg dose, as paclitaxel equivalents, was comparable to that of paclitaxel which was administered at a 100 mg/kg dose. Furthermore, tumor suppression by NK105 increased in a dose-dependent manner, and tumor-free mice were observed at the dose of 100 mg/kg, as paclitaxel equivalents, of NK105. In addition, at the same doses, NK105 had better toxicity compared with paclitaxel by showing less weight loss and fewer degenerative myelinated fibres [24]. Superior in vivo efficacy was also reported with Genexol-PM compared with that of Taxol [25]. Tumor growth on nu/nu athymic mice bearing human ovarian SKOV-3 cancer was delayed after the treatment of Taxol at the maximum tolerated dose (MTD) of 20 mg/kg, up to 48 days but re-grew rapidly after that time. In contrast, after the treatment of Genexol-PM at the MTD dose of 60 mg/kg, tumor growth suppressed even after 70 days post treatment, and some mice experienced complete regression. Rac:Cr:(NCr)-nu athymic mice-bearing human breast MX-1 tumor treated with Genexol-PM were tumor-free after one month of treatment [25]. The encouraging in vivo efficacy results could have significant implications for future clinical developments.

Favorable results of in vivo efficacy, pharmacokinetics, and tumor accumulation of polymer paclitaxel therapeutics in animal models, provide great insights of the innovative drug delivery systems. Nevertheless, Phase I pharmacokinetic and toxicity studies determine the feasibility of a drug development program. Tables 6–9 show results of Phase I pharmacokinetics and toxicity of the clinical trials of polymer paclitaxel therapeutics up to date. Meerum Terwogt et al. [12] reported that dose-limiting toxicity of PNU166945 (HPMA-PTX) was not observed at the studies dose levels of 80 mg/m² even up to 196 mg/m², as paclitaxel equivalents; therefore, the maximum tolerated dose (MTD) was not reached. The plasma AUC of HPMA-PTX increased from 318 to 450 h·μM corresponding to the starting dose of 80 mg/m² and escalating to 196 mg/m². The concentration C_max also increased from 40 to 75 μM, corresponding with the doses. The t_1/2 and total clearance was about 6.0 to 6.5 h and from 0.5 to 0.9 L/h, respectively, for all the doses. However, the trial study was discontinued due to severe neurotoxicity observed in rat studies [12].

Pharmacokinetics (PK) of PG-PTX showed that its half-life was prolonged [14]. The PK was determined during the first course of treatment and at 24 and 48 hours during the second course [14], which was different and the results could not be used to compare with the results of the normal PK samplings of the first course [12,26,27]. Results of Phase I pharmacokinetic study and toxicity of PG-PTX are presented in Table 7. In the study, dose limiting toxicity of neutropenia was observed at 266 mg/m² (paclitaxel equivalents) in Phase Ia, and the MTD was determined to be 233 mg/m². With the MTD and 3-weekly treatment cycle (Phase Ia), two patients experienced neutrophils toxicity and two patients experienced white blood cell counts (WBC) toxicity Grade 3 or greater. More WBC and neutrophils toxicity was observed with 2-weekly treatment cycle at doses of 177 and 210 mg/m², paclitaxel equivalents [14]. Other non-hematological toxicities Grade 3 or greater such as neuropathy-sensory and motor, liver disfunction, and diarrhea were also observed in the patients with the 2-weekly treatment cycle. Plasma AUC of PG-PTX increased as the doses increased, except one patient treated with a dose of 88 mg/m². At the MTD and 3-weekly treatment, the plasma AUC, t_1/2, and total clearance of PG-PTX was 2326 h-μM, 120 h, and 0.28 L/h, respectively. The results from the Phase I study of PG-PTX show that polymer-paclitaxel conjugate prolonged its half-life with limited volume of distribution.

Polymeric paclitaxel micelles were investigated in a Phase I trial and showed that they were well tolerated and extended blood circulation [26,27,32]. Results of Phase I pharmacokinetics and toxicity of Genexol-PM and NK105 are shown in Tables 8 and 9, respectively. On a 3-weekly regimen for patients with advanced malignancies, the paclitaxel AUC and peak concentration of Genexol-PM increased linearly with escalating dose, except at 230 mg/m². The dose-limiting toxicity effects of neuropathy-sensory and motor and neutropenia were observed at a dose of 390 mg/m². Paclitaxel AUC and peak concentration of NK105 increased as the doses increased from 10 to 180 mg/m² [27]. Surprisingly, the paclitaxel AUC and peak concentration of NK105 [27] were exceptionally high compared with those of Taxol [33] and Genexol-PM [26]. The paclitaxel AUC of NK105 and peak concentration was 110 to 532 h·μM and 10 to 53 μM, respectively, corresponding to the doses of 40 mg/m² to 180 mg/m², whereas the paclitaxel AUC and peak concentration of paclitaxel was 22 h·μM and 3 μM [33], respectively. However, at 180 mg/m², as paclitaxel equivalents, of NK105, two out of five and three out of five patients acquired neutropenia grade 4 and grade 3, respectively. Plasma AUC of NK105 at 150 mg/m² was about 24-fold higher than that of paclitaxel at 175 mg/m². Both polymeric paclitaxel micelles seem to be well tolerated.

Paclitaxel and platinum-based chemotherapy is the standard regimen for recurrent epithelial ovarian cancer [31]. With favorable preclinical [23] and clinical [14] pharmacokinetics and establishment of MTD of 235 mg/m² (paclitaxel equivalents), PG-PTX was investigated for Phase II toxicity, response rate, and time to disease progression (TTP) in women with recurrent epithelial ovarian, primary peritoneal, or fallopian tube carcinoma in multi-centers and multi-trials [28,29]. Clinical outcomes of the PG-PTX Phase II therapy are shown in Table 10. Response rate and median TTP of PG-PTX were 10% and 2.1 months, respectively, which were reported in one Phase II study [28], and response rate and median progression-free survival for PG-PTX were 16% and 2.8 months, respectively, which were reported in another Phase II study [29]. Those response rates and the median progression-free survival numbers were not favorable compared with that of the standard regimen of paclitaxel and platinum-based chemotherapy which exceeded 70% of response rate [28,34] and 18–30 months of median progression-free survival [31,34]. Furthermore, a Phase II study of PG-PTX in combination with transdermal estradiol for the treatment of metastatic castration-resistant prostate cancer after docetaxel chemotherapy was also not positive due to no responses in measurable diseases, the 0.9-month median TTP, and the 7.8-month median overall survival [30], compared with 12% response rate and 16.5-month median overall survival for the docetaxel plus prednisone treatment [35] and with 17% response rate, 17.5-month median overall survival, and 6.3-month median TTP of the docetaxel and estramustine regimen [36]. Overall, the response rate, median overall survival, and median TTP of PG-PTX in the multi-phase II trials were not improved compared with those of standard chemotherapy.

Paclitaxel was approved for treatment in patients with metastatic breast cancer with typical response rate of 25% [37] and median overall survival of 13–20 months [37-39]. The multi-center Phase II trials of Genexol-PM and PG-PTX were carried to evaluate their response rate, median TTP, and median overall survival. Table 11 presents a summary of clinical outcomes of polymer paclitaxel therapy in patients with metastatic breast cancer. Lin et al. [40] reported that Phase II study of PG-PTX resulted in unexpected incidence of hypersensitivity reactions and neurotoxicity at a dose of 175 mg/m² with 3-weekly cycle regimen. The objective responses were observed in four of 18 patients (22% of overall response rate). The study was terminated early due to higher-than-expected rate of hypersensitivity reactions. However, polymeric paclitaxel micelle Genexol-PM showed surprisingly 59% of response rate and 9-month median TTP [41], compared to 25% of response rate and 3-5 months of median TTP of paclitaxel [37,38]. On the basis of response rate and median TTP, Genexol-PM seems to be an encouraging new formulation of paclitaxel for treatment of metastatic breast cancer.

A combination of paclitaxel and platinum-based chemotherapy seems to be a choice for treatment of patients with non-small-cell lung cancer (NSCLC) [39-42]. A single agent PG-PTX [43,44] and a combination of PG-PTX and carboplatin [45] in patients with advanced NSCLC were investigated to evaluate the survival as the primary study end point, and the response rate, time to progress (TTP), safety, and quality of life as secondary objectives. Clinical outcomes of PPX therapy of three Phase III trials are shown in Table 12. O'Brien et al. [43] reported that the overall survival was similar between chemotherapy-naive PS 2 patients with advanced NSCLC who randomly received single-agent PPX at 175 mg/m² or a standard single agent vinorelbine or gemcitabine. Median survival and 1-year survival were 7.3 months and 26%, respectively, for PG-PTX arm, versus 6.6 months and 26% for the standard control arm which was statistically non-significant. The patients treated with PG-PTX experienced 30% of neuropathy, whereas, with the standard control treatment, experienced 5% of neuropathy. In a different Phase III trial [44], results showed that median and 1-year survival were 6.9 months and 25%, respectively, for the PG-PTX arm (175 mg/m² or 210 mg/m²) versus 6.9 months and 29% for the docetaxel arm (75 mg/m²). Due to adverse effects, more patients treated with PG-PTX discontinued their treatment. Langer et al. [45] reported that the overall survival was also similar between chemotherapy-naive PS 2 patients with advanced NSCLC who randomly received carboplatin at AUC 6 and either PG-PTX at 210 mg/m² or paclitaxel 225 mg/m². Median overall survival was 7.8 months for PG-PTX arm versus 7.9 months for paclitaxel, and 1-year survival was 31% for both arms. A combination of polymeric paclitaxel micelle Genexol-PM with cisplatin was also investigated in a Phase II trial [46]. Results of the Phase II study in patients with advanced NSCLC are shown in Table 12. Median overall survival and 1-year survival was 21.7 months and 60% for Genexol-PM at 230 mg/m² and cisplatin at 60 mg/m². Overall, a combination of Genexol-PM with cisplatin chemotherapy demonstrated significant antitumor activity, compared with a single agent PG-PTX, a combination of PG-PTX with carboplatin, or paclitaxel with platinum-based chemotherapy.

The incidence of gastric cancer is very high in Asia, particularly in Japan, Korea, and China [47]. 5-Fluorouracil and/or cisplatin-based combination chemotherapy is widely used for the treatment of gastric cancer but only achieves modest benefits [48,49]. Paclitaxel and a combination of paclitaxel with platinum-based chemotherapy were investigated for better treatment of this disease. Results showed that paclitaxel and its combination with paclitaxel delivered 23, 33, and 43% of response rate and 43, 23, and 40 months of 1-year survival with treatment of paclitaxel [50], paclitaxel plus carboplatin [48], and paclitaxel plus cisplatin [49], respectively. Polymeric paclitaxel micelles Genexol-PM [51] and NK105 [52] were also evaluated for efficacy and safety as Phase II trials. Results of the trials are shown in Table 13. Response rate and median overall survival for NK105 were 25% and 10.2 months, respectively. A combination of Genexol-PM with cisplatin improved up to 46% of response rate and 13.8 months of median overall survival, compared with 33% response rate and 7.5 months of median overall survival for paclitaxel plus caroplatin [48] and 43% response rate and 11.2 months of median overall survival for paclitaxel plus cisplatin [49]. Overall, polymeric paclitaxel micelles provided some benefits to patients with advanced gastric cancer in terms of response rate, median overall survival, and 1-year survival.

Polymer paclitaxel conjugates and encapsulates exhibit their unique advantages and face their own intrinsic issues. Polymer paclitaxel conjugates gain ground on: (1) robust conjugation chemistry; (2) ease of large scale manufacture, and (3) easy formulation. To the best of our knowledge, with anhydrous dimethylformamide as a solvent and trace of 4-dimethyl-aminopyridine as a catalyst, coupling chemistry of paclitaxel onto a polymer with a pendent carboxylic acid is relatively simple, robust, and quantitative [17]. Lab-scales of 10-to 100-g batches of lyophilized polymer-paclitaxel conjugate can be delivered within a few days using tangential flow filtration. The lyophilized polymer-paclitaxel conjugate as an active pharmaceutical ingredient can be reconstituted in water or physiological saline before injection [18,22]. The current issues with polymer-paclitaxel conjugates are: (1) broad polydispersity indices (PDI); (2) randomness of conjugation; and (3) mixed paclitaxel substitutions at both the C-2′ and C-7 ester positions at γ-position of a pendent carboxylic acid of a poly(L-glutamic acid) (PG) [15] as shown in Figure 3 (a) and γ-and β-positions of a pendent carboxylic acid of a poly(L-γ-glutamylglutamine) [17]. Typically, PG is obtained from a chemical supplier with broad PDIs of 1.5–1.8. The randomness of conjugation and the mixed substitutions of paclitaxel provide an unclear picture of paclitaxel release. These disadvantages may be key obstacles in chemistry, manufacture, and control of clinical products. Furthermore, when developing a novel polymer-paclitaxel conjugate, chemistry design should be focused on evading liver, lung, kidney, and spleen uptakes to improve its efficacy. If one provided mono-disperse polymers with precise chemical conjugation and ease of modification of multifunctional groups, a polymer drug conjugate field would be clearly and rapidly advanced. Polymer paclitaxel micelles receive attention based on: (1) ease of small (<10-g) scale formulation of paclitaxel; and (2) complete controlled release of paclitaxel. However, when one carries out scaled-up formulations (10-and 100-g batches) of polymeric paclitaxel micelles, their manufacture process and quality control may face some issues. A key parameter that must be overcome to deliver quality clinical materials may be to demonstrate a robust processing of large scale production of the micelle particles. With regard to poor correlation between preclinical and clinical outputs, we speculate that mouse models were not comparable to human cancer diseases. We also believe that when polymer paclitaxel formulations were injected in mice, less attention was paid to hypersensitivity reactions. As a result, an unexpected incidence of hypersensitivity reactions was observed in clinical trial study [40]. Combining polymer-paclitaxel conjugates with polymeric paclitaxel micelles would provide an innovative approach for polymer paclitaxel therapeutics.
