Micromachines 2018, 9(7), 347; https://doi.org/10.3390/mi9070347

Reconfigurable Sensor Analog Front-End Using Low-Noise Chopper-Stabilized Delta-Sigma Capacitance-to-Digital Converter

1
Department of Electronics Engineering, Chungnam National University, Daejeon 34134, Korea
2
LeoLSI Co., Ltd., Seoul 06728, Korea
*
Author to whom correspondence should be addressed.
Received: 15 May 2018 / Revised: 29 June 2018 / Accepted: 9 July 2018 / Published: 10 July 2018
(This article belongs to the Special Issue Interface Circuits for Microsensor Integrated Systems)
View Full-Text   |   Download PDF [10236 KB, uploaded 11 July 2018]   |

Abstract

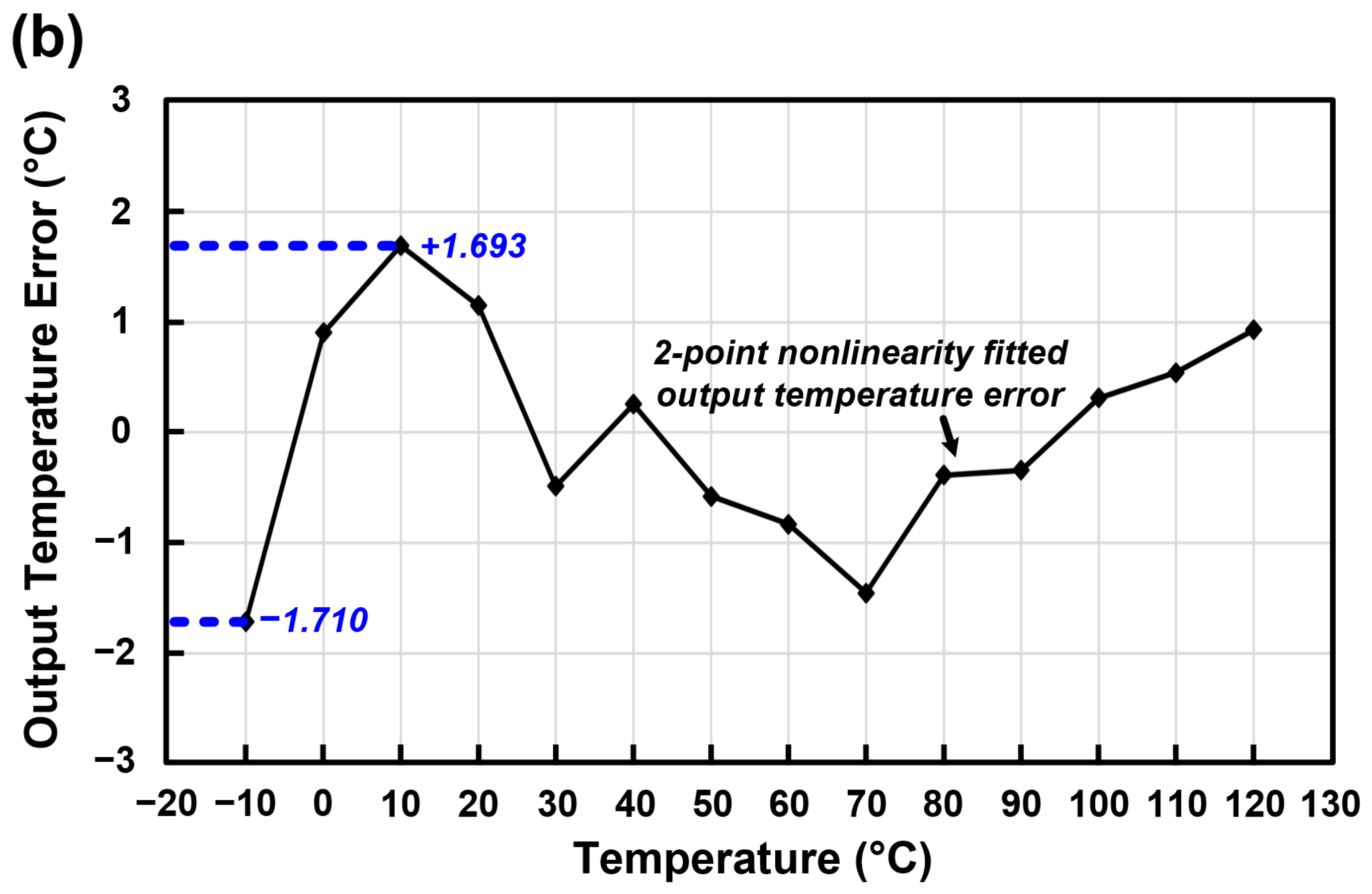

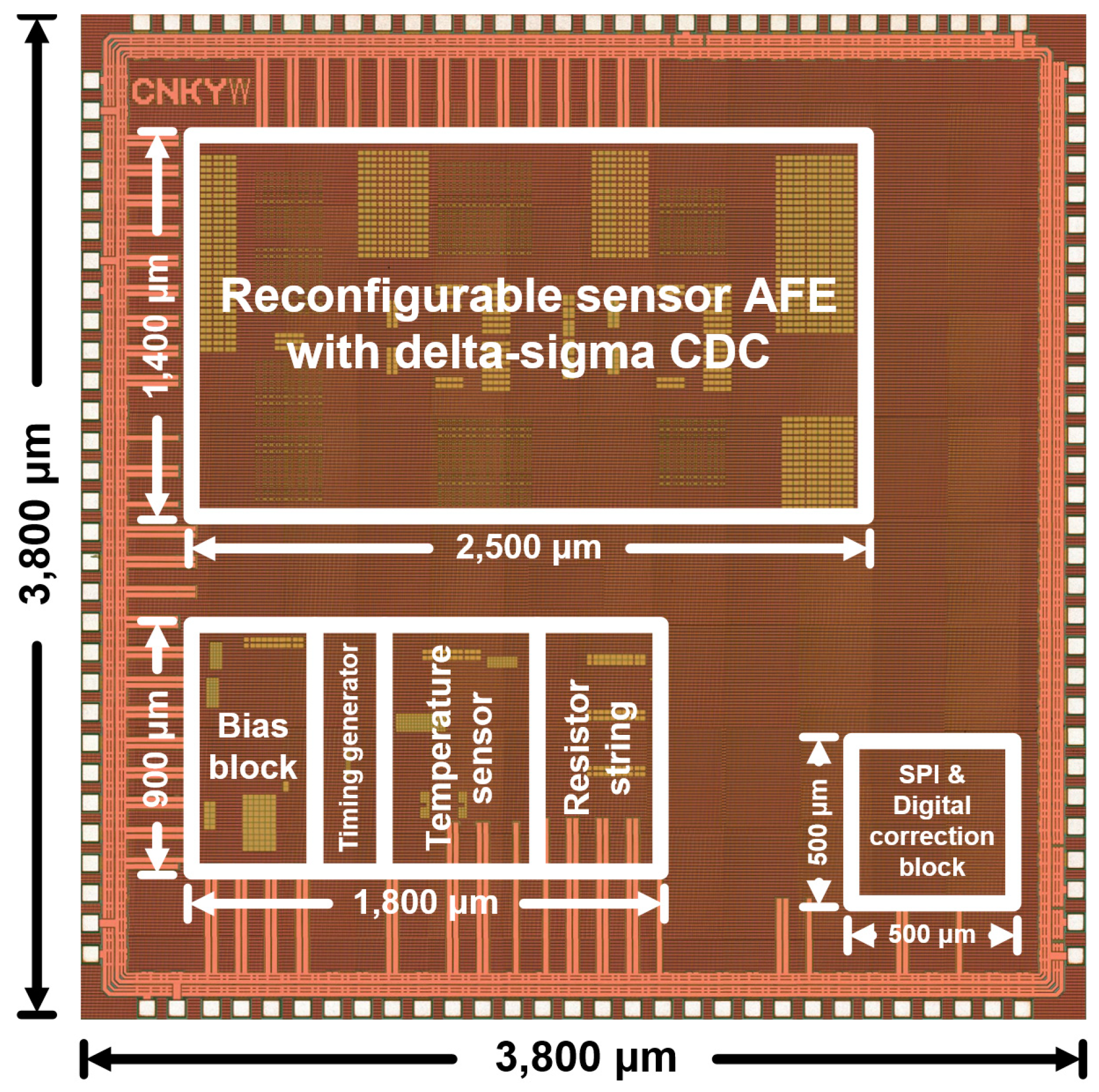

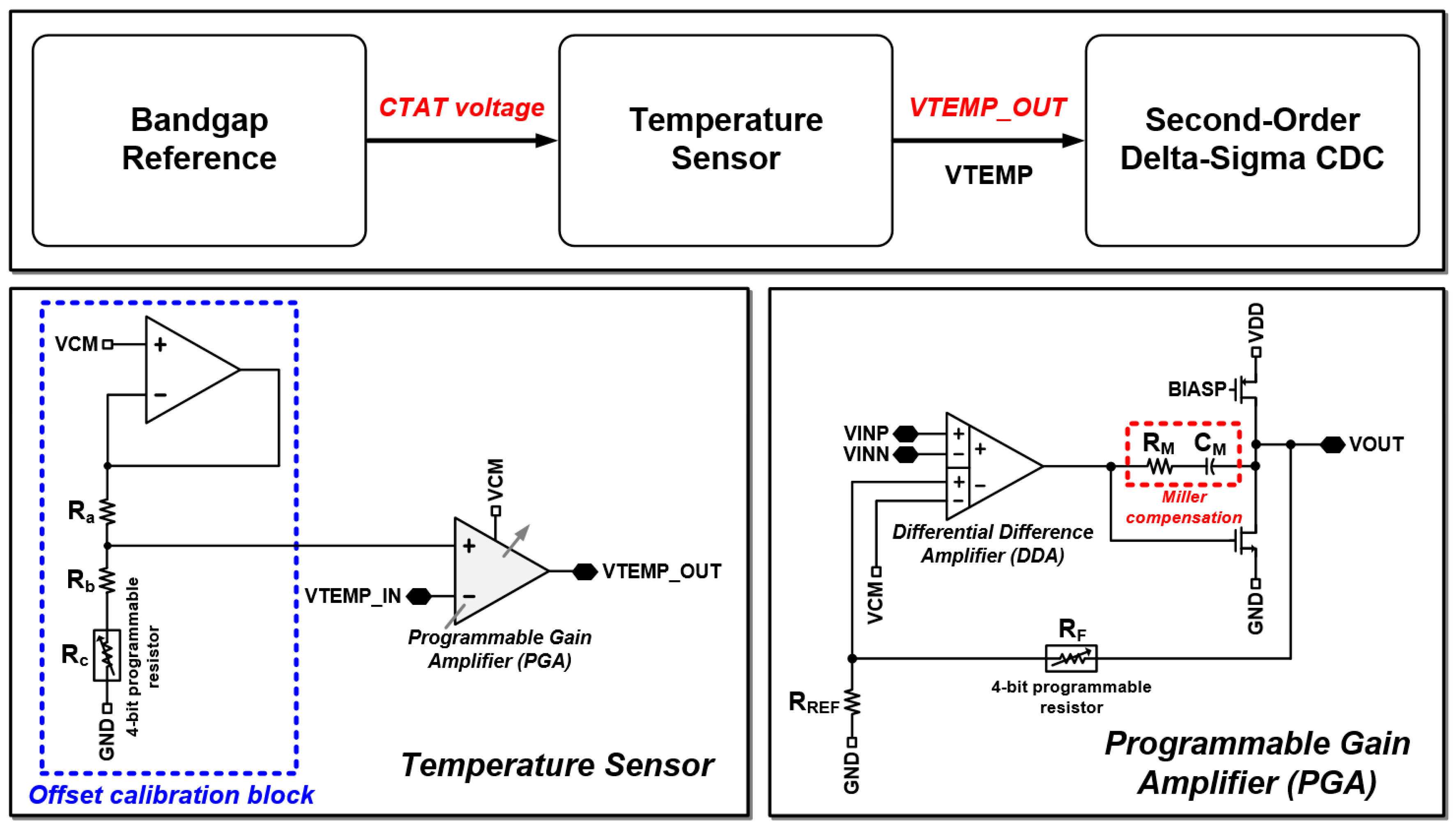

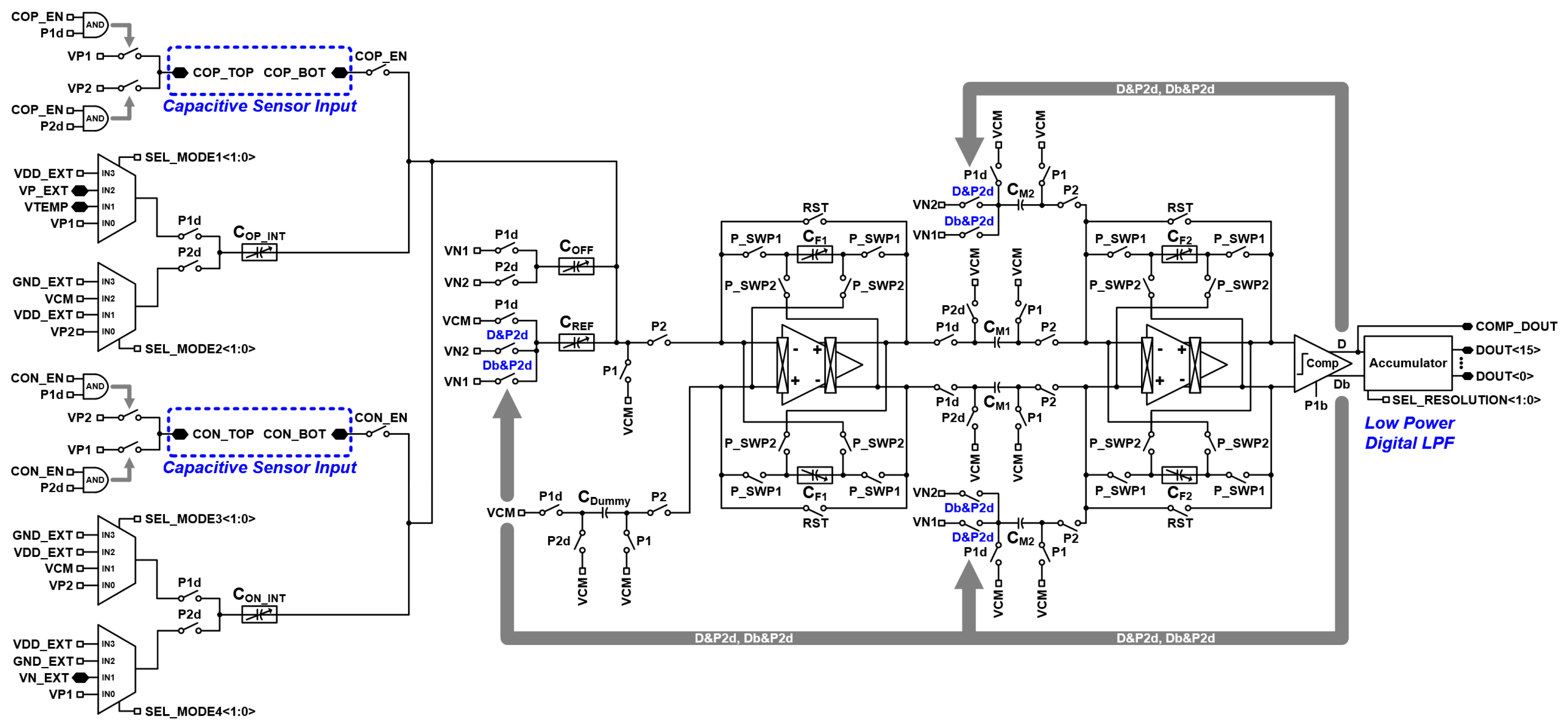

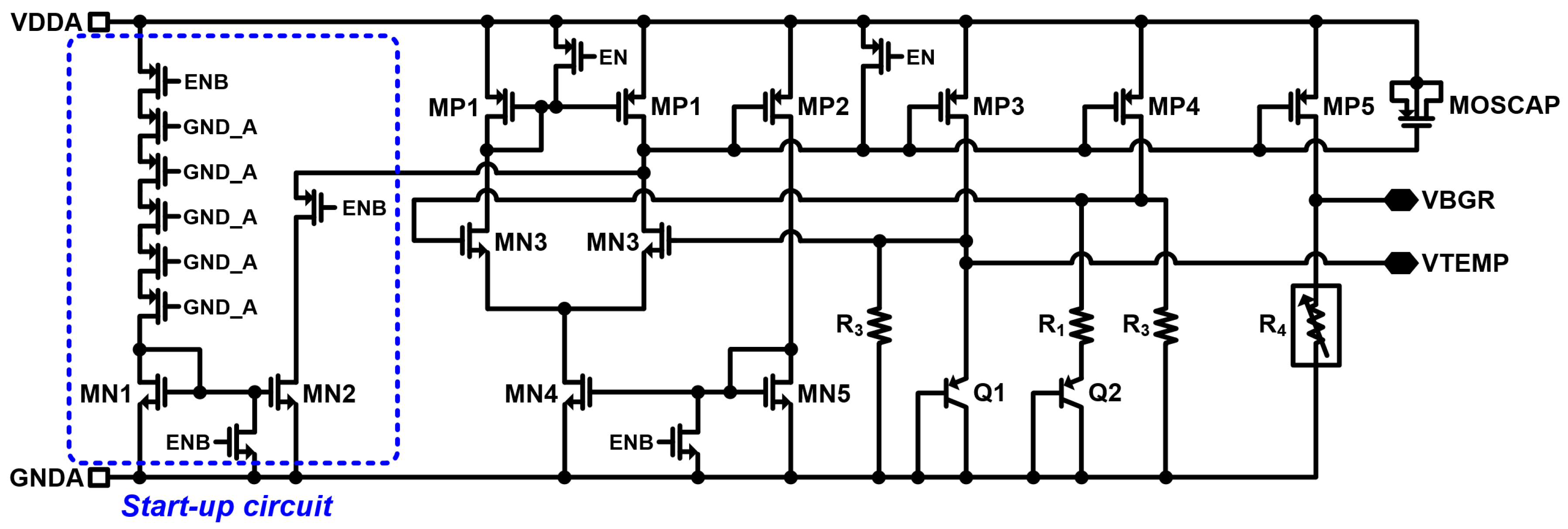

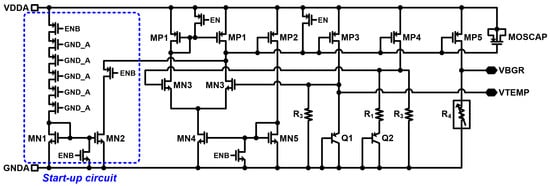

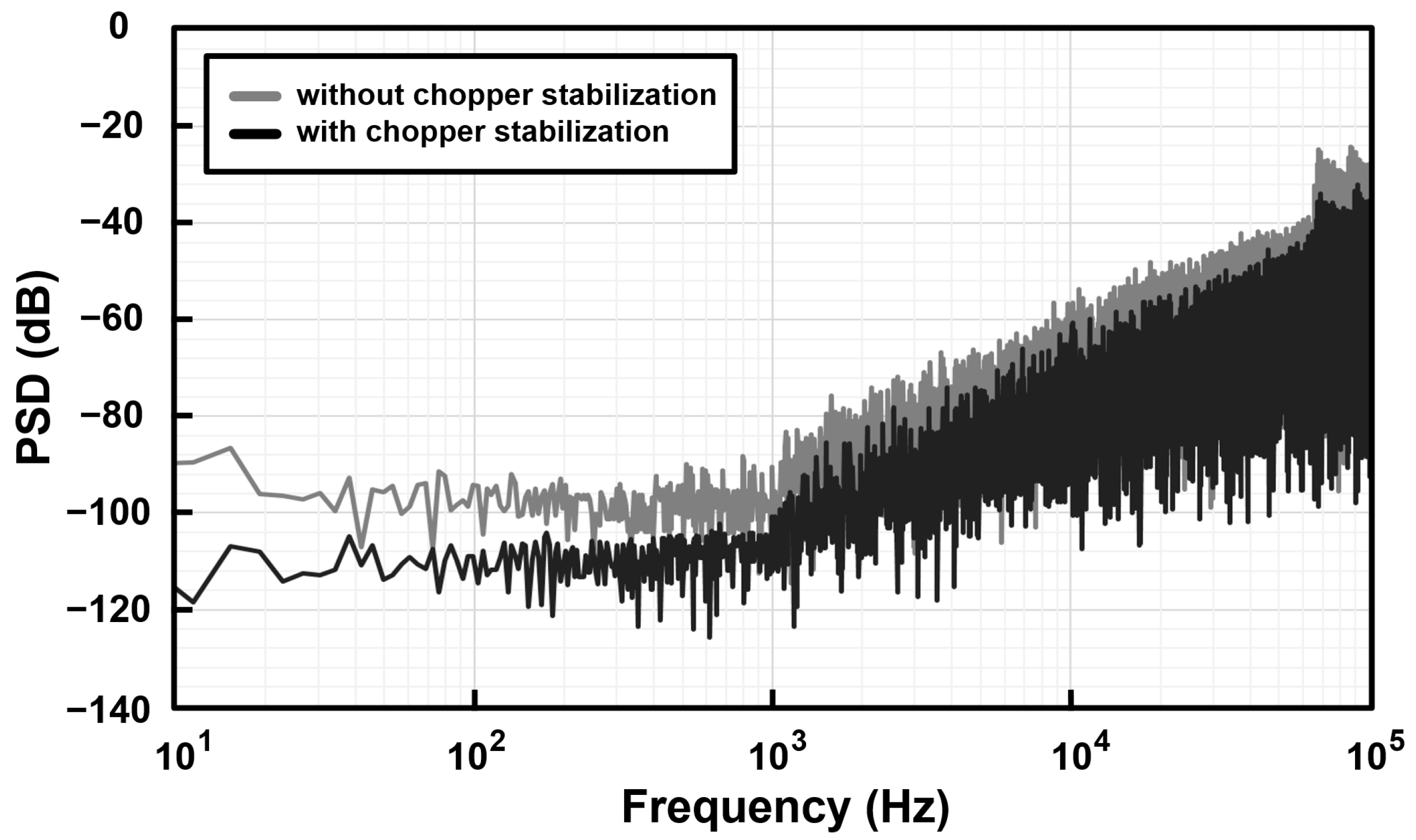

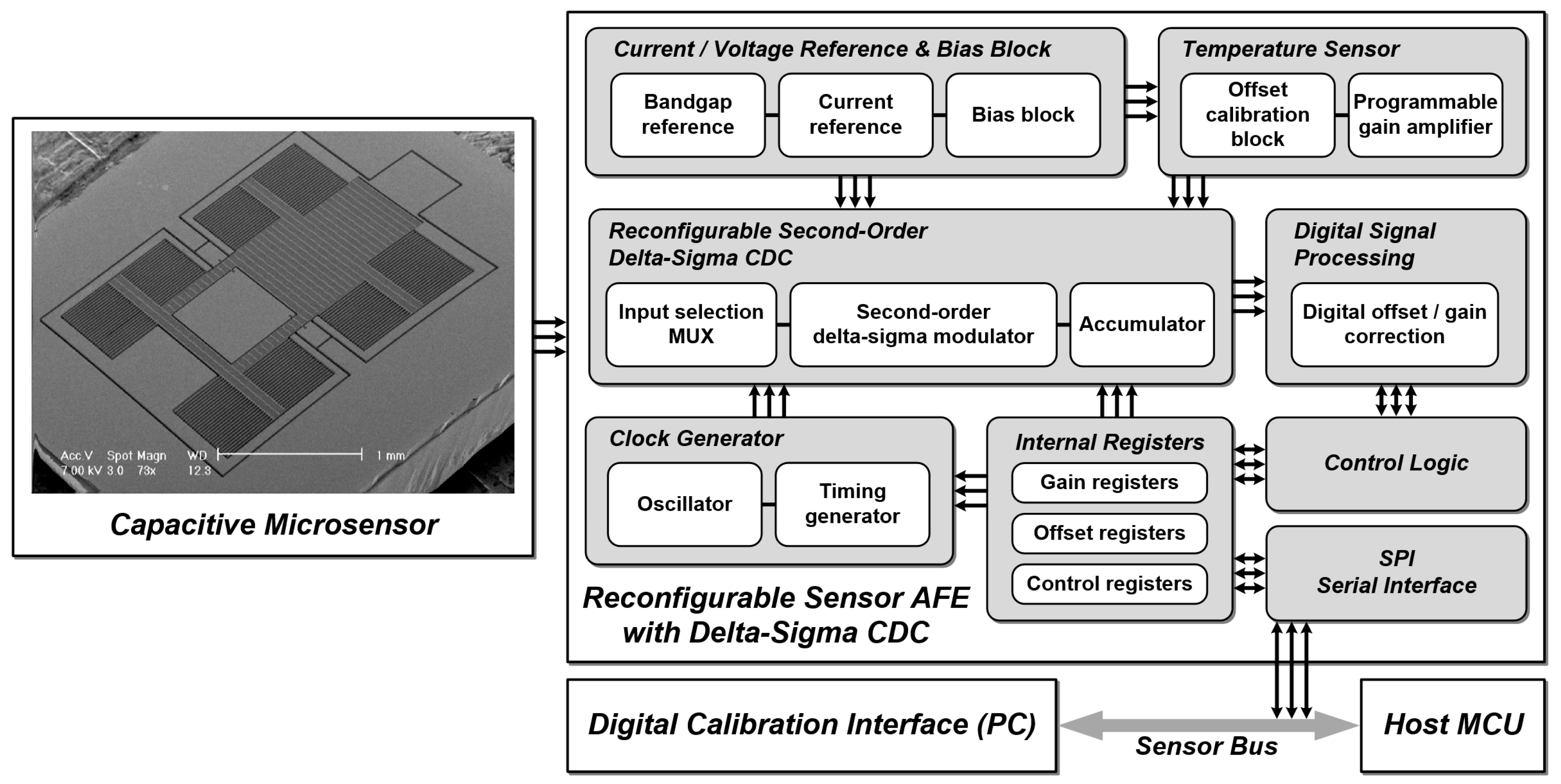

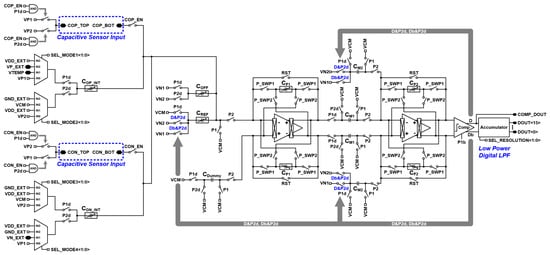

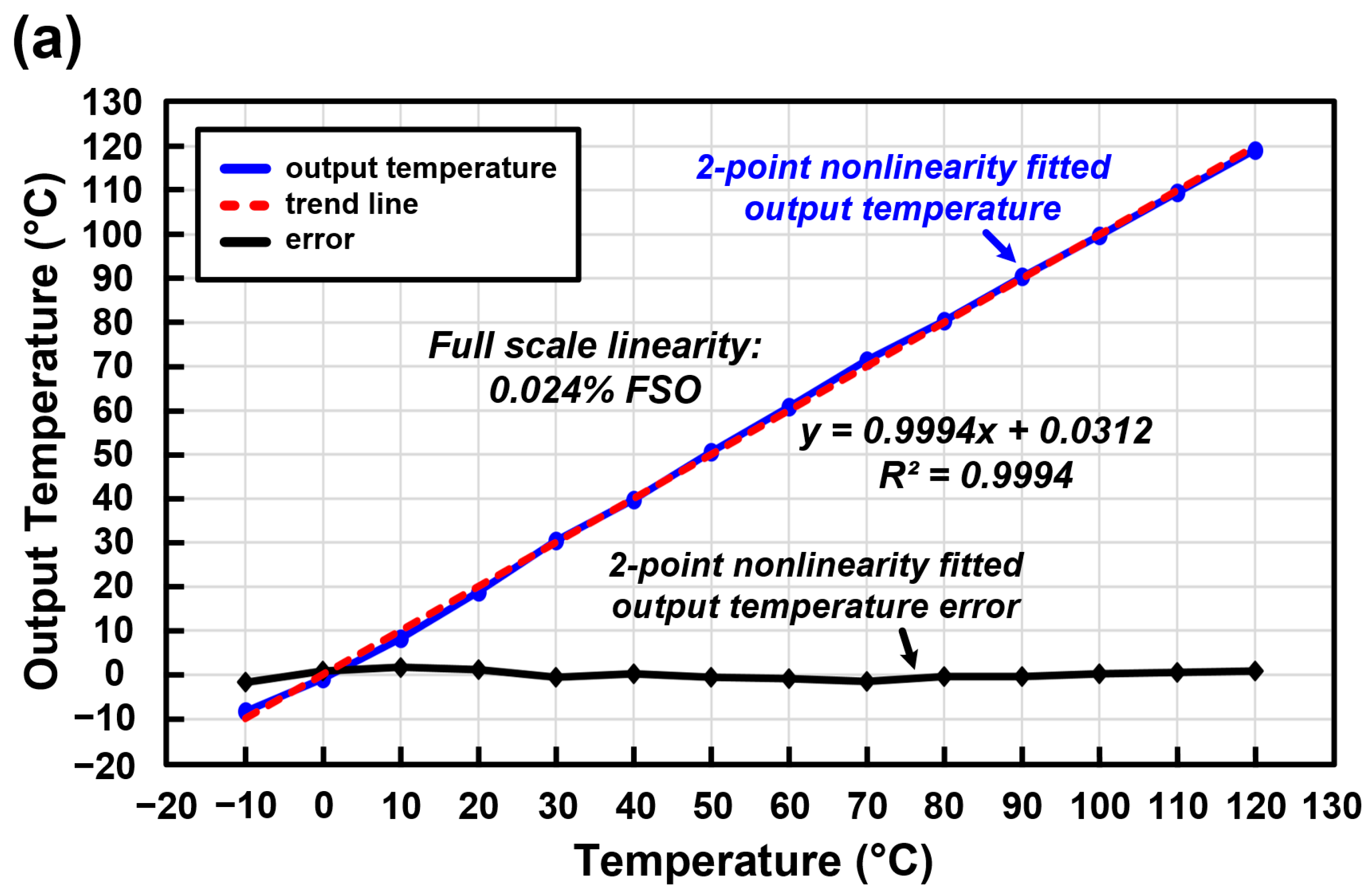

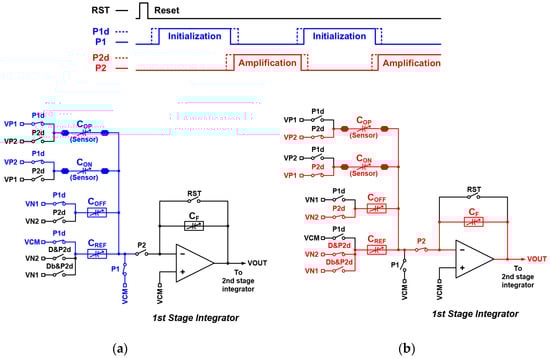

This paper proposes a reconfigurable sensor analog front-end using low-noise chopper-stabilized delta-sigma capacitance-to-digital converter (CDC) for capacitive microsensors. The proposed reconfigurable sensor analog front-end can drive both capacitive microsensors and voltage signals by direct conversion without a front-end amplifier. The reconfigurable scheme of the front-end can be implemented in various multi-mode applications, where it is equipped with a fully integrated temperature sensor. A chopper stabilization technique is implemented here to achieve a low-noise characteristic by reducing unexpected low-frequency noises such as offsets and flicker noise. The prototype chip of the proposed sensor analog front-end is fabricated by a standard 0.18-μm 1-poly-6-metal (1P6M) complementary metal-oxide-semiconductor (CMOS) process. It occupies a total active area of 5.37 mm2 and achieves an effective resolution of 16.3-bit. The total power consumption is 0.843 mW with a 1.8 V power supply. View Full-Text
Keywords: capacitive microsensor; analog front-end (AFE); capacitive sensor interface circuit; reconfigurable sensor readout circuit; delta-sigma modulation; capacitance-to-digital converter (CDC); temperature sensor; low-noise technique; chopper stabilization capacitive microsensor; analog front-end (AFE); capacitive sensor interface circuit; reconfigurable sensor readout circuit; delta-sigma modulation; capacitance-to-digital converter (CDC); temperature sensor; low-noise technique; chopper stabilization
Figures

Figure 1
