Micromachines 2017, 8(6), 189; doi:10.3390/mi8060189

Parametric Analysis and Experimental Verification of a Hybrid Vibration Energy Harvester Combining Piezoelectric and Electromagnetic Mechanisms

1
School of Mechanical Engineering, Hangzhou Dianzi University, Hangzhou 310018, China
2
School of Mechatronics Engineering, Harbin Institute of Technology, Harbin 150001, China
3
College of Environmental and Resource Sciences, Zhejiang University, Hangzhou 310029, China
*
Author to whom correspondence should be addressed.
Received: 11 May 2017 / Revised: 12 June 2017 / Accepted: 15 June 2017 / Published: 18 June 2017
(This article belongs to the Special Issue Piezoelectric MEMS)
View Full-Text   |   Download PDF [6066 KB, uploaded 18 June 2017]   |

Abstract

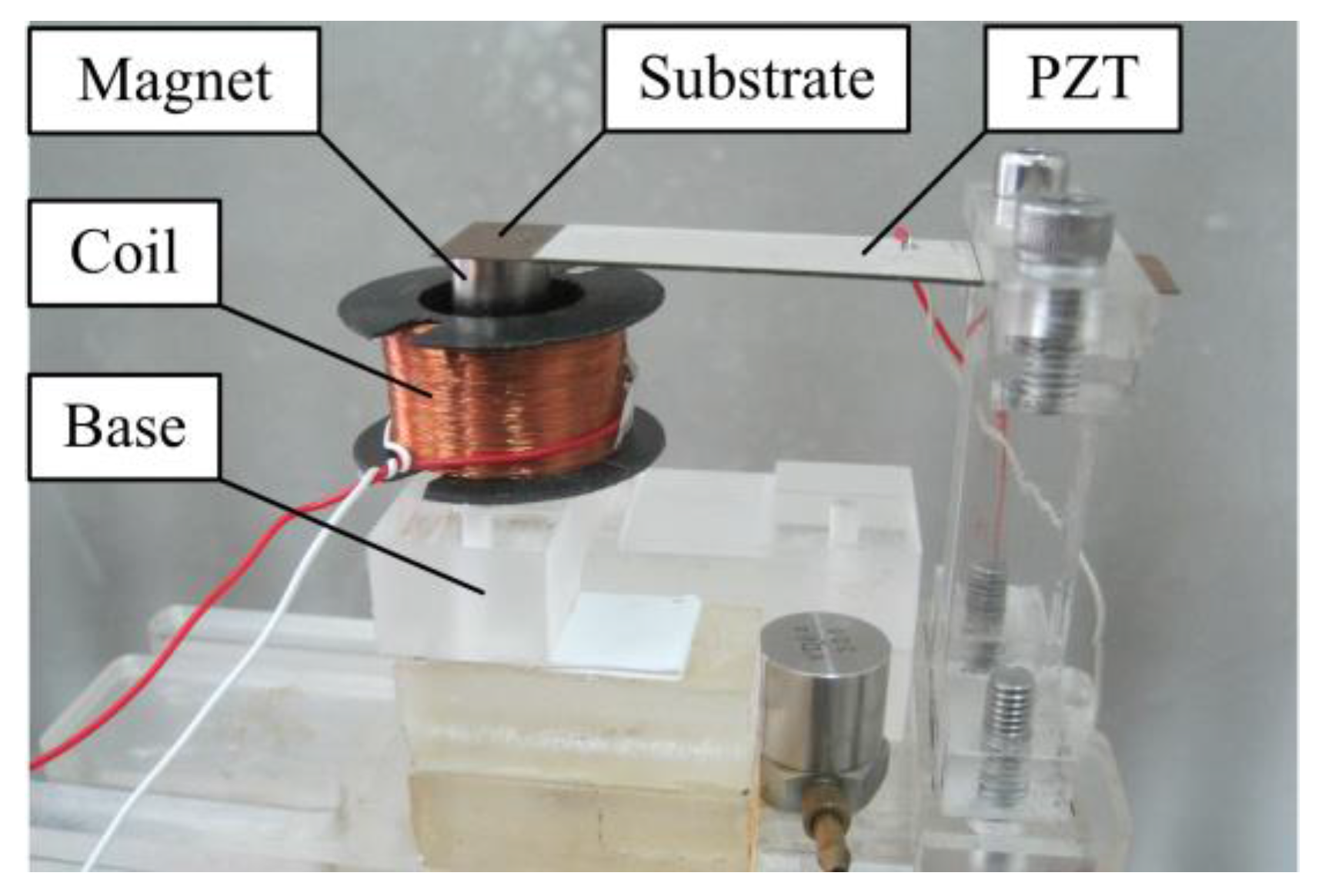

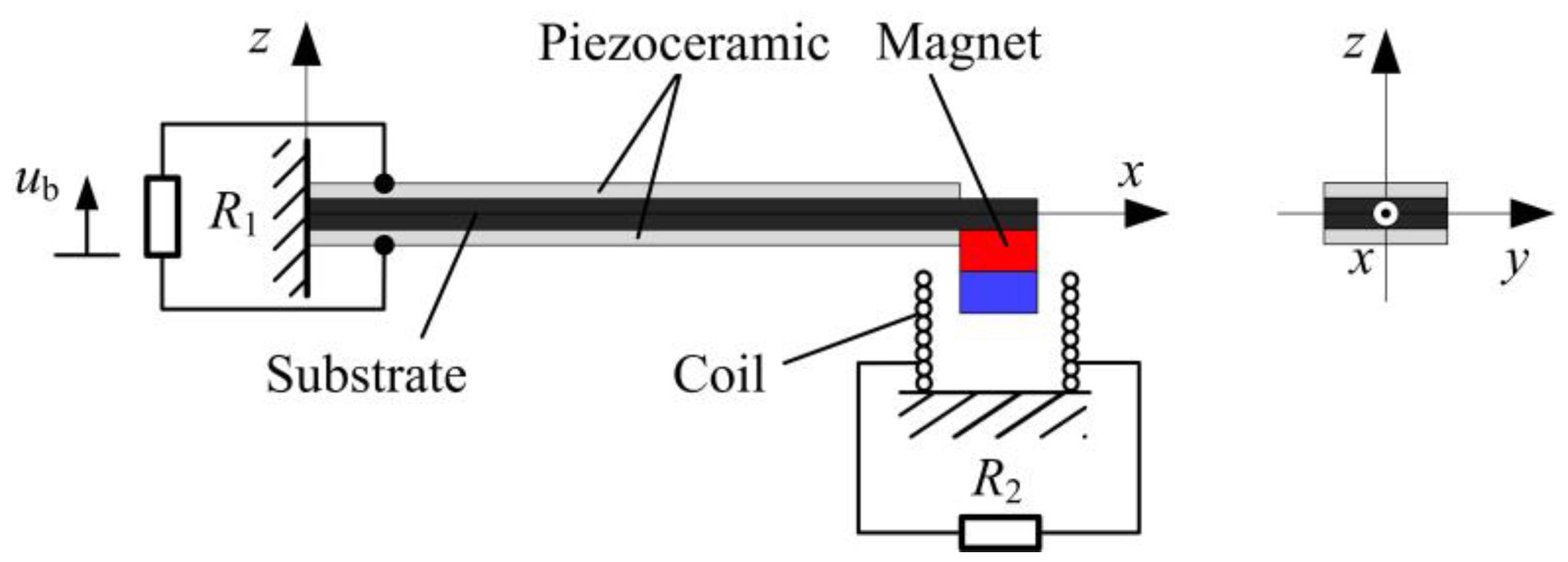

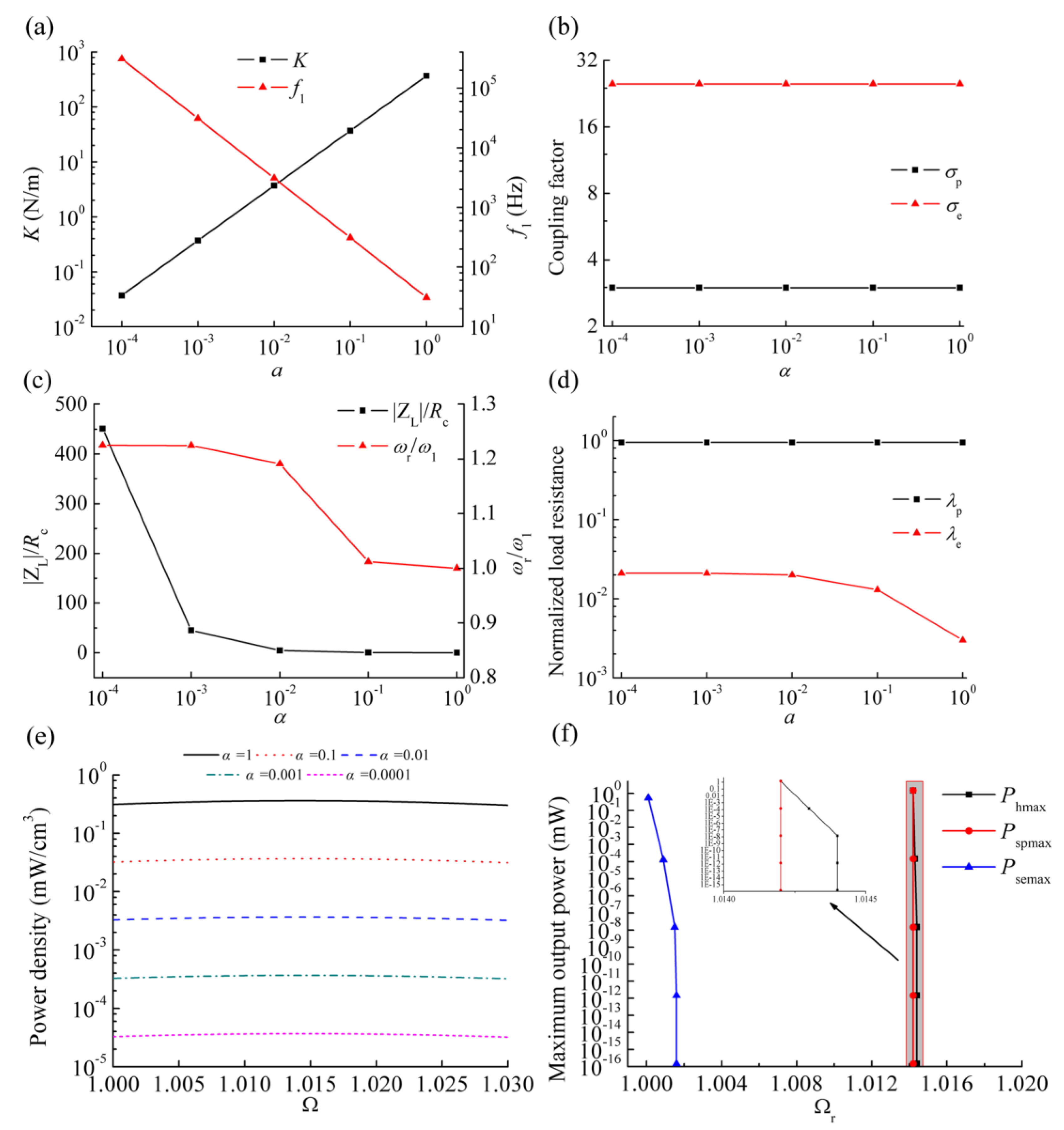

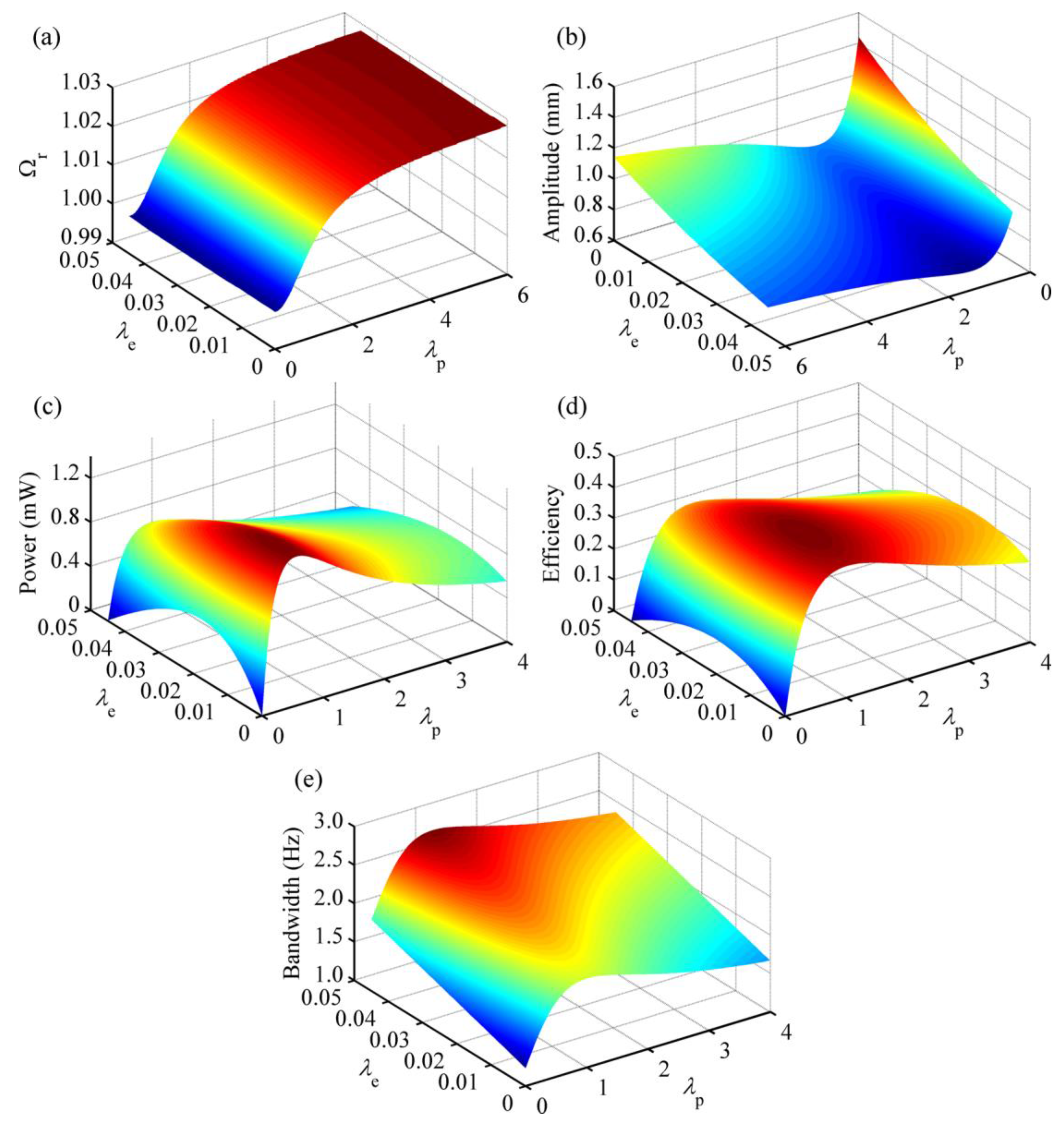

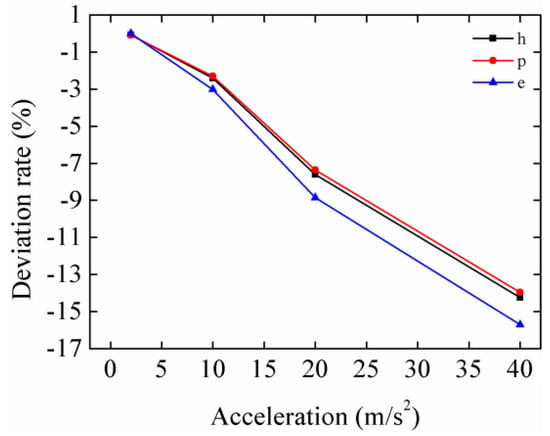

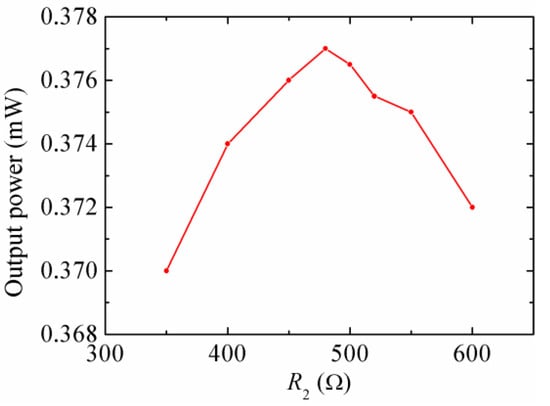

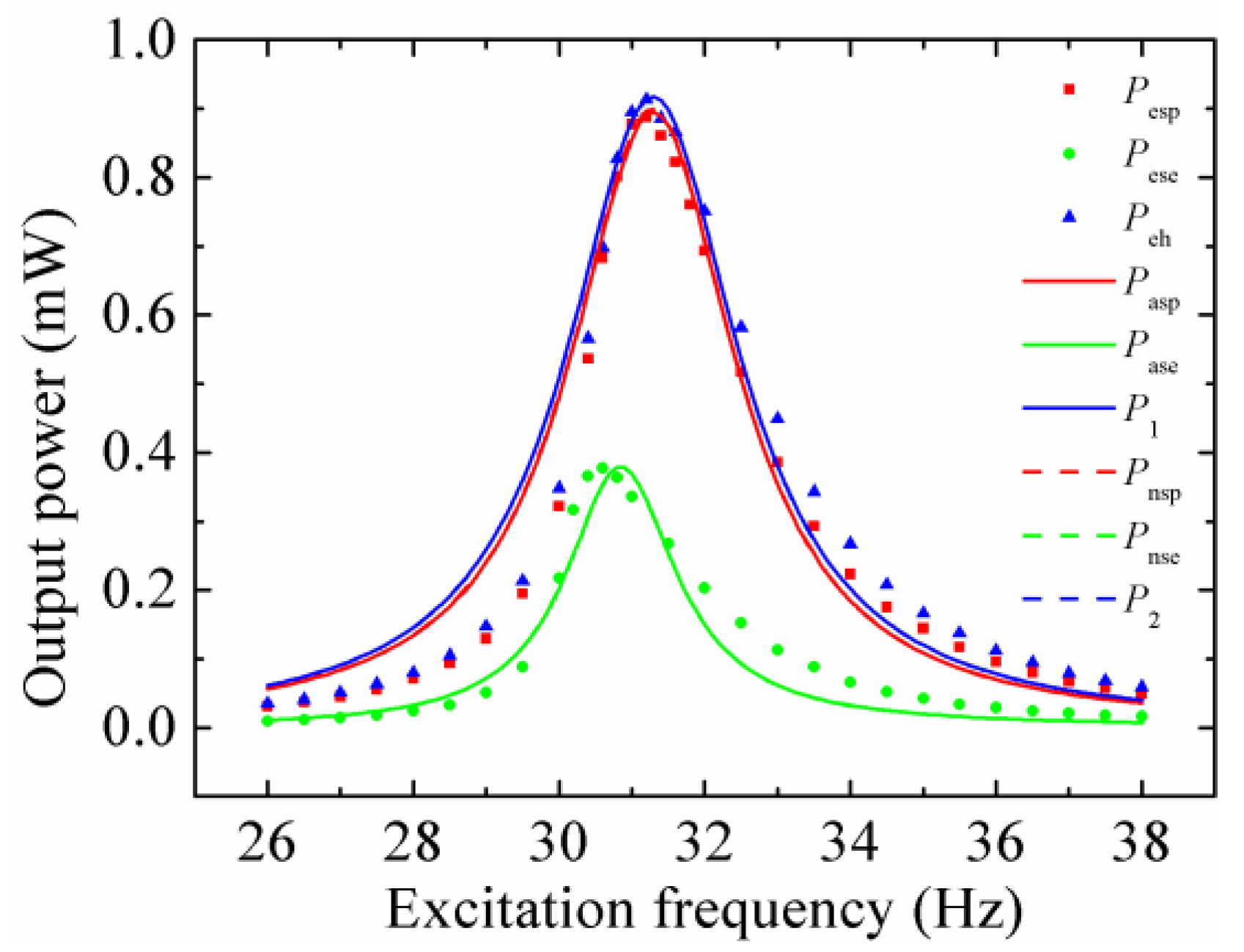

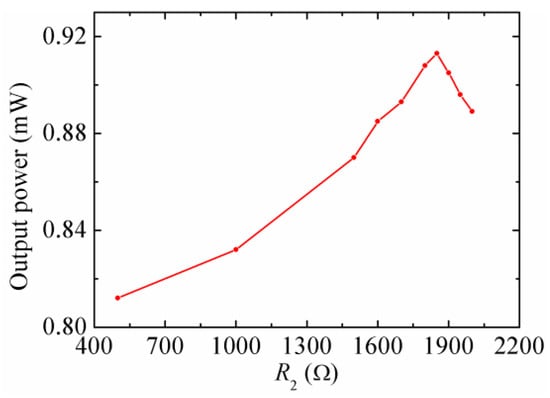

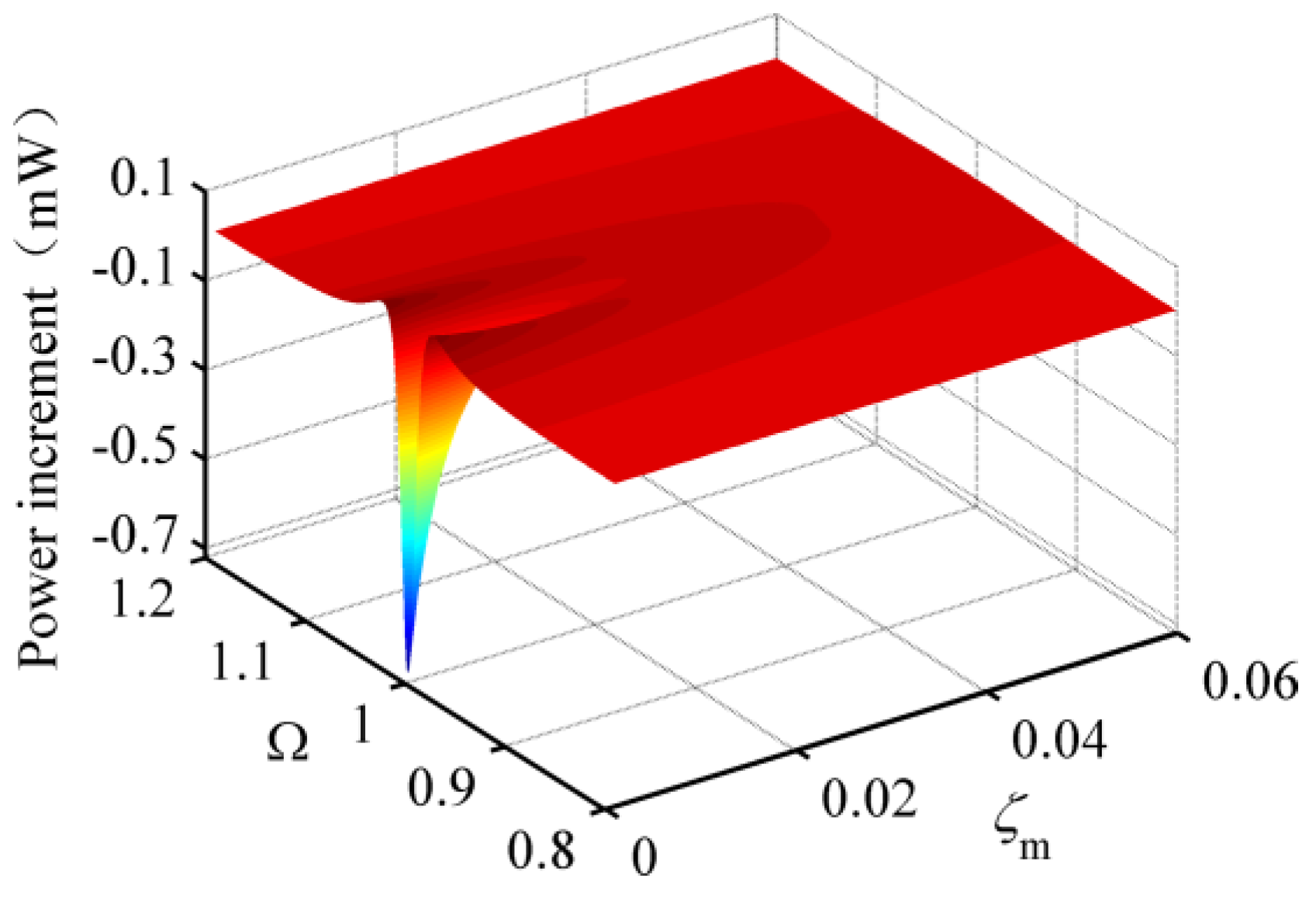

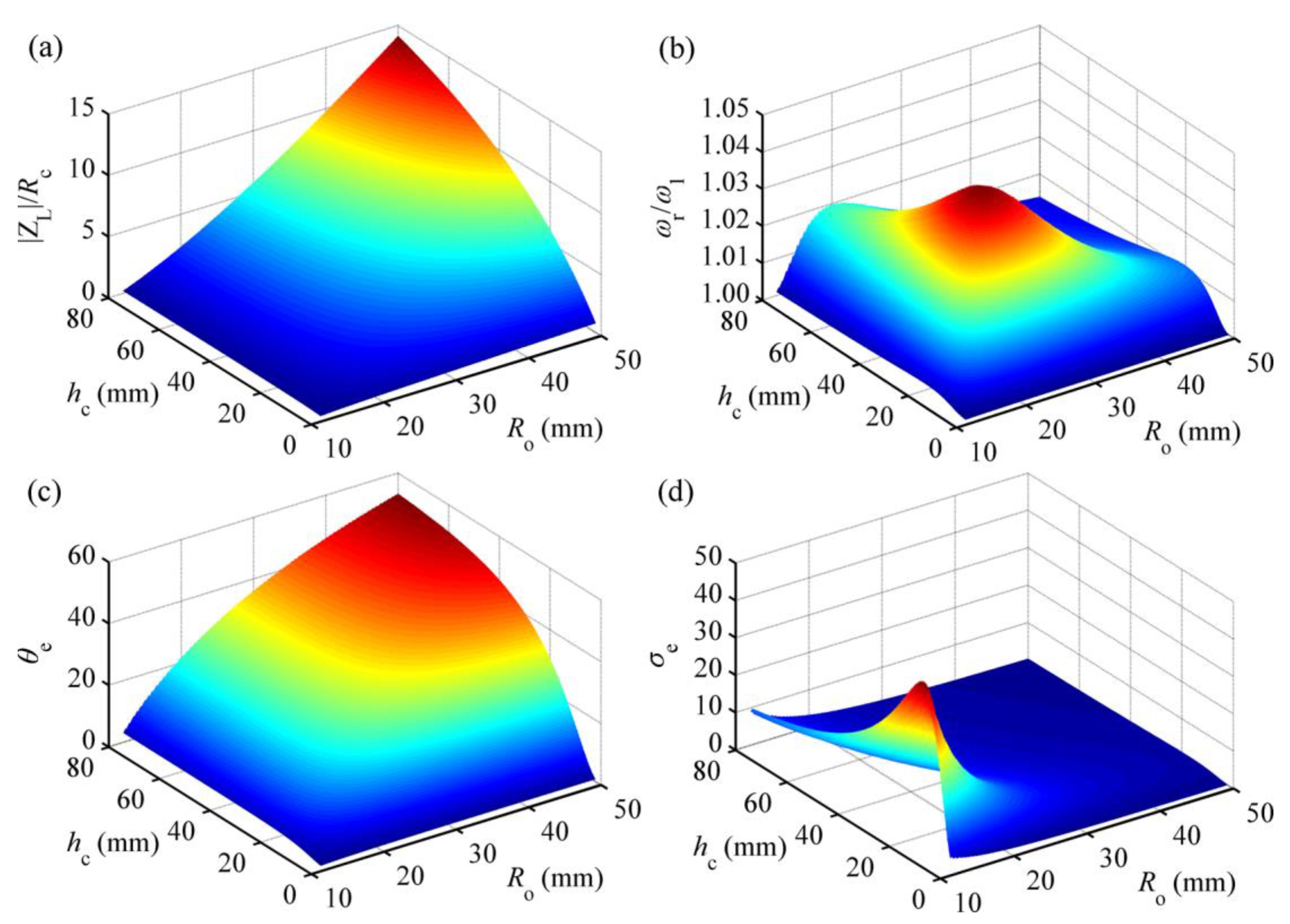

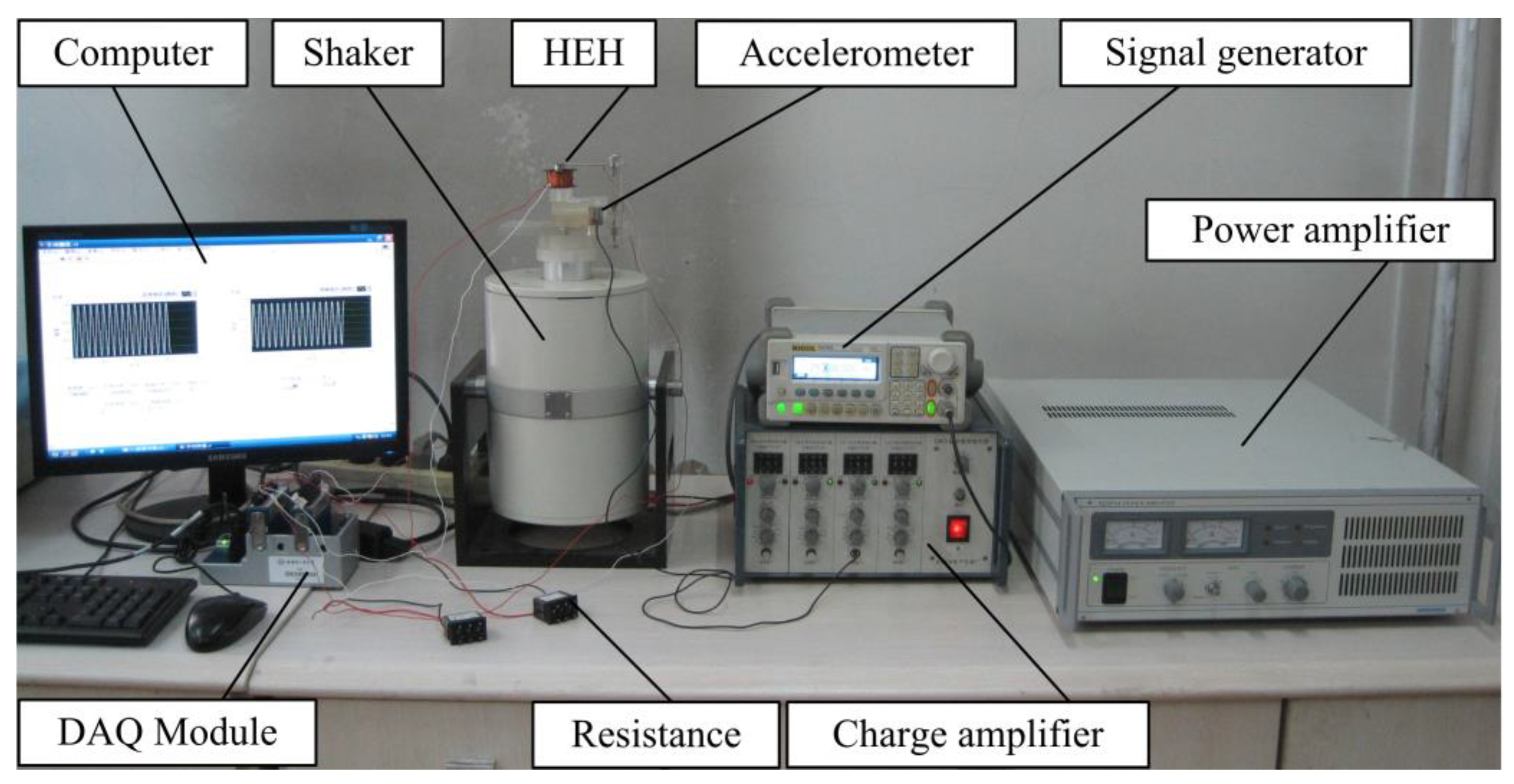

Considering coil inductance and the spatial distribution of the magnetic field, this paper developed an approximate distributed-parameter model of a hybrid energy harvester (HEH). The analytical solutions were compared with numerical solutions. The effects of load resistances, electromechanical coupling factors, mechanical damping ratio, coil parameters and size scale on performance were investigated. A meso-scale HEH prototype was fabricated, tested and compared with a stand-alone piezoelectric energy harvester (PEH) and a stand-alone electromagnetic energy harvester (EMEH). The peak output power is 2.93% and 142.18% higher than that of the stand-alone PEH and EMEH, respectively. Moreover, its bandwidth is 108%- and 122.7%-times that of the stand-alone PEH and EMEH, respectively. The experimental results agreed well with the theoretical values. It is indicated that the linearized electromagnetic coupling coefficient is more suitable for low-level excitation acceleration. Hybrid energy harvesting contributes to widening the frequency bandwidth and improving energy conversion efficiency. However, only when the piezoelectric coupling effect is weak or medium can the HEH generate more power than the single-mechanism energy harvester. Hybrid energy harvesting can improve output power even at the microelectromechanical systems (MEMS) scale. This study presents a more effective model for the performance evaluation and structure optimization of the HEH. View Full-Text
Keywords: hybrid energy harvester; piezoelectric; electromagnetic; approximate distributed-parameter model; parametric analysis hybrid energy harvester; piezoelectric; electromagnetic; approximate distributed-parameter model; parametric analysis
Figures

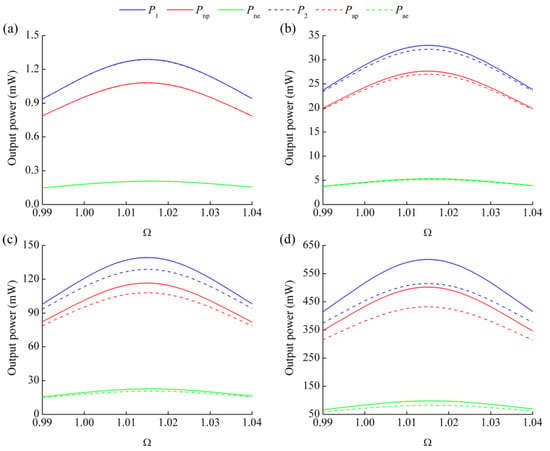

Figure 1
