Micromachines 2017, 8(4), 118; doi:10.3390/mi8040118

A Suspended Six-Port Transformer-Based Power Divider for 2.4 GHz Applications

Department of Electrical Engineering, National Sun Yat-sen University, 70 Lienhai Rd., Kaohsiung 80424, Taiwan
*
Author to whom correspondence should be addressed.
Academic Editor: Jeong-Bong Lee
Received: 25 January 2017 / Revised: 31 March 2017 / Accepted: 5 April 2017 / Published: 8 April 2017
View Full-Text   |   Download PDF [4817 KB, uploaded 8 April 2017]   |

Abstract

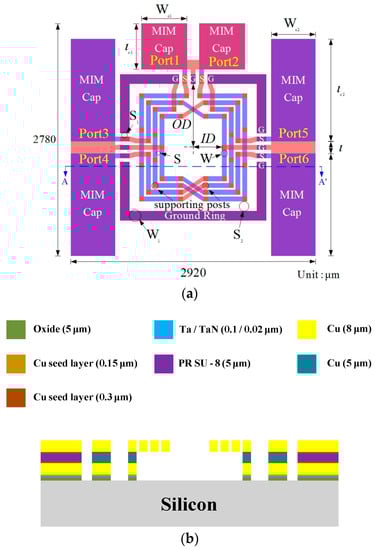

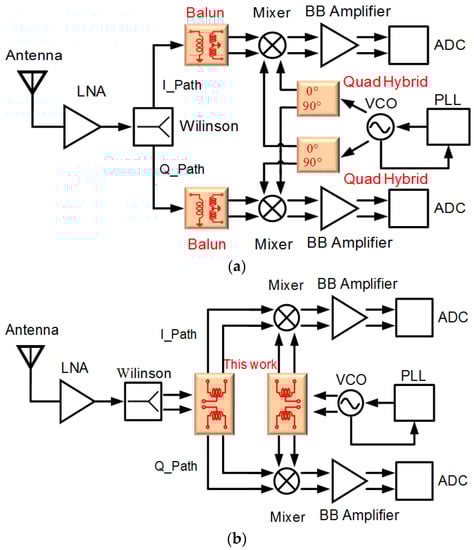

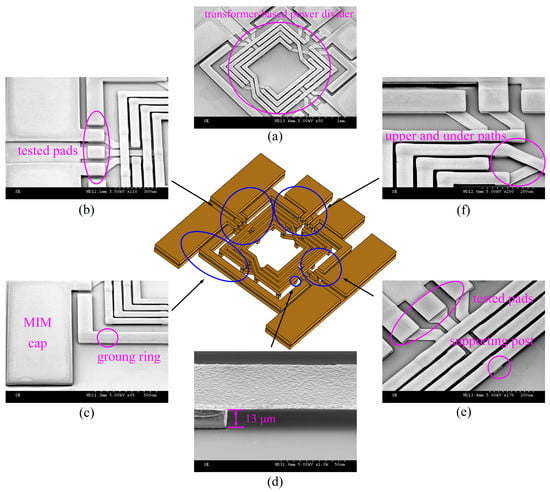

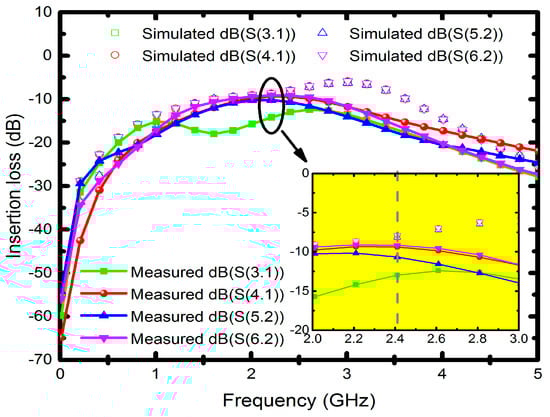

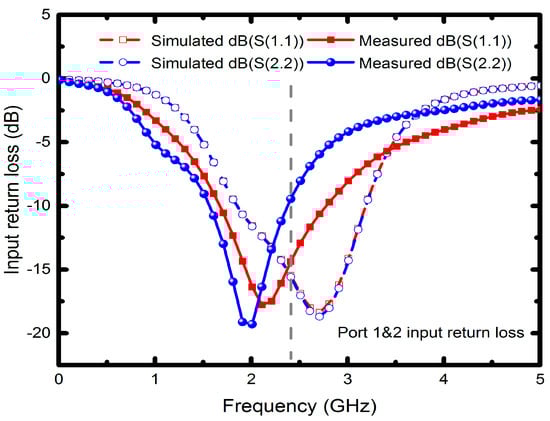

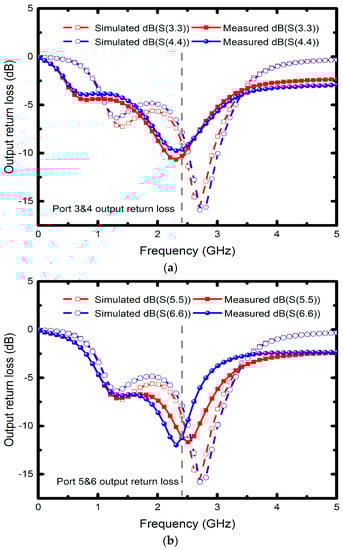

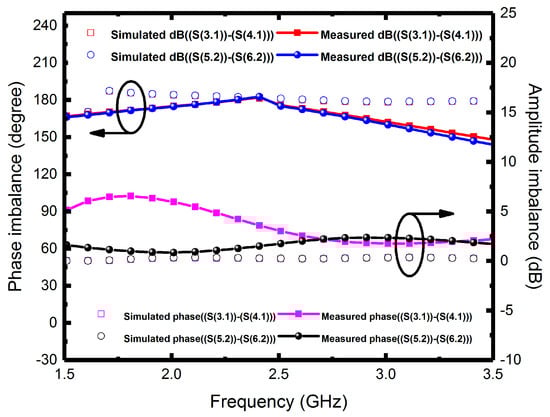

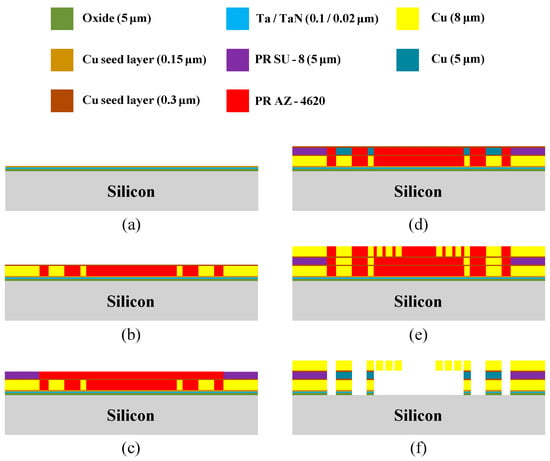

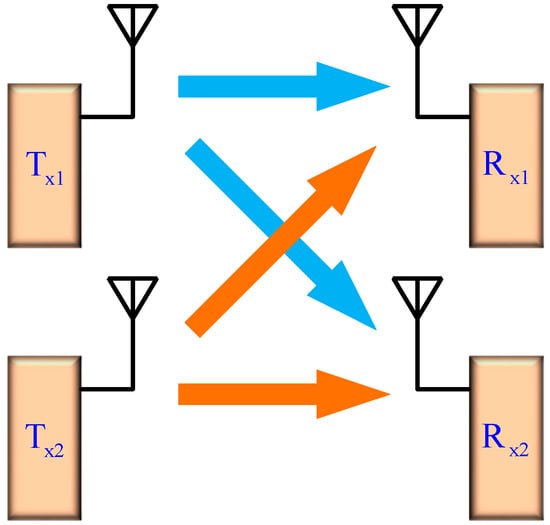

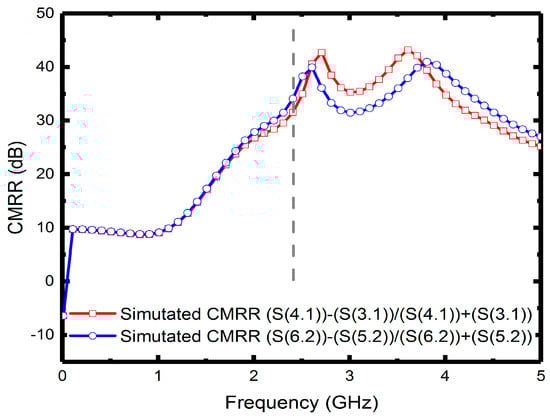

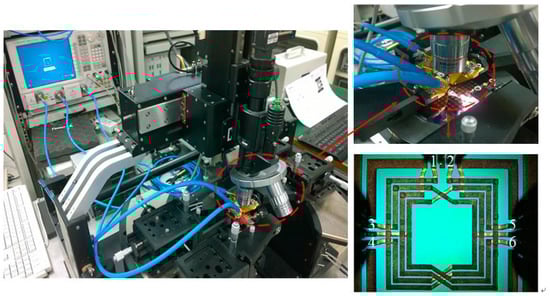

This paper presents a transformer-based power divider with six-port suspending structure for 2.4 GHz wireless applications. The proposed power divider, which is featured with chip size (2.9 mm × 2.8 mm × 21 μm), was constructed by an 8-μm-thick Cu bottom electrode, a 5 μm-height supporting copper post, and an 8-μm-thick suspended spiral copper conducting layer with a 13 μm air gap. The main structure included two transformers and six input/output matching capacitors for simultaneously achieving two single-to-differential paths so that the chip size of the complex multiple-ports transceiver could be reduced. According to the results, the proposed divider has characteristics of the radio frequency (RF), and its input return losses are around −10 dB, output return losses are beneath −10 dB, and minimum amplitude imbalance is below 1.5 dB and less than 1° phase imbalance at 2.4 GHz operating frequency. View Full-Text
Keywords: transformer-based; power divider; six-port; suspending structure; wireless applications transformer-based; power divider; six-port; suspending structure; wireless applications
