Micromachines 2017, 8(12), 355; doi:10.3390/mi8120355

Analysis of Membrane Behavior of a Normally Closed Microvalve Using a Fluid-Structure Interaction Model

Department of Mechanical Engineering, Konkuk University, Seoul 05029, Korea
Author to whom correspondence should be addressed.
Received: 20 October 2017 / Revised: 28 November 2017 / Accepted: 29 November 2017 / Published: 6 December 2017
View Full-Text   |   Download PDF [16290 KB, uploaded 6 December 2017]   |

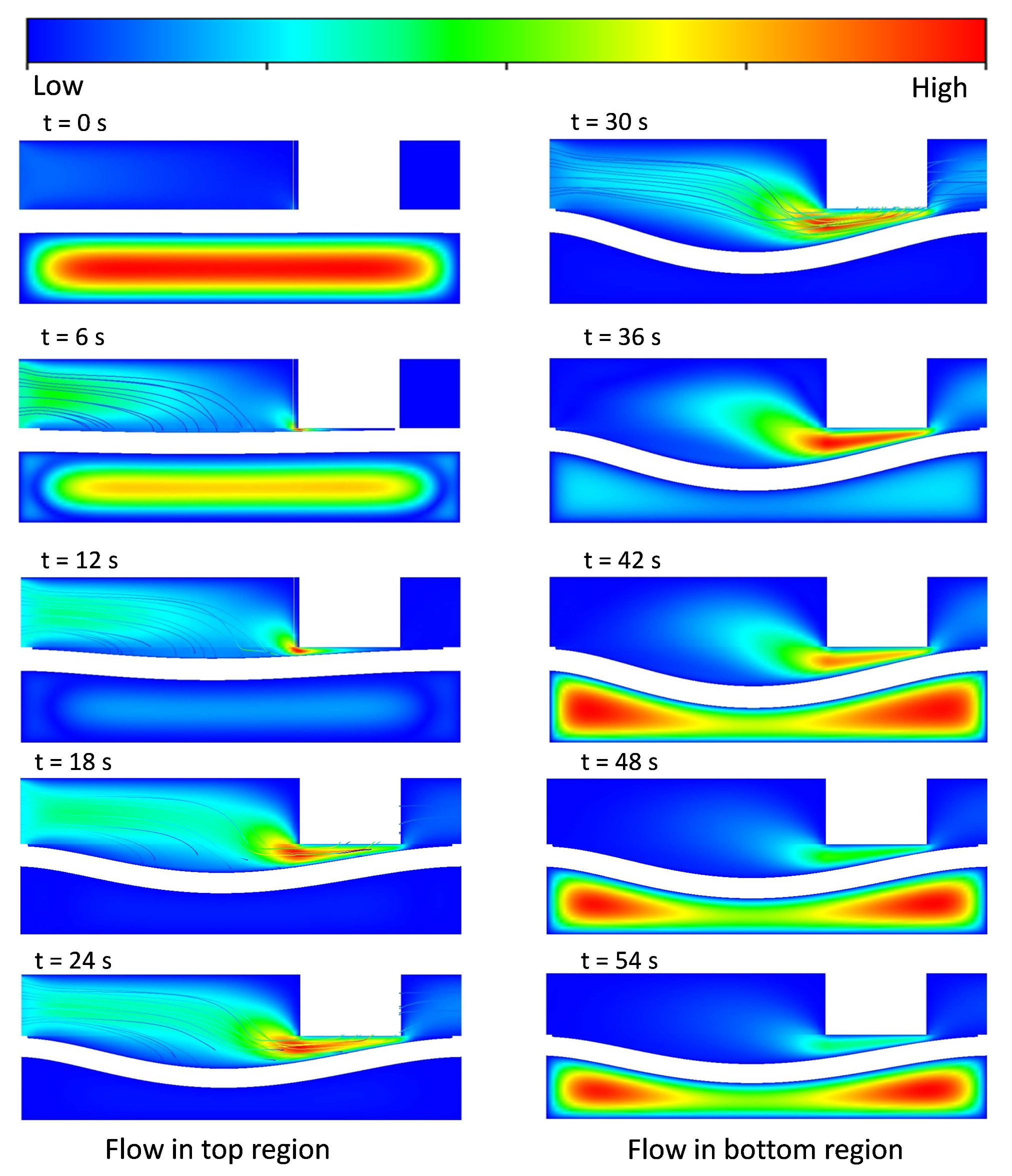

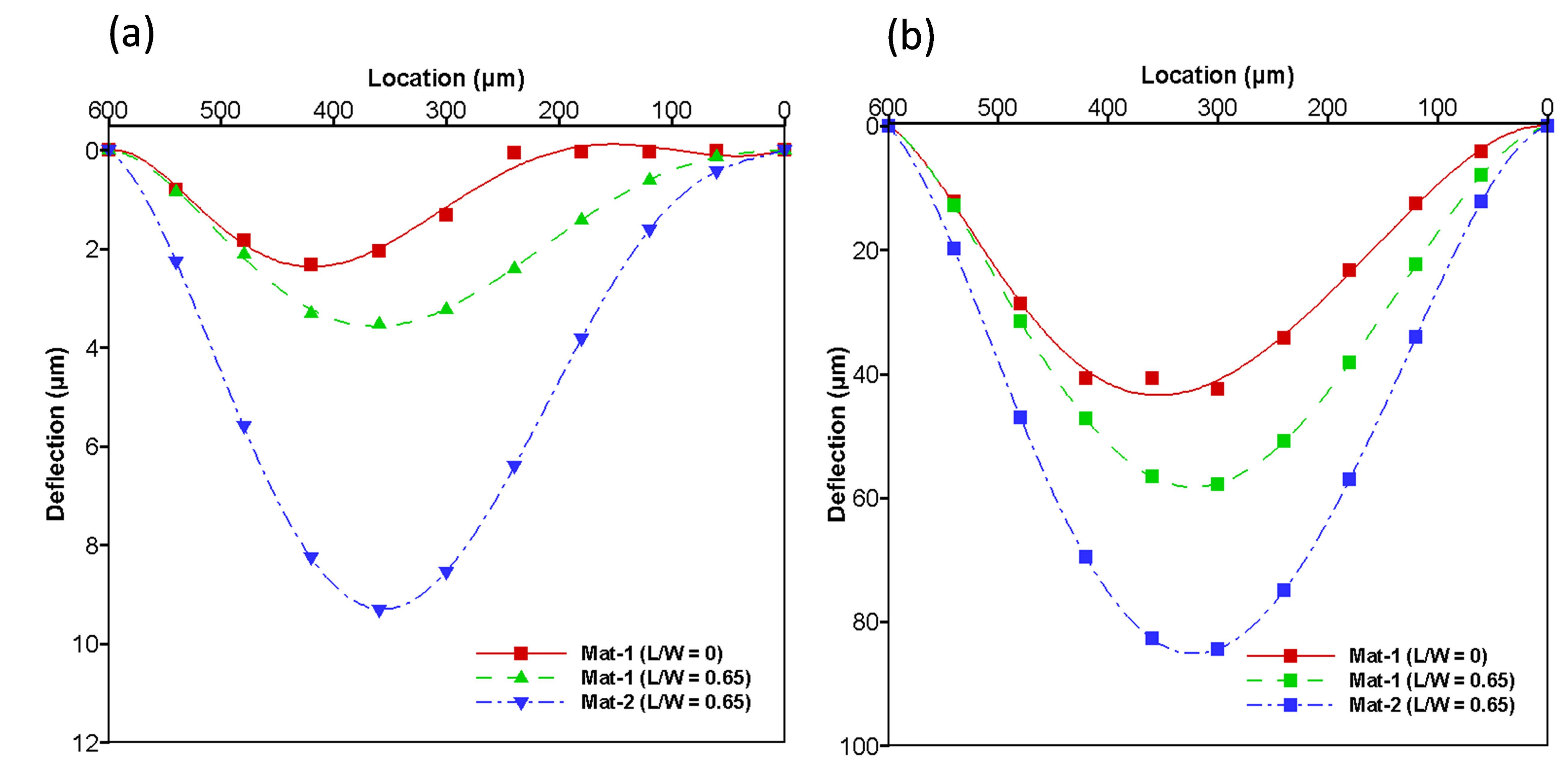

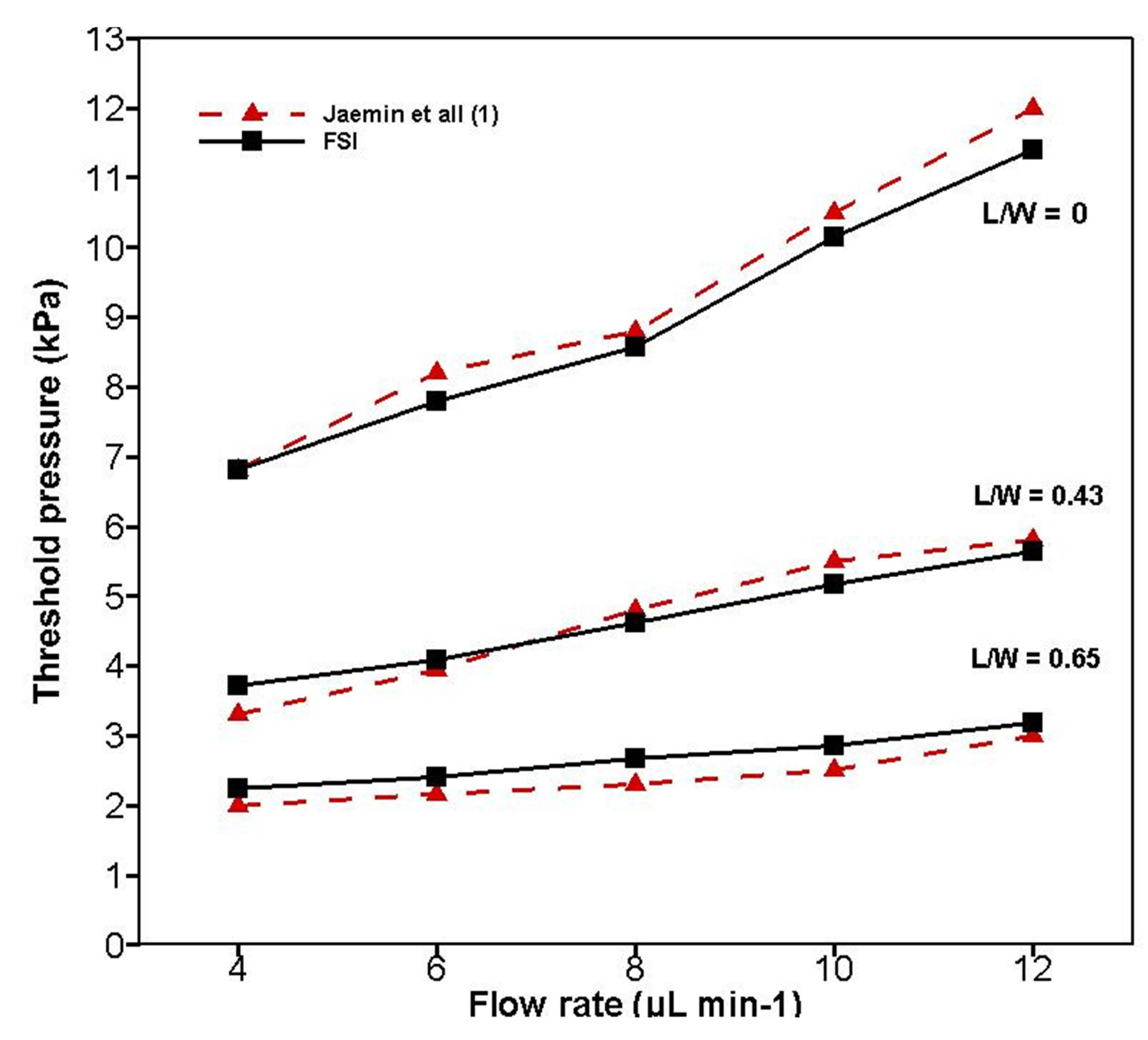

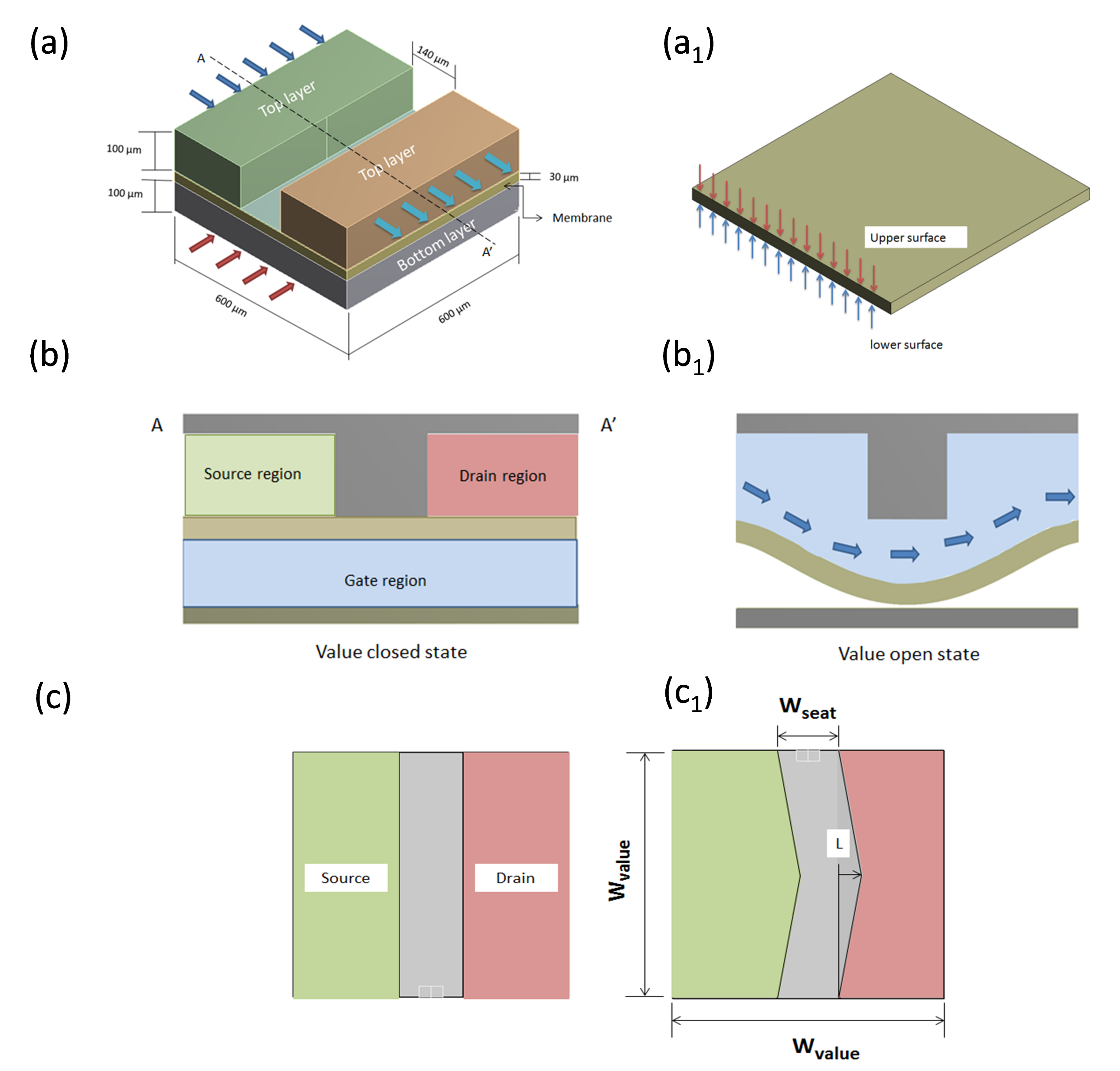

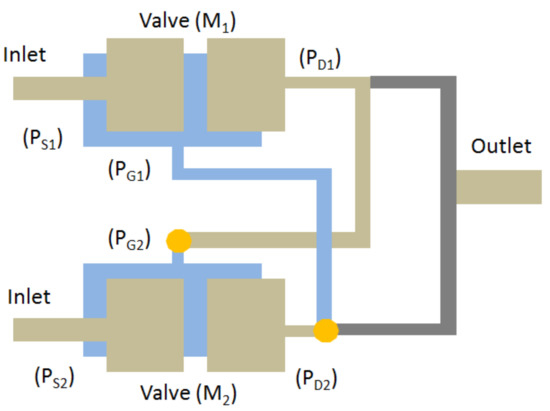

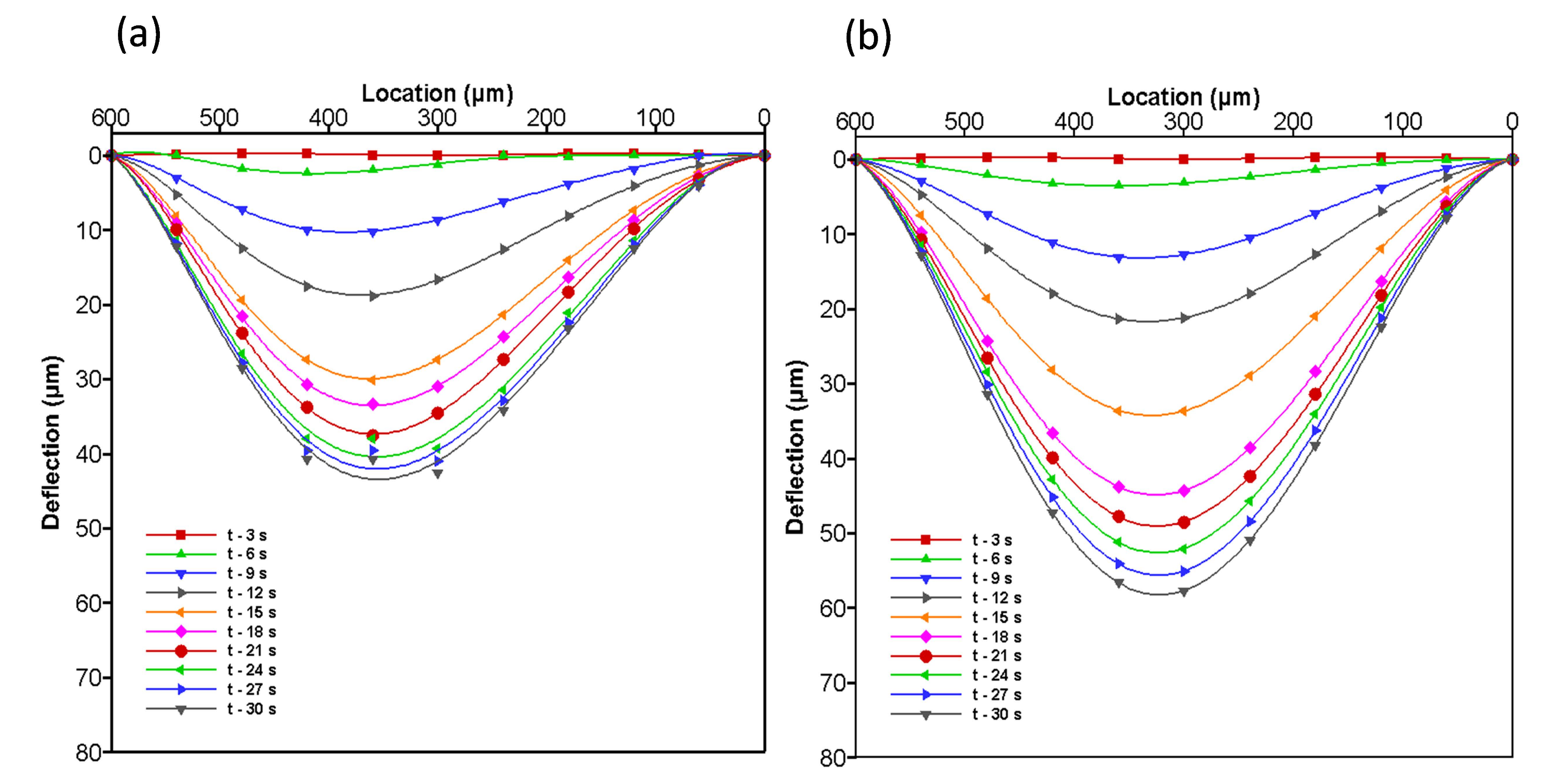

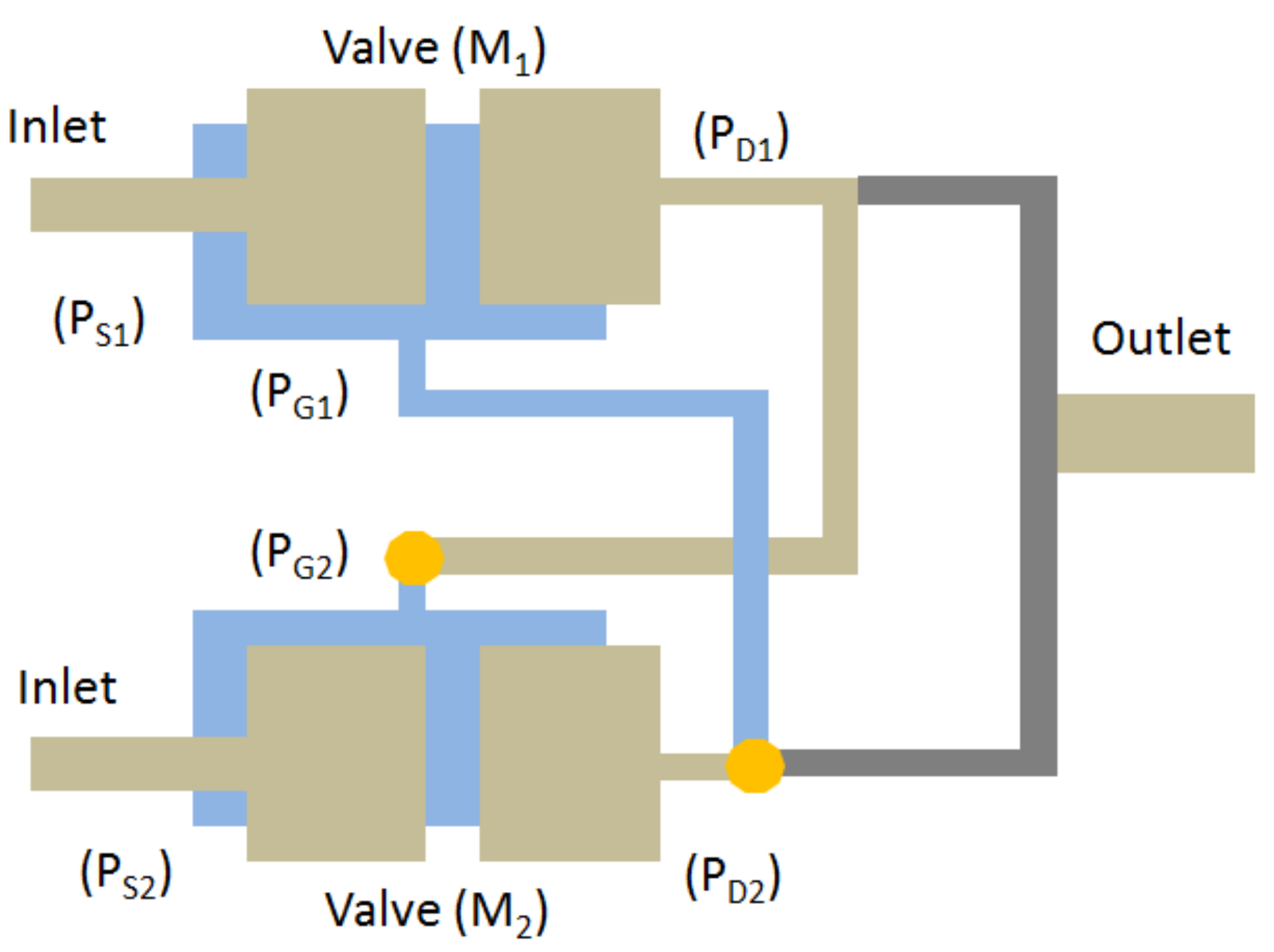

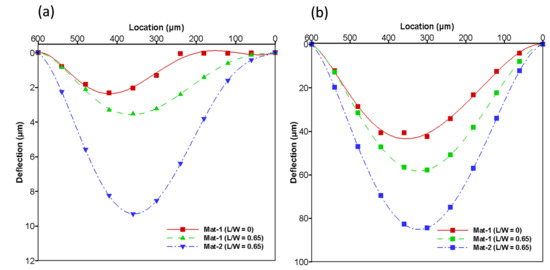

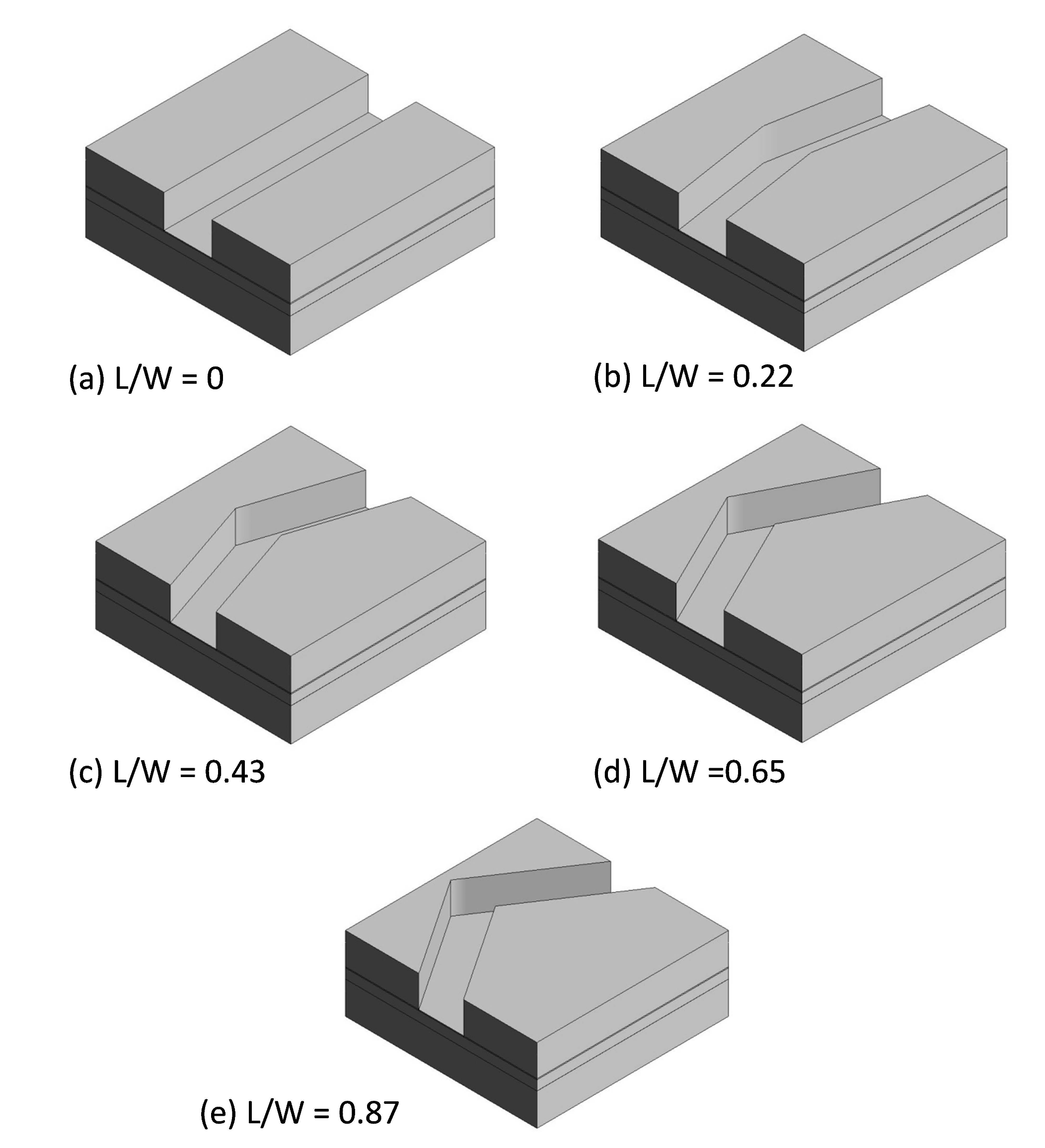

In this paper, membrane deflection against fluid flow and opening membrane (threshold) pressure were studied using fluid-structure interaction (FSI) analysis, and compared with experimental data obtained by Jaemin et al. In the current analysis, two different models (I-shaped and V-shaped) were used to perform the FSI simulation. In microvalve modeling, in order to reduce external actuator usage, interconnections are made between two similar microvalves. This typical interconnection creates a pressure distribution in a local environment. Furthermore, to differentiate the volume factor in a microvalve, a length/width (L/W) ratio term was used. Compared with higher- and lower-L/W-ratio models, the higher-L/W model eventually initiates more deflection in a low-pressure regime than the lower-L/W-ratio model. FSI simulations were performed for 4 μL/min, 6 μL/min, 8 μL/min, 10 μL/min, and 12 μL/min flow rates against membrane behavior, and performance evaluations of the microvalves were conducted. It was observed during an FSI simulation that the gate pressure applied to the lower surface deflects the membrane upward, thereby making contact with the wall. Two important parameters (material properties of the structural membrane and the inlet region height) were selected for analysis to evaluate changes in microvalve performance. These results are presented in the current study. View Full-Text
Keywords: microvalve; fluid-structure interaction; opening threshold pressure; membrane behavior microvalve; fluid-structure interaction; opening threshold pressure; membrane behavior

Figure 1
