Micromachines 2017, 8(10), 287; doi:10.3390/mi8100287

Milling Positive Master for Polydimethylsiloxane Microfluidic Devices: The Microfabrication and Roughness Issues

Key Laboratory of Biorheological Science and Technology, Ministry of Education, Bioengineering College of Chongqing University, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
Received: 3 August 2017 / Revised: 12 September 2017 / Accepted: 18 September 2017 / Published: 21 September 2017
(This article belongs to the Special Issue Polymer Based MEMS and Microfabrication)
View Full-Text   |   Download PDF [2554 KB, uploaded 21 September 2017]   |

Abstract

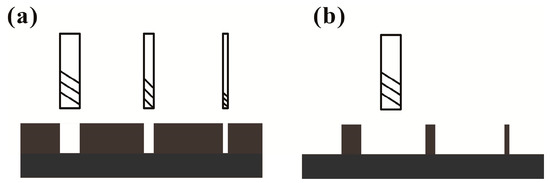

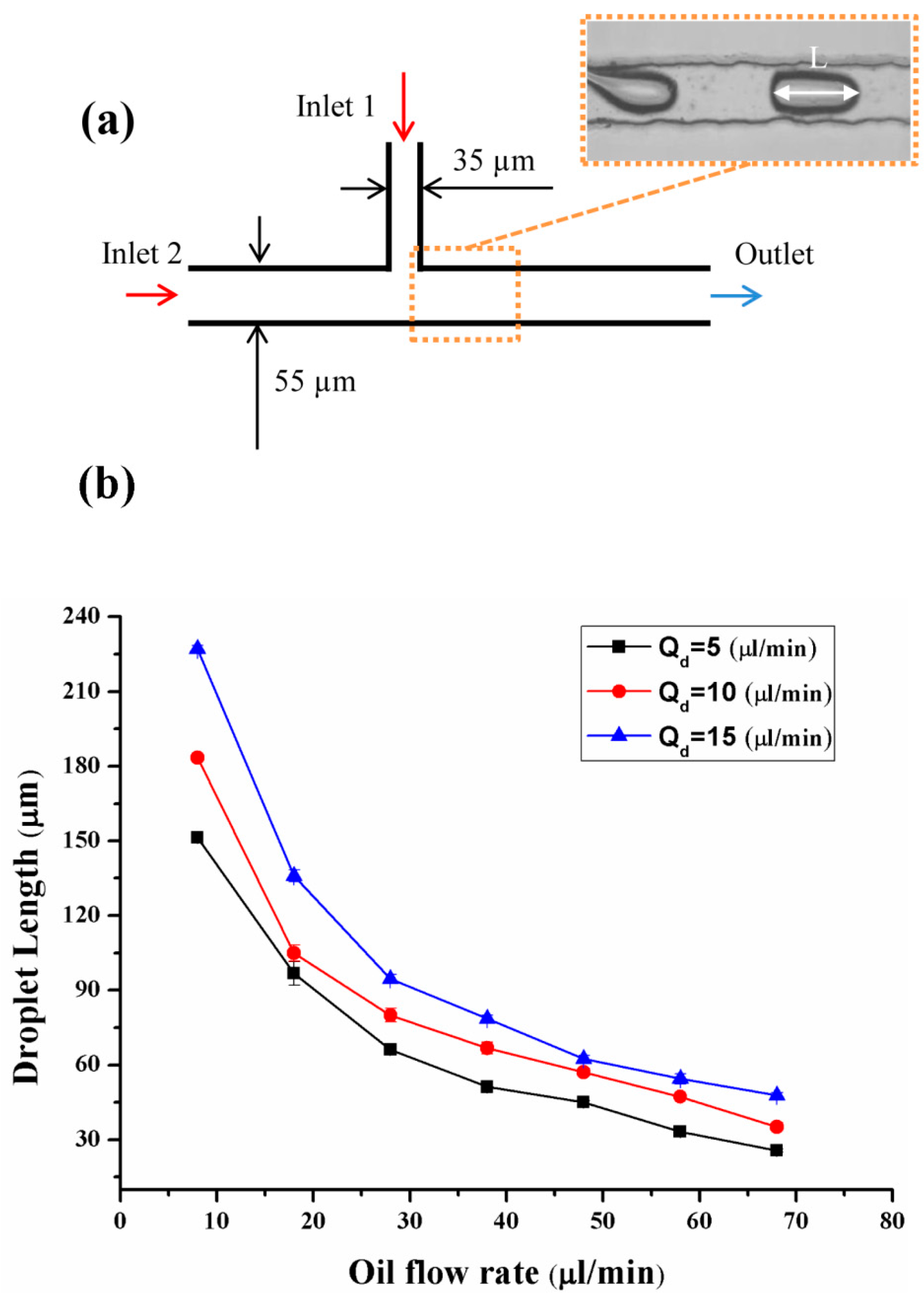

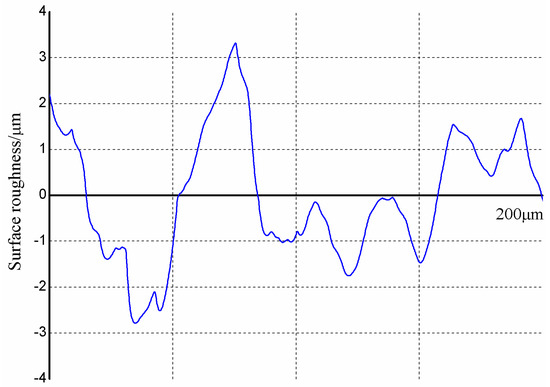

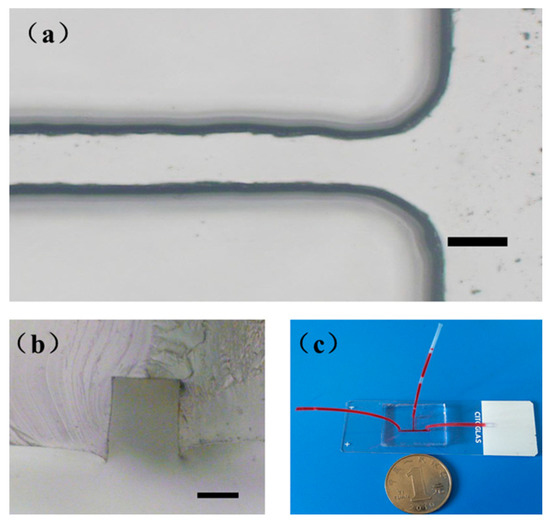

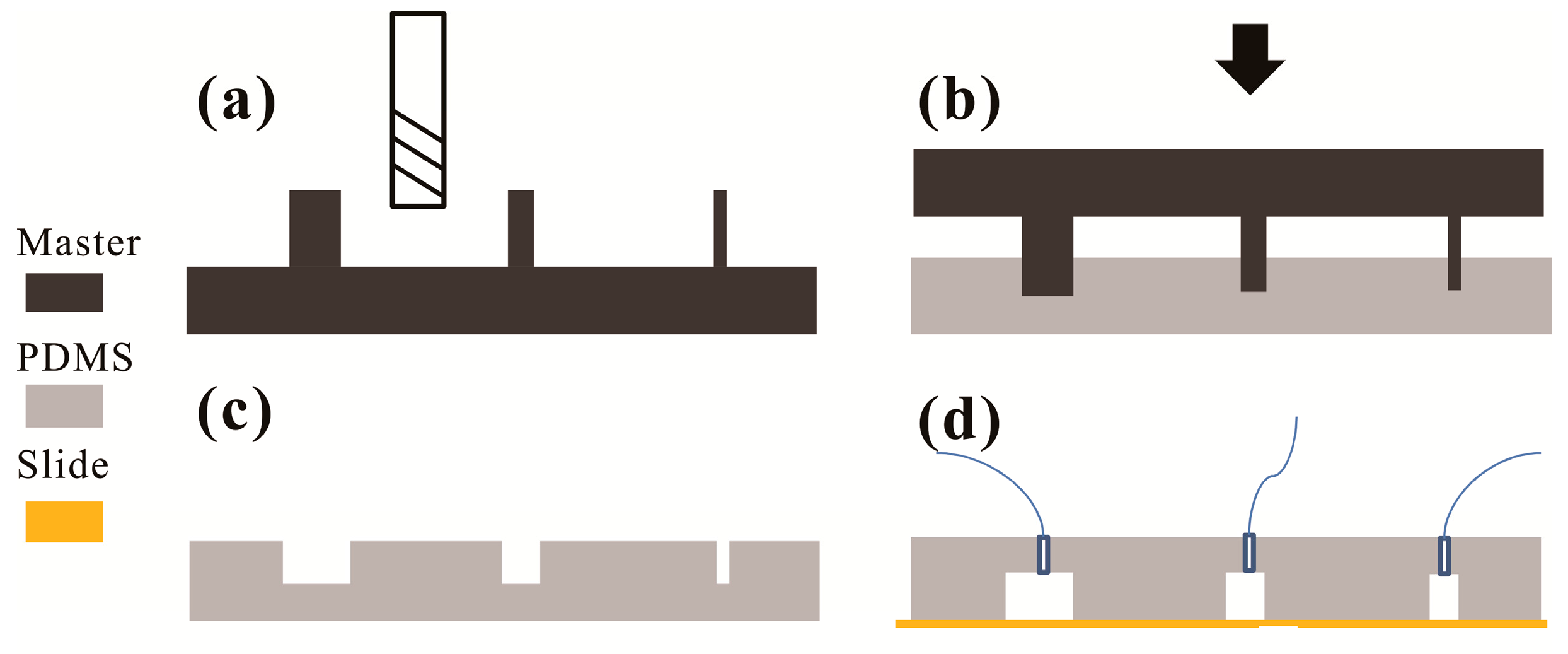

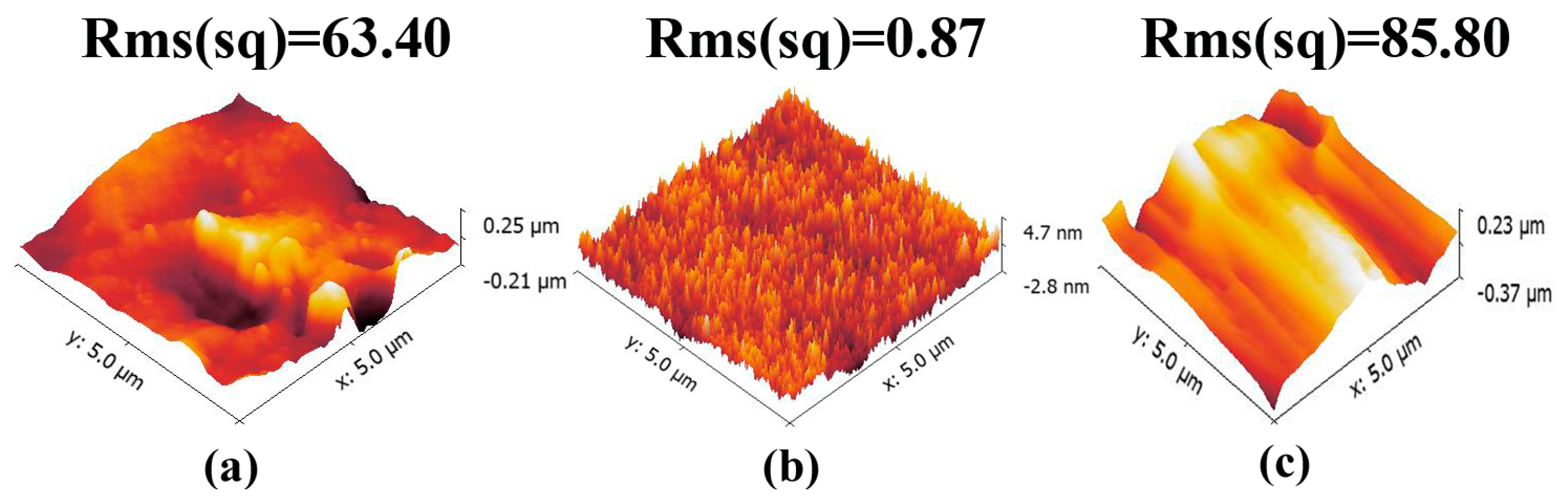

We provide a facile and low-cost method (F-L) to fabricate a two-dimensional positive master using a milling technique for polydimethylsiloxane (PDMS)-based microchannel molding. This method comprises the following steps: (1) a positive microscale master of the geometry is milled on to an acrylic block; (2) pre-cured PDMS is used to mold the microscale positive master; (3) the PDMS plate is peeled off from the master and punctured with a blunt needle; and (4) the PDMS plate is O2 plasma bonded to a glass slide. Using this technique, we can fabricate microchannels with very simple protocols quickly and inexpensively. This method also avoids breakage of the end mill (ϕ = 0.4 mm) of the computerized numerical control (CNC) system when fabricating the narrow channels (width < 50 µm). The prominent surface roughness of the milled bottom-layer could be overcomed by pre-cured PDMS with size trade-off in design. Finally, emulsion formation successfully demonstrates the validity of the proposed fabrication protocol. This work represents an important step toward the use of a milling technique for PDMS-based microfabrication. View Full-Text
Keywords: microchannel; microfluidic; milling; acrylic; emulsions; polydimethylsiloxane (PDMS) microchannel; microfluidic; milling; acrylic; emulsions; polydimethylsiloxane (PDMS)
