Micromachines 2017, 8(1), 11; doi:10.3390/mi8010011

Design and Analysis of a Silicon-Based Pattern Reconfigurable Antenna Employing an Active Element Pattern Method

School of Electronic Engineering, Beijing University of Posts and Telecommunications, Beijing 100876, China
*
Author to whom correspondence should be addressed.
Academic Editor: Jeong-Bong Lee
Received: 7 November 2016 / Revised: 17 December 2016 / Accepted: 28 December 2016 / Published: 4 January 2017
View Full-Text   |   Download PDF [2458 KB, uploaded 4 January 2017]   |

Abstract

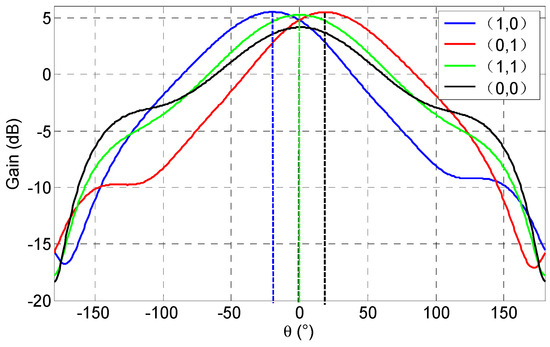

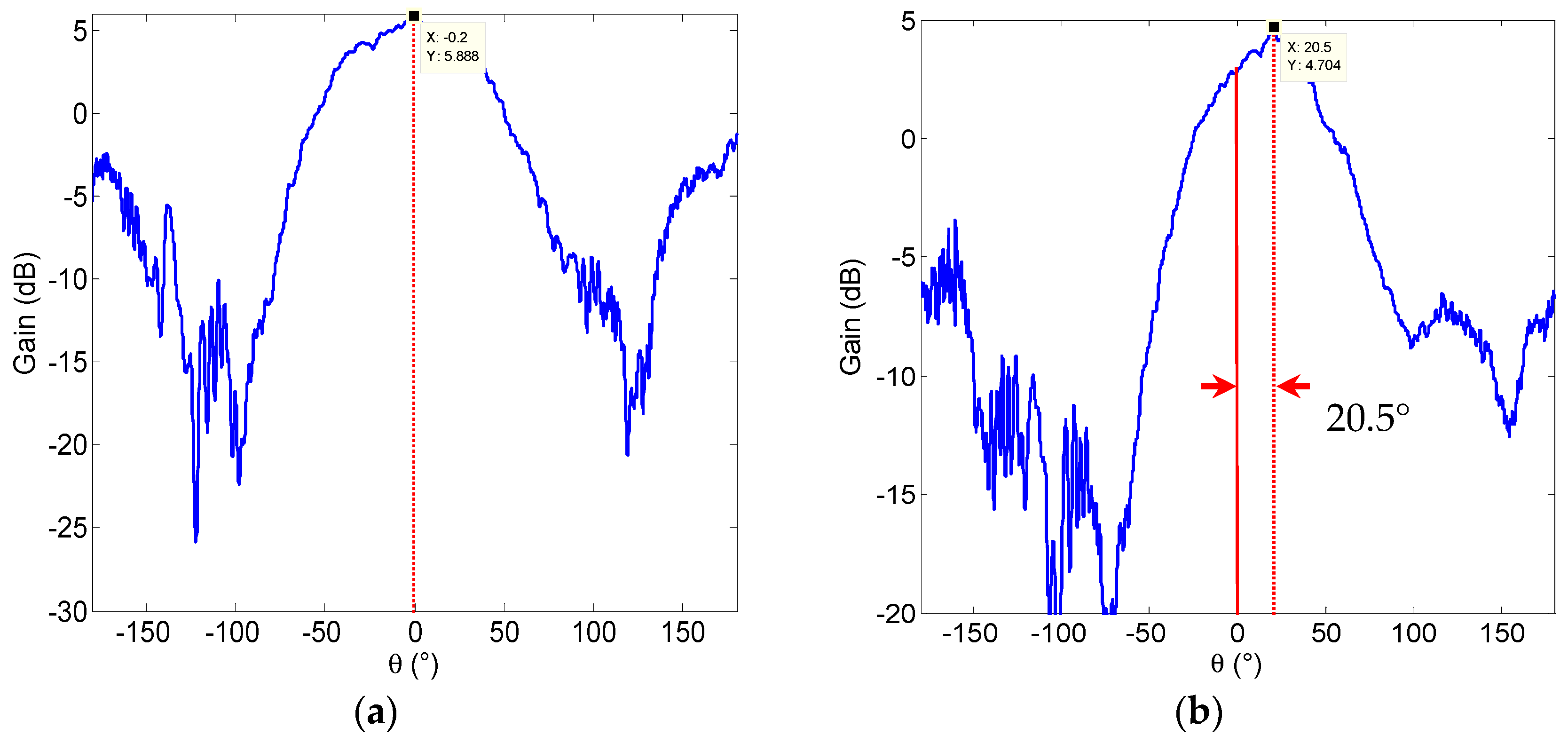

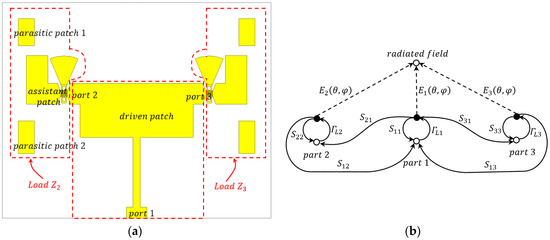

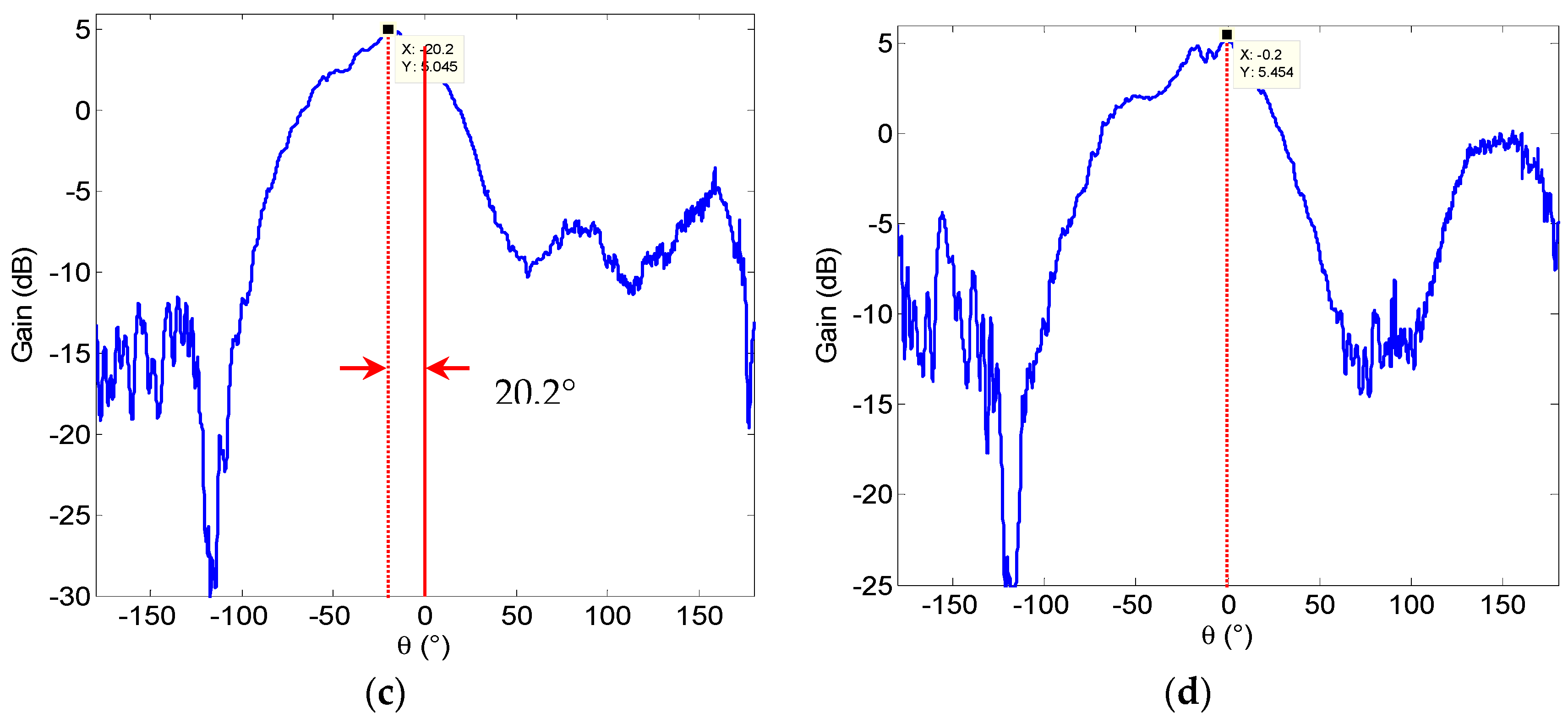

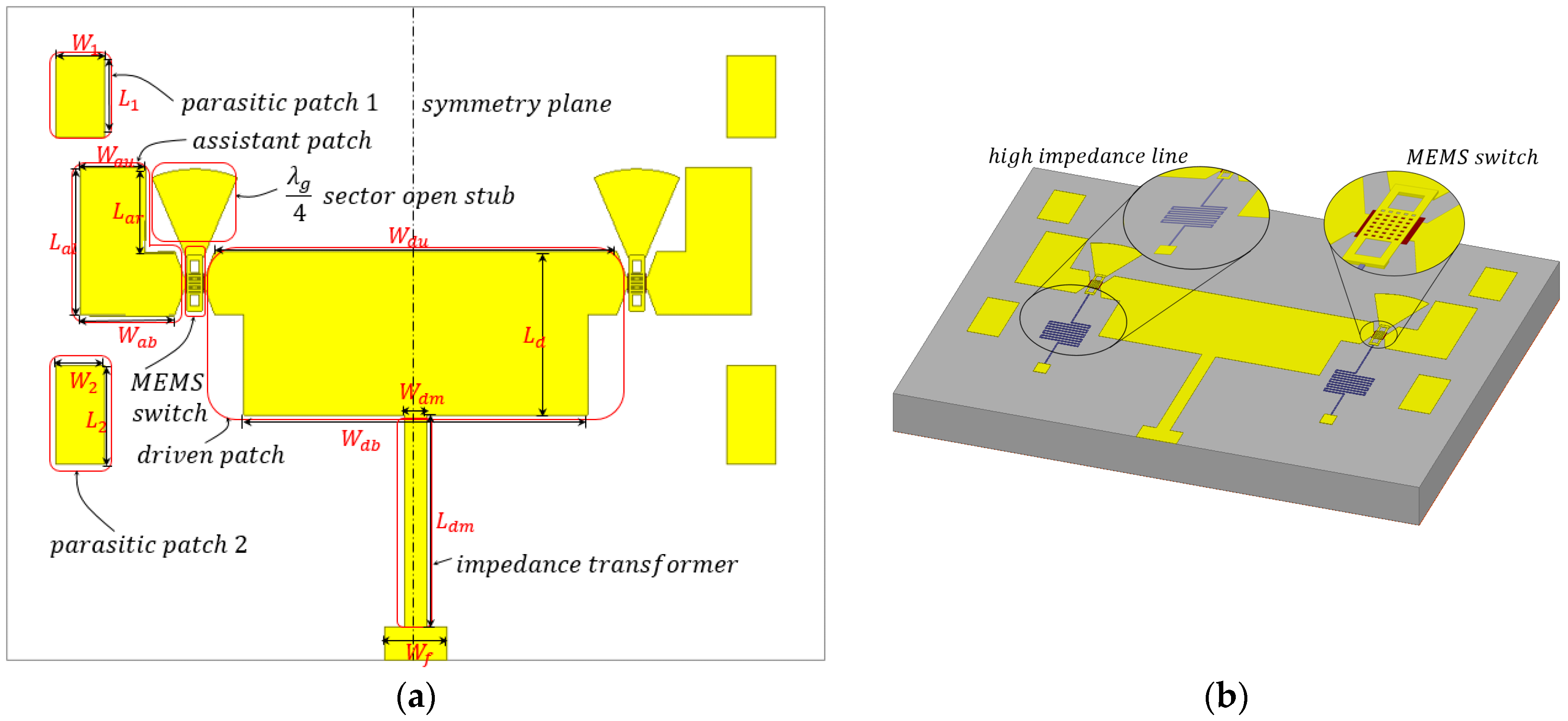

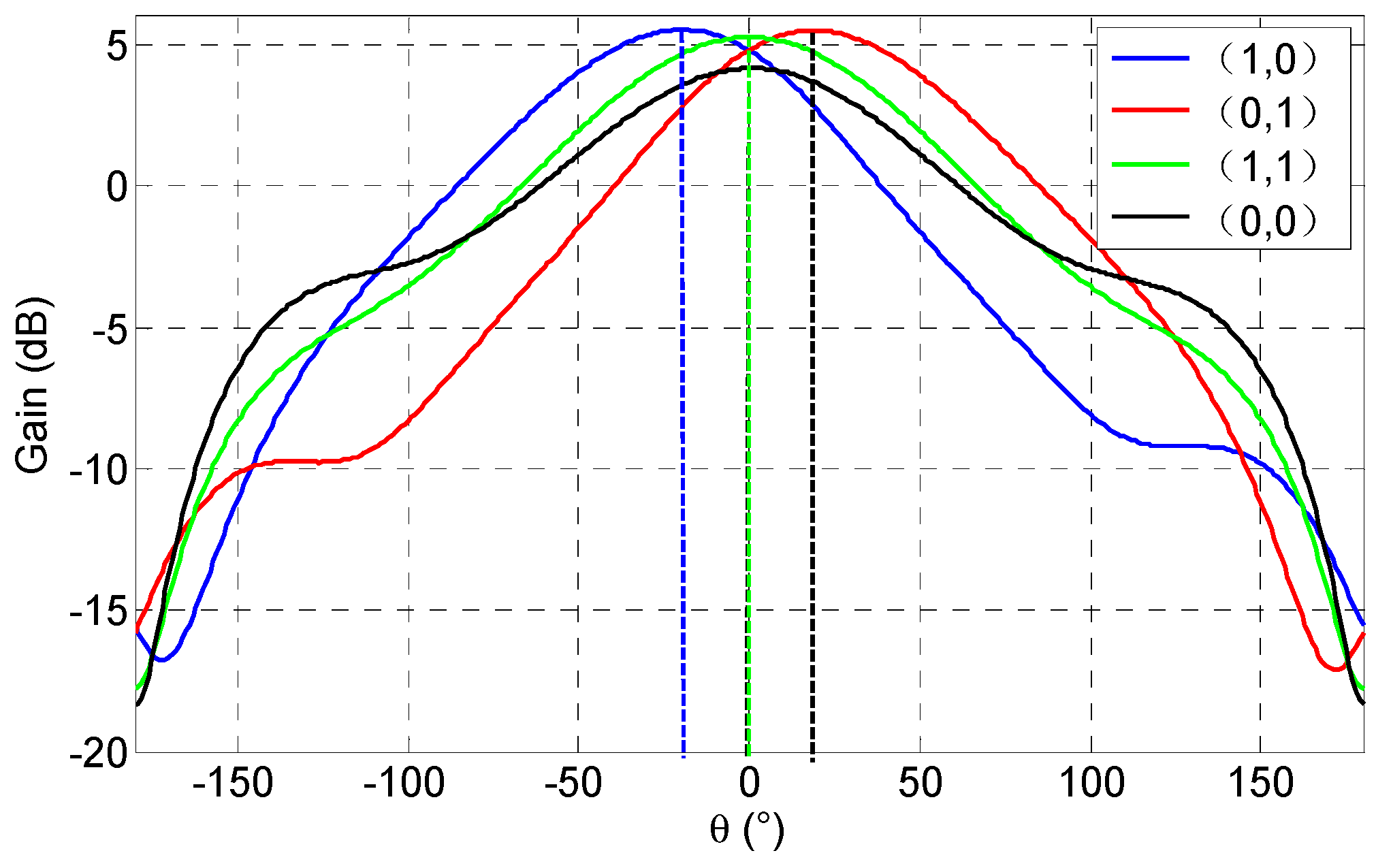

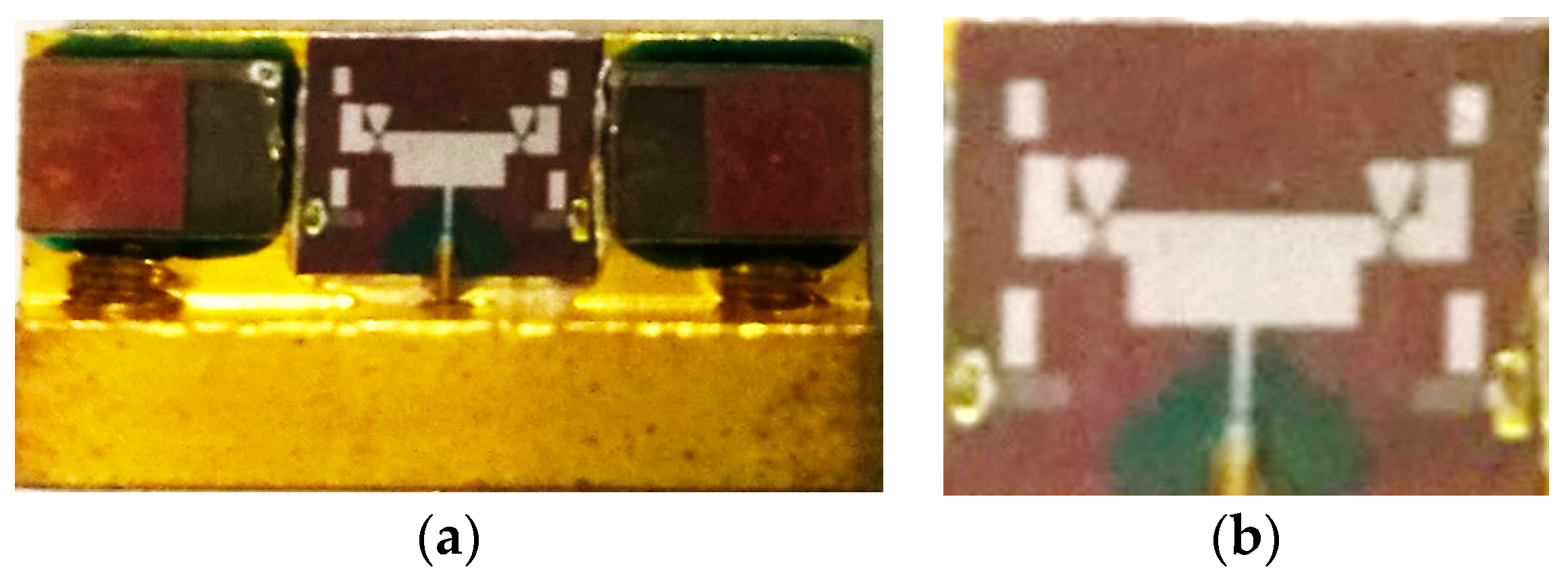

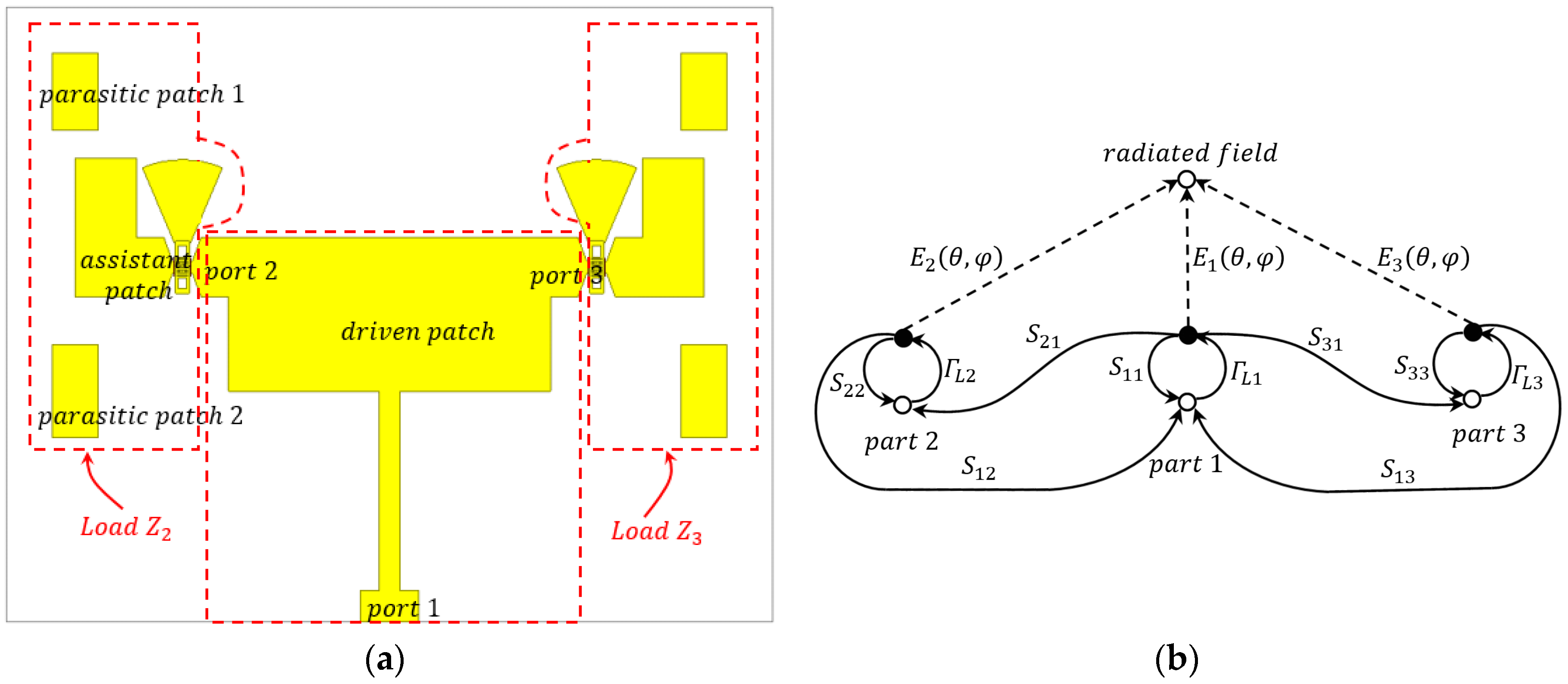

In this paper, a silicon-based radio frequency micro-electromechanical systems (RF MEMS) pattern reconfigurable antenna for a Ka-band application was designed, analyzed, fabricated, and measured. The proposed antenna can steer the beam among three radiating patterns (with main lobe directions of −20°, 0°, and +20° approximately) at 35 GHz by switching RF MEMS operating modes. The antenna has a low profile with a small size of 3.7 mm × 4.4 mm × 0.4 mm, and consists of one driven patch, four parasitic patches, two assistant patches, and two RF MEMS switches. The active element pattern method integrated with signal flow diagram was employed to analyze the performances of the proposed antenna. Comparing the measured results with analytical and simulated ones, good agreements are obtained. View Full-Text
Keywords: silicon-based; RF MEMS pattern reconfigurable antenna; Ka-band; RF MEMS switch; active element pattern method silicon-based; RF MEMS pattern reconfigurable antenna; Ka-band; RF MEMS switch; active element pattern method
