Micromachines 2016, 7(2), 17; doi:10.3390/mi7020017

Numerical Investigation of Cell Encapsulation for Multiplexing Diagnostic Assays Using Novel Centrifugal Microfluidic Emulsification and Separation Platform

Department of Mechanical, Materials & Manufacturing Engineering, The University of Nottingham Ningbo China, Ningbo 315100, China
Department of Mechanical Engineering, The Hong Kong Polytechnic University, Hung Hom, Hong Kong, China
Author to whom correspondence should be addressed.
Academic Editor: Marc Madou
Received: 1 December 2015 / Revised: 14 January 2016 / Accepted: 20 January 2016 / Published: 25 January 2016
(This article belongs to the Special Issue Centrifugal (Compact-Disc) Microfluidics for Extreme POC)
View Full-Text   |   Download PDF [6730 KB, uploaded 25 January 2016]   |


In the present paper, we report a novel centrifugal microfluidic platform for emulsification and separation. Our design enables encapsulation and incubation of multiple types of cells by droplets, which can be generated at controlled high rotation speed modifying the transition between dripping-to-jetting regimes. The droplets can be separated from continuous phase using facile bifurcated junction design. A three dimensional (3D) model was established to investigate the formation and sedimentation of droplets using the centrifugal microfluidic platform by computational fluid dynamics (CFD). The simulation results were compared to the reported experiments in terms of droplet shape and size to validate the accuracy of the model. The influence of the grid resolution was investigated and quantified. The physics associated with droplet formation and sedimentation is governed by the Bond number and Rossby number, respectively. Our investigation provides insight into the design criteria that can be used to establish centrifugal microfluidic platforms tailored to potential applications, such as multiplexing diagnostic assays, due to the unique capabilities of the device in handling multiple types of cells and biosamples with high throughput. This work can inspire new development of cell encapsulation and separation applications by centrifugal microfluidic technology. View Full-Text
Keywords: centrifugal microfluidics; droplet separation; emulsification; cell encapsulation centrifugal microfluidics; droplet separation; emulsification; cell encapsulation

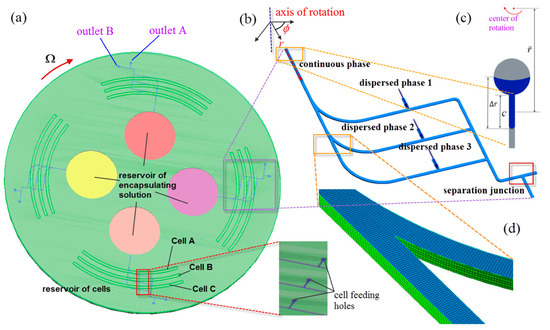

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
