Micromachines 2016, 7(11), 212; doi:10.3390/mi7110212

Automatic Path Tracking and Target Manipulation of a Magnetic Microrobot

1
State Key Laboratory of Robotics, Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang 110016, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Department of Mechanical Engineering, University of Arkansas, Fayetteville, AR 72701, USA
4
Beijing Advanced Innovation Center for Imaging Technology, Capital Normal University, Beijing 100037, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Duc Truong Pham and Nam-Trung Nguyen
Received: 25 July 2016 / Revised: 13 October 2016 / Accepted: 18 November 2016 / Published: 23 November 2016
View Full-Text   |   Download PDF [9590 KB, uploaded 24 November 2016]   |

Abstract

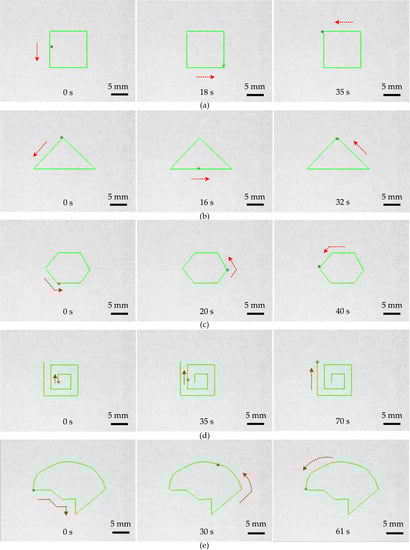

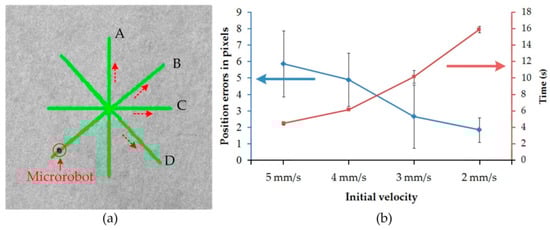

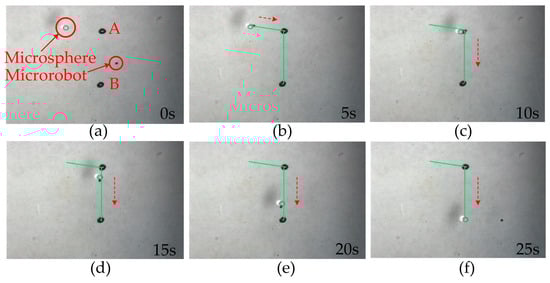

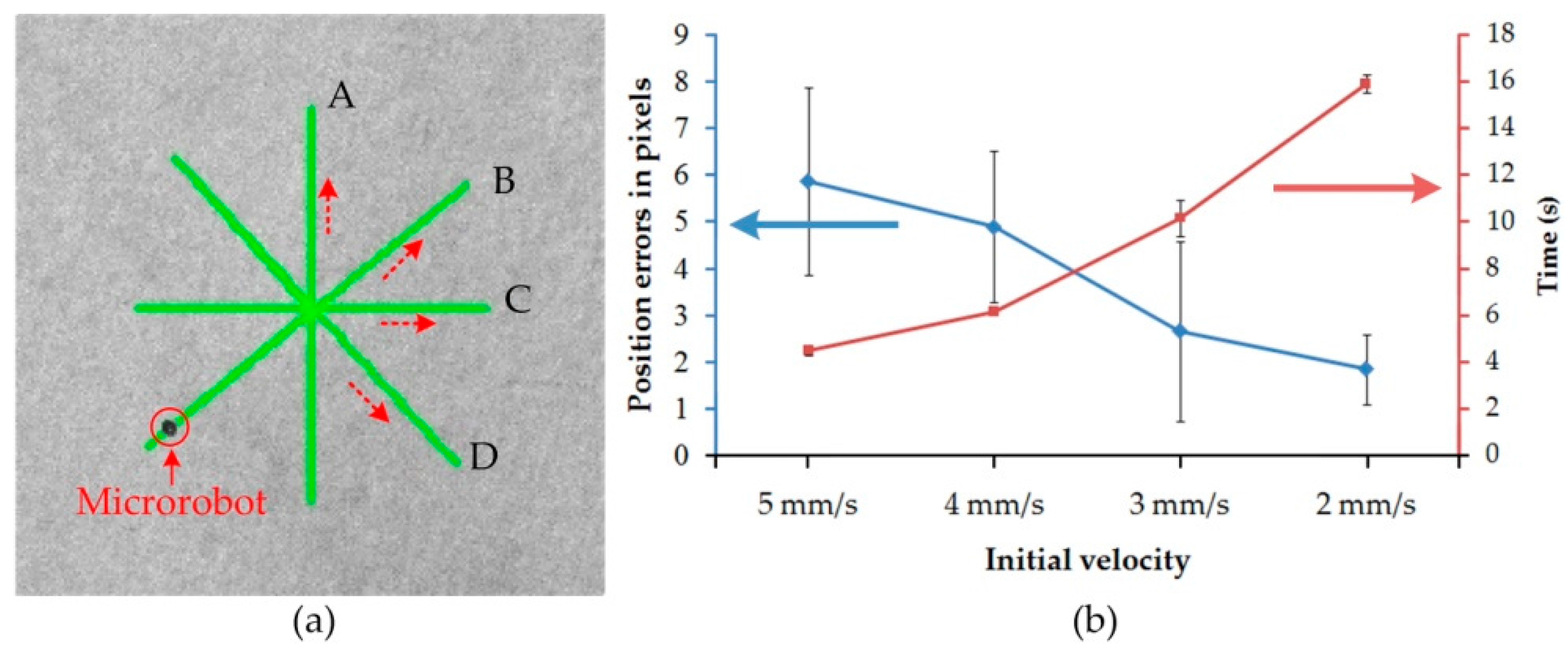

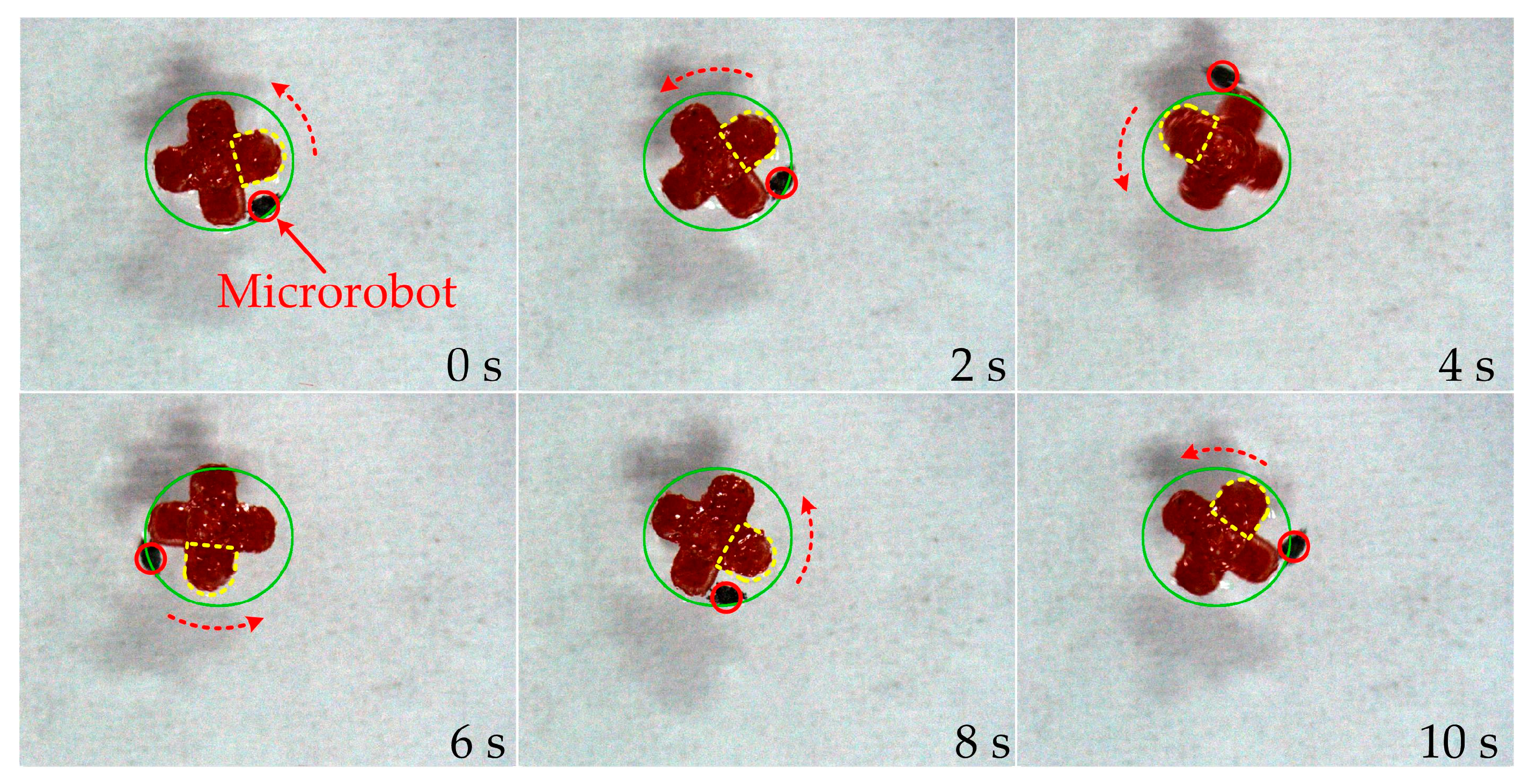

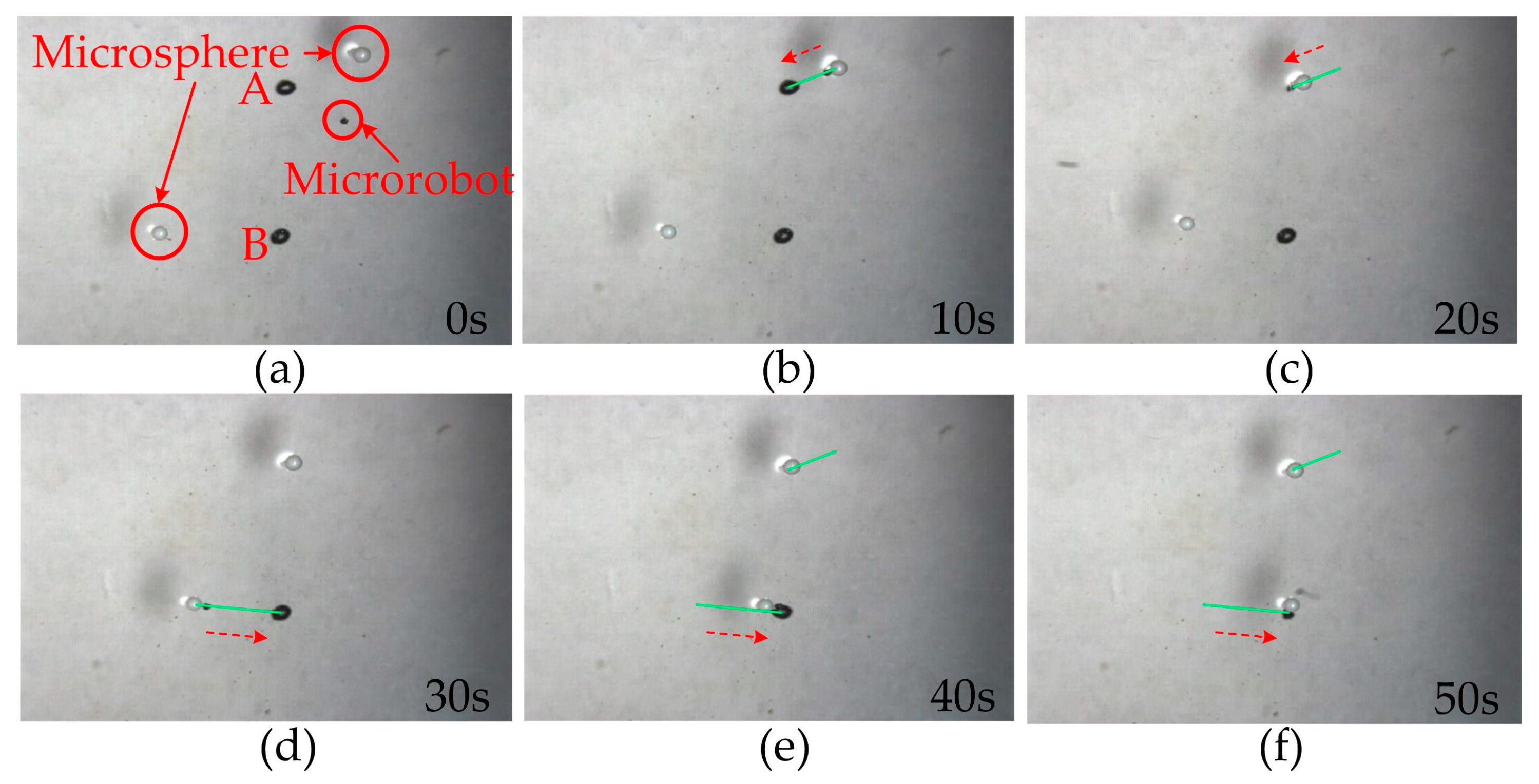

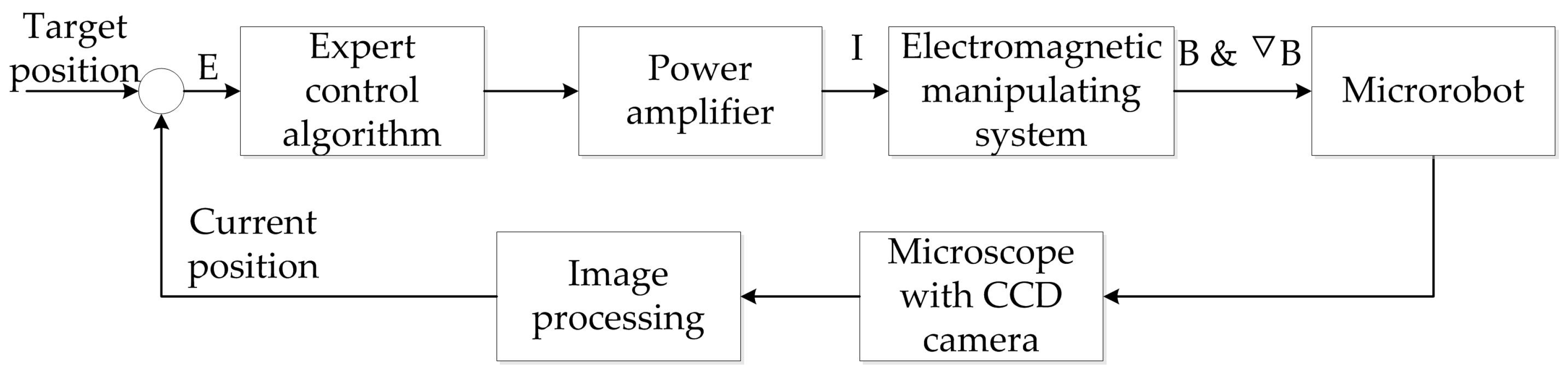

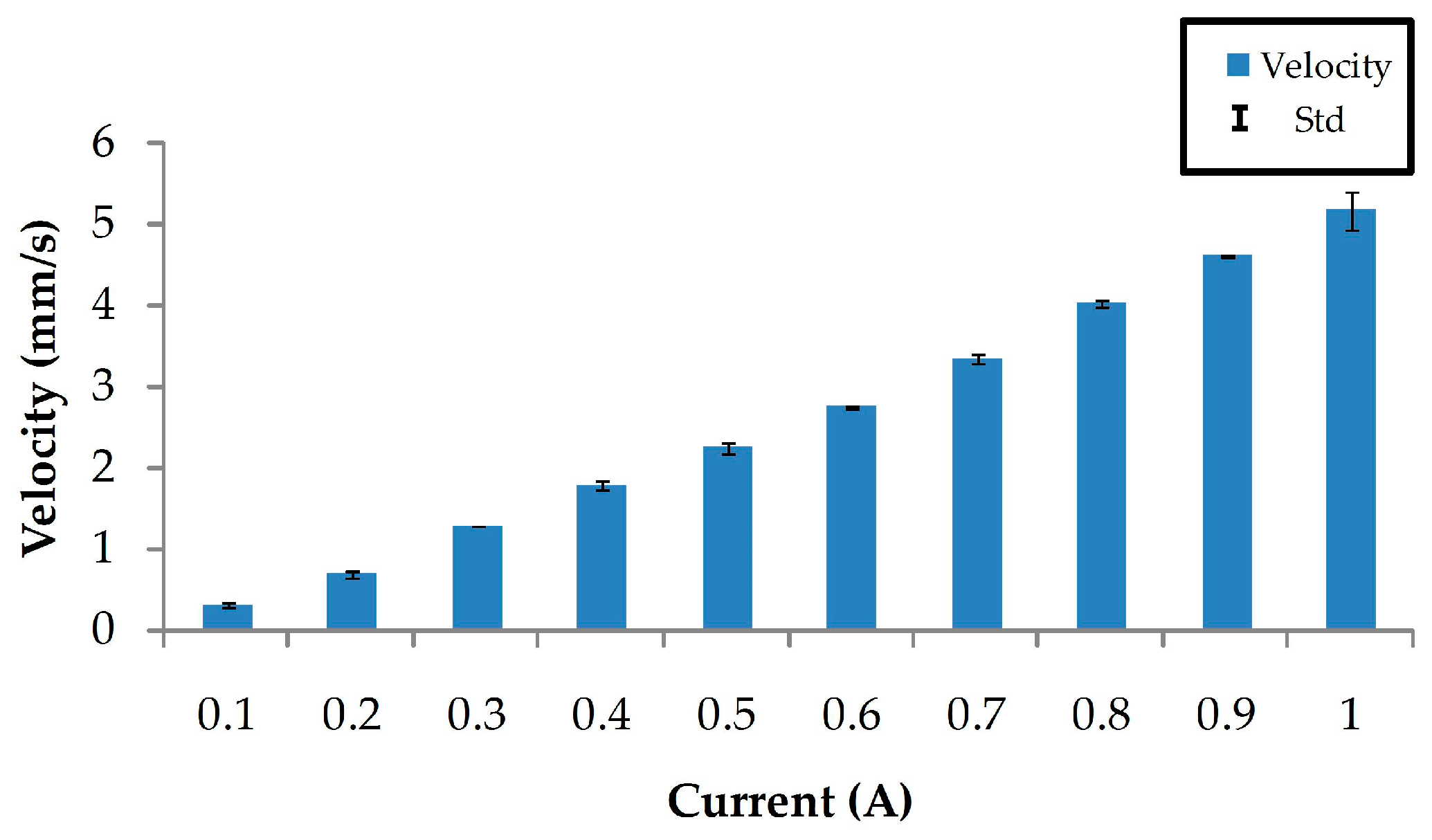

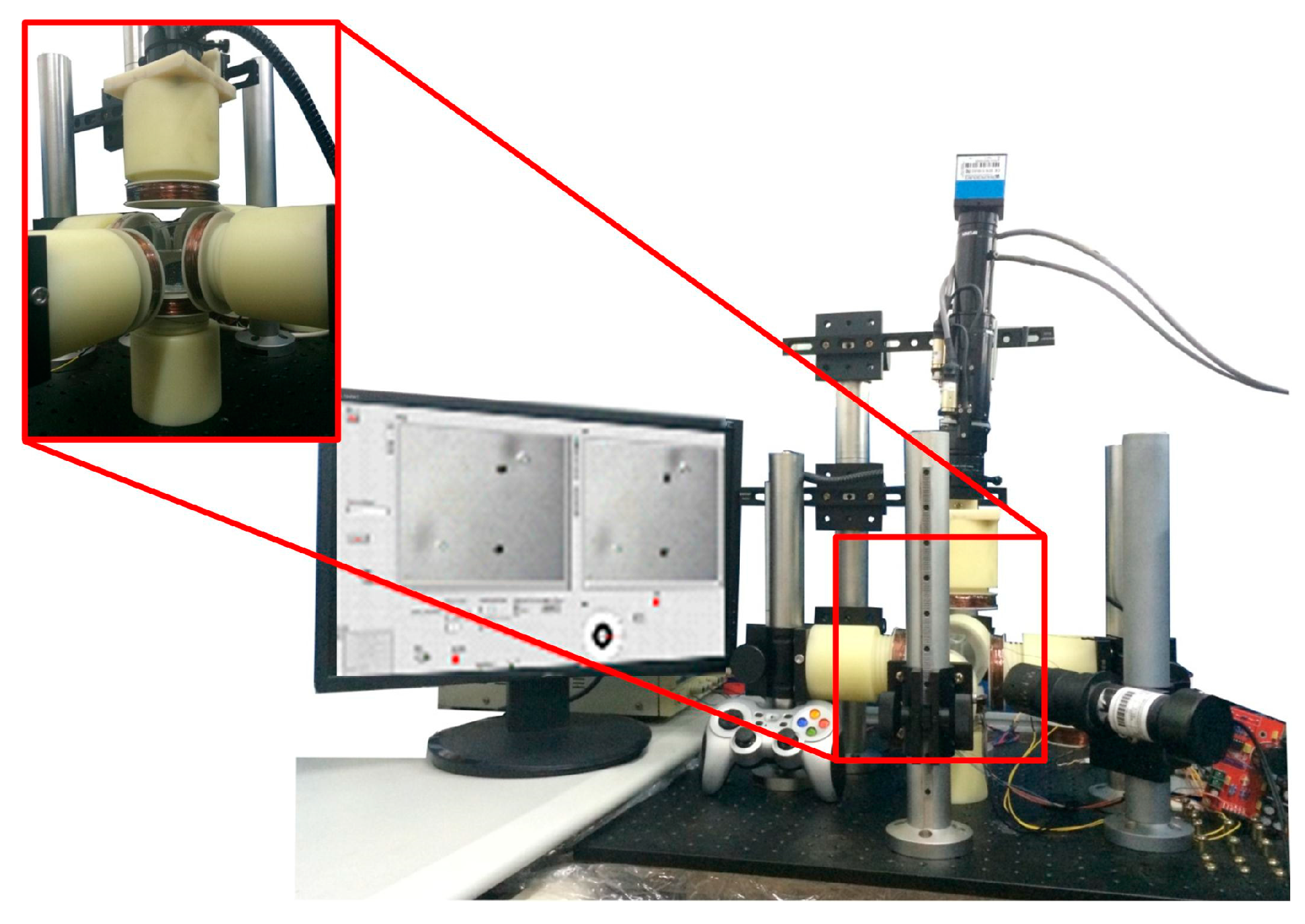

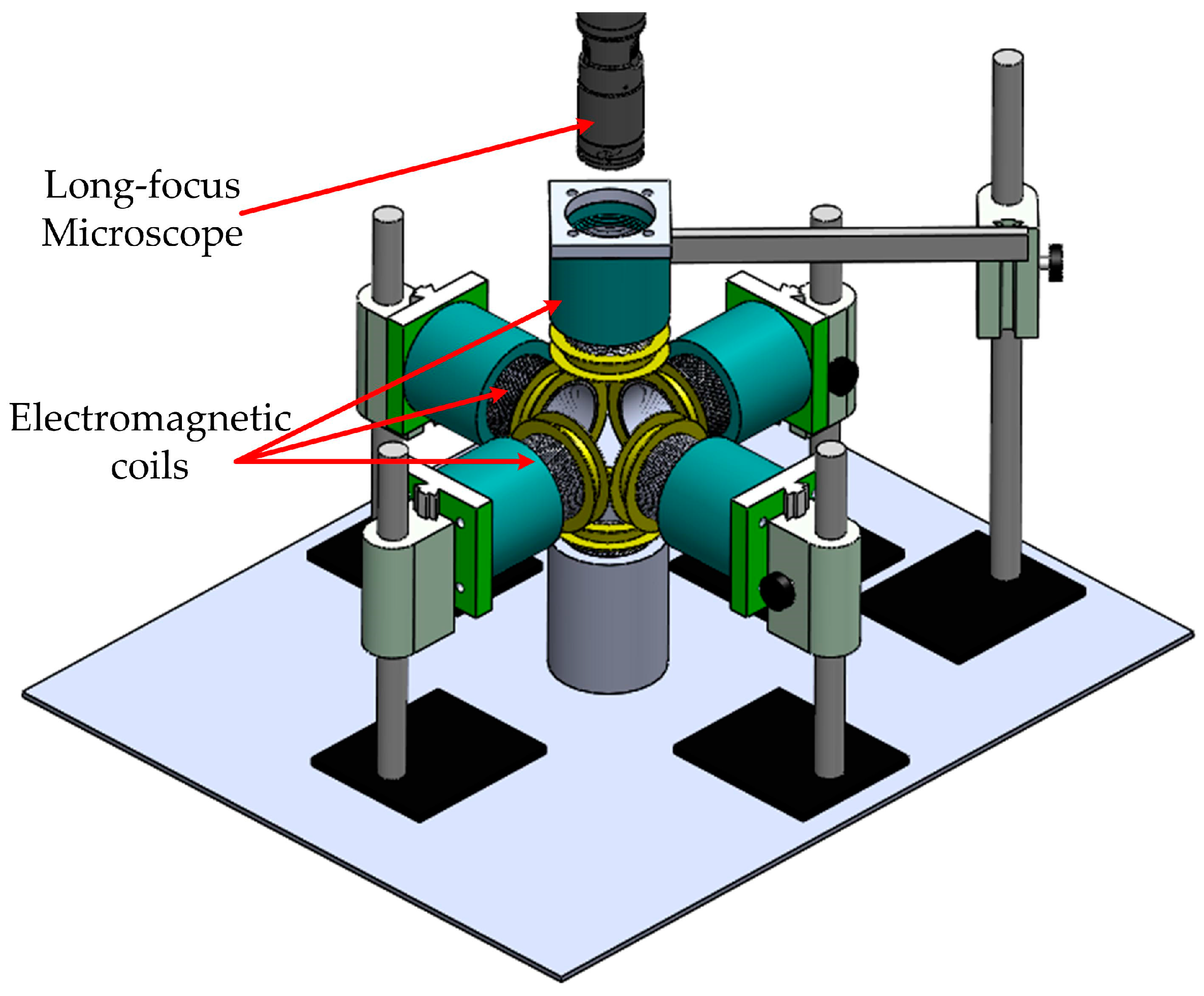

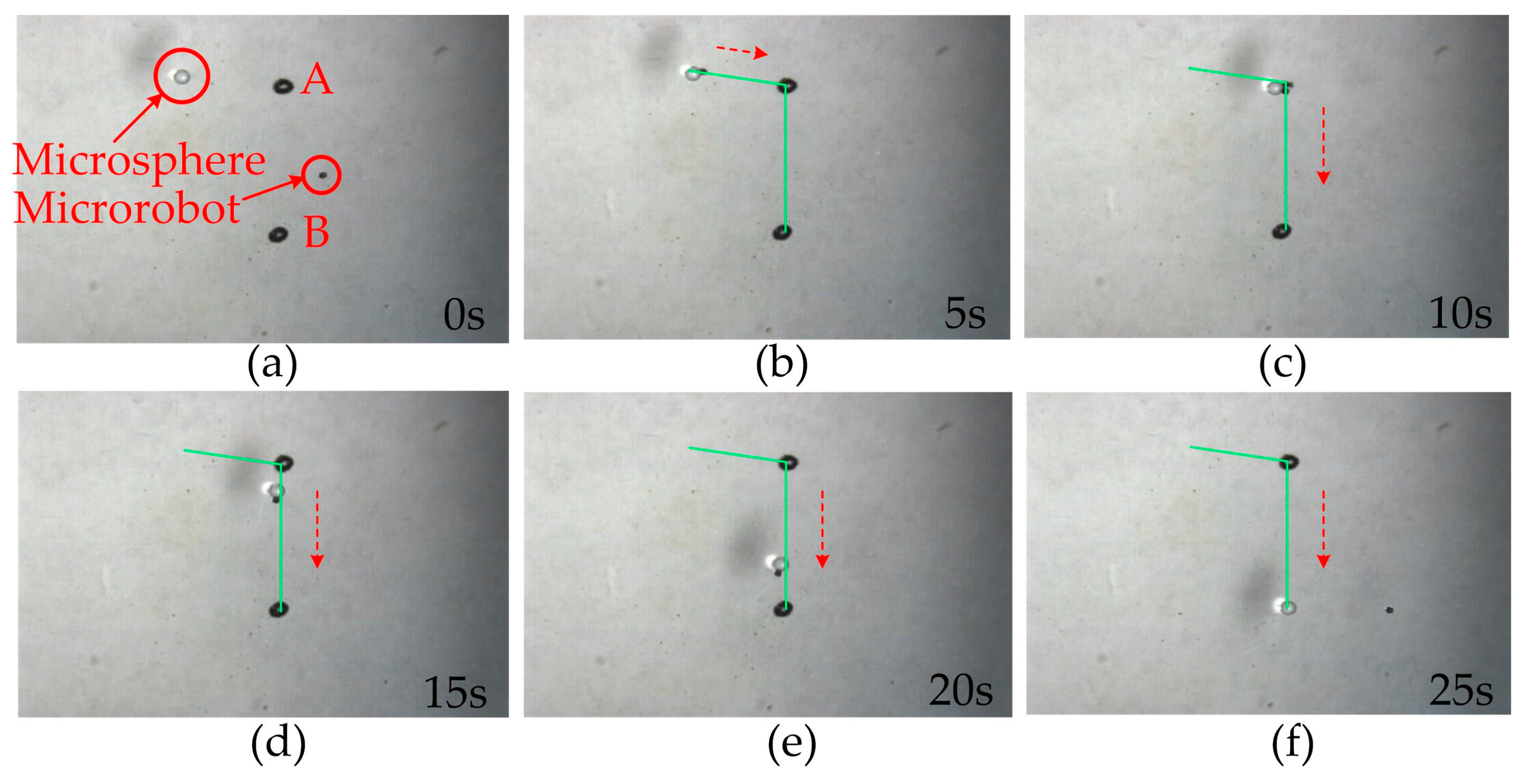

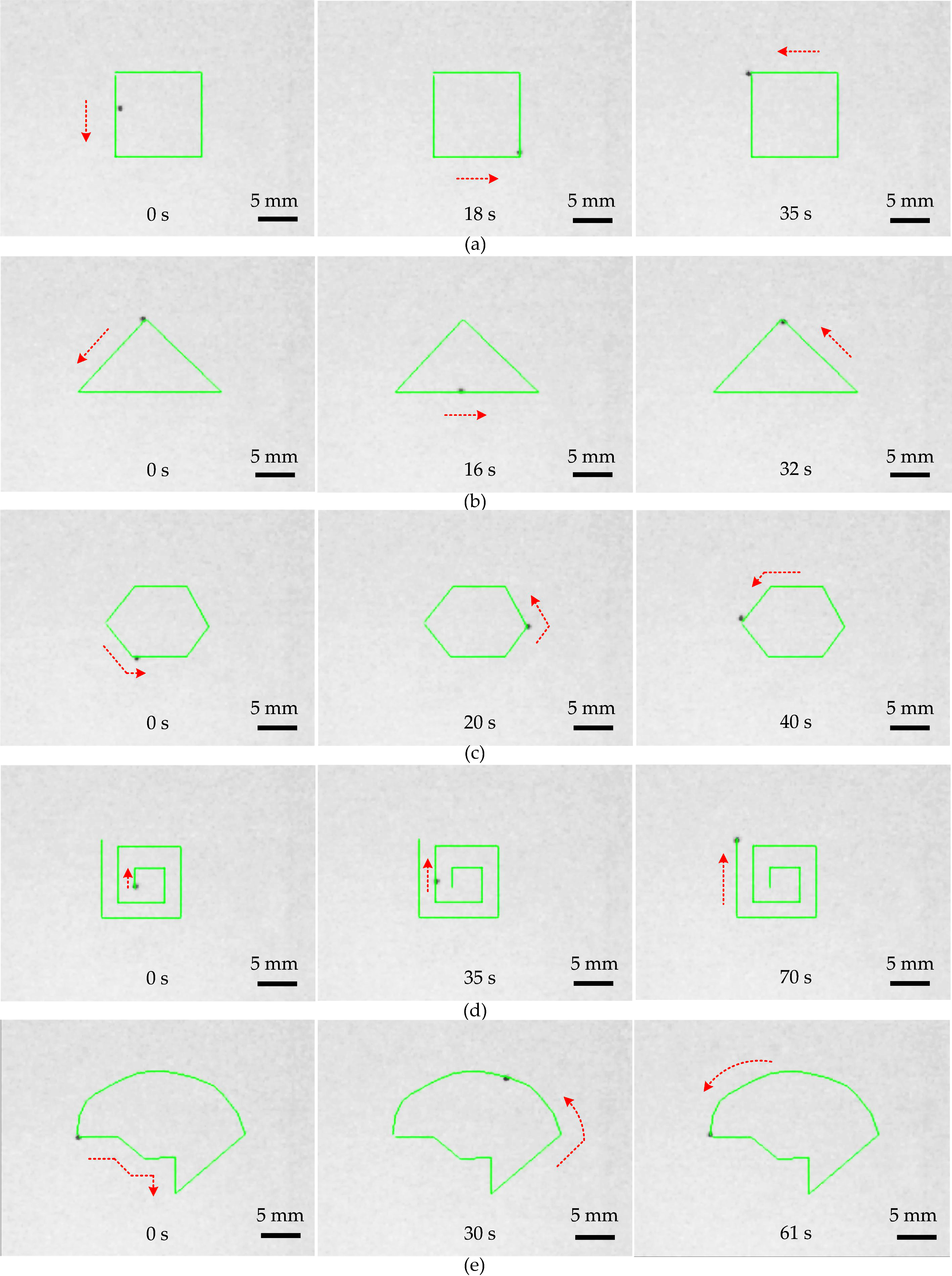

Recently, wireless controlled microrobots have been studied because of their great development prospects in the biomedical field. Electromagnetic microrobots have the advantages of control agility and good precision, and thus, have received much attention. Most of the control methods for controlling a magnetic microrobot use manual operation. Compared to the manual method, the automatic method will increase the accuracy and stability of locomotion and manipulation of microrobots. In this paper, we propose an electromagnetic manipulation system for automatically controlling the locomotion and manipulation of microrobots. The microrobot can be automatically controlled to track various paths by using visual feedback with an expert control algorithm. A positioning accuracy test determined that the position error ranges from 92 to 293 μm, which is less than the body size (600 μm) of the microrobot. The velocity of the microrobot is nearly proportional to the applied current in the coils, and can reach 5 mm/s. As a micromanipulation tool, the microrobot is used to manipulate microspheres and microgears with the automatic control method. The results verify that the microrobot can drag, place, and drive the microstructures automatically with high precision. The microrobot is expected to be a delicate micromachine that could play its role in microfluidics and blood vessels, where conventional instruments are hard to reach. View Full-Text
Keywords: magnetic microrobot; automatic path tracking; expert control; magnetic microrobot; micromanipulation magnetic microrobot; automatic path tracking; expert control; magnetic microrobot; micromanipulation
Figures

Figure 1
