Model for Predicting the Micro-Grinding Force of K9 Glass Based on Material Removal Mechanisms

Abstract

K9 optical glass has superb material properties used for various industrial applications. However, the high hardness and low fracture toughness greatly fluctuate the cutting force generated during the grinding process, which are the main factors affecting machining accuracy and surface integrity. With a view to further understand the grinding mechanism of K9 glass and improve the machining quality, a new arithmetical force model and parameter optimization for grinding the K9 glass are introduced in this study. Originally, the grinding force components and the grinding path were analyzed according to the critical depth of plowing, rubbing, and brittle tear. Thereafter, the arithmetical model of grinding force was established based on the geometrical model of a single abrasive grain, taking into account the random distribution of grinding grains, and this fact was considered when establishing the number of active grains participating in cutting N_d-Tot. It should be noted that the tool diameter changed with machining, therefore this change was taking into account when building the arithmetical force model during processing as well as the variable value of the maximum chip thickness a_max accordingly. Besides, the force analysis recommends how to control the processing parameters to achieve high surface and subsurface quality. Finally, the force model was evaluated by comparing theoretical results with experimental ones. The experimental values of surface grinding forces are in good conformity with the predicted results with changes in the grinding parameters, which proves that the mathematical model is reliable.

1. Introduction

Presently, optical glass materials like BK7 or K9 are broadly applied in the production area of various optical accessories for use in visual products or engineering appliances, such as mirrors, prisms, lenses, automobile, aerospace, and panes due to its superior scratch impedance and light transmission properties [1,2,3]. Therefore, exploring and developing efficient mechanical machining technology of optical glass has become a very important theme. K9 glass is a representative of hard and brittle materials (HBM) [4], which is prone to fracture and damage during machining due to its distinctive features, that is, fragility, resistance, hardness, strength, and alchemical stabilization. As a result, cracks and pits are easily formed on the workpiece surface, affecting the surface quality of the workpiece and the performance of the device [5,6,7]. Nowadays and because of all these factors, most HBM are processed by grinding due to its high efficiency, but the damage below the surface introduced during grinding has always been a bottleneck problem in machining [8,9]. The most important factor is grinding force, consequently, research on establishing and controlling the grinding force of HBM is particularly important for machining HBM to enhance the grinding efficiency and to upgrade the grinding tool performance [10,11,12,13]. The grinding force is closely linked with the quality prediction of the grinding tool surface, geometrical accuracy, and the technique of removing HBM. A lot of studies on micro-grinding force and material removal techniques of HBM have been conducted.

Liu et al. [14] mathematically constructed a force model for the carbon fiber material, assuming that the material removal will behave through a brittle regime, the force model was constructed through the maximum depth of indentation of a single grain in the material workpiece according to the brittle rip theory. A comparable model for K9 optical glass was built by Zhang et al. [15], depended on the mechanism of the indentation rip. The previous scholars have been repealed the forces in the ductile modes as well as neglecting the friction affection in the grinding force. Also, Sun et al. [16] proposed an arithmetical model of the grinding force for Zerodur glass in both brittle and ductile regions, considering the material removal mechanism and the influence of the frictional force. However, this model repealed the fact that not all grits are active during grinding, where the grits are randomly distributed on the wheel with their specific height and width, some of them are active and others have a free ride on the wheel. Moreover, Zhang et al. [17] proposed an arithmetic force model for Silica and Ceramics; the material removal mechanism was separated into two regimes, that are sliding and plowing grinding modes, then the scholars improved the tangential, normal, and radial force models. However, the arithmetic model has not acquired enough attention as the relative motion between the machine tool and the workpiece diverges. Xiao et al. [18] suggested a theoretical model represent the grinding force in the ductile–brittle modes for zirconia material, consideration of brittle–ductile transformation mode, whereas the force model canceled the friction leverage during grinding. Furthermore, Badger and Torrance [19] have been evolved two techniques for predicting the grinding force from wheel surface topography. The first method depends on Chalen and Oxley’s 2 D sliding-line domain model of the touch between grinding wheel grain and workpiece surface, while the other method depends on Xie’s and Willams 3 D model which creates a chain of channels on the workpiece.

With the concentration on the grinding of glass materials, many researchers have recently suggested mathematical models of grinding force, as well as the study of significant parameters to improve the quality and precision of grinding processes. Chen et al. [20] investigated a reasonable grinding technique for silica glass and acquired the optimal force model identical to the best subsurface fineness; however, the model did not reveal the random distribution of the grinding grains which plays an important role in the model force. Su et al. [21] predicted a model to express the grinding force of silica glass; the model studied how the normal and tangential (NT) forces are affected by variation in the grinding parameters. Then the scholars, after the experimental verification, showed that the force model can represent the grinding force; but the model has not considered the random distribution of the active grits and the changes in the maximum chip thickness accordingly. Zhang et al. [22] kinematically studied the micro-end grinding force of fused silica glass of ultrasonic-assisted through modeling and emulation of abrasive paths. The force model considered the ductile and brittle modes, but the force of the brittle region in the surface-grinding process is yet ambiguous. Consequently, previous studies lacked adequately representative the precise force model of the grinding process for HBM, several important reasons that are the instantaneous variation of grinding space and time as well as the mechanisms of material removal.

In the current article, K9 optical glass is considered a research object to represent the grinding force of HBM. Firstly, theoretical modeling of the micro-grinding force is developed for a single abrasive grit; because of this situation, the maximum chip thickness a_max is a dynamic concept in the grinding process, so every single active grain creates a different value of a_max. Thereafter, the study constructs the force model in the elastic, plastic, and brittle fracture modes, where the material removal mode is permanent depending on the chip thickness value. The study considered the frictional force generated between the wear protrusion of grits and the grinding face, changes in the value of the frictional coefficient produced by the flux of workpiece over the touch grinding face, the actual active grains which participate in processing, and the reduction in the grinding tool during machining which directly affects the amount of removal chip thickness. Subsequently, the grinding experiments are carried out with a PCD grinding tool and the empirical formulas of NT grinding forces are analyzed; the experimental measurement results are compared to the model prediction values. Finally, the comparative study confirms that the force model can represent the surface grinding force of K9 optical glass.

2. Analysis of Surface Grinding Process

Clarifying the factors of the surface grinding process is a primary task to analyze and correctly establish the grinding force model through the different mechanisms of the material removal modes.

Figure 1 clarifies the mechanism and the main parameters of the radial surface grinding process. The wheel rotates at an angular speed of ω and advances in the direction of the x-axis towards the interior surface of the workpiece at a feed rate of f_p.

2.1. Displacement and Motion of Single Abrasive Grit

As displayed in Figure 1, the relative displacement of a single grit S with respect to the workpiece is identified as a function of time represented by Equation (1):

$$\stackrel{\rightharpoonup }{\mathrm{S}\left(\mathrm{t}\right)}=\left({\mathrm{r}}_{\mathrm{t}}\sin \left(\mathsf{\omega }\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{p}}\mathrm{t}\right)\mathrm{i}+\left({\mathrm{r}}_{\mathrm{t}}-{\mathrm{r}}_{\mathrm{t}}·\cos \left(\mathsf{\omega }\mathrm{t}\right)\right)\mathrm{j}$$

(1)

where r_t is the radius of the grinding tool, f_p is the feed rate, ω is the angular spindle speed, and t defined as the grinding time.

The relative velocity of a single grain to the workpiece V_r is calculated by the first time derivative of the displacement formula as:

$$\stackrel{\rightharpoonup }{{\mathrm{V}}_{\mathrm{r}}\left(\mathrm{t}\right)}=\frac{\partial \mathrm{S}}{\partial \mathrm{t}}=\left({\mathrm{r}}_{\mathrm{t}}·\mathsf{\omega }·\cos \left(\mathsf{\omega }\mathrm{t}\right)+{\mathrm{f}}_{\mathrm{p}}\right)\mathrm{i}+\left({\mathrm{r}}_{\mathrm{t}}·\mathsf{\omega }\sin \left(\mathsf{\omega }\mathrm{t}\right)\right)\mathrm{j}.$$

(2)

2.2. Chip Thickness Model Establishment

The most important step in establishing the force model of the surface grinding process is identifying the regions of the material removal. Therefore, Section 2.2 discusses in detail how to define the various modes of material removal. Figure 2a presents the geometry of the abrasive grain and clarifies the active grain parameters such as semi-apex angle β of the active grain and the average diameter of the active grain D_d which was acquired by gauging the average radius rate of abrasive extremity using AFM.

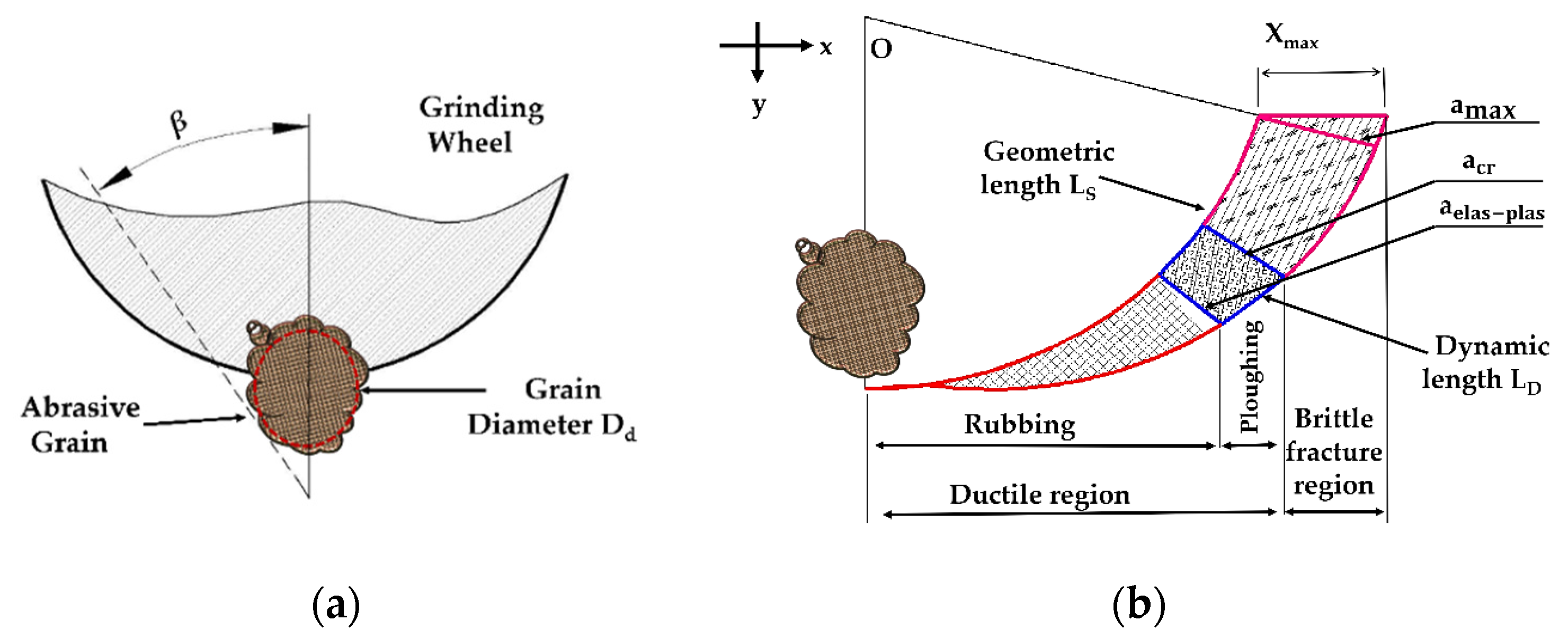

As shown in Figure 2b, the entire process of the surface grinding on the interactivity between the grits and the workpiece is classified as ductile region, ductile–brittle transition, and brittle region. The ductile region is divided into three modes, namely, chip formation, elastic, and plastic. Accordingly, the mechanisms of the material removal are classified based on the elastic-to-plastic chip thickness a_elas-plas, critical chip thickness at ductile-to-brittle transition a_cr, and maximum chip thickness a_max; can be modeled as follows [23]:

$$\{\begin{array}{c}\left\{\begin{array}{c}{\mathrm{a}}_{\mathrm{c}}<{\mathrm{a}}_{\text{elas-plas}} \left(\mathrm{rubbing}\right)\\ {\mathrm{a}}_{\text{elas-plas}}<{\mathrm{a}}_{\mathrm{c}}<{\mathrm{a}}_{\mathrm{cr}} \left(\mathrm{ploughing}\right)\end{array}\right\} \mathrm{Ductile} \mathrm{region}\\ {\mathrm{a}}_{\mathrm{c}}>{\mathrm{a}}_{\mathrm{cr}} (\mathrm{Brittle} \mathrm{region})\}\end{array}.$$

(3)

2.2.1. Chip Thickness of the Elastic-Plastic Transition

Correct modeling of the grinding force needs to consider the recovery and deformation of the elastic mode, in particular at the level of the initial contact zone [23]. So, the designation of the elastic zone needs to locate the transferring from elastic-to-plastic, which is pointed out based on the contact theory of Hertz’ and expressed in Equation (4) [24].

$${\mathrm{a}}_{\text{elas-plas}}={\left(\frac{2\mathsf{\pi }{\mathrm{H}}_{\mathrm{p}}}{7}·\frac{(1-{{\mathsf{\upsilon }}_{\mathrm{p}}}^2)}{{\mathrm{E}}_{\mathrm{p}}}\right)}^2·{\mathrm{r}}_{\mathrm{d}}$$

(4)

where r_d is the mean radius of the active diamond grain, H_p is the material hardness, υ_p and E_p are the Poisson’s ratio and Young’s modulus of the workpiece respectively.

2.2.2. Chip Thickness of the Ductile–Brittle Transition

Studying the critical depth of cut a_cr is the main key for controlling surface grinding of HBM, as the chip thickness must remain under the a_cr to stay grinding in the ductile region [25]. To easily locate the transition point from ductile-to-brittle mode, it is supposed that the grinding parameters do not affect the workpiece specifications during machining, as a result, the critical chip thickness from ductile-to-brittle fracture a_cr is expressed by Equation (5) which identified through material properties of the workpiece material [26,27].

$${\mathrm{a}}_{\mathrm{cr}}=\mathsf{\epsilon }\left(\frac{{\mathrm{E}}_{\mathrm{p}} }{{\mathrm{H}}_{\mathrm{p}}}\right){\left(\frac{{\mathrm{K}}_{\mathrm{IC}} }{{\mathrm{H}}_{\mathrm{p}}}\right)}^2$$

(5)

where ε is a unitless constant (ε = 0.15) [28,29], H_p is the material hardness, E_p is Young’s modulus, and K_IC tensile strength.

2.2.3. Maximum Chip-Thickness

In the existing study, the maximum chip thickness a_max for two uninterrupted grits is established according to the grinding parameters and expressed in Equation (6) [25,30].

$${\mathrm{a}}_{\max }={\left(\frac{3}{4}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$6$}\right.}{\left(\frac{\mathsf{\pi }}{{\mathrm{C}}_{\mathrm{G}}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}{\left(\frac{{4\mathrm{f}}_{\mathrm{p}}·{\mathrm{r}}_{\mathrm{d}}{}^2}{0.3\mathsf{\omega }·{\mathrm{r}}_{\mathrm{t}}·\tan \mathsf{\beta }}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}{\left(\frac{\mathrm{h}}{{2\mathrm{r}}_{\mathrm{t}}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$4$}\right.}=3.031·\frac{{\mathrm{r}}_{\mathrm{d}}}{{\mathrm{C}}_{\mathrm{G}}{}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}}·{\left(\frac{{\mathrm{f}}_{\mathrm{p}}}{\mathsf{\omega }·\tan \mathsf{\beta }}·\sqrt{\frac{\mathrm{h}}{{\mathrm{r}}_{\mathrm{t}}{}^3}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$$

(6)

where β is defined as the half-oblique angle of a single active grit (suggested as 60° [31]), h is the grinding depth, C_G is the size fracture of grinding grit.

Figure 3a shows the topography of the grinding wheel surface which clearly shows the density of the grinding grains before the grinding process, while Figure 3b shows the effect of grinding on the grains that are dislocated or removed by machining which led to a decrease in the diameter of the grinding wheel accordingly. In general, the diameter of the grinding tool is affected by the high speed, therefore, the diameter decreases by increasing the spindle speed, feed rate, or grinding depth, so the a_max is a dynamic concept that can be calculated through Equation (7) [32,33].

$${\mathrm{a}}_{\max }=3.031·\frac{{\mathrm{r}}_{\mathrm{d}}}{{\mathrm{C}}_{\mathrm{G}}{}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}}·{\left(\frac{{\mathrm{f}}_{\mathrm{p}}}{\mathsf{\omega }·\tan \mathsf{\beta }}·\sqrt{\frac{\mathrm{h}}{{\mathrm{r}}_{\mathrm{t}}{}^3}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}-\frac{{\mathrm{X}}_{\max }{}^2}{{2\mathrm{r}}_{\mathrm{t}}}.$$

(7)

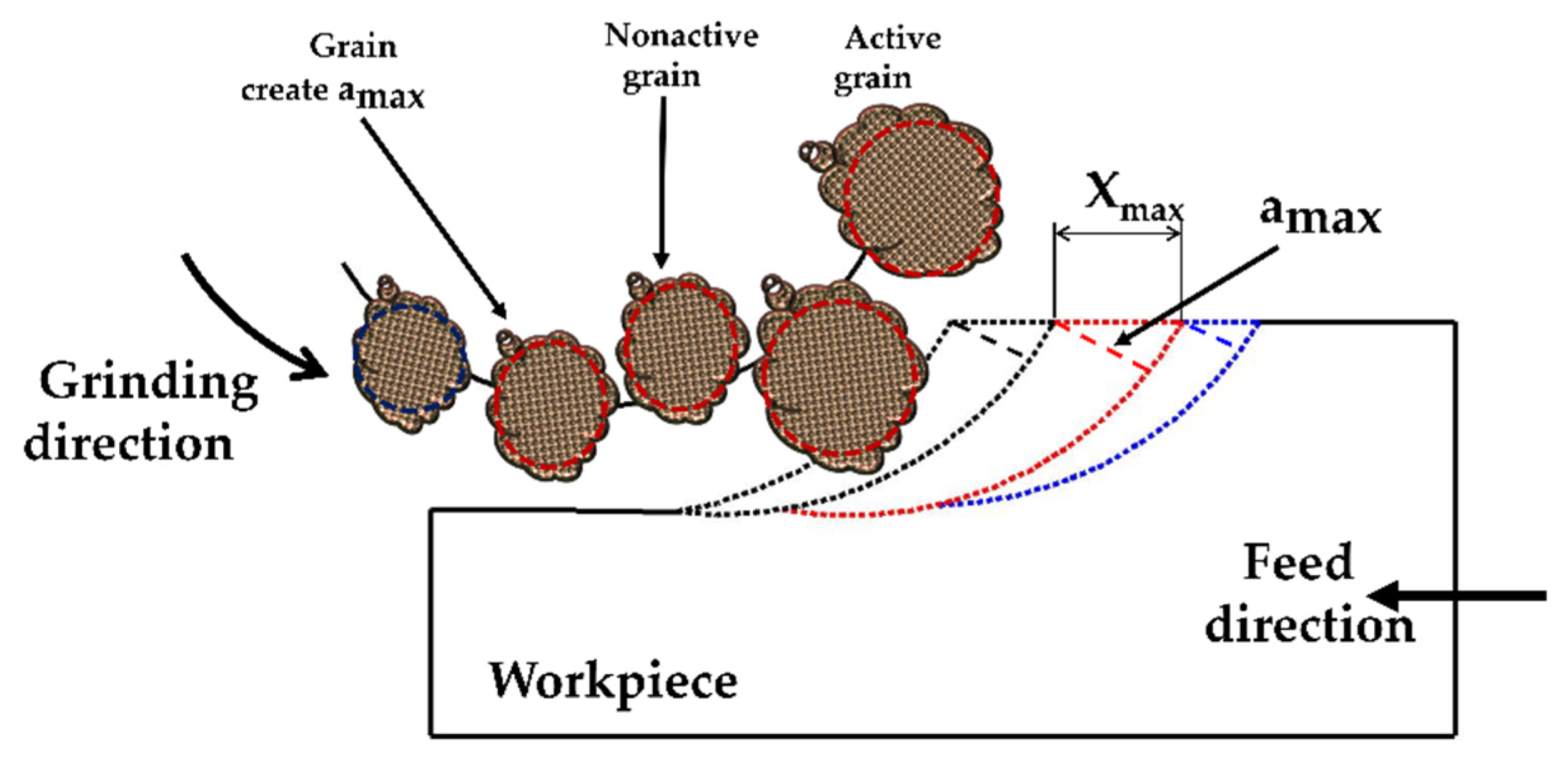

The cutting path of the cutting edge of the previous grain moves from the first touchpoint to the workpiece surface. The linear distance from the first to the last touchpoints is equal to the amount of translation of the workpiece X_max during the interval between the turning of adjacent cutting edges as displayed in Figure 1b, X_max can be calculated by Equation (8).

$${\mathrm{X}}_{\max }=\frac{{\mathsf{\lambda }}_{\mathrm{r}}·{\mathrm{f}}_{\mathrm{p}}}{{\mathsf{\omega }\mathrm{r}}_{\mathrm{t}}}$$

(8)

where λ_r is the average space between any two active grains calculated by Equation (9) [31].

$${\mathsf{\lambda }}_{\mathrm{r}}=\left(\sqrt{\frac{\mathsf{\pi }}{{\mathrm{C}}_{\mathrm{G}}}}-2\right)·{\mathrm{r}}_{\mathrm{d}}.$$

(9)

By substitution Equations (8) and (9) into Equation (7), the a_max is expressed as

$${\mathrm{a}}_{\max }=3.031·\frac{{\mathrm{r}}_{\mathrm{d}}}{{\mathrm{C}}_{\mathrm{G}}{}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$3$}\right.}}·{\left(\frac{{\mathrm{f}}_{\mathrm{p}}}{\mathsf{\omega }·\tan \mathsf{\beta }}·\sqrt{\frac{\mathrm{h}}{{\mathrm{r}}_{\mathrm{t}}{}^3}}\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}-{\left(\sqrt{\frac{\mathsf{\pi }}{{\mathrm{C}}_{\mathrm{G}}}}-2\right)}^2·\left(\frac{{\mathrm{r}}_{\mathrm{d}}{}^2}{{2\mathrm{r}}_{\mathrm{t}}}\right)·{\left(\frac{{\mathrm{f}}_{\mathrm{p}}}{{\mathsf{\omega }\mathrm{r}}_{\mathrm{t}}}\right)}^2.$$

(10)

2.3. Clarifying the Various Grinding Areas

Identification of the NT grinding areas of a single grain, whether projected or contacting, is a very important task to accurately establish the NT grinding forces of a single grit. The touch depth is almost equivalent to the semi-value of the depth of cut when the grit begins to touch the working surface in the elastic region [24]. Meanwhile, the touch depth is almost equivalent to the depth of cut during plastic mode [34].

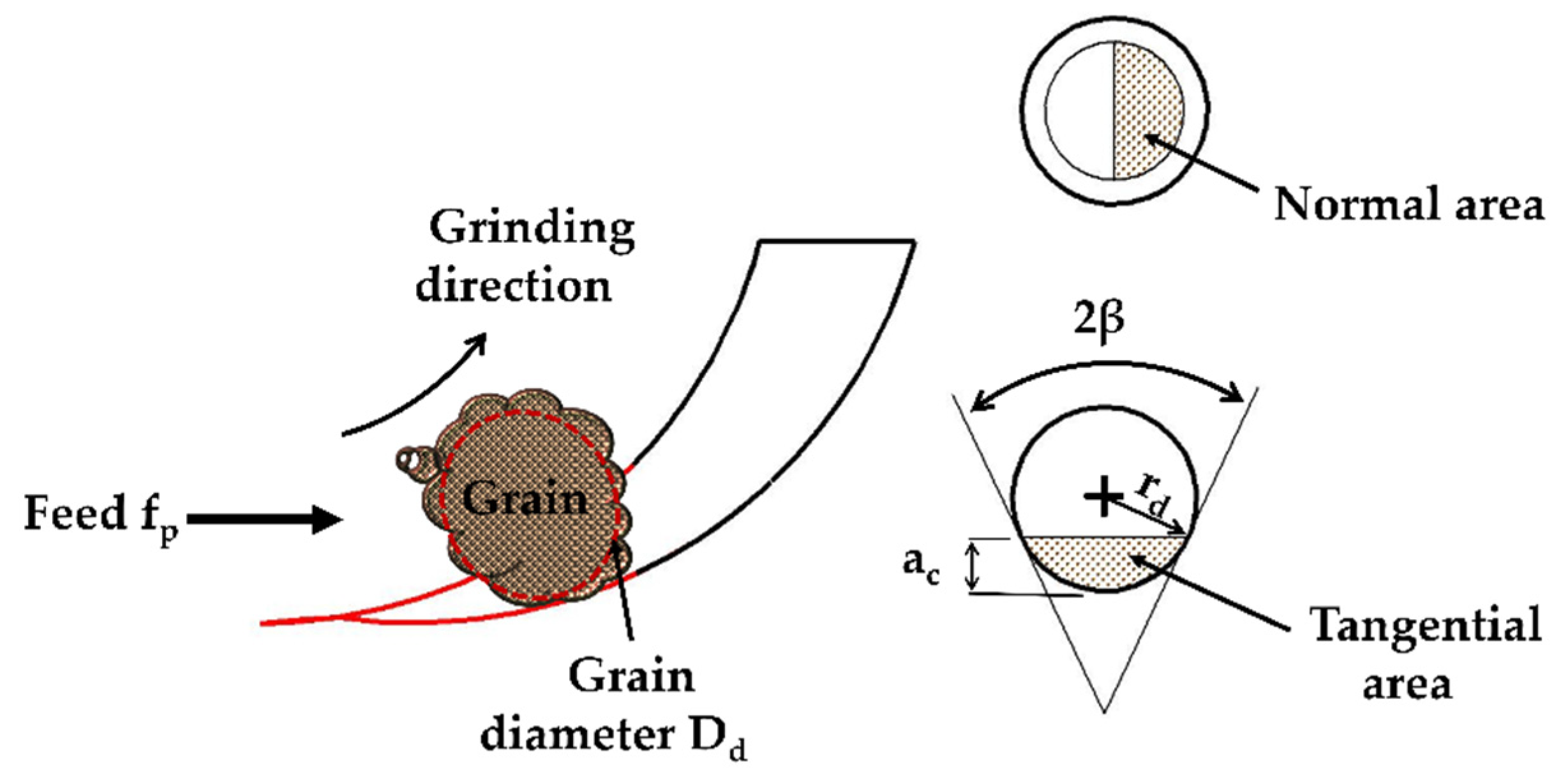

As shown in Figure 4, the NT areas depend on the half-vertex angle β of a single grit, the grain diameter D_d and cutting depth a_c or h_t. Equation (11) represents the projection area in normal plane A_n-elas, the area in the thrust axis A_t-elas is displayed in Equation (12).

$${\mathrm{A}}_{\text{n-elas}}={\mathrm{r}}_{\mathrm{d}}{}^2\left(\mathsf{\beta }-0.5 \mathrm{s}\mathrm{i}\mathrm{n} \mathsf{\beta }\right)$$

(11)

where h_t is the cutting depth in the elastic zone and established as $\left({\mathrm{h}}_{\mathrm{t}}=\frac{{\mathrm{a}}_{\max }}{{2\mathrm{N}}_{\text{d-x}}}\right)$ (N_d-x is the active grains through x-axis which is discussed in Section 3.1).

$${\mathrm{A}}_{\text{t-elas}}=\left({\mathrm{r}}_{\mathrm{d}}{}^2·\mathsf{\beta }\right)-\left(\left({\mathrm{r}}_{\mathrm{d}}-{\mathrm{h}}_{\mathrm{t}}\right)·{\mathrm{r}}_{\mathrm{d}}·\sin \mathsf{\beta }\right).$$

(12)

The angle β is set as a dynamic value calculated based on the grinding modes, it, therefore, depends entirely on the cutting depth. In the elastic mode, the angle β is set as $\left(\mathsf{\beta }={\cos }^{-1}\left(\frac{{\mathrm{D}}_{\mathrm{d}}-{2\mathrm{h}}_{\mathrm{t}}}{{\mathrm{D}}_{\mathrm{d}}}\right)\right)$.

In the plastic region, the projected areas whether in the normal axis A_n-plas or the tangential axis A_t-plas are established as:

$${\mathrm{A}}_{\text{n-plas}}=\frac{\mathsf{\pi }}{2}\left({2\mathrm{r}}_{\mathrm{d}}·{\mathrm{a}}_{\mathrm{c}}-{\mathrm{a}}_{\mathrm{c}}{}^2\right)$$

(13)

$${\mathrm{A}}_{\text{t-plas}}={\mathrm{r}}_{\mathrm{d}}{}^2·\mathsf{\beta }-\left({\mathrm{r}}_{\mathrm{d}}-{\mathrm{a}}_{\mathrm{c}}\right)·\sqrt{{2\mathrm{r}}_{\mathrm{d}}·{\mathrm{a}}_{\mathrm{c}}-{\mathrm{a}}_{\mathrm{c}}{}^2}$$

(14)

where the angle β under plastic mode is calculated as $\left(\mathsf{\beta }={\cos }^{-1}\left(\frac{{\mathrm{D}}_{\mathrm{d}}-{2\mathrm{a}}_{\mathrm{c}}}{{\mathrm{D}}_{\mathrm{d}}}\right)\right)$.

3. Grinding Force Establishment

Based on the preceding analyses of the material removal, the force model is classified according to the classification of the grinding modes which stated in Equation (3). The sophisticated force pattern when surface grinding can be determined in two parts, namely, NT grinding forces. The grinding force model is constructed according to the individual grain interactivity, thereupon the formula of the active grains should be established initially. Section 3.1 briefly explains how to identify the number of active diamonds.

3.1. Active Abrasive Grain

The maximum chip thickness a_max is a dynamic concept in the grinding process and every single active grit creates a different value based on the wheel properties and grinding parameters as displayed in Figure 5. For this, not all the grains making protrusion in the surface of the grinding tool will engage in the grinding process. So, the number of active diamonds is calculated separately in the (x–z) directions, then the total active grits are obtained by multiplying the active grains on x-axis and z-axis. The number of active diamonds formula is established through identifying the touch arc length λ_c as expressed in Equation (15), and the average distance between two active grains λ_r is displayed in Equation (9). The touch arc length λ_c is defined as [34,35]:

$${\mathsf{\lambda }}_{\mathrm{c}}=\left(1+\frac{{\mathrm{f}}_{\mathrm{p}}}{{\mathrm{V}}_{\mathrm{r}}}\right)·\sqrt{{2 \mathrm{h}·\mathrm{r}}_{\mathrm{t}}}.$$

(15)

The active grains in the x, z-axes are explained in the following equations:

$${\mathrm{N}}_{\text{d-x}}=\frac{{\mathsf{\lambda }}_{\mathrm{c}}}{{ 2\mathrm{r}}_{\mathrm{d}}+{\mathsf{\lambda }}_{\mathrm{r}}}=\left(1+\frac{{\mathrm{f}}_{\mathrm{p}}}{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}\right)·\sqrt{\frac{{2\mathrm{C}}_{\mathrm{G}}·\mathrm{h}·{\mathrm{r}}_{\mathrm{t}}}{{\mathsf{\pi }\mathrm{r}}_{\mathrm{d}}{}^2}}$$

(16)

$${\mathrm{N}}_{\text{d-z}}=\frac{{\mathrm{a}}_{\mathrm{w}}}{{2\mathrm{r}}_{\mathrm{d}}+{\mathsf{\lambda }}_{\mathrm{r}}}=\frac{{\mathrm{a}}_{\mathrm{w}}}{{\mathrm{r}}_{\mathrm{d}}}·\sqrt{\frac{{\mathrm{C}}_{\mathrm{G}}}{\mathsf{\pi }}}.$$

(17)

The total active grains N_d-Tot is calculated through multiplying the active grains in x-axis N_d-x and the active grains in z-axis N_d-z as:

$${\mathrm{N}}_{\text{d-Tot}}={\mathrm{N}}_{\text{d-x}}·{\mathrm{N}}_{\text{d-z}}=\left(1+\frac{{\mathrm{f}}_{\mathrm{p}}}{{\mathrm{V}}_{\mathrm{r}}}\right)·\left(\frac{{\mathrm{C}}_{\mathrm{G}}·{\mathrm{a}}_{\mathrm{w}}}{{\mathsf{\pi }\mathrm{r}}_{\mathrm{d}}{}^2}\right)·\sqrt{{2 \mathrm{h}·\mathrm{r}}_{\mathrm{t}}}.$$

(18)

3.2. Force Model in Ductile Region

As shown in Figure 6, the mode of a ductile zone is classified into two categories; elastic and plastic modes. So, the force model taking the frictional force into a consideration is built according to these modes.

$$\{\begin{array}{c}{\mathrm{F}}_{\mathrm{n}}={\mathrm{F}}_{\text{n-elas}}+{\mathrm{F}}_{\text{n-plas}}+{\mathrm{F}}_{\mathrm{n}.\mathrm{fr}}\\ {\mathrm{F}}_{\mathrm{t}}={\mathrm{F}}_{\text{t-elas}}+{\mathrm{F}}_{\text{t-plas}}+{\mathrm{F}}_{\mathrm{t}.\mathrm{fr}}\end{array}$$

(19)

where F_n and F_t represent the total grinding force of NT coordinates respectively, F_n-elas and F_t-elas are the NT rubbing forces acted in the elastic region, F_n-elas and F_t-elas are the NT plowing forces acted in the plastic region, F_n.fr and F_t.fr are the NT frictional forces which acted through the whole grinding process.

3.2.1. Elastic Force

When a_c < a_elas-plas the elastic stage is dominant, the grinding force is named according to the stage name and expressed as follows:

$${\mathrm{F}}_{\text{n-elas}}={\mathrm{N}}_{\text{d-Tot}}·{\mathrm{P}}_{\text{max-elas}}·{\mathrm{A}}_{\text{n-elas}}$$

(20)

$${\mathrm{F}}_{\text{t-elas}}=\mathsf{\mu }{\mathrm{N}}_{\text{d-Tot}}·{\mathrm{P}}_{\text{max-elas}}·{\mathrm{A}}_{\text{t-elas}}$$

(21)

where P_max-elas is the maximum contact pressure occurred in the elastic stage, μ is the coefficient of friction.

To calculate the maximum pressure in elastic and plastic zones, the maximum pressure acted in the ductile mode P_max must be clarified initially, therefore it is displayed by Equation (22) [36].

$${\mathrm{P}}_{\max }=\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·{\mathrm{P}}_{\mathrm{i}}$$

(22)

where η, ζ are constants defined according to the material sensitivity to strain average. ε_c is strain average constant calculated as ε_c = 1 [37], P_i is the contact pressure related to the pressure in elastic zone P_i-elas classified by Equation (24), as well as pressure in the plastic zone P_i-plas expressed by Equation (31), R_c is the contact arc length identified by Equation (23).

$${\mathrm{R}}_{\mathrm{c}}=2{\left({\mathrm{a}}_{\mathrm{c}}·{\mathrm{D}}_{\mathrm{d}}-{\mathrm{a}}_{\mathrm{c}}{}^2\right)}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$2$}\right.}$$

(23)

where D_d is the average median diameter of a single abrasive grit.

The pressure in the elastic mode can be classified as [24,38]:

$${\mathrm{P}}_{\text{i-elas}}=\frac{4\sqrt{2}{\mathrm{E}}_{\mathrm{ef}}}{3\mathsf{\pi }}·\sqrt{\frac{{\mathrm{a}}_{\mathrm{c}}}{{\mathrm{D}}_{\mathrm{d}}}}$$

(24)

where the effective elastic modulus E_ef can be calculated through Equation (25).

$${\mathrm{E}}_{\mathrm{ef}}={\left(\frac{1-{{\mathsf{\upsilon }}_{\mathrm{p}}}^2}{{\mathrm{E}}_{\mathrm{p}}}+\frac{1-{{\mathsf{\upsilon }}_{\mathrm{d}}}^2}{{\mathrm{E}}_{\mathrm{d}}}\right)}^{-1}$$

(25)

where υ_p, υ_d are the Poisson’s ratio of the workpiece and diamond grain respectively, E_p, E_d are the elastic modulus of the workpiece and diamond grain respectively.

Then the maximum pressure in elastic mode P_max-elas can be obtained as follows:

$${\mathrm{P}}_{\text{max-elas}}=\frac{4\sqrt{2}{\mathrm{E}}_{\mathrm{ef}}}{3\mathsf{\pi }}·\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·\sqrt{\frac{{\mathrm{a}}_{\mathrm{c}}}{{\mathrm{D}}_{\mathrm{d}}}}.$$

(26)

The NT forces that occurred in elastic mode F_n-elas and F_t-elas are respectively expressed by Equations (27) and (28).

$${\mathrm{F}}_{\text{n-elas}}={\mathrm{N}}_{\text{d-Tot}}·\frac{2\sqrt{2}{\mathrm{E}}_{\mathrm{ef}}}{3}·\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·\sqrt{\frac{{\mathrm{a}}_{\mathrm{c}}}{{\mathrm{D}}_{\mathrm{d}}}}·\left({2\mathrm{r}}_{\mathrm{d}}·{\mathrm{h}}_{\mathrm{t}}-{\mathrm{h}}_{\mathrm{t}}{}^2\right)$$

(27)

$${\mathrm{F}}_{\text{t-elas}}=\mathsf{\mu }{\mathrm{N}}_{\text{d-Tot}}·\frac{4\sqrt{2}{\mathrm{E}}_{\mathrm{ef}}}{3\mathsf{\pi }}·\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·\sqrt{\frac{{\mathrm{a}}_{\mathrm{c}}}{{\mathrm{D}}_{\mathrm{d}}}}·\left(\left({\mathrm{r}}_{\mathrm{d}}{}^2·\mathsf{\beta }\right)-\left(\left({\mathrm{r}}_{\mathrm{d}}-{\mathrm{h}}_{\mathrm{t}}\right)·{\mathrm{r}}_{\mathrm{d}}·\mathrm{s}\mathrm{i}\mathrm{n}\mathsf{\beta }\right)\right).$$

(28)

3.2.2. Plastic Force

The plastic zone is dominant whenever the a_elas-plas < a_c < a_cr. The plowing force is created whenever the chip thickness is analogous to the rim of the active grits radius [39]. Zhang et al. [24] recommended that the ploughing force is fundamentally created due to the plastic deformation in the grinding zone of the workpiece. Accordingly, the contact force due to contact pressure represents the plowing force as long as the plastic mode is dominant.

$${\mathrm{F}}_{\text{n-plas}}={\mathrm{N}}_{\text{d-Tot}}·{\mathrm{P}}_{\text{max-plas}}·{\mathrm{A}}_{\text{n-plas}}$$

(29)

$${\mathrm{F}}_{\text{t-plas}}={\mathsf{\mu }\mathrm{N}}_{\text{d-Tot}}·{\mathrm{P}}_{\text{max-plas}}·{\mathrm{A}}_{\text{t-plas}}.$$

(30)

The contact pressure in the plastic mode P_i-plas is defined in Equation (31) [40].

$${\mathrm{P}}_{\text{i-plas}}=€{\left(\frac{{\mathrm{H}}_{\mathrm{p}}{}^4}{{\mathrm{E}}_{\mathrm{p}}}\right)}^{1/3}$$

(31)

where € is a unitless factor assumed as € = 1.5 for HBM [40].

Then, the maximum pressure in the elastic mode P_max-plas is calculated as:

$${\mathrm{P}}_{\text{max-plas}}=€\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·{\left(\frac{{\mathrm{H}}_{\mathrm{p}}{}^4}{{\mathrm{E}}_{\mathrm{p}}}\right)}^{1/3}.$$

(32)

Consequently, the NT forces created in the plastic zone are identified through Equations (33) and (34) respectively.

$${\mathrm{F}}_{\text{n-plas}}=\frac{\mathsf{\pi }€}{2}{\mathrm{N}}_{\text{d-Tot}}\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·{\left(\frac{{\mathrm{H}}_{\mathrm{p}}{}^4}{{\mathrm{E}}_{\mathrm{p}}}\right)}^{1/3}·\left({2\mathrm{r}}_{\mathrm{d}}·{\mathrm{a}}_{\mathrm{c}}-{\mathrm{a}}_{\mathrm{c}}{}^2\right)$$

(33)

$${\mathrm{F}}_{\text{t-plas}}=\mathsf{\mu }€{\mathrm{N}}_{\text{d-Tot}}\left(\mathsf{\eta }+\mathsf{\zeta }\left(\frac{{\mathsf{\omega }·\mathrm{r}}_{\mathrm{t}}}{{\mathrm{R}}_{\mathrm{c}}·{\mathsf{\epsilon }}_{\mathrm{c}}}\right)\right)·{\left(\frac{{\mathrm{H}}_{\mathrm{p}}{}^4}{{\mathrm{E}}_{\mathrm{p}}}\right)}^{1/3}·\left({\mathrm{r}}_{\mathrm{d}}{}^2·\mathsf{\beta }-\left({\mathrm{r}}_{\mathrm{d}}-{\mathrm{a}}_{\mathrm{c}}\right)·\sqrt{{2\mathrm{r}}_{\mathrm{d}}·{\mathrm{a}}_{\mathrm{c}}-{\mathrm{a}}_{\mathrm{c}}{}^2}\right).$$

(34)

3.3. Force Model in the Brittle Region

$$\{\begin{array}{c}{\mathrm{F}}_{\mathrm{n}}={\mathrm{F}}_{\text{n-elas}}+{\mathrm{F}}_{\text{n-plas}}+{\mathrm{F}}_{\mathrm{n}.\mathrm{fr}}+{\mathrm{F}}_{\mathrm{n}.\mathrm{B}}\\ {\mathrm{F}}_{\mathrm{t}}={\mathrm{F}}_{\text{t-elas}}+{\mathrm{F}}_{\text{t-plas}}+{\mathrm{F}}_{\mathrm{t}.\mathrm{fr}}+{\mathrm{F}}_{\mathrm{t}.\mathrm{B}}\end{array}$$

(35)

where F_n.B and F_t.B are the NT grinding forces that occurred in the brittle tear region defined through Equations (36) and (37) respectively.

$${\mathrm{F}}_{\mathrm{n}.\mathrm{B}}={\mathrm{N}}_{\text{d-Tot}}·\mathrm{N}·{\mathrm{T}}_{\mathrm{ef}}·{\mathrm{F}}_{\mathrm{B}.\max }$$

(36)

$${\mathrm{F}}_{\mathrm{t}.\mathrm{B}}=\mathsf{\mu }{\mathrm{F}}_{\mathrm{n}.\mathrm{B}}$$

(37)

where N is the rotational speed of the spindle, T_ef is the effective grinding time of single grinding grain for one cycle expressed in Equation (38), F_B.max is the maximum force in the brittle region.

$${\mathrm{T}}_{\mathrm{ef}}=\frac{{\mathrm{L}}_{\mathrm{ef}}}{{\mathrm{V}}_{\mathrm{r}}}$$

(38)

that L_ef is the effective length between the grinding rod and grinding surface expressed as:

$${\mathrm{L}}_{\mathrm{ef}}=\frac{{\mathrm{L}}_{\mathrm{D}}·{\mathrm{L}}_{\mathrm{s}}}{{\mathrm{L}}_{\mathrm{D}}+{\mathrm{L}}_{\mathrm{s}}}$$

(39)

where L_S and L_D are the geometric and dynamic contact lengths between the grinding tool and workpiece grinding surface as shown in Figure 2 and modeled by Equations (40) and (41) respectively.

$${\mathrm{L}}_{\mathrm{S}}={\mathrm{r}}_{\mathrm{t}}{\cos }^{-1}\left(\frac{{\mathrm{r}}_{\mathrm{t}}-\mathrm{h}}{{\mathrm{r}}_{\mathrm{h}}}\right)$$

(40)

$${\mathrm{L}}_{\mathrm{D}}={\int }_0^{{\mathrm{T}}_{\mathrm{Tot}}}\sqrt{{\mathrm{V}}_{\mathrm{P}}{}^2+{\left({2 \mathrm{r}}_{\mathrm{t}} \mathsf{\omega } {\mathrm{V}}_{\mathrm{P}} \cos \left(\mathrm{wt}\right)\right)}^2+{\left({\mathrm{r}}_{\mathrm{t}} \mathsf{\omega }\right)}^2}\mathrm{dt}$$

(41)

where T_Tot is the total grinding time for one active grit to intersect the contact length L_D calculated as:

$${\mathrm{T}}_{\mathrm{Tot}}=\frac{ {\cos }^{-1}\left(\frac{{\mathrm{r}}_{\mathrm{t}}-\mathrm{h}}{{\mathrm{r}}_{\mathrm{t}}}\right)}{2\mathsf{\pi }\mathrm{N}}.$$

(42)

The maximum force created in the brittle zone is classified by Equation (43) [41].

$${\mathrm{F}}_{\mathrm{B}.\max }=\sqrt{\frac{{8\mathrm{D}}_{\mathrm{d}}·{\mathrm{a}}_{\max }{}^3}{9}·{\left(\frac{{\mathrm{E}}_{\mathrm{p}}}{1-{{\mathsf{\upsilon }}_{\mathrm{p}}}^2}\right)}^2 }=\frac{{2\mathrm{E}}_{\mathrm{p}}}{3(1-{{\mathsf{\upsilon }}_{\mathrm{p}}}^2)}·\sqrt{{2\mathrm{D}}_{\mathrm{d}}·{\mathrm{a}}_{\max }{}^3}.$$

(43)

By substituting Equations (38) and (43) into Equations (36) and (37), F_n.B can be obtained as:

$${\mathrm{F}}_{\mathrm{n}.\mathrm{B}}={\mathrm{N}}_{\text{d-Tot}}·\frac{{2\mathrm{E}}_{\mathrm{p}}·{\mathrm{N}·\mathrm{L}}_{\mathrm{D}}·{\mathrm{L}}_{\mathrm{s}}}{{3\mathrm{V}}_{\mathrm{r}}(1-{{\mathsf{\upsilon }}_{\mathrm{p}}}^2)·({\mathrm{L}}_{\mathrm{D}}+{\mathrm{L}}_{\mathrm{s}})}·\sqrt{{2\mathrm{D}}_{\mathrm{d}}·{\mathrm{a}}_{\max }{}^3}.$$

(44)

3.4. Frictional Force

In surface grinding of the HBM, the frictional effects are created due to two resources between the abrasives and the grinding surface, one of them is produced by the flux of workpiece over the touch face where the other is generated from the frictional between the wear protrusion of grits and the grinding face. The influence of grinding heat affects the coefficient of friction to vary with varying conditions and behavior of surface grinding. Therefore, modeling the coefficient of friction considering all of these factors is a highly significant task.

$${\mathrm{F}}_{\mathrm{n}.\mathrm{fr}}={\mathrm{N}}_{\text{d-Tot}}·{\mathrm{P}}_{\mathrm{cont}}·{\mathrm{A}}_{\mathrm{cont}}$$

(45)

$${\mathrm{F}}_{\mathrm{t}.\mathrm{fr}}=\mathsf{\mu }{\mathrm{F}}_{\mathrm{n}.\mathrm{fr}}$$

(46)

where P_cont and A_cont are the contact pressure and contact area between the wear protrusion of active grits and the grinding face respectively.

Through the convergence of the parabolic function with the cutting path, the perversion is located between the arc of the grinding channel and the radius of the grinding wheel and can be calculated by Equation (47) [42].

$$\mathsf{\rho }=\frac{{2\mathrm{f}}_{\mathrm{p}}}{{\mathrm{r}}_{\mathrm{t}}·{\mathrm{V}}_{\mathrm{r}}}.$$

(47)

In the formula, ρ is the deviation between the arc of the grinding channel and the radius of the grinding rod.

The average touch pressure between a single grit and workpiece P_cont is expressed by Equation (48) [43]:

$${\mathrm{P}}_{\mathrm{cont}}=\mathsf{\rho }{\mathrm{P}}_0=\frac{{2\mathrm{P}}_0·{\mathrm{f}}_{\mathrm{p}}}{{\mathrm{r}}_{\mathrm{t}}·{\mathrm{V}}_{\mathrm{r}}}$$

(48)

where P₀ is defined as the experiential suitability factor calculated via the experiments.

The frictional coefficient μ is clarified as [44].

$$\mathsf{\mu }=\frac{{\mathsf{\alpha }}_1}{{\mathrm{P}}_{\mathrm{cont}}}+{\mathsf{\alpha }}_2.$$

(49)

That α₁, α₂ represent the coefficients of the materiality of the frictional pairs.

$${\mathrm{A}}_{\mathrm{cont}}=\underset{0}{\overset{{\mathrm{r}}_{\mathrm{d} }}{\int }}(2\mathsf{\beta } {\mathrm{r}}_{\mathrm{d}}){\mathrm{dr}}_{\mathrm{d}}-\left({\mathrm{r}}_{\mathrm{d}}\sin \mathsf{\beta }\right)·\left({\mathrm{r}}_{\mathrm{d}}\cos \mathsf{\beta }\right)=\frac{1}{8}{\mathrm{D}}_{\mathrm{d}}{}^2·\left(2\mathsf{\beta }-\sin 2\mathsf{\beta }\right).$$

(50)

By substituting Equations (48) and (50) into Equations (45) and (46), F_n.fr can be calculated as:

$${\mathrm{F}}_{\mathrm{n}.\mathrm{fr}}={\mathrm{N}}_{\text{d-Tot}}·\frac{{\mathrm{P}}_0·{\mathrm{f}}_{\mathrm{p}}·{\mathrm{D}}_{\mathrm{d}}{}^2}{4{\mathrm{r}}_{\mathrm{t}}·{\mathrm{V}}_{\mathrm{r}}}·\left(2\mathsf{\beta }-\sin 2\mathsf{\beta }\right).$$

(51)

In our study, the coefficient of friction is calculated through Equation (52) [45].

$$\mathsf{\mu }=0.3885-0.011\ln \left({1000 \mathrm{V}}_{\mathrm{r}}\right).$$

(52)

4. Predicted Force Model Analysis

In the preceding parts, the arithmetic model of surface grinding force for HBM has been suggested, whilst in the current part, the effects of grinding conditions on the grinding force will be studied through the suggested model.

Surface grinding parameters are listed in

Table 1. Surface grinding conditions for predicted grinding force.

Group No	Feed Rate fp (mm/min)	Spindle Speed N (min−1) × 103	Grinding Depth h (µm)	Grinding Width aw (mm)	Wheel Diameter Dt (mm)
1	60, 100, 150, 200	10	10	1, 2.5, 5, 7.5 10, 15	4
2	60, 100, 150, 200	5, 7.5, 10, 12.5, 15, 20	10	5	4
3	60, 100, 150, 200	10	5, 7.5, 10, 12.5, 15, 17.5, 20	5	4
4	60, 100, 150, 200, 250	5, 7.5, 10, 12.5, 15, 20	10	5	4

for grinding force predictions. The relationship between grinding conditions (f_p, a_w, N, h) and NT grinding forces are displayed in Figure 7 according to the derived equations. The average amplitude of the NT forces is almost the same. By observing the force signal curves of the grinding process, it is found that both are the same. This is mainly because of feed speed is very low compared to the rotational speed of the abrasive particles, therefore it has little effect on the grinding force. As shown in Figure 7, the curves of the NT forces are varying with machining parameters during the grinding process. When the abrasive grain maintains its original shape, as the grinding depth h increases, the grinding force increases monotonically, and the NT forces change roughly the same; on the other hand, as the grinding speed increases, the grinding force gradually and nonlinearly decreases. This is consistent with the conclusion that the grinding speed is increased and the cutting force of a single abrasive particle is reduced in the current research on high-speed grinding processing [46]. In short, both NT grinding forces increase with the ascending of grinding conditions of feed rate f_p, grinding depth h, and grinding width a_w; however, decreasing with increasing of spindle speed.

5. Experimental Validation

5.1. Experimental Setup

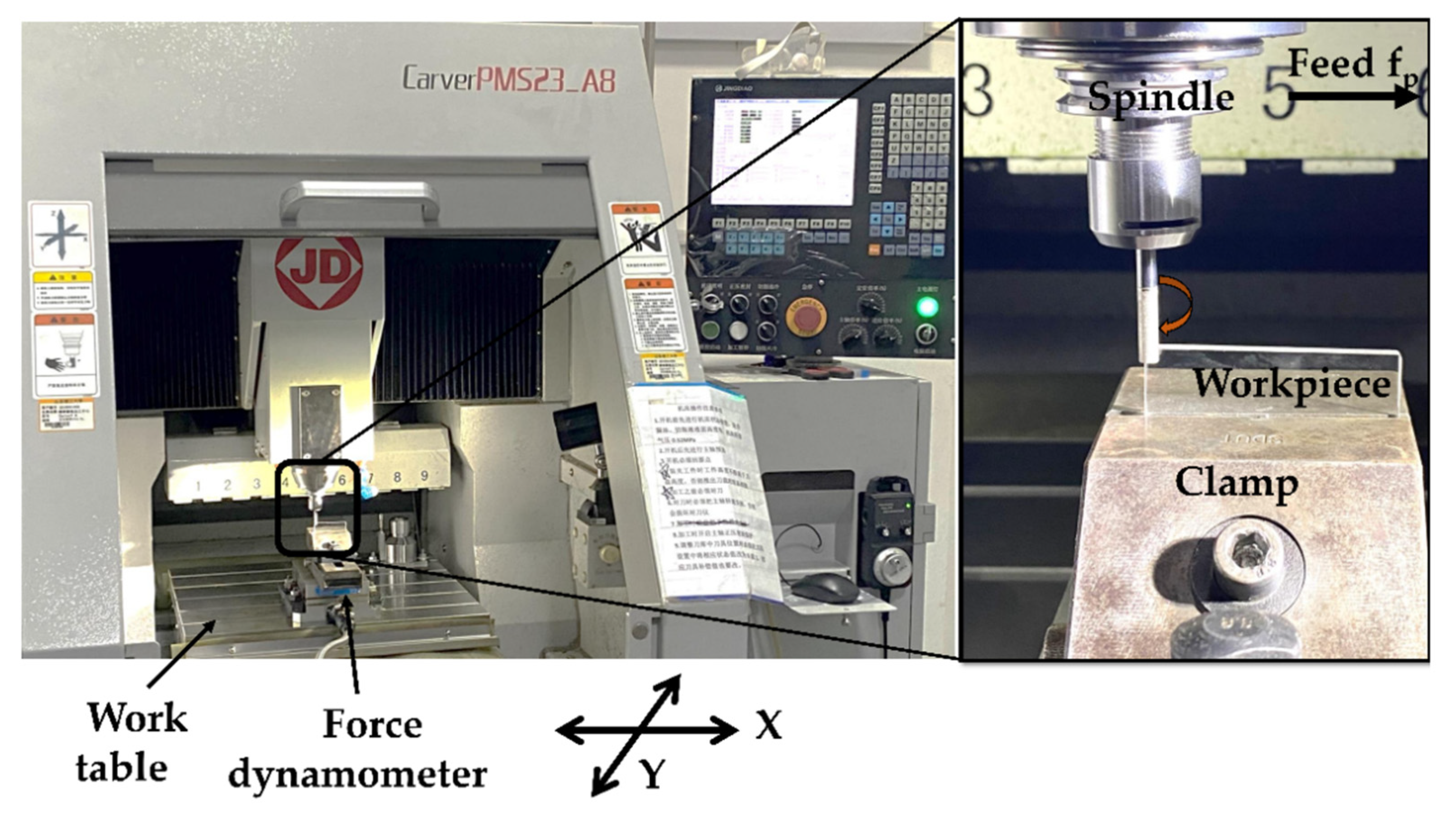

To validate the arithmetical force model, the experiments were carried out on the precision surface grinder CarverPMS23_A8 (Figure 8). In the experiments, the substrate rotates at a certain speed to realize the grinding of a single abrasive grit where the maximum experimental speed of the spindle was 1.5 × 10⁴ min⁻¹, and the spindle drives the grinding wheel to move longitudinally to adjust the feed rate. The NT forces data is obtained using a high resolution, high precision dynamometer.

The workpiece material used is K9 glass, with the dimensions of 50 mm × 20 mm × 3 mm.

Table 2. Chemical compositions of K9 optical glass.

Element	SiO2	B2O3	BaO	Na2O	K2O	As2O3
Content (wt%)	69.13	10.75	3.07	10.40	6.29	0.36

lists the K9 glass ingredients where its material properties are listed in

Table 3. Material properties of K9 glass used in the experiments.

Material	Dispersion	Elastic Modulus (GPa)	Fracture Toughness (MPa·m1/2)	Vickers Hardness (GPa)	Poisson Ratio
K9	0.00806	88.5	2.63	7.8	0.203

. The 700 # glass bonded grinding top is selected in the experiments with a diameter of 4 mm, while the abrasive grits are distributed over the 15 mm of tool length, grinding wheel specifications are listed in

Table 4. Grinding wheel specifications used in the experiments.

Type	Mesh	Wheel Diameter Dt	Grain Diameter Dd	Elastic Modulus	Poisson Ratio
PCD	700#	4 mm	21.8 µm	800 GP	0.07

.

The diameter size of the grinding rod is affected by the grinding parameters especially when the rotational spindle speed more than 50 × 10⁴ min⁻¹, the diameter is equal or less than 1 mm, and the mesh size is almost less than 400#, all these conditions have adverse effects on the accuracy of grinding [33]. To avoid any possible deviation in the chip thickness calculations due to a decrease in the diameter of the grinding wheel, all these conditions will be taken into consideration in the current study.

5.2. Experimental Force

In the experimental part,

Table 5. Experimental conditions.

Group No	Feed Rate fp (mm/min)	Spindle Speed N (min−1) × 103	Grinding Depth h (µm)	Grinding Width aw (mm)	Tool Diameter Dt (mm)
1	60	10	10	1, 5, 10	4
2	150	5, 10, 15	10	5	4
3	60	10	5, 10, 15, 20	5	4
4	60, 100, 150, 200	5	10	5	4

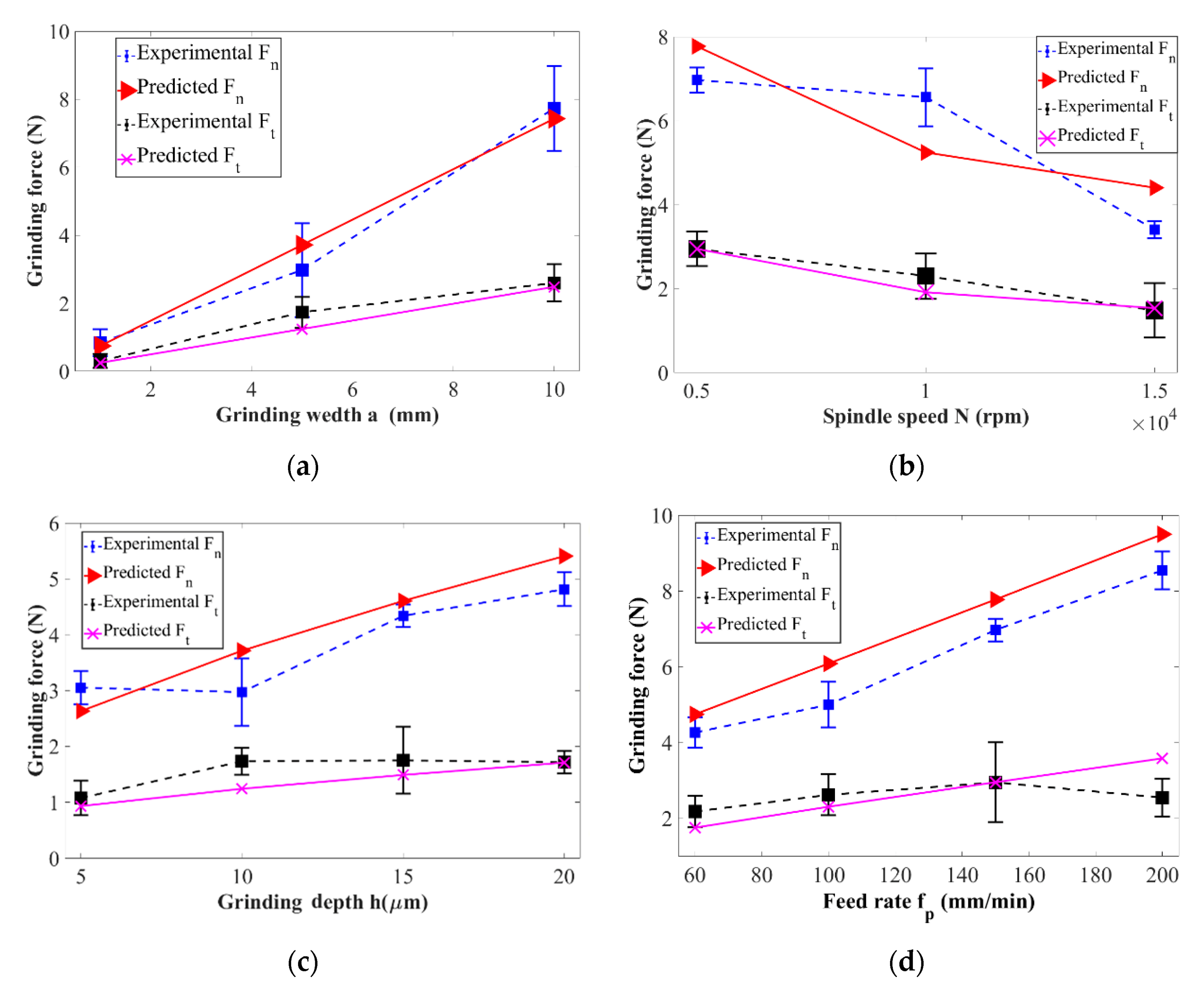

presents the grinding conditions. Kistler 9257 B dynamometer is used to gauge the grinding forces.

The arithmetical model of the grinding force is established by assuming that the active grains on the grinding wheel surface are randomly distributed and the shape of all the grains is consistent. Besides, the workpiece materials selected in this study are considered as HBM, and the material properties will not be affected by the grinding conditions. The curves below presented in Figure 9 are the comparison between arithmetic values and measurement values of NT grinding forces under traditional surface-grinding conditions. It can be seen that the theoretical calculation results are consistent with the experimental outputs. The grinding target is to achieve high-quality surface and subsurface integrity, therefore the grinding force and grinding parameters must be under full control to achieve this goal. The precision of the prediction force represented in the mathematical model, grinding wheel conditions of the surface grinding process, fineness location of the workpiece, the ability to purify the measured grinding force through the output results are the essential reasons which create the deviations between the predicted force model and the experimental results.

5.3. Workpiece Topography

One of the most paramount demands in the industrial implementation is the quality of face topography, which can be counted as a leading indicator of production fineness. Figure 10 displays the workpiece surface captures taken by the ZEISS AXIO microscope apparatus. The captures are taken based on the grinding depth, the surface displayed in Figure 10a, which has a less grinding depth, seems to be better than Figure 10b–d. In conclusion, it can be clarified that brittle tear is the primary mode of elimination gradually with increasing chip thickness. Subsequently, the classifications of the material removal regions discussed in Section 2.2 are more agreeable.

6. Conclusions

K9 glass has a high hardness and low fracture toughness which greatly fluctuates the cutting force generated during the machining process. Therefore, achieving the efficient prediction and controlling of the grinding force during the processing of optical glass is of great importance to improve the processing efficiency and the quality of the processed surfaces. The investigation model of the grinding force consists of ductile, ductile-to-brittle, brittle forces. The suggested force model is taking the two sources of friction into a consideration, as well as considers the elastic–plastic transition, randomly distributed of active grain, and the tool diameter variation during processing. Moreover, the predicted model is evaluated by comparing the experimental measurement results to the model prediction values. The main conclusions and results of this paper are as follows:

• The force model was verified by the K9 glass grinding test with a fixed abrasive grain through different grinding parameters. The theoretical analysis results have the same trend as the experimentally measured values, which proves that the model is reliable.
• Based on the analysis of the protruding height and horizontal distribution characteristics of abrasive grits on the grinding tool surface, the a_max is a dynamic concept, which has different values during grinding.
• Under the same grinding conditions, the grinding force inclines with the rotational speed N growing, where it decreases by growing the grinding depth h, grinding width a_w, and feed rate f_p. Besides, the conjunction impacts between the number of active grits and grit size led to the grinding force showing an irregular direction in the force model.
• The normal force is more than the tangential force during surface grinding of HBM, for that reason, controlling the forces in the normal axis is more significant.

Eventually, the current model is capable of fully representing the actual material removal attitudes and effectively predicting the NT forces when grinding the HBM surfaces as well.
