Open AccessArticle
Micromachines 2010, 1(2), 68-81; doi:10.3390/mi1020068

Reducing Pull-In Voltage by Adjusting Gap Shape in Electrostatically Actuated Cantilever and Fixed-Fixed Beams

1
Department of Electrical and Computer Engineering, University of Saskatchewan, 57 Campus Drive, Saskatoon, Saskatchewan, S7N 5A9, Canada
2
TRLabs, 111-116 Research Drive, Saskatoon, Saskatchewan, S7N 3R3, Canada
3
Karlsruher Institut für Technologie, Institut für Mikrostrukturtechnik (IMT), Postfach 3640, D-76021 Karlsruhe, Germany
*
Author to whom correspondence should be addressed.
Received: 26 May 2010 / Revised: 9 July 2010 / Accepted: 26 July 2010 / Published: 28 July 2010
View Full-Text   |   Download PDF [524 KB, uploaded 28 July 2010]   |

Abstract

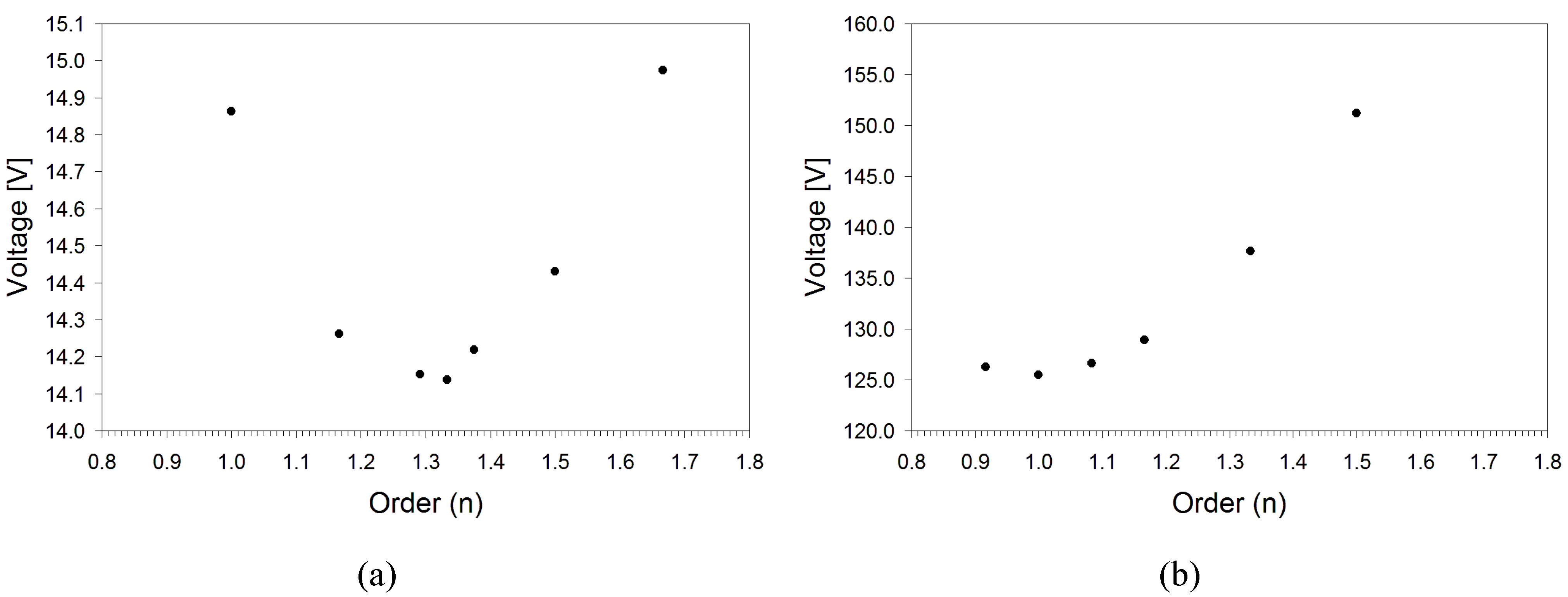

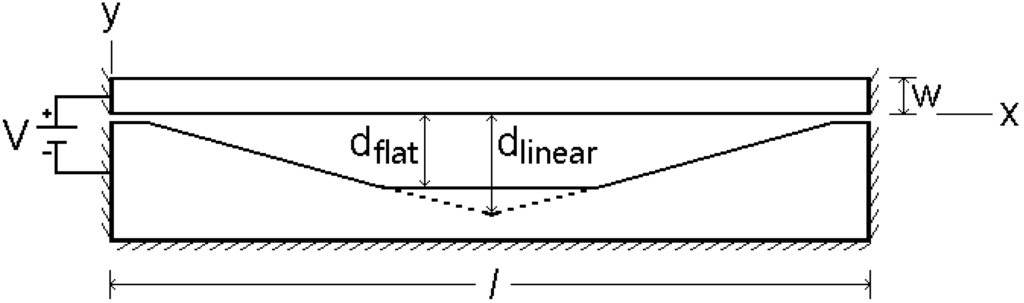

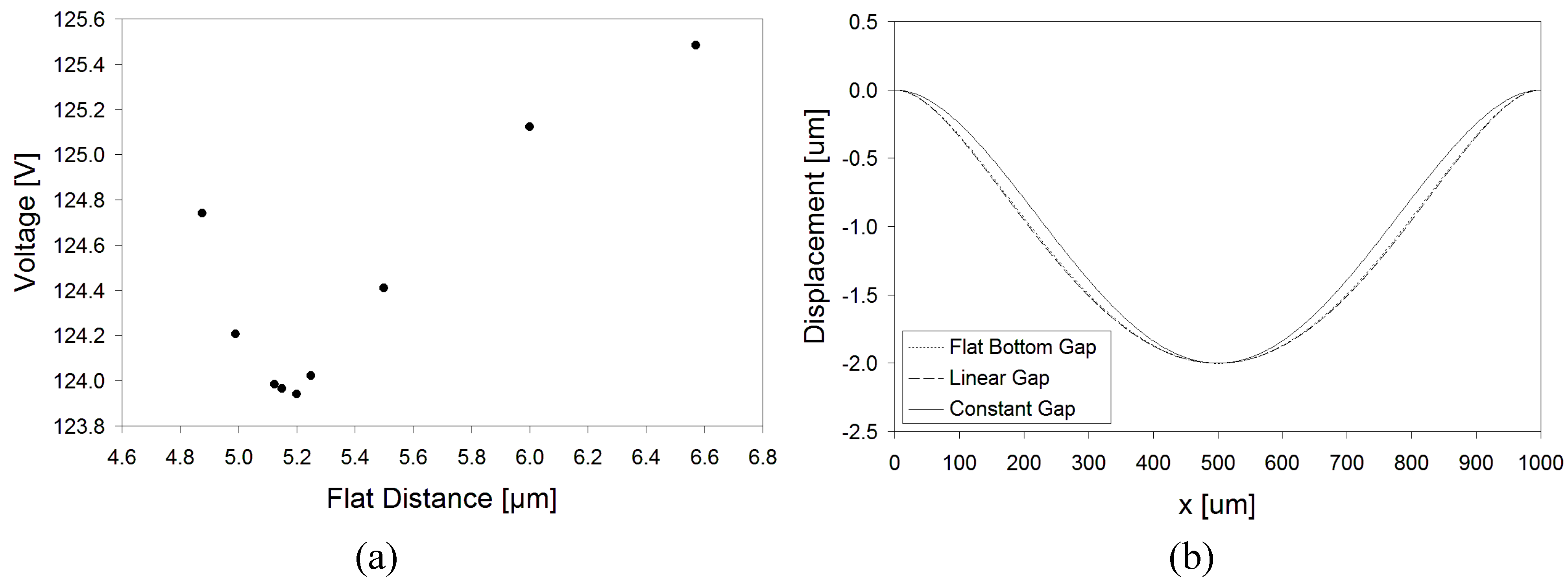

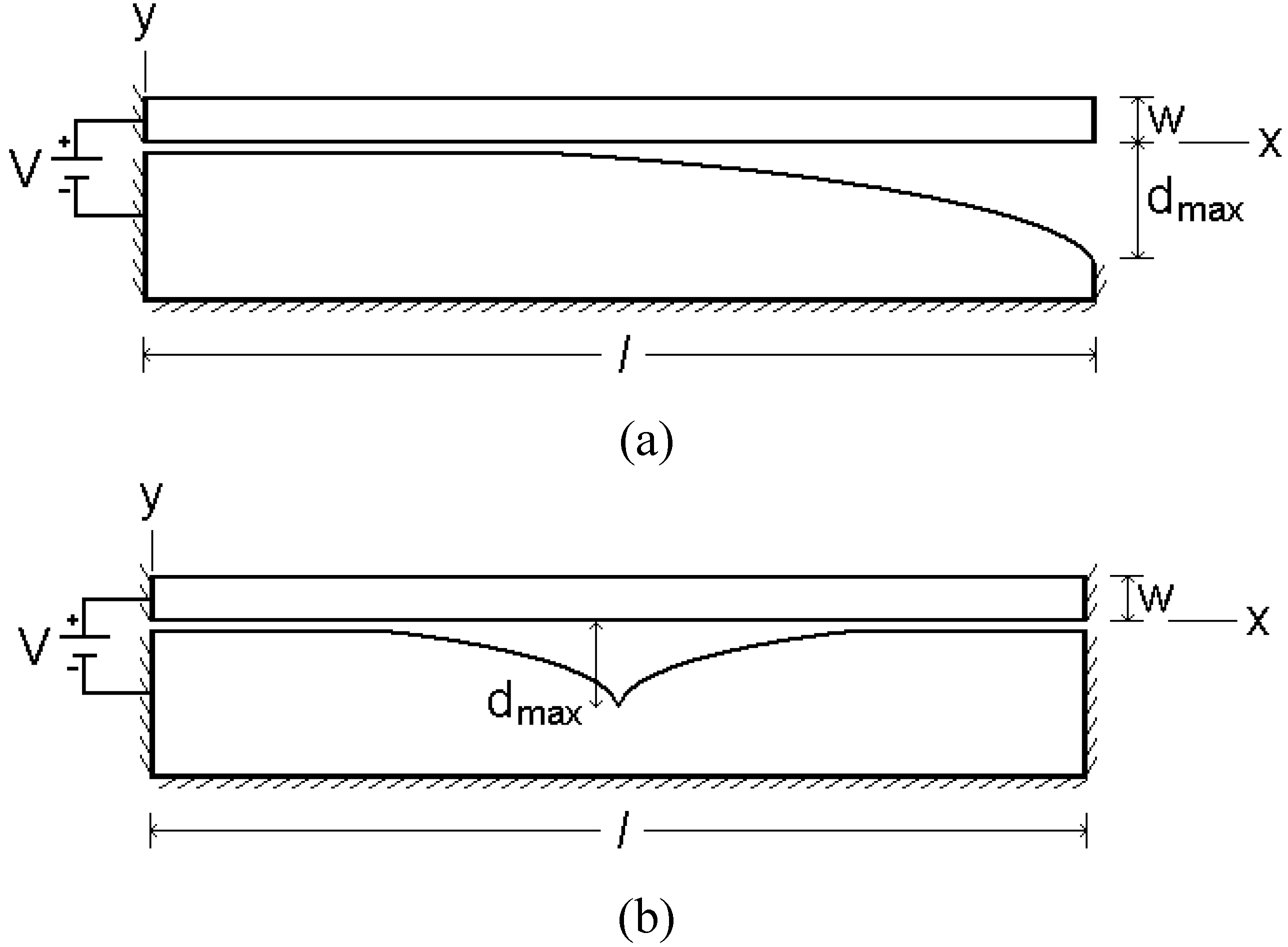

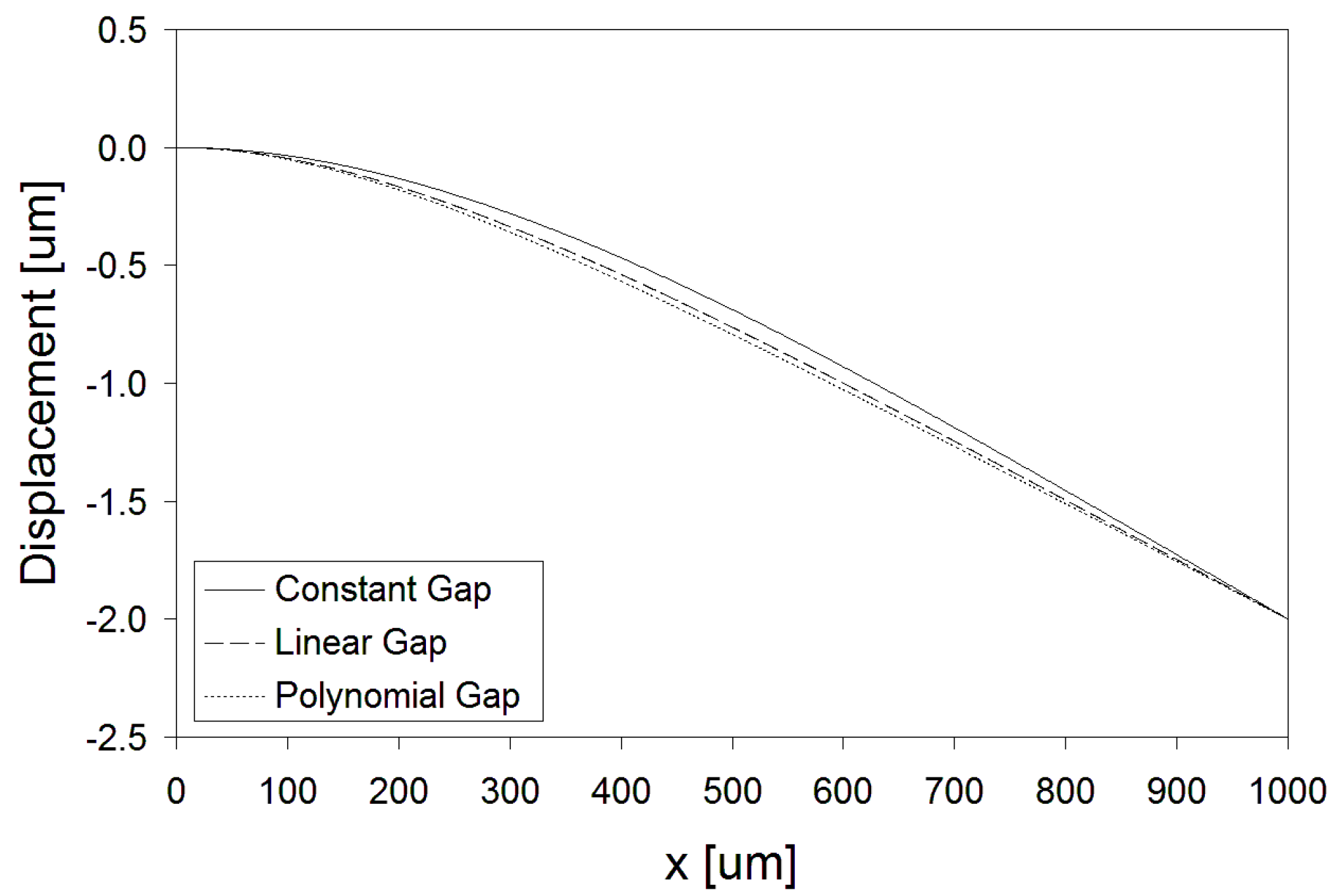

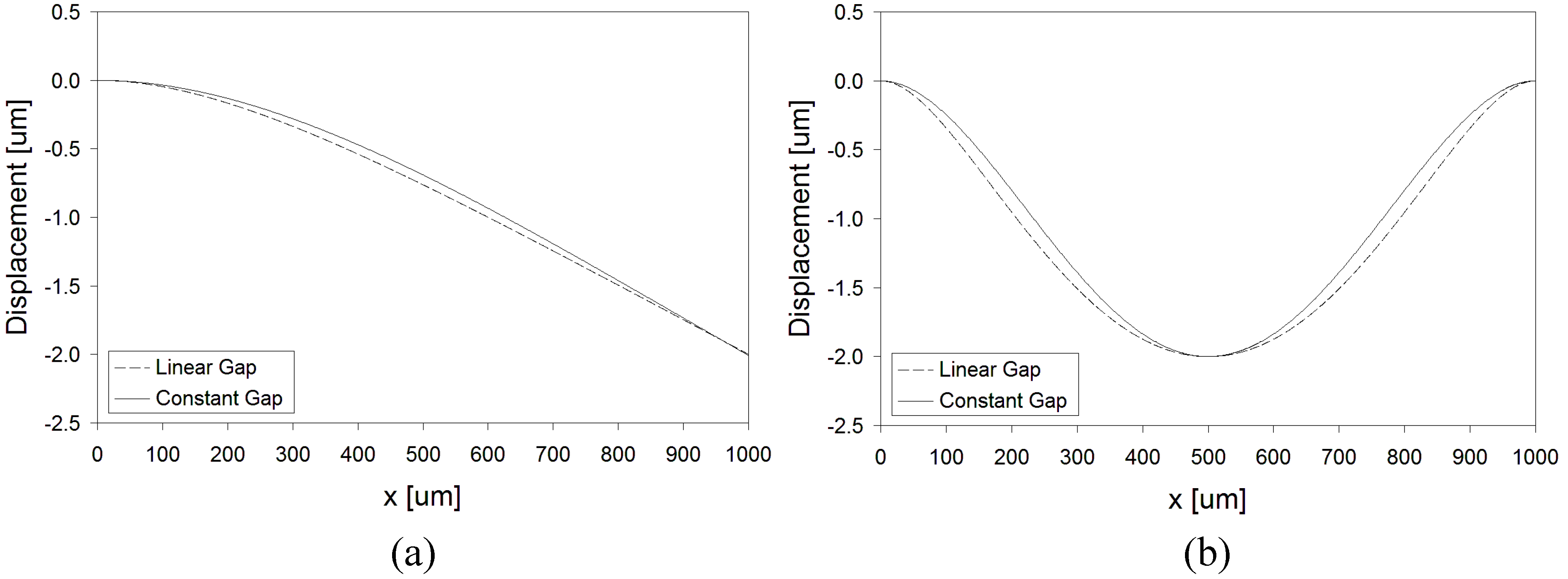

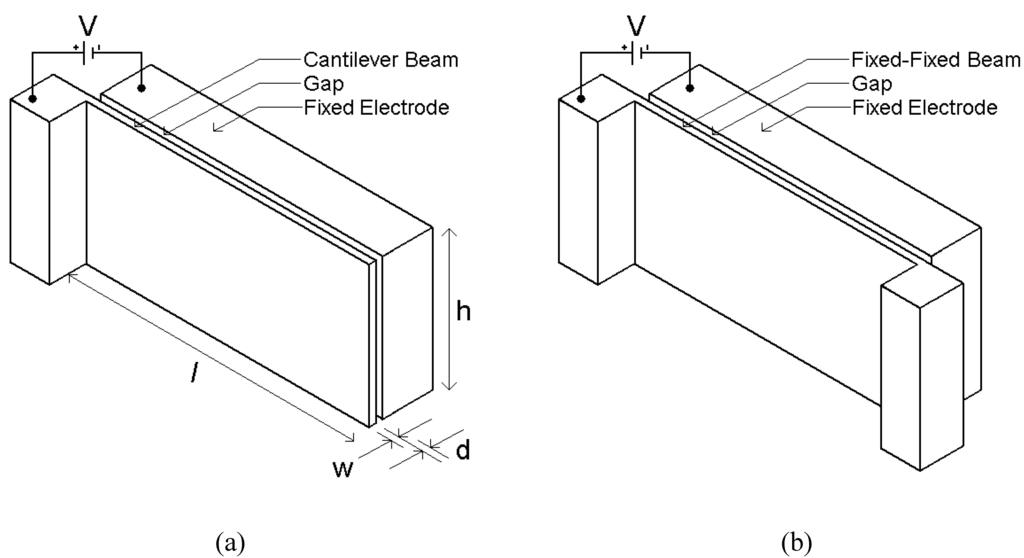

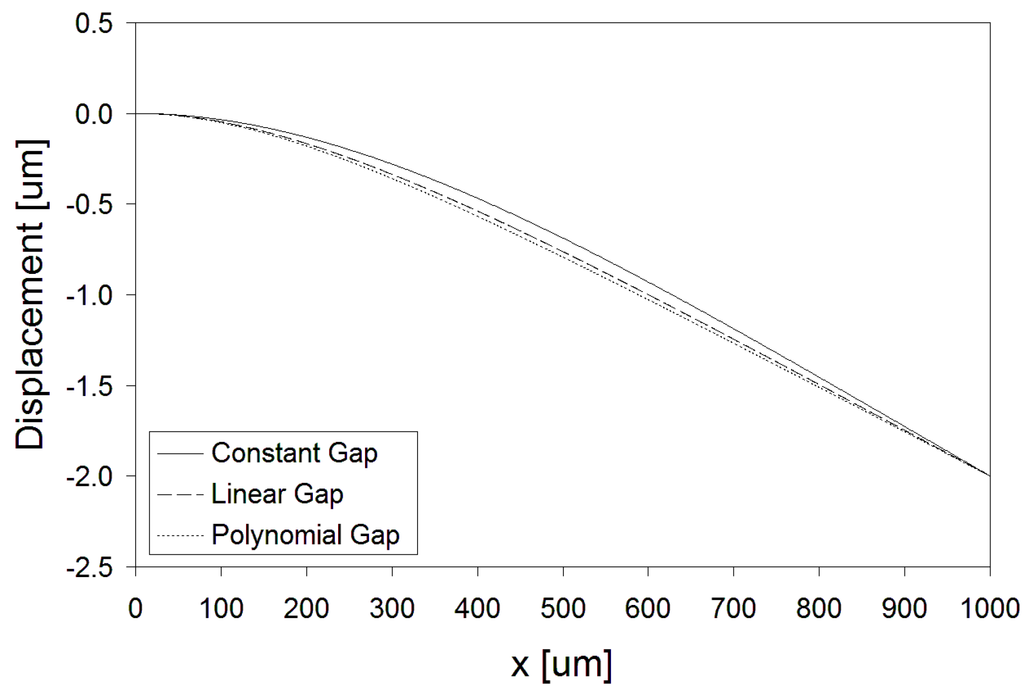

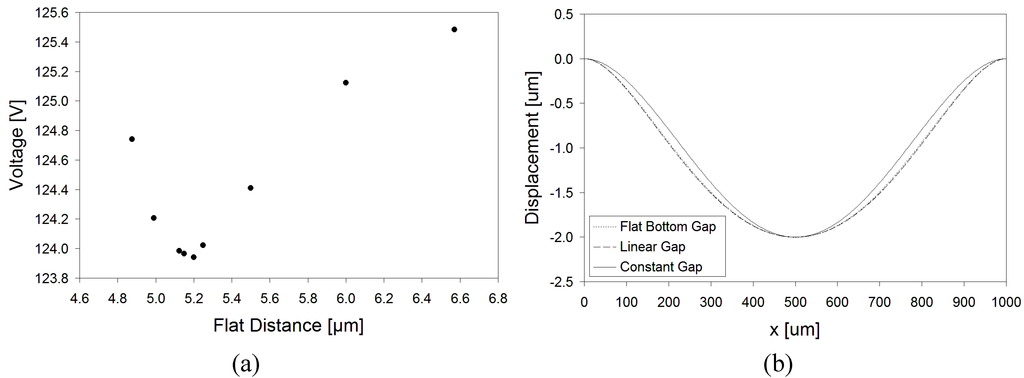

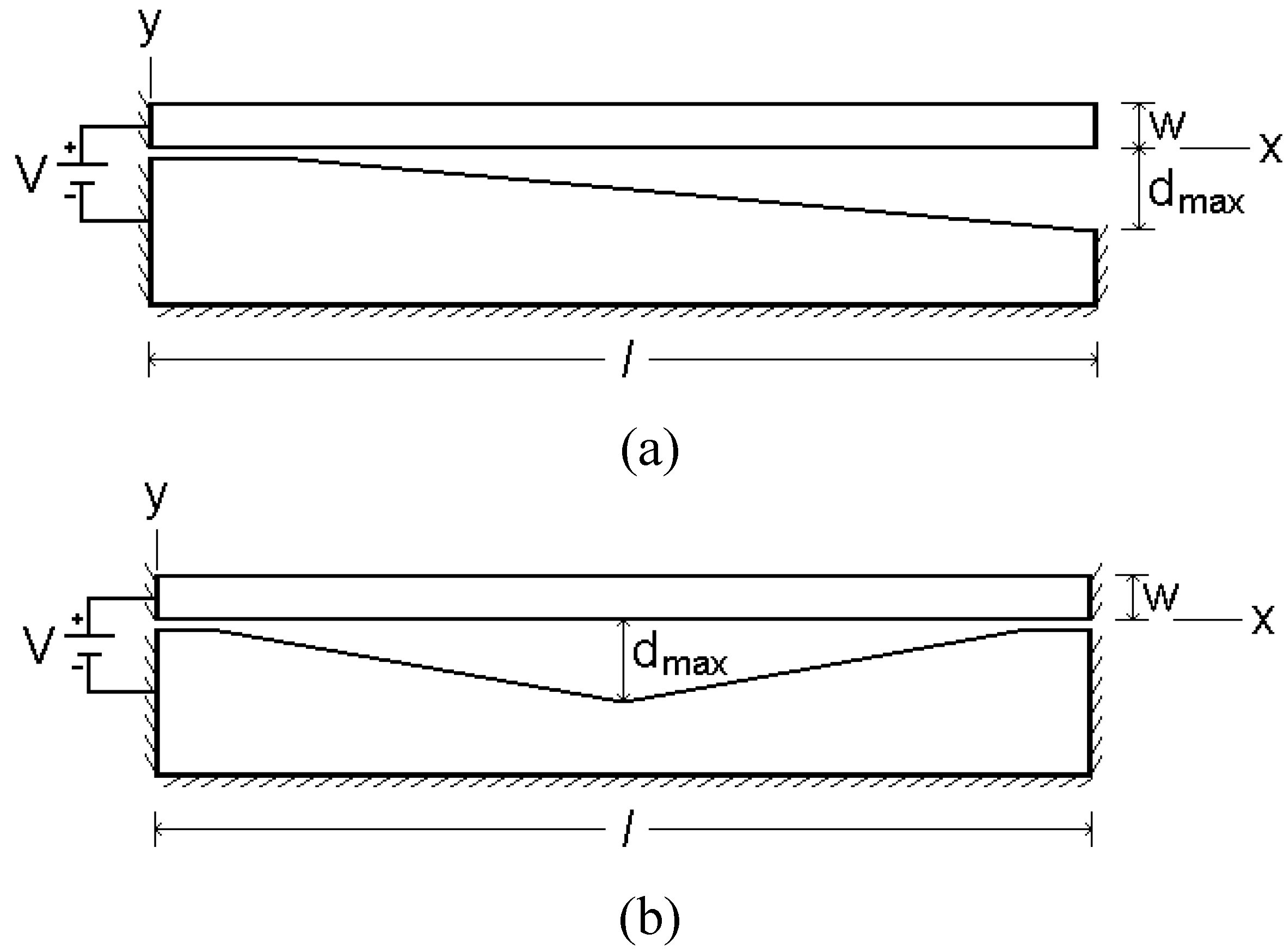

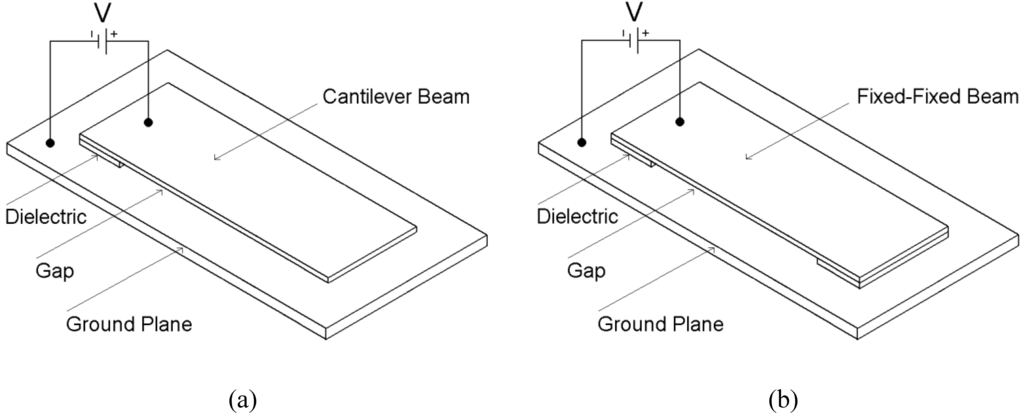

A gap with variable geometry is presented for both cantilever beam and fixed-fixed beam actuators as a method to reduce the pull-in voltage while maintaining a required displacement. The method is applicable to beams oriented either in a plane parallel to or perpendicular to a substrate, but is most suitable for vertically oriented (lateral) beams fabricated with a high aspect ratio process where variable gap geometry can be implemented directly in the layout. Finite element simulations are used to determine the pull-in voltages of these modified structures. The simulator is verified against theoretical pull-in voltage equations as well as previously published finite element simulations. By simply varying the gap in a linear fashion the pull-in voltage can be reduced by 37.2% in the cantilever beam case and 29.6% in the fixed-fixed beam case over a structure with a constant gap. This can be reduced a further 4.8% by using a polynomial gap shape (n = 4/3) for the cantilever beam and 1.2% for the fixed-fixed beam by flattening the bottom of the linearly varying gap. View Full-Text
Keywords: electrostatic; actuator; gap shape; finite element; MEMS; pull-in voltage; high aspect ratio; LIGA electrostatic; actuator; gap shape; finite element; MEMS; pull-in voltage; high aspect ratio; LIGA
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Haluzan, D.T.; Klymyshyn, D.M.; Achenbach, S.; Börner, M. Reducing Pull-In Voltage by Adjusting Gap Shape in Electrostatically Actuated Cantilever and Fixed-Fixed Beams. Micromachines 2010, 1, 68-81.
