Future Internet 2012, 4(4), 1026-1036; doi:10.3390/fi4041026

Article
Traceability in Model-Based Testing
Mathew George 1,2,*, Klaus-Peter Fischer-Hellmann 1,3, Martin Knahl 4, Udo Bleimann 1 and Shirley Atkinson 2
1
Aida Institute of Applied Informatics Darmstadt, University of Applied Sciences Darmstadt, Haardtring 100, 64295 Darmstadt, Germany; Email: udo.bleimann@h-da.de
2
Center for Security, Communications, and Network Research, University of Plymouth, Plymouth, PL4 8AA, UK; Email: shirley.atkinson@plymouth.ac.uk
3
Digamma Communications Consulting GmbH, Karlstr. 25, 64367 Mühltal, Germany; Email: k.p.fischer-hellmann@digamma.de
4
Furtwangen University of Applied Sciences, Gerwigstraße 1, 78120 Furtwangen, Germany; Email: knahl@hs-furtwangen.de;
*
Author to whom correspondence should be addressed; Email: george.mathew@hotmail.com; Tel.: +49-176-6307-0769.
Received: 8 October 2012; in revised form: 27 October 2012 / Accepted: 19 November 2012 /
Published: 26 November 2012

Abstract

: The growing complexities of software and the demand for shorter time to market are two important challenges that face today’s IT industry. These challenges demand the increase of both productivity and quality of software. Model-based testing is a promising technique for meeting these challenges. Traceability modeling is a key issue and challenge in model-based testing. Relationships between the different models will help to navigate from one model to another, and trace back to the respective requirements and the design model when the test fails. In this paper, we present an approach for bridging the gaps between the different models in model-based testing. We propose relation definition markup language (RDML) for defining the relationships between models.
Keywords:
model-based testing (MBT); requirements; design model; test model; traceability

1. Introduction

Testing is an essential activity in software engineering. In the simplest terms, it amounts to observing the execution of a software system to validate whether it behaves as intended and to identify potential malfunctions [1]. Software testing constitutes about 40% to 60% of the development costs [2]. A major part of the testing effort is for specifying and running the tests, and these are usually performed manually. Model-based testing is a promising technology to reduce the testing effort and increase the test efficiency.

Automation of software development and software testing on the basis of executable models and simulation promises significant reductions in fault-removal cost and development time. Utting et al. [3] define model-based testing as a variant of testing that relies on explicit behavior models that encode the intended behavior of a system, and possibly the behavior of its environment. According to Bertolino [1], the major goal of model-based testing (MBT) is automatic generation of test artifacts from models. MBT offers considerable promise in reducing the cost of test generation, increasing the effectiveness of the tests, and shortening the testing effort [4].

The software life cycle starts with requirements capturing by the business analyst; these requirements are used by the design analyst for designing the software architecture, and later both of these are used for developing test models. Requirements specification, design models and test models can be considered the integral parts of model-based testing. Defining relationships between models could provide effective verification and analysis of the consistencies and dependencies between models. Study has to be focused to bridge the gap by defining strong relationships between these models.

In this paper, we present an approach for defining relationships between the major constituents of model-based testing. We discuss how these models can be defined and how to define the relationships between these models, thus filling the gap between different phases of the software life cycle. This paper is organized into an overview of the need for traceability between requirements model, design model, and test model, related work, and the new approach.

2. The Need for Traceability in Model-Based Testing

The Institute of Electrical and Electronics Engineers (IEEE) defines traceability as the degree to which relationships can be established between two or more products of the development process, especially products having a predecessor–successor or master-subordinate relationship to one another [5]. Typically, traceability relations denote satisfiability, dependency, evolution, and rationalization relations between software artifacts [6]. Gotel and Finkelstein in [7] define traceability as the ability to describe and follow the life of a requirement in both a forwards and backwards direction. Murray et al. refer to traceability as the ability to identify requirements at different levels of abstraction and to show that they have been implemented and tested [8].

The above definitions do not cover all aspects of traceability, and most of them focus on requirements traceability. Since design models and test models also play a major role in model-based testing, there is a need for defining the design model and test model relationship as well. The automation of bidirectional traceability between requirements and test cases is a key aspect of MBT [9]. Bidirectional traceability is the ability to trace links between two parts of the software development process with respect to each other [9]. Dalal et al. [4] suggest that defects of a model can be minimized by ensuring the traceability from requirements to the part of models.

Traceability is widely used in the software development life cycle and is an active research area in software engineering [10]. Since tests are derived from models, the correctness of model and the consistency of requirements are important. Therefore, there is a need to understand the following:

  • What are the requirements?

  • How to derive system design from the requirements model?

  • How to derive tests from system design and the requirements model?

  • How are they related?

  • What is the impact on other models, when any of the models is changed?

Traceability between these models will help to understand the above questions. Traceability in model-based testing helps to:

  • Trace back to the respective requirements and design models when a test fails.

  • Identify the problems in the design model and the inconsistencies in the requirements elicitation and tests.

  • Fills the gap between business analyst, system designer, and test developer.

  • Specify the evolution of design model from requirements.

  • Show the evolution of test models from requirements and design model.

3. Related Work

Traceability is a popular and an active research topic in software engineering [10]. Researchers have proposed different ways for traceability, including information retrieval based on the similarity between texts present in different software artifacts [11]. Another approach is using the hypertext technology. Here, traceability is achieved by maintaining hypertext links between different software artifacts [12]. Annotations with identifier tags are another traceability technique. During the modeling phase, models are annotated with requirement identifier tags [13].

Traceability is also used in model-based testing tools. In MATERA [14], the requirements can be linked to different parts of the UML-based (Unified Modeling Language) system specification, for instance, to models or to model elements, to ensure requirements traceability throughout the process. In MATERA, models are annotated with OCL. Bouquet et al. [13] propose an approach based on annotating the model with requirements for traceability. The Leirios tool (Smarttesting) [15] is then used for generating tests and test cases, and a traceability matrix is obtained after the test is executed.

All the above proposed approaches use requirements traceability. Since system models and test models are also the major constituents, system model traceability and test model traceability is as important as the requirements traceability. Our approach proposes a traceability technique that covers requirements model, design model, and test model.

4. Proposed Approach

Drawing upon the key motivation factors identified in Section 2 and Section 3, in this section we describe the proposed approaches for bridging the gap between the requirements model, design model, and the test model. Figure 1 provides an overview of the relationship between the different models.

Futureinternet 04 01026 g001 1024

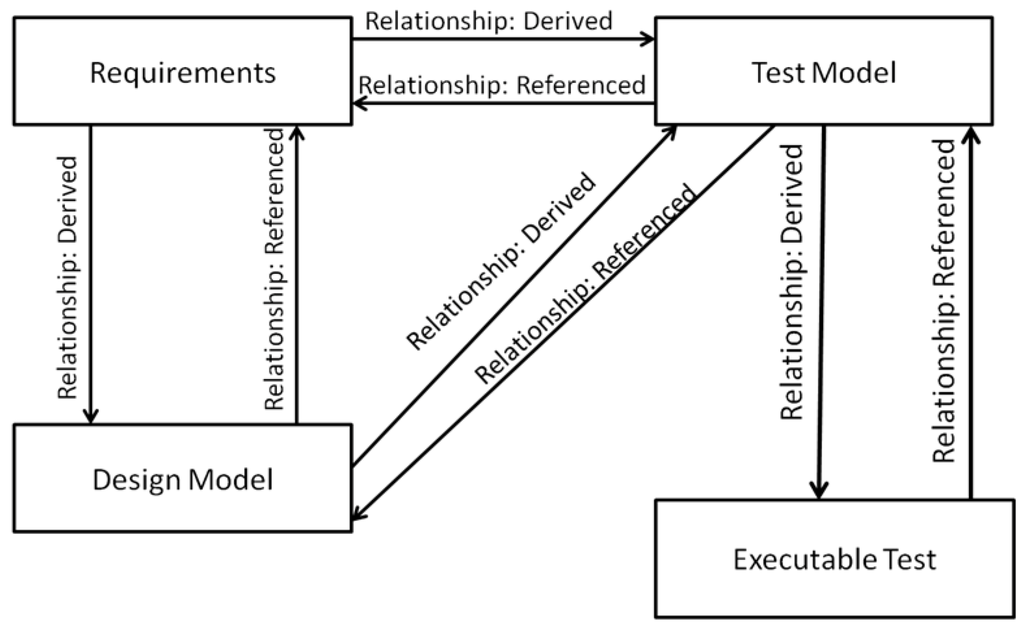

Figure 1. Overview of relationships.

Click here to enlarge figure

Figure 1. Overview of relationships.
Futureinternet 04 01026 g001 1024

Our approach starts from analyzing the informal requirements formulated in any natural language. Natural language requirements will be formulated and structured into different use case scenarios based on predefined templates. Usage scenarios will be used for creating design models. Design models will be developed using appropriate UML diagrams. Each element in the use case scenario will be connected to the corresponding design model items. From the use case model and design model, the test model will be created. UML diagrams will be used for creating the test models. Executable tests will be generated from the test model. Relationships between use case model (requirements model), corresponding design model, test model and executable tests will be defined using our approach. The main focus of this paper will be confined only in bridging the gap between these models by providing efficient traceability; test generation from the test model is not in the scope of this paper. Therefore, the approach will be completed by defining relationships between these models.

4.1. Defining Relationships between Models

Relationships between two models can be classified as “derived” and “referenced.”

4.1.1. Derived Relationship

By this relationship, the evolution of models and model elements from one phase to another is represented. The design model is derived from the requirements model, so the evolution of the design model and its model parts from requirements model and its model parts is defined as a derived relationship. Each part in the design model will have a derived relationship with the requirements model. Similarly, test models derived from the requirements model and design model have a derived relationship to the requirements model and design model. The relationship that shows the evolution of a model or model parts from another model or a model part is referred to as a derived relationship.

4.1.2. Referenced Relationship

This relationship defines the backward relationship to the source elements. The relationship from the design model to the requirements model is a referenced relationship.

4.2. Relation Definition Markup Language

In our approach, the relationship from one model to another is defined by exploiting XML technologies. The relationship is formalized through a formal XML structure called RDML, whose syntax is defined using the XML schema. RDML stands for relation definition markup language based on an XML schema that comprises specific elements to define the relationship between models [16]. For each model, an “RDML” definition will be available that defines the relationship with other models, the type of relationship, the relationship of each model part, etc. We propose the RDML structure in order to express the derived and referenced relationship between the different models in a formal manner.

Each model will have a separate RDML file (Figure 2), based on an XML schema. Each RDML file will have an entry for the model, for instance, <Scenario>, <DesignModel>, <TestScenario>. Relationship is represented by the element <Relationship> that will contain the <DerivedRelationship> and <ReferencedRelationship> elements. <DerivedRelationship> element will have two subelements referring to the derived models. For example, the requirements.RDML will contain two elements <DesignModel> and <TestModel> within the <DerivedRelationship>. Each model part derived will be denoted in the <DerivedRelationship>, both the source model part and the corresponding derived model part will be grouped here. Figure 3a shows how the derived relationship is defined for each model part to another model part.

Futureinternet 04 01026 g002 1024

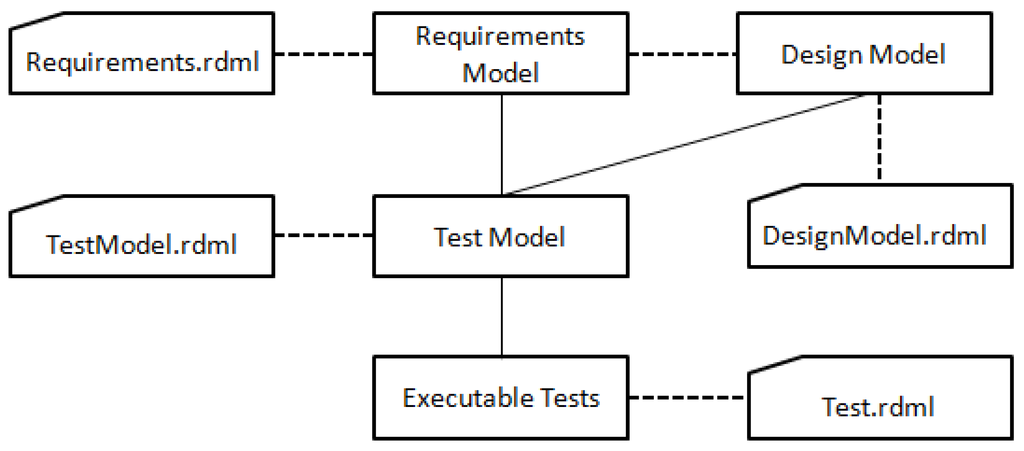

Figure 2. RDML for each model.

Click here to enlarge figure

Figure 2. RDML for each model.
Futureinternet 04 01026 g002 1024

Similarly, the <ReferencedRelationship> element will have two subelements referring to the derived models. For example, in the DesignModel, RDML will contain two elements <RequirementsModel> and <TestModel> under the <ReferencedRelationship>. Figure 3b shows how the referenced relationship is defined for each model part to another model part. A detailed view of RDML is given in the later sections.

Futureinternet 04 01026 g003 1024

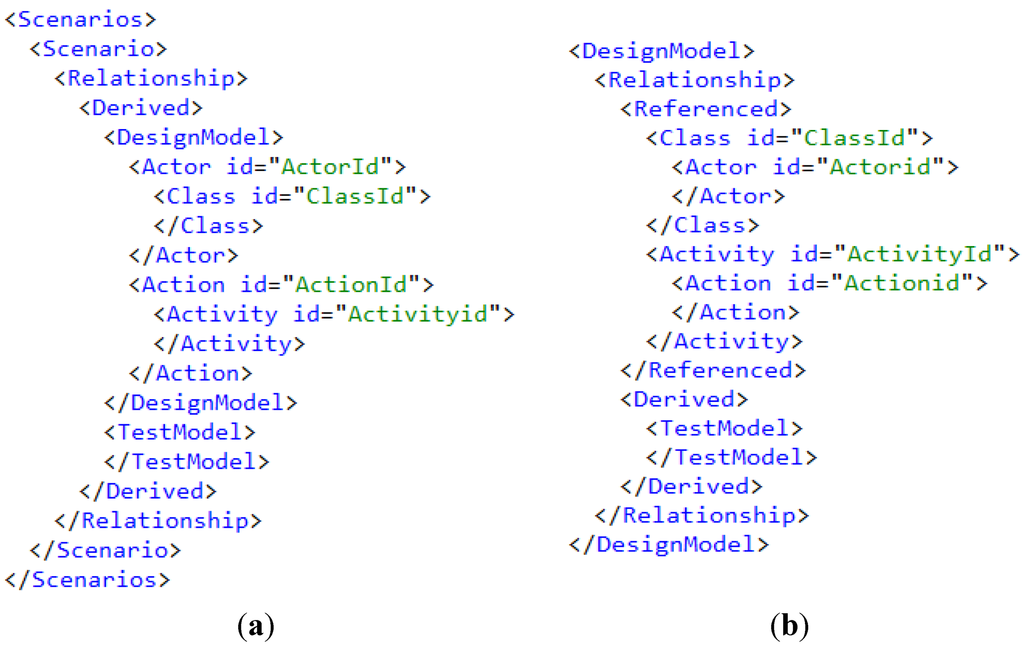

Figure 3. (a) requirements.RDML; (b) designmodel.RDML.

Click here to enlarge figure

Figure 3. (a) requirements.RDML; (b) designmodel.RDML.
Futureinternet 04 01026 g003 1024

Our approach starts with formulating the requirements, a scenario-based requirements elicitation. A major advantage of scenarios is that they allow for an effective exploration of users’ problems and goals [17]. Scenarios encourage designers to envision outcomes before attempting to specify outcomes, thereby helping to make requirements more proactive in system development [18]. Our scenario-based requirement elicitation comprises the following terminologies (see Table 1):

Table Table 1. Scenario based requirements—terminology.

Click here to display table

Table 1. Scenario based requirements—terminology.
TerminologyMeaning
ScenarioA group of predefined actions and actors for accomplishing a goal
ObjectiveObjective or the main goal of the scenario
ActorsActors are players involved either in the scenario or in an action
PreconditionAssumptions or conditions for achieving a particular goal
PostconditionState of the system after executing the scenario
TriggerA trigger is an interaction that starts the scenario. It could be either an action or a scenario
ActionA set of operations performed by different actors to achieve a subgoal

Typically, a business analyst will identify different scenarios from the informal requirements specification and is formally organized, so that the design analyst can derive the design models easily. The main tasks during this phase are identifying the scenarios, the actors, and the activities involved in the scenario. A formal scenario tree can be considered for organizing the scenario (see Figure 4). The business analyst identifies different usage scenarios defined in the informal requirements and each usage scenario is further analyzed to find the different activities and actors. A scenario can contain any number of actors and actions. Each action is further analyzed to find the actors involved in this action. In the figure given below, scenarios are a collection of scenarios, which in turn is a collection of different actors and actions.

Futureinternet 04 01026 g004 1024
Figure 4. A Tree view.

Click here to enlarge figure

Figure 4. A Tree view.
Futureinternet 04 01026 g004 1024

A scenario will have a unique id (scenario id) and source that points to a document where the requirement has been specified. Actor and action will also have a unique id. Actor will contain the necessary attributes and the action will contain the details of the action.

Our design model is derived from the structured requirements model defined above. Here, the design analyst refines the requirements model by finding, analyzing, and defining the actors and actions in different UML diagrams. From actors, appropriate classes are defined. Similarly, the actions are also grouped as functions into suitable classes and are described in UML activity diagrams. The main tasks involved in this phase are:

  • Designing UML class diagrams from actors.

  • Designing activity diagrams from the actions.

4.3. Defining the Relationship between Requirements Model and Design Model

Figure 3a is an example of a “requirements.RDML” file. Here the “Derived” element contains the design model and the test model. The “DesignModel” element defines the evolution of class diagram from actors and activity diagram from the actions in the requirements model. Similarly, the test model contains the test scenarios derived from the requirements model.

“Designmodel.RDML” contains the backward relationship to the requirements model defined in the “Referenced” element. The derived relationship to the test model will be defined in the “Derived” element. Figure 3b is an example of designmodel.RDML.

Defining the relationship will help to define the fine granular evolution of design models from the requirements model. It will help to provide traceability during test generation and test execution, and helps to find the issues and inconsistencies in the requirements model, design model, and test model.

4.4. Test Model

Our test model is derived from the structured requirements model and the design model described in the above sections. Here, the test analyst refines the requirements model and the design model by finding different test scenarios. Each test scenario will be associated with a scenario described in the requirements model and the appropriate classes and activity diagrams in the design model. In this phase, the test analyst will also identify the expected input, expected output of each test scenario, actors and actions involved in the test scenario. How to model the test scenario using appropriate UML diagrams is part of our ongoing research. From the test model the executable tests will be generated.

4.5. Defining the Relationship of Test Models and Executable Tests with Other Models

“Testmodel.RDML” represents the relationship of test models with the requirements model and the design model. Derived relationships will contain the relationship between different parts of the test model with the requirements model and the test model. Referenced relationships will contain the backward relationship between test model and requirements model as well as design model.

TestModel.RDML file will have a main entry <TestScenario>. In the <TestScenario> element, the relationship is represented by the element <Relationship> that will contain the <DerivedRelationship> and <ReferencedRelationship> elements. The <DerivedRelationship> element will have two subelements referring to the derived models. The <ReferencedRelationship> will contain the relationship of the test model parts to the design model and requirements model. Similarly the “Test.RDN” represents the relationship of executable tests with test model, design model and requirements model.

5. Examples of RDML and Discussion

In this section, a “user log-in,” a functional requirement in an online library system, is represented as an RDML expression. Here the functional requirements and the design model are represented (see Figure 5).

Here, the functional requirement is classified into different use case scenarios. The “online login” is taken as an example. In the functional requirements the “online login” scenario is identified, which contains an actor “User”. This “User” has a relationship with a class “WebUser” in the design model. An action identified in the scenario is the “VerifyUser” which has a relationship with the activities “EnterUserInfo” and “VerifyUserInfo” in the design model. In this example, we can see that the relationship between the two model/model parts is represented, which provides traceability. Entries in the requirements.rdml and designmodel.rdml can be related to test functions in the test model.

Futureinternet 04 01026 g005 1024

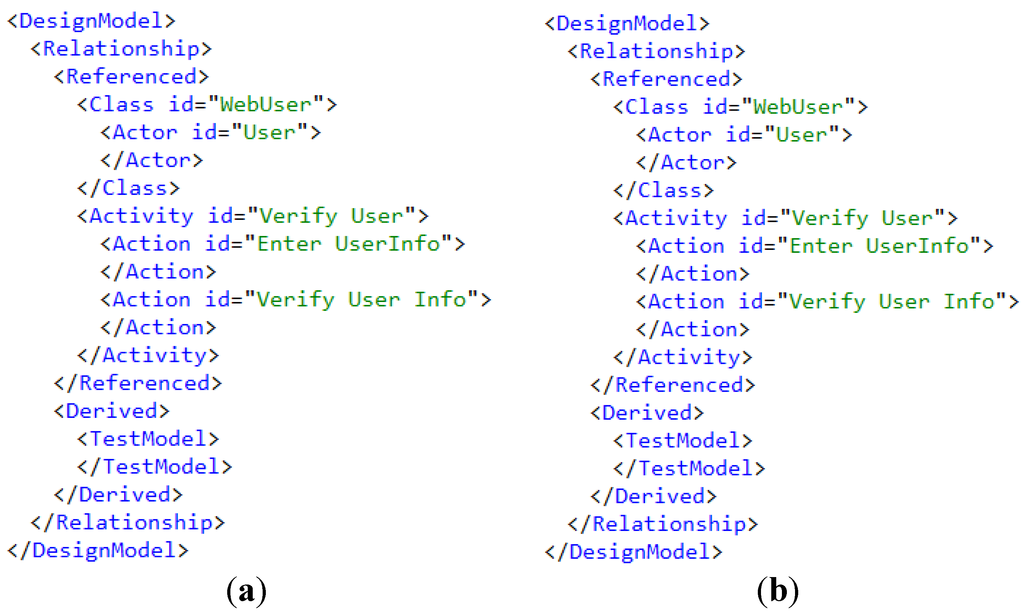

Figure 5. (a) requirements.RDML; (b) designmodel.RDML.

Click here to enlarge figure

Figure 5. (a) requirements.RDML; (b) designmodel.RDML.
Futureinternet 04 01026 g005 1024

6. Benefits and Novelty

Traceability approaches in model-based testing in the literature only provide requirements traceability. None of the traceability approaches in model-based testing provides traceability between requirements model, test model and executable tests. Our approach provides the way to manage the link between the requirements model, design model, test model and the executable tests. Traceability between the different model artifacts and model elements can be achieved through our approach. The granularity of the traceability between model elements is another benefit of our approach. This granularity will help to find the design model elements, test model elements and executable tests associated with each requirement. Usage of RDML in test generation, and test generation from models is another benefit of this approach. Usage of standard XML in our approach will help to understand the concept easily. Since the models and tests are the integral parts of model-based testing, traceability between these artifacts and elements are important for navigating from requirements to executable test. This will help to find the coverage of requirements in test models and subsequent tests. Another benefit of the approach is to find the impact analysis on design models, test models and tests, when a requirement is changed. In the ongoing research we will undertake a case study for the proof of concept and quantify the benefits of our approach. This concept is part of ongoing research on model-based testing and the validation of this approach will be done as part of this research using different case studies.

7. Conclusions and Future Work

This paper has proposed an approach for defining relationships between the requirements model, design model, and test model and executable tests in a model-based testing approach. We have shown how these models can be defined and how to define the relationship between these models, thus filling the gap between different phases of the software life cycle. We have proposed a new formal way of defining the relationship between models using RDML (relation definition markup language) that uses standard XML technology. RDML helps to define the relationship between different models and parts of those models using a model-based testing approach. We have also classified and defined the relationship between models as derived and referenced relationships. Our approach tries to bridge the gap between the business analyst, system designer, and test analyst. Relationships between different models will help professionals to navigate from one model to another and to trace back to the respective requirements and the design model when system testing fails.

In our ongoing research, we will evaluate different modeling languages to define the scenarios formally in the requirements model in conjunction with UML diagrams to define the test model from the requirements model and design model. We will also provide traceability from each generated test to its respective requirements model, design model, and test model using the RDML definition of each model. A case study will be carried out to consider the efficiency and effectiveness of our approach.

References

  1. Bertolino, A. Software testing research: Achievements, challenges, dreams. In Proceedings of Future of Software Engineering (FOSE 07), Minneapolis, MN, USA, 23–25 May 2007.
  2. Willcock, D. The ITEA D-MINT Project; Overview, Results and Lessons Learnt; Nokia Siemens Networks: Espoo, Finland, 2011. Available online: http://www.model-based-testing.de/mbtuc11/presentations/Keynote_Willcock_NSN_MBTUC2011.pdf (accessed on 19 November 2012).
  3. Utting, M.; Pretchner, A.; Legeard, B. A Taxonomy of Model-Based Testing, a White Paper; Technical Report 04/2006; Department of Computer Science, University of Waikato: Hamilton, New Zealand, 2006.
  4. Dalal, S.R.; Jain, A.; Karunanithi, N. Leaton, J.M.; Lott, C.M.; Patton, G.C.; Horowitz, B.M. Model-based testing in practice. In Proceedings of 21st International Conference on Software Engineering, Kaiserslautern, Germany, 16–19 June 1999.
  5. IEEE Standards Software Engineering. IEEE Standard Glossary of Software Engineering Terminology; IEEE Standard 610-1990; IEEE (The Institute of Electrical and Electronics Engineers): New York, NY, USA, 1999.
  6. Ramesh, B.; Jarke, M. Toward reference models for requirements traceability. IEEE Trans. Softw. Eng. 2001, 27, 58–93, doi:10.1109/32.895989.
  7. Gotel, O.; Finkelstein, A. An analysis of the requirements traceability problem. In Proceedings of the IEEE International Conference on Requirements Engineering (ICRE), Colorado Springs, CO, USA, 18–24 April 1994.
  8. Murray, L.M.; Griffiths, A.; Lindsay, P.A.; Strooper, P.A. Requirements traceability for embedded software—An industry experience report. In Proceedings of the 6th IASTED International Conference on Software Engineering and Applications, Cambridge, MA, USA, 4–6 November 2002.
  9. Legeard, B. Model-based testing: A new paradigm for manual and automated functional testing. Test. Exp. Mag. 2010, 9, 77–79.
  10. Bashir, M.F.; Qadir, M.A. Traceability techniques: A critical study. In Proceedings of IEEE Multitopic Conference (INMIC ’06), Islamabad, Pakistan, 23–24 December 2006.
  11. Oliveto, R. Traceability management meets information retrieval methods—Strengths and limitations. In Proceedings of 12th European Conference on Software Maintenance and Reengineering, Athens, Greece, 1–4 April 2008.
  12. Ebner, G.; Kaindl, H. Tracing all around in reengineering. IEEE Softw. 2002, 19, 70–77, doi:10.1109/MS.2002.1003459.
  13. Bouquet, F.; Jaffuel, E.; Legeard, B.; Peureux, F.; Utting, M. Requirements traceability in automated test generation—Application to smart card software validation. In Proceedings of the 1st International Workshop on Advances in Model-Based Testing (A-MOST 05), New York, NY, USA, 15–16 May 2005.
  14. Abbors, F.; Backlund, A.; Truscan, D. MATERA—An integrated framework for model-based testing. In Proceedings of 17th IEEE International Conference and Workshops on Engineering of Computer Based Systems (ECBS), Oxford, UK, 22–26 March 2010.
  15. Smarttesting Tool. Available online: http://www.smartesting.com (accessed on 19 November 2012).
  16. George, M.; Fischer, K.P.; Knahl, M.H.; Bleimann, U.; Atkinson, S. RDML Definition; Internal Report; Aida Institute of Applied Informatics Darmstadt: Darmstadt, Germany, 2011.
  17. Sutcliffe, A. Scenario-based requirements engineering. In Proceedings of 11th IEEE International Requirements Engineering Conference, Monterey Bay, CA, USA, 8–12 September 2003.
  18. Carroll, J.M.; Rosson, M.B.; Chin, G.; Koenemann, J. Requirements development in scenario-based design. IEEE Trans. Softw. Eng. 1998, 24, 1156–1170.
