Materials 2014, 7(6), 4723-4738; doi:10.3390/ma7064723

Ytterbium-Phosphate Glass for Microstructured Fiber Laser

Institute of Electronic Materials Technology, 133 Wolczynska Str., 01-919 Warsaw, Poland
Department of Physics, University of Warsaw, 7 Pasteura Str., 02-093 Warsaw, Poland
Author to whom correspondence should be addressed.
Received: 5 May 2014 / Revised: 11 June 2014 / Accepted: 11 June 2014 / Published: 19 June 2014
View Full-Text   |   Download PDF [1128 KB, uploaded 19 June 2014]   |

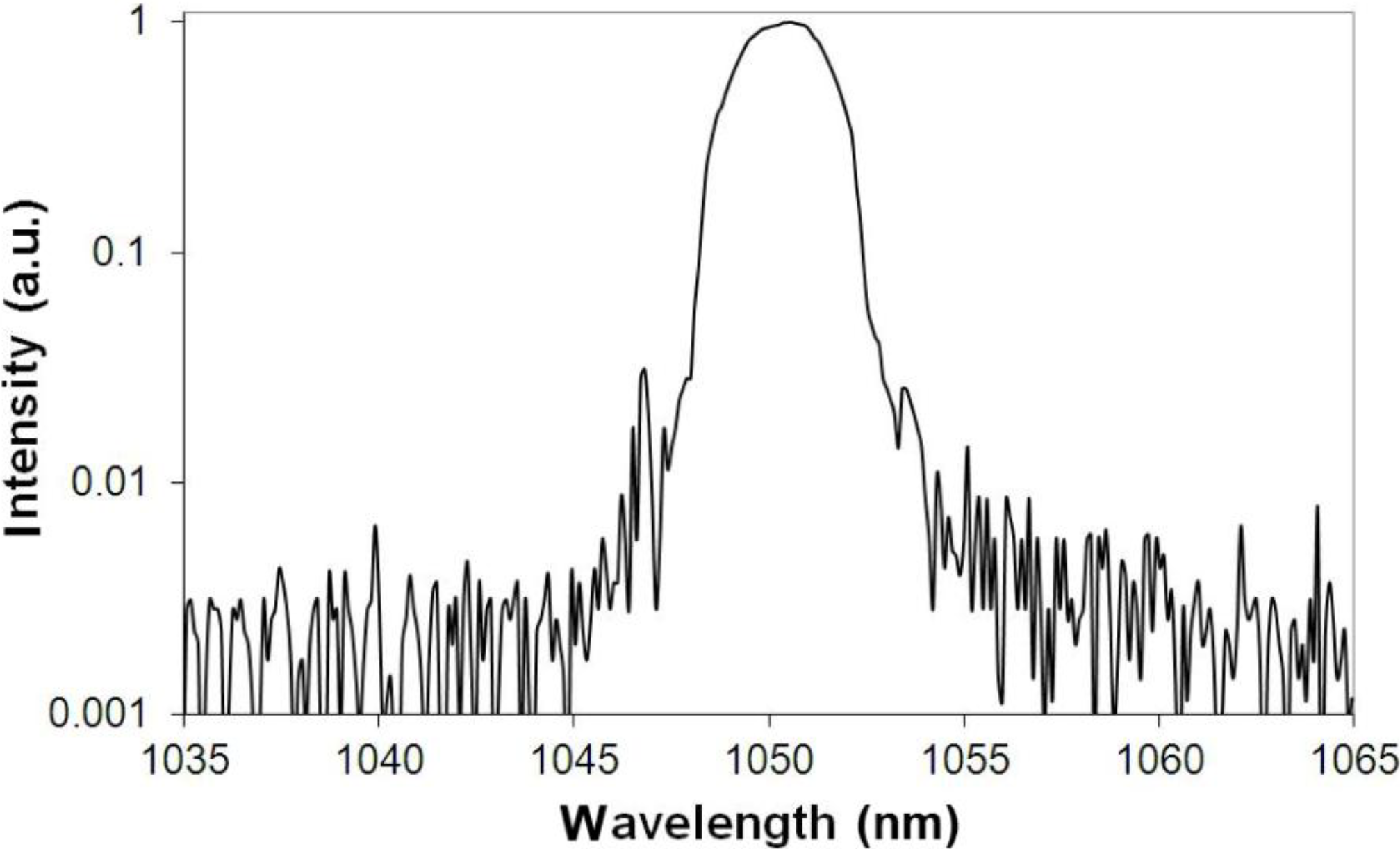

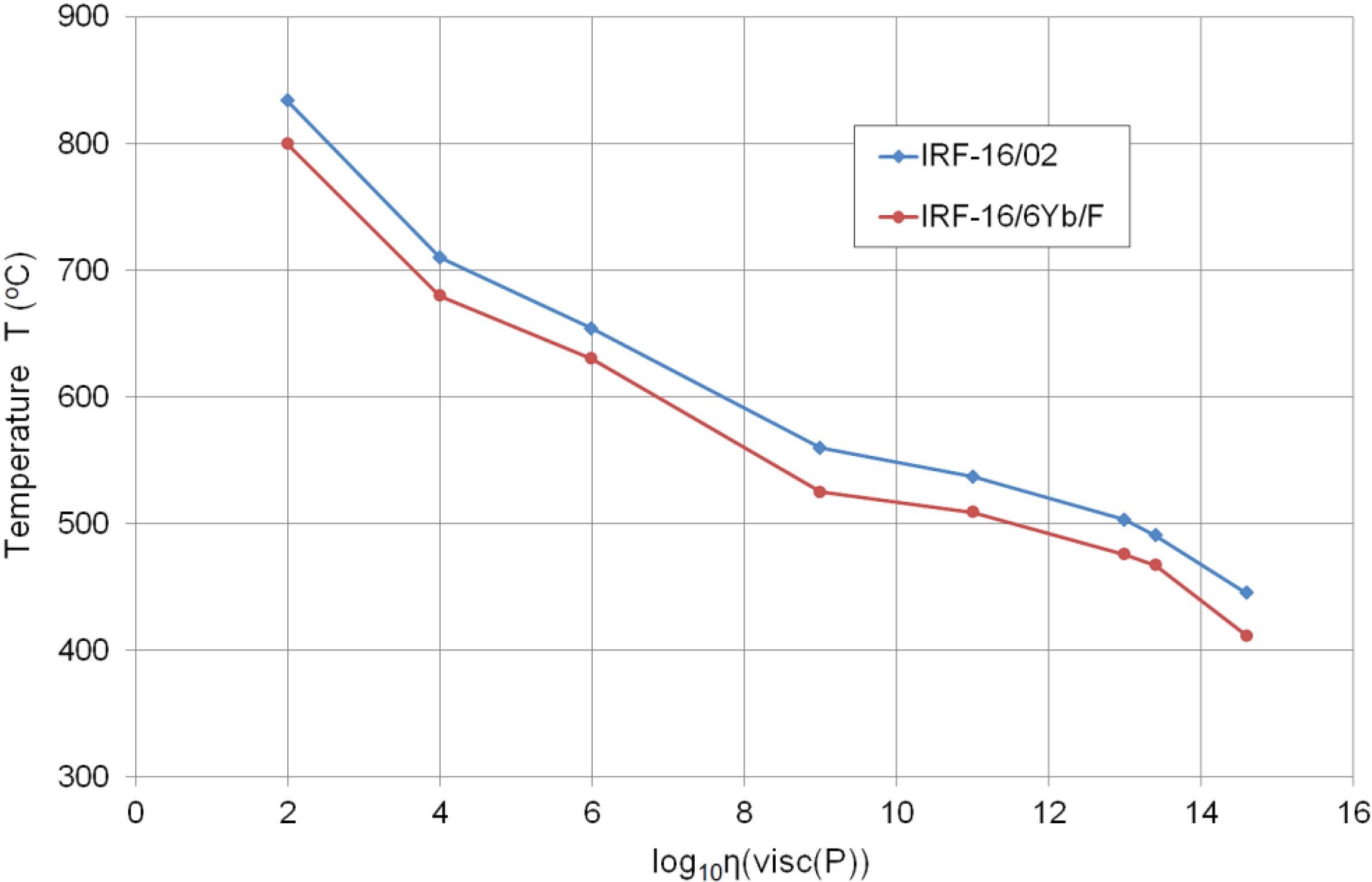

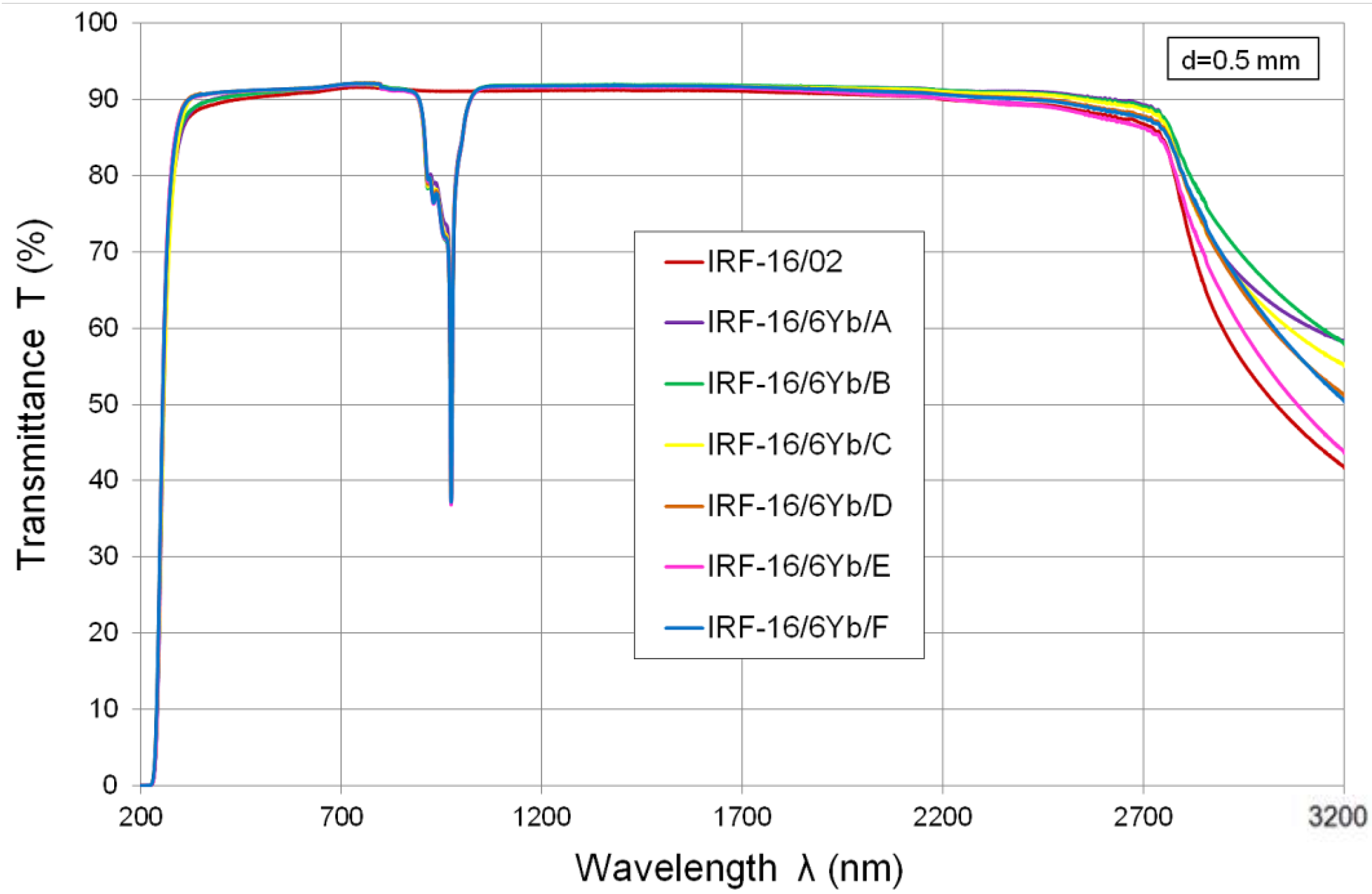

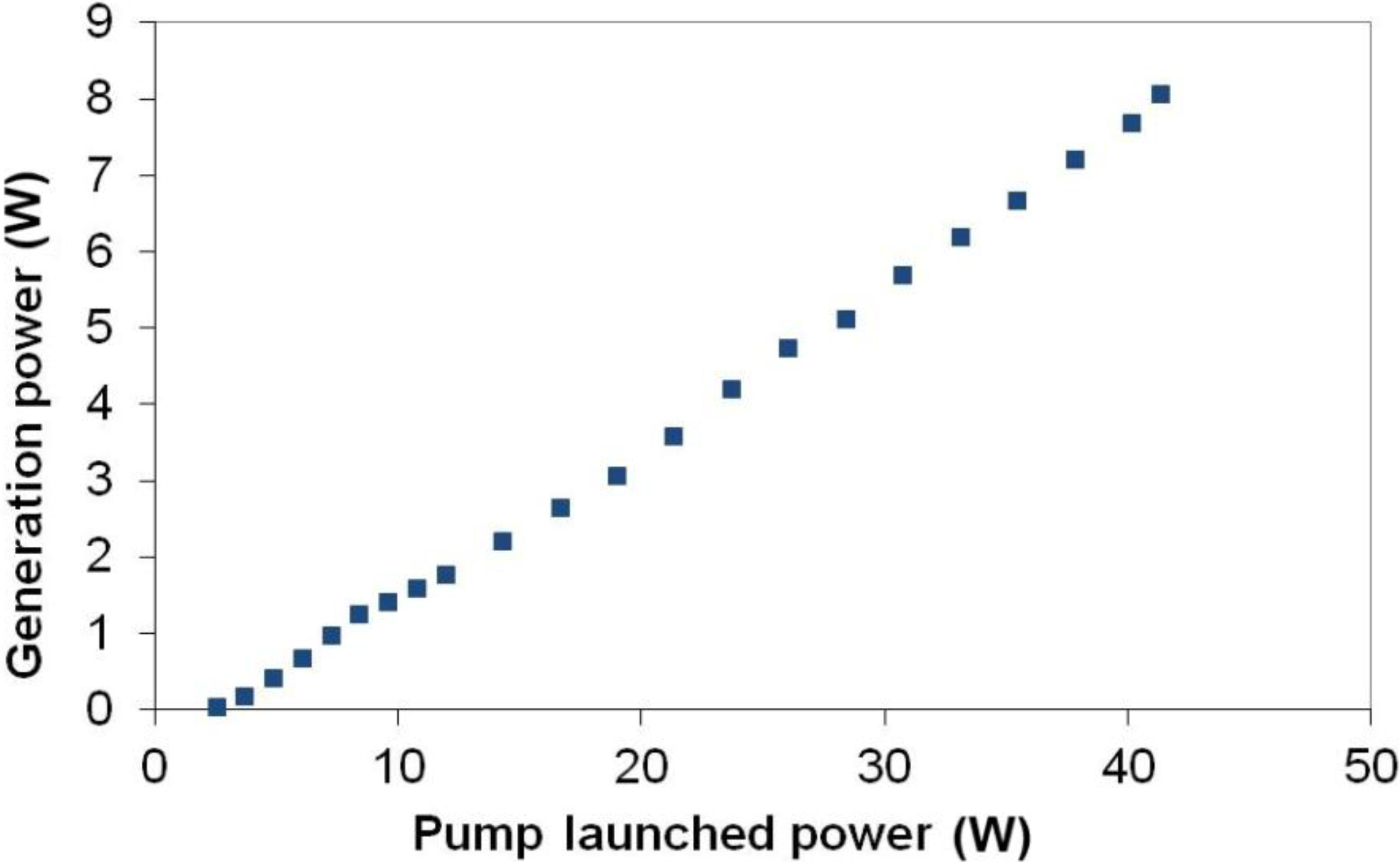

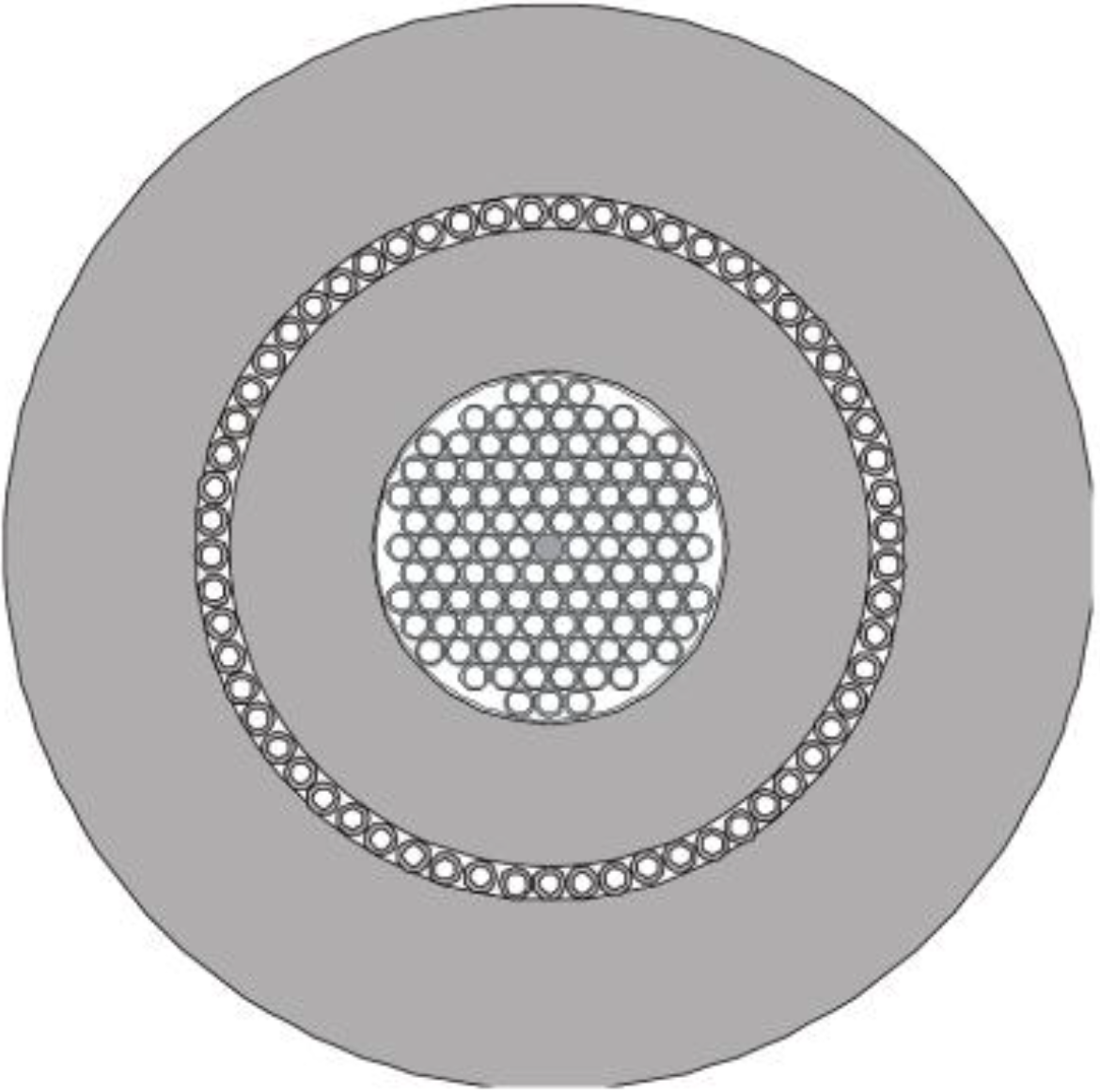

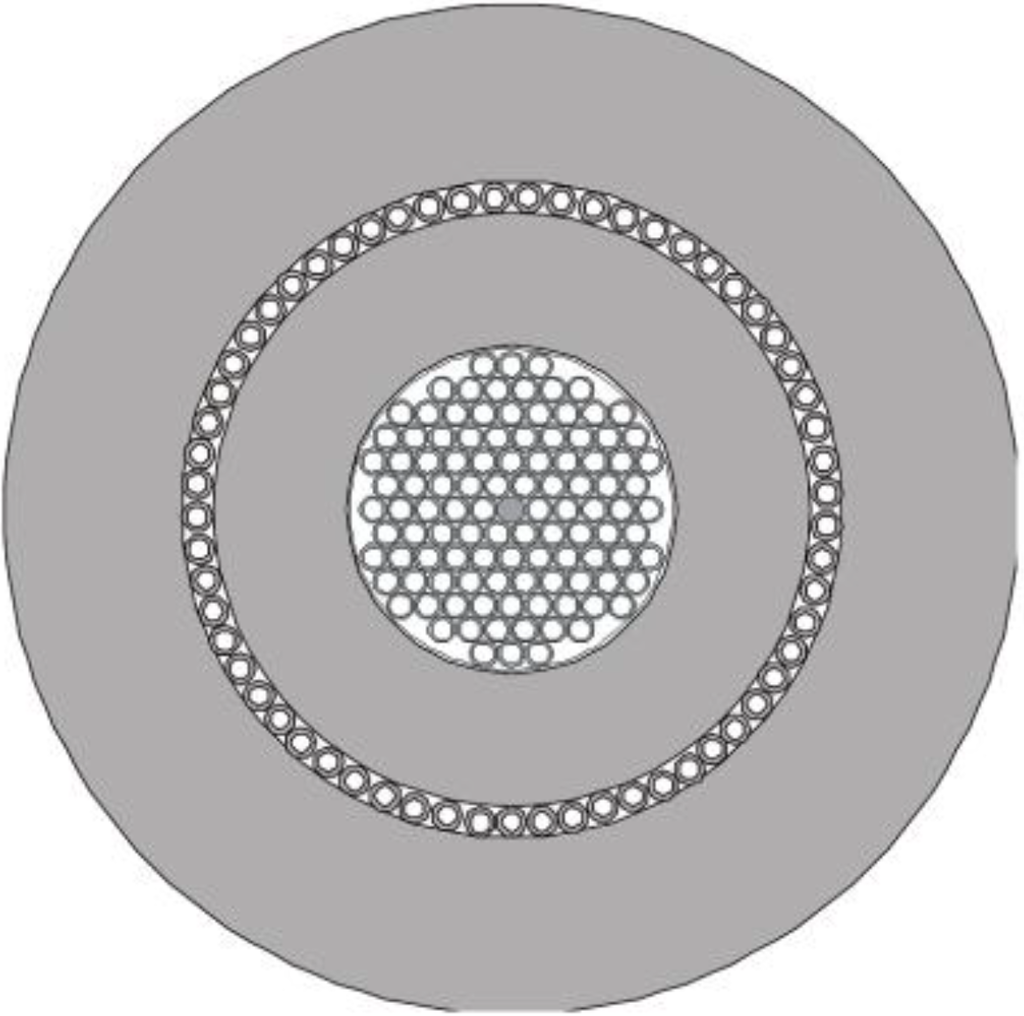

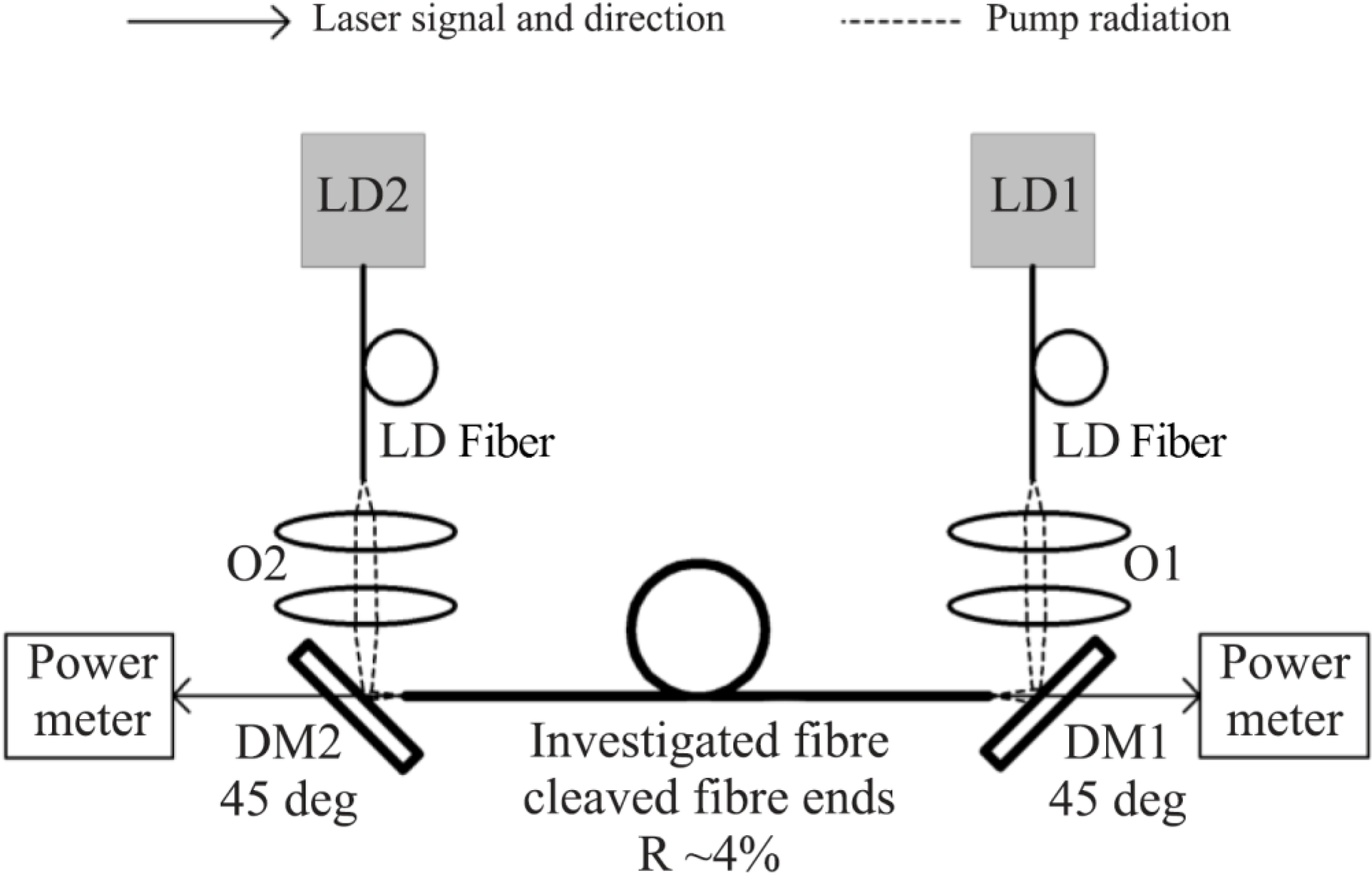

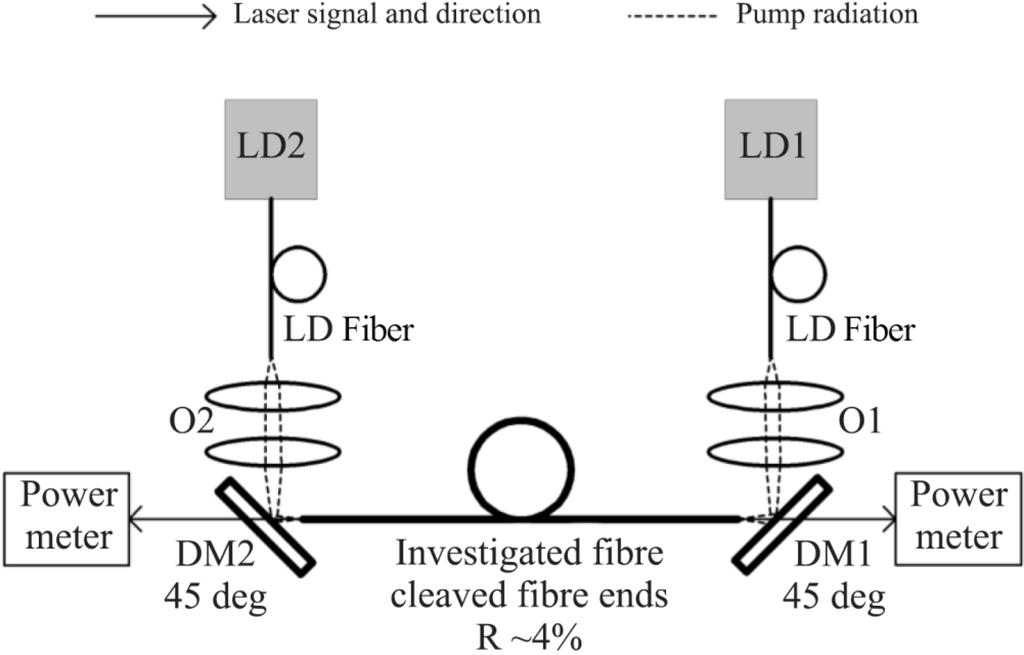

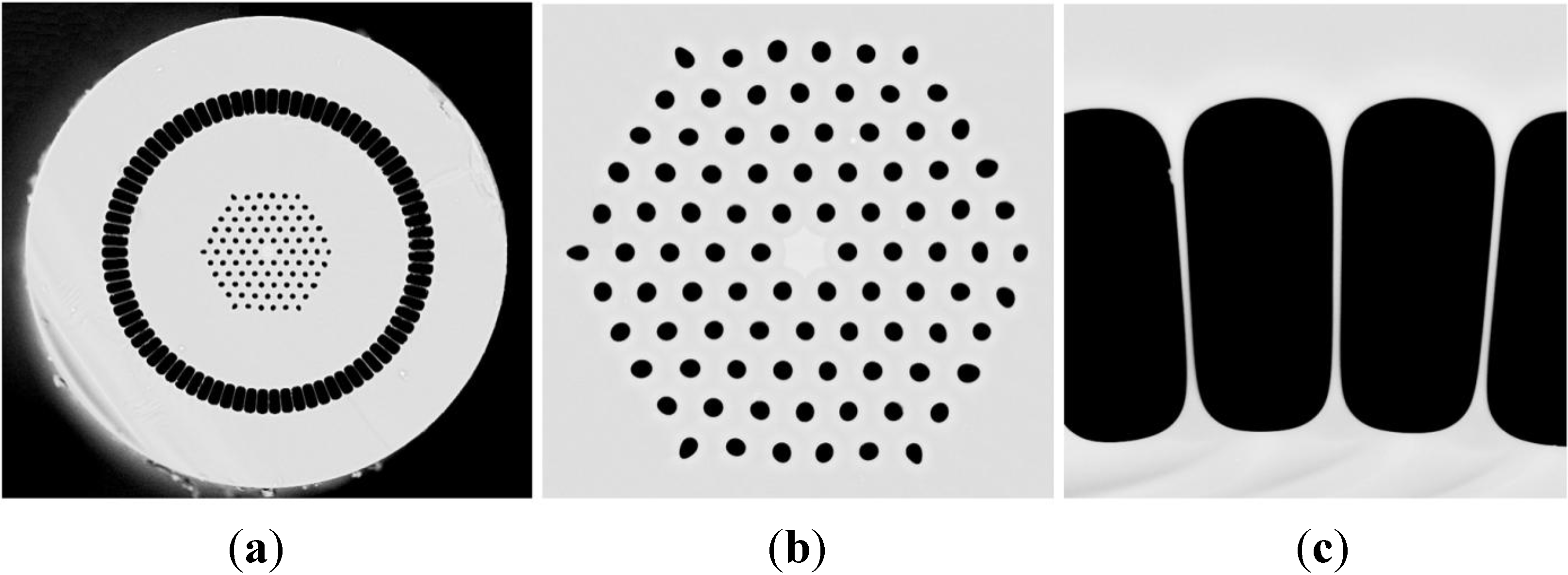

In the paper, we report on the development of a synthesis and melting method of phosphate glasses designed for active microstructured fiber manufacturing. Non-doped glass synthesized in a P2O5-Al2O3-BaO-ZnO-MgO-Na2O oxide system served as the matrix material; meanwhile, the glass was doped with 6 mol% (18 wt%) of Yb2O3, as fiber core. The glasses were well-fitted in relation to optical (refractive index) and thermal proprieties (thermal expansion coefficient, rheology). The fiber with the Yb3+-doped core, with a wide internal photonic microstructure for a laser pump, as well as with a high relative hole size in the photonic outer air-cladding, was produced. The laser built on the basis of this fiber enabled achieving 8.07 W of output power with 20.5% slope efficiency against the launched pump power, in single-mode operation M2 = 1.59, from a 53 cm-long cavity.
Keywords: phosphate glass; ytterbium oxide; glass melting; glass properties measurements; photonic crystal fiber (PCF); fiber laser phosphate glass; ytterbium oxide; glass melting; glass properties measurements; photonic crystal fiber (PCF); fiber laser

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Stępień, R.; Franczyk, M.; Pysz, D.; Kujawa, I.; Klimczak, M.; Buczyński, R. Ytterbium-Phosphate Glass for Microstructured Fiber Laser. Materials 2014, 7, 4723-4738.
