Next Article in Journal
In Situ TEM Study of Microstructure Evolution of Zr-Nb-Fe Alloy Irradiated by 800 keV Kr2+ Ions
Next Article in Special Issue
Hydrogen Assisted Cracking in Pearlitic Steel Rods: The Role of Residual Stresses Generated by Fatigue Precracking
Previous Article in Journal
Special Issue: Materials for Electrochemical Capacitors and Batteries
Previous Article in Special Issue
Interacting Effects Induced by Two Neighboring Pits Considering Relative Position Parameters and Pit Depth
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Materials 2017, 10(4), 439; doi:10.3390/ma10040439

Corrosion-Fatigue Crack Growth in Plates: A Model Based on the Paris Law

Fracture & Structural Integrity Research Group (FSIRG), University of Salamanca (USAL), E.P.S., Campus Viriato, Avda. Requejo 33, 49022 Zamora, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Alex A. Volinsky
Received: 1 February 2017 / Revised: 18 April 2017 / Accepted: 18 April 2017 / Published: 22 April 2017
(This article belongs to the Special Issue Stress Corrosion Cracking in Materials)
View Full-Text   |   Download PDF [4014 KB, uploaded 22 April 2017]   |

Abstract

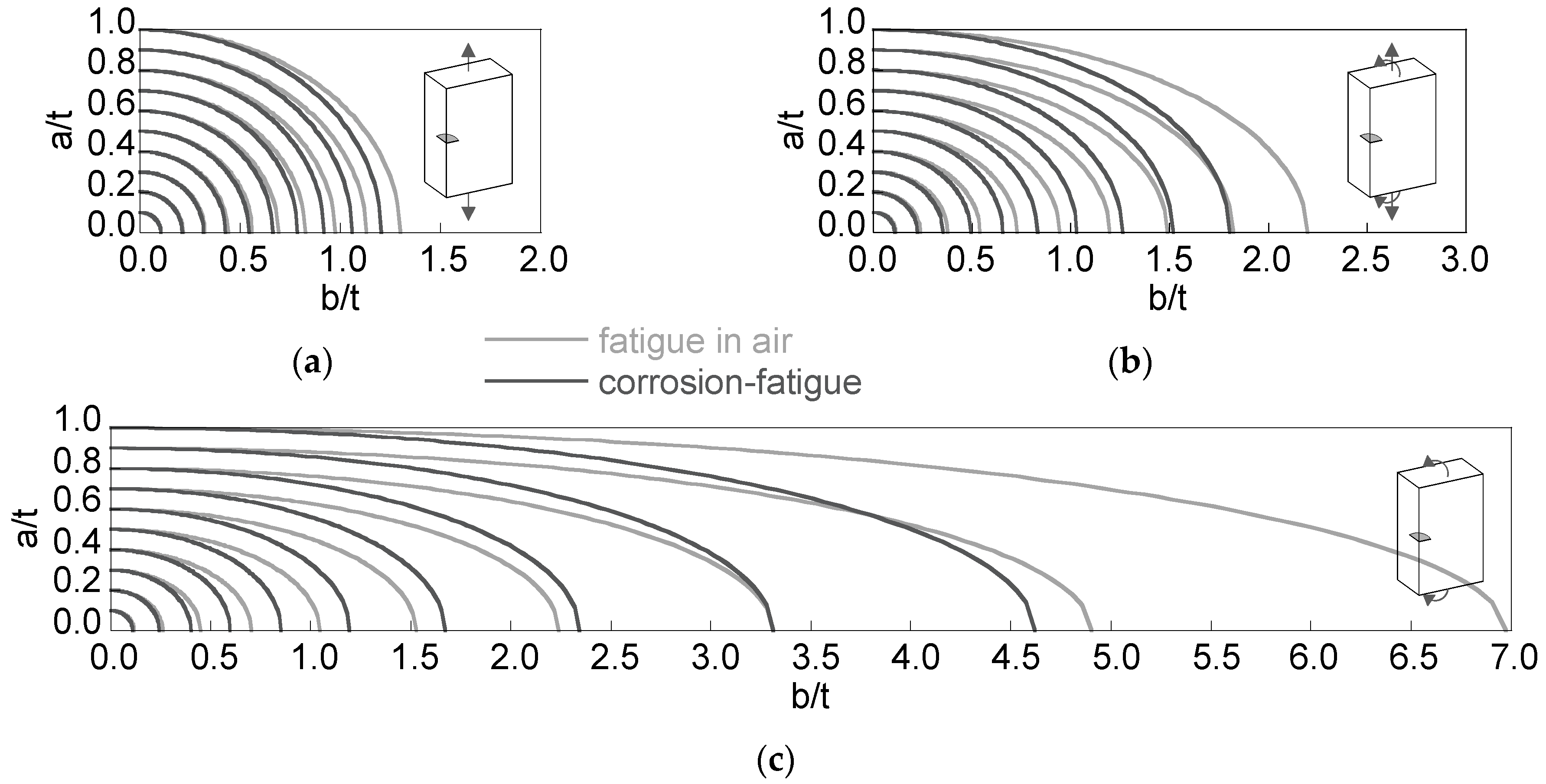

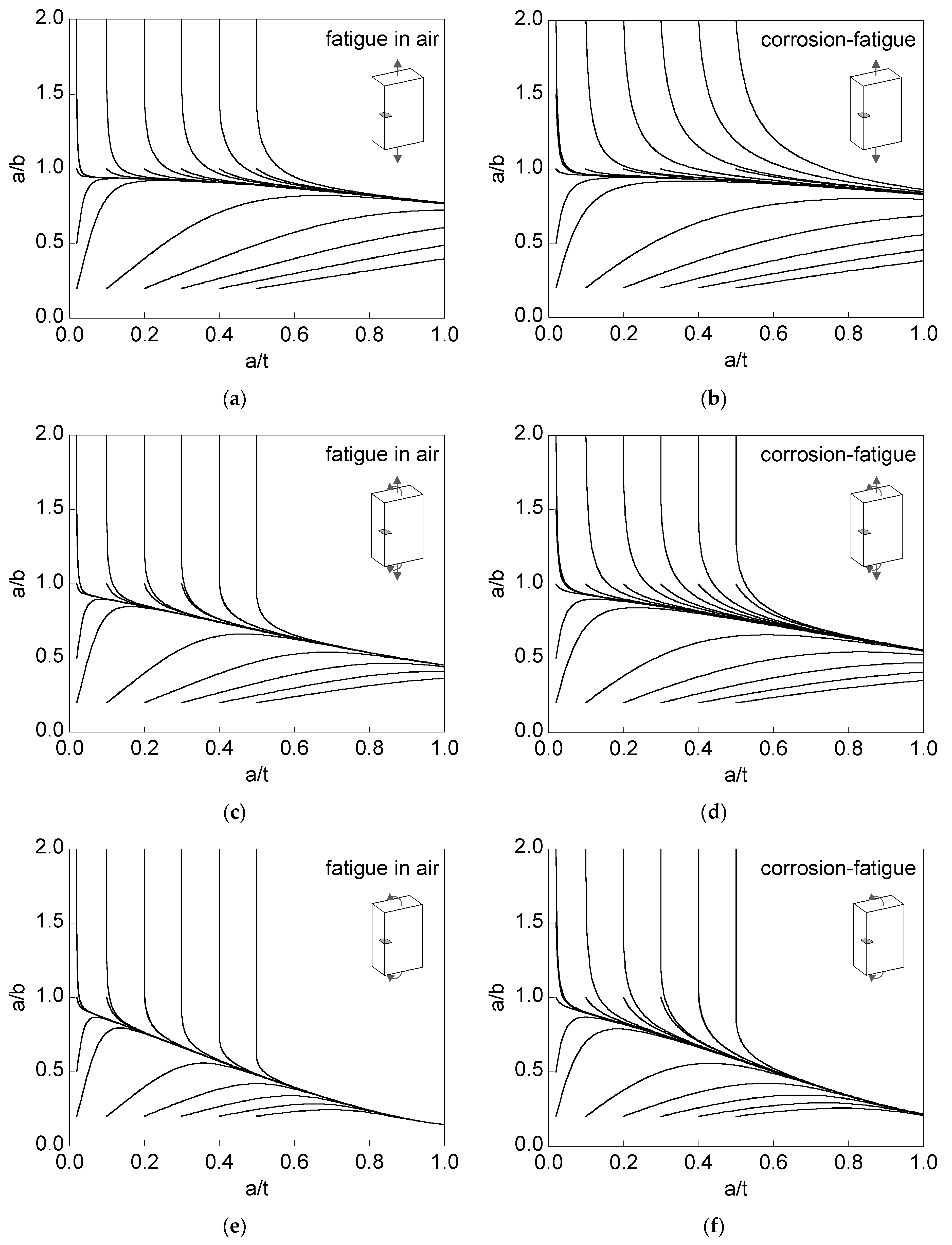

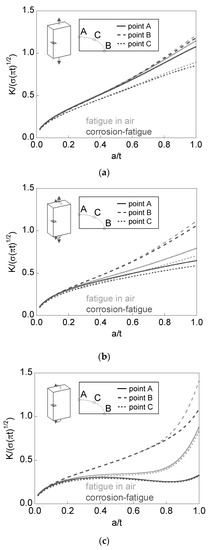

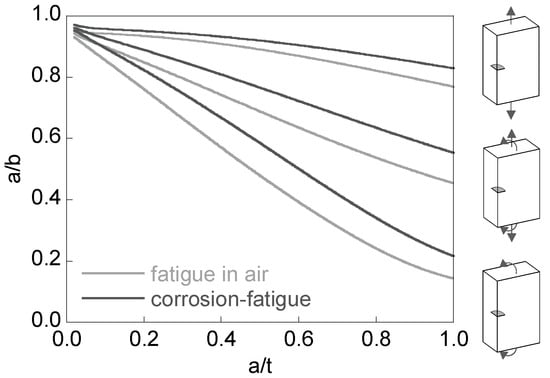

In this paper, a Paris law-based model is presented whereby crack propagation occurs under cyclic loading in air (fatigue) and in an aggressive environment (corrosion-fatigue) for the case of corner cracks (with a wide range of aspect ratios in the matter of the initial cracks) in finite-thickness plates of 316L austenitic stainless steel subjected to tension, bending, or combined (tension + bending) loading. Results show that the cracks tend during their growth towards a preferential propagation path, exhibiting aspect ratios slightly lower than unity only for the case of very shallow cracks, and diminishing as the crack grows (increasing the relative crack depth)—more intensely in the case of bending than in the case of tension (the mixed loading tension/bending representing an intermediate case). In addition, the crack aspect ratios during fatigue propagation evolution are lower in fatigue (in air) than in corrosion-fatigue (in aggressive environment). View Full-Text
Keywords: 316L stainless steel; finite-thickness cracked plate; corner crack; numerical modeling; corrosion-fatigue; fatigue crack propagation; preferential propagation path 316L stainless steel; finite-thickness cracked plate; corner crack; numerical modeling; corrosion-fatigue; fatigue crack propagation; preferential propagation path
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Toribio, J.; Matos, J.-C.; González, B. Corrosion-Fatigue Crack Growth in Plates: A Model Based on the Paris Law. Materials 2017, 10, 439.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
