Next Article in Journal
Spectral Properties of Er3+/Tm3+ Co-Doped ZBLAN Glasses and Fibers
Previous Article in Journal
Direct Growth of CuO Nanorods on Graphitic Carbon Nitride with Synergistic Effect on Thermal Decomposition of Ammonium Perchlorate
Previous Article in Special Issue
Corrosion-Fatigue Crack Growth in Plates: A Model Based on the Paris Law
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle
Materials 2017, 10(5), 485; doi:10.3390/ma10050485

Hydrogen Assisted Cracking in Pearlitic Steel Rods: The Role of Residual Stresses Generated by Fatigue Precracking

Fracture & Structural Integrity Research Group (FSIRG), University of Salamanca (USAL), E.P.S., Campus Viriato, 49022 Zamora, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Alex A. Volinsky
Received: 1 February 2017 / Revised: 9 April 2017 / Accepted: 12 April 2017 / Published: 2 May 2017
(This article belongs to the Special Issue Stress Corrosion Cracking in Materials)
View Full-Text   |   Download PDF [2058 KB, uploaded 2 May 2017]   |

Abstract

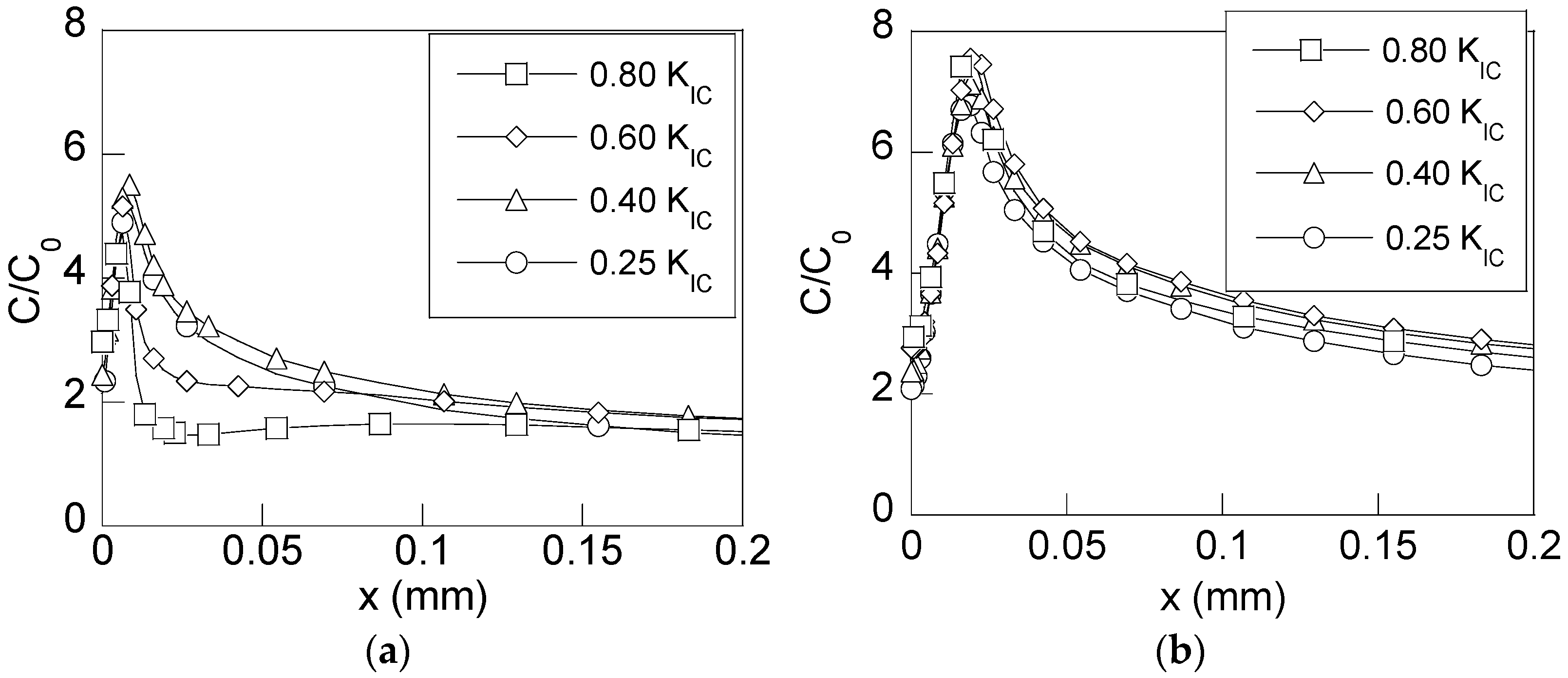

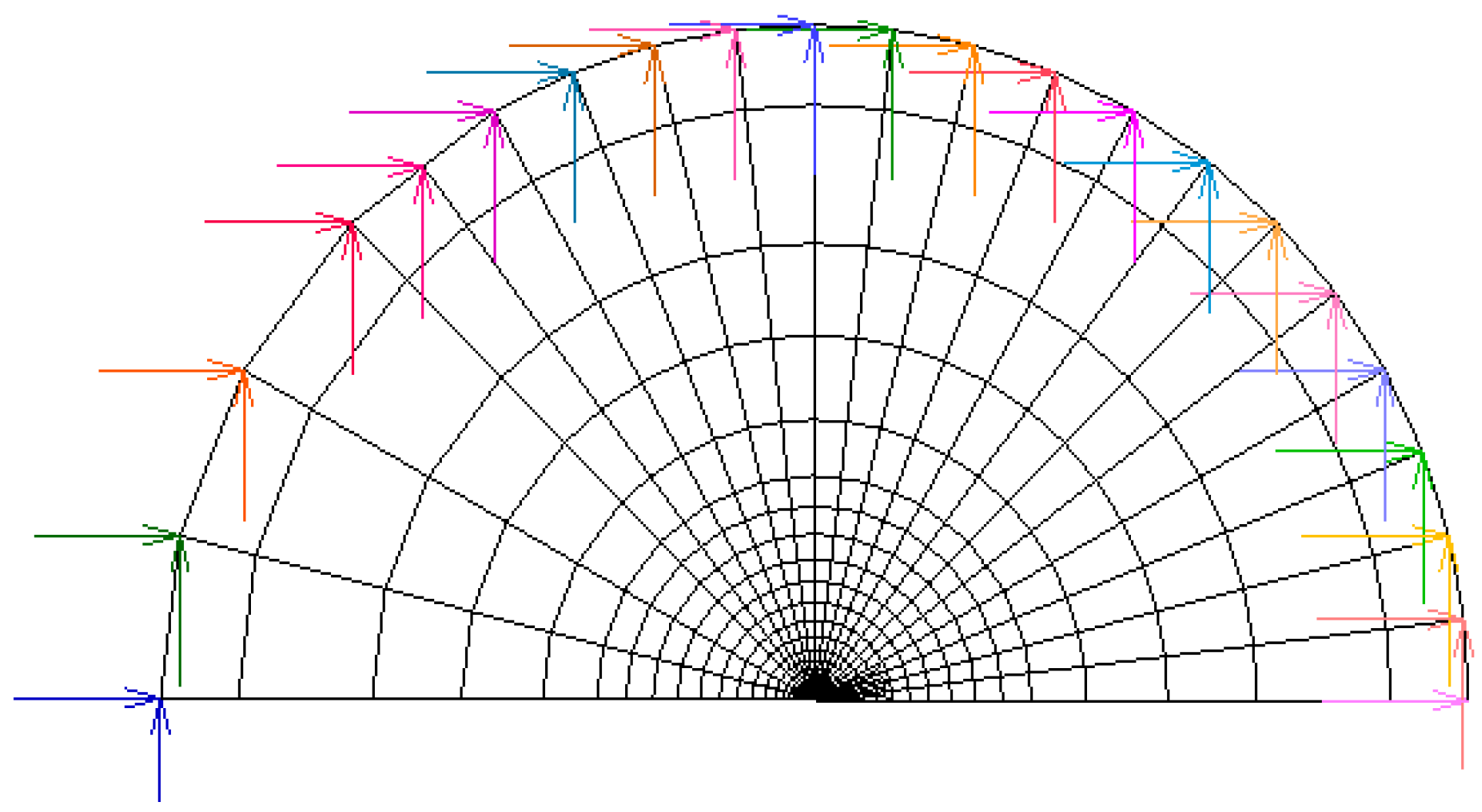

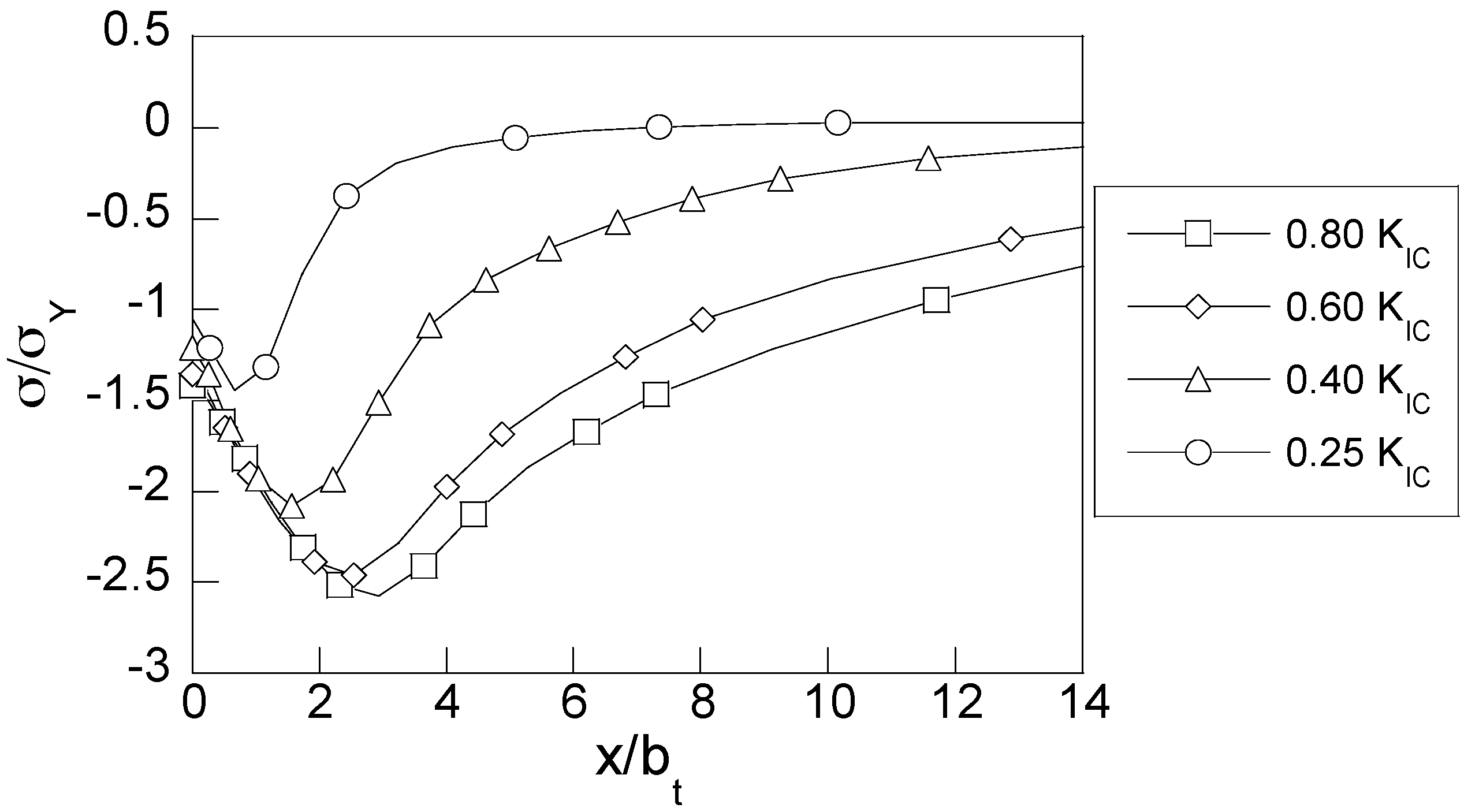

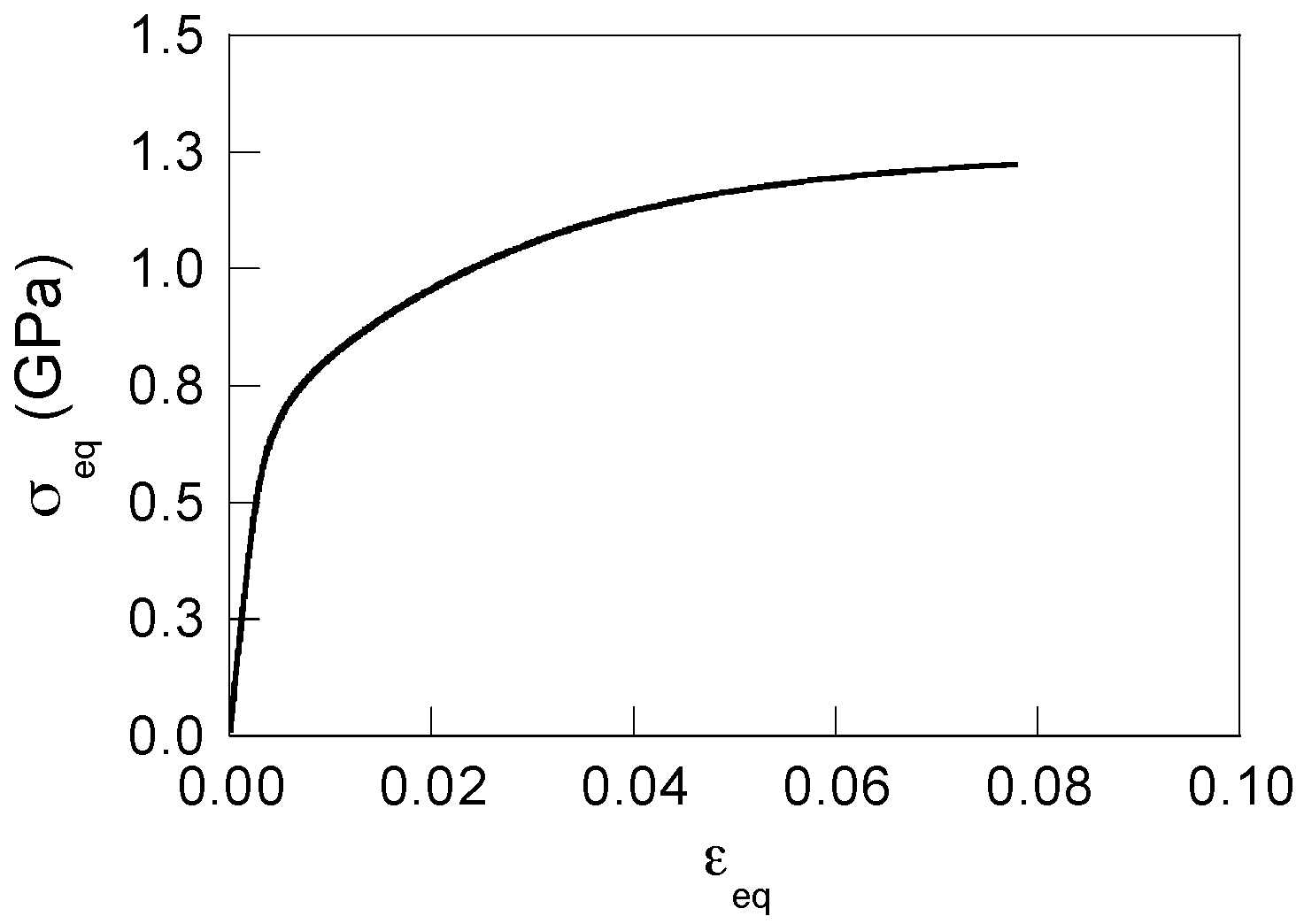

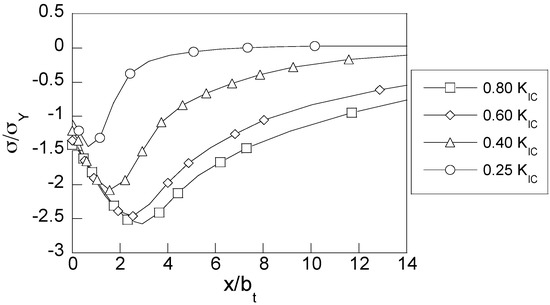

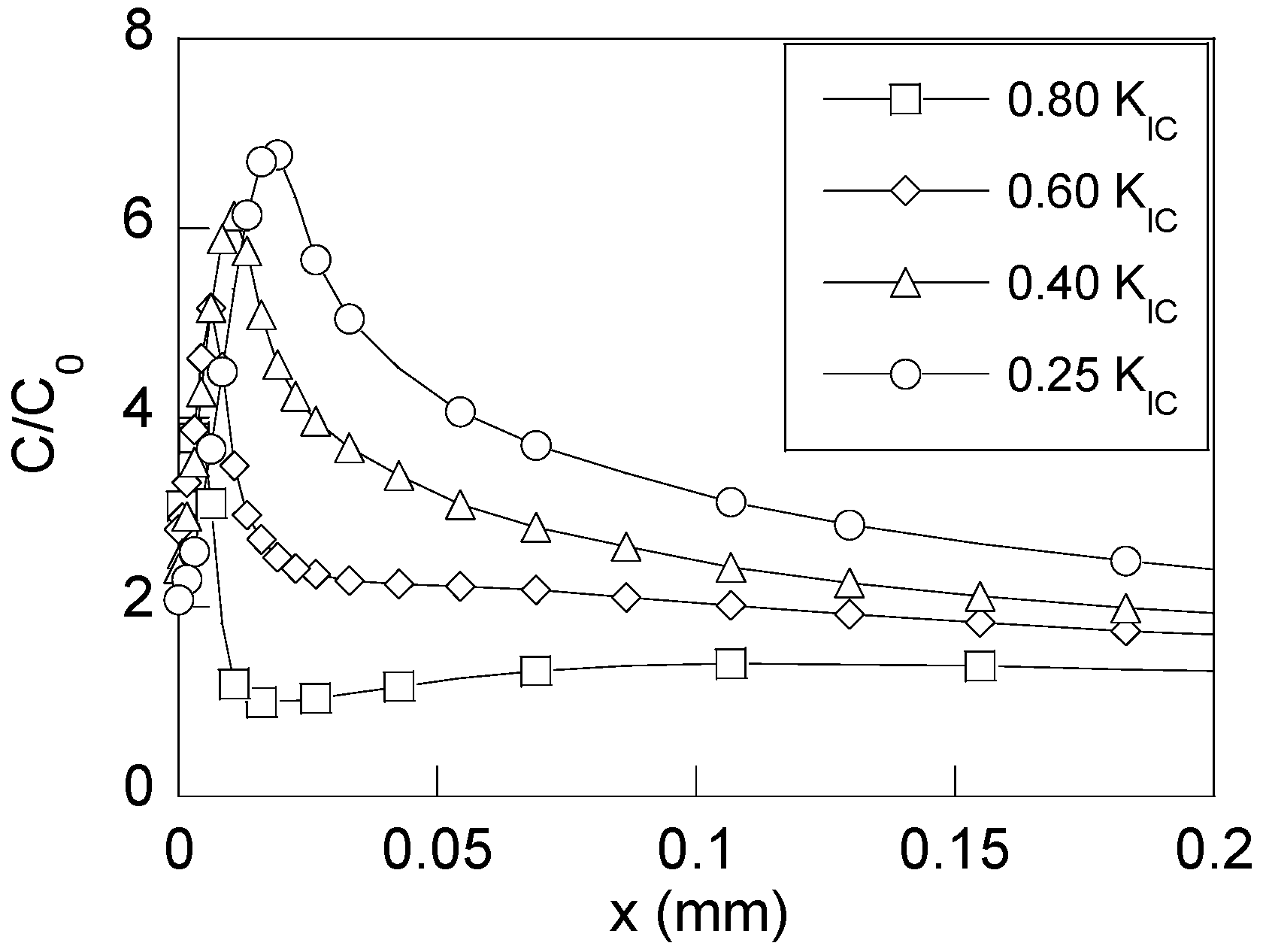

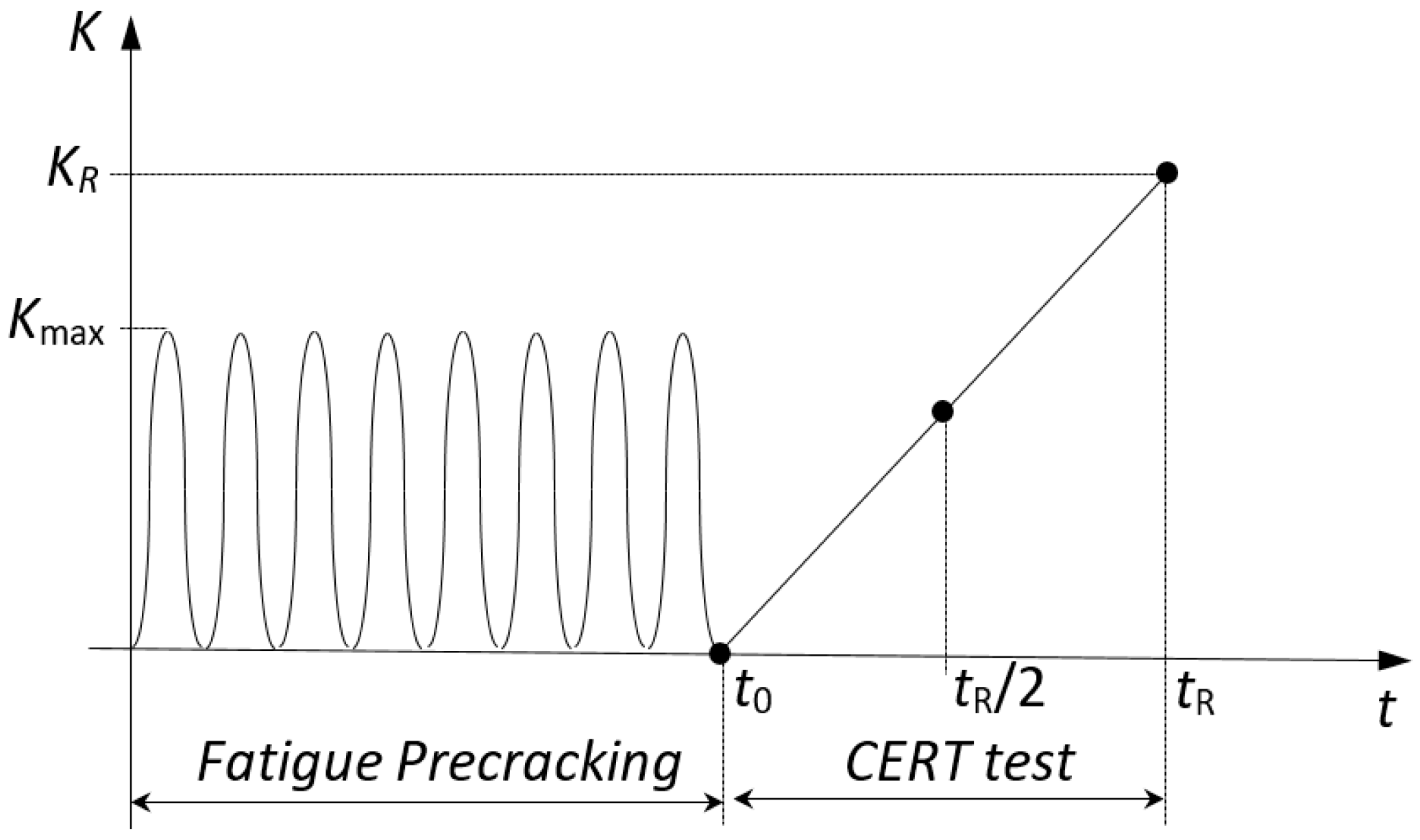

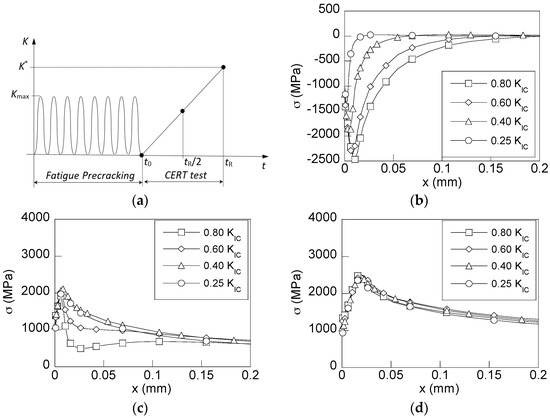

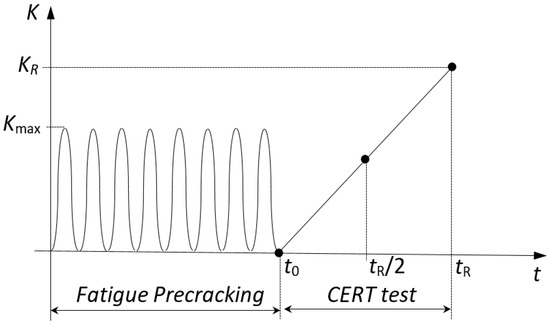

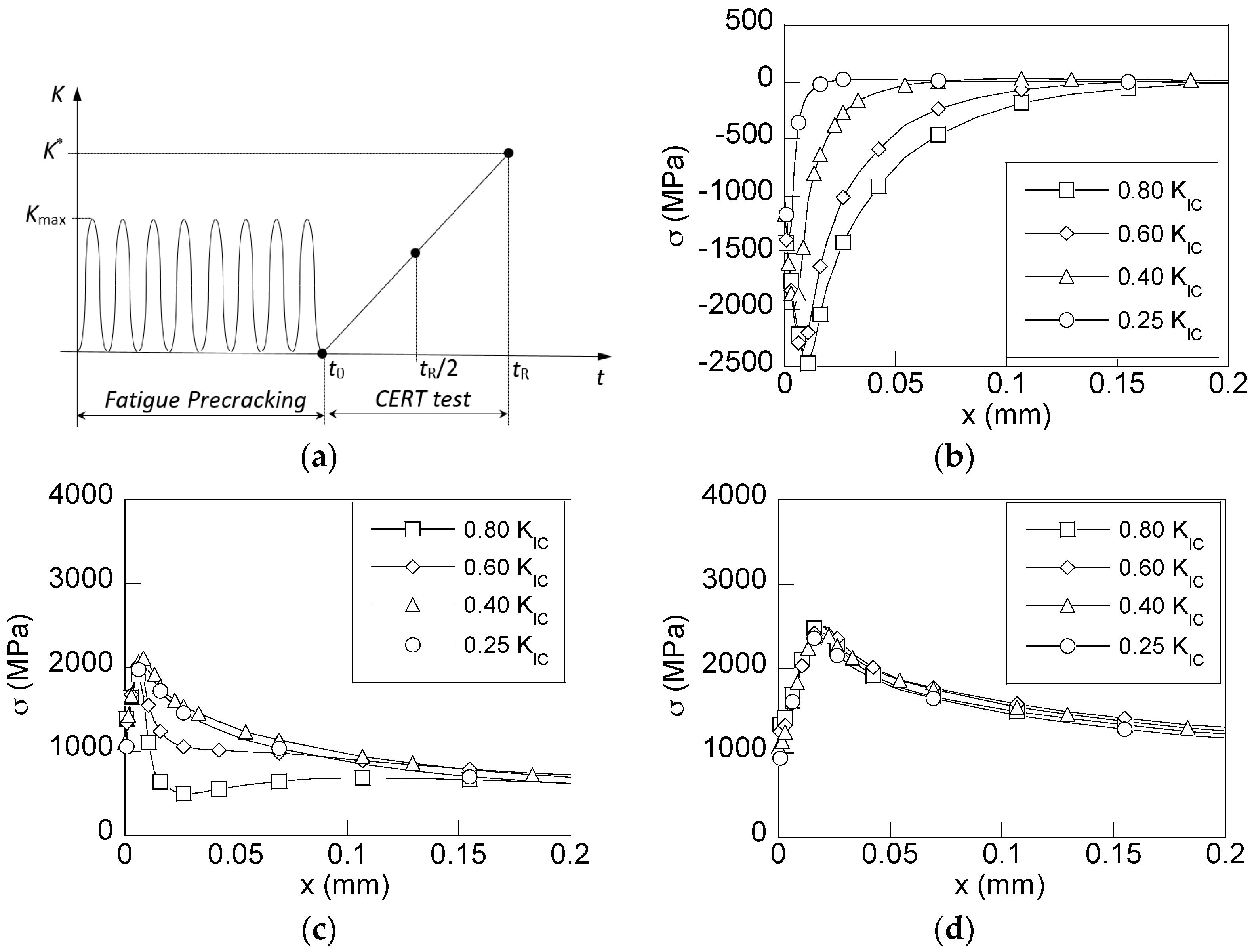

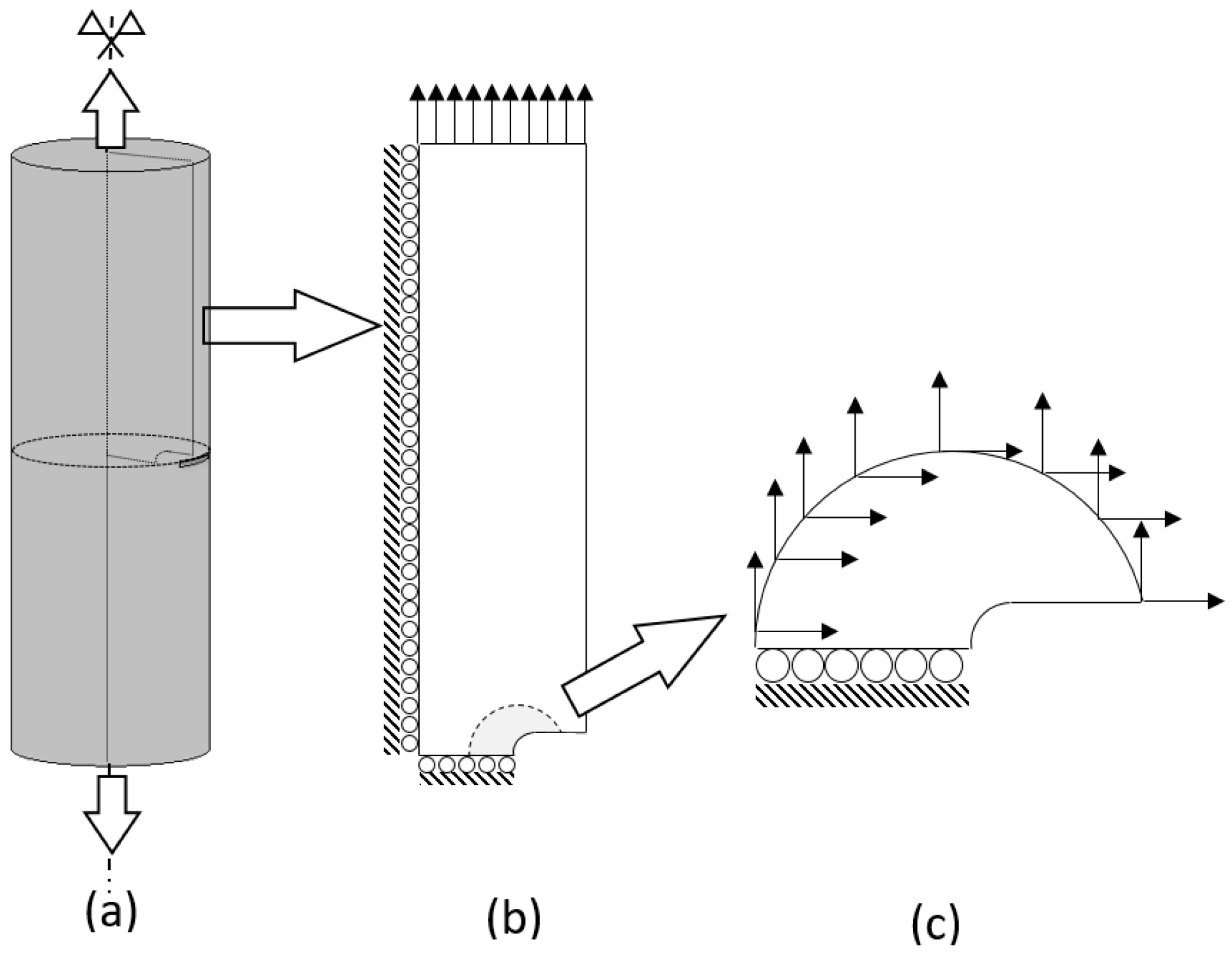

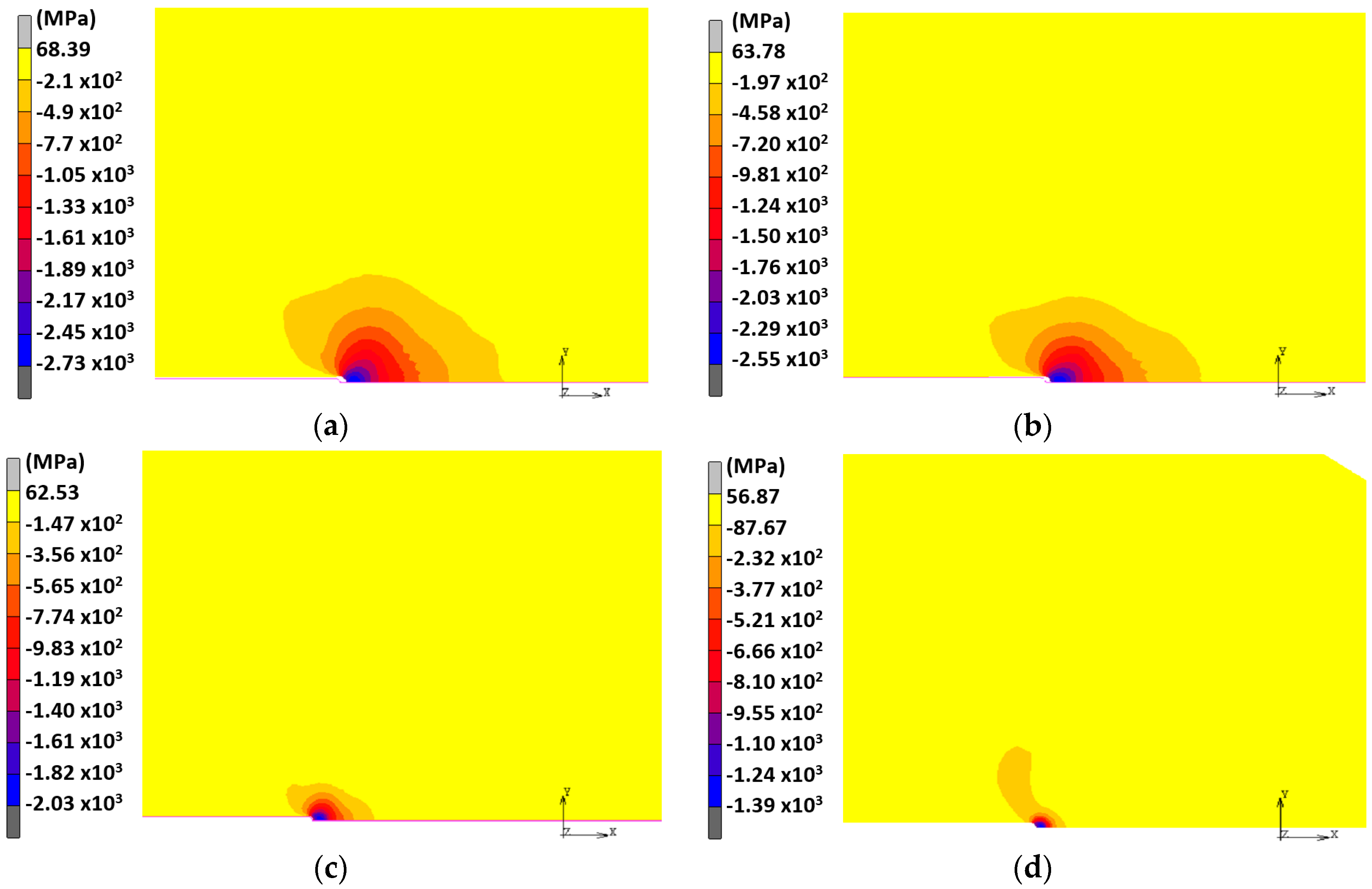

Stress corrosion cracking (SCC) of metals is an issue of major concern in engineering since this phenomenon causes many catastrophic failures of structural components in aggressive environments. SCC is even more harmful under cathodic conditions promoting the phenomenon known as hydrogen assisted cracking (HAC), hydrogen assisted fracture (HAF) or hydrogen embrittlement (HE). A common way to assess the susceptibility of a given material to HAC, HAF or HE is to subject a cracked rod to a constant extension rate tension (CERT) test until it fractures in this harsh environment. This paper analyzes the influence of a residual stress field generated by fatigue precracking on the sample’s posterior susceptibility to HAC. To achieve this goal, numerical simulations were carried out of hydrogen diffusion assisted by the stress field. Firstly, a mechanical simulation of the fatigue precracking was developed for revealing the residual stress field after diverse cyclic loading scenarios and posterior stress field evolution during CERT loading. Afterwards, a simulation of hydrogen diffusion assisted by stress was carried out considering the residual stresses after fatigue and the superposed rising stresses caused by CERT loading. Results reveal the key role of the residual stress field after fatigue precracking in the HAC phenomena in cracked steel rods as well as the beneficial effect of compressive residual stress. View Full-Text
Keywords: stress corrosion cracking; hydrogen assisted cracking; hydrogen assisted fracture; hydrogen embrittlement; hydrogen diffusion; residual stress field; pearlitic steel rods stress corrosion cracking; hydrogen assisted cracking; hydrogen assisted fracture; hydrogen embrittlement; hydrogen diffusion; residual stress field; pearlitic steel rods
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Toribio, J.; Aguado, L.; Lorenzo, M.; Kharin, V. Hydrogen Assisted Cracking in Pearlitic Steel Rods: The Role of Residual Stresses Generated by Fatigue Precracking. Materials 2017, 10, 485.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
