Marine Drugs 2011, 9(6), 1101-1118; doi:10.3390/md9061101

Review
Carotenoids in Algae: Distributions, Biosyntheses and Functions
Shinichi Takaichi
Department of Biology, Nippon Medical School, Kosugi-cho, Nakahara, Kawasaki 211-0063, Japan; E-Mail: takaichi@nms.ac.jp; Tel.: +81-44-733-3584; Fax: +81-44-733-3584
Received: 2 May 2011; in revised form: 31 May 2011 / Accepted: 8 June 2011 /
Published: 15 June 2011

Abstract

: For photosynthesis, phototrophic organisms necessarily synthesize not only chlorophylls but also carotenoids. Many kinds of carotenoids are found in algae and, recently, taxonomic studies of algae have been developed. In this review, the relationship between the distribution of carotenoids and the phylogeny of oxygenic phototrophs in sea and fresh water, including cyanobacteria, red algae, brown algae and green algae, is summarized. These phototrophs contain division- or class-specific carotenoids, such as fucoxanthin, peridinin and siphonaxanthin. The distribution of α-carotene and its derivatives, such as lutein, loroxanthin and siphonaxanthin, are limited to divisions of Rhodophyta (macrophytic type), Cryptophyta, Euglenophyta, Chlorarachniophyta and Chlorophyta. In addition, carotenogenesis pathways are discussed based on the chemical structures of carotenoids and known characteristics of carotenogenesis enzymes in other organisms; genes and enzymes for carotenogenesis in algae are not yet known. Most carotenoids bind to membrane-bound pigment-protein complexes, such as reaction center, light-harvesting and cytochrome b6f complexes. Water-soluble peridinin-chlorophyll a-protein (PCP) and orange carotenoid protein (OCP) are also established. Some functions of carotenoids in photosynthesis are also briefly summarized.
Keywords:
algal phylogeny; biosynthesis of carotenoids; distribution of carotenoids; function of carotenoids; pigment-protein complex

1. Introduction

Algae are classified throughout many divisions of the Kingdom Plantae. Their sizes range from single cells of picophytoplankton—the smallest of which are less than 1 μm—to seaweeds, the largest of which are more than 50 m. Attempts have been made to cultivate single-cell algae for a long time, but numbers were limited. With the recent development of culture techniques, some single-cell species can be cultured, and their characteristics, including pigments, can be studied. With the development of taxonomic technology, including DNA base sequences of 16S or 18S rRNA and some genes, algae phylogenetics has been developed.

More than 750 structurally defined carotenoids are reported from nature; land plants, algae, bacteria including cyanobacteria and photosynthetic bacteria, archaea, fungus and animals [1]. Except for animals, these organisms can synthesize many kinds of carotenoids, which are synthesized from diverse carotenogenesis pathways. These carotenoids and carotenogenesis pathways can be used as chemotaxonomic markers [27]. In addition, characteristics of carotenogenesis enzymes and genes are investigated. Some carotenogenesis genes have high similarity from bacteria to land plants, but some have low similarity. Some homologous genes have been proposed [8,9], but some carotenogenesis enzymes and genes, especially algae-specific ones, are not found.

In this review, the term algae refers to an oxygenic phototroph found in both seawater and fresh water, including cyanobacteria but excluding land plants. Distribution of carotenoids, carotenogenesis enzymes and pathways, and function of carotenoids in photosynthesis in algae are summarized.

2. Distribution of Carotenoids

Many different kinds of carotenoids were found from the algal species studied. Structures of some important carotenoids in algae are illustrated in Figure 1. Among them, approximately 30 types may have functions in photosynthesis, and others may be intermediates of carotenogenesis or accumulated carotenoids. Some carotenoids are found only in some algal divisions or classes; therefore, these carotenoids and also chlorophylls can be used as chemotaxonomic markers, and their distribution in algae is summarized in Table 1 [26].

Allene (C═C═C) is a unique structure in natural products, and is found mainly in carotenoids [10]; fucoxanthin in brown algae and diatoms, 19′-acyloxyfucoxanthin in Haptophyta and Dinophyta, peridinin only in dinoflagellates, and 9′-cis neoxanthin in green algae and land plants. Acetylene (C≡C) is also a unique structure, and acetylenic carotenoids are found only in algae; alloxanthin, crocoxanthin and monadoxanthin in Cryptophyta, and diadinoxanthin and diatoxanthin in Heterokontophyta, Haptophyta, Dinophyta and Euglenophyta. Acetylated carotenoids (-O-CO-CH3), such as fucoxanthin, peridinin and dinoxanthin, are also mainly found in algae, such as Heterokontophyta, Haptophyta and Dinophyta. These carotenoids are specific to certain algal divisions and classes, and they are summarized in Table 1 based on our results [1114] and some references [16].

Many cyanobacteria contain β-carotene, zeaxanthin, echinenone and myxol pentosides (myxoxanthophyll), while some species lack part of these and some contain additional carotenoids, such as nostoxanthin, canthaxanthin and oscillol dipentoside (Table 1, Figure 1) [13]. In addition, the carotenoid compositions of cyanobacteria are very different from those of chloroplasts in algae; consequently, during symbiosis of cyanobacteria to eukaryotic cells, carotenoids might be considerably restructured [13]. Note that since the name of myxoxanthophyll cannot specify the glycoside moieties, we have proposed the name of myxol glycosides to specify the glycosides, such as myxol 2′-α-l-fucoside, 4-ketomyxol 2′-rhamnoside and oscillol dichinovoside [13,15].

Rhodophyta (red algae) can be divided into two groups based on carotenoid composition; the unicellular type contains only β-carotene and zeaxanthin, and the macrophytic type contains additional α-carotene and lutein (Table 1, Figure 1) [16]. The relationship between phylogenetics of red algae and carotenoid composition is not clear [14]. Cryptophyta also contains α-carotene and its acetylenic derivatives, crocoxanthin and monadoxanthin, which are only found in this division.

Heterokontophyta, Haptophyta and Dinophyta contain β-carotene and its derivatives as well as chlorophyll c (Table 1, Figure 1). These divisions, except for Eustigmatophyceae, which lacks chlorophylls c, contain unique acetylenic carotenoids of diadinoxanthin and diatoxanthin. Fucoxanthin and its derivatives are found in only four classes of Heterokontophyta (Chrysophyceae, Raphidophyceae, Bacillariophyceae and Phaeophyceae), Haptophyta and Dinophyta. Peridinin and its derivatives are found only in Dinophyta. Fucoxanthin and peridinin have unique structures (Figure 1) and are class-specific carotenoids (Table 1).

Euglenophyta, Chlorarachniophyta and Chlorophyta contain the same carotenoids, such as β-carotene, violaxanthin, 9′-cis neoxanthin [11] and lutein, as well as chlorophyll a and b with land plants (Table 1, Figure 1). Some classes contain additional carotenoids, such as loroxanthin, siphonaxanthin and prasinoxanthin, which are derivatives of lutein, and are class specific.

Note that identifications of some carotenoids were lacking because of insufficient analysis, and that some algae names were changed because of new developments in taxonomic technology and phylogenetic classification.

3. Carotenogenesis Pathways, Enzymes and Genes

Carotenogenesis pathways and their enzymes are mainly investigated in cyanobacteria [13] and land plants among oxygenic phototrophs [17]. Especially in land plants, carotenogenesis pathways and characteristics of enzymes are studied in detail (Figure 2). On the other hand, algae have common pathways with land plants and also additional algae-specific pathways, which are solely proposed based on the chemical structures of carotenoids (Figure 2). Some common carotenogenesis genes in algae are suggested from homology of the known genes [8,9], but most genes and enzymes for algae-specific pathways are still unknown (Figure 2). In cyanobacteria, since carotenoid compositions are different from those in land plants and algae, the pathways and enzymes are also different from those in Figure 2, and they are shown in Figure 3. In addition, carotenogenesis enzymes and genes, whose functions are confirmed in algae, including cyanobacteria, are summarized in Table 2. Unfortunately, these enzymes are mostly from cyanobacteria and green algae (Table 2).

3.1. Lycopene Synthesis

3.1.1. Isopentenyl Pyrophosphate to Phytoene Synthesis

Isopentenyl pyrophosphate (IPP), a C5-compound, is the source of isoprenoids, terpenes, quinones, sterols, phytol of chlorophylls, and carotenoids. There are two known independent pathways of IPP synthesis: the classical mevalonate (MVA) pathway and the alternative, non-mevalonate, 1-deoxy-d-xylulose-5-phosphate (DOXP) pathway [18,19]. In the MVA pathway, acetyl-Coenzyme A is converted to IPP through mevalonate, and the enzymes and genes are well studied [20]. The pathway is found in plant cytoplasm, animals and some bacteria [18,20]. The DOXP pathway was found in the 1990s, and in this pathway, pyruvate and glycelaldehyde are converted to IPP. The DOXP pathway is found in cyanobacteria, the plastids of algae and land plants, and some bacteria [18]. Carotenoids are synthesized in plastids. Exceptionally among oxygenic phototrophs, Euglenophyceae has only the MVA pathway, and Chlorophyceae has only the DOXP pathway [18].

Most carotenoids consist of eight IPP units. Farnesyl pyrophosphate (C15) is synthesized from three IPPs, after which one IPP is added to farnesyl pyrophosphate by geranylgeranyl pyrophosphate synthase (CrtE, GGPS) to yield geranylgeranyl pyrophosphate (C20). In a head-to-head condensation of the two C20 compounds, the first carotene, phytoene (C40), is formed by phytoene synthase (CrtB, Pys, Psy) using ATP [57,58]. This pathway has been confirmed by cloning genes from two species of Rhodobacter (purple bacteria) and two species of Pantoea (previously Erwinia) [5759]. Among oxygenic phototrophs, the functions of CrtE of Thermosynechococcus elongatus BP-1 [21], and CrtB of three species of cyanobacteria [2224] and two species of green algae [25,26] have also been confirmed (Table 2). The crtE and crtB genes have high sequence similarity from bacteria to land plants, respectively.

3.1.2. Phytoene to Lycopene Synthesis

Four desaturation steps are needed in the conversion from phytoene to lycopene. Oxygenic phototrophs require three enzymes: phytoene desaturase (CrtP, Pds), ζ-carotene desaturase (CrtQ, Zds) and cis-carotene isomerase (CrtH, CrtISO) (Figure 2). CrtP catalyzes the first two desaturation steps, from phytoene to ζ-carotene through phytofluene, and CrtQ catalyzes two additional desaturation steps, from ζ-carotene to lycopene through neurosporene. During desaturation by CrtQ, neurosporene and lycopene are isomerized to poly-cis forms, and then CrtH isomerizes to all-trans forms. Light is also effective for their photoisomerization to all-trans forms [34]. The functions of these enzymes have been mainly confirmed in cyanobacteria, green algae and land plants (Table 2): CrtP from Synechocystis sp. PCC 6803 [28], Synechococcus elongatus PCC 7942 [23], Chlamydomonas reinhardtii [29] and Chlorella zofingiensis [30,31], CrtQ from Anabaena sp. PCC 7120 (CrtQa, crtI-like sequence) [32] and Synechocystis sp. PCC 6803 (CrtQb, plant crtQ-like) [33], and CrtH from Synechocystis sp. PCC 6803 [34,35]. The CrtP of S. elongatus PCC 7942 is stimulated by NAD(P) and oxygen as a possible final electron acceptor [60]. CrtQa has sequence homology with bacterial phytoene desaturase (CrtI) and CrtH, while CrtQb has sequence homology with CrtP. In addition, genes homologous to crtQa are not found in cyanobacteria; therefore, among oxygenic phototrophs, Anabaena sp. PCC 7120 is the only species to have functional CrtQa.

In contrast, the bacterial type uses only one enzyme, phytoene desaturase (CrtI), to convert from phytoene to lycopene, and the primitive cyanobacterium of Gloeobacter violaceus PCC 7421 uses this type of CrtI, and the homologous genes of crtP, crtQ and crtH are not found in the genome [22,27]; therefore, G. violaceus is the first oxygenic phototroph that has been shown to use this type (Table 2). These observations suggest the following evolutionary scheme for this step in the reaction: the desaturation of phytoene was initially carried out by CrtI in ancestral cyanobacteria, crtP and related desaturase genes were acquired, and ultimately, there was replacement of crtI by crtP [27]. Among anoxygenic phototrophs, purple bacteria, green filamentous bacteria and heliobacteria use CrtI, whereas green sulfur bacteria use CrtP, CrtQ and CrtH [61].

3.2. β-Carotene and α-Carotene Synthesis by Lycopene Cyclases

All carotenoids in oxygenic phototrophs are dicyclic carotenoids; β-carotene, α-carotene and their derivatives, are derived from lycopene (Figures 1 and 2). Exceptionally, myxol glycosides and oscillol diglycosides in cyanobacteria are monocyclic and acyclic carotenoids, respectively.

Lycopene is cyclized into either β-carotene through γ-carotene, or α-carotene through γ-carotene or δ-carotene. Three distinct families of lycopene cyclases have been identified in carotenogenetic organisms [13,62,63]. One large family contains CrtY in some bacteria except cyanobacteria, and CrtL (CrtL-b, Lcy-b) in some cyanobacteria and land plants. Lycopene ɛ-cyclases (CrtL-e, Lcy-e) from land plants and lycopene β-monocyclases (CrtYm, CrtLm) from bacteria are also included. Their amino acid sequences exhibit a significant five conserved regions [39,62,64], and have an NAD(P)/FAD-binding motif [65]. Note that Maresca et al. [63] divide this family into two CrtY and CrtL families. Three enzymes from Rhodophyta, Cyanidioschyzon merolae [38], and Chlorophyceae, Dunaliella salina [39] and Haematococcus pluvialis [40], are functionally confirmed (Table 2).

Some cyanobacteria also contain these enzymes (Table 2). Synechococcus elongatus PCC 7942 contains a functional CrtL [36]. Prochlorococcus marinus MED4 contains two lycopene cyclases (Table 2), which have sequence homology to CrtL. CrtL-b exhibits lycopene β-cyclase activity, while CrtL-e is a bifunctional enzyme having both lycopene ɛ-cyclase and lycopene β-cyclase activities [37]. The combination of these two cyclases allows the production of β-carotene, α-carotene and ɛ-carotene. Both enzymes might have originated from the duplication of a single gene. The characteristics of this CrtL-e are somewhat different from those in land plants [66]. In addition, the β-end groups of both β-carotene and α-carotene (left half) might be hydroxylated by CrtR to zeaxanthin through β-cryptoxanthin and 3-hydroxy-α-carotene, respectively, in P. marinus. Acaryochloris marina MBIC 11017, which produces α-carotene, contains only one crtL-like gene from genome sequence [14].

The second family of lycopene cyclases, heterodimer (crtYc and crtYd) or monomer (crtYc-Yd), has been found in some bacteria, archaea and fungi [62,67], but not in phototrophs.

Recently, a new family of functional lycopene cyclase, CruA, has been found in Chlorobaculum (previously Chlorobium) tepidum (green sulfur bacterium), and the main product is γ-carotene in Escherichia coli, which produces lycopene [68]. Homologous genes, cruA and cruP, have been found in the genome of Synechococcus sp. PCC 7002, and their main products are γ-carotene, in E. coli, which produces lycopene [63]. In addition, their homologous genes are widely distributed in cyanobacteria, such as Synechocystis sp. PCC 6803 and Anabaena sp. PCC 7120; however, these cruA- and cruP-like genes from both Synechocystis sp. PCC 6803 and Anabaena sp. PCC 7120 did not show the lycopene dicyclase or monocyclase activities [14]. S. elongatus PCC 6301 and PCC 7942, and A. marina MBIC 11017 contain crtL-, cruA- and cruP-like genes; consequently, distributions of functional lycopene cyclases (CrtL-, CruA- and CruP-like) in cyanobacteria are unknown.

Since Synechocystis sp. PCC 6803 and Anabaena sp. PCC 7120 lack crtL-like genes and contain non-functional cruA-like genes, there is a possibility to present a fourth new family of lycopene cyclases in these cyanobacteria. Further studies of distributions of functional lycopene cyclases (CrtL- and CruA-like, or others) in cyanobacteria are needed.

Distribution of α-carotene, that is, CrtL-e, is limited in some algae classes (Table 1). Genes and enzymes of CrtL-e are not found in algae. In some species of land plants, the characteristics of CrtL-e were investigated [66], and were shown to have sequence homology with crtL-b. Lycopene is first converted to ζ-carotene by CrtL-e, and then to α-carotene by CrtL-b. γ-Carotene produced by CrtL-b is not a suitable substrate for CrtL-e.

3.3. β-Carotene Derivatives and Their Synthesis

3.3.1. Cyanobacteria

Some cyanobacteria produce zeaxanthin, and some produce both zeaxanthin and nostoxanthin (Figure 3). First, the C-3 and C-3′ hydroxyl groups of zeaxanthin are introduced to β-carotene by β-carotene hydroxylase (CrtR) through β-cryptoxanthin. Then, the C-2 and C-2′ hydroxyl groups of nostoxanthin are introduced by 2,2′-β-hydroxylase (CrtG) through caloxanthin (Table 2) [13,4143,47]. The same enzymes, CrtR and CrtG, can also introduce hydroxyl groups to deoxymyxol and myxol to produce myxol and 2-hydroxymyxol, respectively [13,44,47]; consequently, the same enzymes are used in two pathways.

Cyanobacteria contain two ketocarotenoids, namely, canthaxanthin and 4-ketomyxol. Two distinct β-carotene ketolases, CrtO and CrtW, are known, and only seven enzymes are functionally confirmed in four species of cyanobacteria (Table 2) [13]. CrtO catalyzes β-carotene to echinenone, and the final product is canthaxanthin [22,42,45,50,51]. CrtW can introduce a keto group into β-carotene, zeaxanthin and myxol to produce canthaxanthin, astaxanthin and 4-ketomyxol, respectively (Figure 3) [22,27,42,50,52]; therefore, these ketolases are properly used in two pathways, β-carotene and myxol, depending on the species [13].

The pathway and the enzymes to produce the right half of myxol 2′-pentoside are still unknown (Figure 3) [13].

3.3.2. Land Plants

In land plants, most of the carotenogenesis pathways and the functionally confirmed enzymes are known (Figure 2). Hydroxyl groups are introduced into β-carotene to produce zeaxanthin by β-carotene hydroxylase (CrtR, CrtR-b, BCH). Epoxy groups are introduced into zeaxanthin by zeaxanthin epoxidase (Zep, NPQ) to produce violaxanthin through antheraxanthin. Under high light conditions, violaxanthin is changed into zeaxanthin by violaxanthin de-epoxidase (Vde) for dispersion of excess energy from excited chlorophylls. One end group of violaxanthin is changed to an allene group of neoxanthin by neoxanthin synthase (Nsy). Because all neoxanthin in chloroplasts has the 9′-cis form, unknown 9′-isomerase for all trans neoxanthin to 9′-cis neoxanthin should be present [11].

3.3.3. Algae

Little is known for the carotenogenesis pathways among algae, but some are proposed based on the chemical structures of carotenoids (Figure 2). Functionally confirmed enzymes are mainly reported in Chlorophyceae including Chlorella, Chlamydomonas, Dunaliella and Haematococcus for CrtB, CrtP, CrtL-b, CrtR-b [46], Zep [48], Vde [49], and CrtW (Table 2).

In the cell-free preparation of Amphidinium carterae (Dinophyta), 14C-labellled zeaxanthin was incorporated into allenic carotenoid of neoxanthin, and then into acetylenic diadinoxanthin and C37 peridinin (Figure 2). In addition, the three carbon atoms of C-13′,14′,20′ of peridinin were eliminated from neoxanthin (C-13,14,20) [69,70]. In organic chemistry, the C-7,8 double bond of zeaxanthin can be oxidized to the triple bond (acetylene group) of diatoxanthin [17].

Allenic carotenoids are very limited in algae. From their chemical structures, all trans neoxanthin might be changed to fucoxanthin, dinoxanthin, peridinin, vaucheriaxanthin and diadinoxanthin, but the pathways and enzymes are still unknown (Figures 1 and 2).

Under a stressful environment, such as high light, UV irradiation and nutrition stress, some Chlorophyceae, such as Haematococcus, Chlorella and Scenedesmus, accumulate ketocarotenoids, canthaxanthin and astaxanthin, which are synthesized by combining CrtR-b and β-carotene ketolase (CrtW, BKT) (Table 2) [5356,71]. Note that although β-carotene ketolase of Haematococcus and Chlorella were named CrtO at first [53,56], they are CrtW-type not CrtO-type from amino acid sequences (Table 2).

3.4. α-Carotene Derivatives and Their Synthesis

In Arabidopsis thaliana, β-carotene is hydroxylated mainly by the non-heme di-iron enzymes, BCH1 and BCH2 (CrtR-b), to produce zeaxanthin, while α-carotene is mainly hydroxylated by the cytochrome P450 enzymes, CYP97A3 for the β-end group and CYP97C1 for the β- and ɛ-end groups, to produce lutein [72].

Lutein and its derivatives are found only in Rhodophyta (macrophytic type), Cryptophyta, Euglenophyta, Chlorarachniophyta and Chlorophyta (Table 1), but nothing is known for hydroxylation of α-carotene. From the chemical structures of siphonaxanthin [12], loroxanthin, prasinoxanthin and monadoxanthin, it could be considered that they are derived from lutein, but the pathways and enzymes are still unknown (Figures 1 and 2).

4. Function of Carotenoids

For photosynthesis, both carotenoids and chlorophylls are necessarily bound to peptides to form pigment-protein complexes in the thylakoid membrane. Five main kinds of the complexes described below are isolated from some algae, and the pigment compositions are investigated [7375]. Exceptionally in cyanobacteria, myxol glycosides and some carotenoids are located in the cytoplasmic membrane for protection from high-light [76,77].

β-Carotene is presented in the most divisions of the reaction-center complexes (RC) and the light-harvesting complexes (LHC) of photosystem I (PSI) as well as the RC and the core LHC of photosystem II (PSII); exceptionally zeaxanthin is presented in some red algae of the LHC of PSI. On the other hand, in the peripheral LHC of PSII, the bound carotenoids are heterogenous depending on the classes. Major carotenoids are alloxanthin (Cryptophyta); fucoxanthin (Chrysophyceae, Raphidophyceae, Bacillariophyceae, Phaeophyceae and Haptophyta); diadinoxanthin and vaucheriaxanthin (Xanthophyceae); violaxanthin and vaucheriaxanthin (Eustigmatophyceae); peridinin (Dinophyta); diadinoxanthin (Euglenophyta); siphonaxanthin (Chlorophyceae and Ulvophyceae); and lutein, violaxanthin and 9′-cis neoxanthin (land plants) (Figure 1) [7375]. β-Carotene in both RC might have protective functions, and carotenoids in the peripheral LHC of PSII mainly might have light-harvesting functions.

The dimeric cytochrome b6f complexes of the cyanobacterium Mastigocladus laminosus [78] and the green alga Chlamydomonas reinhardtii [79] contain two β-carotene and two chlorophyll a molecules, while that of the cyanobacterium Synechocystis sp. PCC 6803 contains two echinenone and two chlorophyll a molecules [80]. These carotenoids might have protective functions.

The water-soluble peripheral LHC of peridinin-chlorophyll-protein (PCP) isolated from Amphidinium carterae (Dinophyta) has a trimeric structure, and the monomer contains eight peridinin and two chlorophyll a molecules [81]. The water-soluble orange carotenoid protein (OCP) isolated from the cyanobacterium Arthrospira maima forms a homodimer with two 3′-hydroxyechinenone molecules [82]. OCP is also found in some cyanobacteria, and its function might regulate energy dissipation from phycobilisomes to PSII [83].

The keto groups at C-8 of fucoxanthin [84], siphonaxanthin [85,86] and prasinoxanthin [87], which are found only in algae, are the single-bond trans-conformation for the conjugated double bond (Figure 1). From the femtosecond time-resolved fluorescence spectroscopy of the purified carotenoids in organic solvents and the LHC in solution, these keto-carotenoids and peridinin have been found to have highly efficient energy transfer from the S1 state, not the S2 state, of carotenoids to chlorophylls. From the comparison of other structural carotenoids, these keto groups are essential for high efficiency [88,89]. These keto-carotenoids mainly might have light-harvesting functions.

The xanthophyll cycle, also known as the violaxanthin cycle, is the cyclical interconversion of violaxanthin, antheraxanthin and zeaxanthin in green algae and land plants (Figure 2) [90]. Zep catalyzes zeaxanthin to violaxanthin through antheraxanthin during biosynthesis. Violaxanthin is found in the peripheral LHC of PSII. Under high light conditions, Vde is activated and catalyzes de-epoxidation of violaxanthin to zeaxanthin through antheraxanthin. Zeaxanthin is used for the dissipation of excess energy from excited chlorophylls. Zep from Chlorophyceae Chlamydomonas reinhardtii [48] and Vde from Pracinophyceae Mantonilla squamata [49] are functionally confirmed (Table 2). Similarly, the diadinoxanthin cycle occurs in Heterokontophyta, Haptophyta and Dinophyta, which contain diadinoxanthin and diatoxanthin (Figure 2). The enzymes of diadinoxanthin de-epoxidase and diatoxanthin epoxidase have not yet been found [9,91], but the characteristics of partially purified diadinoxanthin de-epoxidase from the diatom Cyclotella meneghinaina are reported [92].

References

  1. Britton, G; Liaaen-Jensen, S; Pfander, H. Carotenoids Handbook; Birkhäuser: Basel, Switzerland, 2004. [Google Scholar]
  2. Rowan, KS. Photosynthetic Pigments of Algae; Cambridge University Press: Cambridge, UK, 1989. [Google Scholar]
  3. Bjørnland, T; Liaaen-Jensen, S. Distribution patterns of carotenoids in relation to chromophyte phylogeny and systematics. In The Chromophyte Algae: Problems and Perspectives; Green, JC, Leadbeater, BSC, Diver, WI, Eds.; Clarendon Press: Oxford, UK, 1989; pp. 37–60. [Google Scholar]
  4. Liaaen-Jensen, S. Marine carotenoids. New J Chem 1990, 14, 747–759. [Google Scholar]
  5. Mackey, MD; Mackey, DJ; Higgins, HW; Wright, SW. CHEMTAX-a program for estimating class abundances from chemical markers: Application to HPLC measurements of phytoplankton. Mar Ecol Prog Ser 1996, 144, 265–283. [Google Scholar]
  6. Jeffrey, SW; Vesk, M. Introduction to marine phytoplankton and their pigment signatures. In Phytoplankton Pigments in Oceanography: Guidelines to Modern Methods; Jeffrey, SW, Mantoura, RFC, Wright, SW, Eds.; UNESCO Publishing: Paris, France, 1997; pp. 37–84. [Google Scholar]
  7. Liaaen-Jensen, S. Carotenoids in chemosystematics. In Carotenoids: Biosynthesis and Metabolism; Britton, G, Liaaen-Jensen, S, Pfander, H, Eds.; Birkhäuser: Basel, Switzerland, 1998; Volume 3, pp. 217–247. [Google Scholar]
  8. Frommolt, R; Werner, S; Paulsen, H; Goss, R; Wilhelm, C; Zauner, S; Maier, UG; Grossman, AR; Bhattacharya, D; Lohr, M. Ancient recruitment by chromists of green algal genes encoding enzymes for carotenoid biosynthesis. Mol Biol Evol 2008, 25, 2653–2667. [Google Scholar]
  9. Bertrand, M. Carotenoid biosynthesis in diatoms. Photosynth Res 2010, 106, 89–102. [Google Scholar]
  10. Dembitsky, VM; Maoka, T. Allenic and cumulenic lipids. Prog Lipid Res 2007, 46, 328–375. [Google Scholar]
  11. Takaichi, S; Mimuro, M. Distribution and geometric isomerism of neoxanthin in oxygenic phototrophs: 9′-cis, a sole molecular form. Plant Cell Physiol 1998, 39, 968–977. [Google Scholar]
  12. Yoshii, Y; Takaichi, S; Maoka, T; Suda, S; Sekiguchi, H; Nakayama, T; Inouye, I. Variation of siphonaxanthin series among the genus Nephroselmis (Prasinophyceae, Chlorophyta), including a novel primary methoxy carotenoid. J Phycol 2005, 41, 827–834. [Google Scholar]
  13. Takaichi, S; Mochimaru, M. Carotenoids and carotenogenesis in cyanobacteria: Unique ketocarotenoids and carotenoid glycosides. Cell Mol Life Sci 2007, 64, 2607–2619. [Google Scholar]
  14. Takaichi, S. Nippon Medical School, Kawasaki, Japan. Unpublished works, 2011..
  15. Takaichi, S; Maoka, T; Masamoto, K. Myxoxanthophyll in Synechocystis sp. PCC 6803 is myxol 2′-dimethyl-fucoside, (3R,2′S)-myxol 2′-(2,4-di-O-methyl-α-l-fucoside), not rhamnoside. Plant Cell Physiol 2001, 42, 756–762. [Google Scholar]
  16. Schubert, N; García-Mendoza, E. Photoinhibition in red algal species with different carotenoid profiles. J Phycol 2008, 44, 1437–1446. [Google Scholar]
  17. Britton, G. Overview of carotenoid biosynthesis. In Carotenoids: Biosynthesis and Metabolism; Britton, G, Liaaen-Jensen, S, Pfander, H, Eds.; Birkhäuser: Basel, Switzerland, 1998; Volume 3, pp. 13–147. [Google Scholar]
  18. Lichtenthaler, HK. The 1-deoxy-d-xylulose-5-phosphate pathway of isoprenoid biosynthesis in plants. Annu Rev Plant Physiol Plant Mol Biol 1999, 50, 47–65. [Google Scholar]
  19. Eisenreich, W; Bacher, A; Arigoni, D; Rohdich, F. Biosynthesis of isoprenoids via the non-mevalonate pathway. Cell Mol Life Sci 2004, 61, 1401–1426. [Google Scholar]
  20. Miziorko, HM. Enzymes of the mevalonate pathway of isoprenoid biosynthesis. Arch Biochem Biophys 2011, 505, 131–143. [Google Scholar]
  21. Ohto, C; Ishida, C; Nakane, H; Muramatsu, M; Nishino, T; Obata, S. A thermophilic cyanobacterium Synechococcus elongatus has three different Class I prenyltransferase genes. Plant Mol Biol 1999, 40, 307–321. [Google Scholar]
  22. Steiger, S; Jackisch, Y; Sandmann, G. Carotenoid biosynthesis in Gloeobacter violaceus PCC4721 involves a single crtI-type phytoene desaturase instead of typical cyanobacterial enzymes. Arch Microbiol 2005, 184, 207–214. [Google Scholar]
  23. Chamovitz, D; Misawa, N; Sandmann, G; Hirschberg, J. Molecular cloning and expression in Escherichia coli of a cyanobacterial gene coding for phytoene synthase, a carotenoid biosynthesis enzyme. FEBS Lett 1992, 296, 305–310. [Google Scholar]
  24. Martínez-Férez, I; Fernández-González, B; Sandmann, G; Vioque, A. Cloning and expression in Escherichia coli of the gene coding for phytoene synthase from the cyanobacterium Synechocystis sp. PCC6803. Biochim. Biophys Acta 1994, 1218, 145–152. [Google Scholar]
  25. McCarthy, SS; Kobayashi, MC; Niyogi, KK. White mutants of Chlamydomonas reinhardtii are defective in phytoene synthase. Genetics 2004, 168, 1249–1257. [Google Scholar]
  26. Steinbrenner, J; Linden, H. Regulation of two carotenoid biosynthesis genes coding for phytoene synthase and carotenoid hydroxylase during stress-induced astaxanthin formation in the green alga Haematococcus pluvialis. Plant Physiol 2001, 125, 810–817. [Google Scholar]
  27. Tsuchiya, T; Takaichi, S; Misawa, N; Maoka, T; Miyashita, H; Mimuro, M. The cyanobacterium Gloeobacter violaceus PCC 7421 uses bacterial-type phytoene desaturase in carotenoid biosynthesis. FEBS Lett 2005, 579, 2125–2129. [Google Scholar]
  28. Martínez-Férez, IM; Vioque, A. Nucleotide sequence of the phytoene desaturase gene from Synechocystis sp. PCC 6803 and characterization of a new mutation which confers resistance to the herbicide norflurazon. Plant Mol Biol 1992, 18, 981–983. [Google Scholar]
  29. Vila, M; Couso, I; León, R. Carotenoid content in mutants of the chlorophyte Chlamydomonas reinhardtii with low expression levels of phytoene desaturase. Process Biochem 2008, 43, 1147–1152. [Google Scholar]
  30. Huang, J; Liu, J; Li, Y; Chen, F. Isolation and characterization of the phytoene desaturase gene as a potential selective marker for genetic engineering of the astaxanthin-producing green alga Chlorella zofingiensis (Chlorophyta). J Phycol 2008, 44, 684–690. [Google Scholar]
  31. Liu, J; Zhong, Y; Sun, Z; Huang, J; Sandmann, G; Chen, F. One amino acid substitution in phytoene desaturase makes Chlorella zofingiensis resistant to norflurazon and enhances the biosynthesis of astaxanthin. Planta 2010, 232, 61–67. [Google Scholar]
  32. Linden, H; Vioque, A; Sandmann, G. Isolation of a carotenoid biosynthesis gene coding for ζ-carotene desaturase from Anabaena PCC 7120 by heterologous complementation. FEMS Microbiol Lett 1993, 106, 99–104. [Google Scholar]
  33. Breitenbach, J; Fernández-González, B; Vioque, A; Sandmann, G. A higher-plant type ζ-carotene desaturase in the cyanobacterium Synechocystis PCC6803. Plant Mol Biol 1998, 36, 725–732. [Google Scholar]
  34. Masamoto, K; Wada, H; Kaneko, T; Takaichi, S. Identification of a gene required for cis-to-trans carotene isomerization in carotenogenesis of the cyanobacterium Synechocystis sp. PCC 6803. Plant Cell Physiol 2001, 42, 1398–1402. [Google Scholar]
  35. Breitenbach, J; Vioque, A; Sandmann, G. Gene sll0033 from Synechocystis 6803 encodes a carotene isomerase involved in the biosynthesis of all-E lycopene. Z Naturforsch 2001, 56c, 915–917. [Google Scholar]
  36. Cunningham, FX, Jr; Sun, Z; Chamovitz, D; Hirschberg, J; Gantt, E. Molecular structure and enzymatic function of lycopene cyclase from the cyanobacterium Synechococcus sp. strain PCC7942. Plant Cell 1994, 6, 1107–1121. [Google Scholar]
  37. Stickforth, P; Steiger, S; Hess, WR; Sandmann, G. A novel type of lycopene ɛ-cyclase in the marine cyanobacterium Prochlorococcus marinus MED4. Arch Microbiol 2003, 179, 409–415. [Google Scholar]
  38. Cunningham, FX, Jr; Lee, H; Gantt, E. Carotenoid biosynthesis in the primitive red alga Cyanidioschyzon merolae. Eukaryot Cell 2007, 6, 533–545. [Google Scholar]
  39. Ramos, A; Coesel, S; Marques, A; Rodrigues, M; Baumgartner, A; Noronha, J; Rauter, A; Brenig, B; Varela, J. Isolation and characterization of a stress-inducible Dunaliella salina Lyc-β gene encoding a functional lycopene β-cyclase. Appl Microbiol Biotechnol 2008, 79, 819–828. [Google Scholar]
  40. Steinbrenner, J; Linden, H. Light induction of carotenoid biosynthesis genes in the green alga Haematococcus pluvialis: Regulation by photosynthetic redox control. Plant Mol Biol 2003, 52, 343–356. [Google Scholar]
  41. Mochimaru, M; Msukawa, H; Maoka, T; Mohamed, HE; Vermaas, WFJ; Takaichi, S. Substrate specificities and availability of fucosyltransferase and β-carotene hydroxylase for myxol 2′-fucoside synthesis in Anabaena sp. strain PCC 7120 compared with Synechocystis sp. strain PCC 6803. J. Bacteriol 2008, 190, 6726–6733. [Google Scholar]
  42. Makino, T; Harada, H; Ikenaga, H; Matsuda, S; Takaichi, S; Shindo, K; Sandmann, G; Ogata, T; Misawa, N. Characterization of cyanobacterial carotenoid ketolase CrtW and hydroxylase CrtR by complementation analysis in Escherichia coli. Plant Cell Physiol 2008, 49, 1867–1878. [Google Scholar]
  43. Masamoto, K; Misawa, N; Kaneko, T; Kikuno, R; Toh, H. β-Carotene hydroxylase gene from the cyanobacterium Synechocystis sp. PCC 6803. Plant Cell Physiol 1998, 39, 560–564. [Google Scholar]
  44. Lagarde, D; Vermaas, W. The zeaxanthin biosynthesis enzyme β-carotene hydroxylase is involved in myxoxanthophyll synthesis in Synechocystis sp. PCC 6803. FEBS Lett 1999, 454, 247–251. [Google Scholar]
  45. Lagarde, D; Beuf, L; Vermaas, W. Increased production of zeaxanthin and other pigments by application of genetic engineering techniques to Synechocystis sp. strain PCC 6803. Appl. Environ Microbiol 2000, 66, 64–72. [Google Scholar]
  46. Linden, H. Carotenoid hydroxylase from Haematococcus pluvialis: cDNA sequence, regulation and functional complementation. Biochim Biophys Acta 1999, 1446, 203–212. [Google Scholar]
  47. Iwai, M; Maoka, T; Ikeuchi, M; Takaichi, S. 2,2′-β-Hydroxylase (CrtG) is involved in carotenogenesis of both nostoxanthin and 2-hydroxymyxol 2′-fucoside in Thermosynechococcus elongatus strain BP-1. Plant Cell Physiol 2008, 49, 1678–1687. [Google Scholar]
  48. Baroli, I; Do, AD; Yamane, T; Niyogi, KK. Zeaxanthin accumulation in the absence of a functional xanthophyll cycle protects Chlomydomonas reinhardtii from photooxidative stress. Plant Cell 2003, 15, 992–1008. [Google Scholar]
  49. Goss, R. Substrate specificity of the violaxanthin de-epoxidase of the primitive green alga Mantoniella squamata (Prasinophyceae). Planta 2003, 217, 801–812. [Google Scholar]
  50. Mochimaru, M; Msukawa, H; Takaichi, S. The cyanobacterium Anabaena sp. PCC 7120 has two distinct β-carotene ketolase: CrtO for echinenone and CrtW for ketomyxol synthesis. FEBS Lett 2005, 579, 6111–6114. [Google Scholar]
  51. Fernández-González, B; Sandmann, G; Vioque, A. A new type of asymmetrically acting β-carotene ketolase is required for the synthesis of echinenone in the cyanobacterium Synechocystis sp PCC 6803. J Biol Chem 1997, 272, 9728–9733. [Google Scholar]
  52. Steiger, S; Sandmann, G. Cloning of two carotenoid ketolase genes from Nostoc punctiforme for the heterologous production of canthaxanthin and astaxanthin. Biotechnol Lett 2004, 26, 813–817. [Google Scholar]
  53. Huang, J-C; Wang, Y; Sandmann, G; Chen, F. Isolation and characterization of a carotenoid oxygenase gene from Chlorella zofingiensis (Chlorophyta). Appl Microbiol Biotechnol 2006, 71, 473–479. [Google Scholar]
  54. Kajiwara, S; Kakizono, T; Saito, T; Kondo, K; Ohtani, T; Nishio, N; Nagai, S; Misawa, N. Isolation and functional identification of a novel cDNA from astaxanthin biosynthesis from Haematococcus pluvialis, and astaxanthin synthesis in Escherichia coli. Plant Mol Biol 1995, 29, 343–352. [Google Scholar]
  55. Huang, J-C; Chen, F; Sandmann, G. Stress-related differential expression of multiple β-carotene ketolase genes in the unicellular green alga Haematococcus pluvialis. J Biotechnol 2006, 122, 176–185. [Google Scholar]
  56. Lotan, T; Hirschberg, J. Cloning and expression in Escherichia coli of the gene encoding β-C-4-oxygenase, that converts β-carotene to the ketocarotenoid canthaxanthin in Haematococcus pluvialis. FEBS Lett 1995, 364, 125–128. [Google Scholar]
  57. Sandmann, G. Carotenoid biosynthesis in microorganisms and plants. Eur J Biochem 1994, 223, 7–24. [Google Scholar]
  58. Armstrong, GA. Genetics of eubacterial carotenoid biosynthesis: A colorful tale. Annu Rev Microbiol 1997, 51, 629–659. [Google Scholar]
  59. Misawa, N; Nakagawa, M; Kobayashi, K; Yamano, S; Izawa, Y; Nakamura, K; Harashima, K. Elucidation of the Erwinia uredovora carotenoid biosynthetic pathway by functional analysis of gene products expressed in Escherichia coli. J Bacteriol 1990, 172, 6704–6712. [Google Scholar]
  60. Schneider, C; Böger, P; Sandmann, G. Phytoene desaturase: Heterologous expression in an active state, purification, and biochemical properties. Protein Expr Purif 1997, 10, 175–179. [Google Scholar]
  61. Takaichi, S. Distribution and biosynthesis of carotenoids. In The Purple Phototrophic Bacteria; Hunter, CN, Daldal, F, Thurnauer, MC, Beatty, JT, Eds.; Springer: Dordrecht, The Netherlands, 2009; pp. 97–117. [Google Scholar]
  62. Krubasik, P; Sandmann, G. Molecular evolution of lycopene cyclases involved in the formation of carotenoids with ionone end groups. Biochem Soc Trans 2000, 28, 806–810. [Google Scholar]
  63. Maresca, JA; Graham, JE; Wu, M; Eisen, JA; Bryant, DA. Identification of a fourth family of lycopene cyclases in photosynthetic bacteria. Proc Natl Acad Sci USA 2007, 104, 11784–11789. [Google Scholar]
  64. Sandmann, G. Molecular evolution of carotenoid biosynthesis from bacteria to plants. Physiol Plant 2002, 116, 431–440. [Google Scholar]
  65. Harker, M; Hirschberg, J. Molecular biology of carotenoid biosynthesis in photosynthetic organisms. Methods Enzymol 1998, 297, 244–263. [Google Scholar]
  66. Cunningham, FX, Jr; Gantt, E. One ring or two? Determination of ring number in carotenoids by lycopene ɛ-cyclases. Proc Natl Acad Sci USA 2001, 98, 2905–2910. [Google Scholar]
  67. Hemmi, H; Ikejiri, S; Nakayama, T; Nishino, T. Fusion-type lycopene β-cyclase from a thermoacidophilic archaeon Sulfolobus solfataricus. Biochem Biophys Res Commun 2003, 305, 586–591. [Google Scholar]
  68. Maresca, JA; Frigaard, N-U; Bryant, DA. Identification of a novel class of lycopene cyclases in photosynthetic organisms. In Photosynthesis: Fundamental Aspects to Global Perspectives; van der Est, A, Bruce, D, Eds.; Allen Press: Lawrence, KS, USA, 2005; pp. 884–886. [Google Scholar]
  69. Swift, IE; Milborrow, BV; Jeffrey, SW. Formation of neoxanthin, diadinoxanthin and peridinin from [14C]zeaxanthin by a cell-free system from Amphidinium carterae. Phytochemistry 1982, 21, 2859–2864. [Google Scholar]
  70. Swift, IE; Milborrow, BV. Stereochemistry of allene biosynthesis and the formation of the acetylenic carotenoid diadinoxanthin and peridinin (C37) from neoxanthin. Biochem J 1981, 199, 69–74. [Google Scholar]
  71. Lemoine, Y; Schoefs, B. Secondary ketocarotenoid astaxanthin biosynthesis in algae: A multifunctional response to stress. Photosynth Res 2010, 106, 155–177. [Google Scholar]
  72. Kim, J; Smith, JJ; Tian, L; DellaPenna, D. The evolution and function of carotenoid hydroxylases in Arabidopsis. Plant Cell Physiol 2009, 50, 463–479. [Google Scholar]
  73. Durnford, DG. Structure and regulation of algal light-harvesting complex genes. In Photosynthesis in Algae; Larkum, AWD, Douglas, SE, Raven, JA, Eds.; Kluwer: Dordrecht, The Netherlands, 2003; pp. 63–82. [Google Scholar]
  74. Macpherson, AN; Hiller, RG. Light-harvesting systems in chlorophyll c-containing algae. In Light-Harvesting Antennas in Photosynthesis; Green, BR, Parson, WW, Eds.; Kluwer: Dordrecht, The Netherlands, 2003; pp. 323–352. [Google Scholar]
  75. Neilson, JAD; Durnford, DG. Structural and functional diversification of the light-harvesting complexes in photosynthetic eukaryotes. Photosynth Res 2010, 106, 57–71. [Google Scholar]
  76. Kana, TM; Glibert, PM; Goericke, R; Welschmeyer, NA. Zeaxanthin and β-carotene in Synechococcus WH7803 respond differently to irradiance. Limnol Oceanogr 1998, 33, 1623–1627. [Google Scholar]
  77. Masamoto, K; Zsiros, O; Gombos, Z. Accumulation of zeaxanthin in cytoplasmic membranes of the cyanobacteirum Synechococcus sp. Strain PCC 7942 grown under high light condition. J Plant Physiol 1999, 155, 136–138. [Google Scholar]
  78. Kurisu, G; Zhang, H; Smith, JL; Cramer, WA. Structure of the cytochrome b6f complex of oxygenic photosynthesis: Tuning the cavity. Science 2003, 302, 1009–1014. [Google Scholar]
  79. Stroebel, D; Choquet, Y; Popot, J-L; Picot, D. An atypical haem in the cytochrome b6f complex. Nature 2003, 426, 413–418. [Google Scholar]
  80. Boronowsky, U; Wenk, S-O; Schneider, D; Jäger, C; Rögner, M. Isolation of membrane protein subunits in their native state: Evidence for selective binding of chlorophyll and carotenoid to the b6 subunit of the cytochrome b6f complex. Biochim Biophys Acta 2001, 1506, 55–66. [Google Scholar]
  81. Hofmann, E; Wrench, PM; Sharples, FP; Hiller, RG; Welte, W; Diederichs, K. Structural basis of light harvesting by carotenoids: Peridinin-chlorophyll-protein from Amphidinium carterae. Science 1996, 272, 1788–1791. [Google Scholar]
  82. Kerfeld, CA; Sawaya, MR; Brahmandam, V; Cascio, D; Ho, KK; Trevithick-Sutton, CC; Krogmann, DW; Yeates, TO. The crystal structure of a cyanobacterial water-soluble carotenoid binding protein. Structure 2003, 11, 55–65. [Google Scholar]
  83. Wilson, A; Ajlani, G; Verbavatz, J-M; Vass, I; Kerfeld, CA; Kirilovsky, D. A soluble carotenoid protein involved in phycobilisome-related energy dissipation in cyanobacteria. Plant Cell 2006, 18, 992–1007. [Google Scholar]
  84. Englert, G; Bjørnland, T; Liaaen-Jensen, S. 1D and 2D NMR study of some allenic carotenoids of the fucoxanthin series. Magn Reson Chem 1990, 28, 519–528. [Google Scholar]
  85. Egeland, ES; Guillard, RRL; Liaaen-Jensen, S. Additional carotenoid prototype representatives and a general chemosystematic evaluation of carotenoids in Prasinophyceae (Chlorophyta). Phytochemistry 1997, 44, 1087–1097. [Google Scholar]
  86. Yoshii, Y; Takaichi, S; Maoka, T; Hanada, S; Inouye, I. Characterization of two unique carotenoid fatty acid esters from Pterosperma cristatum (Prasinophyceae, Chlorophyta). J Phycol 2002, 38, 297–303. [Google Scholar]
  87. Egeland, ES; Liaaen-Jensen, S. Ten minor carotenoids from Prasinophyceae (Chlorophyta). Phytochemistry 1995, 40, 515–520. [Google Scholar]
  88. Mimuro, M; Nagashima, U; Takaichi, S; Nishimura, Y; Yamazaki, I; Katoh, T. Molecular structure and optical properties of carotenoids for the in vivo energy transfer function in the algal photosynthetic pigment system. Biochim Biphys Acta 1992, 1098, 271–274. [Google Scholar]
  89. Akimoto, S; Yokono, M; Higuchi, M; Tomo, T; Takaichi, S; Murakami, A; Mimuro, M. Solvent effects on excitation relaxation dynamics of a keto-carotenoid, siphonaxanthin. Photochem Photobiol Sci 2008, 7, 1206–1209. [Google Scholar]
  90. Yamamoto, HY; Bugos, RC; Hieber, AD. Biochemistry and molecular biology of the xanthophyll cycle. In The Phytochemistry of Carotenoids; Frank, HA, Young, AJ, Britton, G, Cogdell, RJ, Eds.; Kluwer: Dordrecht, The Netherlands, 1999; pp. 293–303. [Google Scholar]
  91. Goss, R; Jakob, T. Regulation and function of xanthophyll cycle-dependent photoprotection in algae. Photosynth Res 2010, 106, 103–122. [Google Scholar]
  92. Grouneva, I; Jakob, T; Wilhelm, C; Goss, R. Influence of ascorbate and pH on the activity of the diatom xanthophyll cycle-enzyme diadinoxanthin de-epoxidase. Physiol Plant 2006, 126, 205–211. [Google Scholar]
Marinedrugs 09 01101f1 1024

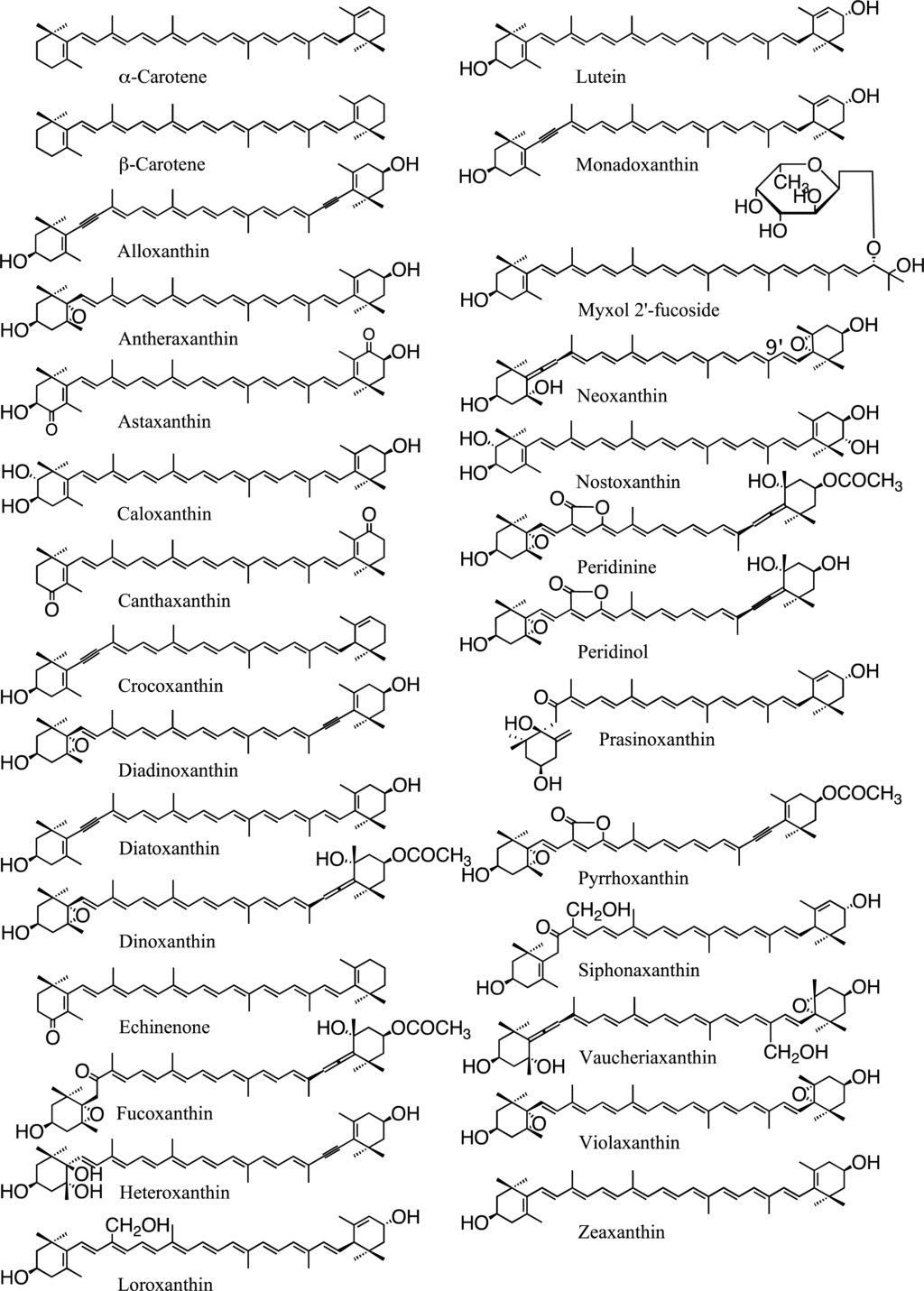

Figure 1. Structures of some carotenoids.

Click here to enlarge figure

Figure 1. Structures of some carotenoids.
Marinedrugs 09 01101f1 1024
Marinedrugs 09 01101f2 1024

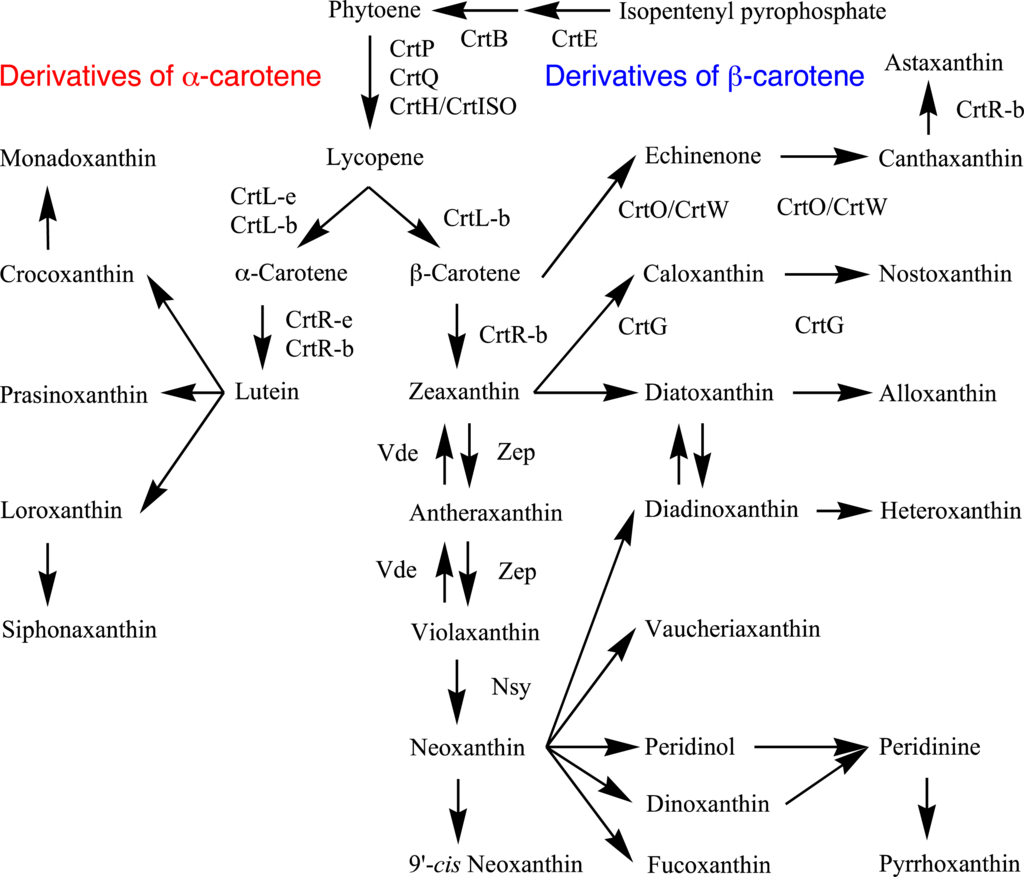

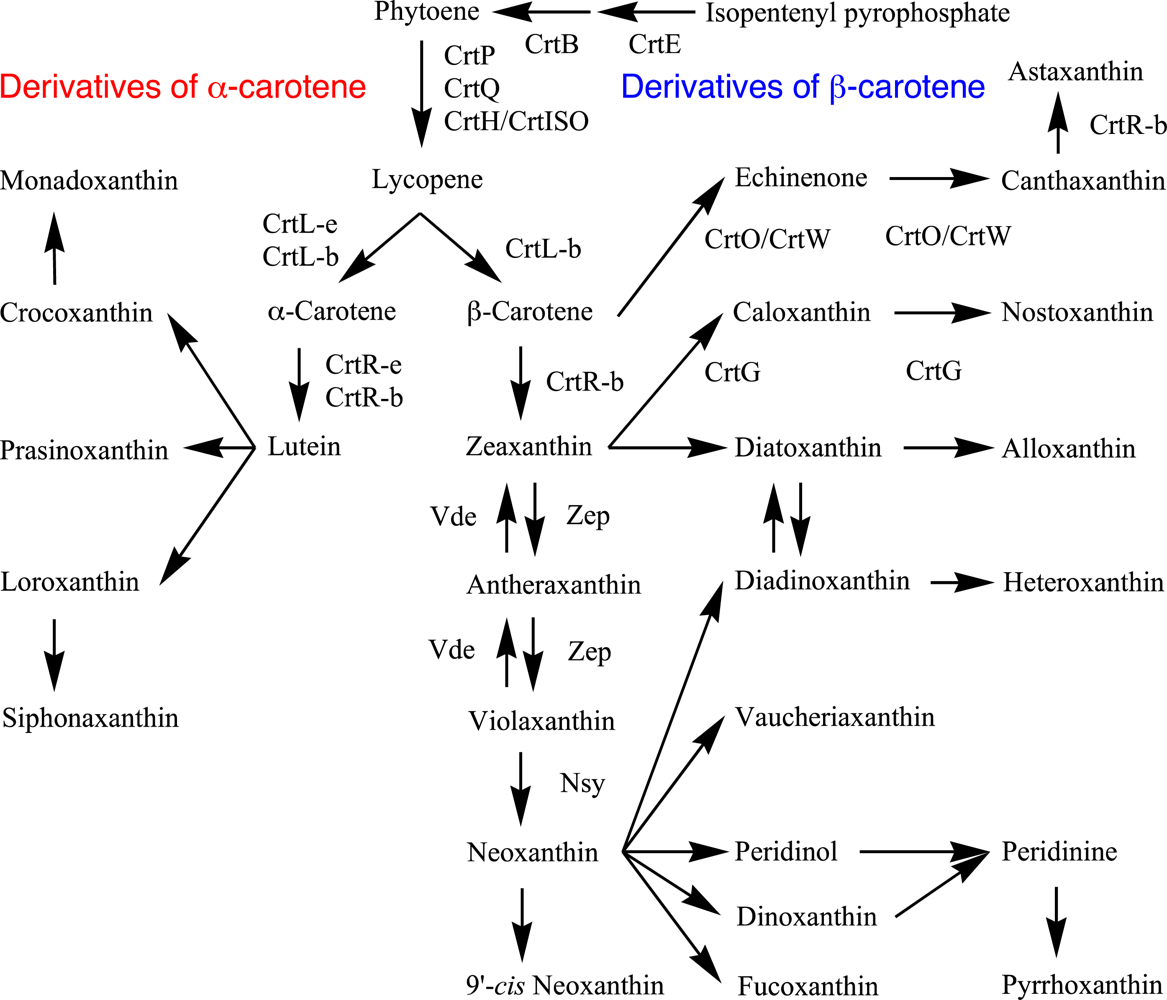

Figure 2. Carotenogenesis pathways and enzymes, whose functions are confirmed, in oxygenic phototrophs.

Click here to enlarge figure

Figure 2. Carotenogenesis pathways and enzymes, whose functions are confirmed, in oxygenic phototrophs.
Marinedrugs 09 01101f2 1024
Marinedrugs 09 01101f3 1024

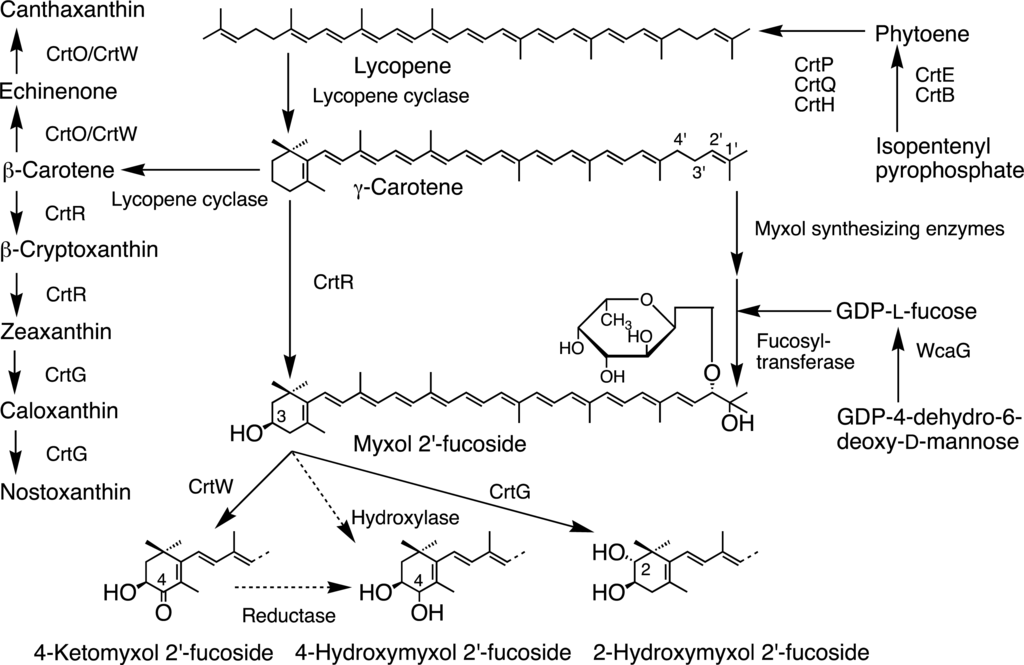

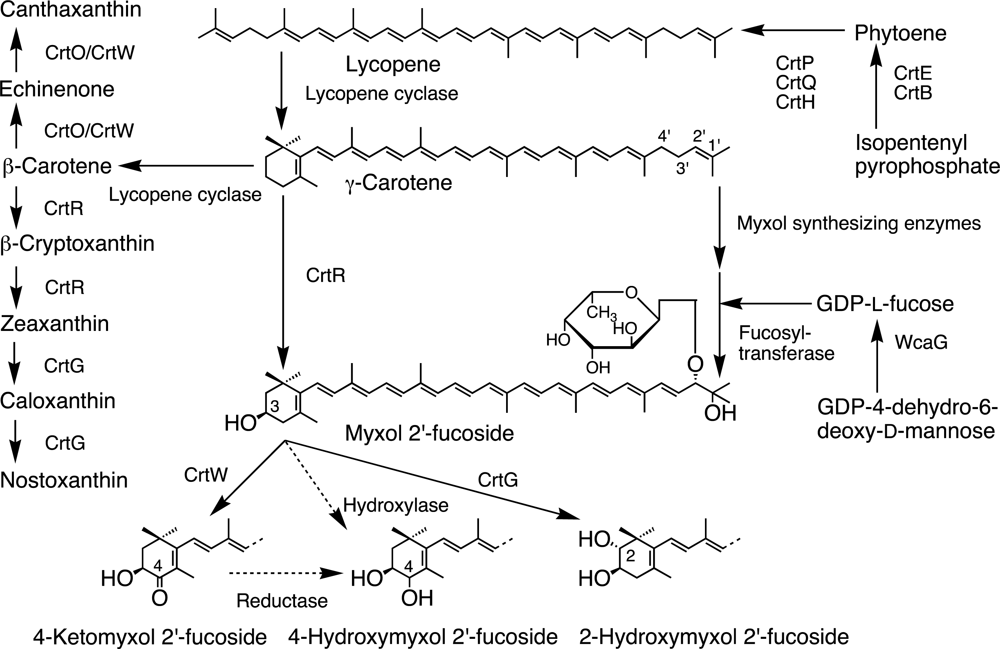

Figure 3. Carotenogenesis pathways and enzymes in cyanobacteria.

Click here to enlarge figure

Figure 3. Carotenogenesis pathways and enzymes in cyanobacteria.
Marinedrugs 09 01101f3 1024
Table Table 1. Distribution of carotenoids in algae.

Click here to display table

Table 1. Distribution of carotenoids in algae.
Division
Class
CaroteneXanthophyllChlorophyll



βαZeViNeDaDdFxVaLuLoSxOther xanthophyll(s)abc
CyanophytaHLHNo, L; Ec, H; My, HHL

GlaucophytaHHH

Rhodophyta
  Unicellular typeHHH
  Macrophytic typeLLHLLHH

CryptophytaHLAl, L; Cr, L; Mo, LHH

Heterokontophyta
  ChrysophyceaeHLLLHLHH
  RaphidophyceaeHHLLLLHH
  BacillariophyceaeHLLLHHH
  PhaeophyceaeHHHLLHHH
  XanthophyceaeHLHHVa-FA, LHH
  EustigmatophyceaeHHLH

HaptophytaHLLHHFx-FA, LHH

DinophytaLLLHLPe, HHH

EuglenophytaHLLLHLLHH

ChlorarachniophytaHLLLLLLo-FA, LHH

Chlorophyta
  PrasinophyceaeHLLHHLLHPr, L; Lo-FA, L; Sx-FA, HHH
  ChlorophyceaeHHLHHHLLSx-FA, LHH
  UlvophyceaeHLLHHLLLSx-FA, HHH
  TrebouxiophyceaeHLHHHHH
  CharophyceaeHLHHHHH

Land PlantsHLLHHHHH

H, Major carotenoid in most species of the class; L, Low content in most species or major carotenoid in some species. α, α-carotene; β, β-carotene; Al, alloxanthin; Cr, crocoxanthin; Da, diatoxanthin; Dd, diadinoxanthin; Ec, echinenone; -FA, fatty acid ester; Fx, fucoxanthin; Lo, loroxanthin; Lu, lutein; Mo, monadoxanthin; My, myxol glycosides and oscillol glycosides; Ne, neoxanthin; No, nostoxanthin; Pe, peridinin; Pr, prasinoxanthin; Sx, siphonaxanthin; Va, vaucheriaxanthin; Vi, violaxanthin; Ze, zeaxanthin. Red, α-carotene and its derivatives.

Table Table 2. Carotenogenesis genes and enzymes, whose functions are confirmed, in algae.

Click here to display table

Table 2. Carotenogenesis genes and enzymes, whose functions are confirmed, in algae.
GeneEnzymeSpeciesReferences
crtE, ggpsGeranylgeranyl pyrophosphate synthaseThermosynechococcus elongates BP-1[21]

crtB, pys, psyPhytoene synthaseGloeobacter violaceus PCC 7421[22]
Synechococcus elongatus PCC 7942[23]
Synechocystis sp. PCC 6803[24]
Chlamydomonas reinhardtii[25]
Haematococcus pluvialis NIES-144[26]

crtIPhytoene desaturase (bacterial type)Gloeobacter violaceus PCC 7421[22,27]

crtP, pdsPhytoene desaturase (plant type)Synechococcus elongatus PCC 7942[23]
Synechocystis sp. PCC 6803[28]
Chlamydomonas reinhardtii[29]
Chlorella zofingiensis ATCC 30412[30,31]

crtQ, zdsζ-Carotene desaturaseAnabaena sp. PCC 7120[32]
Synechocystis sp. PCC 6803[33]

crtH, crtISOCarotene isomeraseSynechocystis sp. PCC 6803[34,35]

crtL, crtL-b, lcy-bLycopene β-cyclaseSynechococcus elongatus PCC 7942[36]
Prochlorococcus marinus MED4[37]
Cyanidioschyzon merolae NIES-1332[38]
Dunaliella salina CCAP 19/30[39]
Haematococcus pluvialis NIES-144[40]

crtL-e, lcy-eLycopene ɛ-cyclaseProchlorococcus marinus MED4[37]

crtRβ-Carotene hydroxylaseAnabaena sp. PCC 7120[41,42]
Anabaena variabilis ATCC 29413[42]
Synechocystis sp. PCC 6803[4245]
Haematococcus pluvialis NIES-144[46]

crtGβ-Carotene 2-hydroxylaseThermosynechococcus elongates BP-1[47]

zep, npqZeaxanthin epoxidaseChlamydomonas reinhardtii CC-125[48]

vdeViolaxanthin de-epoxidaseMantonilla squamata[49]

crtOβ-Carotene ketolaseAnabaena sp. PCC 7120[50]
Gloeobacter violaceus PCC 7421[22]
Synechocystis sp. PCC 6803[42,45,51]

crtW, bktβ-Carotene ketolaseAnabaena sp. PCC 7120[42,50]
Gloeobacter violaceus PCC 7421[22,27,42]
Nostoc punctiforme PCC 73102[42,52]
Chlorella zofingiensis ATCC 30412[53]
Haematococcus pluvialis NIES-144[54,55]
Haematococcus pluvialis strain 34/7[56]

Red, genes and enzymes related to α-carotene.

Mar. Drugs EISSN 1660-3397 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
