The marine brown alga Dictyopteris divaricata, found widely spread along the coasts of China, has provided many structurally interesting sesquiterpenes and norsesquiterpenes [1–4]. However, to date there have been no reports of halogenated structures isolated from this species. Our continuing investigation of the secondary metabolites of D. divaricata collected off the coast of Yantai has revealed two new brominated sesquiterpenes, 1-bromoselin-4(14),11-diene (1) and 9-bromoselin-4(14),11-diene (2), one known cadinane sesquiterpene, cadalene (3) [5], and four known selinane sesquiterpenes, α-selinene (4) [6], β-selinene (5) [6], β-dictyopterol (6) [7], and cyperusol C (7) [8]. The isolation and structural determination of compounds 1–7 are the subject of this paper.

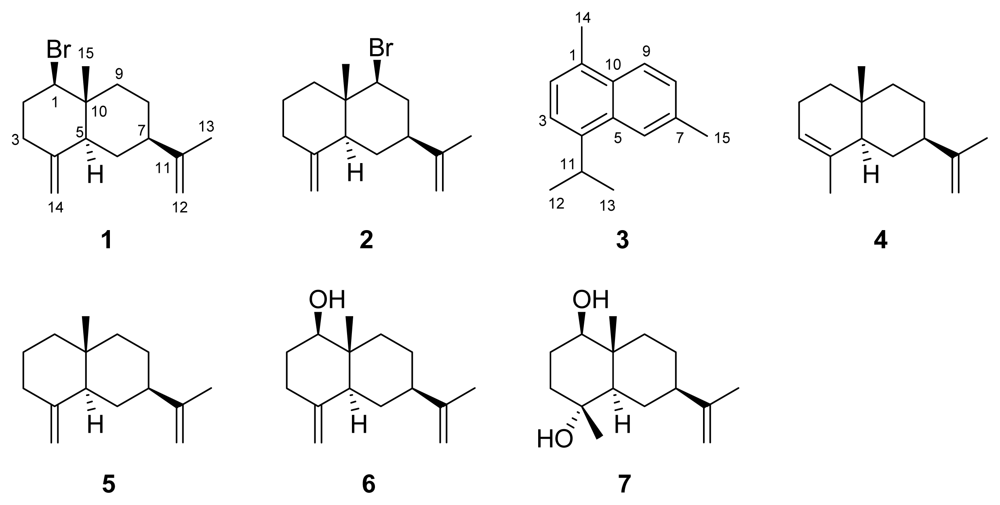

The dried and powdered alga D. divaricata was extracted with the mixture of CHCl₃ and MeOH (1:1, v/v). The concentrated extracts were partitioned between H₂O and EtOAc. The EtOAc-soluble fraction was purified by a combination of silica gel, reversed-phase silica gel, and Sephadex LH-20 column chromatography, as well as preparative TLC procedure, to yield compounds 1–7 (Figure 1).

Compounds 1–3 were obtained as a colorless oily mixture. They displayed one spot by TLC analysis (Rf 0.65, petroleum ether), and all attempts to separate them failed due to their low polarity. The IR spectrum showed absorptions of vinyl and phenyl groups at v_max 1643, 1604, 1512, and 1450 cm⁻¹ and no absorption of hydroxyl groups. The GC-EIMS gave three peaks with molecular ion peaks at m/z 198, 282/284 (1:1) and 282/284 (1:1) [M]⁺, which indicated that the mixture was composed of three compounds. The ¹H- and ¹³C-NMR data of these three compounds 1–3 could be distinguished with the aid of the NMR data shown in Table 1.

The compound with the molecular ion peak at m/z 198 was tentatively identified as cadalene (3) by comparison with the EIMS database [5]. Fortunately, the ¹H and ¹³C-NMR peaks of 3 could be found in NMR spectra (Table 1). H-2 was ortho to H-3 and H-8 was ortho to H-9 according to their large coupling constants (J > 7 Hz). The coupling constant 1.7 Hz between H-6 and H-8 indicated H-6 was meta to H-8. The above connections were corroborated by the ¹H-¹H COSY correlations between H-2/H-3, H-6/H-8, H-8/H-9. The presence of 3 was further confirmed by the observed HMBC correlations from H-11 to C-3, C-4, C-12, and C-13, from H-12 to C-4, C-11, and C-13, from H-13 to C-4, C-11, and C-12, from H-14 to C-1, C-2, and C-10, and from H-15 to C-6, C-7, and C-8. It is obvious then that the molecular ion clusters at m/z 282/284 (1:1) [M]⁺ correspond to the other two compounds 1–2, whose molecular formulae were determined as C₁₅H₂₃Br on the basis of HRESIMS (m/z 203.1784 [M–Br]⁺, calcd. for C₁₅H₂₃Br, 203.1799).

The ¹H-NMR spectrum of 1 displayed two methyl singlets, one double-doublet assignable to a halogenated/oxygenated methine, and four broad characteristic olefinic protons singlets. The ¹³C-NMR spectrum along with the DEPT and HSQC experiments revealed the presence of two methyls, seven methylenes, three methines, and three quaternary carbon atoms. A detailed comparison of the NMR data with those reported for β-selinene (5) and β-dictyopterol (6) revealed the similarity between them [6,7], although n contrast to β-selinene (5) and β-dictyopterol (6), C-1 in 1 was brominated [δ_C 67.9 (d)], as established by comparison with the reported data for 1-bromo-4-hydroxyselin-7-ene [9]; this was corroborated by the molecular ion cluster at m/z 282/284 (1:1) [M]⁺ and fragment ion peak at m/z 203 [M–Br]⁺ in the EIMS and the molecular formula C₁₅H₂₃Br. The observed HMBC correlations from H-12 to C-7 and C-13, from H-13 to C-7, C-11, and C-12, from H-14a and H-14b to C-3 and C-5, and from H-15 to C-1, C-5, C-9, and C-10 confirmed the planar structure of 1.

The relative configuration of 1 was determined by analysis of coupling constants and NOESY correlations, as well as by comparison with literature data. H-1 was axial, as indicated by its large coupling constant (11.8 Hz), and located on the same face of H-5 from the NOESY correlation between them. The NOESY correlations between H-15/H-2a, H-6a, H-8a indicated C-15, H-2a, H-6a, and H-8a to be axial and the decalin ring to be trans-fused. C-11 was equatorial and the configuration at C-7 was the same as in 4–7 based on their identical NMR data and the observed NOESY correlation between H-7/H-9a [6–8]. The above evidence established the structure of 1 as 1-bromoselin-4(14),11-diene. Compound 1 has also been isolated in pure form from Laurencia pinnata, collected off the coast of Nanji Island (China), and its structure was confirmed unambiguously by 1D/2D NMR and HRAPPIMS (high-resolution atmospheric pressure photoionization mass spectroscopy), and this data was used to deconvolute the spectra of the 1–3 mixture [10].

The ¹H-NMR spectrum of 2 also displayed two methyl singlets, one double-doublet attributed to a halogenated/oxygenated methine, and four broad singlets ascribable to olefinic protons. The ¹³C-NMR spectrum, along with the DEPT and HSQC experiments, revealed the presence of two methyls, seven methylenes, three methines, and three quaternary carbon atoms. Based on their identical molecular ion clusters at m/z 282/284 (1:1) [M]⁺ and fragment ion peaks at m/z 203 [M–Br]⁺ in the EIMS and the molecular formulae C₁₅H₂₃Br, compound 2 should be an isomer of 1, a fact conformed by analysis of their NMR data. The NMR data were also compared with those reported for β-selinene (5), showing the similarity between them [6]. In contrast to β-selinene (5), C-9 at δ_C 52.2 (d) was brominated in 2, as indicated by the HMBC correlation from H-15 to C-9. The other HMBC correlations from H-12 to C-7 and C-13, from H-13 to C-7, C-11, and C-12, from H-14a and H-14b to C-3 and C-5, and from H-15 to C-1, C-5, and C-10 confirmed the structure of 2. The relative configuration of 2 was determined by analysis of coupling constants and NOESY correlations, as well as by comparison with literature data. H-9 was axial, as suggested by its large coupling constant (12.0 Hz), and, based on the NOESY correlation between them, located on the same face as H-5. The decalin ring was trans-fused based on the identical chemical shifts of C-5 and C-10 in 2 and 1. The C-11 was equatorial and the configuration at C-7 was identical with those of 1, 4–7 according to their similar NMR data [6–8]. The above evidence established the structure of 2 to be 9-bromoselin-4(14),11-diene.

The structures of known compounds 4–7 were confirmed by detailed NMR data comparison with those in the literature [6–8]. To the best of our knowledge, compounds 1 and 2 represent the first example of halogenated terpenes from the genus Dictyopteris, and are new additions to the molecular diversity of this genus. Compounds 1 and 2 may act as effective chemical defenses against marine herbivores by comparison with similar brominated structures [11].
