Sensors 2009, 9(5), 3437-3446; doi:10.3390/s90503437
Article

A Butyl Methacrylate Monolithic Column Prepared In-Situ on a Microfluidic Chip and its Applications

* ,
,
 and
National Key Disciplines Lab of Novel Micro-Nano Devices and System Technology, and International R&D Center of Micro-Nano Systems and New Materials Technology, and Microsystem Research Center, and College of Chemistry and Chemical Engineering, China
* Author to whom correspondence should be addressed.
Received: 6 February 2009 / Revised: 3 March 2009 / Accepted: 21 April 2009 / Published: 8 May 2009
View Full-Text   |   Download PDF [465 KB, uploaded 21 June 2014]   |   Browse Figures
SciFeed

Abstract

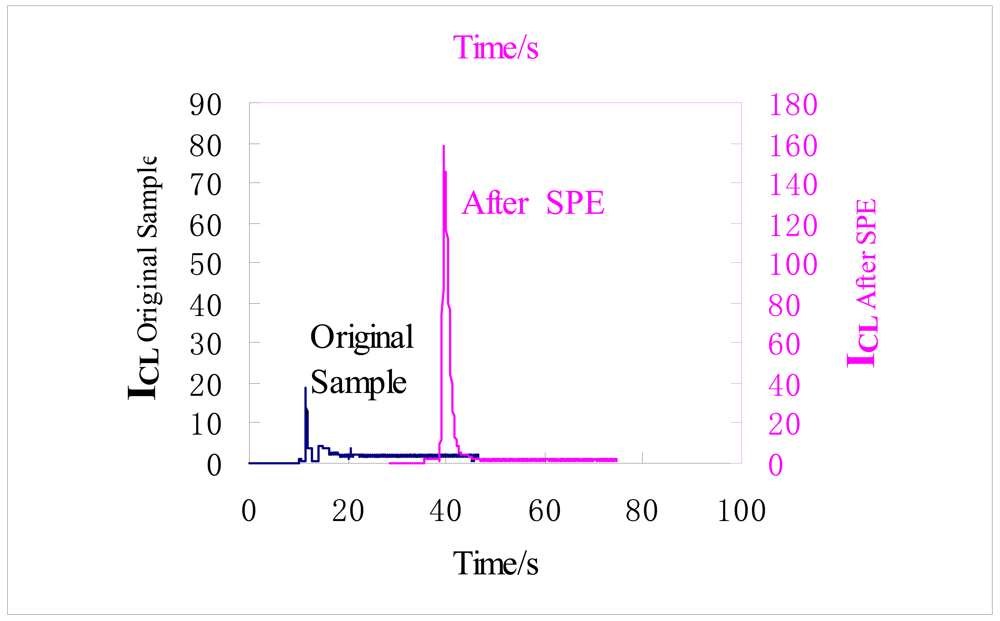

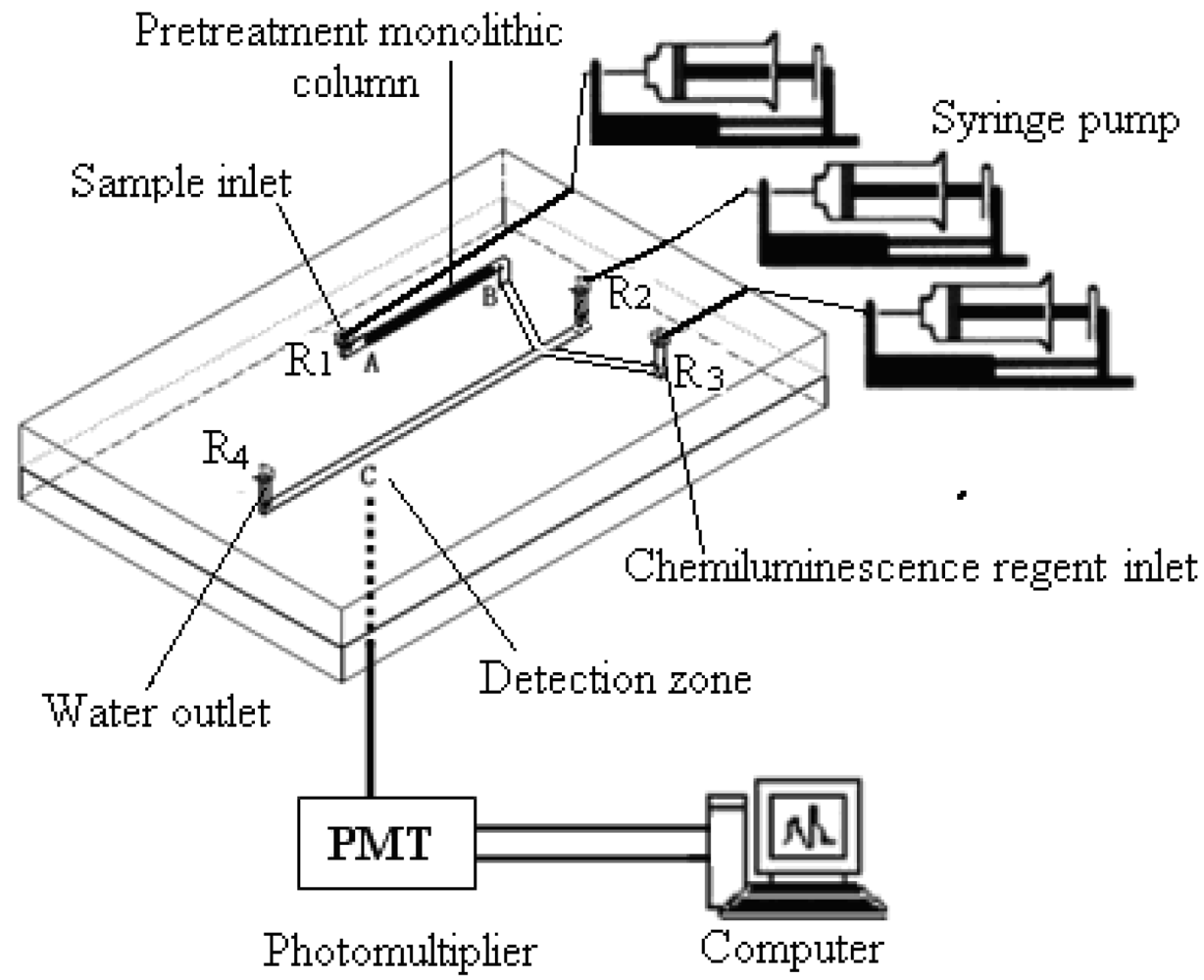

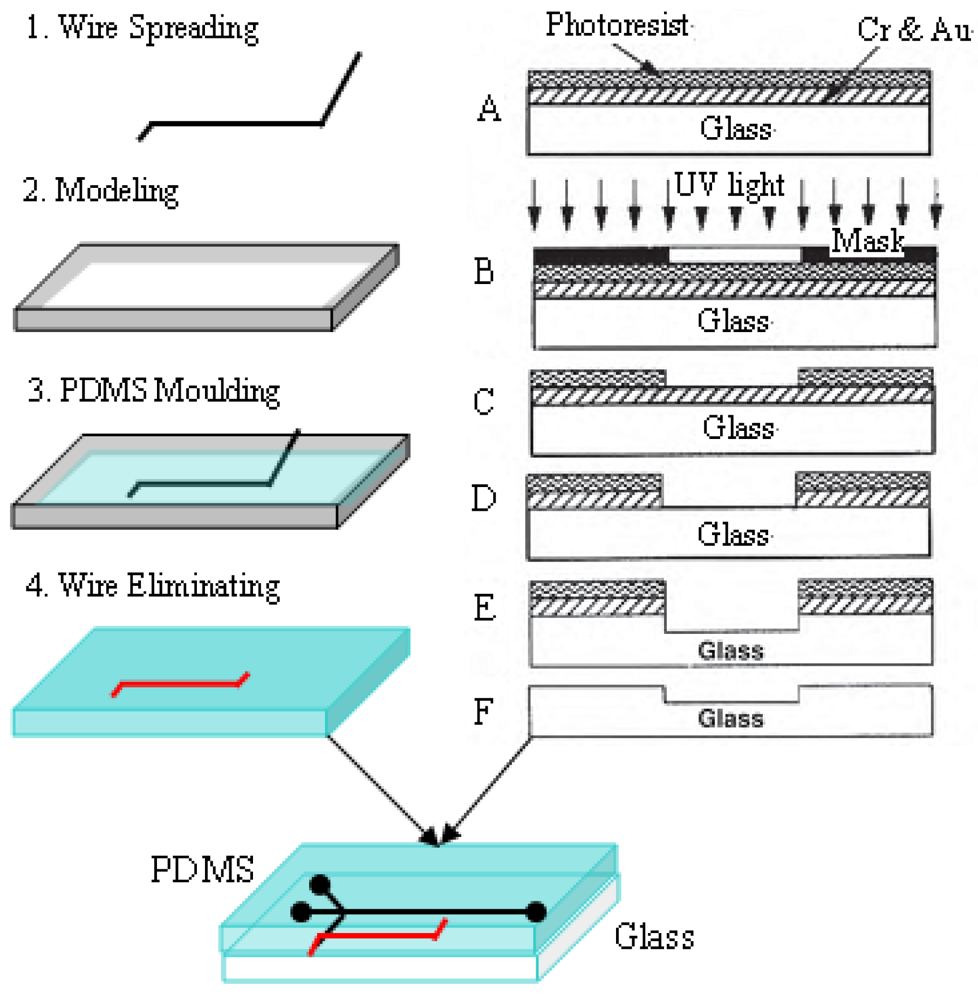

A butyl methacrylate (BMA) monolithic column was polymerized in-situ with UV irradiation in an ultraviolet transparent PDMS micro-channel on a homemade micro-fluidic chip. Under the optimized conditions and using a typical polymerization mixture consisting of 75% porogenic solvents and 25% monomers, the BMA monolithic column was obtained as expected. The BET surface area ratio of the BMA monolithic column was 366 m2·g-1. The corresponding SEM images showed that the monolithic column material polymerized in a glass channel was composed of uniform pores and spherical particles with diameters ranging from 3 to 5 μm. The promethazine–luminal–potassium ferricyanide chemiluminescence system was selected for testing the capability of the column. A flow injection analytical technique–chemiluminescence (FIA–CL) system on the microfluidic chip with a BMA monolithic column pretreatment unit was established to determine promethazine. Trace promethazine was enriched by the BMA monolithic column, with more than a 10-fold average enrichment ratio. The proposed method has a linear response concentration range of 1.0×10-8 - 1.0×10-6g·mL-1 and the detection limit was 1.6×10-9g·mL-1.
Keywords: BMA monolithic column; separation and preconcentration; microfluidic chip BMA monolithic column; separation and preconcentration; microfluidic chip
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
RIS
MDPI and ACS Style

Xu, Y.; Zhang, W.; Zeng, P.; Cao, Q. A Butyl Methacrylate Monolithic Column Prepared In-Situ on a Microfluidic Chip and its Applications. Sensors 2009, 9, 3437-3446.
