Open AccessArticle
Sensors 2009, 9(10), 8263-8270; doi:10.3390/s91008263

Major Improvements of Quartz Crystal Pulling Sensitivity and Linearity Using Series Reactance

University of Maribor, Faculty of Electrical Engineering and Computer Science, Smetanova 17, 2000 Maribor, Slovenia
*
Author to whom correspondence should be addressed.
Received: 16 July 2009 / Revised: 23 September 2009 / Accepted: 23 September 2009 / Published: 19 October 2009
(This article belongs to the Special Issue Sensor Configuration and Smart Sensors)
View Full-Text   |   Download PDF [256 KB, uploaded 21 June 2014]   |

Abstract

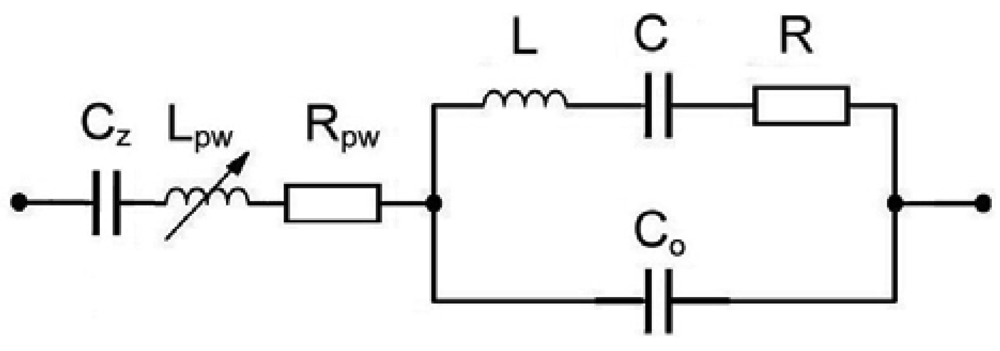

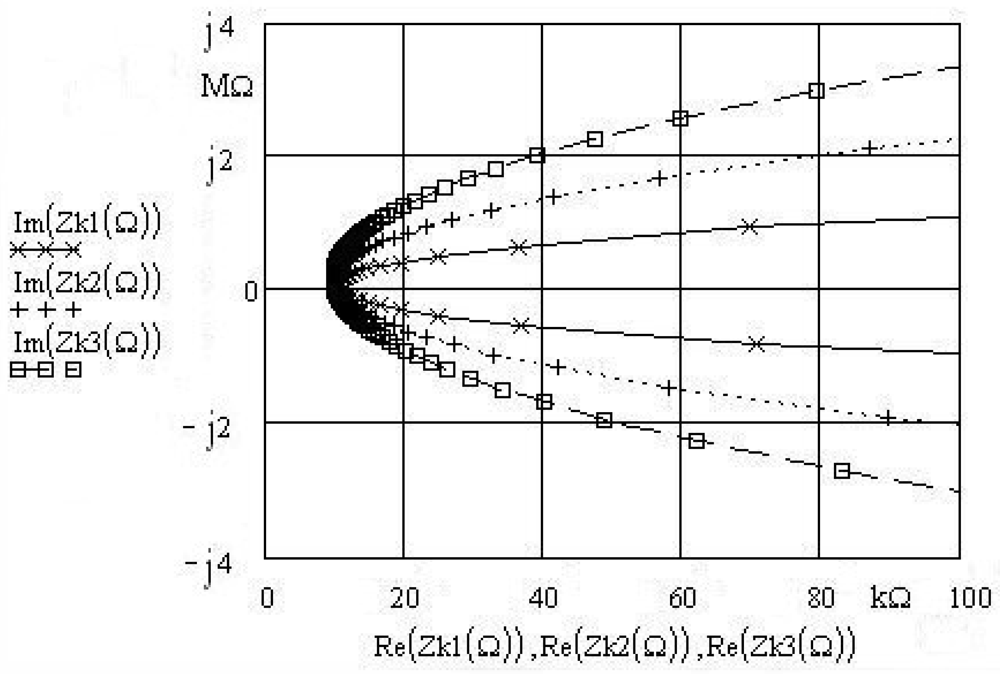

This paper presents a new method of substantially improving frequency pullability and linearity using reactance in series with an AT fundamental crystal operated with a series load capacitance in the range of 3 to 50 pF and frequencies in the range of 3.5 to 21 MHz. The research describes high quartz pullability and linearity by varying the load capacitance. The paper also gives impedance circuits for crystal unit (3.5 MHz) together with load capacitance and compensation reactance. The experimental results show that the new approach using compensation method of quartz crystal connected in series reactance increases the frequency pulling range by ×25 to ×100 depending on the type of oscillator and compensation factor ˝k˝ in the temperature range of 10 to 40 °C.
Keywords: quartz crystal; pulling range; pulling linearity quartz crystal; pulling range; pulling linearity
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Matko, V.; Šafarič, R. Major Improvements of Quartz Crystal Pulling Sensitivity and Linearity Using Series Reactance. Sensors 2009, 9, 8263-8270.
