Sensors 2007, 7(9), 1954-1961;

Full Research Paper
Development of a Surface Plasmon Resonance n-dodecane Vapor Sensor
Narcizo Muñoz Aguirre 1,*, Lilia Martínez Pérez 2, Jose Alfredo Colín 2 and Eduardo Buenrostro-Gonzalez 1
1
Instituto Mexicano del Petróleo, Eje Central Lázaro Cárdenas no. 152, Col. San Bartolo Atepehuacan, 07730 México D.F. México. E-mail: nmag804@avantel.net
2
Unidad Profesional Interdisciplinaria en Ingeniería y Tecnologías Avanzadas del Instituto Politécnico Nacional, Av. IPN No. 2580, Col. Barrio La Laguna Ticomán, C.P. 07340, México D.F. México. E-mail:buhomartin@yahoo.com
*
Author to whom correspondence should be addressed
Received: 7 June 2007 / Accepted: 17 September 2007 / Published: 21 September 2007

Abstract

: Using a high density polyethylene thin film over gold layer, a Surface Plasmon Resonance sensor for detecting n-dodecane vapor is developed. Preliminary results will be presented, showing that samples in the range of a few hundred ppm(V) of n-dodecane vapor in butane gas can be sensed. Also, studying the response as a function of time, it is demonstrated that the sensing process is quickly reversible.
Keywords:
Gas sensors; SPR sensors; Sensing films; Polyethylene thin films; ultra-thin films; Chemical sensors

1. Introduction

Despite it being well demonstrated that Surface Plasmon Resonance (SPR) sensors are highly sensitive to small changes of the Refractive Index with resolutions up to 10(-5) RUI [1-3], common in the design of SPR-based biosensors [4-6], there has been little work in gas and chemical vapor detection in the last five years [3, 7-15]. In SPR sensors, the principal task is the development of the sensing layer over the metal film (gold or silver). Inorganic and organic thin films are commonly tested as the interacting layer with the gas specimen to be detected. For example, recently E. Maciak et. al.[7] reported inorganic WO3 thin films as active layers for NH3 vapor detection. Also, organic thin films like SAM's of cavitands have shown selectivity to aromatic vapors [8]. Polymeric thin films, for example N-methylaniline, present response to gaseous HCl [11]. LB organic ultra thin calyx[4]pyrrole films are also used as sensing layers for organic vapors under the SPR technique [13]. With the aim improving the sensitivity and selectivity of the SPR sensors, thin films of hybrid systems [12, 15] of organic and inorganic materials and composites [9] are tested. For example, TiO2 thin films in an organic passivating shell [12] have shown to be more selective to alcohol vapors than usual TiO2 films.

In the same context, it is well demonstrated that organic polyethylene thin films present selectivity to petroleum hydrocarbon vapors under the QCM sensing procedure as reported by Sugimoto et. al. [16]. The question arising now is: are we capable of sensing the same petroleum hydrocarbon vapors using polyethylene thin films and Surface Plasmon Resonance as the transduction method. The answer is yes and as an example, the sensitivity of very thin polyethylene films to n-dodecane vapor using Surface Plasmon Resonance as the sensing technique is shown.

2. Results and Discussion

Figure 1 shows the SPR spectra of the polyethylene thin films deposited on gold films before exposure to the gas sample. From the theoretical fitting of the SPR reflectivity to the experimental data, as done in Ref. [17], it was found that the dielectric function of the gold film for a 632.8 nm wavelength of the incident light was εAu = −12.32 + 1.5i and the thickness of the thin polyethylene film was 7.1 nm [17].

2.1. Sensitivity of the sensor

Figure 2 shows the SPR response for 100 ppm(V) of n-dodecane in butane gas. Squares in the plot correspond to when a vacuum of the order of 52 cmHg was achieved in the gas cell. Circles correspond to when the butane gas valve was turned on, increasing the pressure in the gas cell to approximately atmospheric pressure. After that, another previous vacuum of 52 cmHg was made in the cell for removing the butane gas. Triangles plot when the valve of the mixture n-dodecane in butane gas was turned up to restore atmospheric pressure. A shift can be observed in the SPR angle of the sample with respect to butane gas on the order of 0.2 degrees with a systematic error of ± 0.1 degrees. The systematic error was principally associated with the resolution of the rotation stage of 0.1 degrees when the data were taken.

Figure 3 shows the sensitivity of the sensor. In the range of 100-500 ppm(V), an approximately linear relationship between the SPR angle shift and the concentration of the n-dodecane vapor can be observed. Because the precision rotation stage used gives more resolution (of the order of 0.002 degrees), it should easily measure SPR spectra every 0.01 degrees and therefore concentrations lower than 100 ppm(V) should be studied.

2.2. Response as a function of time

Figure 4 shows the sensor response as a function of time. Each second, reflectivity data were taken at a fixed angle close to the SPR angle (44.9 °). The black triangles plotted correspond to when, after taking the mechanical vacuum (52 cmHg), the valve of the butane gas was turned on. The circles plotted correspond to when the vapor sample of 100 ppm (V) n-dodecane in the butane mixture was turned on after a previous mechanical vacuum. An appreciable small change in the reflectivity of the butane response can be seen in comparison to the response of the n-dodecane mixture in butane. Such behavior confirms the selectivity of the polyethylene layer to n-dodecane vapor as was shown by Sugimoto et. al. [16]. Briefly, the SPR response of the polyethylene thin film to the n-dodecane vapor can be described as follows. When the gas mixture sample valve was turned on, a rapid increase of the reflectivity took place as is shown by the peak in the circles plotted in Fig. 4. After about 10 seconds, when the pressure in the cell was constant and equal to the atmospheric pressure, the same valve was turned off. After the sample valve was turned off, a decrease in the quantity of the molecules striking the polyethylene surface layer took place. Therefore, the response continued decreasing but the signal recovered and stabilized after about 10 seconds because the rate of molecules striking the surface also stabilized. From Fig. 4, it should also be said that the response time of the sensor was fast. It is important to mention that after 1 minute of the experiment, vacuum in the gas cell was recovered almost immediately to the initial response of about 30 mV (not shown in Fig. 4). The last result means that the SPR sensor had a fast reversibility but more experiments should be done to demonstrate such a statement.

3. Experimental Section

3.1 Preparation of the sensing element

As was detailed in Ref. [17], gold films of 52.4 nm thicknesses were coated on 7059 glass corning substrates by the thermal evaporation method. The commercial monitor MASTEK Inc., which uses a crystal resonator as a sensor, was used to measure the thickness of the gold films. After that, the reflectivity SPR spectrum for their optical characterization was obtained. Soon after, transparent polyethylene ultra-thin films of different thicknesses were deposited over the gold thin films by means of the RF sputtering method. The completed structural and optical characterizations of the polyethylene thin films on gold were reported in Ref. [17]. In this work, the same developed polyethylene thin films were applied as vapor sensing layers [17].

3.2 Detection gas experimental configuration

In Figure 5, the gas detection experimental set up is shown. A gas cell (see Fig. 5) with a special window for coupling the SPR sensing element was designed. Design and detailed dimensions of the cell are reported in a manuscript which was submitted to the Mexican Patent Office (IMPI, in Spanish) [18]. The cell was developed in order to avoid leaking and guaranteed the thermodynamic stability of the gas sample. The SPR measurements were obtained using a Newport Inc. controlled high precision compact rotation stage with a resolution of 0.002 degrees and a silicon detector for capturing the reflected light (see also Ref. [17]).

SPR measurements of the sensing element polyethylene_film/gold_film were carried out at vacuum and in the presence of the gas sample at ambient conditions. SPR spectra was first obtained in a vacuum on the order of 52 cmHg from mechanical pumping. After that, the gas sample (butane gas or mixture) was injected into the gas cell to achieve atmospheric pressure and SPR spectra were obtained.

3.3 Preparation of the gas samples

At the High Pressure Thermodynamic Laboratory of the Mexican Institute of Petroleum (IMP, in Spanish), a gas sample was prepared using an in house method reported in Ref. [19]. The sample was conformed by a mixture of n-dodecane (molar fraction 0.00017) with butane gas (molar fraction 0.99983) and stored in a cylindrical gas sample container of 0.244 m3 of volume (see Fig. 1). The volume was used in order to guarantee the stability of the vapor phase of n-dodecane at atmospheric pressure and temperature (80.8 kPa and 273 °K). In the mixture preparation method of Ref [19], the n-dodecane liquid was introduced in a little cell of 30 cm3 of volume. After that, the n-dodecane and the butane gas were injected towards an expansion system consisting of two bullets of about 3 liters in volume, both connected to the gas sample container and a gas chromatograph, respectively. During the sample injection, the entire system was heated using heating tape in order to obtain a homogenous mixture.

4. Conclusions

A Surface Plasmon Resonance sensor for detecting n-dodecane vapor was developed. It was shown that an approximately linear relationship existed between the SPR angle shift and the concentration in the range of 100-500 ppm(V) of n-dodecane in butane gas. Studying the response as a function of time at a fixed angle close to the SPR angle indicated at first glance that the sensing process was quickly reversible.

This work was partially supported by CGPI-IPN project number 20061992 from Instituto Politécnico Nacional, México. The authors want to acknowledge Professor Orlando Zelaya Angel from the Departamento de Física del CINVESTAV-IPN, México, for support in his facilities.

References and Notes

  1. Homola, Jiri; Yee, Sinclair S.; Gauglitz, Gunter. Surface plasmons resonance sensors: review. Sens. Actuators B 1999, 54, 3–15. [Google Scholar]
  2. Muñoz Aguirre, N.; Passian, A.; Martínez Pérez, L.; López-Sandoval, E.; Vázquez-López, C.; Jiménez-Pérez, J. L.; Ferrell, T.L. The use of the surface plasmons resonance sensor in the study of the influence of “allotropic” cells on water. Sens. Actuators B 2004, 99, 149–155. [Google Scholar]
  3. Wong, C.I.; Ho, H.P.; Chan, K.S.; Wu, S. Y.; Lin, C.L. Application of spectral surface plasmon resonance to gas pressure sensing. Opt. Engineering 2005, 44(12). Art. No. 124403. [Google Scholar]
  4. Quinn, J. G.; O'Neil, S.; Doyle, A.; McAtamney, C.; Diamond, D.; MacCraith, B. D.; O'Kennedy, R. Development and application of Surface Plasmon Resonance-Based Biosensors for the Detection of Cell-Ligand Interactions. Analytical Biochemistry 2000, 281, 135–143. [Google Scholar]
  5. Akimoto, T.; Sasaki, S.; Ikebukuro, K.; Karube, I. Effect of incident angle of light on sensitivity and detection limit for layers of antibody with surface plasmon resonance spectroscopy. Biosens. Bioelectron. 2000, 15, 355–362. [Google Scholar]
  6. Peng, W.; Banerji, S.; Kim, Y. C.; Booksh, K.S. Investigation of dual-channel fiber-optic surface plasmon resonance sensing for biological applications. Optics Letters 2005, 30(22), 2988–2990. [Google Scholar]
  7. Maciak, E.; Opilski, Z.; Pustelny, T.; Bednorz, M. An optical detection NH3 gas by means of a WO3 thin films based on SPR technique. J. Physique IV 2005, 129, 131–136. [Google Scholar]
  8. Feresenbet, E.B.; Busi, M.; Ugozzoli, F.; Dalcanale, E.; Shenoy, D. K. Influence of cavity depth on the response of SPR sensors coated with self-assembled monolayers of cavitands. Sens. Lett. 2004, 2(3-4), 186–193. [Google Scholar]
  9. Fernández, C.D.; Manera, M. G.; Spadavecchia, J.; Maggioni, G.; Quaranta, A.; Mattei, G.; Bazzan, M.; Cattaruzza, E.; Bonafini, M.; Negro, E.; Vomiero, A.; Carturan, S.; Scian, C.; Della, G. M.; Rella, R.; Vasanelli, L. Study of the gas optical sensing properties of Au-polyimide nanocomposite films prepared by ion implantation. Sens. Actuators B 2005, 111, 225–229. [Google Scholar]
  10. Kim, Y. C.; Banerji, S.; Masson, J. F.; Peng, W.; Booksh, K. S. Fiber-optic surface plasmon resonance for vapor phase analyses. Analyst 2005, 130(6), 838–843. [Google Scholar]
  11. Samoylov, A. V.; Mirsky, V. M.; Hao, Q.; Swart, C.; Shirshov, Y.M.; Wolfbeis, O. S. Nanometer-thick SPR sensor for gaseous HCl. Sens. Actuators B 2005, 106, 369–372. [Google Scholar]
  12. Manera, M. G.; Leo, G.; Curri, M. L.; Cozzoli, P. D.; Rella, R.; Siciliano, P.; Agostiano, A.; Vasanelli, L. Investigation on alcohol vapours/TiO2nanocrystal thin films interaction by SPR technique for sensing application. Sens. Actuators B 2004, 100(1-2), 75–80. [Google Scholar]
  13. Conoci, S.; Palumbo, M.; Pignataro, B.; Rella, R.; Valli, L.; Vasapollo, G. Optical recognition of organic vapours through ultrathin calix[4]pyrrole films. Colloids Surf. A 2002, 198, 869–873. [Google Scholar]
  14. Abdelghani, A.; Renault, N. SPR fibre sensor sensitized by fluoroxiloxane polymers. Sens. Actuators B 2001, 74(1-3), 117–123. [Google Scholar]
  15. Rella, R.; Rizzo, A.; Licciulli, A.; Siciliano, P.; Troisi, L.; Valli, L. Tests in controlled atmosphere on new optical gas sensing layers based on TiO2/metalphthalocyanines hybrid system. Materials Sci. Engineering C 2002, 22(2), 439–443. [Google Scholar]
  16. Sugimoto, I.; Nakamura, M.; Ogawa, S.; Seyama, M. Petroleum pollution sensing at ppt level using quartz crystal resonators sputtered with porous polyethylene under photo-excitation. Sens. Actuators B 2000, 64, 216–223. [Google Scholar]
  17. Rodríguez Juárez, M.; Muñoz Aguirre, N.; Martínez Pérez, L.; Garibay-Febles, V.; Lozada-Cassou, M.; Becerril, M.; Zelaya Angel, O. Optical characterization of polyethylene and cobalt phthalocyanine ultra-thin films by means of ATR technique at the Surface Plasmons Resonance. Phys. Stat. Solidi a 2006, 203(10), 2506–2512. [Google Scholar]
  18. Muñoz Aguirre, N.; Buenrostro, E.; López, S.; Garibay-Febles, V.; Lozada-Cassou, M. Dispositivo de Resonancia de Plasmones Superficiales para la detección de gases. Submitted to Mexican Office Patent 2007 (Instituto Mexicano de la Propiedad Intelectual-IMPI), submission number MX/a/2007/005838.
  19. Ascencióndel Romero Martínez, Estudio delequilibrio entre fases líquido-vapor y líquido-líquido-vapor de sistemas binarios y ternarios formados por disolvente polar + hidrocarburo. In Philosophical Thesis Dissertation; Universidad Nacional Autónoma de México-Facultad de Química (UNAM): México D.F., 2004.
Sensors 07 01954f1 1024
Figure 1. SPR spectra for a gold film of 52.4 nm measured thickness (squares), and after deposition of a 7.1 nm polyethylene film (circles). Lines correspond to the theoretical model (See Ref. [17]).

Click here to enlarge figure

Figure 1. SPR spectra for a gold film of 52.4 nm measured thickness (squares), and after deposition of a 7.1 nm polyethylene film (circles). Lines correspond to the theoretical model (See Ref. [17]).
Sensors 07 01954f1 1024
Sensors 07 01954f2 1024
Figure 2. SPR spectra showing the response of the sensing element to 100 ppm(V) of n-dodecane in butane gas (triangles).

Click here to enlarge figure

Figure 2. SPR spectra showing the response of the sensing element to 100 ppm(V) of n-dodecane in butane gas (triangles).
Sensors 07 01954f2 1024
Sensors 07 01954f3 1024

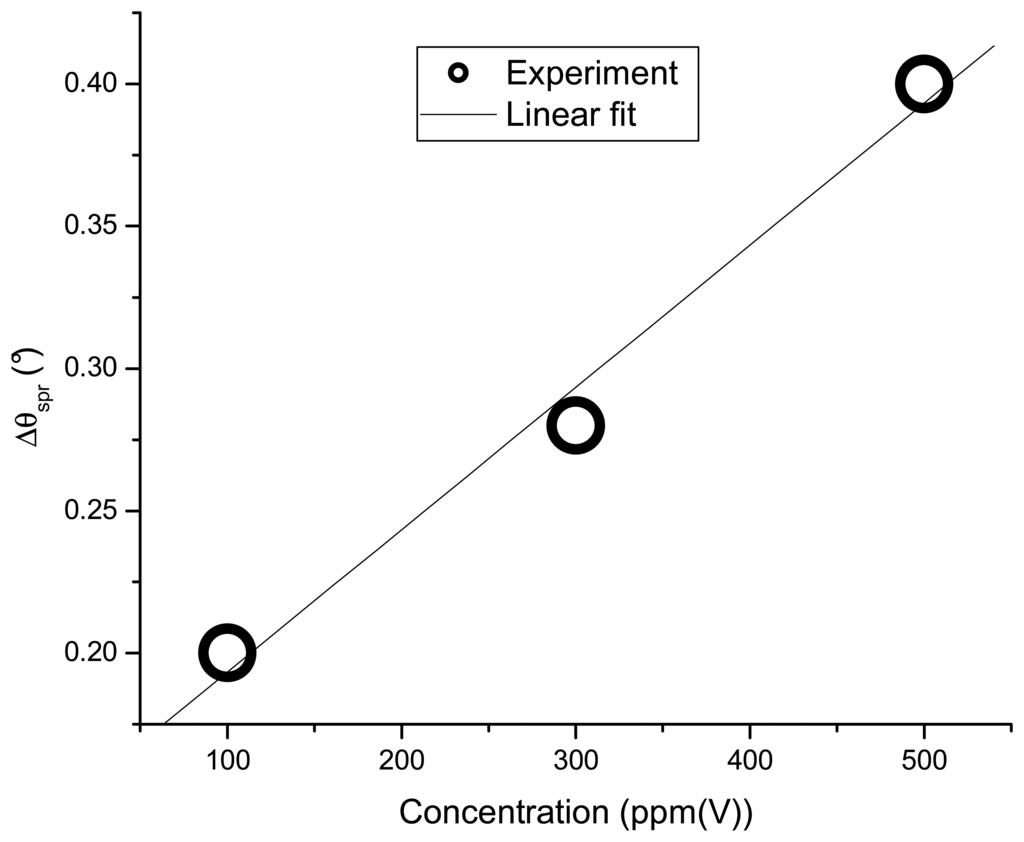

Figure 3. Sensor response measured by means of the SPR angle shift versus concentration. An approximately linear relationship can be observed.

Click here to enlarge figure

Figure 3. Sensor response measured by means of the SPR angle shift versus concentration. An approximately linear relationship can be observed.
Sensors 07 01954f3 1024
Sensors 07 01954f4 1024

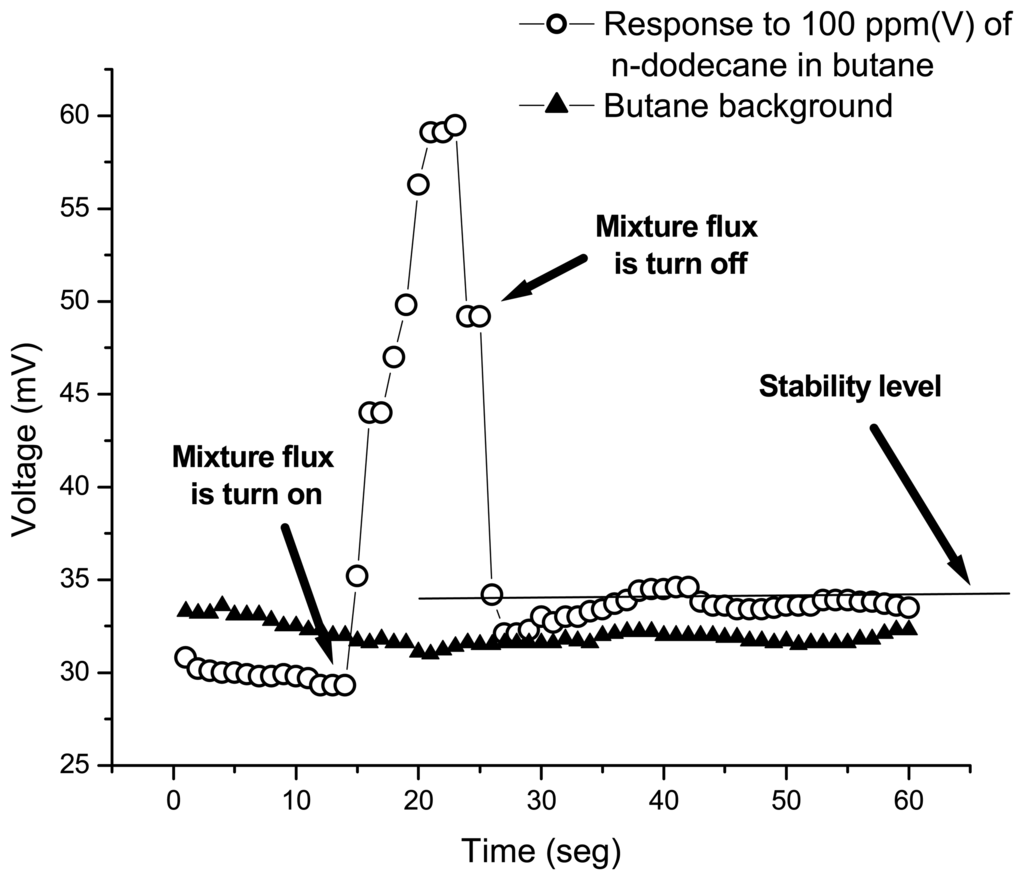

Figure 4. Response as a function of time of the sensing polyethylene layer. The selectivity to n-dodecane vapor can be observed to present a fast response.

Click here to enlarge figure

Figure 4. Response as a function of time of the sensing polyethylene layer. The selectivity to n-dodecane vapor can be observed to present a fast response.
Sensors 07 01954f4 1024
Sensors 07 01954f5 1024
Figure 5. Experimental set up for the SPR sensor.

Click here to enlarge figure

Figure 5. Experimental set up for the SPR sensor.
Sensors 07 01954f5 1024
