Sensors 2006, 6(4), 397-404; doi:10.3390/s6040397
Article

Functional Testing and Characterisation of ISFETs on Wafer Level by Means of a Micro-droplet Cell

Arshak Poghossian 1, Kerstin Schumacher 1, Joachim P. Kloock 1, Christian Rosenkranz 3, Joachim W. Schultze 3, Mattea Müller-Veggian 1 and Michael J. Schöning 1,* email
1 Aachen University of Applied Sciences, Jülich Campus, Laboratory for Chemical Sensors and Biosensors, Ginsterweg 1, 52428 Jülich, Germany 2 Institute of Thin Films and Interfaces (ISG-2), Research Centre Jülich GmbH, 52425 Jülich, Germany 3 AGEF e.V.-Institute, Heinrich-Heine University, 40225 Düsseldorf, Germany
* Author to whom correspondence should be addressed.
Received: 28 July 2005 / Accepted: 4 January 2006 / Published: 7 April 2006
PDF Full-text Download PDF Full-Text [302 KB, uploaded 20 June 2008 16:51 CET]

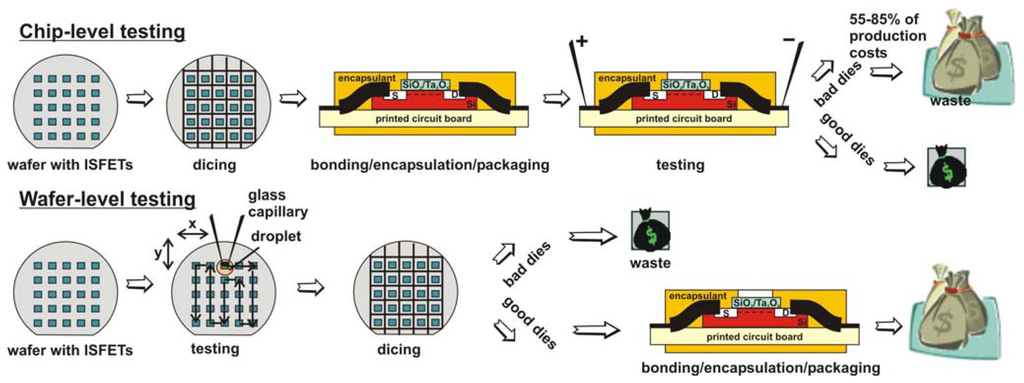

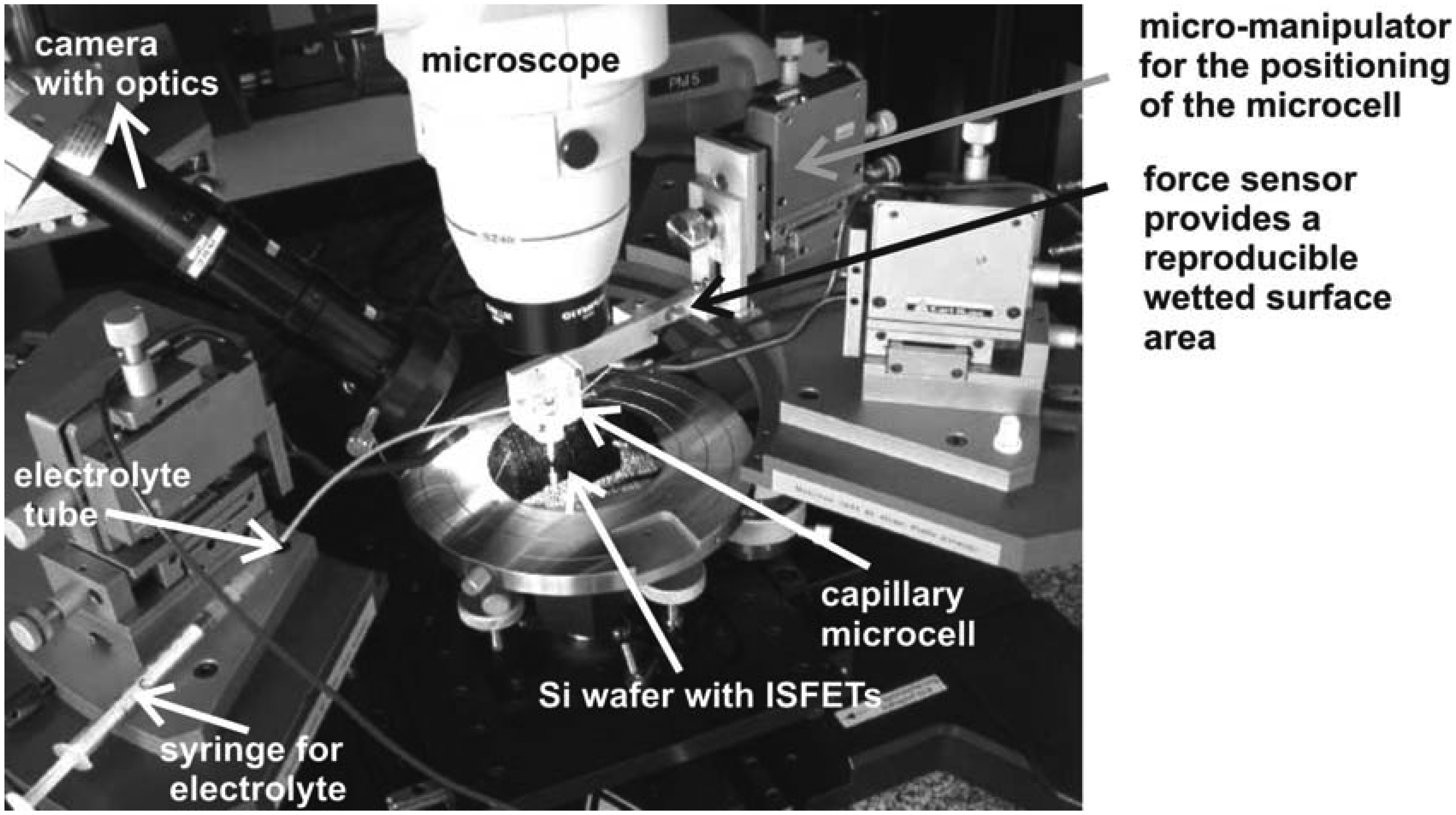

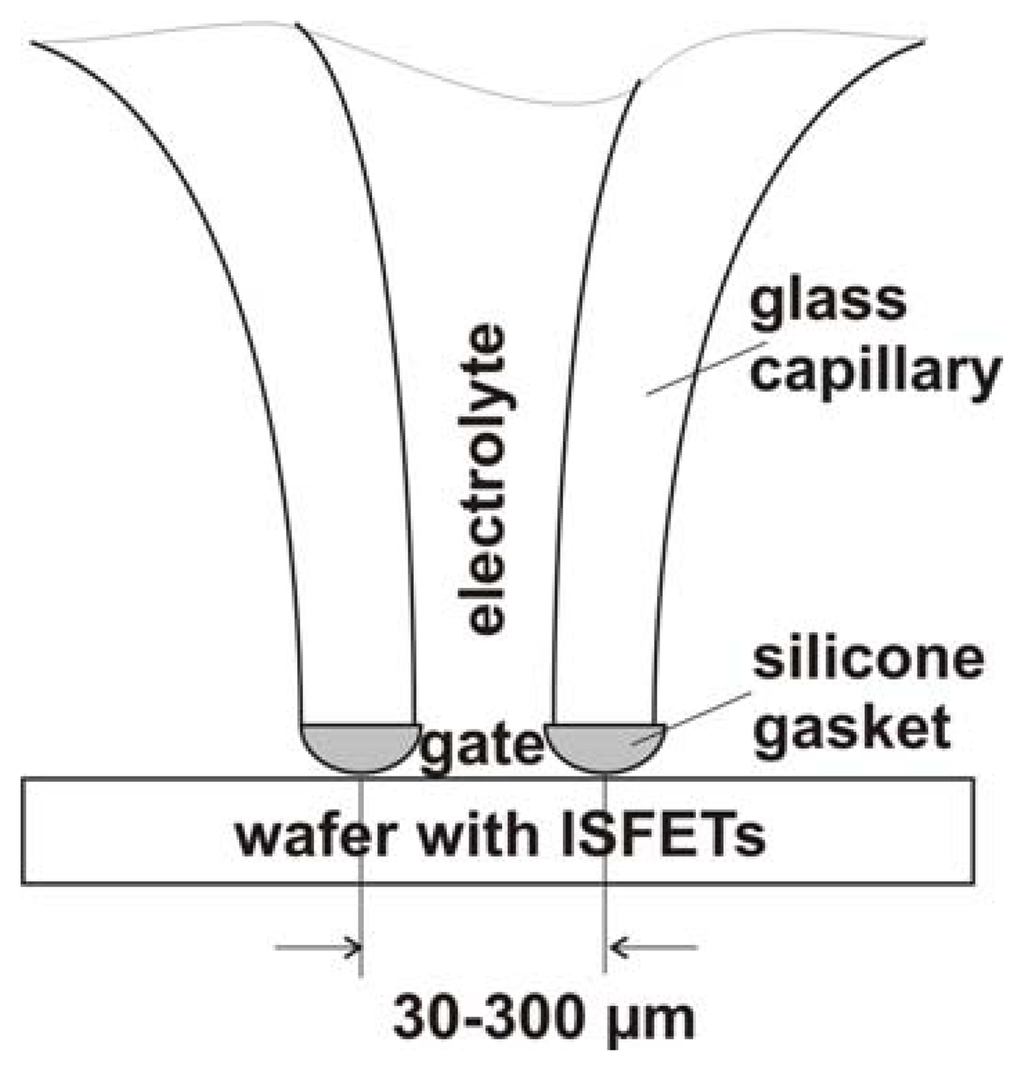

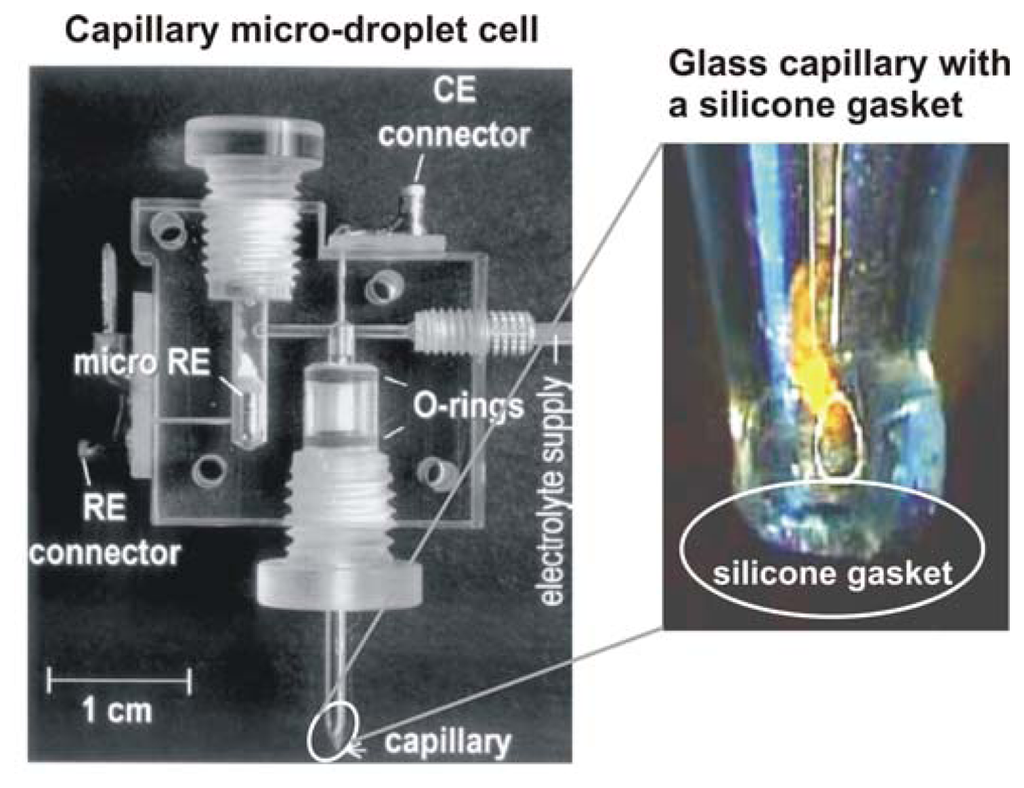

Abstract: A wafer-level functionality testing and characterisation system for ISFETs (ion-sensitive field-effect transistor) is realised by means of integration of a specifically designedcapillary electrochemical micro-droplet cell into a commercial wafer prober-station. Thedeveloped system allows the identification and selection of “good” ISFETs at the earlieststage and to avoid expensive bonding, encapsulation and packaging processes for non-functioning ISFETs and thus, to decrease costs, which are wasted for bad dies. Thedeveloped system is also feasible for wafer-level characterisation of ISFETs in terms ofsensitivity, hysteresis and response time. Additionally, the system might be also utilised forwafer-level testing of further electrochemical sensors.
Keywords: ISFET; wafer-level testing; capillary micro-droplet cell.
