Sensors 2017, 17(9), 2040; https://doi.org/10.3390/s17092040

Simultaneous Detection of Displacement, Rotation Angle, and Contact Pressure Using Sandpaper Molded Elastomer Based Triple Electrode Sensor

1
Department of Electronic Engineering, Hanyang University, 222 Wangsimni-ro, Seongdong-gu, Seoul 133-791, Korea
2
Institute of Nano Science and Technology, Hanyang University, 222 Wangsimni-ro, Seongdong-gu, Seoul 133-791, Korea
*
Author to whom correspondence should be addressed.
Received: 21 July 2017 / Revised: 4 September 2017 / Accepted: 5 September 2017 / Published: 6 September 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [10908 KB, uploaded 7 September 2017]   |

Abstract

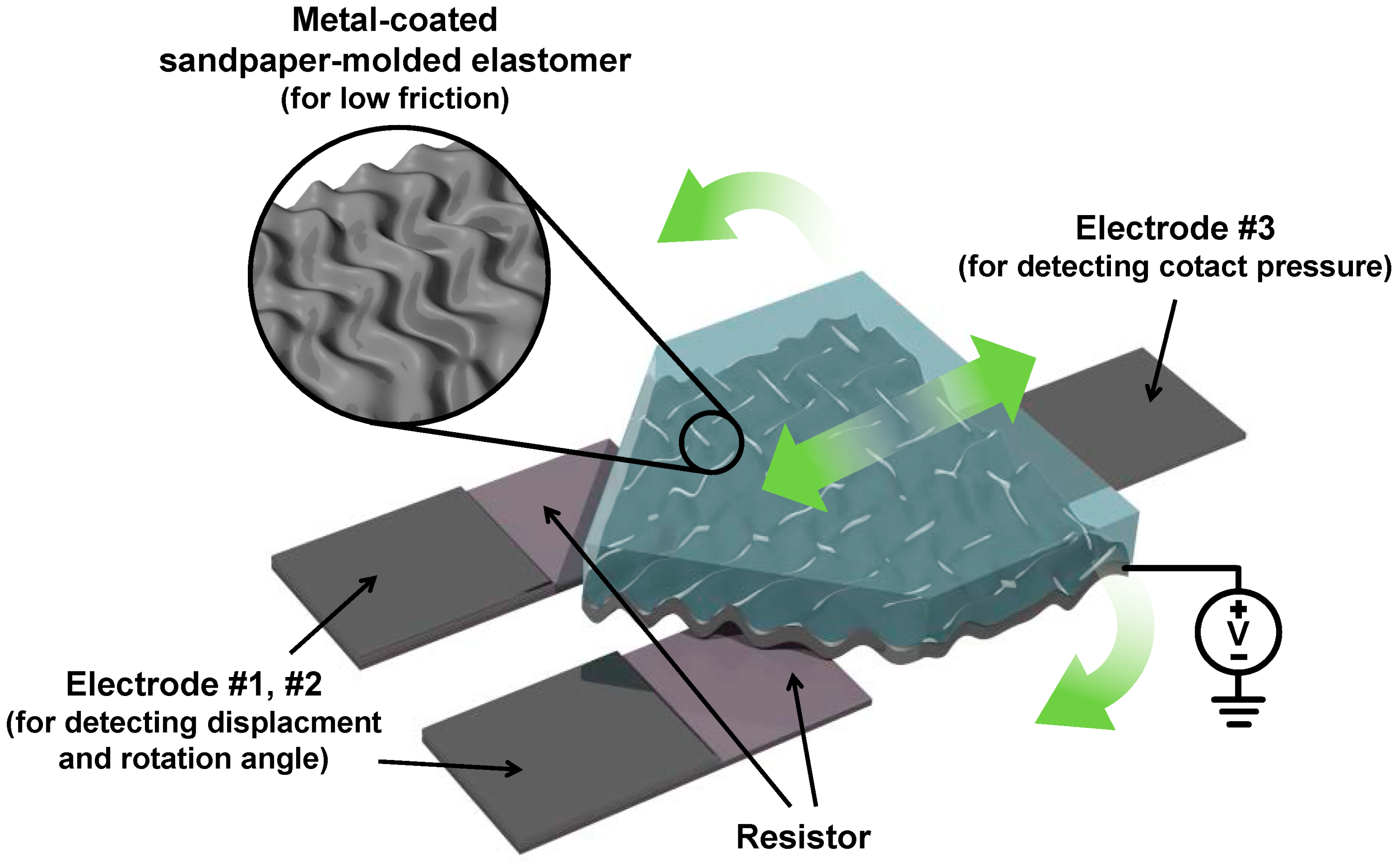

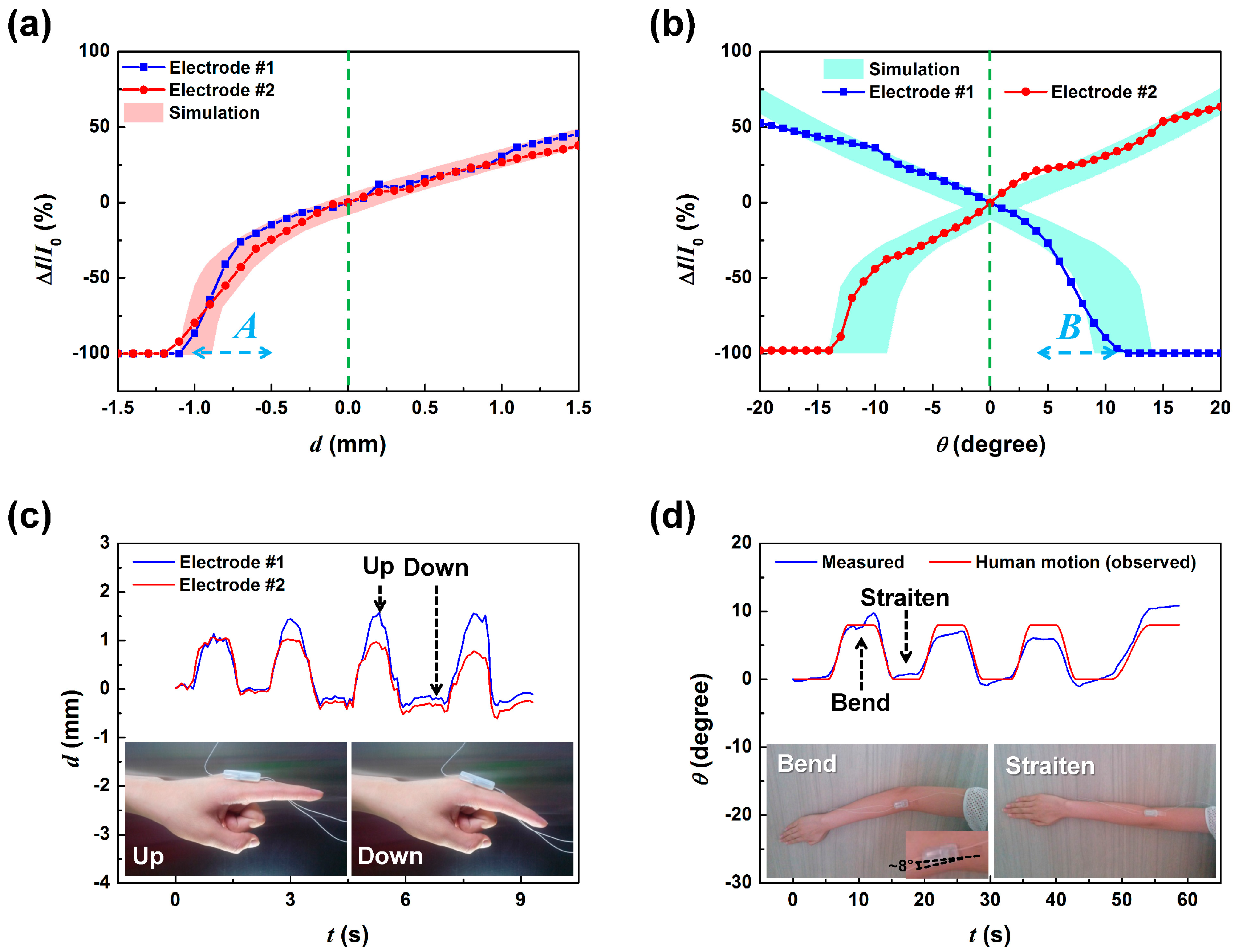

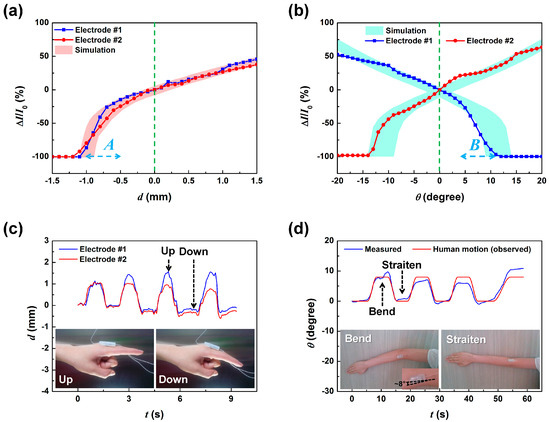

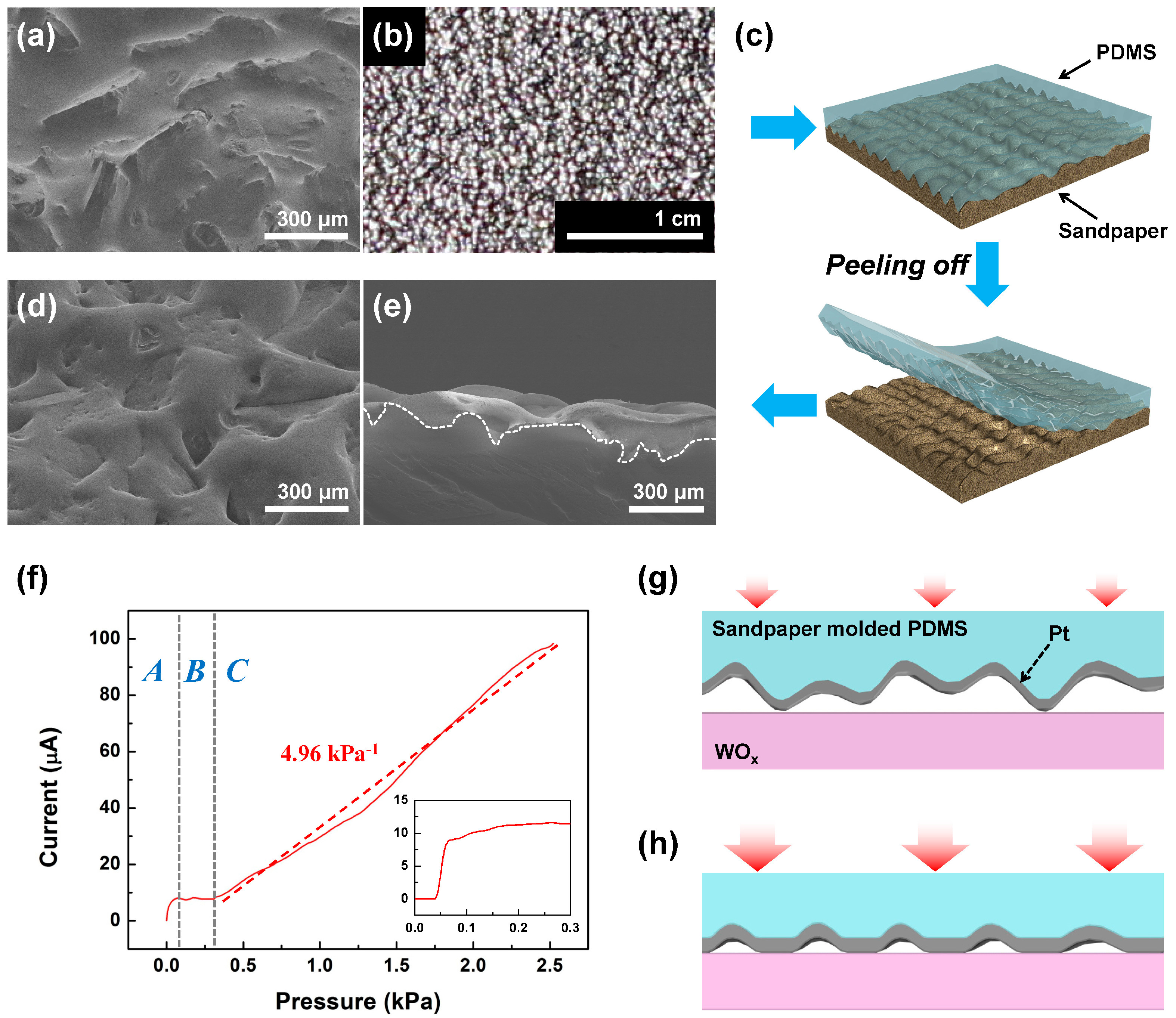

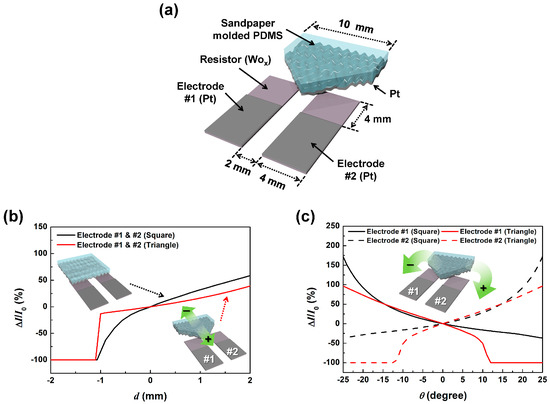

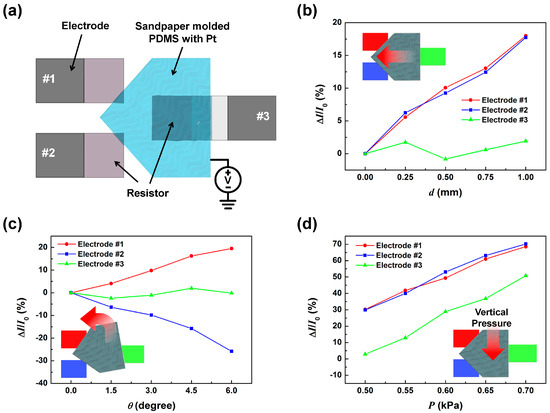

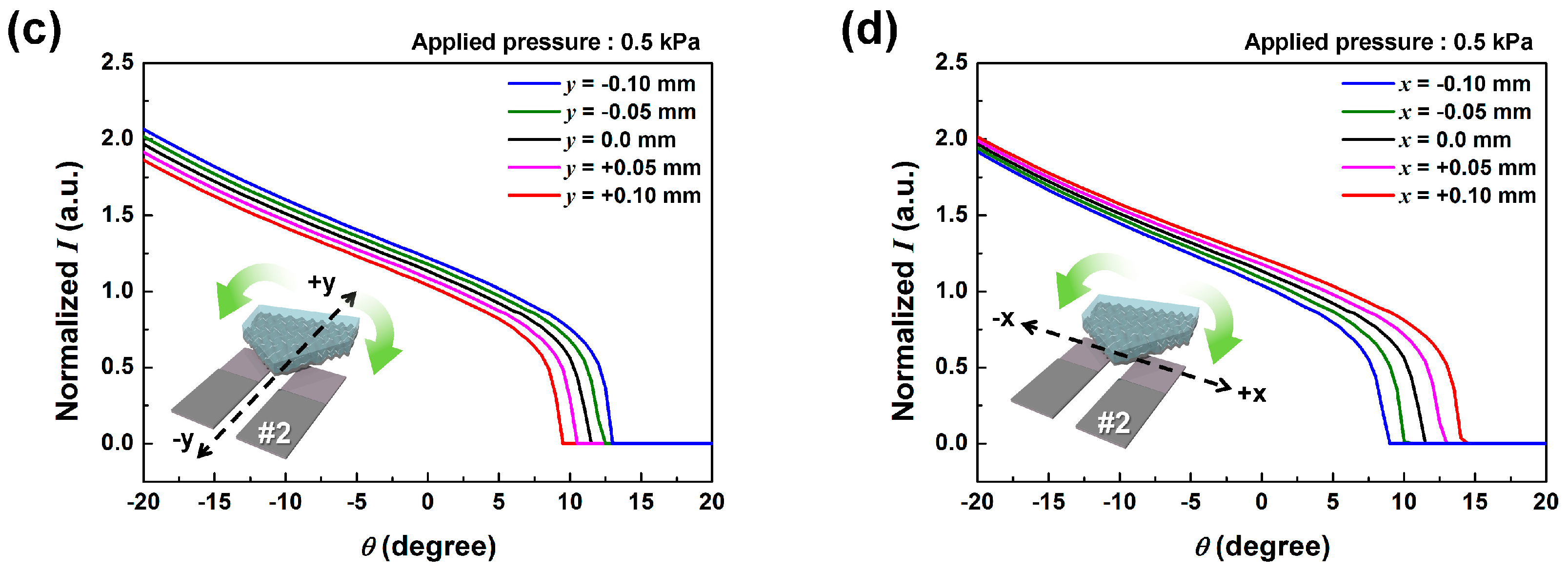

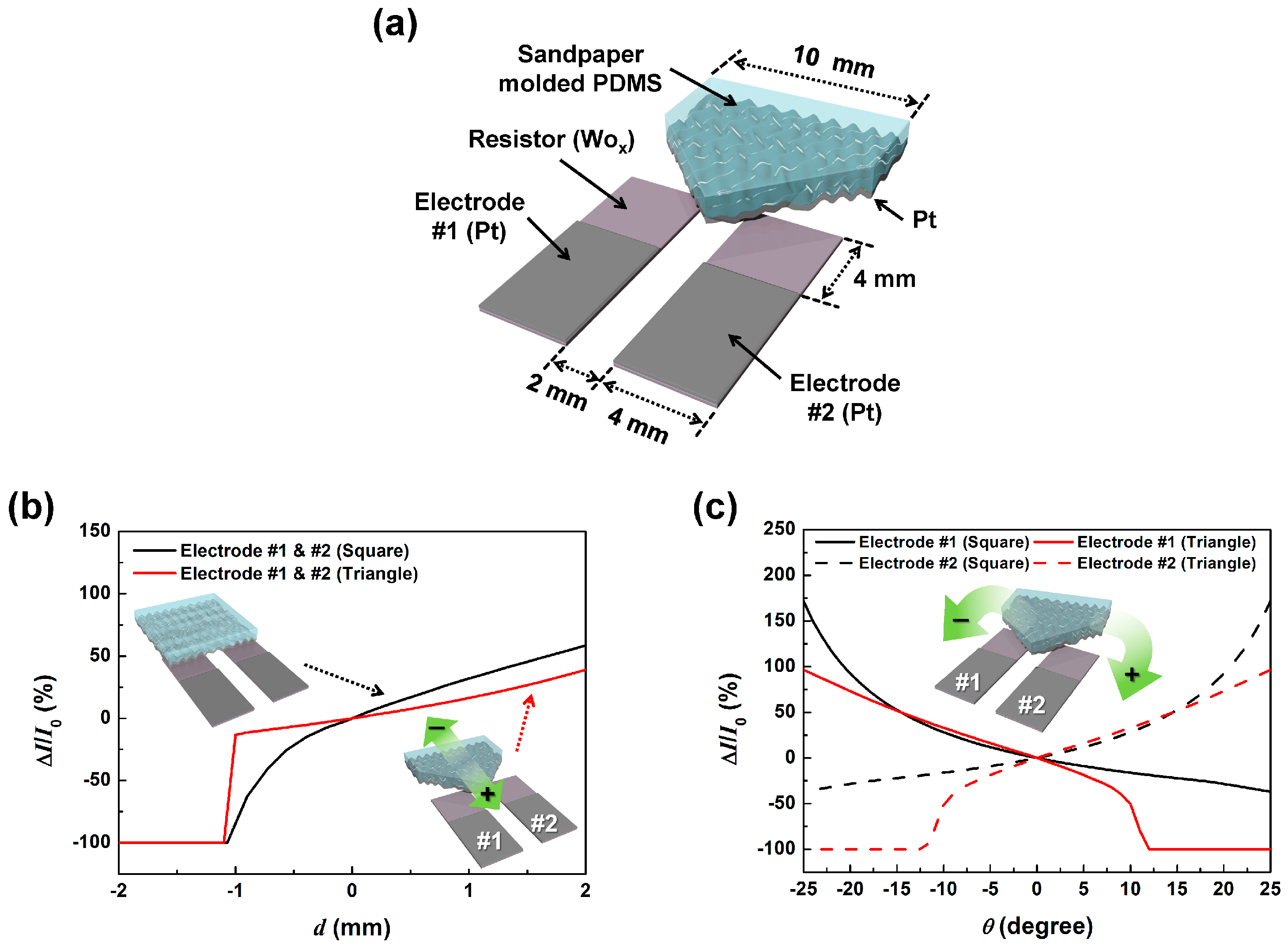

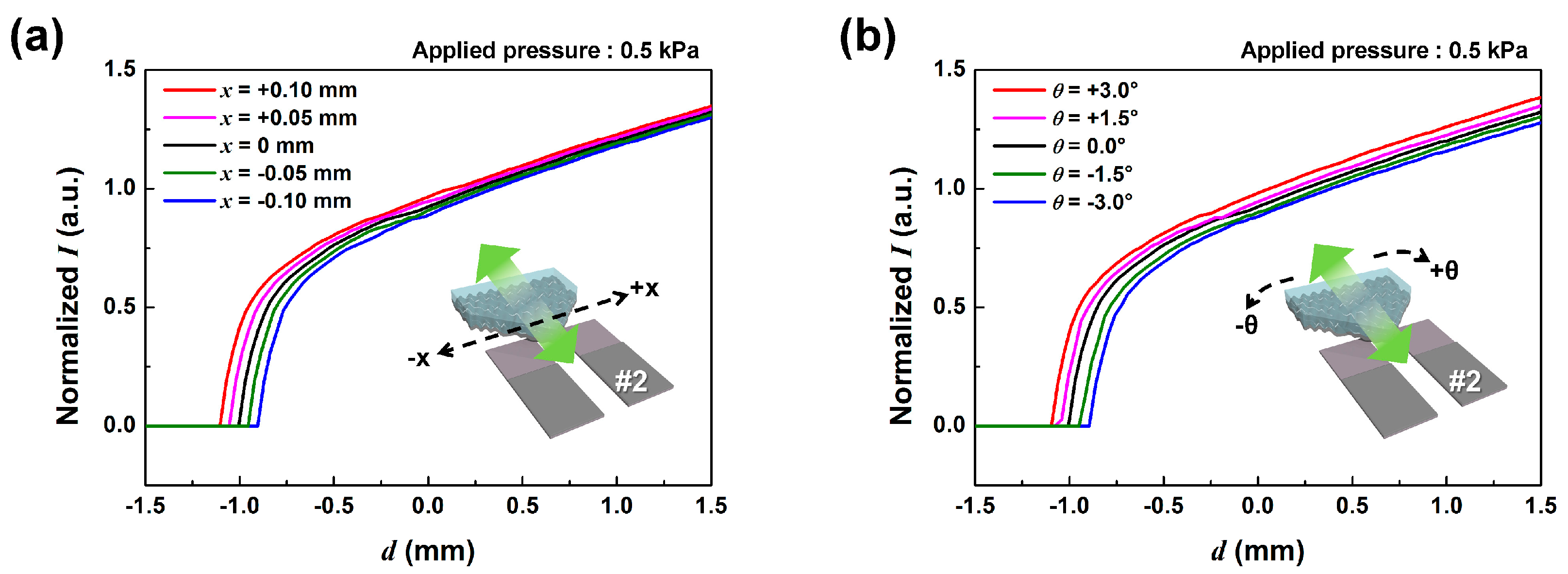

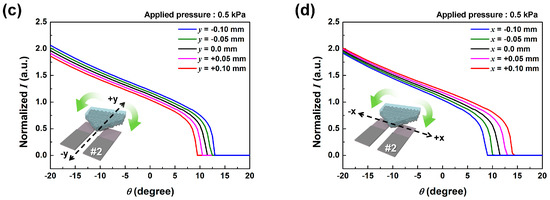

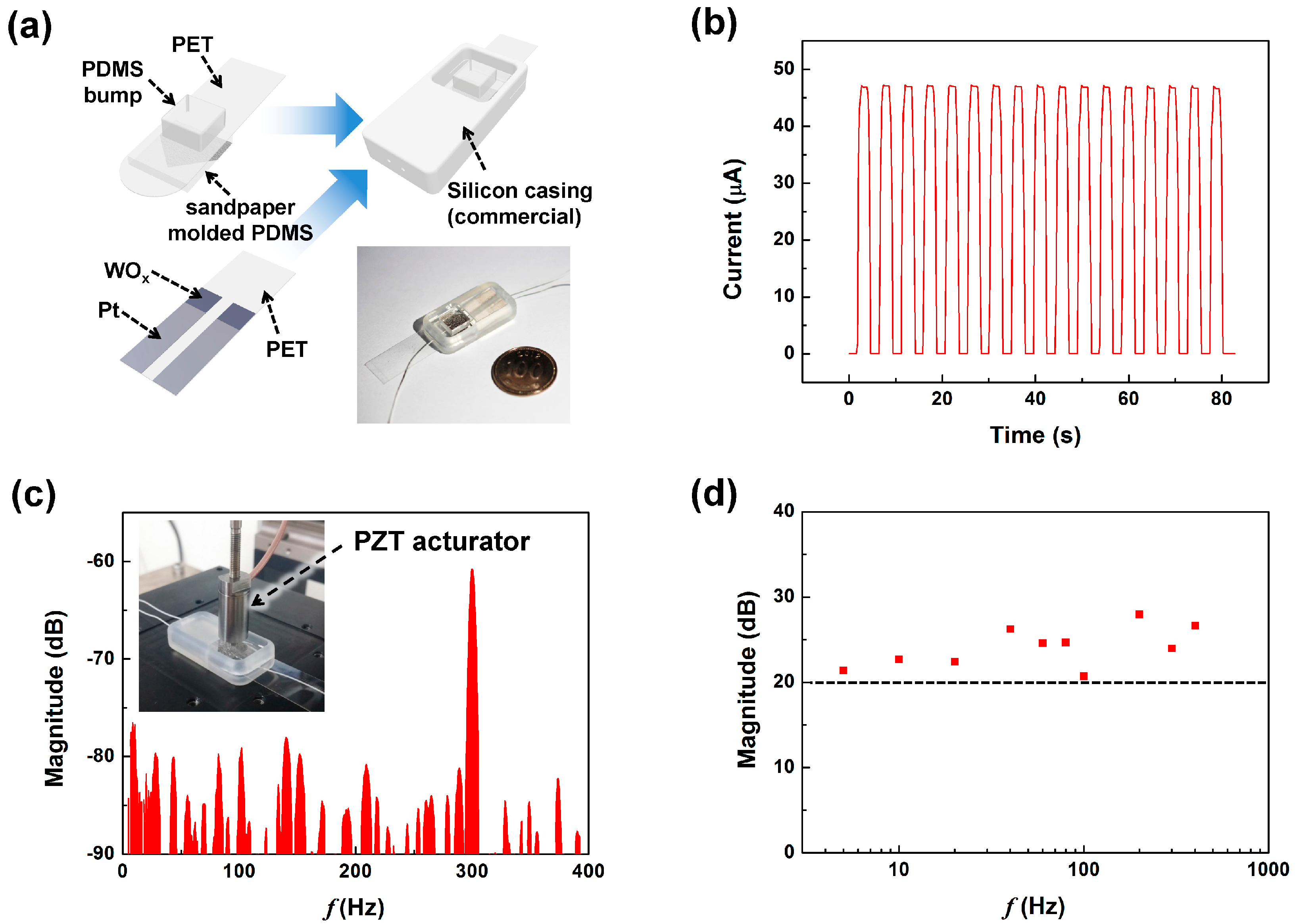

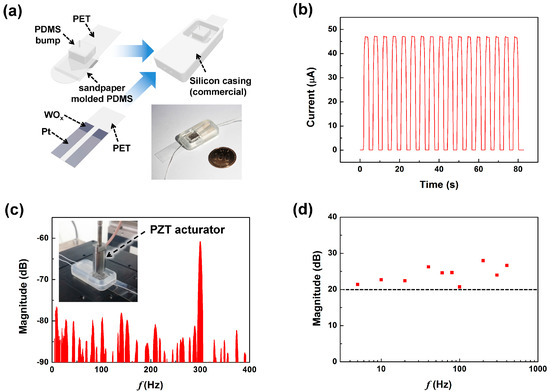

In this article, we report on a flexible sensor based on a sandpaper molded elastomer that simultaneously detects planar displacement, rotation angle, and vertical contact pressure. When displacement, rotation, and contact pressure are applied, the contact area between the translating top elastomer electrode and the stationary three bottom electrodes change characteristically depending on the movement, making it possible to distinguish between them. The sandpaper molded undulating surface of the elastomer reduces friction at the contact allowing the sensor not to affect the movement during measurement. The sensor showed a 0.25 mm−1 displacement sensitivity with a ±33 μm accuracy, a 0.027 degree−1 of rotation sensitivity with ~0.95 degree accuracy, and a 4.96 kP−1 of pressure sensitivity. For possible application to joint movement detection, we demonstrated that our sensor effectively detected the up-and-down motion of a human forefinger and the bending and straightening motion of a human arm. View Full-Text
Keywords: motion sensor; displacement sensor; rotation angle sensor; pressure sensor; sandpaper molded PDMS motion sensor; displacement sensor; rotation angle sensor; pressure sensor; sandpaper molded PDMS
Figures

Figure 1
