Open AccessArticle
Sensors 2017, 17(8), 1924; https://doi.org/10.3390/s17081924

Ultrasensitive Terahertz Biosensors Based on Fano Resonance of a Graphene/Waveguide Hybrid Structure

SZU-NUS Collaborative Innovation Center for Optoelectronic Science & Technology, Key Laboratory of Optoelectronic Devices and Systems of Ministry of Education and Guangdong Province, College of Optoelectronic Engineering, Shenzhen University, Shenzhen 518060, China
*
Author to whom correspondence should be addressed.
Received: 12 July 2017 / Revised: 12 August 2017 / Accepted: 18 August 2017 / Published: 21 August 2017
(This article belongs to the Special Issue Surface Plasmon Resonance Sensing)
View Full-Text   |   Download PDF [2833 KB, uploaded 23 August 2017]   |

Abstract

Graphene terahertz (THz) surface plasmons provide hope for developing functional devices in the THz frequency. By coupling graphene surface plasmon polaritons (SPPs) and a planar waveguide (PWG) mode, Fano resonances are demonstrated to realize an ultrasensitive terahertz biosensor. By analyzing the dispersion relation of graphene SPPs and PWG, the tunable Fano resonances in the terahertz frequency are discussed. It is found that the asymmetric lineshape of Fano resonances can be manipulated by changing the Fermi level of graphene, and the influence of the thickness of coupling layer and air layer in sandwich structure on the Fano resonances is also discussed in detail. We then apply the proposed Fano resonance to realize the ultrasensitive terahertz biosensors, it is shown that the highest sensitivities of 3260 RIU−1 are realized. Our result is two orders of a conventional surface plasmon resonance sensor. Furthermore, we find that when sensing medium is in the vicinity of water in THz, the sensitivity increases with increasing refractive index of the sensing medium. View Full-Text
Keywords: biosensor; Fano resonances; surface plasmon polaritons; graphene biosensor; Fano resonances; surface plasmon polaritons; graphene
Figures

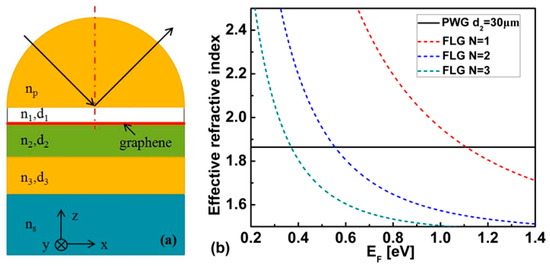

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ruan, B.; Guo, J.; Wu, L.; Zhu, J.; You, Q.; Dai, X.; Xiang, Y. Ultrasensitive Terahertz Biosensors Based on Fano Resonance of a Graphene/Waveguide Hybrid Structure. Sensors 2017, 17, 1924.
