Sensors 2017, 17(8), 1715; doi:10.3390/s17081715

Pulsed Polarization-Based NOx Sensors of YSZ Films Produced by the Aerosol Deposition Method and by Screen-Printing

Department of Functional Materials, University of Bayreuth, Universitätsstraße 30, 95440 Bayreuth, Germany
*
Author to whom correspondence should be addressed.
Received: 3 July 2017 / Revised: 20 July 2017 / Accepted: 22 July 2017 / Published: 26 July 2017
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [7496 KB, uploaded 26 July 2017]   |

Abstract

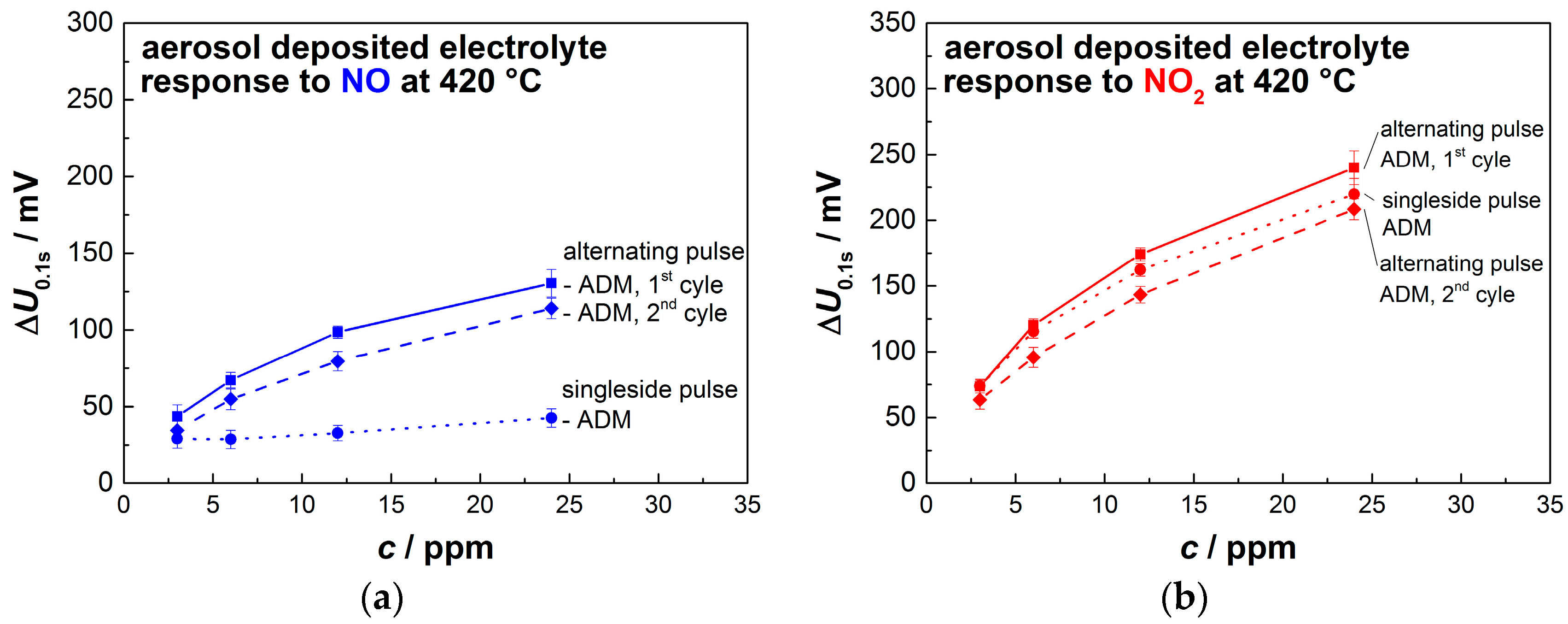

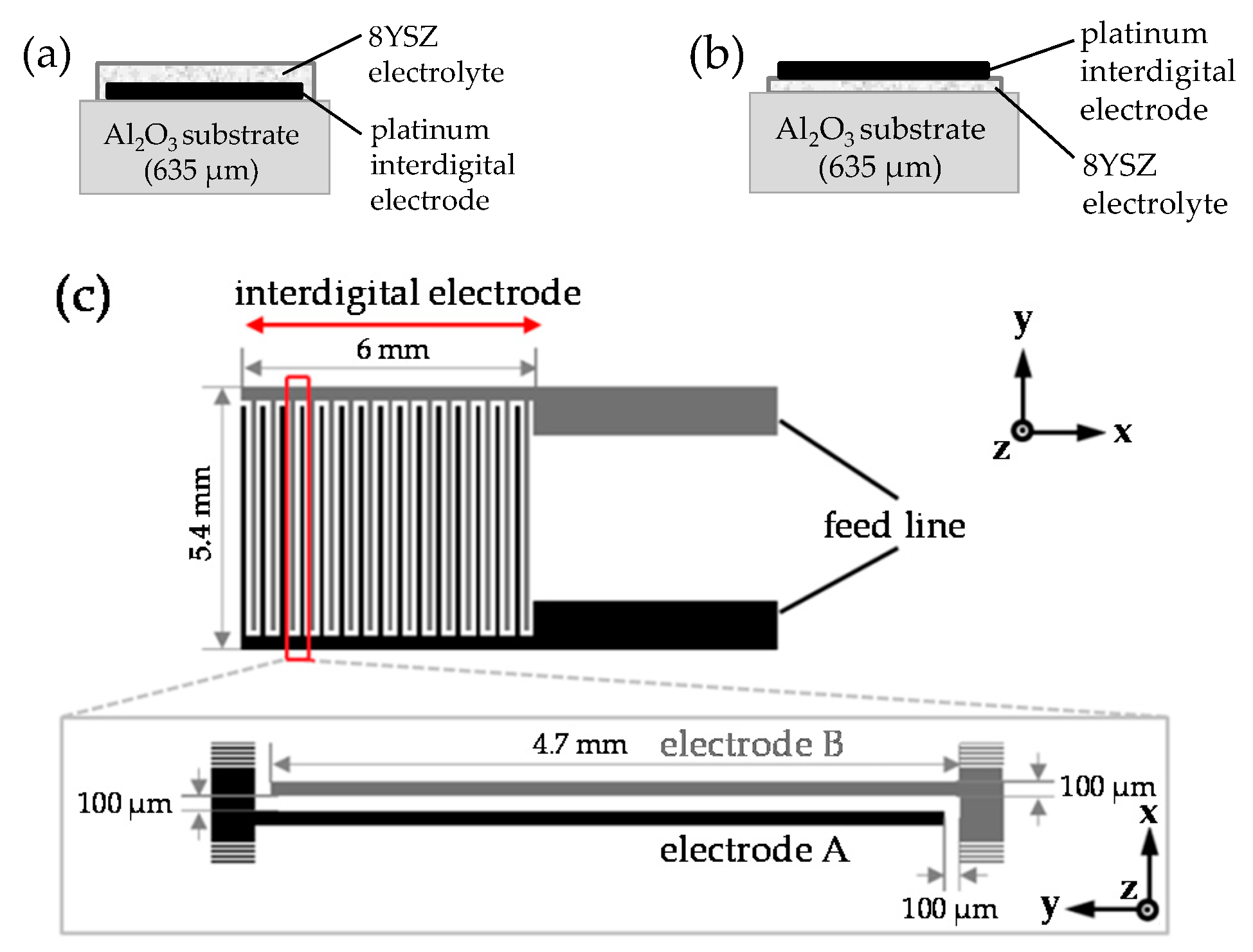

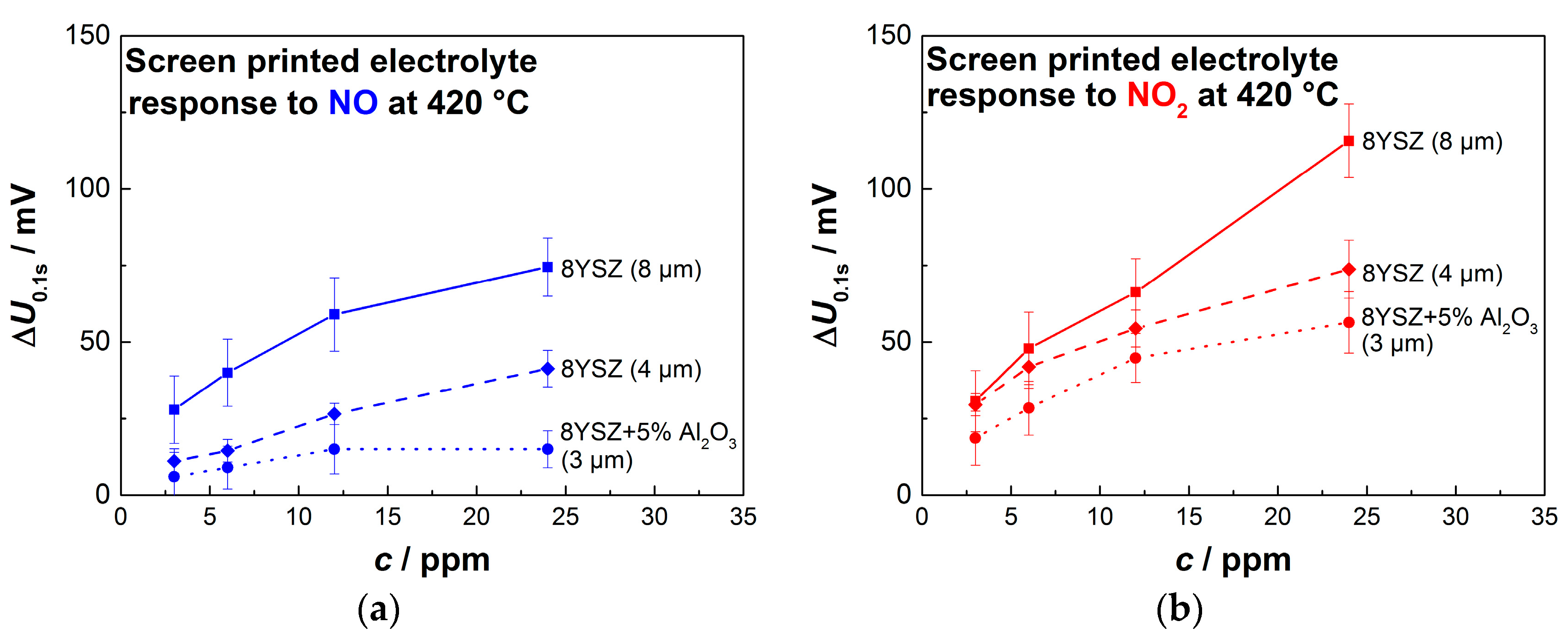

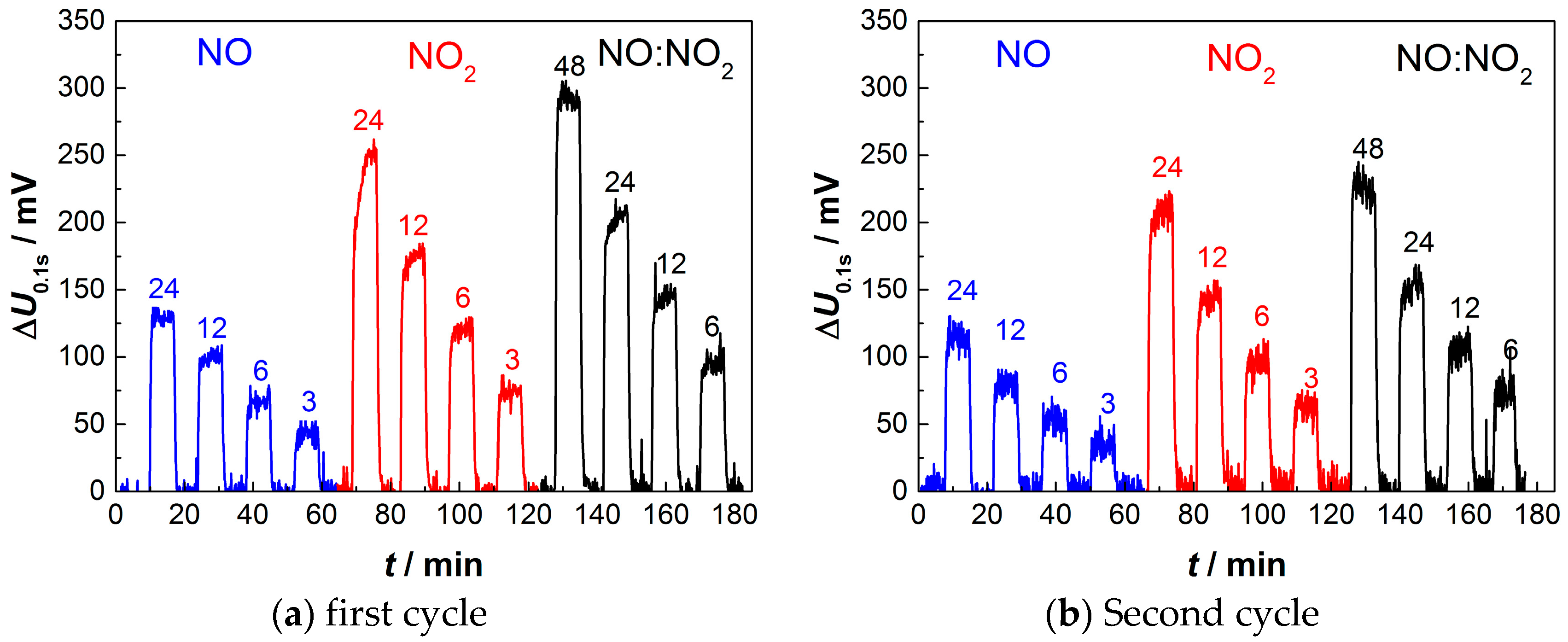

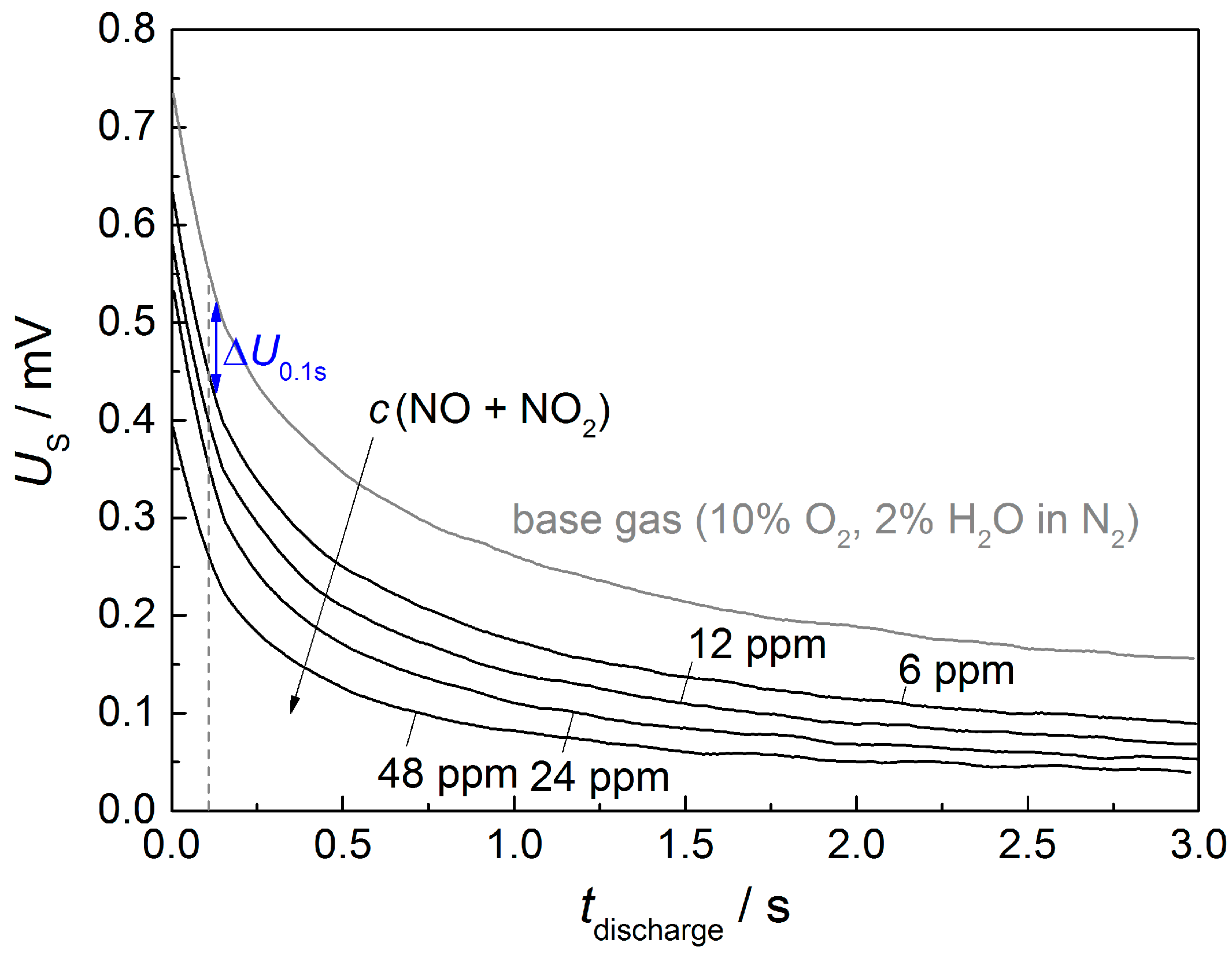

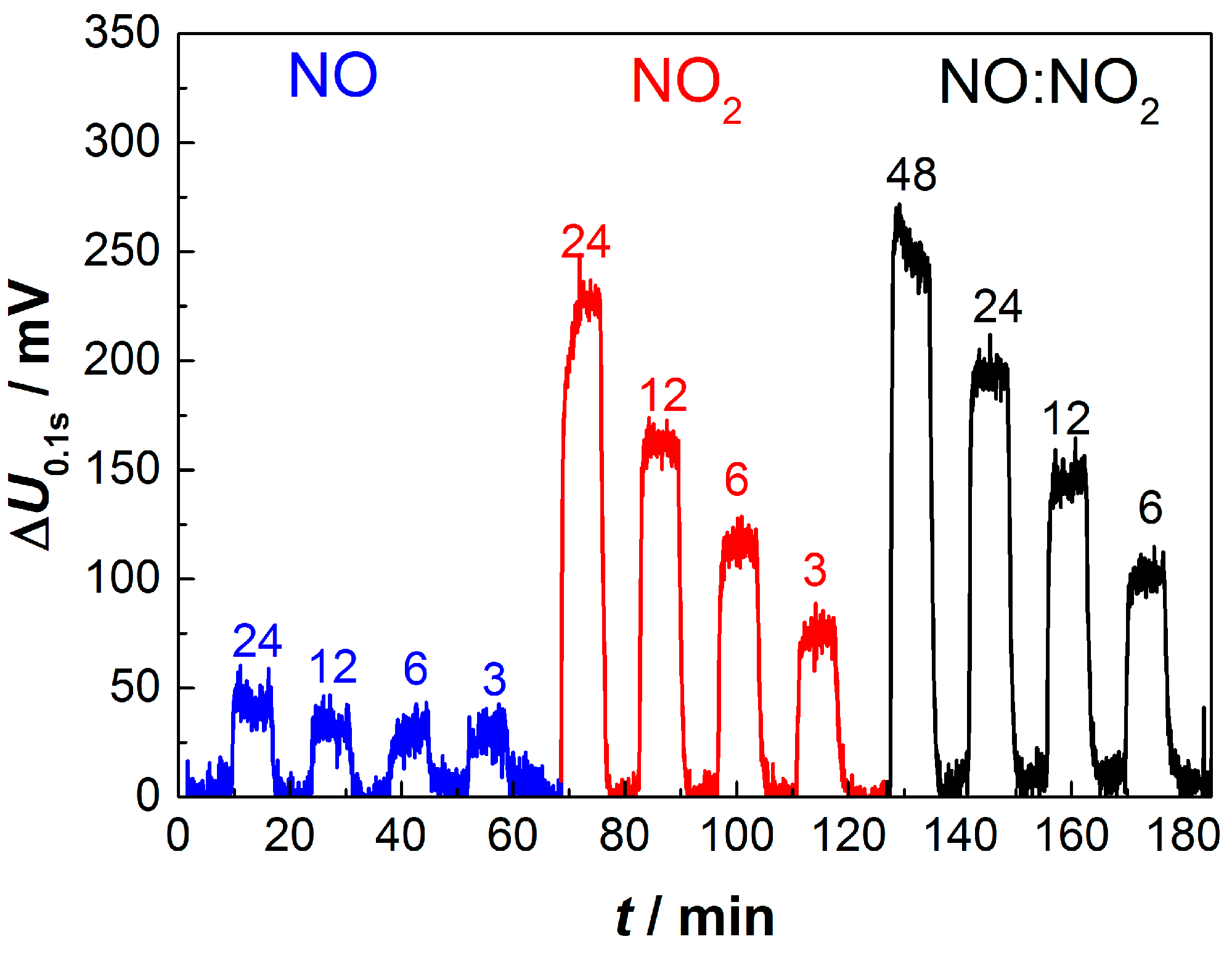

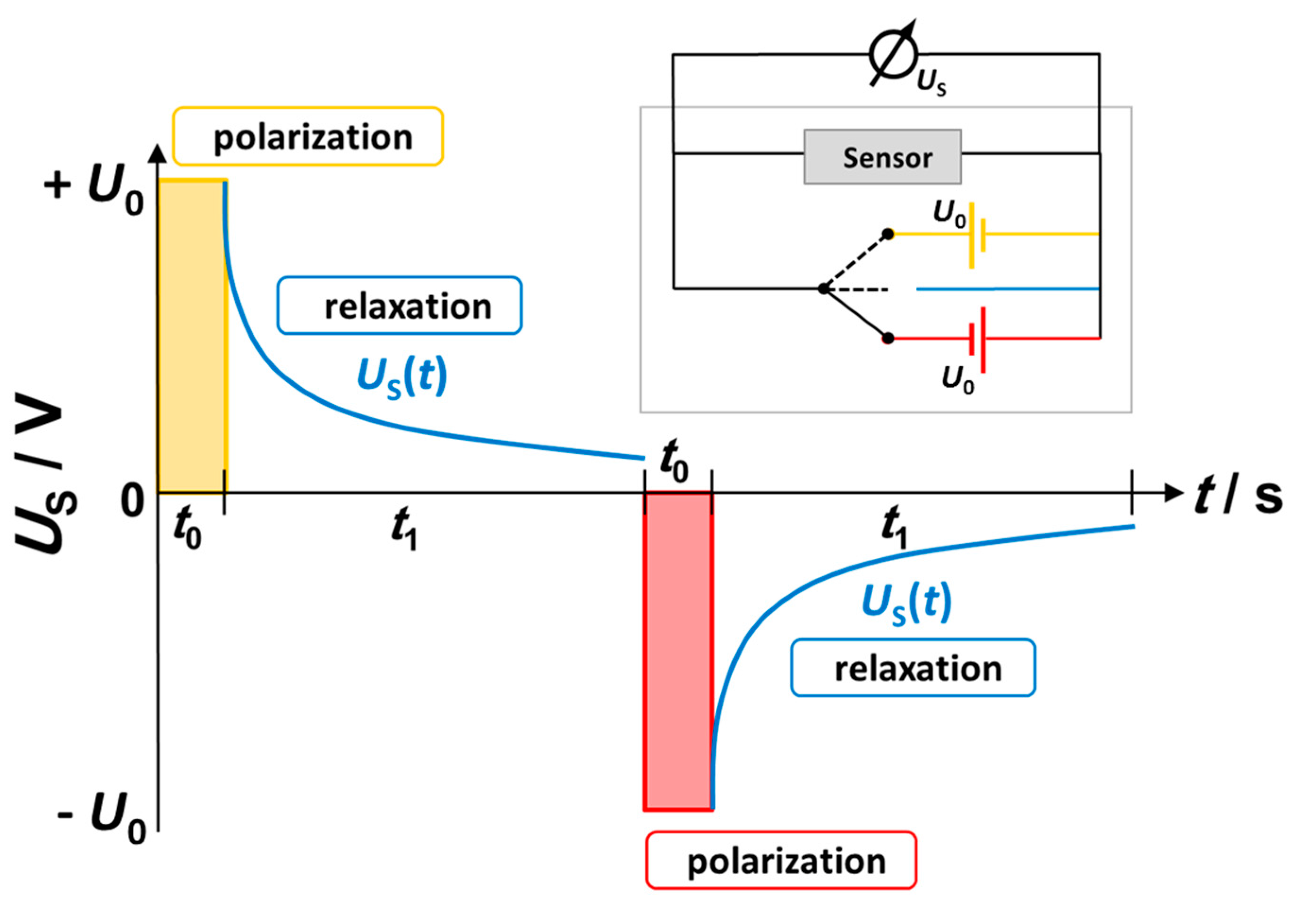

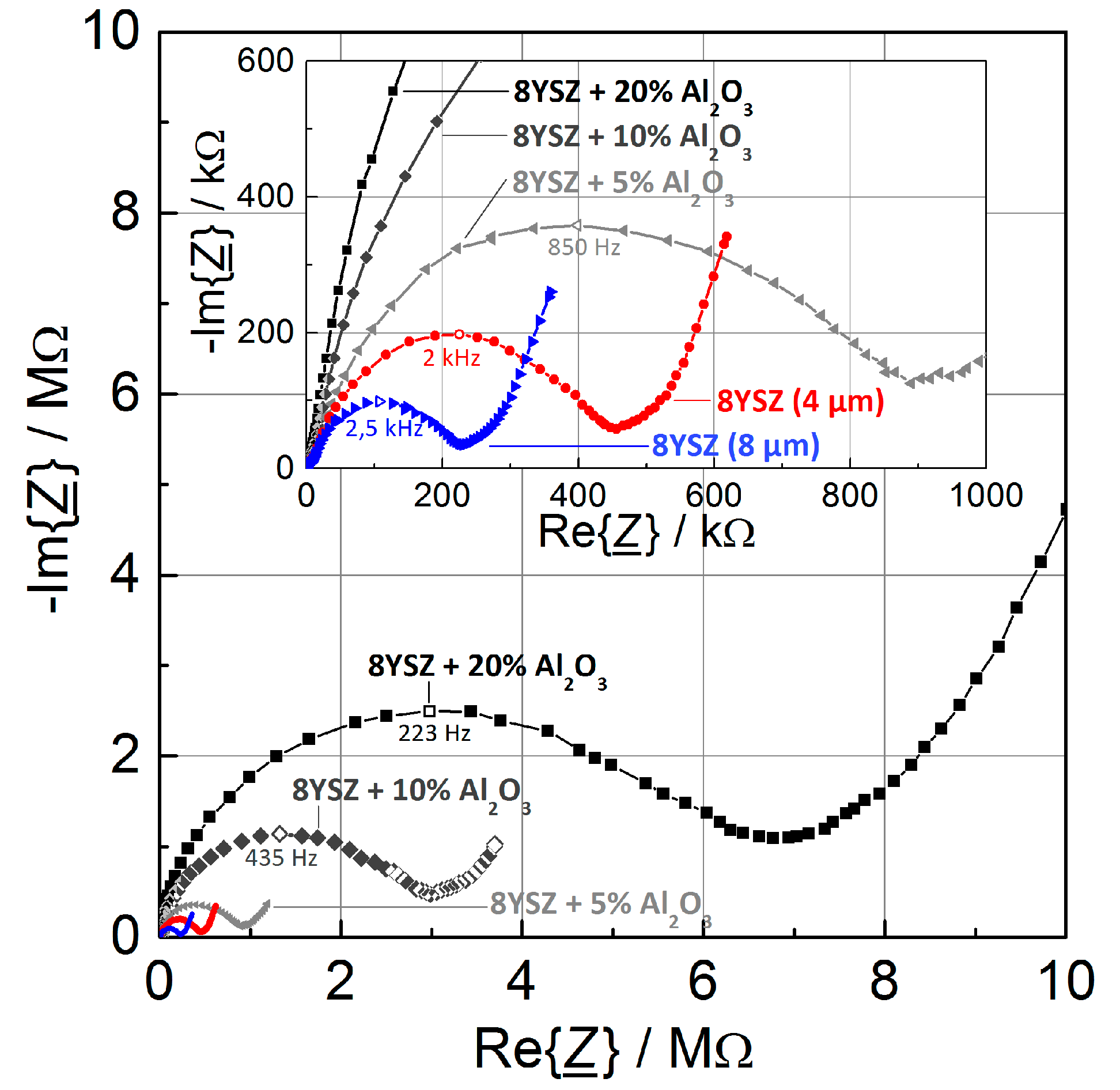

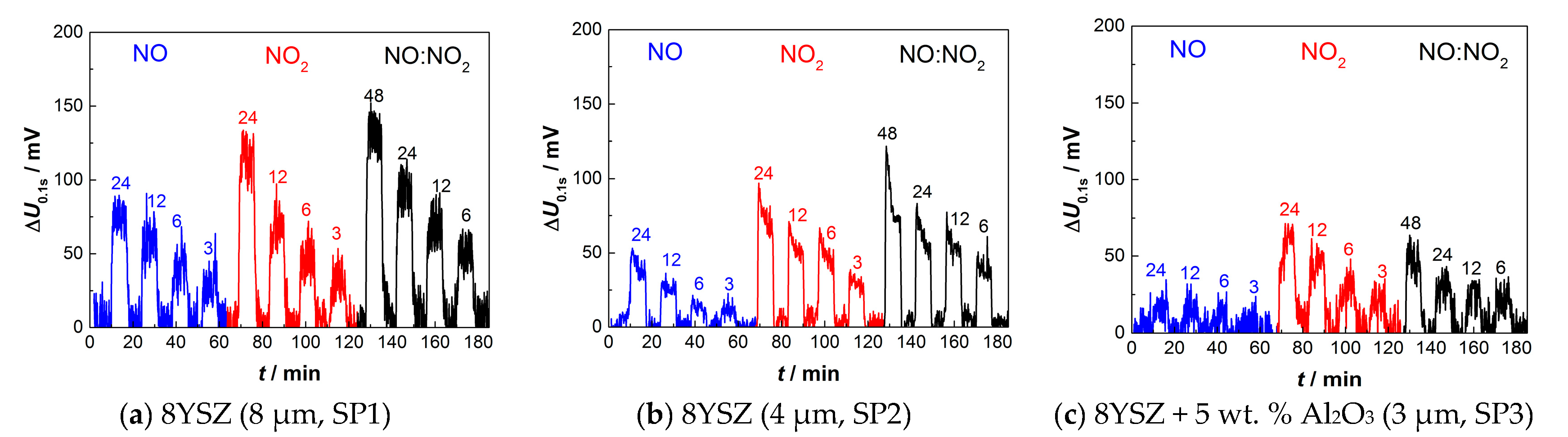

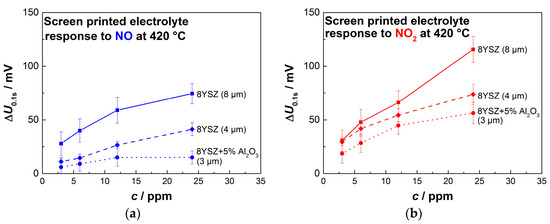

The pulsed polarization technique on solid electrolytes is based on alternating potential pulses interrupted by self-discharge pauses. Since even small concentrations of nitrogen oxides (NOx) in the ppm range significantly change the polarization and discharge behavior, pulsed polarization sensors are well suited to measure low amounts of NOx. In contrast to all previous investigations, planar pulsed polarization sensors were built using an electrolyte thick film and platinum interdigital electrodes on alumina substrates. Two different sensor layouts were investigated, the first with buried Pt electrodes under the electrolyte and the second one with conventional overlying Pt electrodes. Electrolyte thick films were either formed by aerosol deposition or by screen-printing, therefore exhibiting a dense or porous microstructure, respectively. For screen-printed electrolytes, the influence of the electrolyte resistance on the NOx sensing ability was investigated as well. Sensors with buried electrodes showed little to no response even at higher NOx concentrations, in good agreement with the intended sensor mechanism. Electrolyte films with overlying electrodes, however, allowed the quantitative detection of NOx. In particular, aerosol deposited electrolytes exhibited high sensitivities with a sensor output signal ΔU of 50 mV and 75 mV for 3 ppm of NO and NO2, respectively. For screen-printed electrolytes, a clear trend indicated a decrease in sensitivity with increased electrolyte resistance. View Full-Text
Keywords: Pt|YSZ system; automotive exhaust gas sensor (on-board diagnostics; OBD); aerosol deposition method (ADM); room temperature impact consolidation (RTIC); vacuum kinetic spraying Pt|YSZ system; automotive exhaust gas sensor (on-board diagnostics; OBD); aerosol deposition method (ADM); room temperature impact consolidation (RTIC); vacuum kinetic spraying
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
