Open AccessArticle
Sensors 2017, 17(4), 891; doi:10.3390/s17040891

Fast Bragg Grating Inscription in PMMA Polymer Optical Fibres: Impact of Thermal Pre-Treatment of Preforms

1
Instituto de Telecomunicações and Physics Department & I3N, Universidade de Aveiro, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
2
Aston Institute of Photonic Technologies, Aston University, Aston Triangle, B4 7ET Birmingham, UK
3
Department of Polymer Chemistry, Maria Curie-Sklodowska University, 20-031 Lublin, Poland
4
Laboratory of Optical Fibre Technology, Maria Curie-Sklodowska University, 20-031 Lublin, Poland
5
Department of Photonics Engineering, Technical University of Denmark, DK-2800 Kgs. Lyngby, Denmark
6
Instituto de Telecomunicações and Department of Electrical and Computer Engineering, Instituto Superior Técnico, University of Lisbon, 1049-001 Lisbon, Portugal
*
Author to whom correspondence should be addressed.
Received: 7 March 2017 / Revised: 1 April 2017 / Accepted: 8 April 2017 / Published: 18 April 2017
View Full-Text   |   Download PDF [1198 KB, uploaded 21 April 2017]   |

Abstract

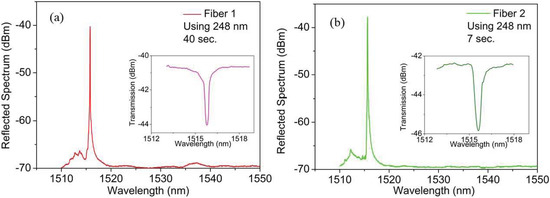

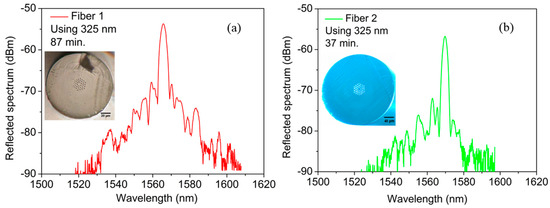

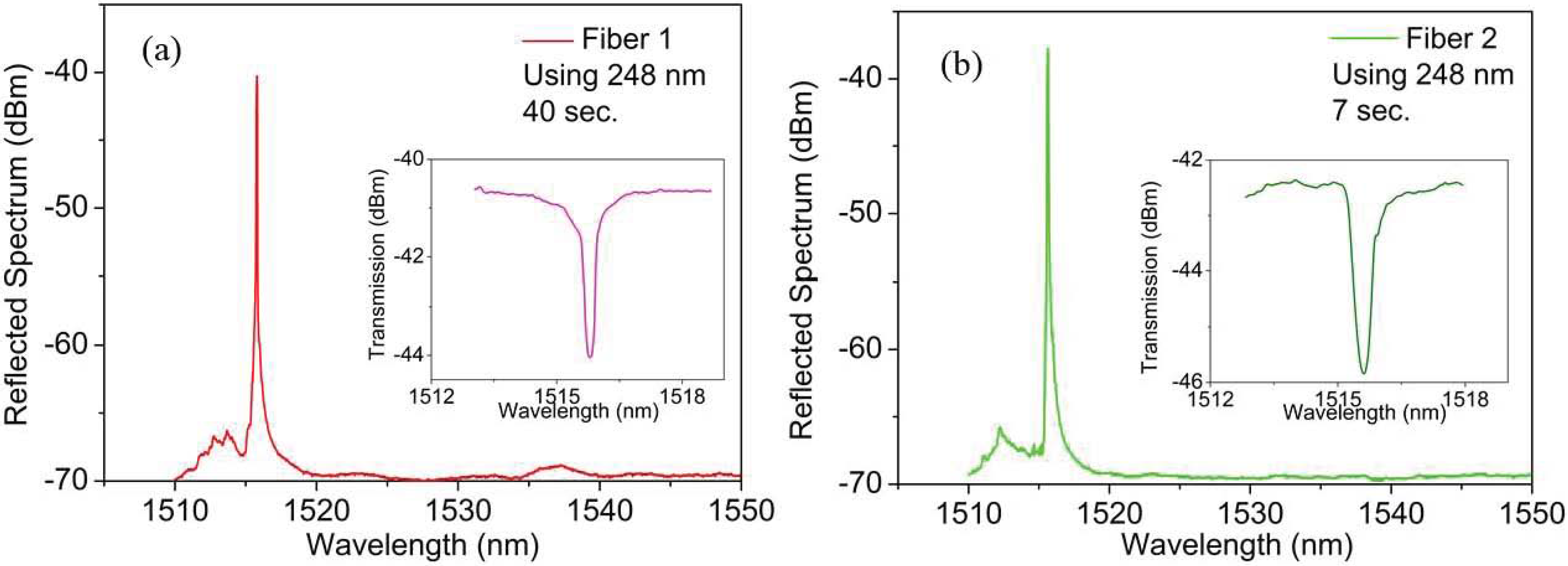

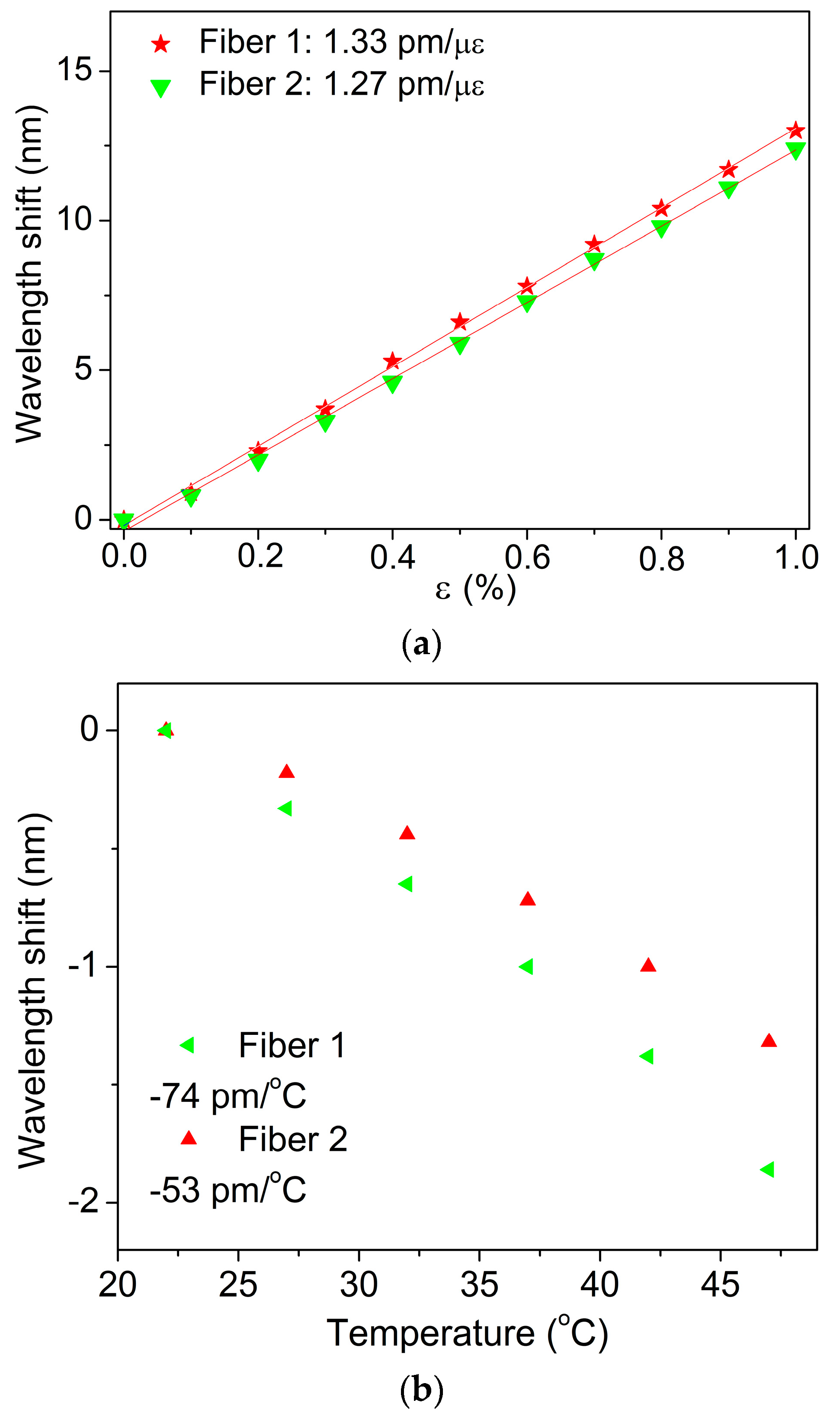

In this work, fibre Bragg gratings (FBGs) were inscribed in two different undoped poly- (methyl methacrylate) (PMMA) polymer optical fibres (POFs) using different types of UV lasers and their inscription times, temperature and strain sensitivities are investigated. The POF Bragg gratings (POFBGs) were inscribed using two UV lasers: a continuous UV HeCd @325 nm laser and a pulsed UV KrF @248 nm laser. Two PMMA POFs are used in which the primary and secondary preforms (during the two-step drawing process) have a different thermal treatment. The PMMA POFs drawn in which the primary or secondary preform is not specifically pre-treated need longer inscription time than the fibres drawn where both preforms have been pre-annealed at 80 °C for 2 weeks. Using both UV lasers, for the latter fibre much less inscription time is needed compared to another homemade POF. The properties of a POF fabricated with both preforms thermally well annealed are different from those in which just one preform step process is thermally treated, with the first POFs being much less sensitive to thermal treatment. The influence of annealing on the strain and temperature sensitivities of the fibres prior to FBG inscription is also discussed, where it is observed that the fibre produced from a two-step drawing process with well-defined pre-annealing of both preforms did not produce any significant difference in sensitivity. The results indicate the impact of preform thermal pre-treatment before the PMMA POFs drawing, which can be an essential characteristic in the view of developing POF sensors technology. View Full-Text
Keywords: polymer optical fiber; annealing process; Bragg gratings; preform treatment; POF sensors polymer optical fiber; annealing process; Bragg gratings; preform treatment; POF sensors
Figures

Figure 1
