Open AccessArticle
Sensors 2017, 17(4), 892; doi:10.3390/s17040892

Microfluidic EBG Sensor Based on Phase-Shift Method Realized Using 3D Printing Technology

BioSense Institute—Research Institute for Information Technologies in Biosystems, Dr Zorana Đinđića 1a, 21000 Novi Sad, Serbia
*
Author to whom correspondence should be addressed.
Received: 14 February 2017 / Revised: 11 April 2017 / Accepted: 17 April 2017 / Published: 18 April 2017
(This article belongs to the Special Issue 3D Printed Sensors)
View Full-Text   |   Download PDF [11769 KB, uploaded 19 April 2017]   |

Abstract

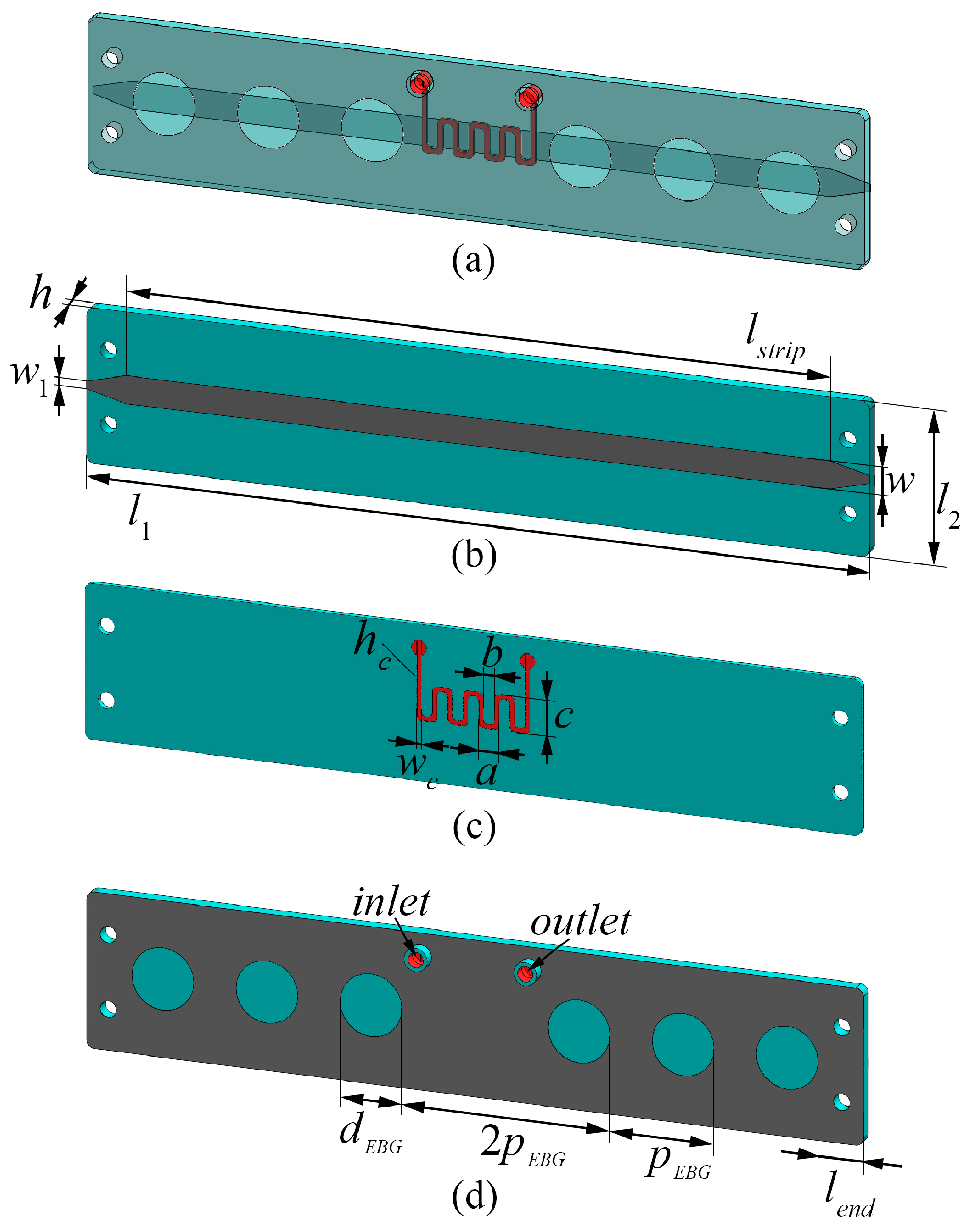

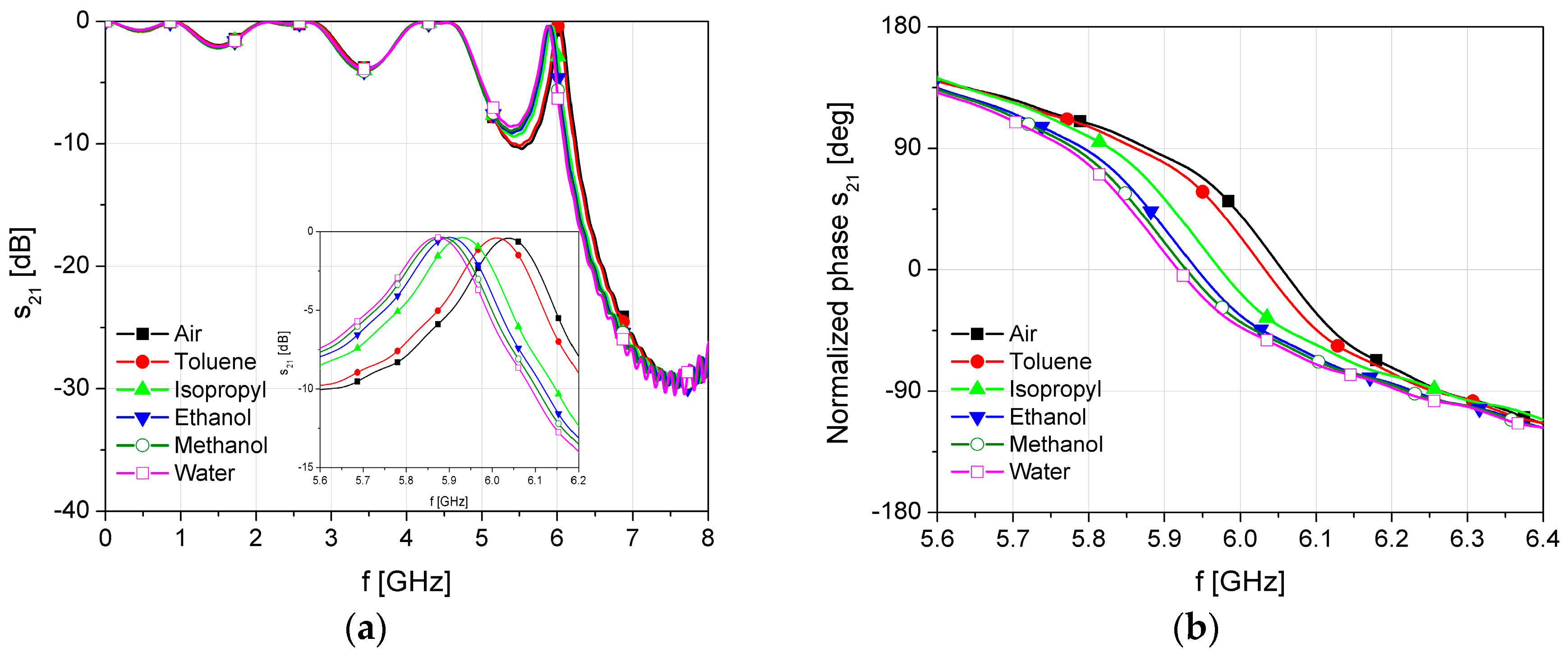

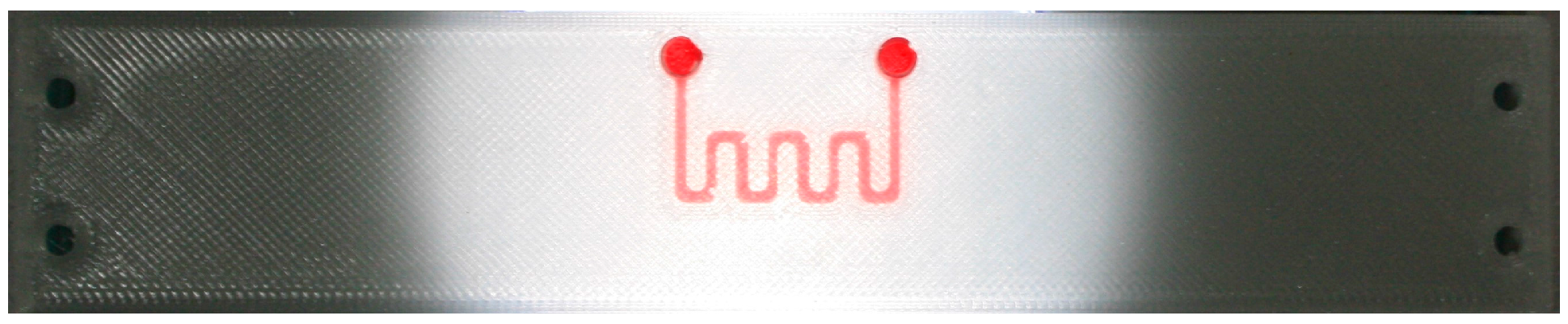

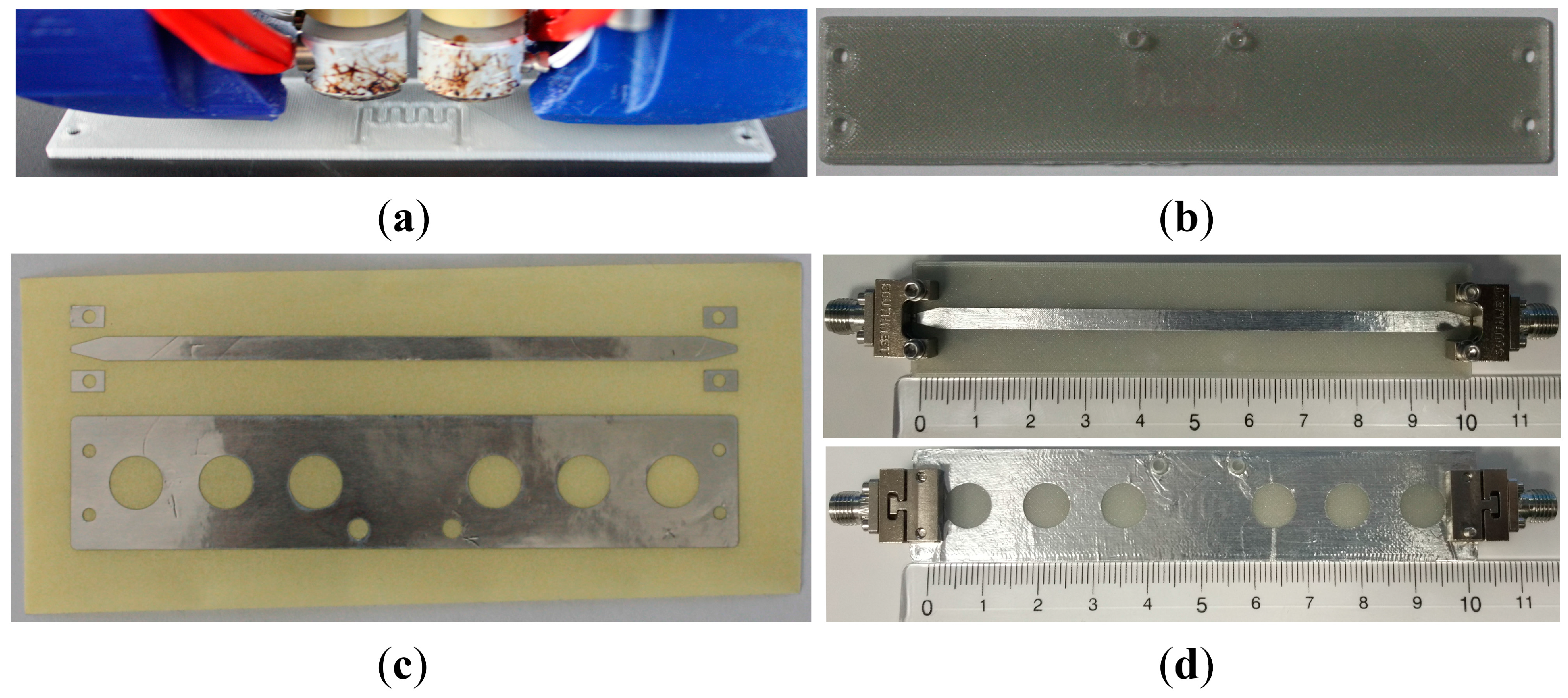

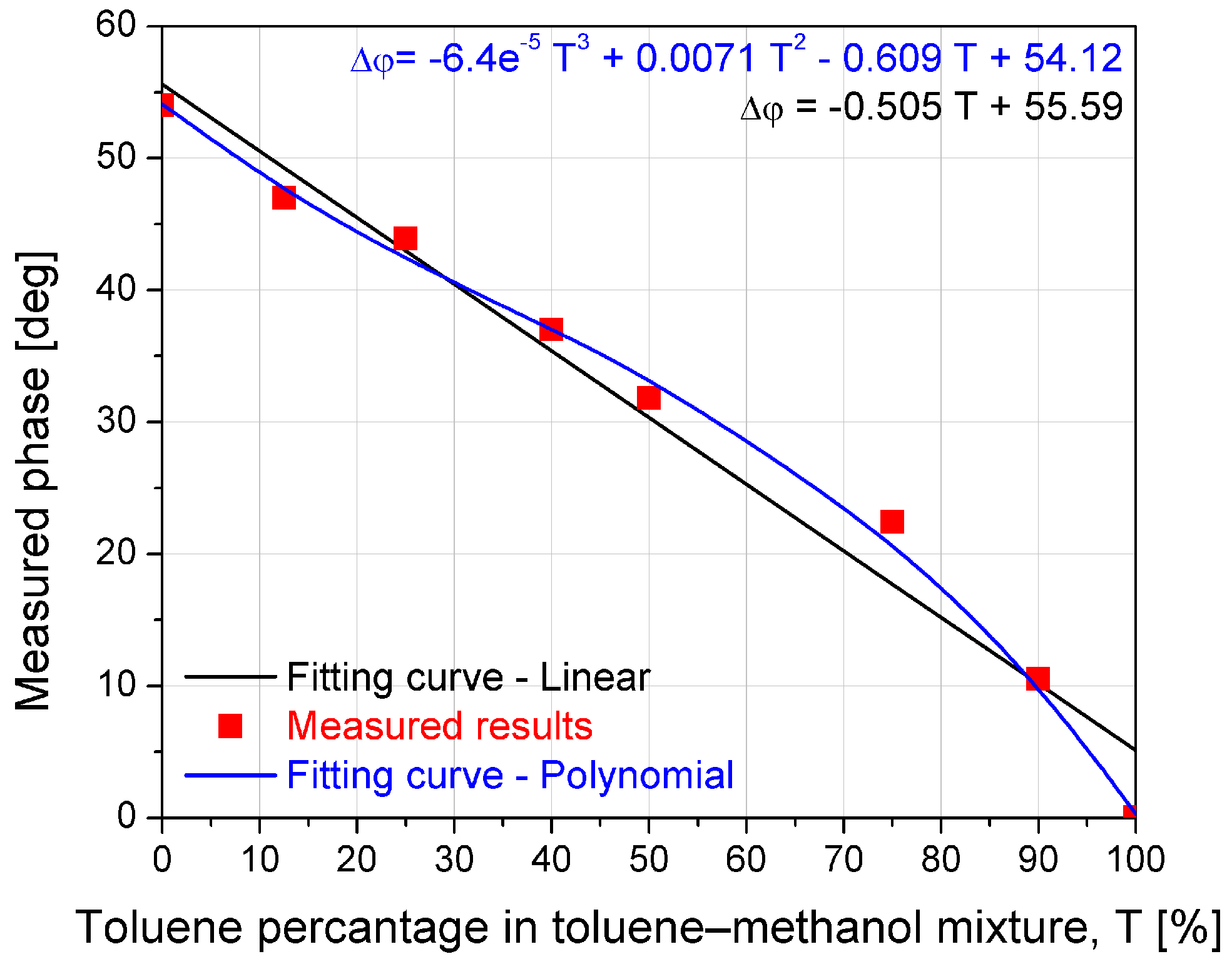

In this article, we propose a novel microfluidic microstrip electromagnetic band gap (EBG) sensor realized using cost-effective 3D printing technology. Microstrip sensor allows monitoring of the fluid properties flowing in the microchannel embedded between the microstrip line and ground plane. The sensor’s operating principle is based on the phase-shift method, which allows the characterization at a single operating frequency of 6 GHz. The defected electromagnetic band gap (EBG) structure is realized as a pattern in the microstrip ground plane to improve sensor sensitivity. The designed microfluidic channel is fabricated using a fused deposition modelling (FDM) 3D printing process without additional supporting layers, while the conductive layers are realized using sticky aluminium tape. The measurement results show that the change of permittivity of the fluid in the microfluidic channel from 1 to 80 results in the phase-shift difference of almost 90°. The potential application is demonstrated through the implementation of a proposed sensor for the detection of toluene concentration in toluene–methanol mixture where various concentrations of toluene were analysed. View Full-Text
Keywords: microstrip sensor; electromagnetic band gap (EBG); microfluidics; 3D printing; fused deposition modelling (FDM); phase-shift method microstrip sensor; electromagnetic band gap (EBG); microfluidics; 3D printing; fused deposition modelling (FDM); phase-shift method
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
