Sensors 2017, 17(3), 515; doi:10.3390/s17030515

A Fast Algorithm for 2D DOA Estimation Using an Omnidirectional Sensor Array

1
School of Information Science and Technology, Northwest University, Xi’an 710127, China
2
School of Electro-Mechanical Engineering, Xidian University, Xi’an 710071, China
3
National Laboratory of Radar Signal Processing, Xidian University, Xi’an 710071, China
4
Department of Computer Science, New Jersey Institute of Technology, Newark, NJ 07102, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M.N. Passaro
Received: 15 December 2016 / Revised: 25 February 2017 / Accepted: 28 February 2017 / Published: 4 March 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2592 KB, uploaded 6 March 2017]   |

Abstract

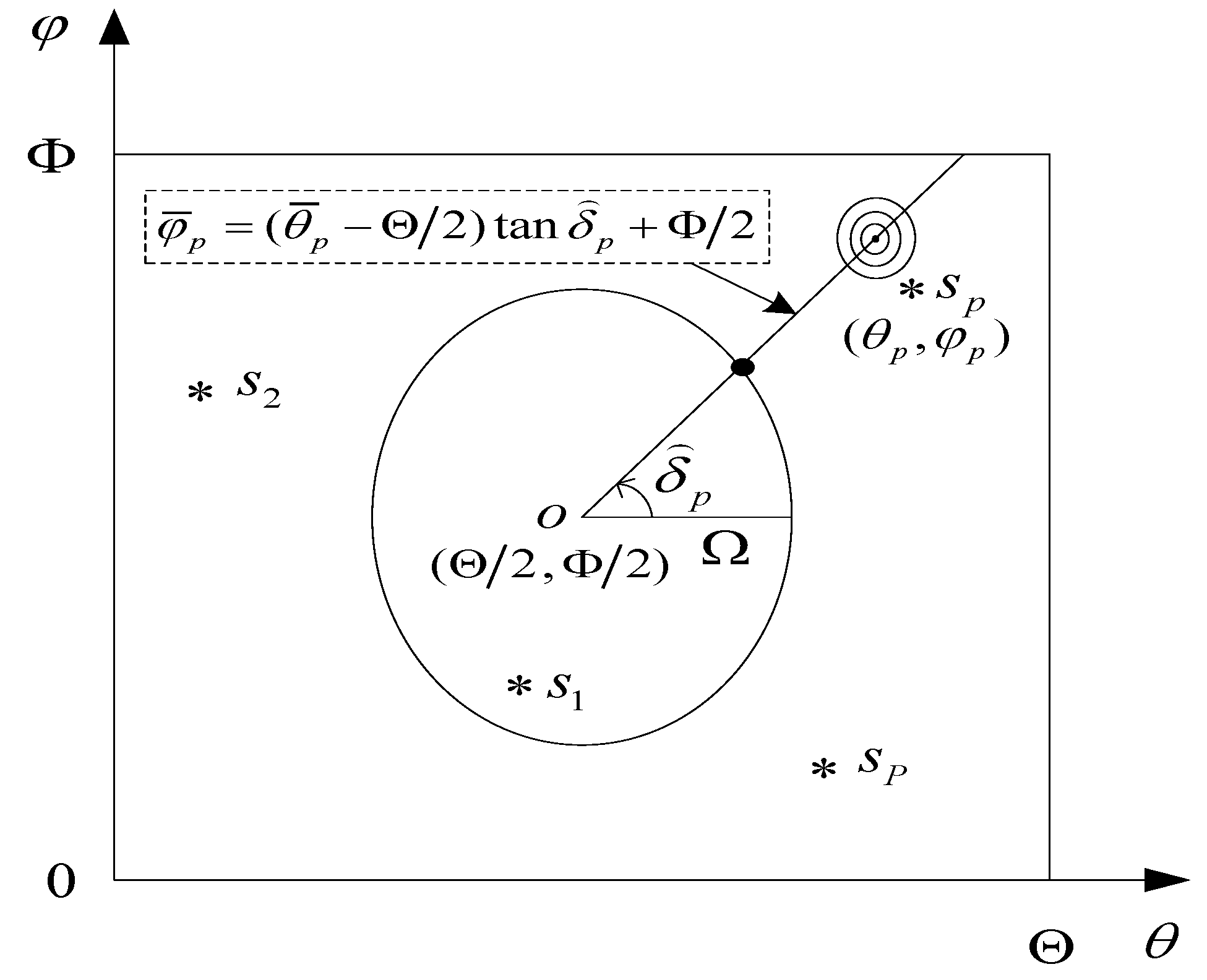

The traditional 2D MUSIC algorithm fixes the azimuth or the elevation, and searches for the other without considering the directions of sources. A spectrum peak diffusion effect phenomenon is observed and may be utilized to detect the approximate directions of sources. Accordingly, a fast 2D MUSIC algorithm, which performs azimuth and elevation simultaneous searches (henceforth referred to as AESS) based on only three rounds of search is proposed. Firstly, AESS searches along a circle to detect the approximate source directions. Then, a subsequent search is launched along several straight lines based on these approximate directions. Finally, the 2D Direction of Arrival (DOA) of each source is derived by searching on several small concentric circles. Unlike the 2D MUSIC algorithm, AESS does not fix any azimuth and elevation parameters. Instead, the adjacent point of each search possesses different azimuth and elevation, i.e., azimuth and elevation are simultaneously searched to ensure that the search path is minimized, and hence the total spectral search over the angular field of view is avoided. Simulation results demonstrate the performance characters of the proposed AESS over some existing algorithms. View Full-Text
Keywords: sensor array; fast algorithm; spectrum peak diffusion effect; Direction of Arrival estimation; 2D MUSIC sensor array; fast algorithm; spectrum peak diffusion effect; Direction of Arrival estimation; 2D MUSIC
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Nie, W.; Xu, K.; Feng, D.; Wu, C.Q.; Hou, A.; Yin, X. A Fast Algorithm for 2D DOA Estimation Using an Omnidirectional Sensor Array. Sensors 2017, 17, 515.
