Open AccessArticle
Sensors 2017, 17(12), 2916; https://doi.org/10.3390/s17122916

Fault Diagnosis of Internal Combustion Engine Valve Clearance Using the Impact Commencement Detection Method

Diagnosis and Self-Recovering Engineering Research Center, Beijing University of Chemical Technology, Beijing 100029, China
*
Author to whom correspondence should be addressed.
Received: 8 November 2017 / Revised: 1 December 2017 / Accepted: 11 December 2017 / Published: 15 December 2017
(This article belongs to the Special Issue Sensors for Fault Detection)
View Full-Text   |   Download PDF [8076 KB, uploaded 15 December 2017]   |

Abstract

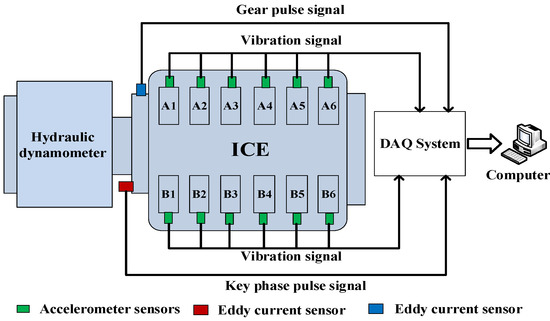

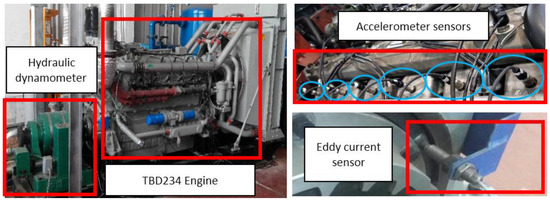

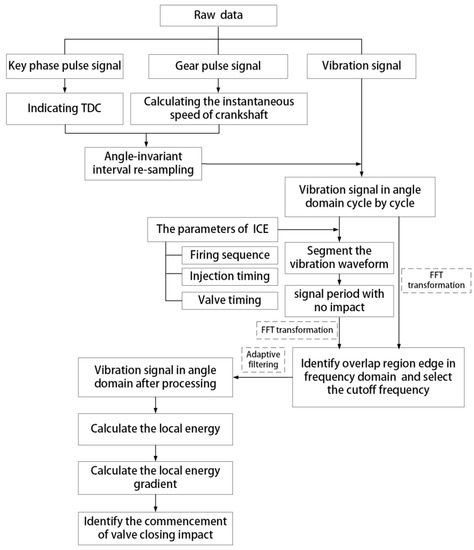

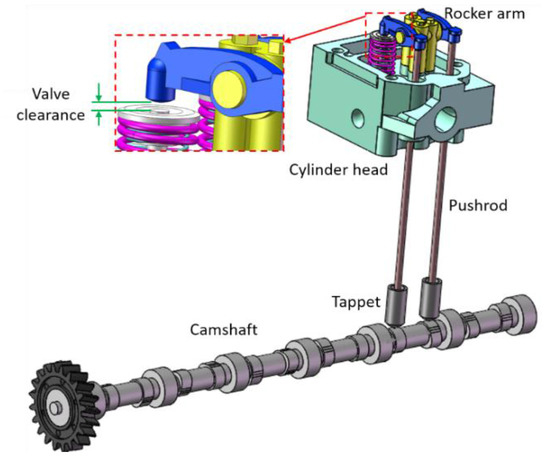

Internal combustion engines (ICEs) are widely used in many important fields. The valve train clearance of an ICE usually exceeds the normal value due to wear or faulty adjustment. This work aims at diagnosing the valve clearance fault based on the vibration signals measured on the engine cylinder heads. The non-stationarity of the ICE operating condition makes it difficult to obtain the nominal baseline, which is always an awkward problem for fault diagnosis. This paper overcomes the problem by inspecting the timing of valve closing impacts, of which the referenced baseline can be obtained by referencing design parameters rather than extraction during healthy conditions. To accurately detect the timing of valve closing impact from vibration signals, we carry out a new method to detect and extract the commencement of the impacts. The results of experiments conducted on a twelve-cylinder ICE test rig show that the approach is capable of extracting the commencement of valve closing impact accurately and using only one feature can give a superior monitoring of valve clearance. With the help of this technique, the valve clearance fault becomes detectable even without the comparison to the baseline, and the changing trend of the clearance could be trackable. View Full-Text
Keywords: valve clearance fault diagnosis; internal combustion engine; vibration signal processing; condition monitoring valve clearance fault diagnosis; internal combustion engine; vibration signal processing; condition monitoring
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
