Development of Gentle Slope Light Guide Structure in a 3.4 μm Pixel Pitch Global Shutter CMOS Image Sensor with Multiple Accumulation Shutter Technology

Canon Inc., 70-1, Yanagi-cho, Saiwai-ku, Kawasaki-shi, Kanagawa 212-8602, Japan
This paper is an extended version of our paper published in Sekine, H.; Kobayashi, M.; Onuki, Y.; Kawabata, K.; Tsuboi, T.; Matsuno, Y.; Takahashi, H.; Inoue, S.; Ichikawa, T. A High Optical Performance 3.4 μm Pixel Pitch Global Shutter CMOS Image Sensor with Light Guide Structure. In Proceedings of the 2017 International Image Sensor Workshop (IISW), Hiroshima, Japan, 30 May–2 June 2017.
*
Author to whom correspondence should be addressed.
Received: 31 October 2017 / Revised: 4 December 2017 / Accepted: 6 December 2017 / Published: 9 December 2017
(This article belongs to the Special Issue Special Issue on the 2017 International Image Sensor Workshop (IISW))
View Full-Text   |   Download PDF [7381 KB, uploaded 9 December 2017]   |

Abstract

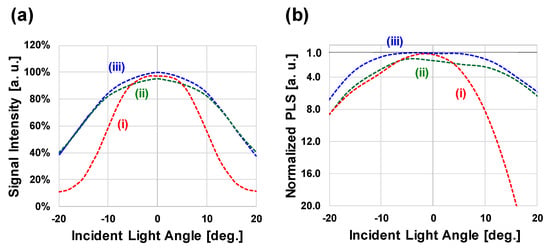

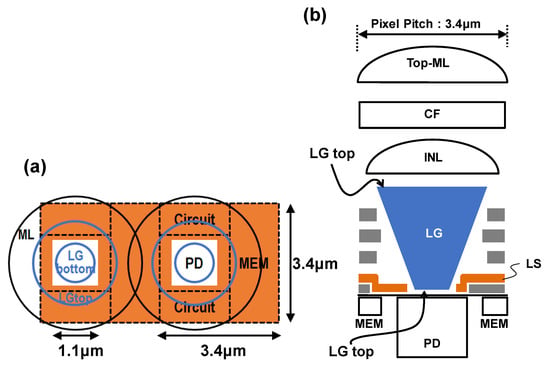

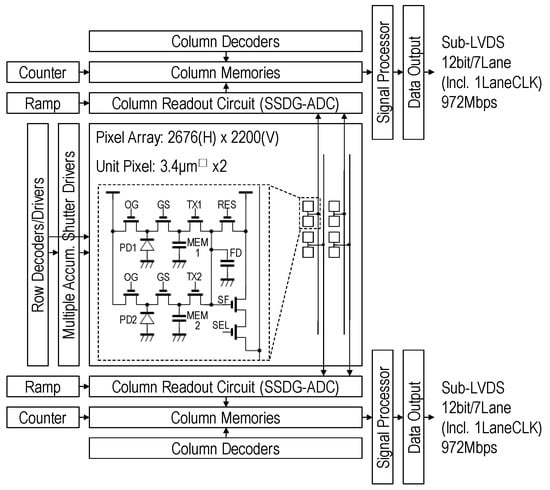

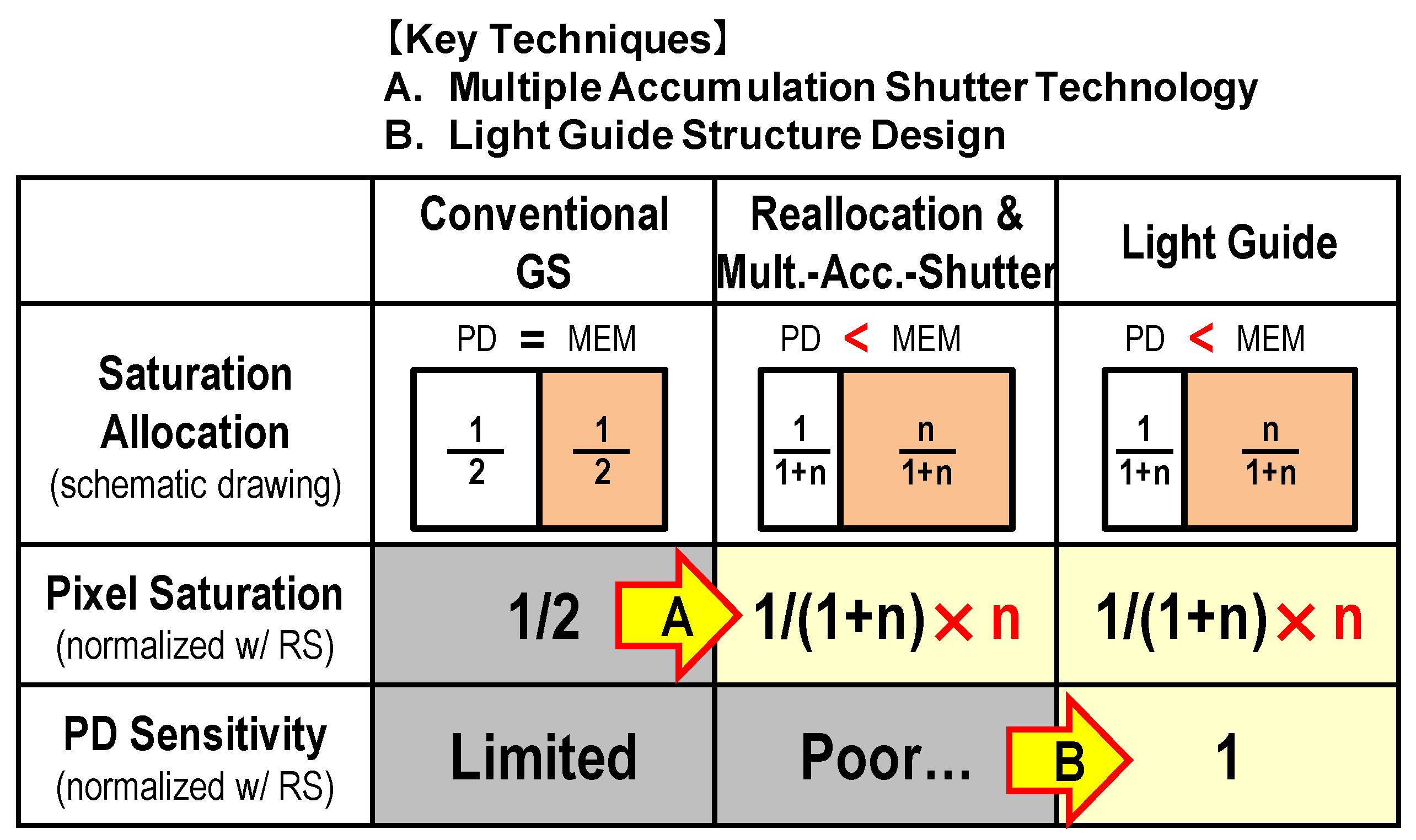

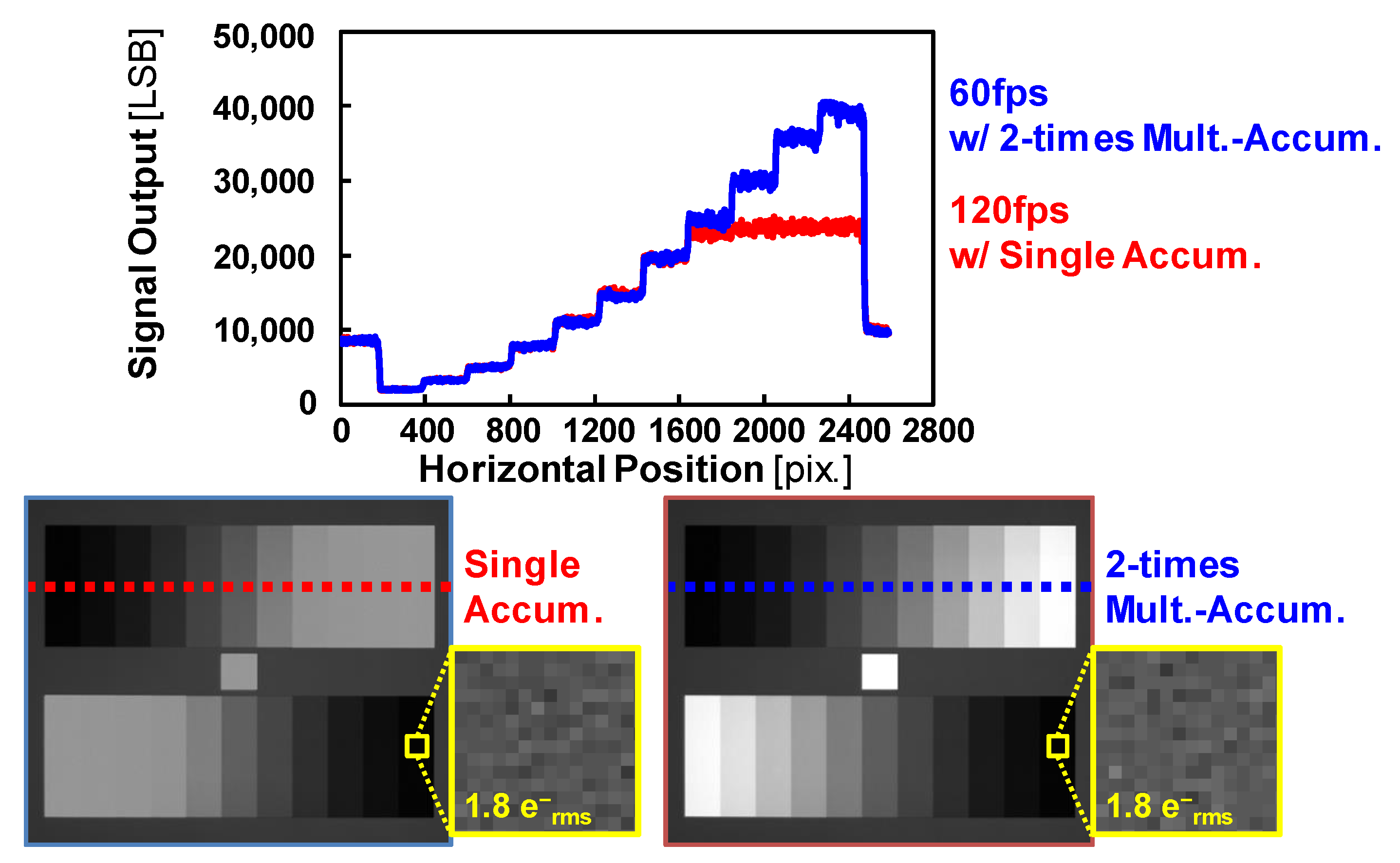

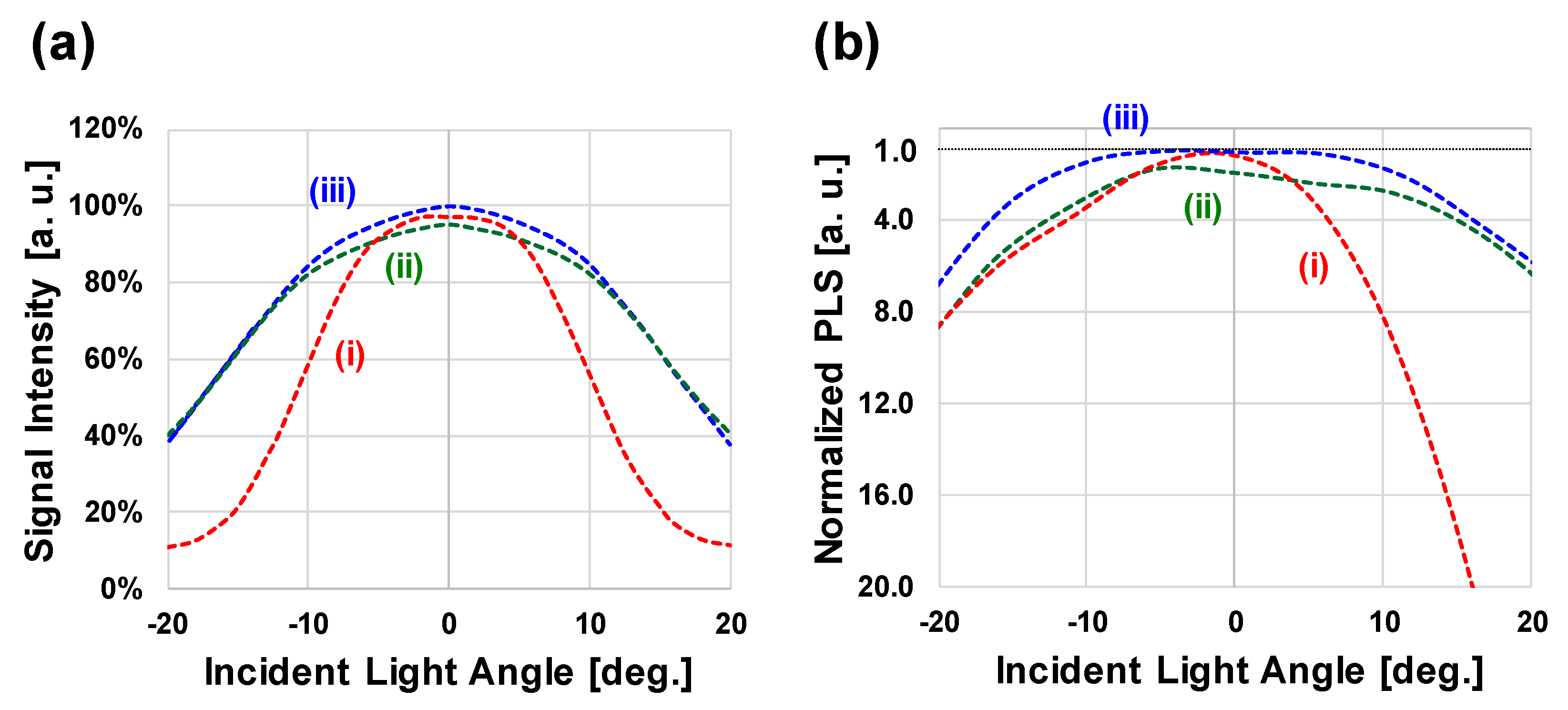

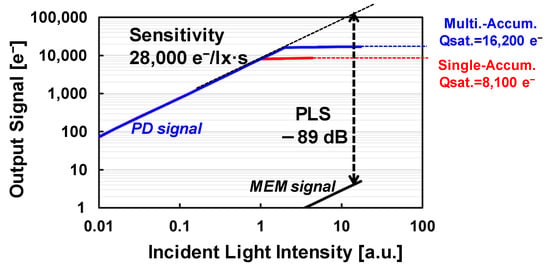

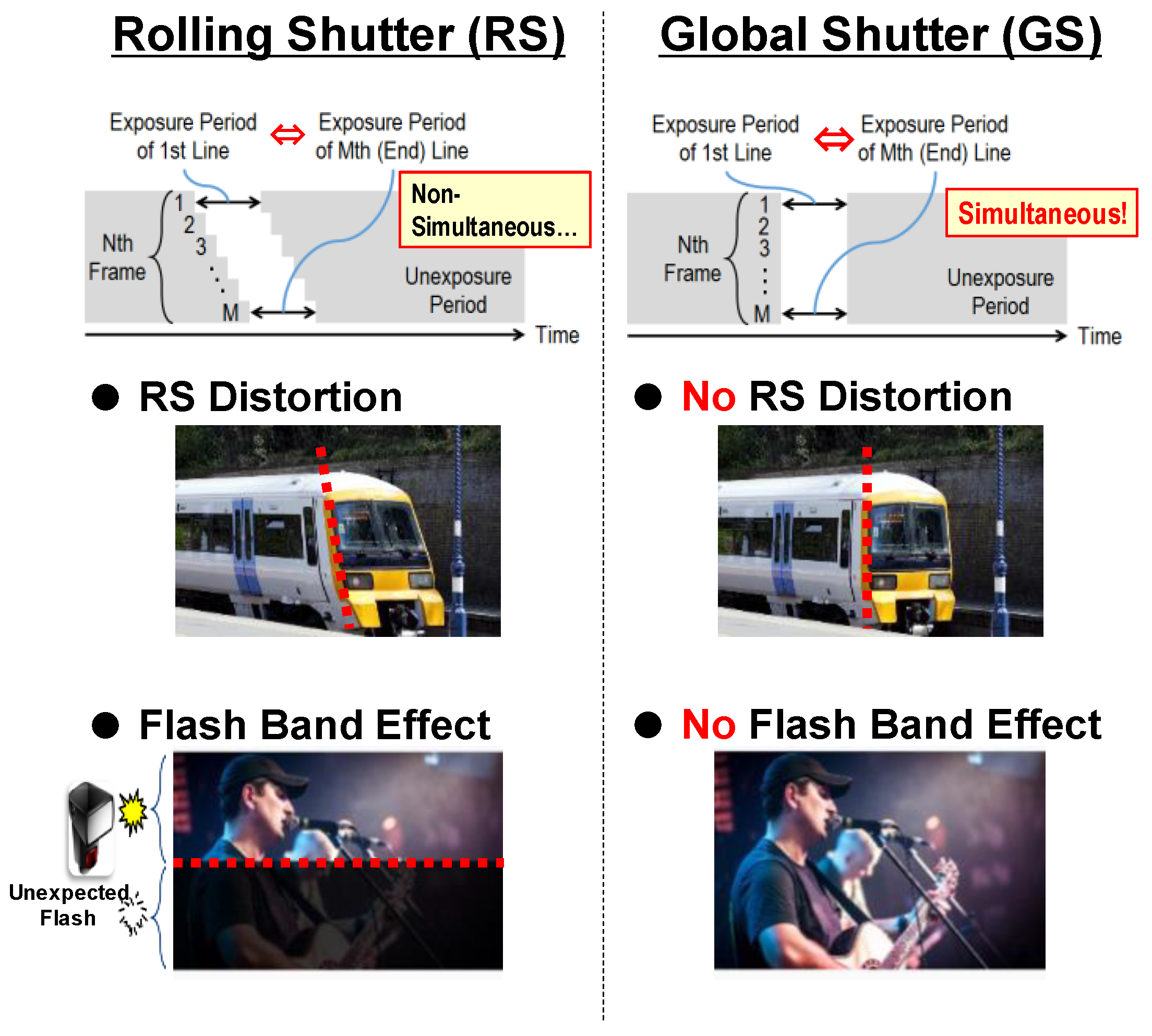

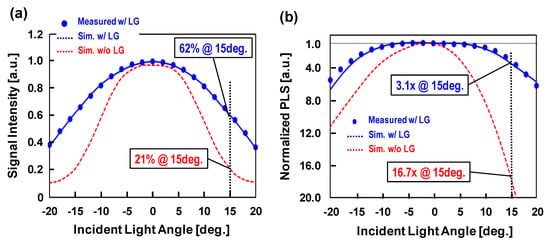

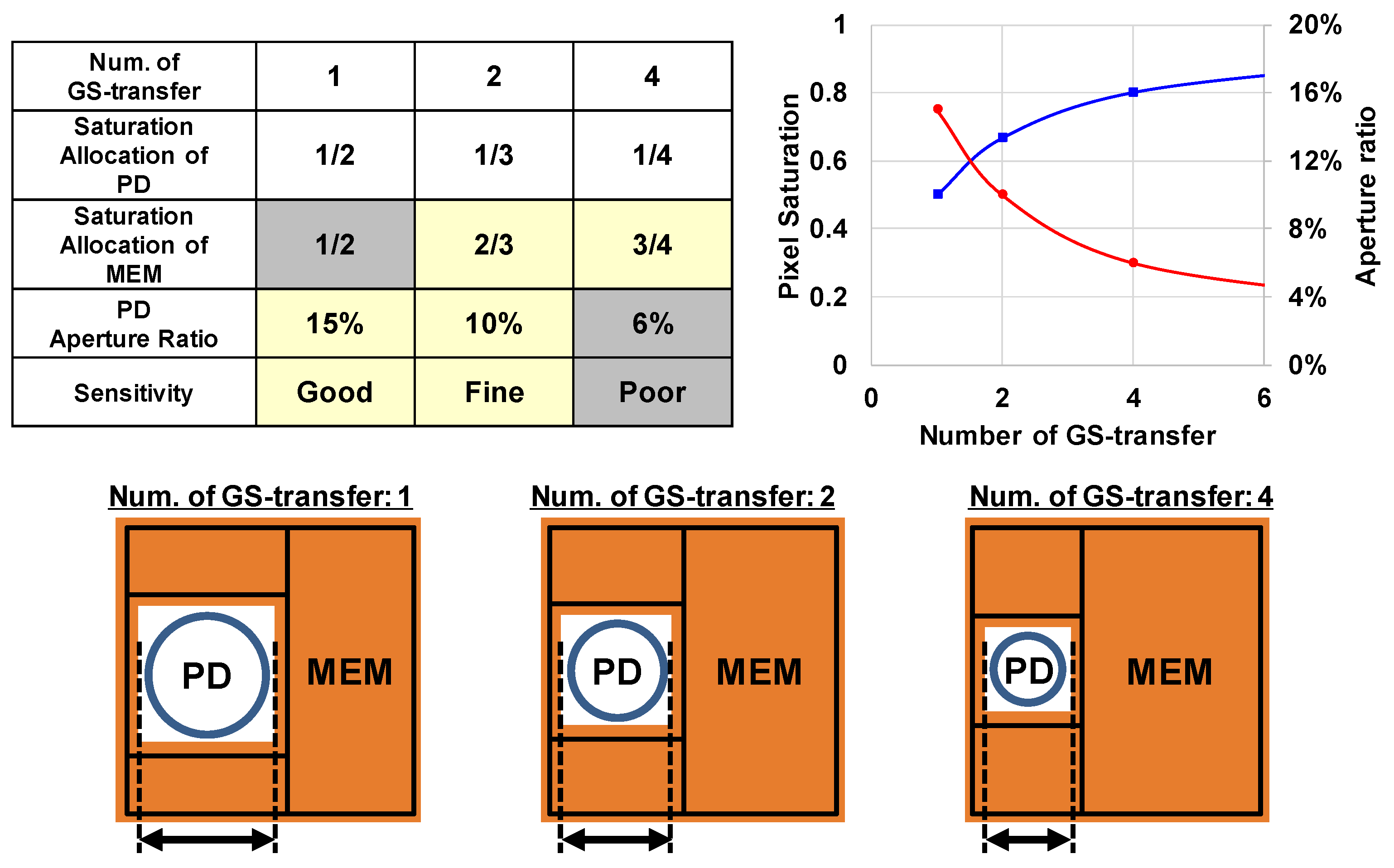

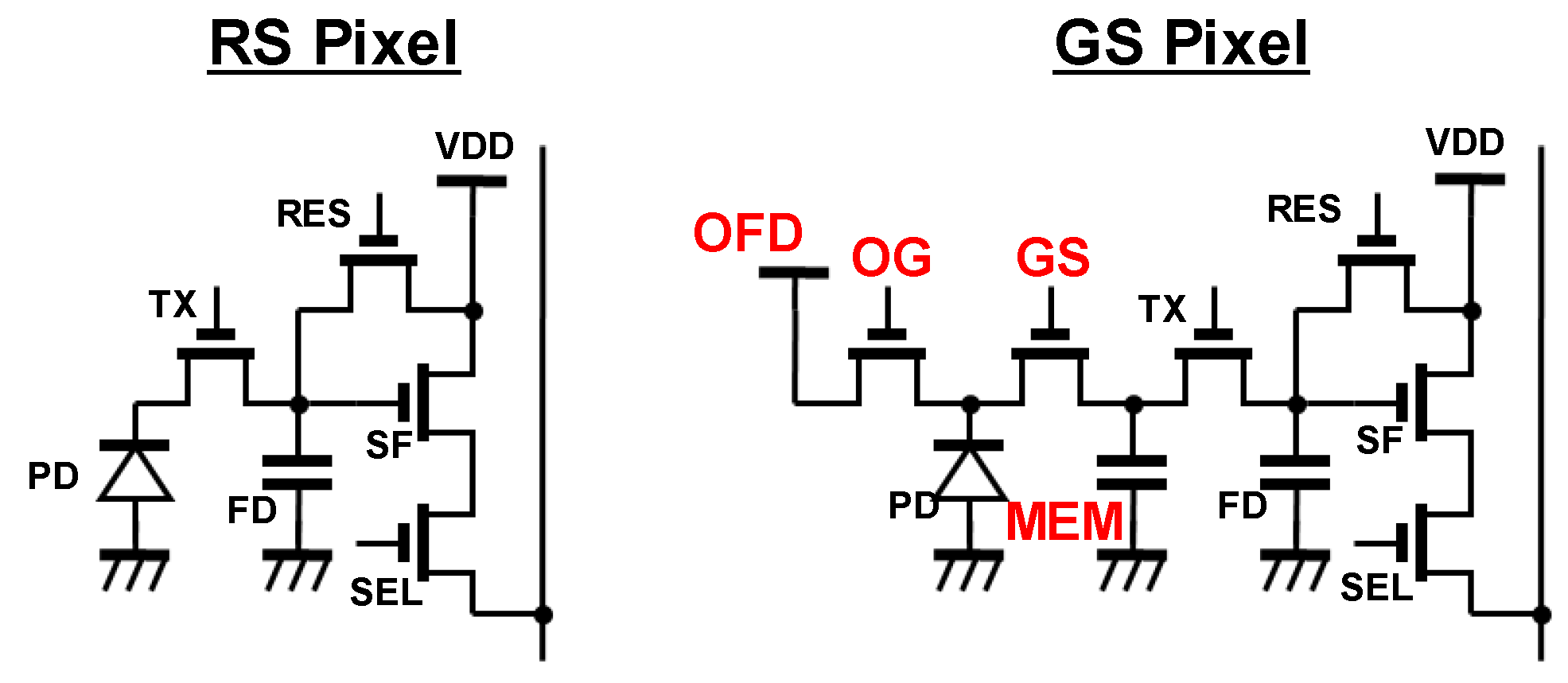

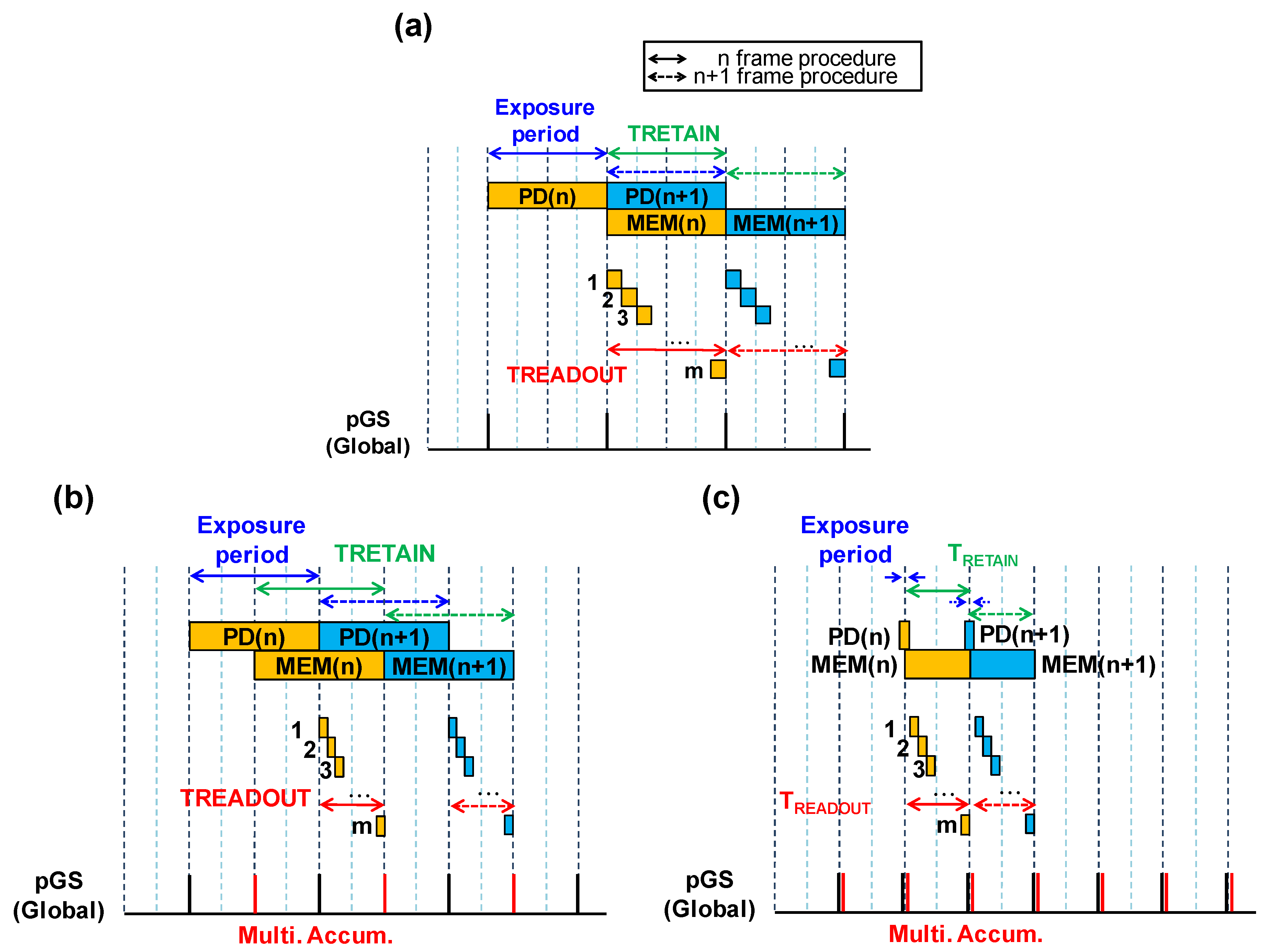

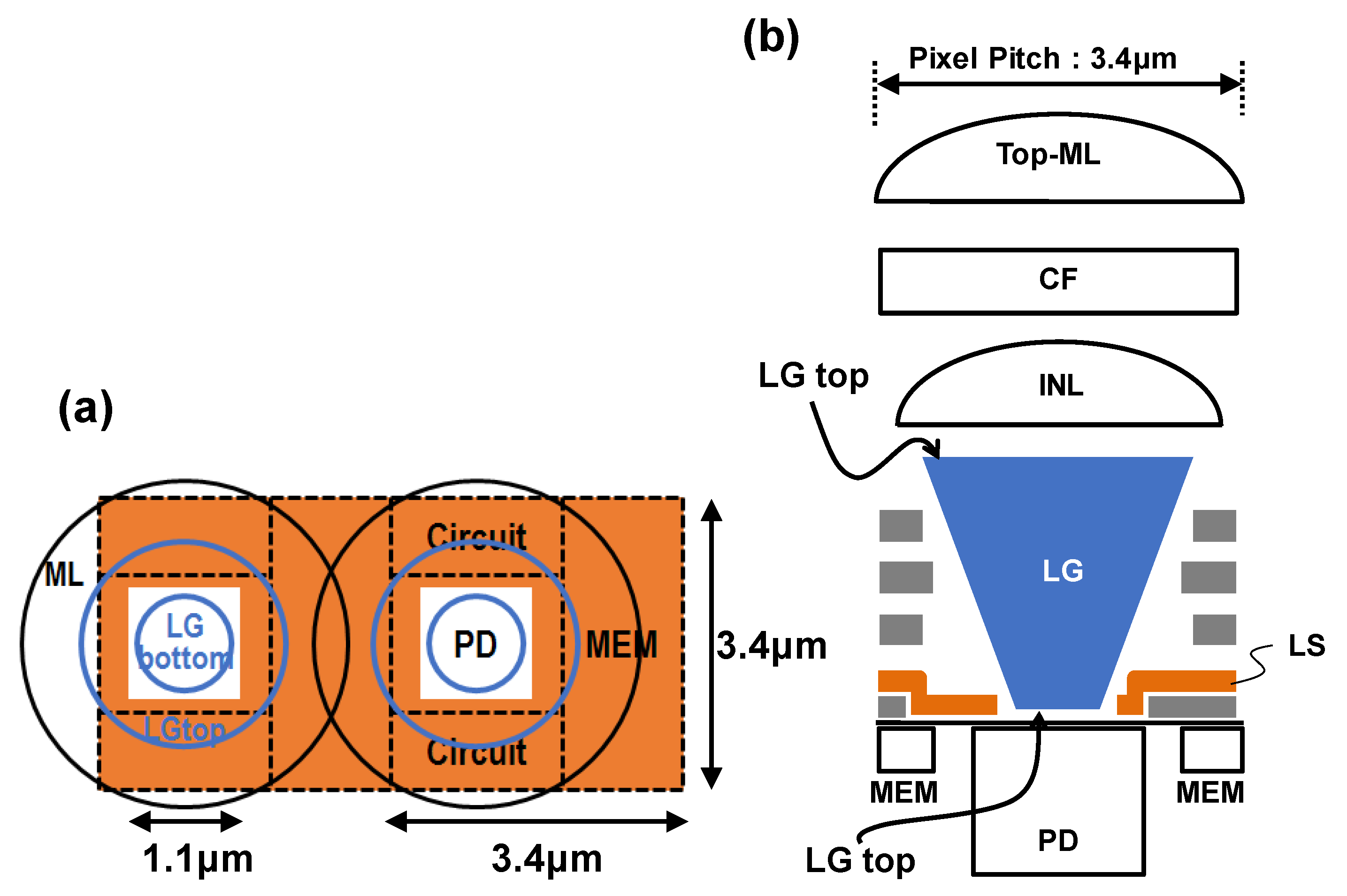

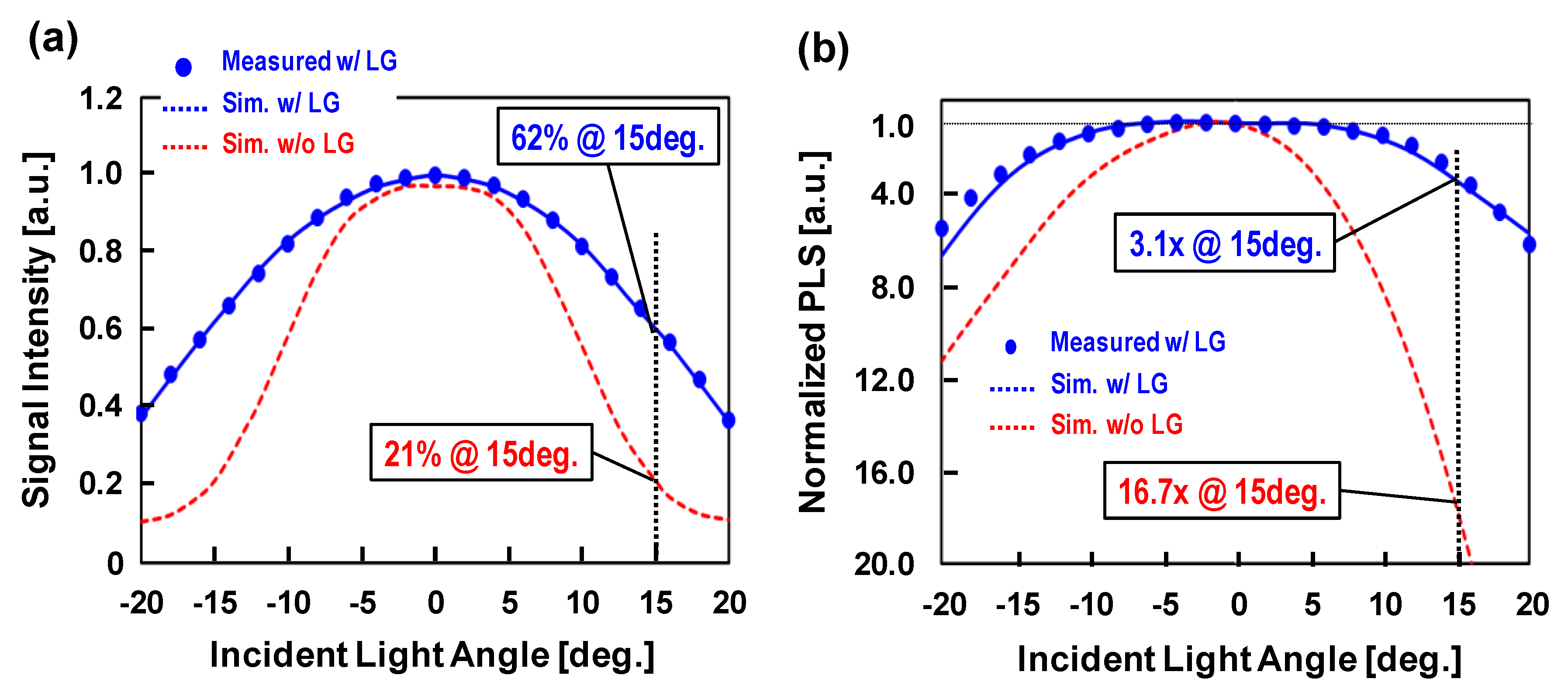

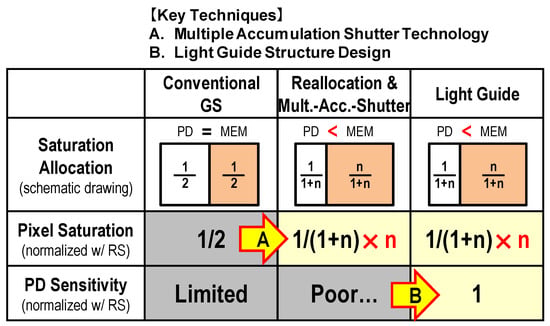

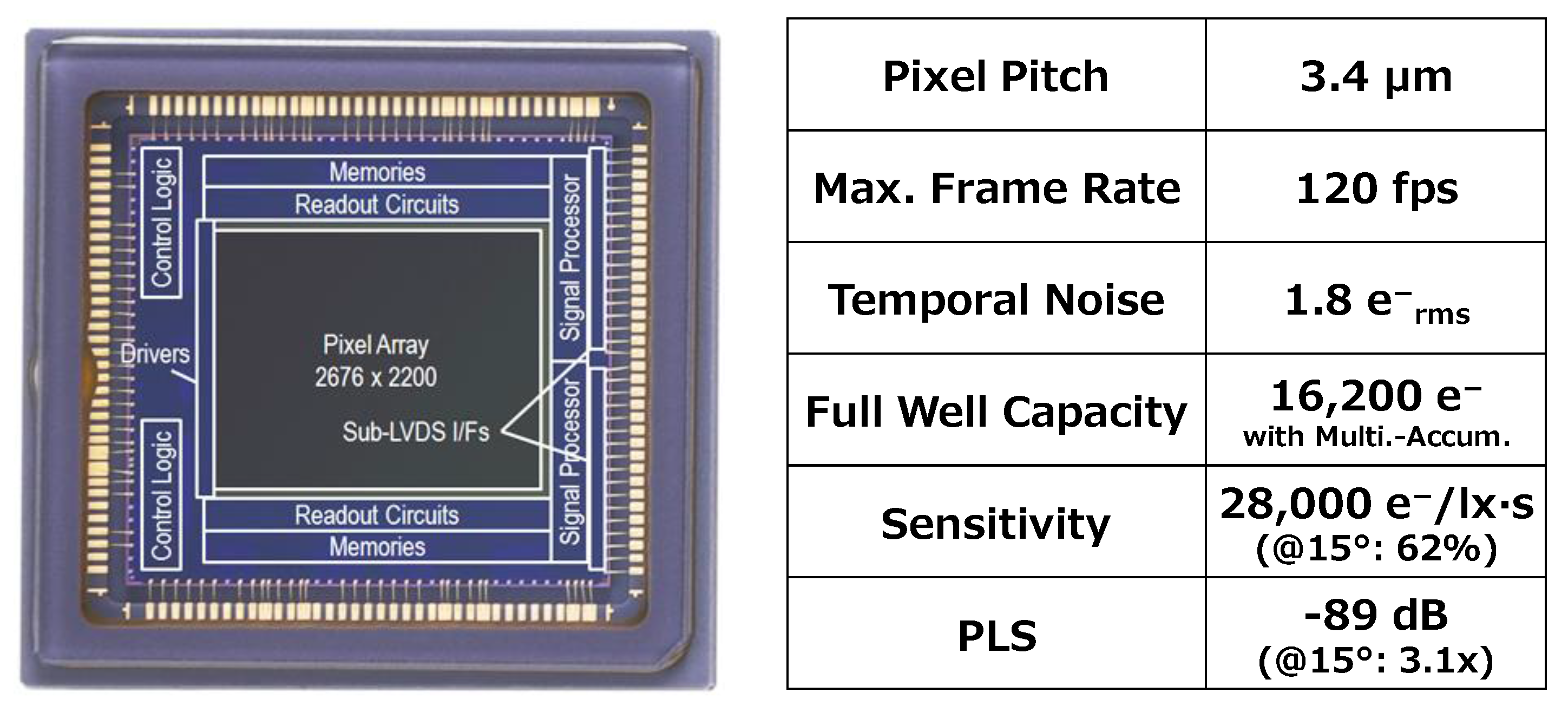

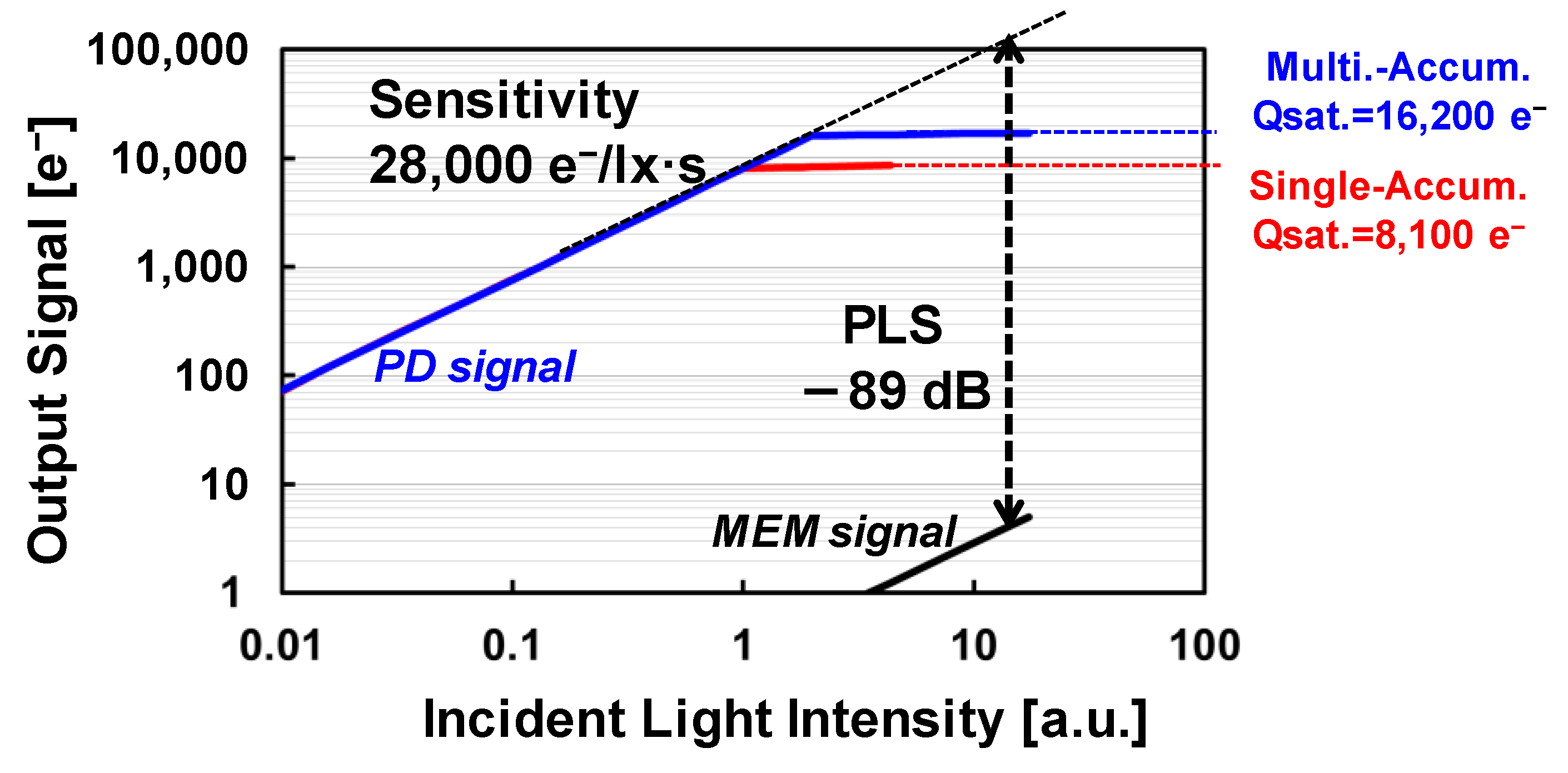

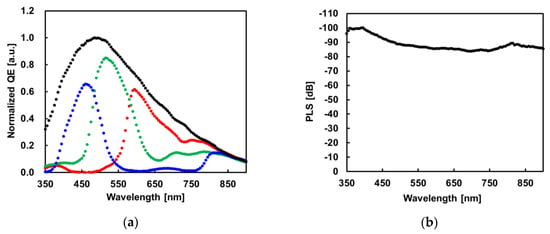

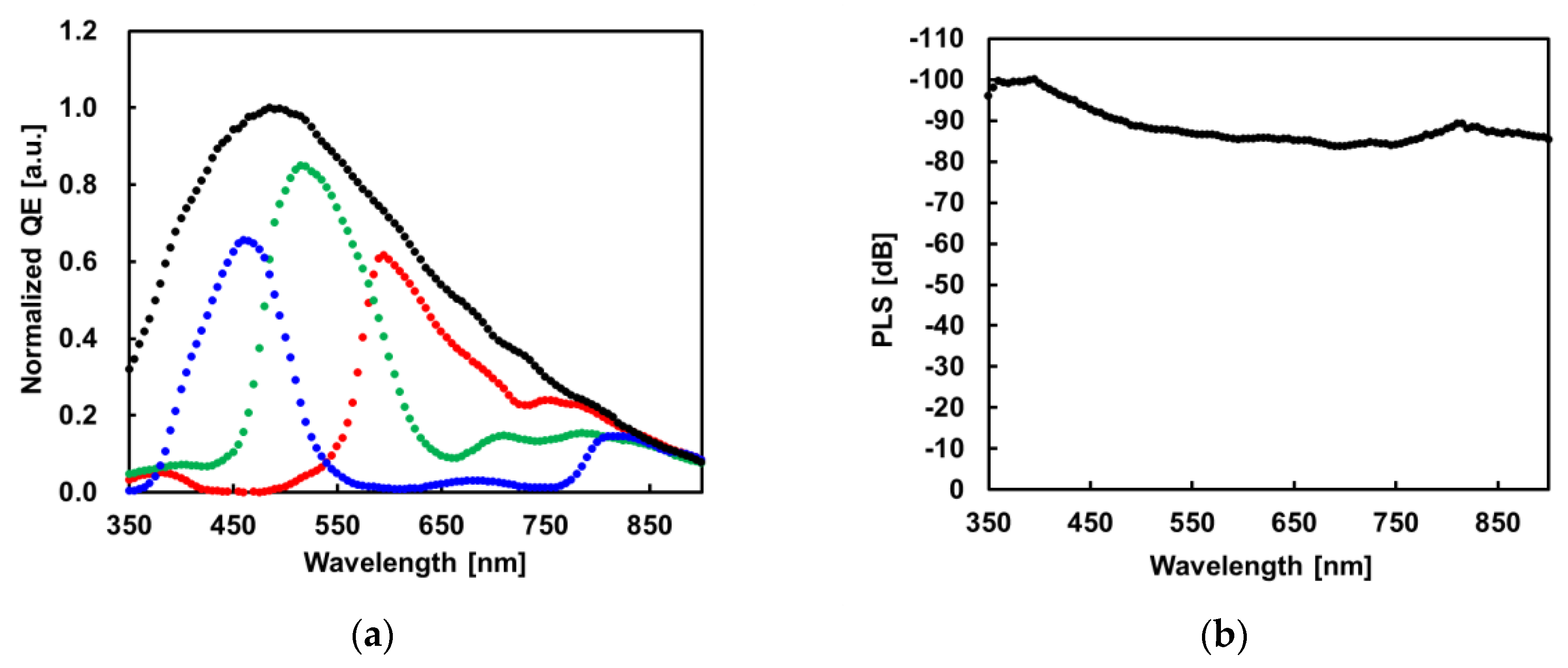

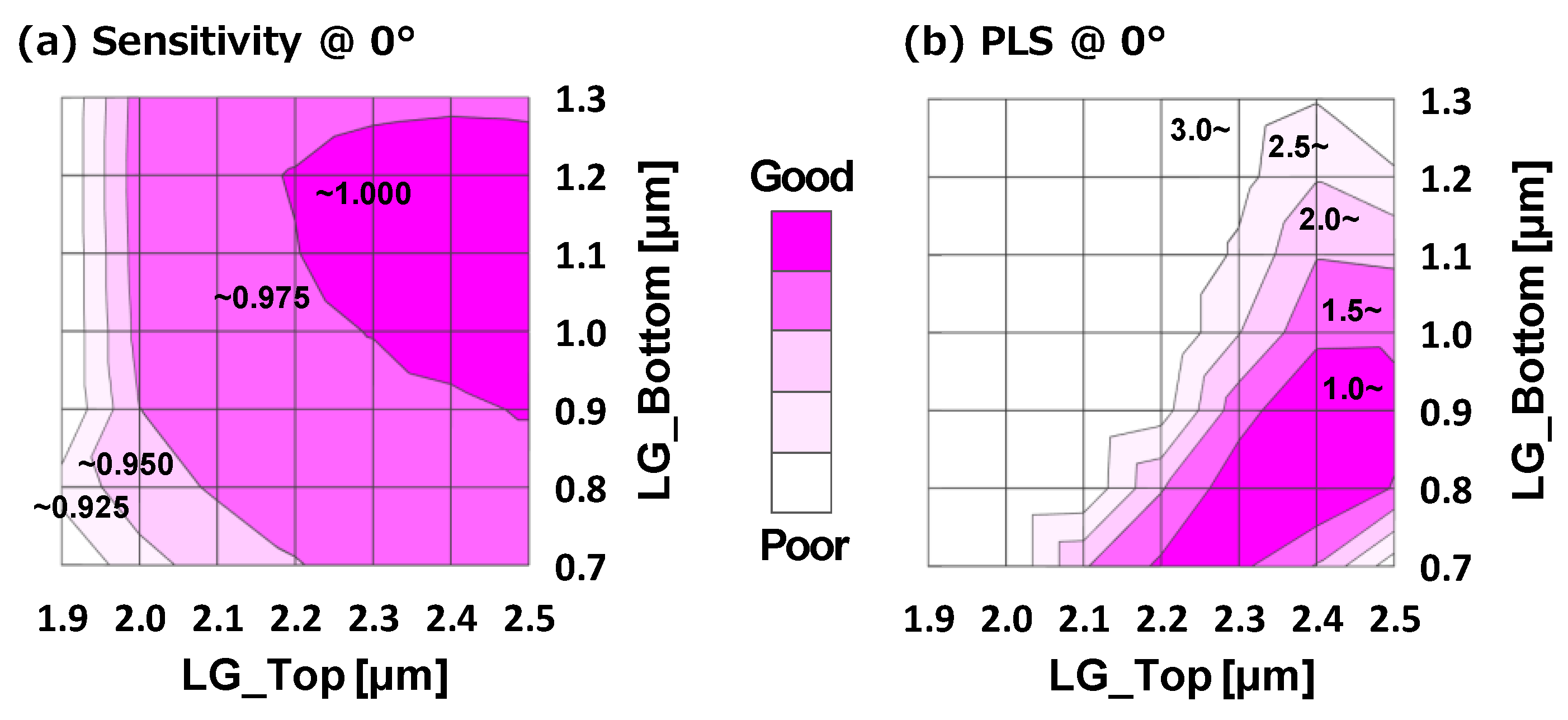

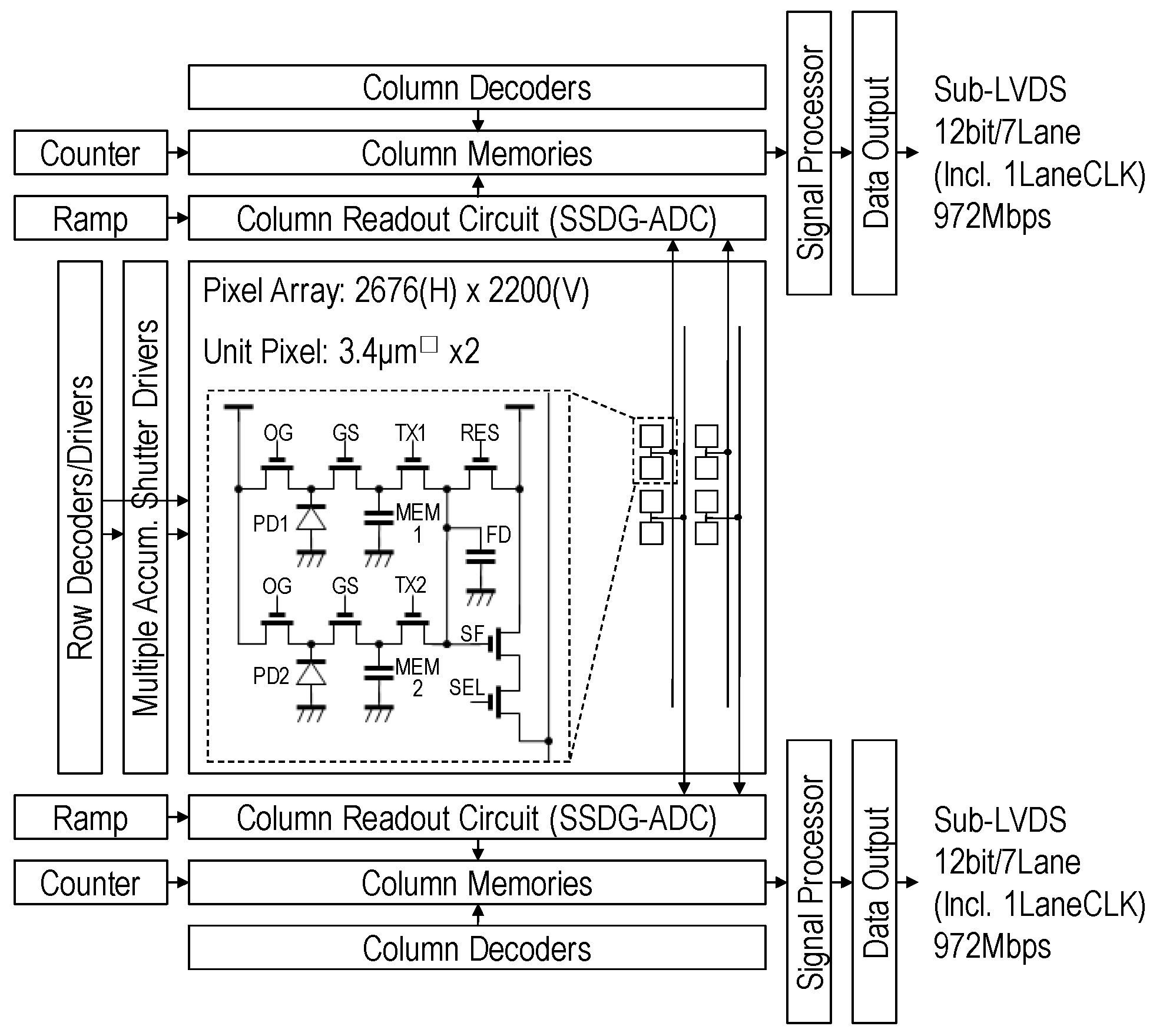

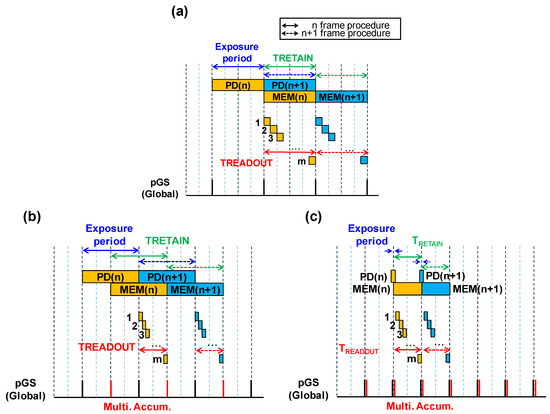

CMOS image sensors (CISs) with global shutter (GS) function are strongly required in order to avoid image degradation. However, CISs with GS function have generally been inferior to the rolling shutter (RS) CIS in performance, because they have more components. This problem is remarkable in small pixel pitch. The newly developed 3.4 µm pitch GS CIS solves this problem by using multiple accumulation shutter technology and the gentle slope light guide structure. As a result, the developed GS pixel achieves 1.8 e temporal noise and 16,200 e full well capacity with charge domain memory in 120 fps operation. The sensitivity and parasitic light sensitivity are 28,000 e/lx·s and −89 dB, respectively. Moreover, the incident light angle dependence of sensitivity and parasitic light sensitivity are improved by the gentle slope light guide structure. View Full-Text
