Open AccessCommunication
Sensors 2017, 17(10), 2278; https://doi.org/10.3390/s17102278

Application of Negative Curvature Hollow-Core Fiber in an Optical Fiber Sensor Setup for Multiphoton Spectroscopy

1
Department of Telecommunications and Teleinformatics, Wroclaw University of Science and Technology, 50-370 Wroclaw, Poland
2
Advanced Materials Engineering and Modelling Group, Wroclaw University of Science and Technology, 50-370 Wroclaw, Poland
3
Fiber Optics Research Center of Russian Academy of Sciences, Moscow 119333, Russia
*
Author to whom correspondence should be addressed.
Received: 4 September 2017 / Revised: 26 September 2017 / Accepted: 1 October 2017 / Published: 6 October 2017
(This article belongs to the Special Issue Intelligent Sensing Technologies for Nondestructive Evaluation)
View Full-Text   |   Download PDF [1275 KB, uploaded 11 October 2017]   |

Abstract

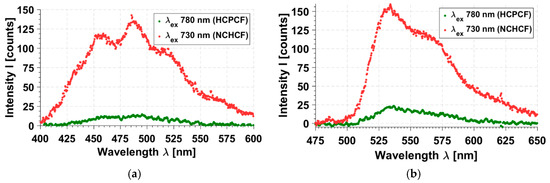

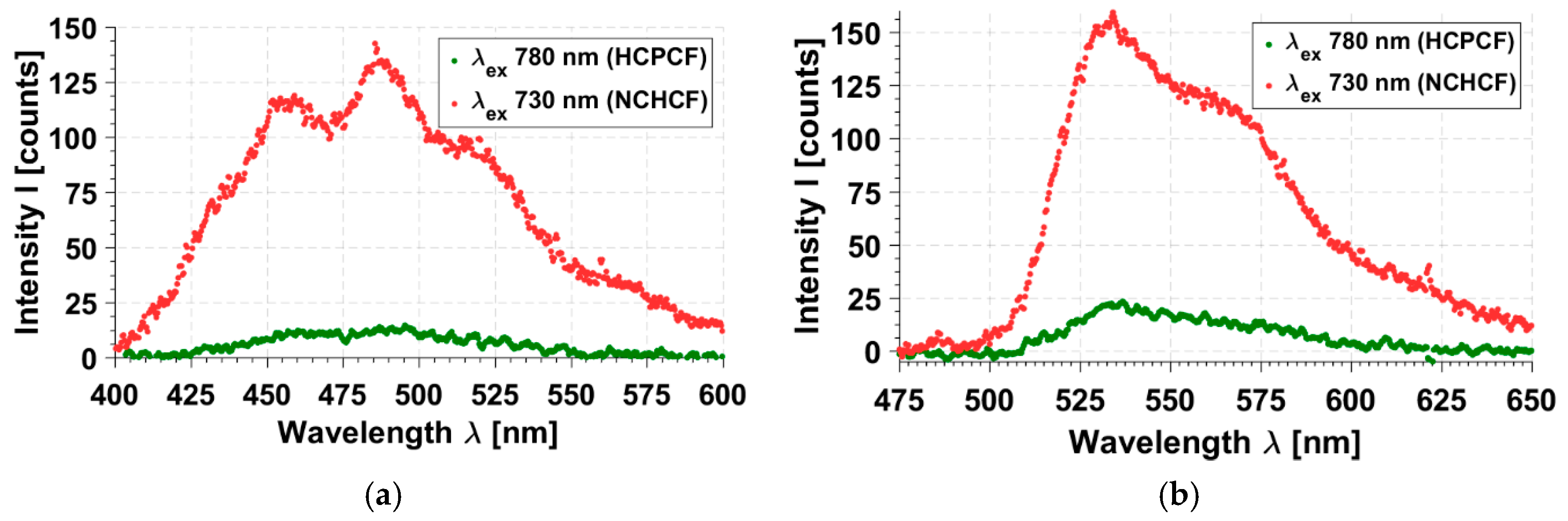

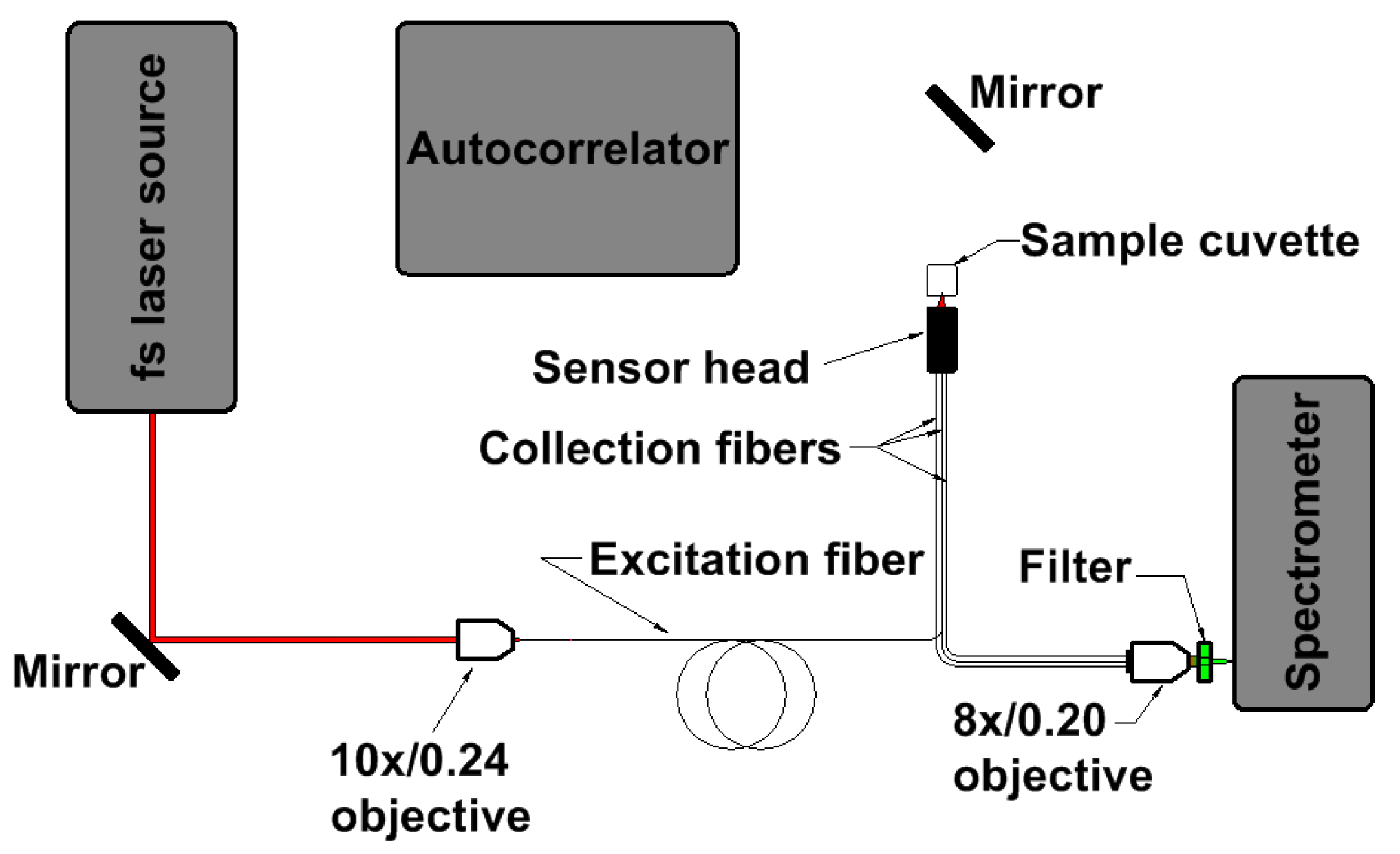

In this paper, an application of negative curvature hollow core fiber (NCHCF) in an all-fiber, multiphoton fluorescence sensor setup is presented. The dispersion parameter (D) of this fiber does not exceed the value of 5 ps/nm × km across the optical spectrum of (680–750) nm, making it well suited for the purpose of multiphoton excitation of biological fluorophores. Employing 1.5 m of this fiber in a simple, all-fiber sensor setup allows us to perform multiphoton experiments without any dispersion compensation methods. Multiphoton excitation of nicotinamide adenine dinucleotide (NADH) and flavin adenine dinucleotide (FAD) with this fiber shows a 6- and 9-fold increase, respectively, in the total fluorescence signal collected when compared with the commercial solution in the form of a hollow-core photonic band gap fiber (HCPBF). To the author’s best knowledge, this is the first time an NCHCF was used in an optical-fiber sensor setup for multiphoton fluorescence experiments. View Full-Text
Keywords: negative curvature fiber; hollow core fiber; multiphoton fluorescence; photonic crystal fiber sensor negative curvature fiber; hollow core fiber; multiphoton fluorescence; photonic crystal fiber sensor
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
