Open AccessArticle
Sensors 2016, 16(7), 1050; doi:10.3390/s16071050

Multiplexed Simultaneous High Sensitivity Sensors with High-Order Mode Based on the Integration of Photonic Crystal 1 × 3 Beam Splitter and Three Different Single-Slot PCNCs

State Key Laboratory of Information Photonics and Optical Communications, School of Information and Communication Engineering, Beijing University of Posts and Telecommunications, Beijing 100876, China
*
Author to whom correspondence should be addressed.
Academic Editors: Alexandre Francois and Al Meldrum
Received: 1 April 2016 / Revised: 27 June 2016 / Accepted: 6 July 2016 / Published: 7 July 2016
(This article belongs to the Special Issue Label-Free Optical Biosensors)
View Full-Text   |   Download PDF [4093 KB, uploaded 7 July 2016]   |

Abstract

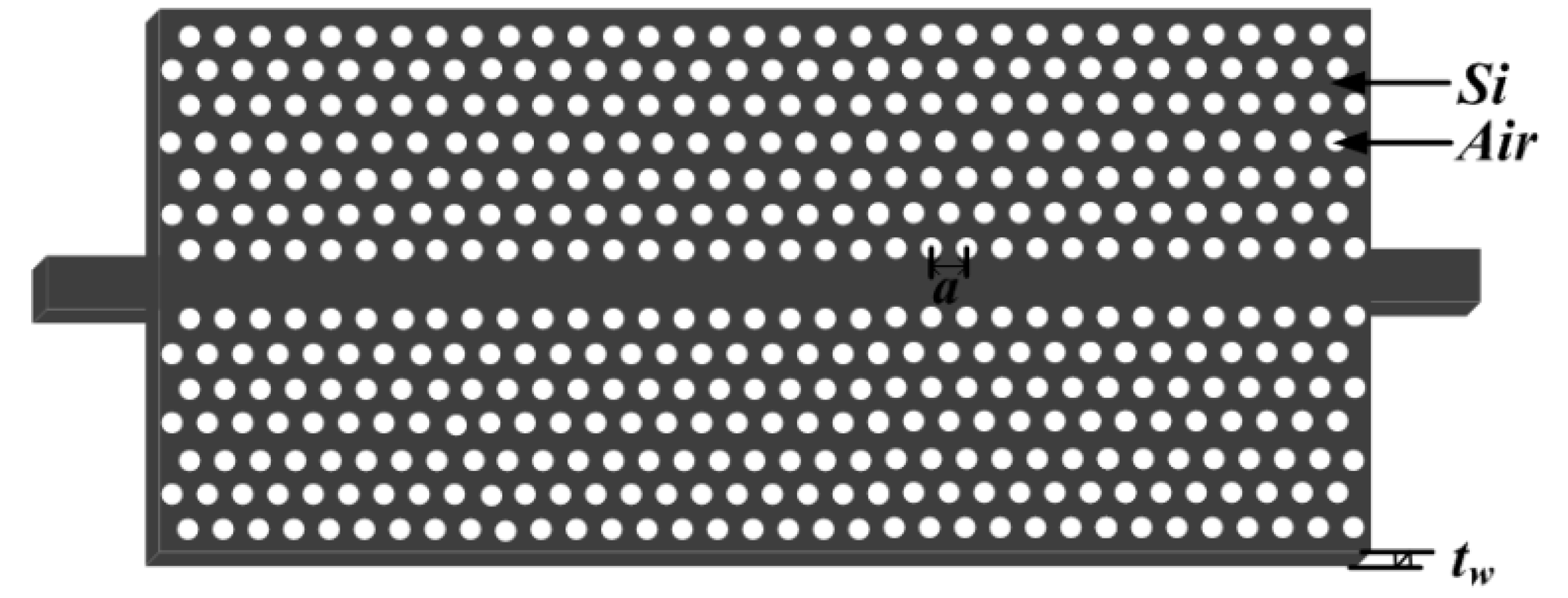

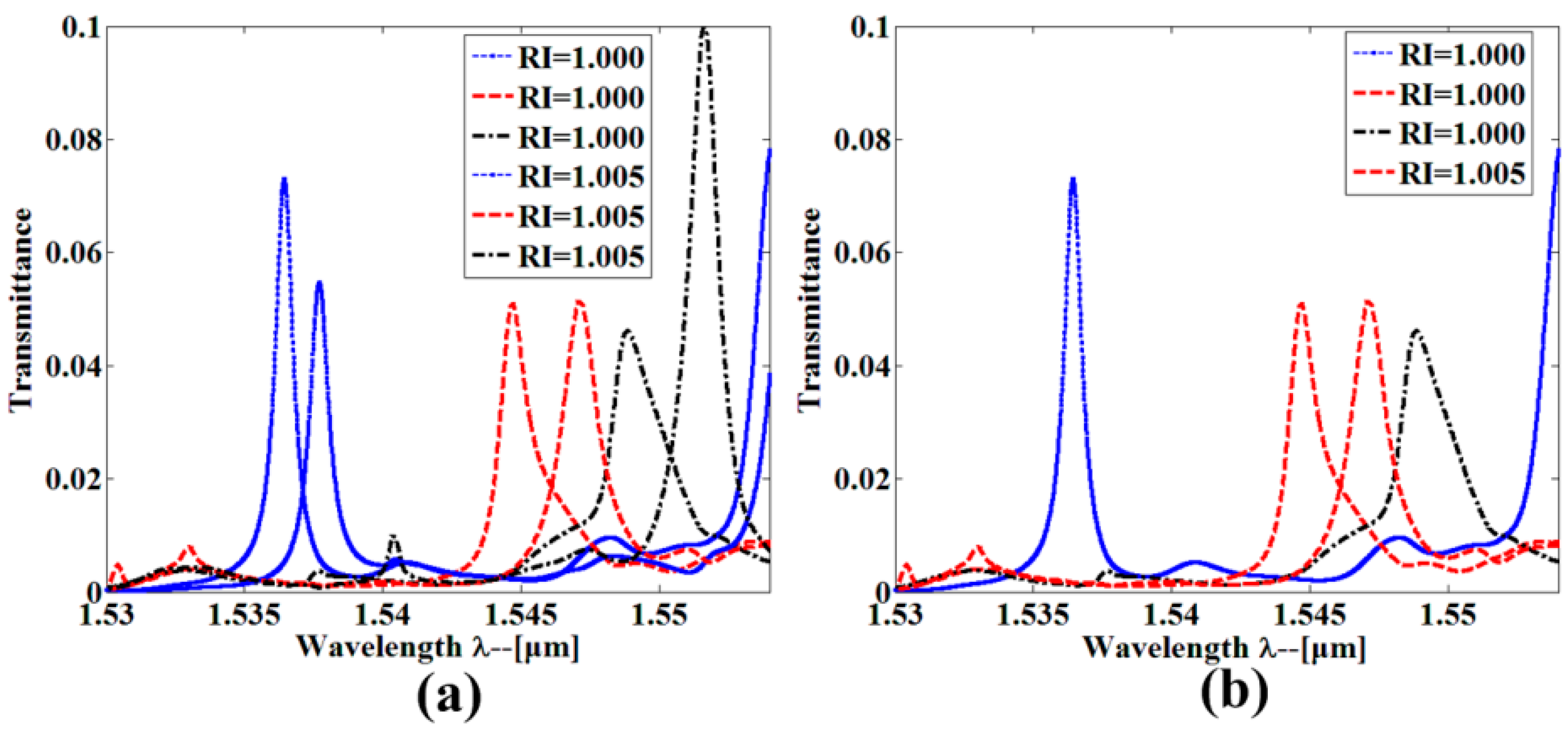

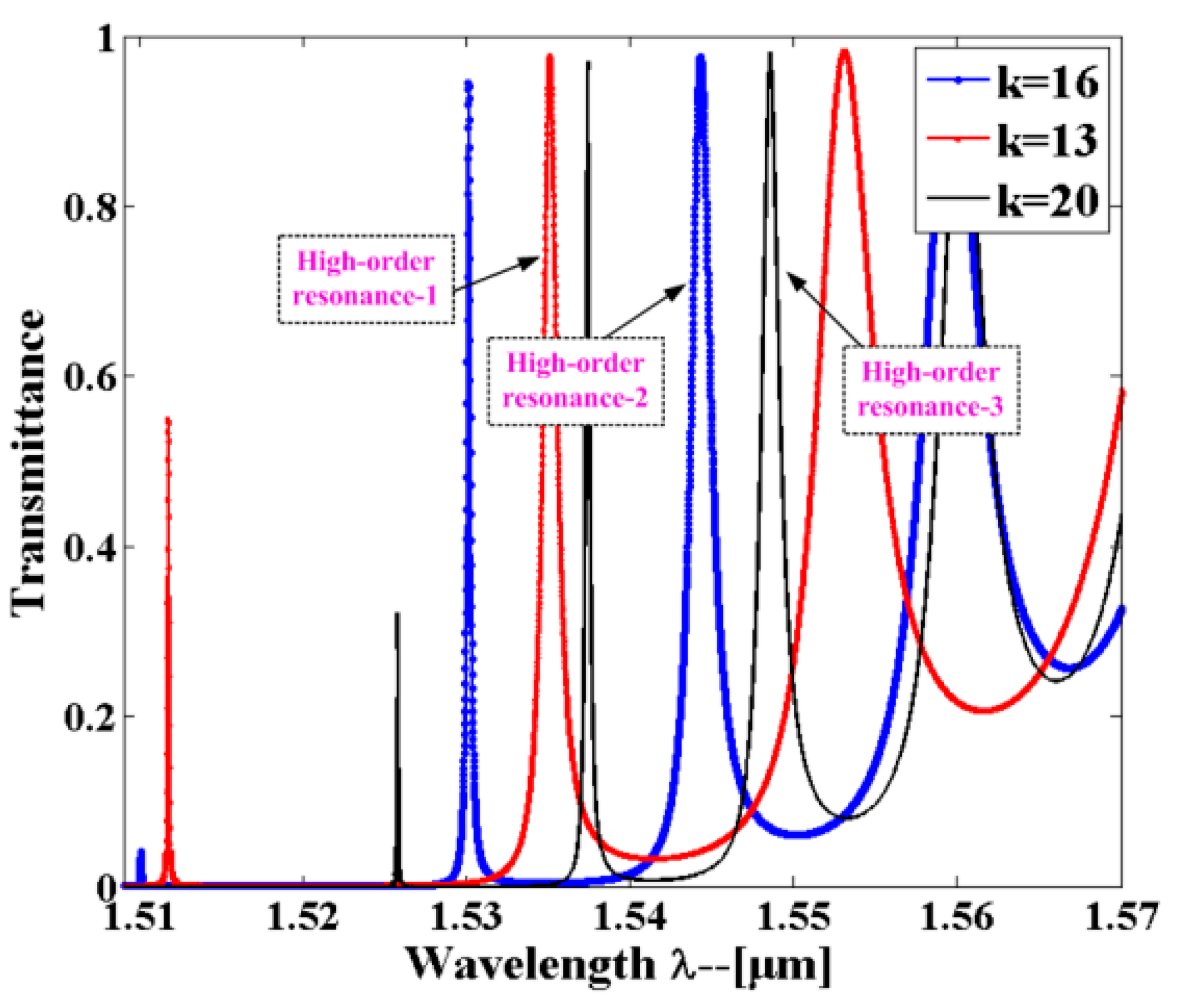

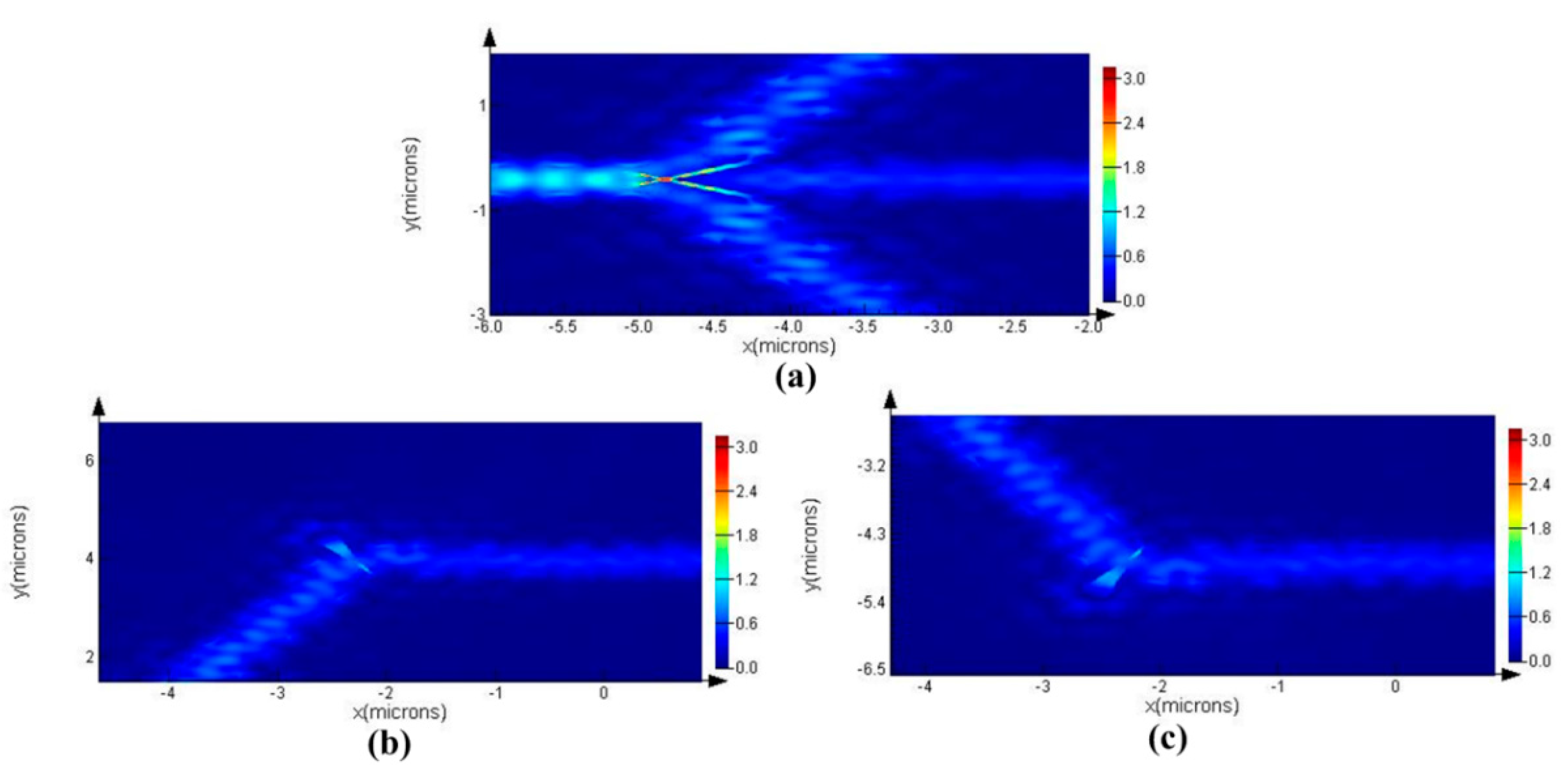

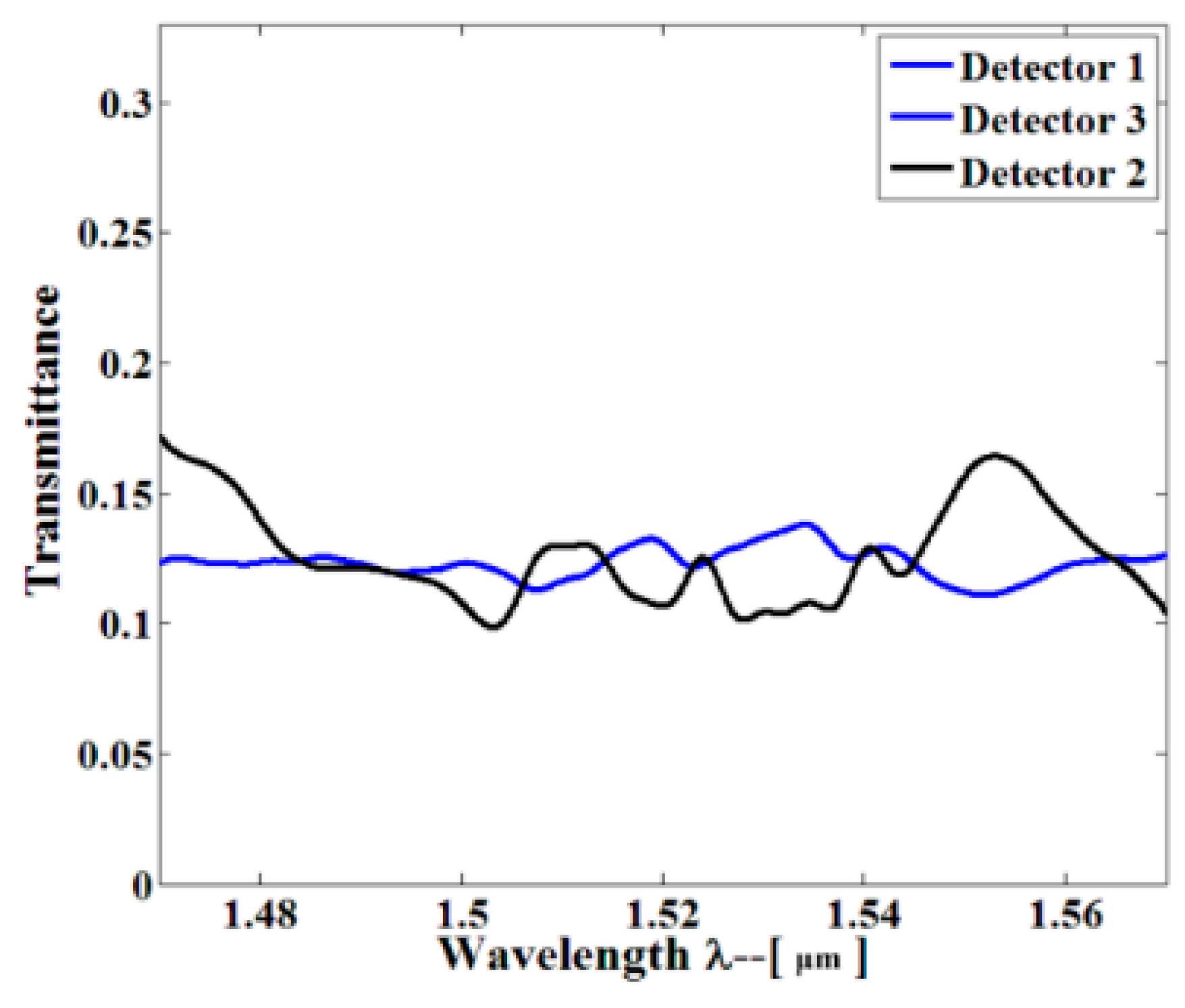

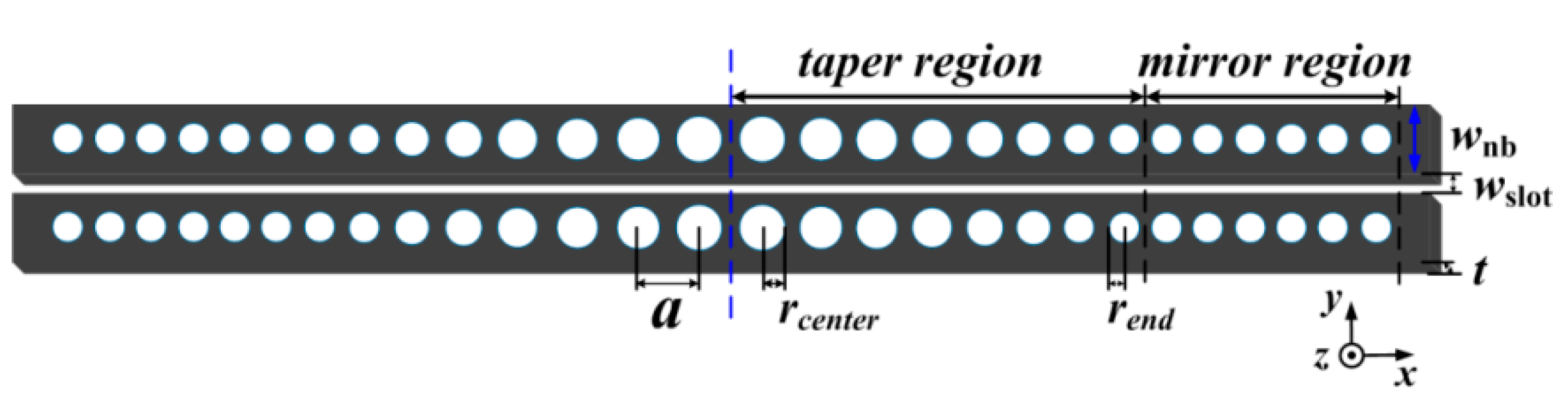

We simulated an efficient method for the sensor array of high-sensitivity single-slot photonic crystal nanobeam cavities (PCNCs) on a silicon platform. With the combination of a well-designed photonic crystal waveguide (PhCW) filter and an elaborate single-slot PCNC, a specific high-order resonant mode was filtered for sensing. A 1 × 3 beam splitter carefully established was implemented to split channels and integrate three sensors to realize microarrays. By applying the three-dimensional finite-difference-time-domain (3D-FDTD) method, the sensitivities calculated were S1 = 492 nm/RIU, S2 = 244 nm/RIU, and S3 = 552 nm/RIU, respectively. To the best of our knowledge, this is the first multiplexing design in which each sensor cite features such a high sensitivity simultaneously. View Full-Text
Keywords: photonic crystal; resonators; filter; optical sensing and sensor; multiplexing photonic crystal; resonators; filter; optical sensing and sensor; multiplexing
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
