An Improved Alignment Method for the Strapdown Inertial Navigation System (SINS)
Previous Article in Journal
A Small Acoustic Goniometer for General Purpose Research
Article Menu

Export Article

Open AccessArticle
Sensors 2016, 16(5), 620; doi:10.3390/s16050620

A Magnetic Field Sensor Based on a Magnetic Fluid-Filled FP-FBG Structure

1
Academy of Ocean Science and Engineering & College of Optoelectronic Science and Engineering, National University of Defense Technology, Changsha 410073, China
2
College of Information Science and Engineering, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 3 March 2016 / Revised: 18 April 2016 / Accepted: 21 April 2016 / Published: 29 April 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2564 KB, uploaded 29 April 2016]   |

Abstract

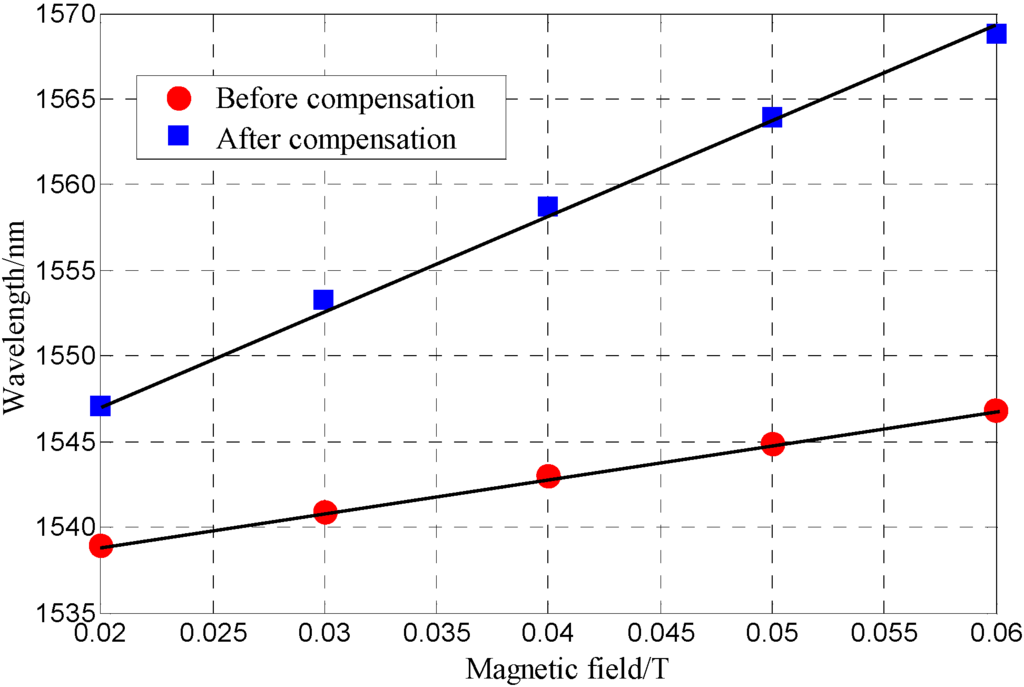

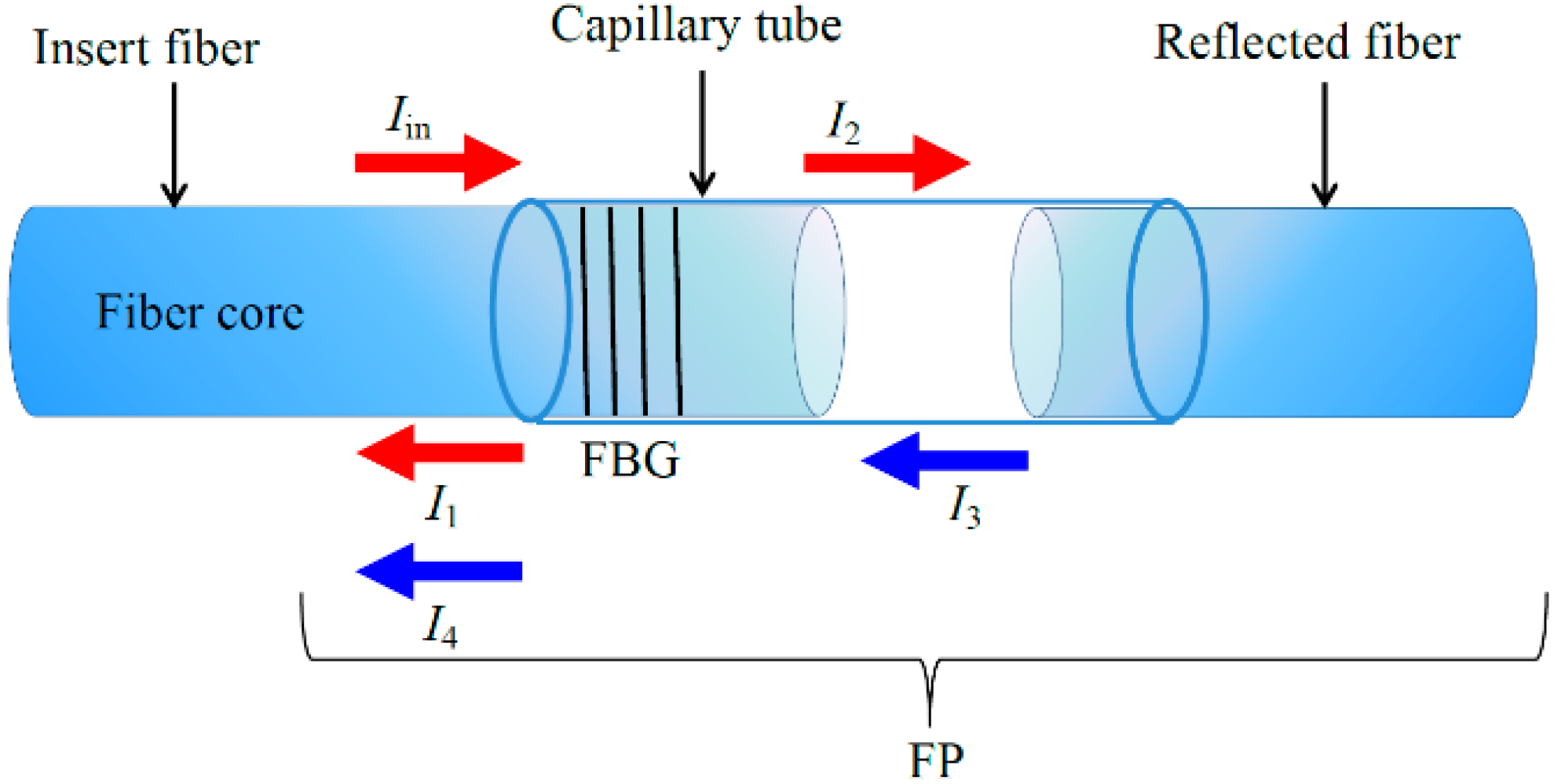

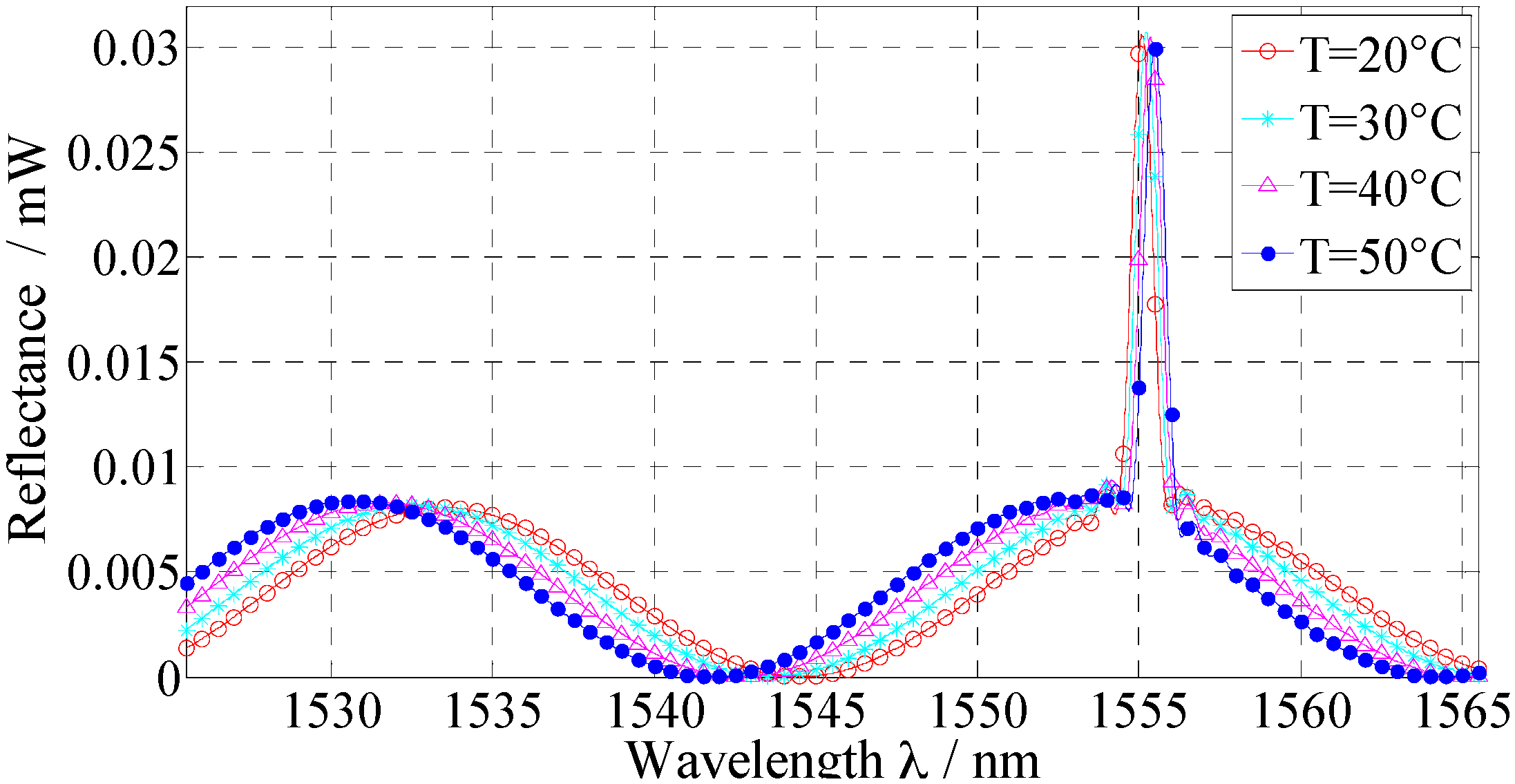

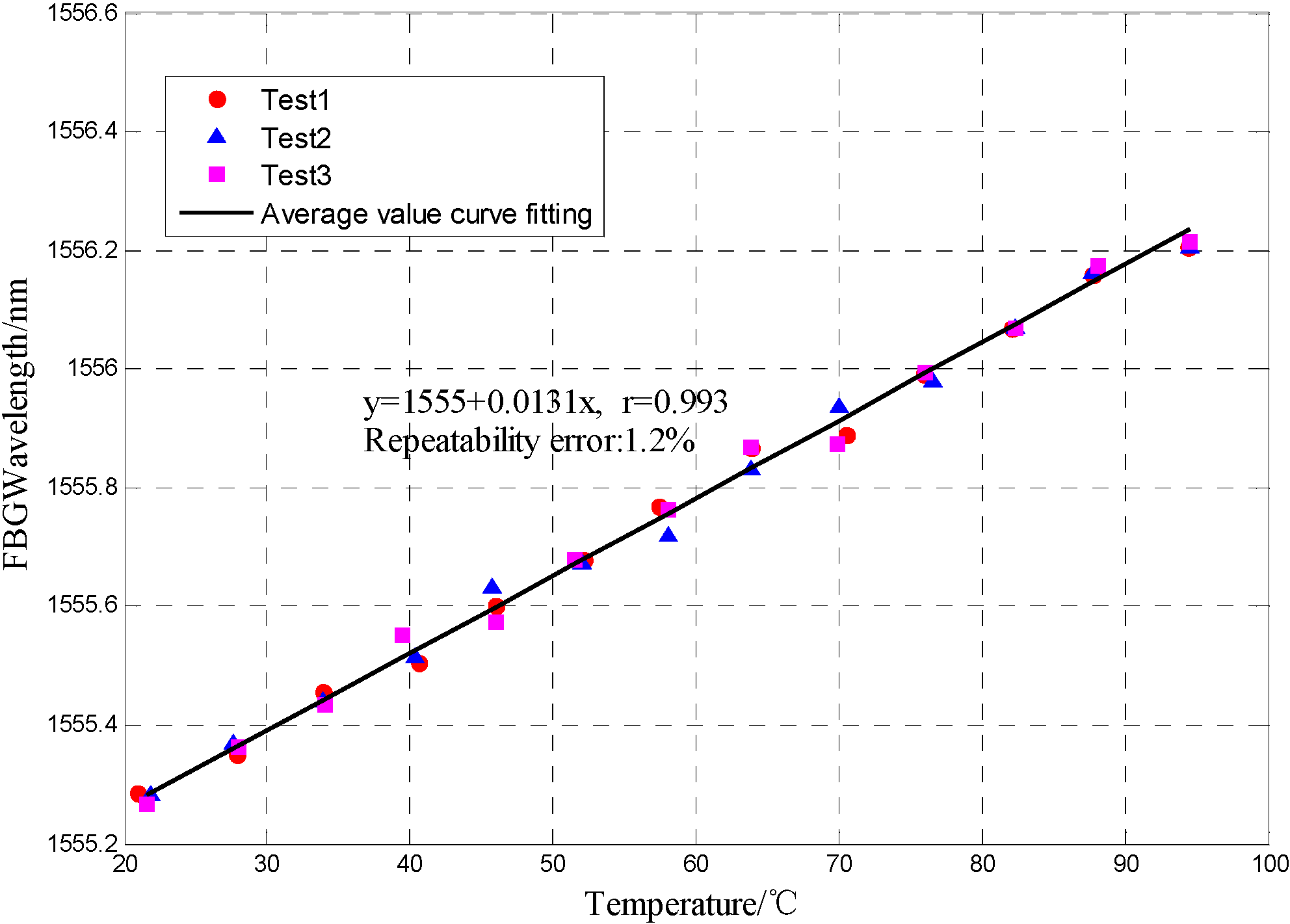

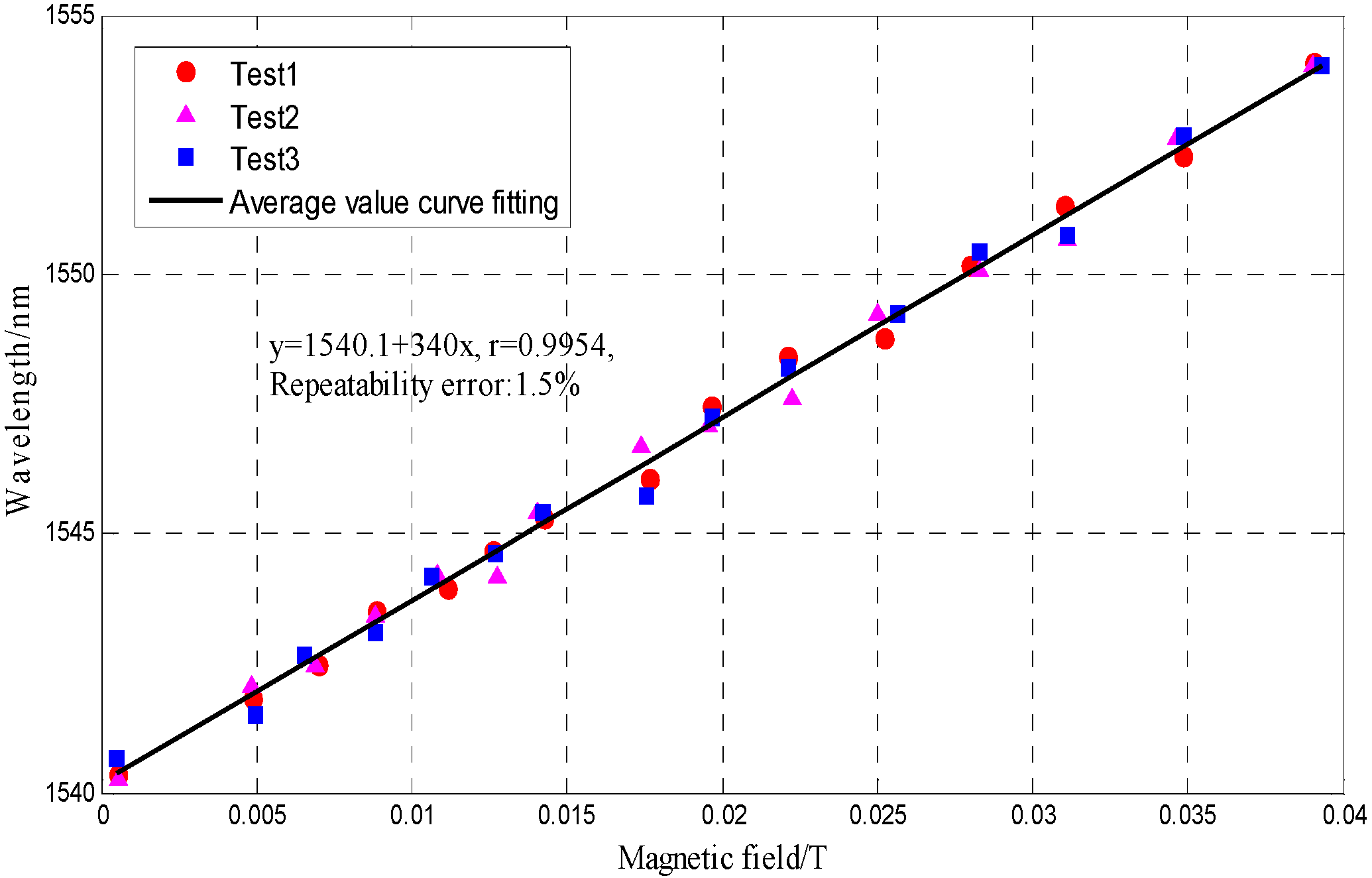

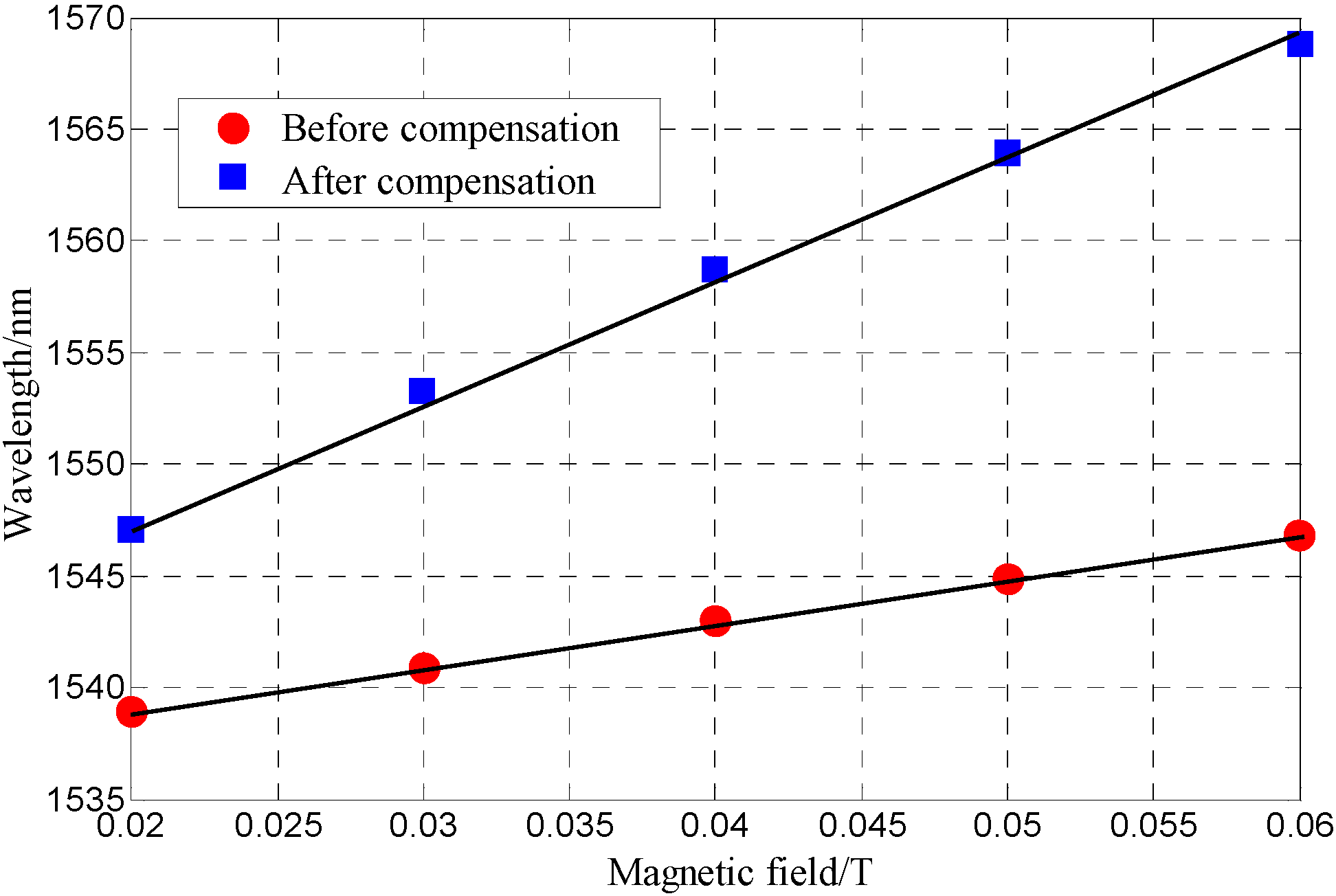

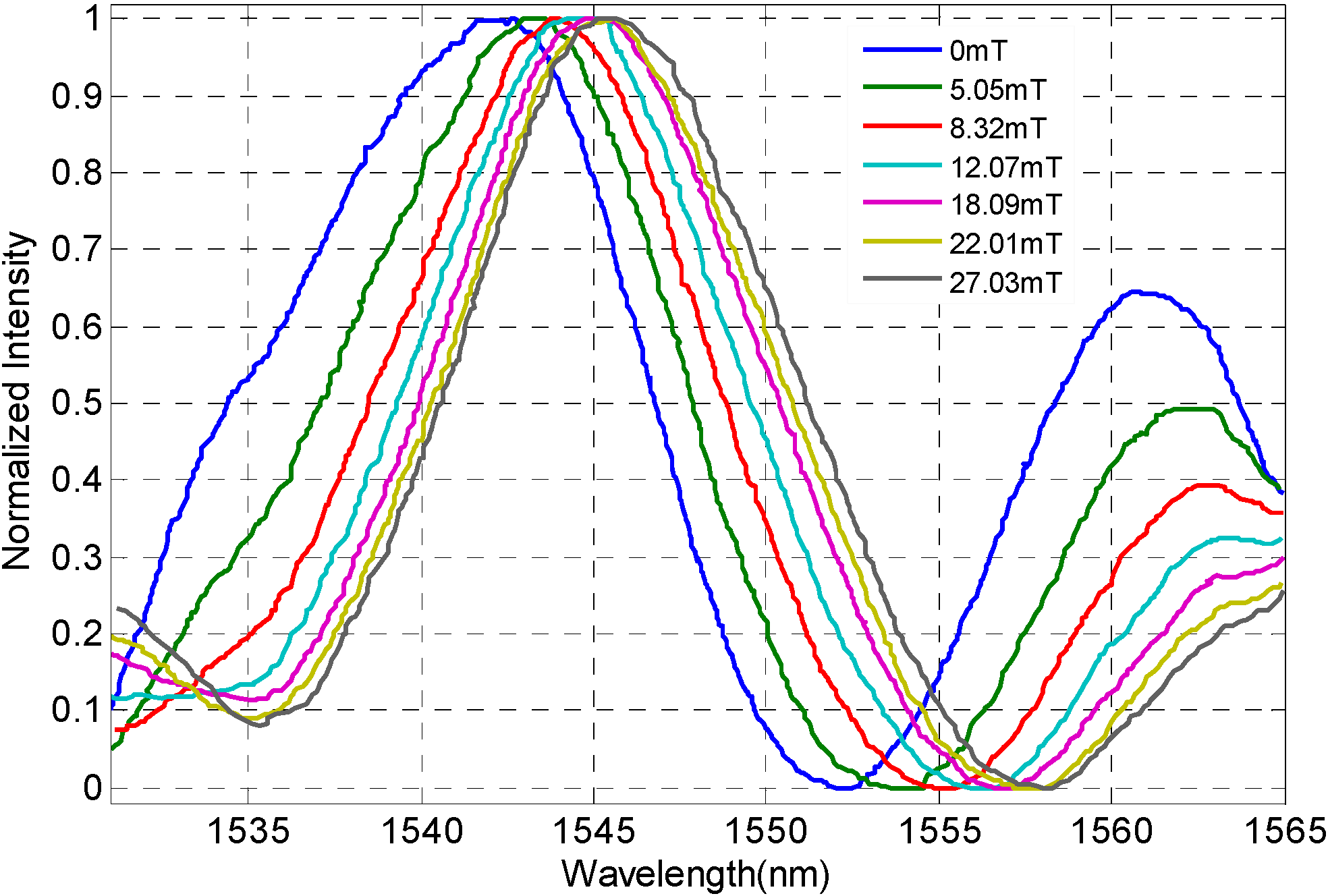

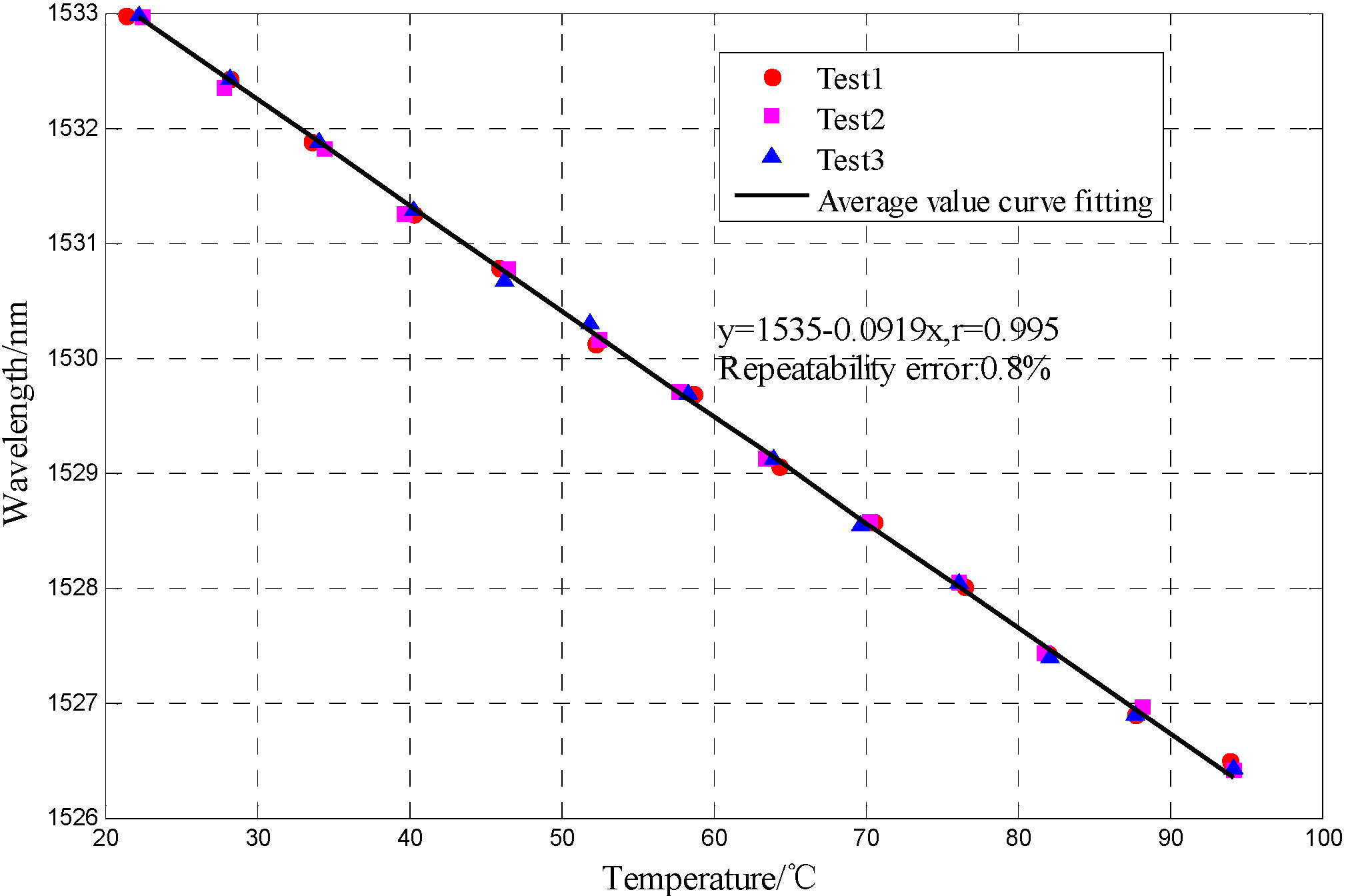

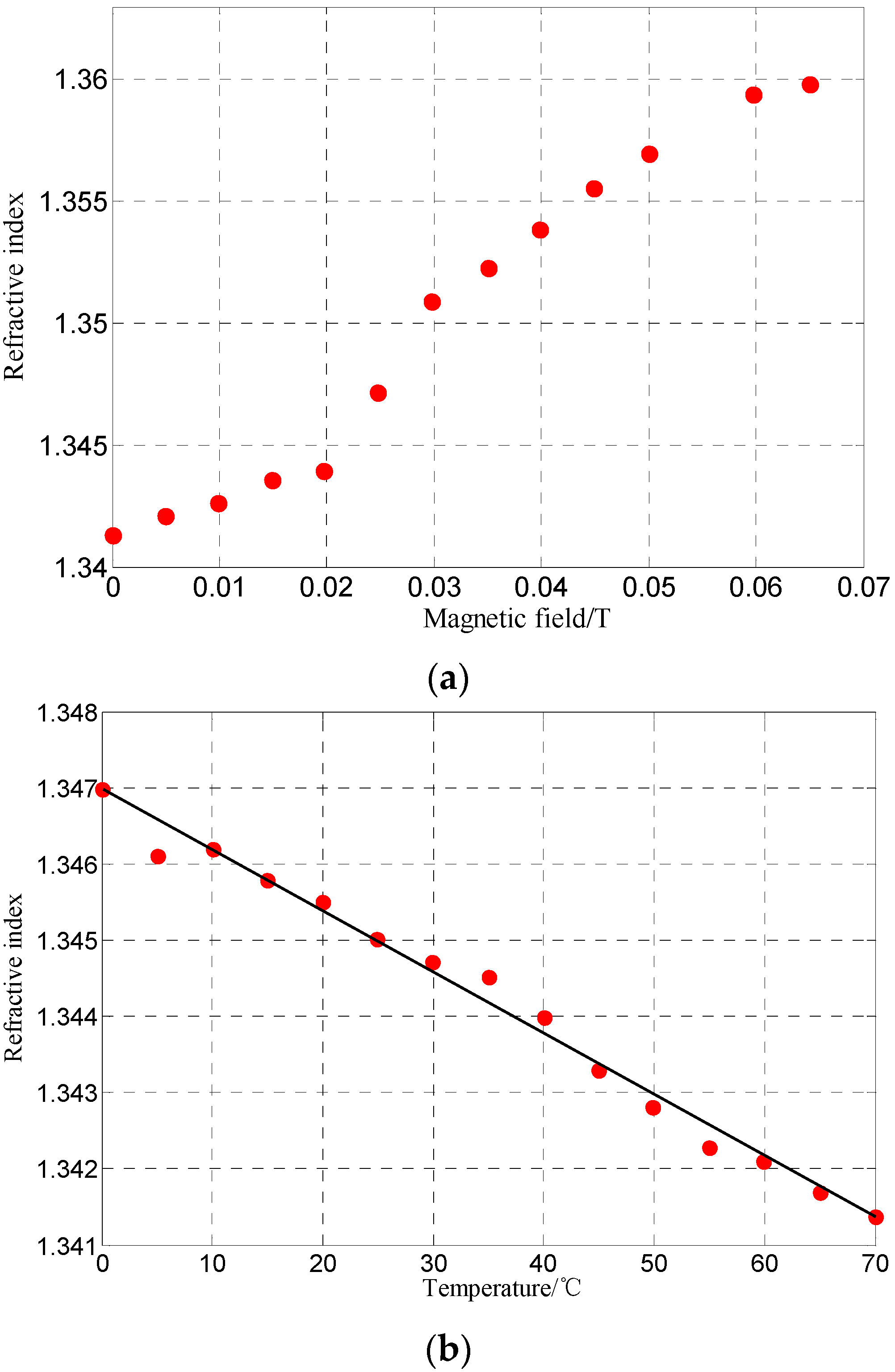

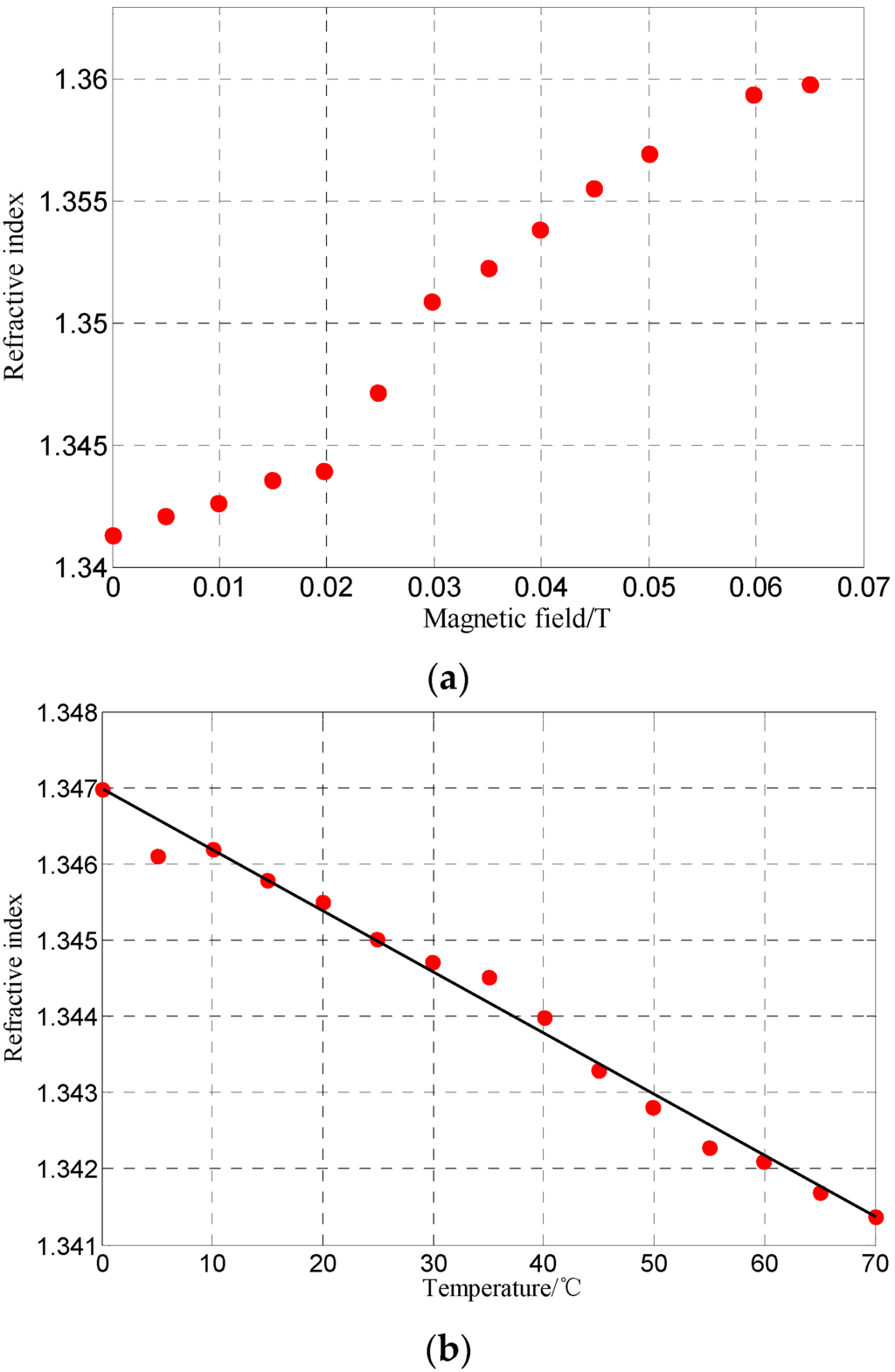

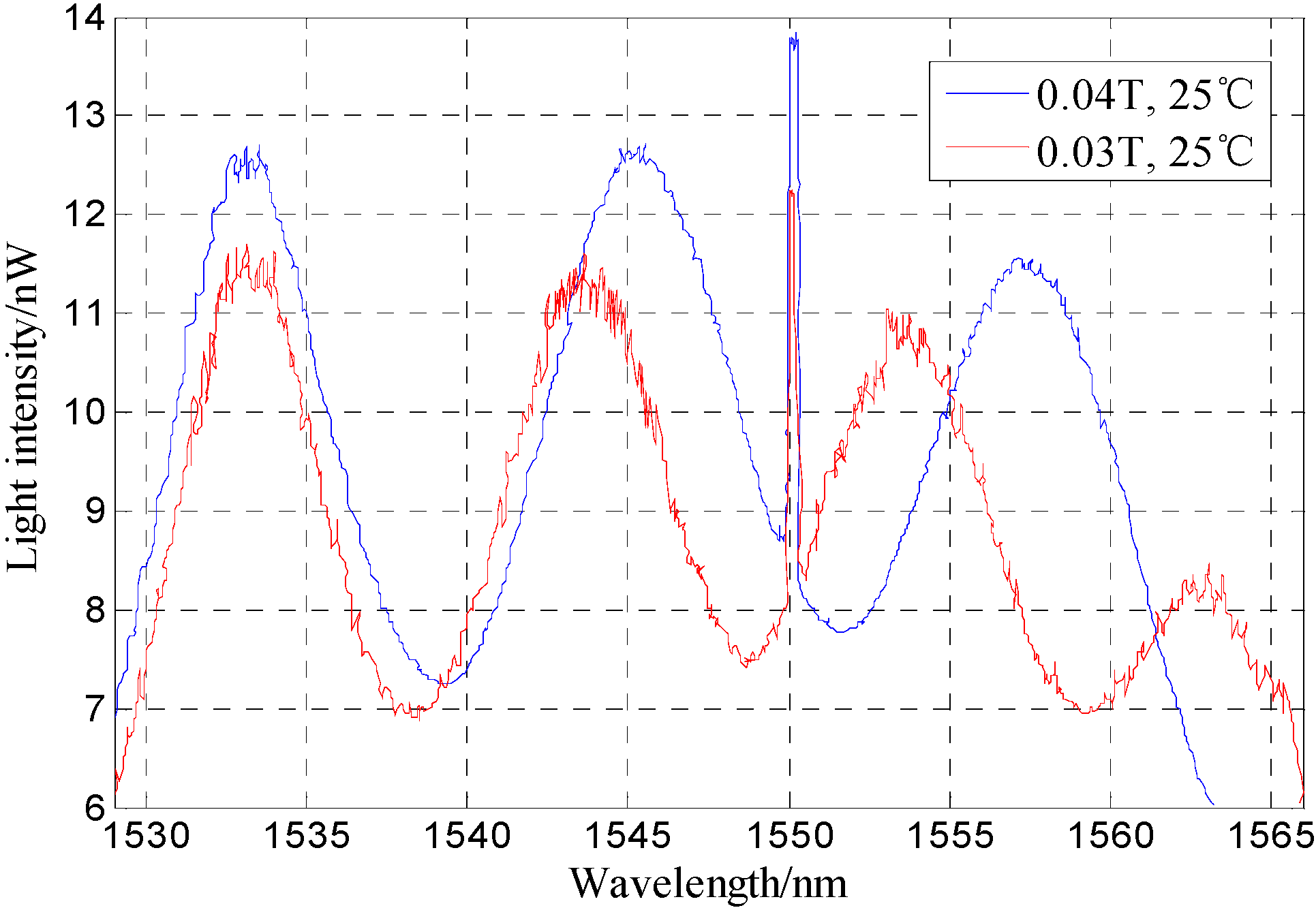

Based on the characteristic magnetic-controlled refractive index property, in this paper, a magnetic fluid is used as a sensitive medium to detect the magnetic field in the fiber optic Fabry-Perot (FP) cavity. The temperature compensation in fiber Fabry-Perot magnetic sensor is demonstrated and achieved. The refractive index of the magnetic fluid varies with the applied magnetic field and external temperature, and a cross-sensitivity effect of the temperature and magnetic field occurs in the Fabry-Perot magnetic sensor and the accuracy of magnetic field measurements is affected by the thermal effect. In order to overcome this problem, we propose a modified sensor structure. With a fiber Bragg grating (FBG) written in the insert fiber end of the Fabry-Perot cavity, the FBG acts as a temperature compensation unit for the magnetic field measurement and it provides an effective solution to the cross-sensitivity effect. The experimental results show that the sensitivity of magnetic field detection improves from 0.23 nm/mT to 0.53 nm/mT, and the magnetic field measurement resolution finally reaches 37.7 T. The temperature-compensated FP-FBG magnetic sensor has obvious advantages of small volume and high sensitivity, and it has a good prospect in applications in the power industry and national defense technology areas. View Full-Text
Keywords: magnetic field sensor; Fabry-Perot Cavity; magnetic fluid; Fiber Bragg Grating; temperature compensation magnetic field sensor; Fabry-Perot Cavity; magnetic fluid; Fiber Bragg Grating; temperature compensation
