Open AccessCommunication
Sensors 2016, 16(12), 2181; doi:10.3390/s16122181

Annealing Effects of Parylene-Caulked Polydimethylsiloxane as a Substrate of Electrodes

1
School of Mechanical Engineering, Gwangju Institute of Science and Technology (GIST), Gwangju 61005, Korea
2
Department of Robotics Engineering, Daegu Gyeongbuk Institute of Science and Technology (DGIST), Daegu 42988, Korea
3
Department of Biomedical Science and Engineering, Gwangju Institute of Science and Technology (GIST), Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Stefano Mariani
Received: 7 October 2016 / Revised: 6 December 2016 / Accepted: 15 December 2016 / Published: 18 December 2016
(This article belongs to the Collection Modeling, Testing and Reliability Issues in MEMS Engineering)
View Full-Text   |   Download PDF [2300 KB, uploaded 19 December 2016]   |

Abstract

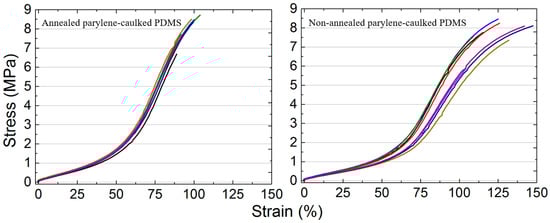

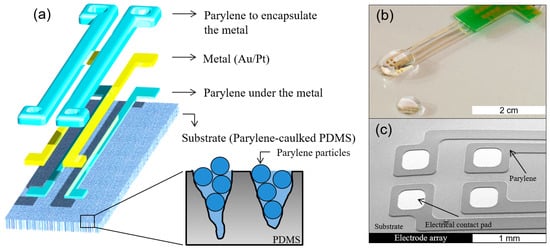

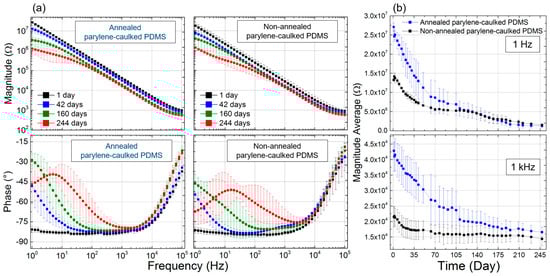

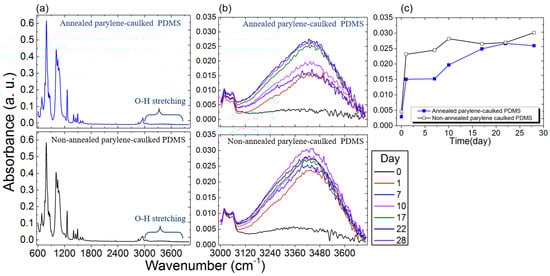

This paper investigates the effects of annealing of the electrodes based on parylene-caulked polydimethylsiloxane (pc-PDMS) in terms of mechanical strength and long-term electrical property. Previously, the electrodes based on pc-PDMS showed a better ability to withstand in vivo environments because of the low water absorption and beneficial mechanical properties of the substrate, compared to native PDMS. Moreover, annealing is expected to even strengthen the mechanical strength and lower the water absorption of the pc-PDMS substrate. To characterize the mechanical strength and water absorption of the annealed pc-PDMS, tensile tests were carried out and infrared (IR) spectra were measured using Fourier transform infrared spectroscopy over a month. The results showed that annealed pc-PDMS had higher mechanical strength and lower water absorption than non-annealed pc-PDMS. Then, electrochemical impedance spectroscopy was measured to evaluate the electrical stability of the electrodes based on annealed pc-PDMS in phosphate-buffered saline solution at 36.5 °C. The impedance magnitude of the electrodes on annealed pc-PDMS was twice higher than that of the electrodes on non-annealed pc-PDMS in the initial days, but the impedance magnitude of the electrodes based on two different substrates converged to a similar value after eight months, indicating that the annealing effects disappear after a certain period of time in a physiological environment. View Full-Text
Keywords: implantable electrode; polydimethylsiloxane (PDMS); parylene; parylene-caulked PDMS (pc-PDMS); annealing; mechanical strength; electrochemical impedance spectroscopy (EIS); stability implantable electrode; polydimethylsiloxane (PDMS); parylene; parylene-caulked PDMS (pc-PDMS); annealing; mechanical strength; electrochemical impedance spectroscopy (EIS); stability
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Jeong, J.; Chou, N.; Lee, G.; Kim, S. Annealing Effects of Parylene-Caulked Polydimethylsiloxane as a Substrate of Electrodes. Sensors 2016, 16, 2181.
