Decoupling Control of Micromachined Spinning-Rotor Gyroscope with Electrostatic Suspension

Department of Precision Instrument, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Academic Editor: Gert F. Trommer
Received: 9 September 2016 / Revised: 7 October 2016 / Accepted: 18 October 2016 / Published: 20 October 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3291 KB, uploaded 20 October 2016]   |

Abstract

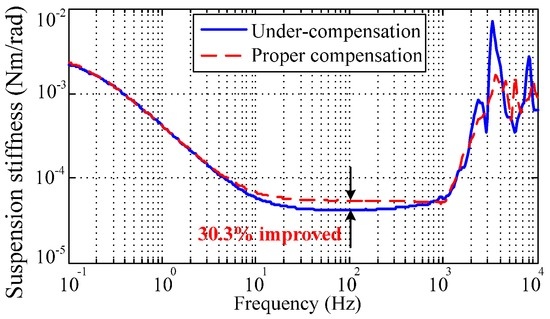

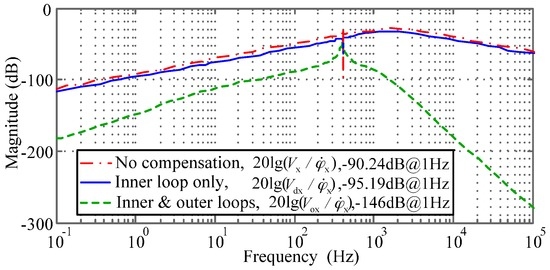

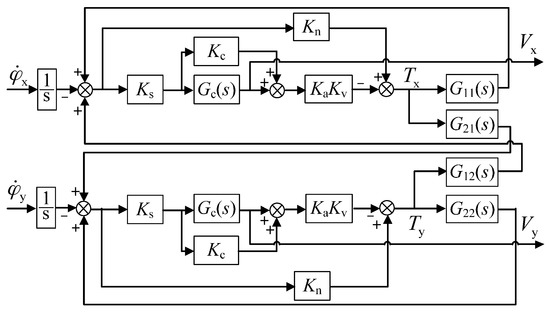

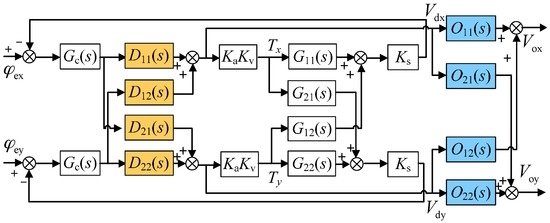

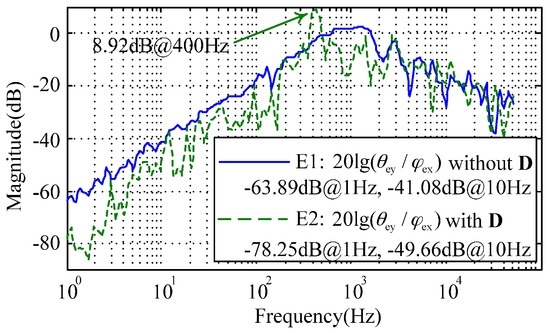

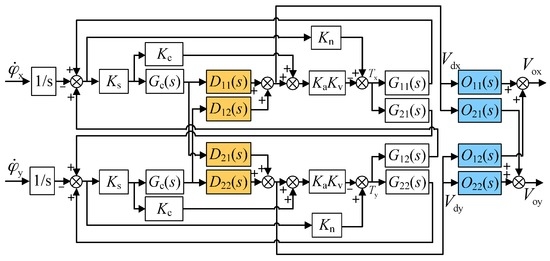

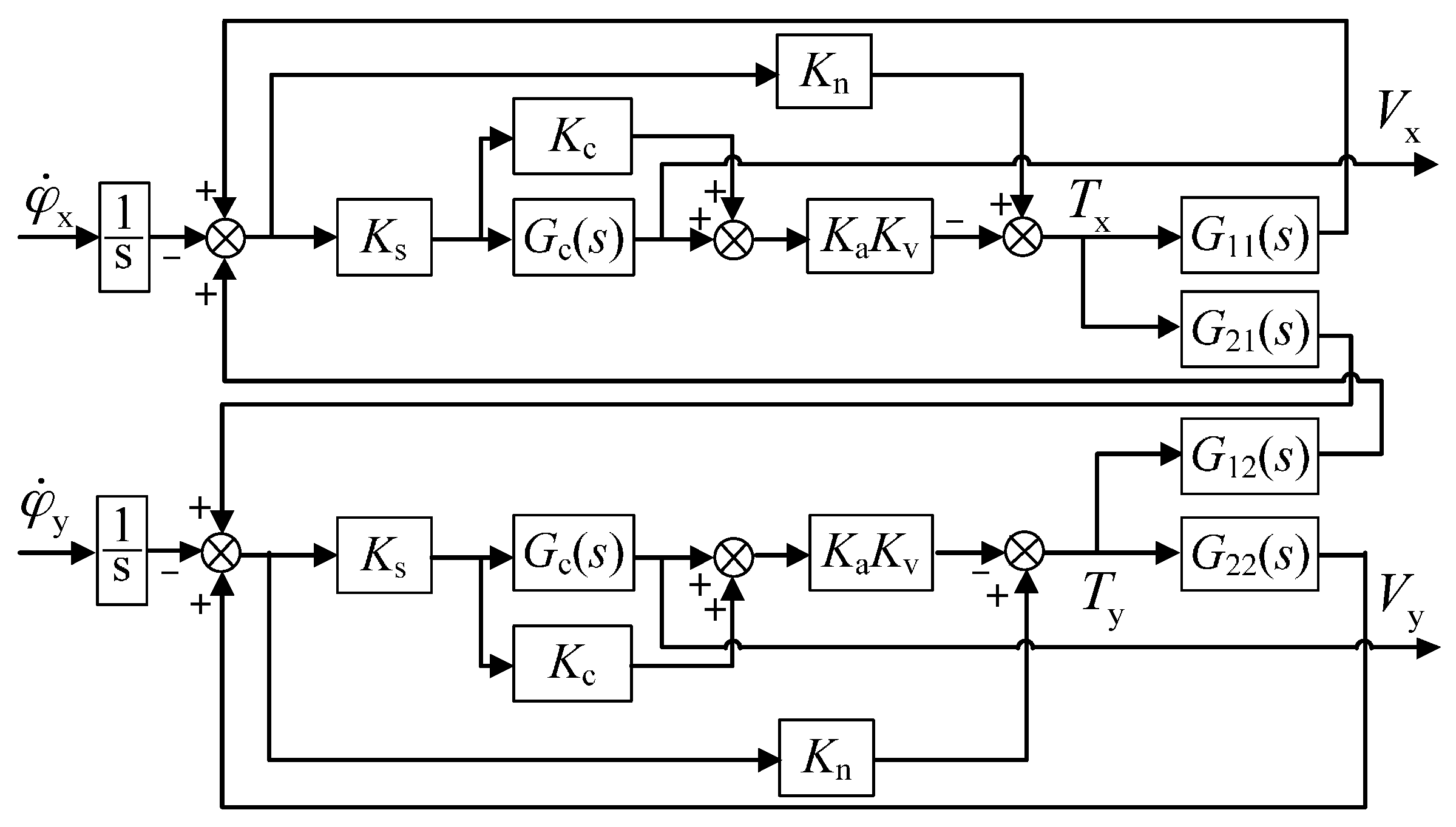

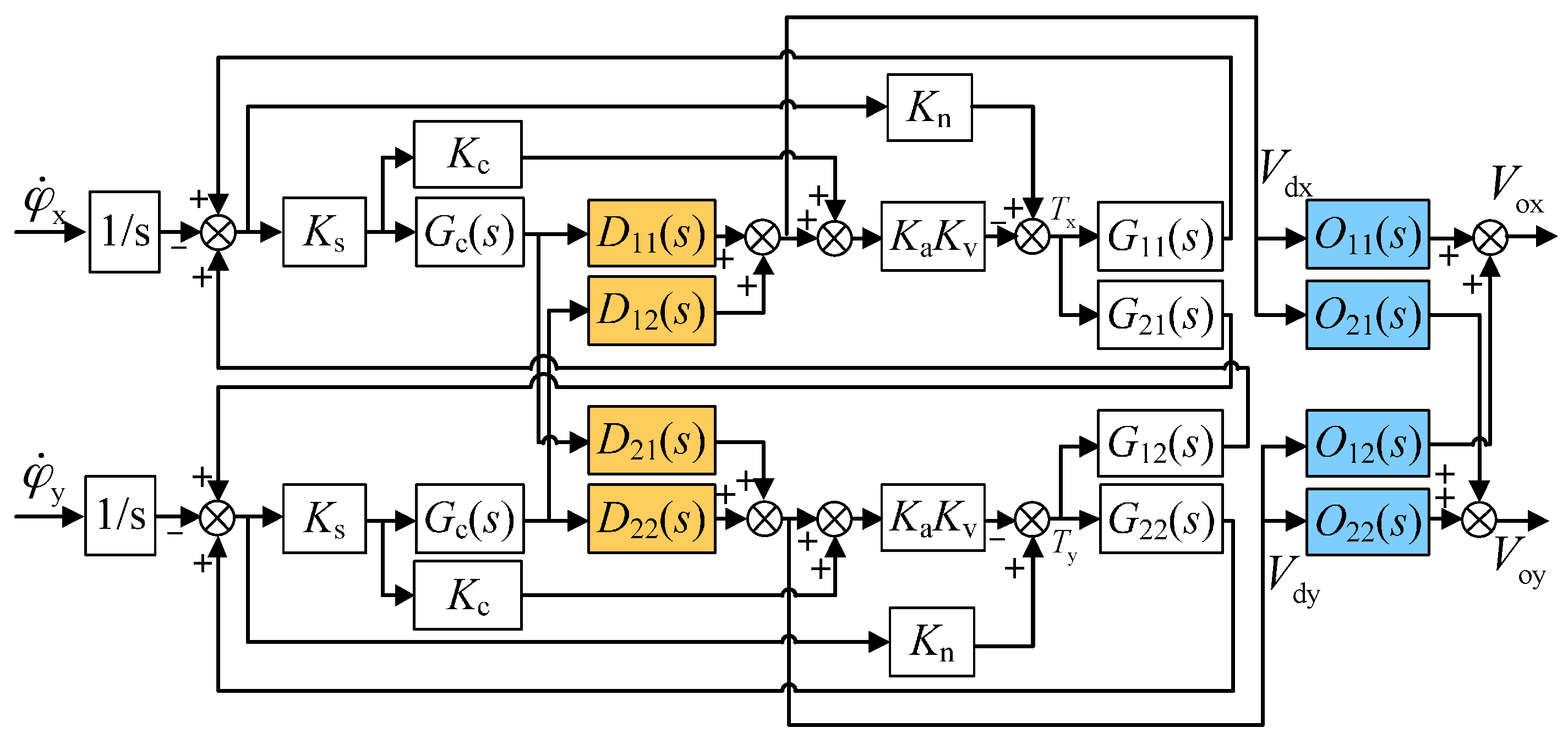

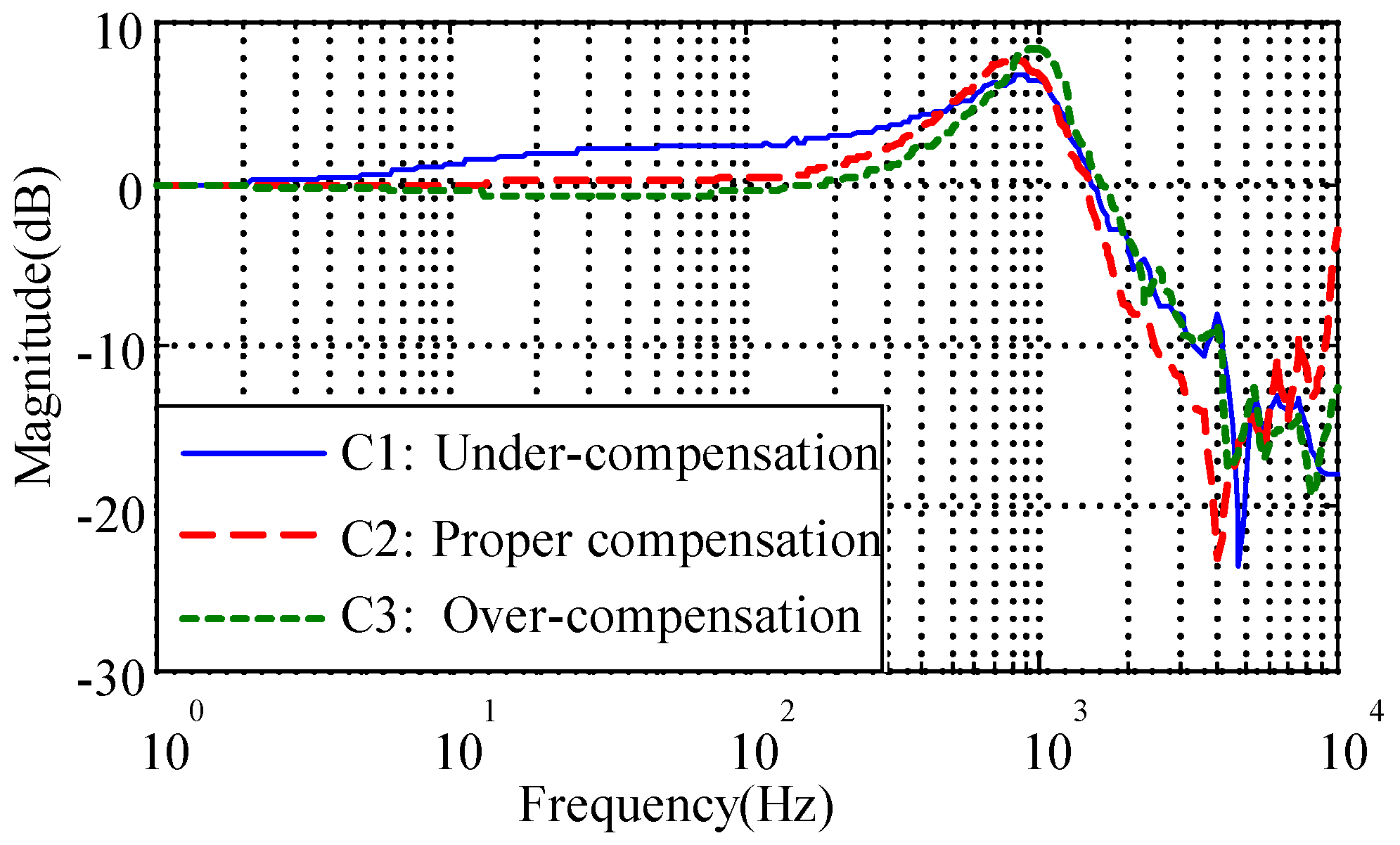

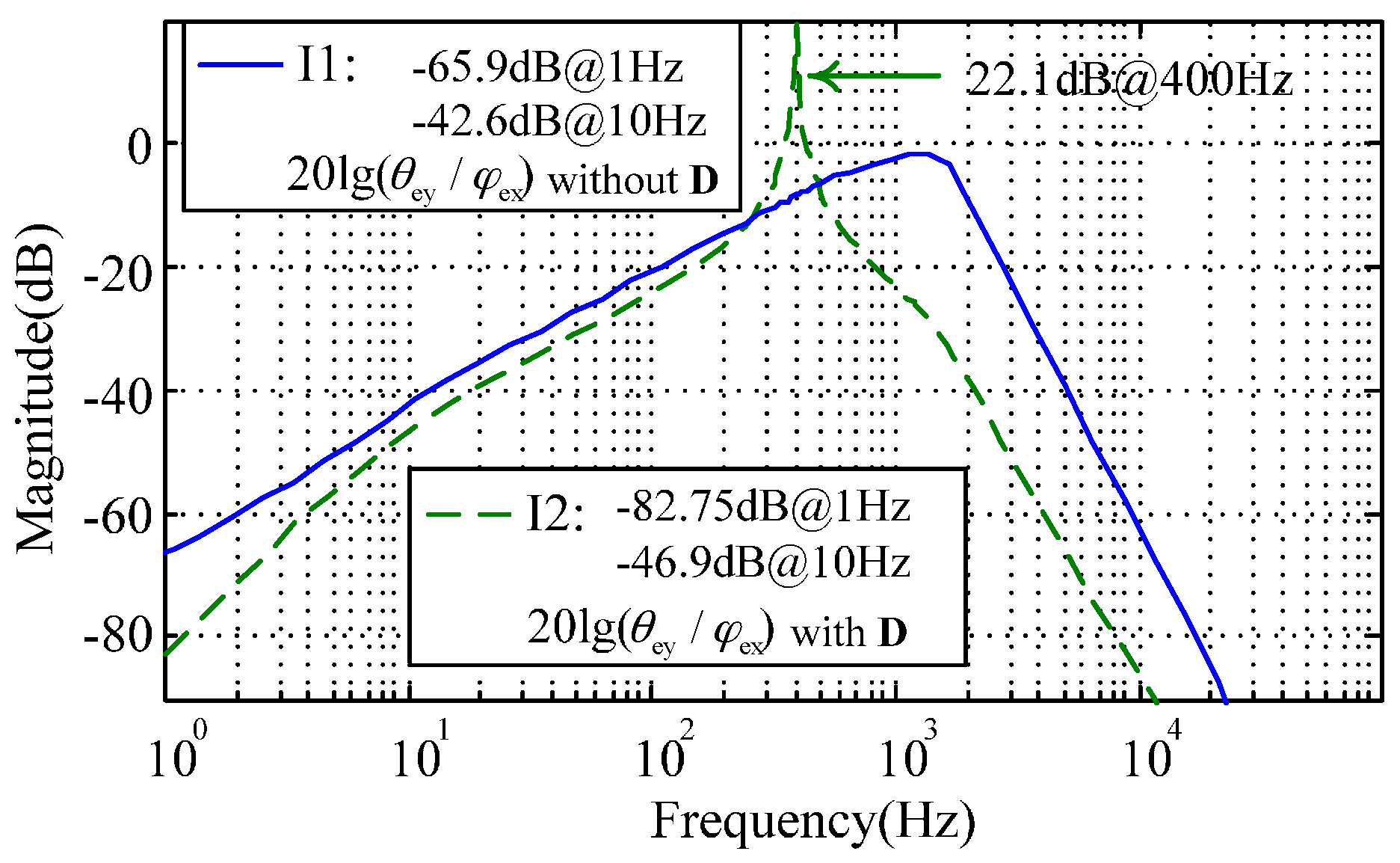

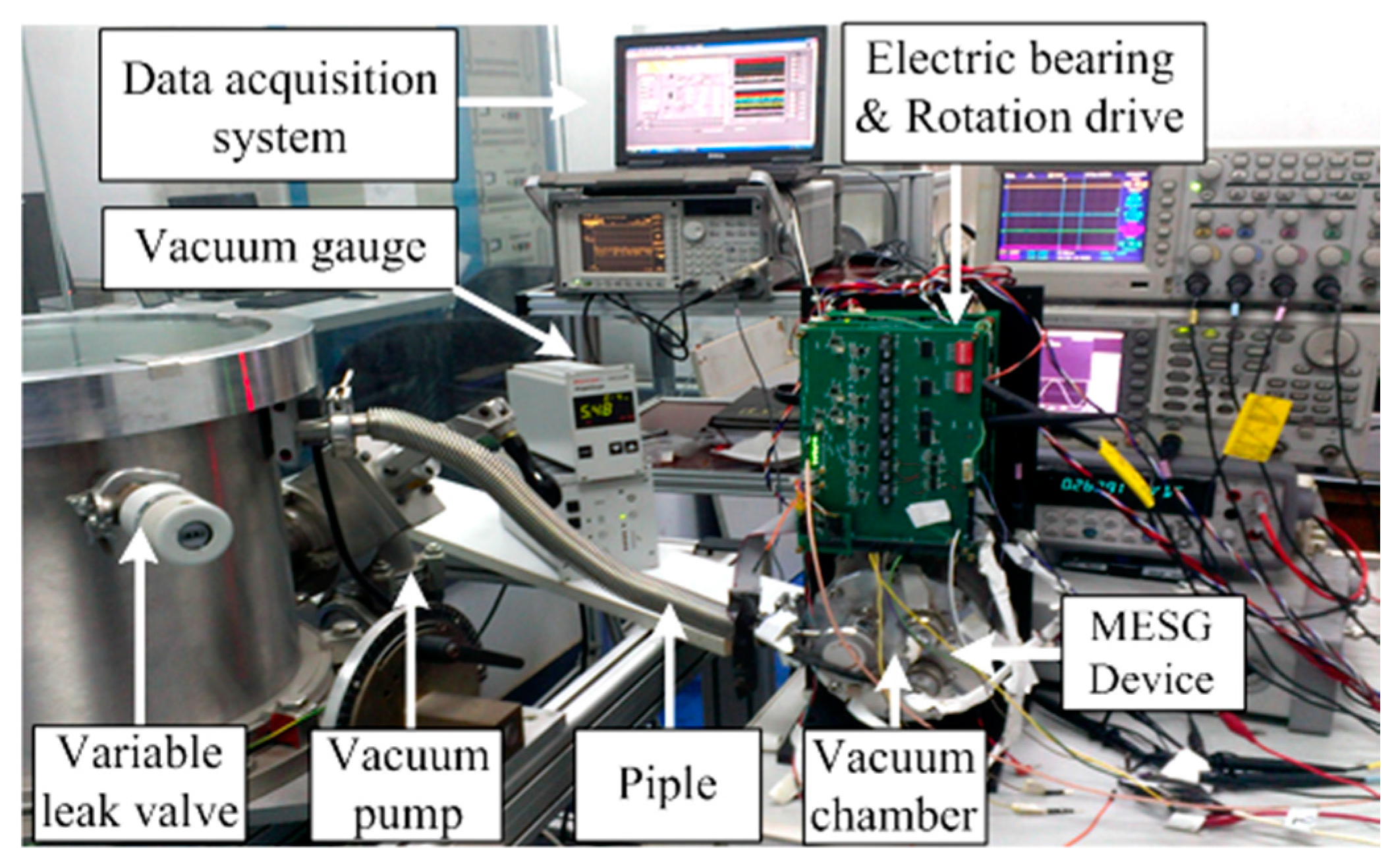

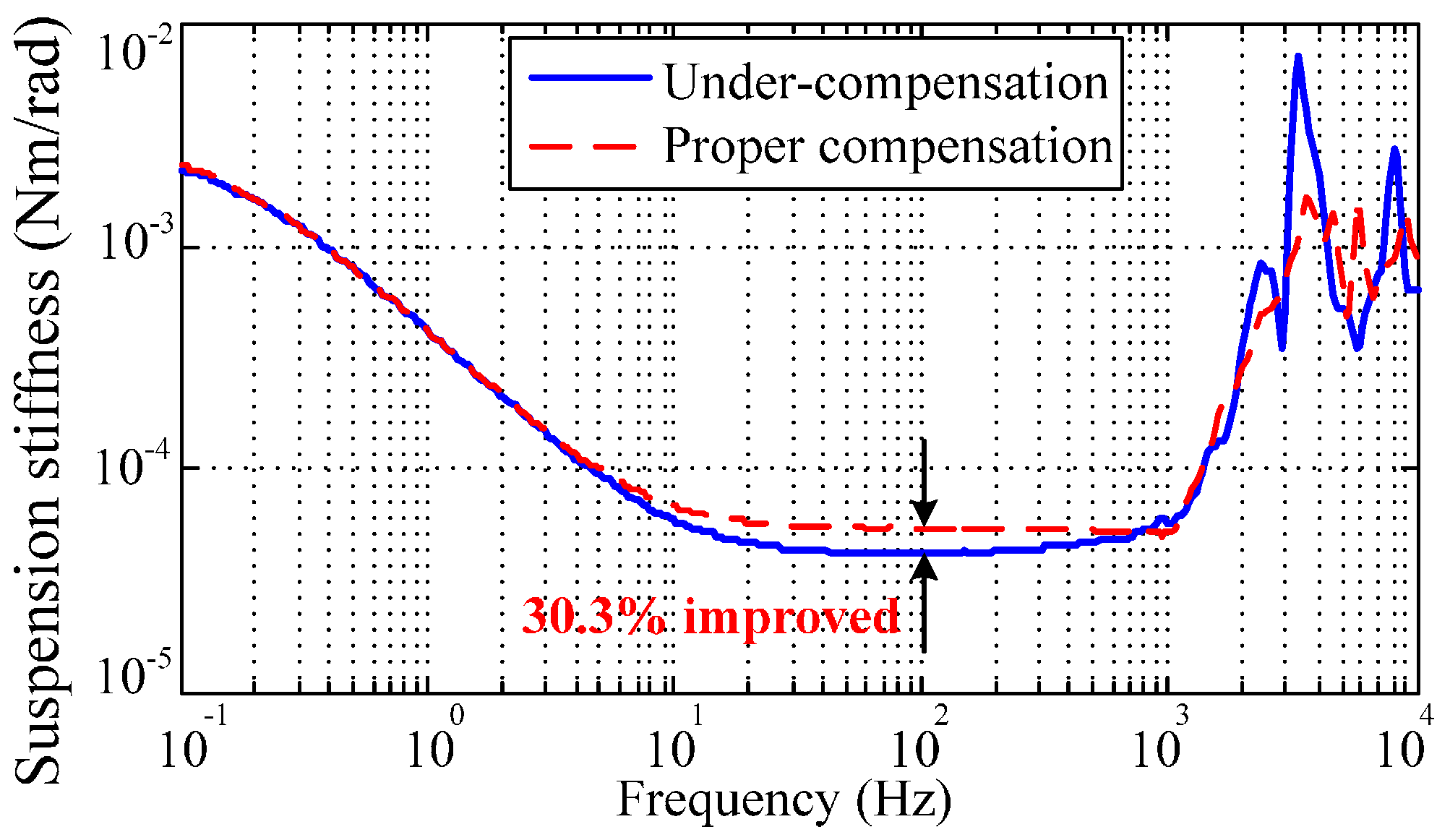

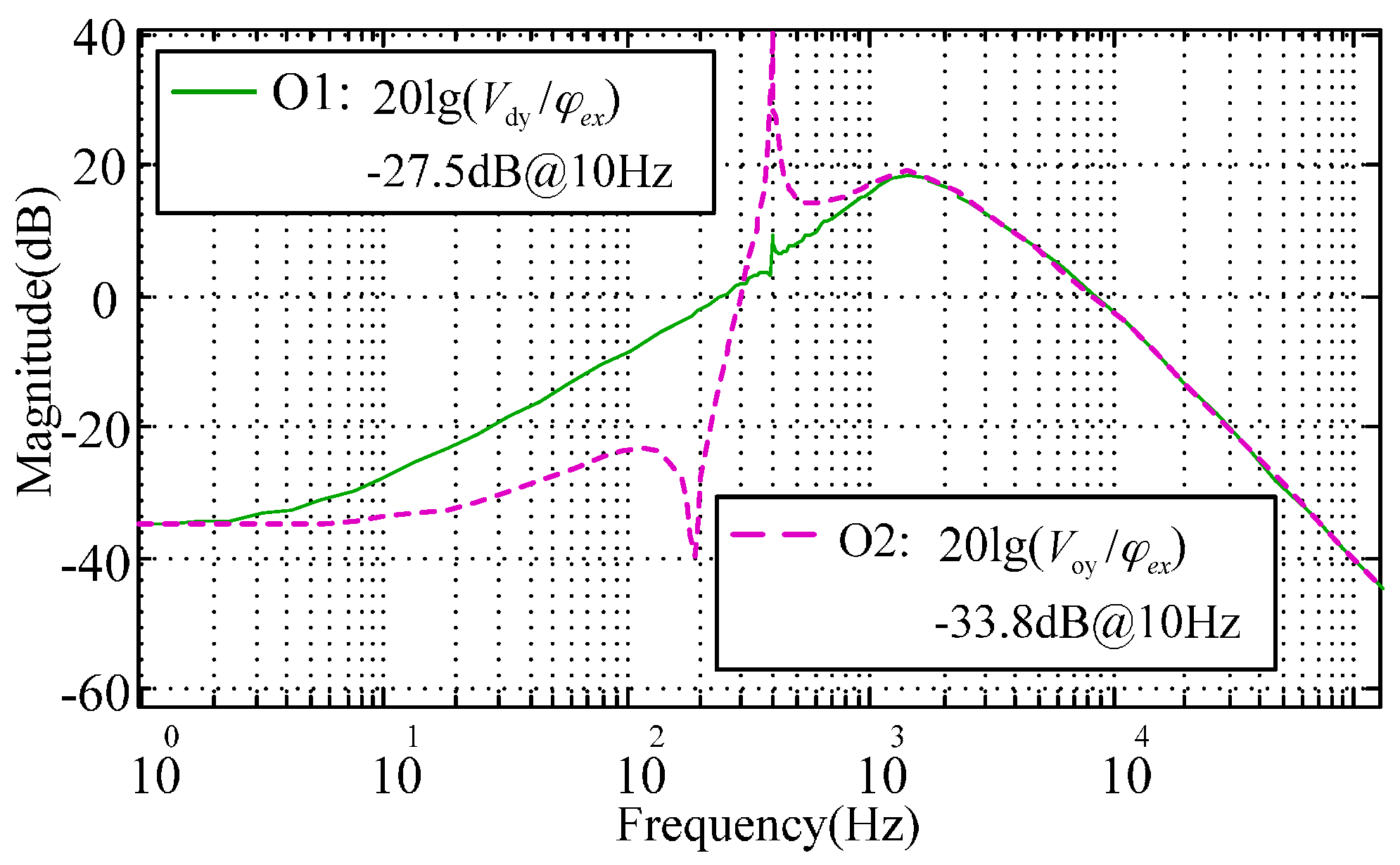

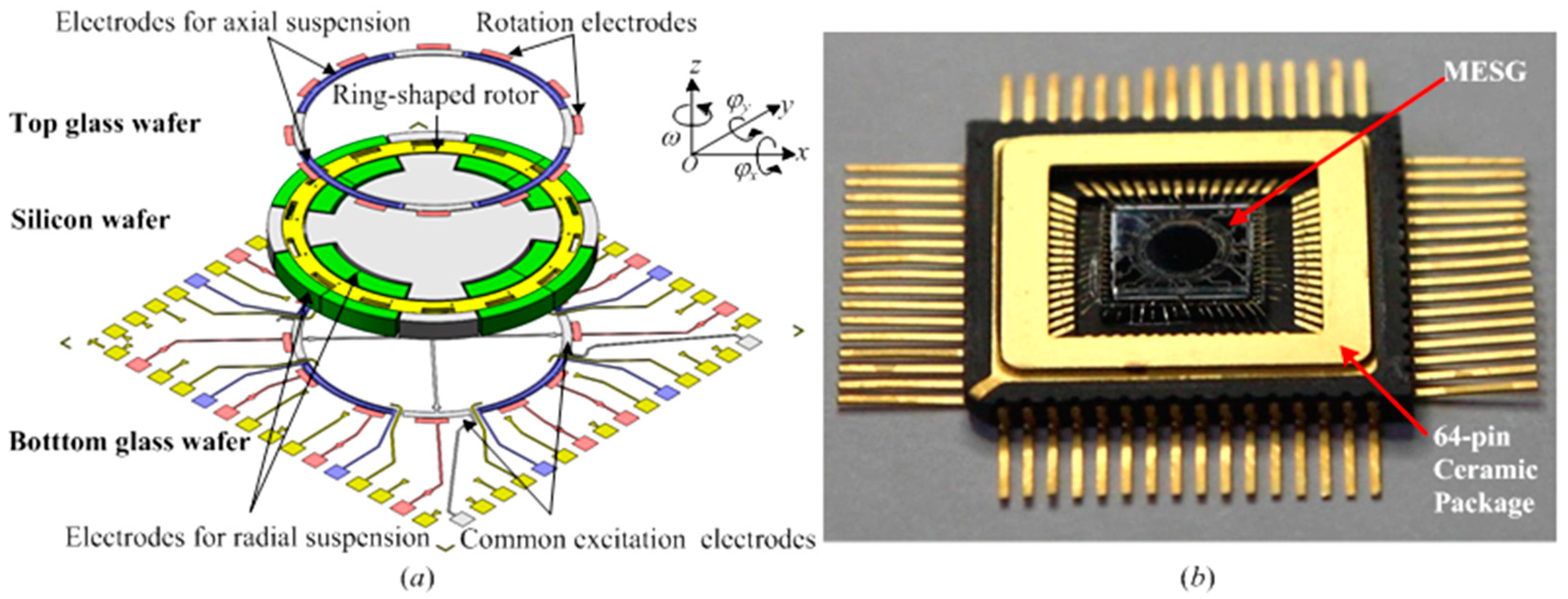

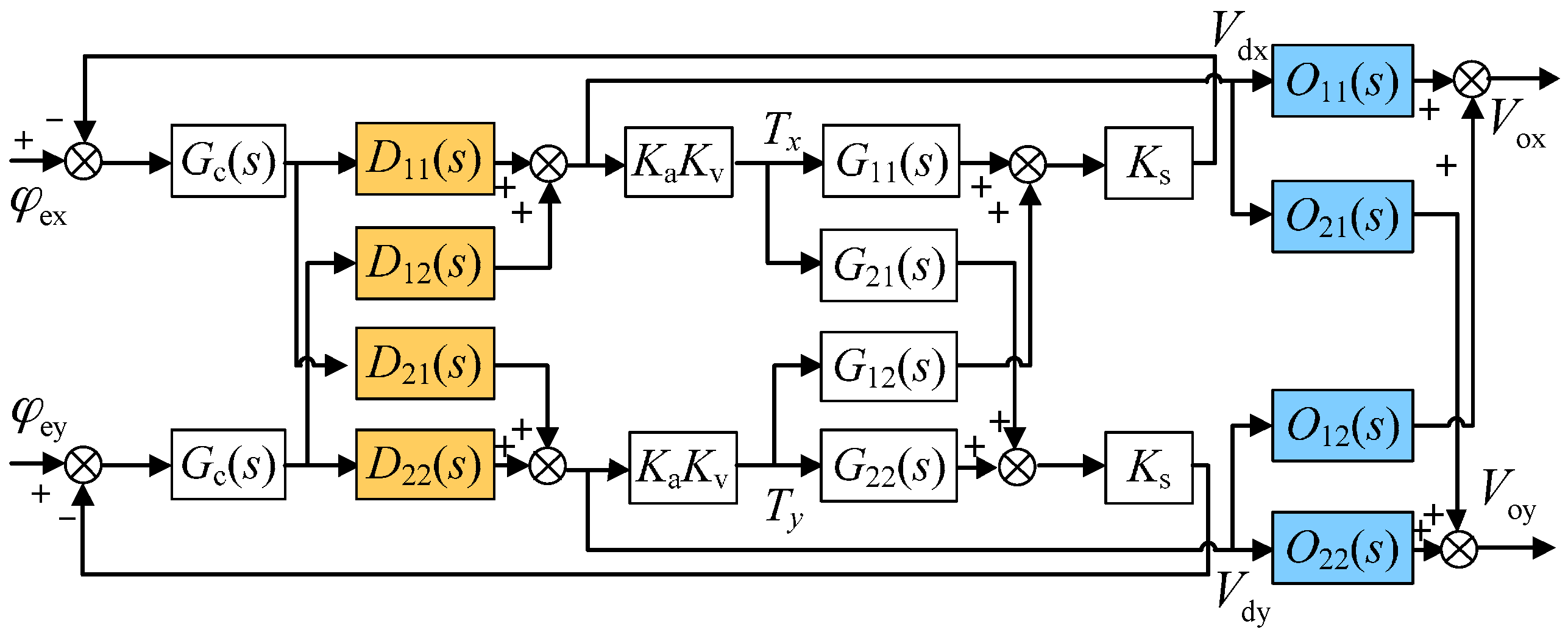

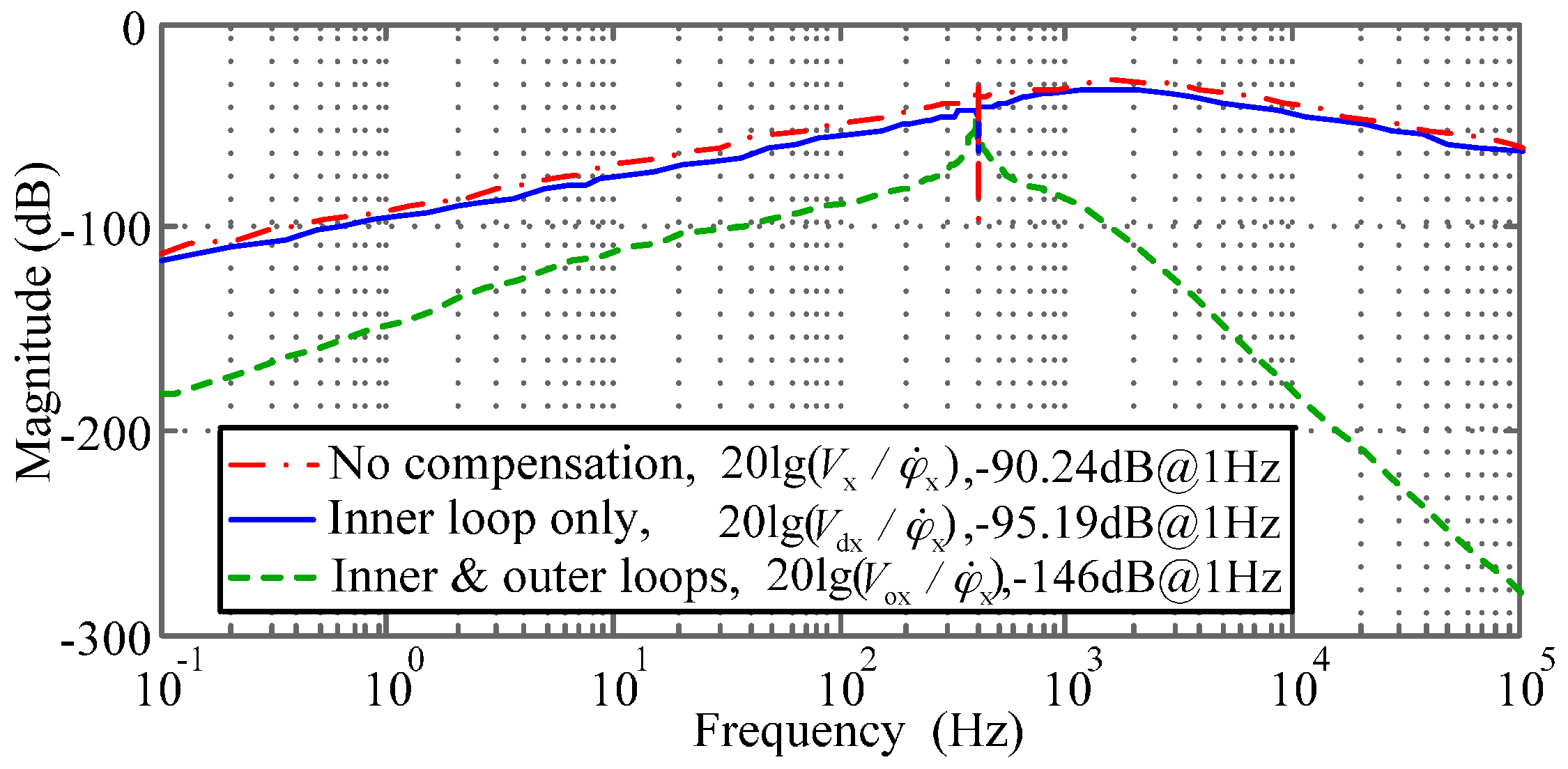

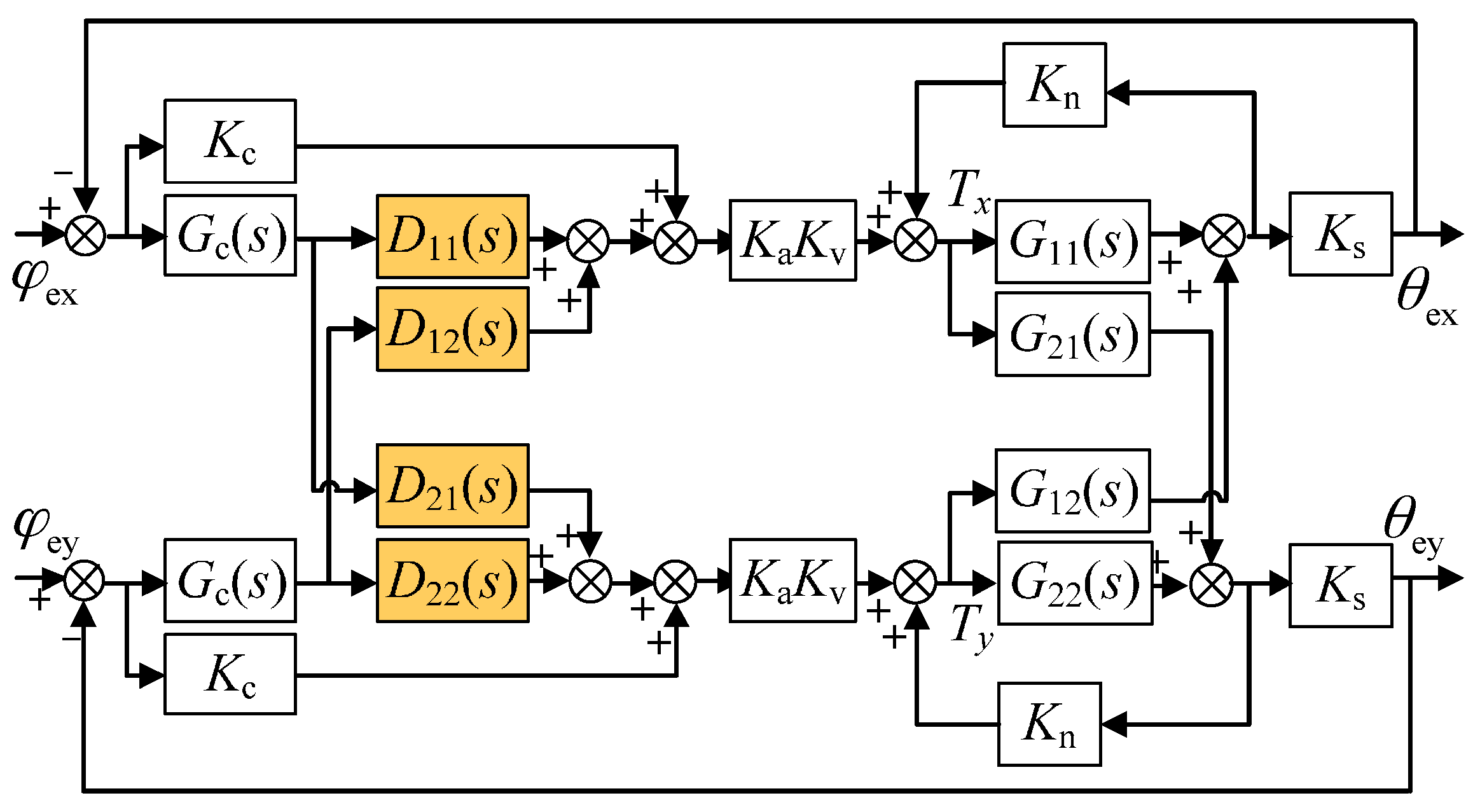

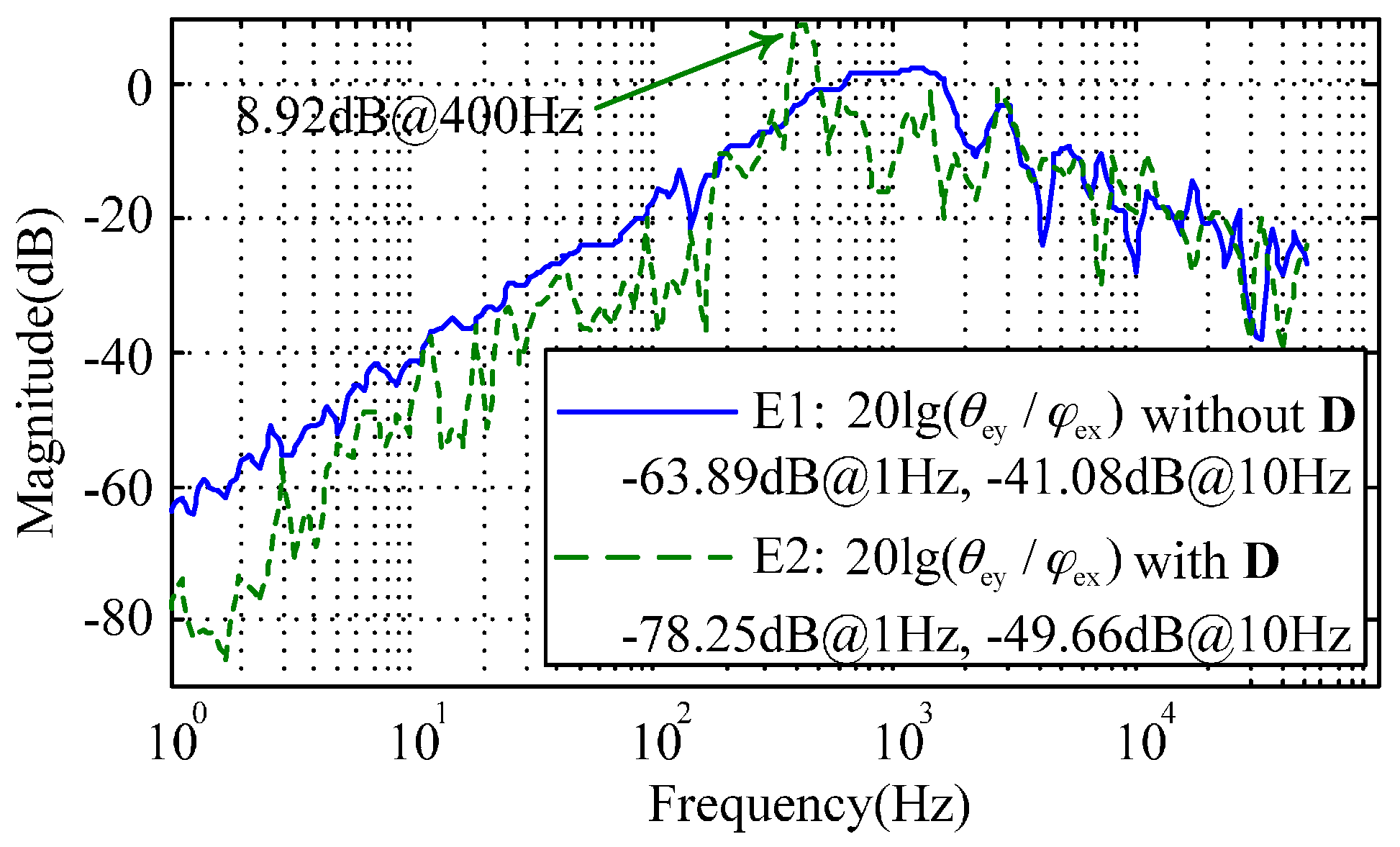

A micromachined gyroscope in which a high-speed spinning rotor is suspended electrostatically in a vacuum cavity usually functions as a dual-axis angular rate sensor. An inherent coupling error between the two sensing axes exists owing to the angular motion of the spinning rotor being controlled by a torque-rebalance loop. In this paper, a decoupling compensation method is proposed and investigated experimentally based on an electrostatically suspended micromachined gyroscope. In order to eliminate the negative spring effect inherent in the gyroscope dynamics, a stiffness compensation scheme was utilized in design of the decoupled rebalance loop to ensure loop stability and increase suspension stiffness. The experimental results show an overall stiffness increase of 30.3% after compensation. A decoupling method comprised of inner- and outer-loop decoupling compensators is proposed to minimize the cross-axis coupling error. The inner-loop decoupling compensator aims to attenuate the angular position coupling. The experimental frequency response shows a position coupling attenuation by 14.36 dB at 1 Hz. Moreover, the cross-axis coupling between the two angular rate output signals can be attenuated theoretically from −56.2 dB down to −102 dB by further appending the outer-loop decoupling compensator. The proposed dual-loop decoupling compensation algorithm could be applied to other dual-axis spinning-rotor gyroscopes with various suspension solutions. View Full-Text
Keywords: decoupling control; gyroscope rebalance loop; stiffness compensation; inner-loop decoupling compensator; outer-loop decoupling compensator; micromachined spinning-rotor gyroscope; electrostatic suspension decoupling control; gyroscope rebalance loop; stiffness compensation; inner-loop decoupling compensator; outer-loop decoupling compensator; micromachined spinning-rotor gyroscope; electrostatic suspension
