Sensors 2016, 16(10), 1705; doi:10.3390/s16101705

Integration of Error Compensation of Coordinate Measuring Machines into Feature Measurement: Part II—Experimental Implementation

1
Department of Mechanical Engineering, Chemistry and Industrial Design, Universidad Politécnica de Madrid, Ronda de Valencia 3, Madrid 28012, Spain
2
Department of Construction and Manufacturing Engineering, Universidad Nacional de Educación a Distancia (UNED), C/Juan del Rosal 12, Madrid 28040, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 7 August 2016 / Revised: 30 September 2016 / Accepted: 5 October 2016 / Published: 14 October 2016
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2016)
View Full-Text   |   Download PDF [3590 KB, uploaded 14 October 2016]   |

Abstract

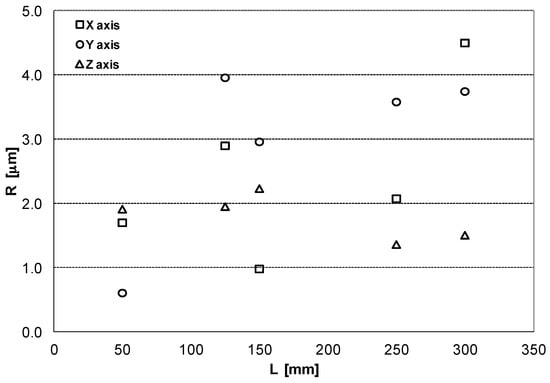

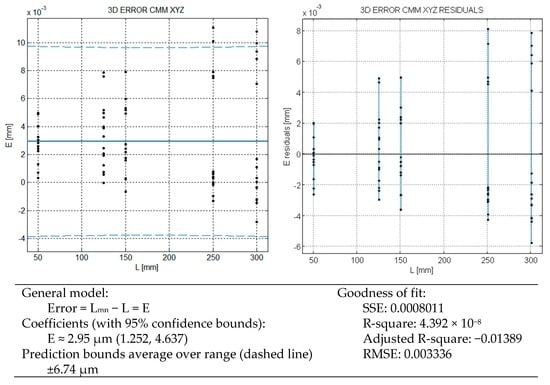

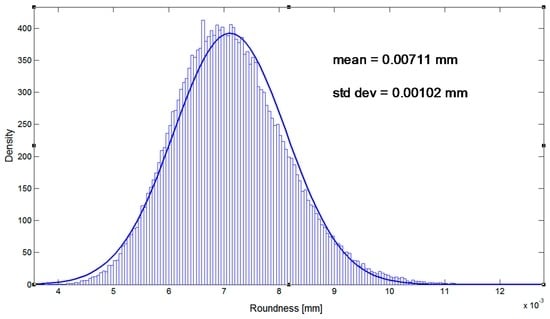

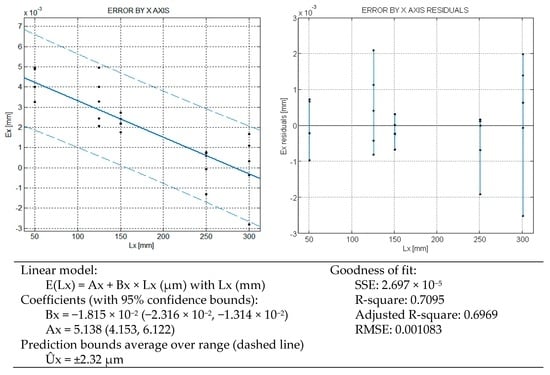

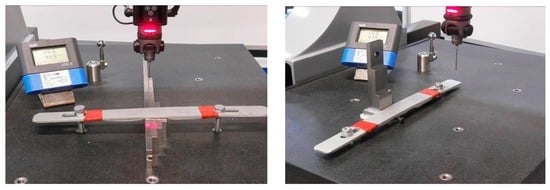

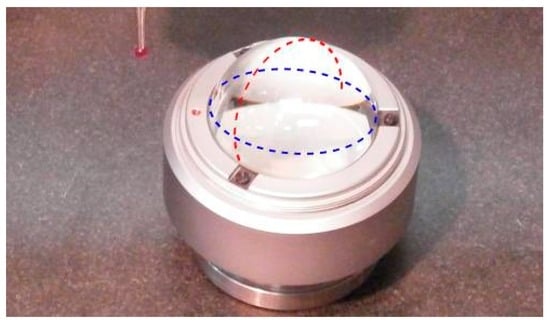

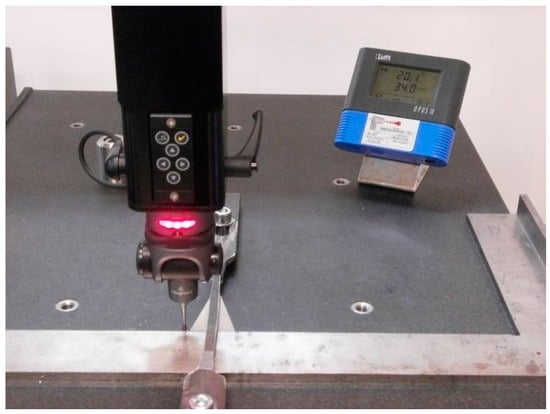

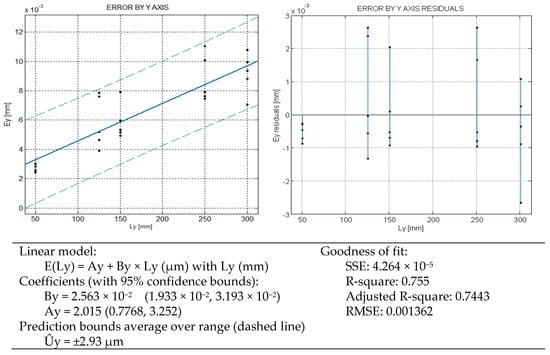

Coordinate measuring machines (CMM) are main instruments of measurement in laboratories and in industrial quality control. A compensation error model has been formulated (Part I). It integrates error and uncertainty in the feature measurement model. Experimental implementation for the verification of this model is carried out based on the direct testing on a moving bridge CMM. The regression results by axis are quantified and compared to CMM indication with respect to the assigned values of the measurand. Next, testing of selected measurements of length, flatness, dihedral angle, and roundness features are accomplished. The measurement of calibrated gauge blocks for length or angle, flatness verification of the CMM granite table and roundness of a precision glass hemisphere are presented under a setup of repeatability conditions. The results are analysed and compared with alternative methods of estimation. The overall performance of the model is endorsed through experimental verification, as well as the practical use and the model capability to contribute in the improvement of current standard CMM measuring capabilities. View Full-Text
Keywords: CMM uncertainty; CMM error mapping; CMM verification; flatness measurement; angle measurement; circularity measurement CMM uncertainty; CMM error mapping; CMM verification; flatness measurement; angle measurement; circularity measurement
Figures

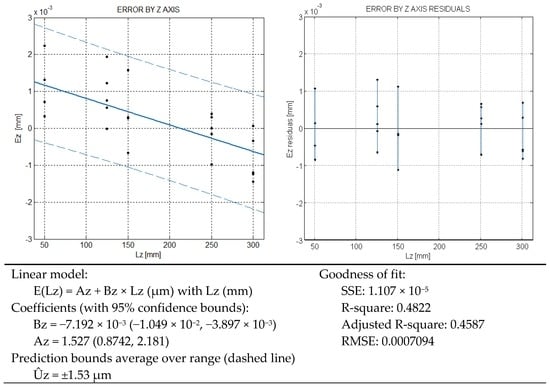

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
