Sensors 2016, 16(10), 1592; doi:10.3390/s16101592

The Design and Analysis of Split Row-Column Addressing Array for 2-D Transducer

Department of Bio-medical Engineering, School of Life Science and Technology, “Image Processing and Intelligence Control” Key Laboratory of Education Ministry of China, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Academic Editor: Caterina Ciminelli
Received: 11 April 2016 / Revised: 7 September 2016 / Accepted: 9 September 2016 / Published: 27 September 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [5307 KB, uploaded 27 September 2016]   |

Abstract

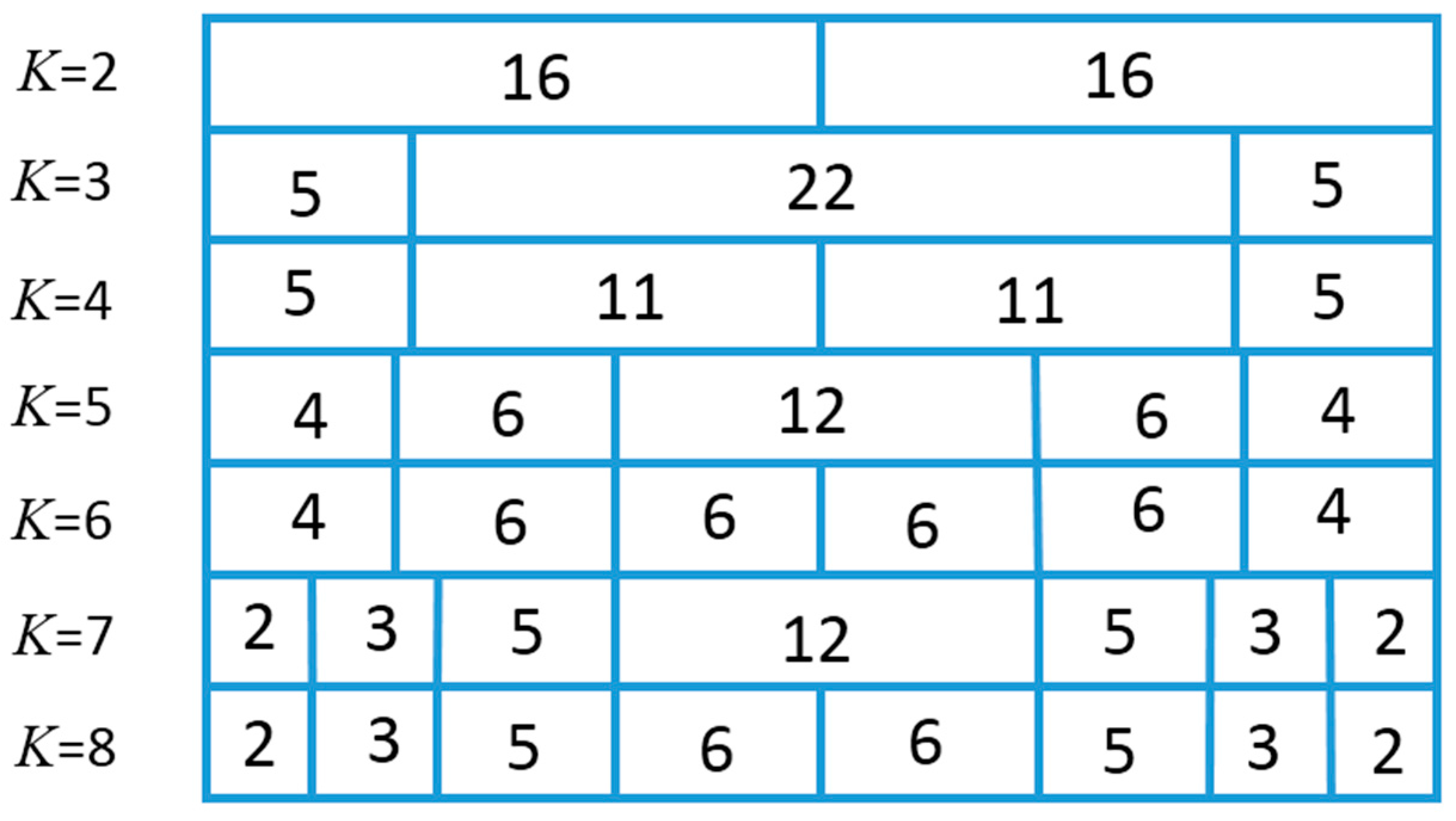

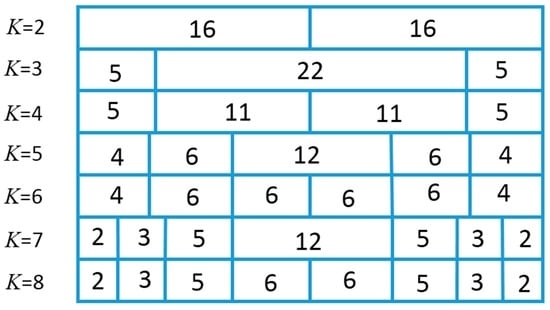

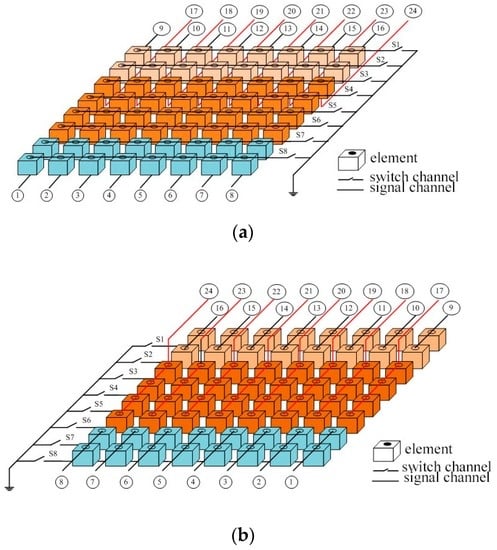

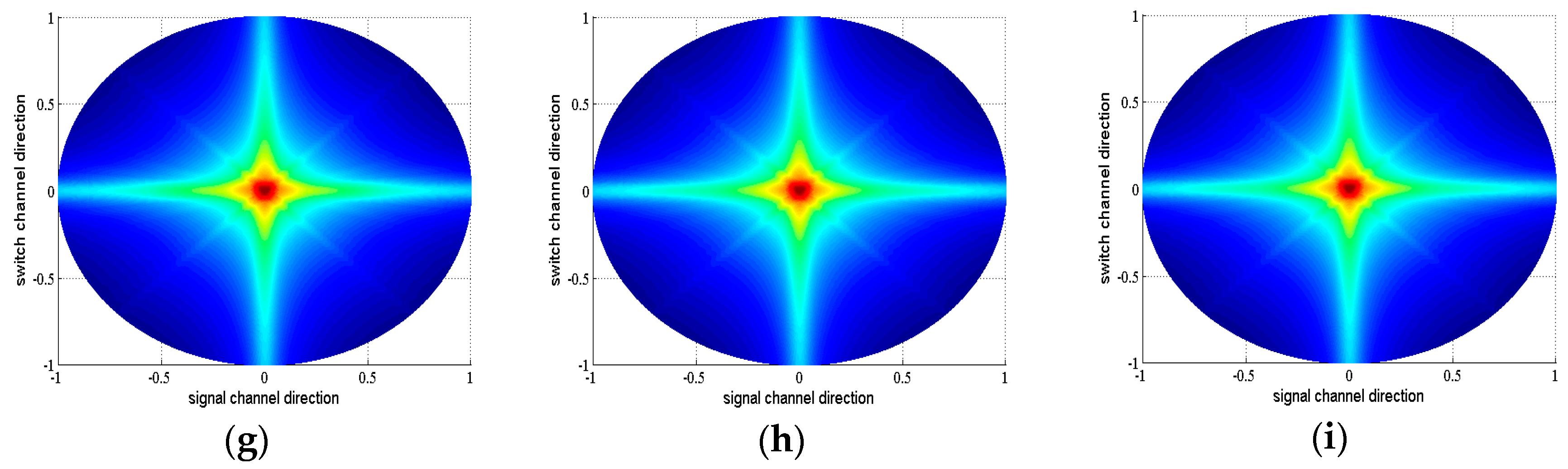

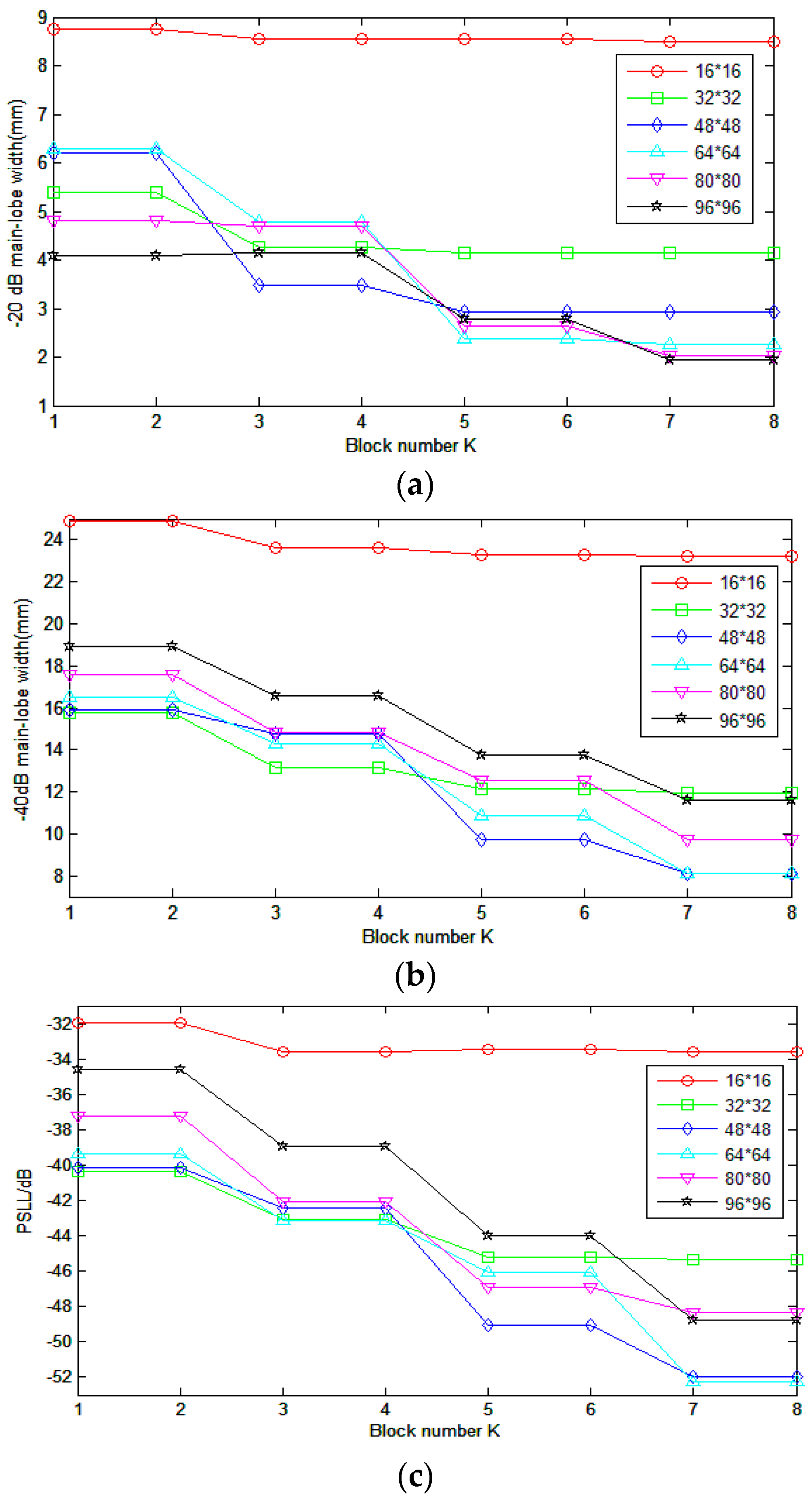

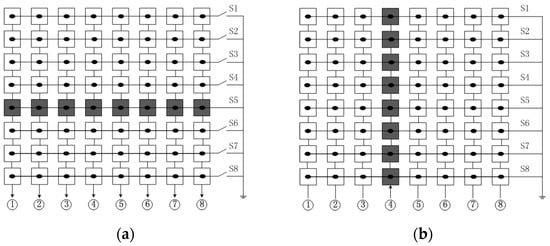

For 3-D ultrasound imaging, the row-column addressing (RCA) with 2N connections for an N × N 2-D array makes the fabrication and interconnection simpler than the fully addressing with N2 connections. However, RCA degrades the image quality because of defocusing in signal channel direction in the transmit event. To solve this problem, a split row-column addressing scheme (SRCA) is proposed in this paper. Rather than connecting all the elements in the signal channel direction together, this scheme divides the elements in the signal channel direction into several disconnected blocks, thus enables focusing beam access in both signal channel and switch channel directions. Selecting an appropriate split scheme is the key for SRCA to maintaining a reasonable tradeoff between the image quality and the number of connections. Various split schemes for a 32 × 32 array are fully investigated with point spread function (PSF) analysis and imaging simulation. The result shows the split scheme with five blocks (4, 6, 12, 6, and 4 elements of each block) can provide similar image quality to fully addressing. The splitting schemes for different array sizes from 16 × 16 to 96 × 96 are also discussed. View Full-Text
Keywords: 3-D ultrasound imaging; row-column addressing; split schemes; imaging simulation 3-D ultrasound imaging; row-column addressing; split schemes; imaging simulation
Figures

Figure 1
