Sensors 2016, 16(1), 124; doi:10.3390/s16010124

A Pedestrian Detection Scheme Using a Coherent Phase Difference Method Based on 2D Range-Doppler FMCW Radar

Advanced Radar Technology (ART) Lab., Division of IoT and Robotics Convergence Research, DGIST, 333 Techno Jungang-daero, Hyeonpung-myeon, Dalseong-gun, Daegu 711-873, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 19 October 2015 / Revised: 14 January 2016 / Accepted: 14 January 2016 / Published: 20 January 2016
(This article belongs to the Section Remote Sensors)
View Full-Text   |   Download PDF [9421 KB, uploaded 20 January 2016]   |

Abstract

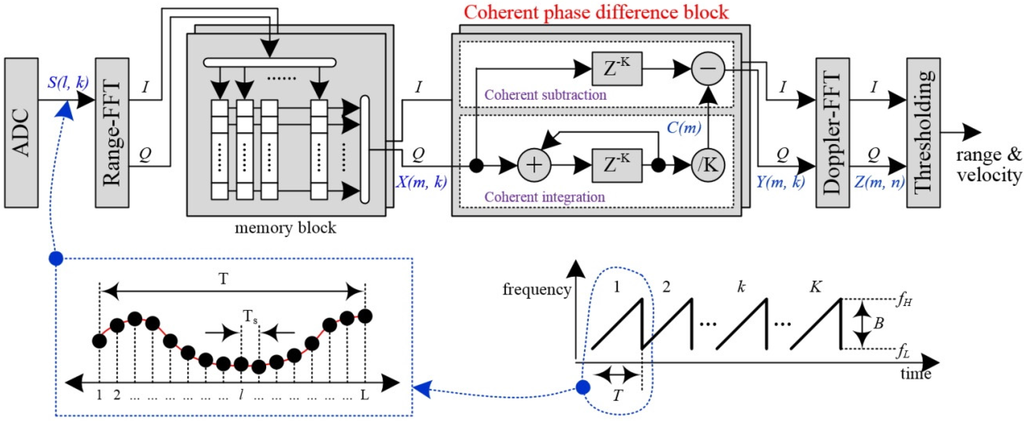

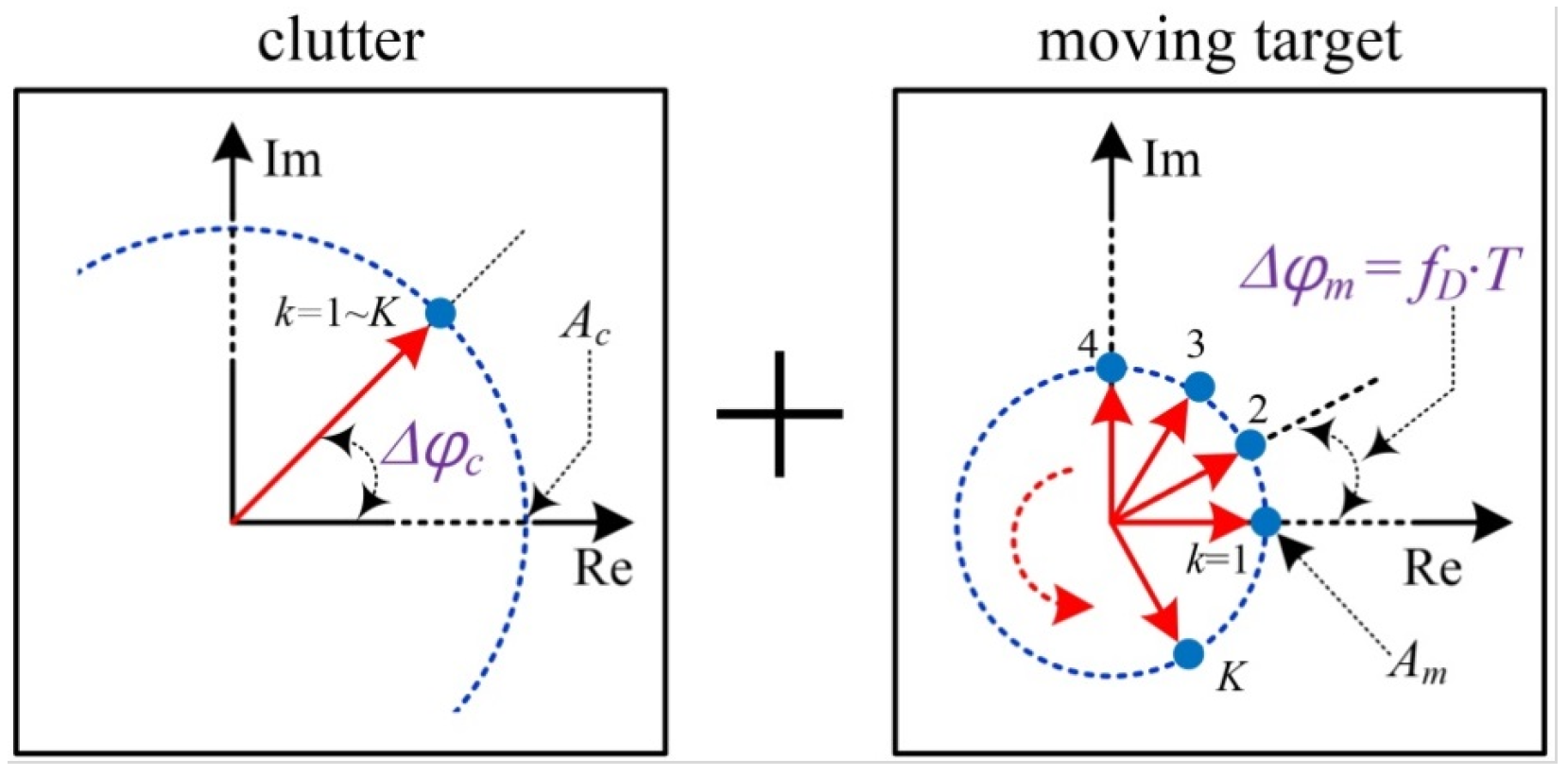

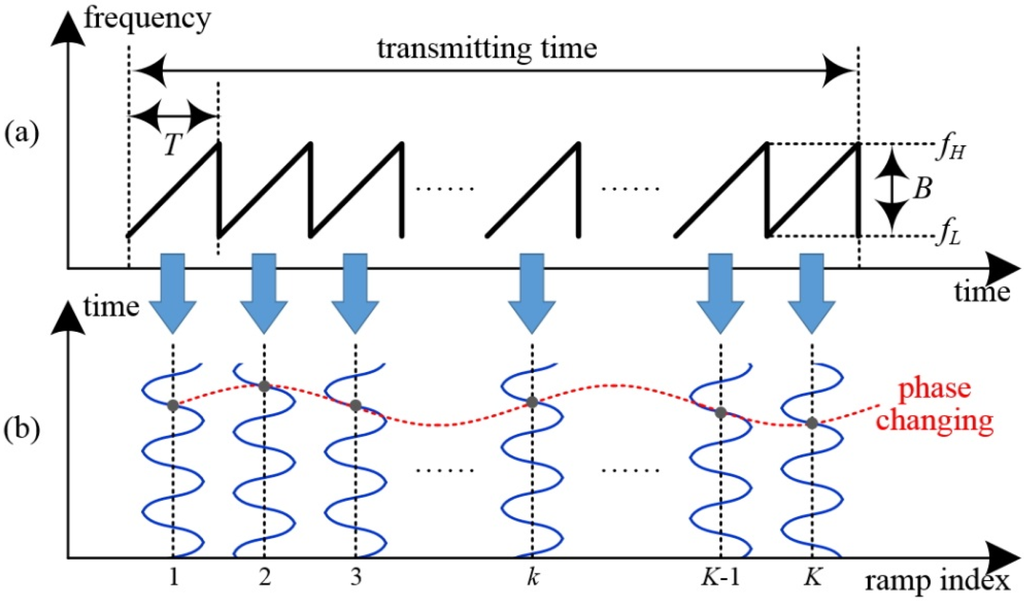

For an automotive pedestrian detection radar system, fast-ramp based 2D range-Doppler Frequency Modulated Continuous Wave (FMCW) radar is effective for distinguishing between moving targets and unwanted clutter. However, when a weak moving target such as a pedestrian exists together with strong clutter, the pedestrian may be masked by the side-lobe of the clutter even though they are notably separated in the Doppler dimension. To prevent this problem, one popular solution is the use of a windowing scheme with a weighting function. However, this method leads to a spread spectrum, so the pedestrian with weak signal power and slow Doppler may also be masked by the main-lobe of clutter. With a fast-ramp based FMCW radar, if the target is moving, the complex spectrum of the range- Fast Fourier Transform (FFT) is changed with a constant phase difference over ramps. In contrast, the clutter exhibits constant phase irrespective of the ramps. Based on this fact, in this paper we propose a pedestrian detection for highly cluttered environments using a coherent phase difference method. By detecting the coherent phase difference from the complex spectrum of the range-FFT, we first extract the range profile of the moving pedestrians. Then, through the Doppler FFT, we obtain the 2D range-Doppler map for only the pedestrian. To test the proposed detection scheme, we have developed a real-time data logging system with a 24 GHz FMCW transceiver. In laboratory tests, we verified that the signal processing results from the proposed method were much better than those expected from the conventional 2D FFT-based detection method. View Full-Text
Keywords: FMCW radar; automotive radar; pedestrian detection; 2D FFT; weak target FMCW radar; automotive radar; pedestrian detection; 2D FFT; weak target
