Assessment of Three Tropospheric Delay Models (IGGtrop, EGNOS and UNB3m) Based on Precise Point Positioning in the Chinese Region

1
State Key Laboratory of Geodesy and Earth’s Dynamics, Institute of Geodesy and Geophysics, No. 340 Xudong Road, Wuhan 430077, China
2
University of Chinese Academy of Sciences, No. 19A Yuquan Road, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Academic Editor: Assefa M. Melesse
Received: 2 November 2015 / Revised: 12 January 2016 / Accepted: 15 January 2016 / Published: 20 January 2016
(This article belongs to the Section Remote Sensors)
View Full-Text   |   Download PDF [4066 KB, uploaded 20 January 2016]   |

Abstract

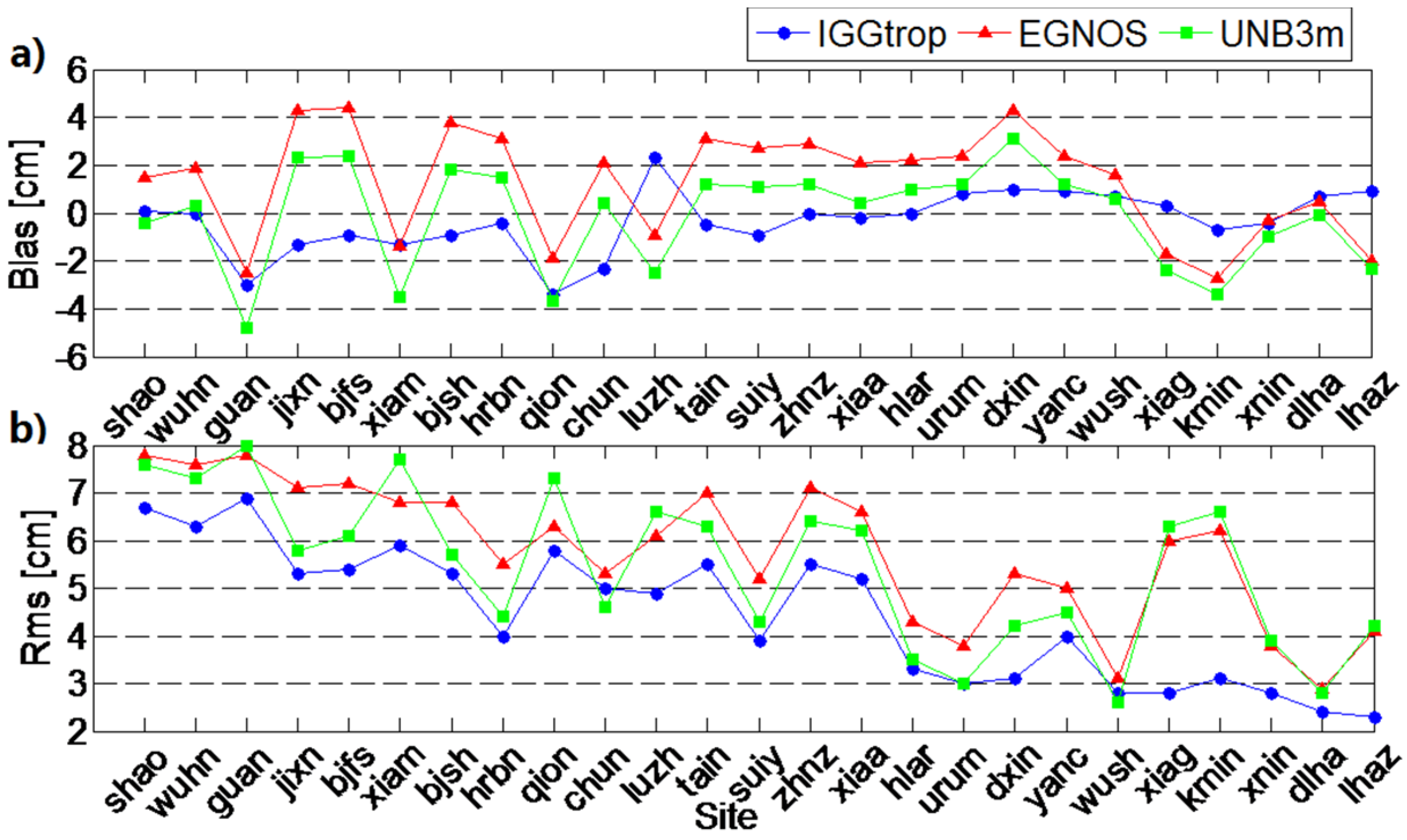

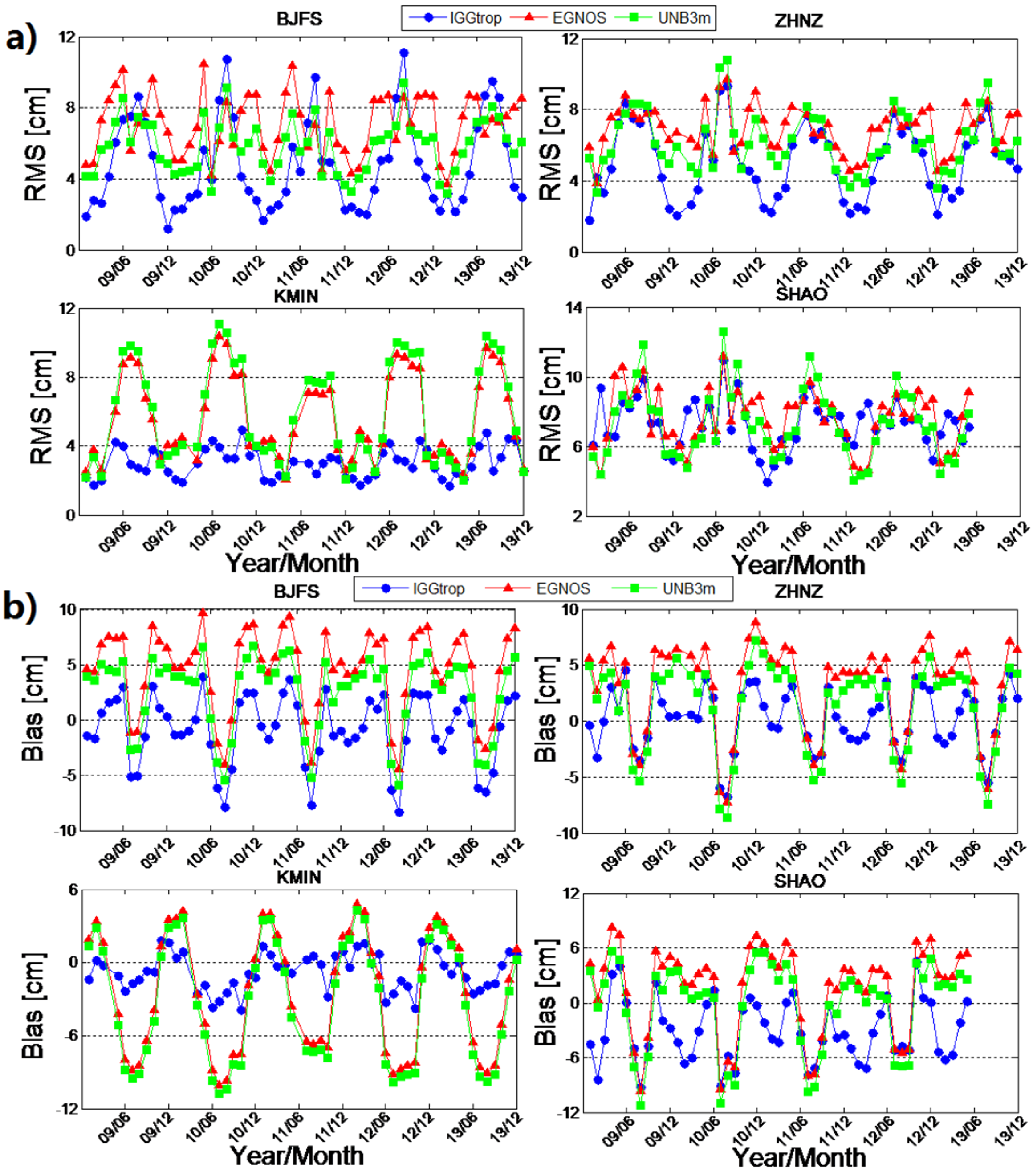

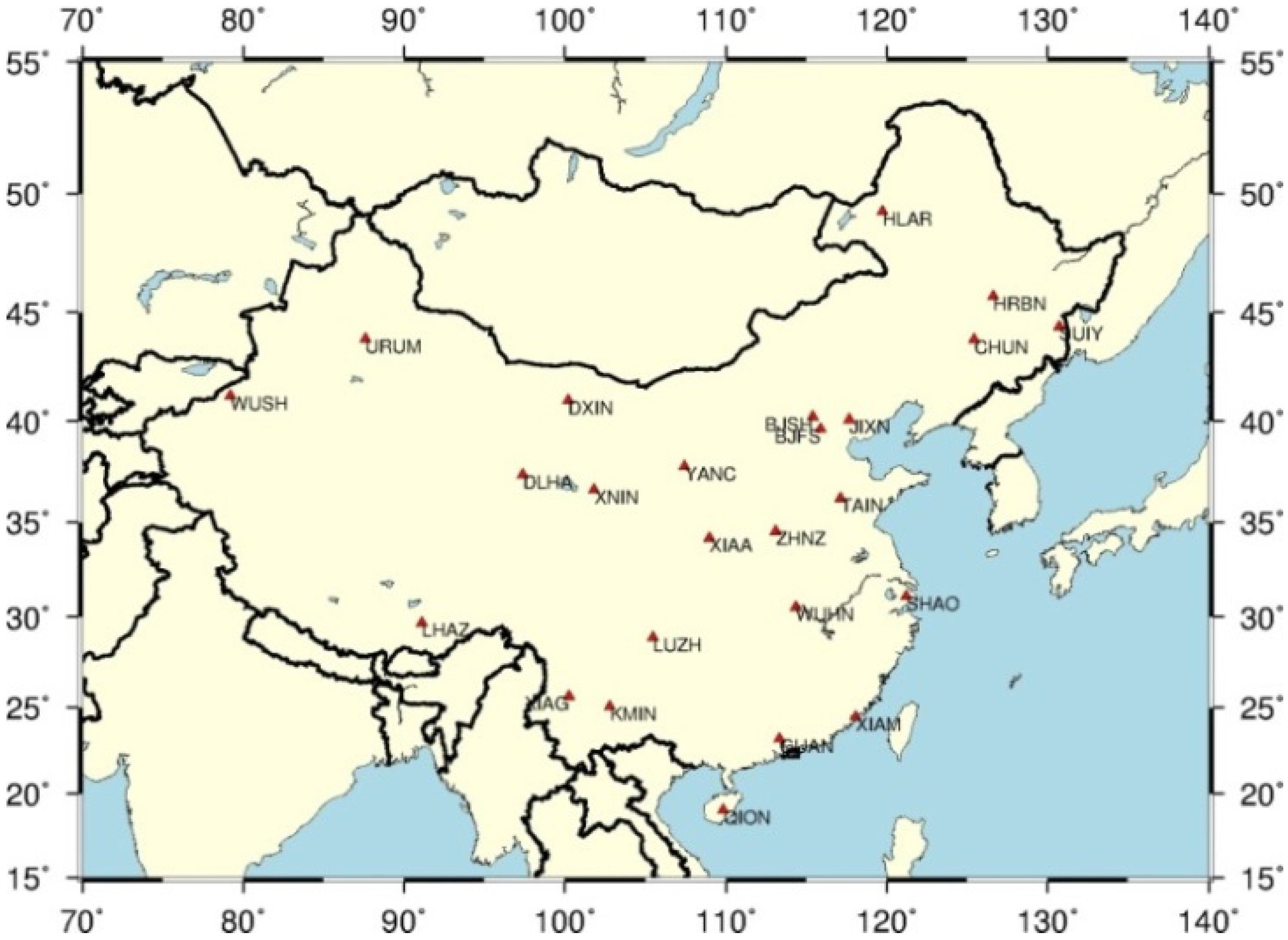

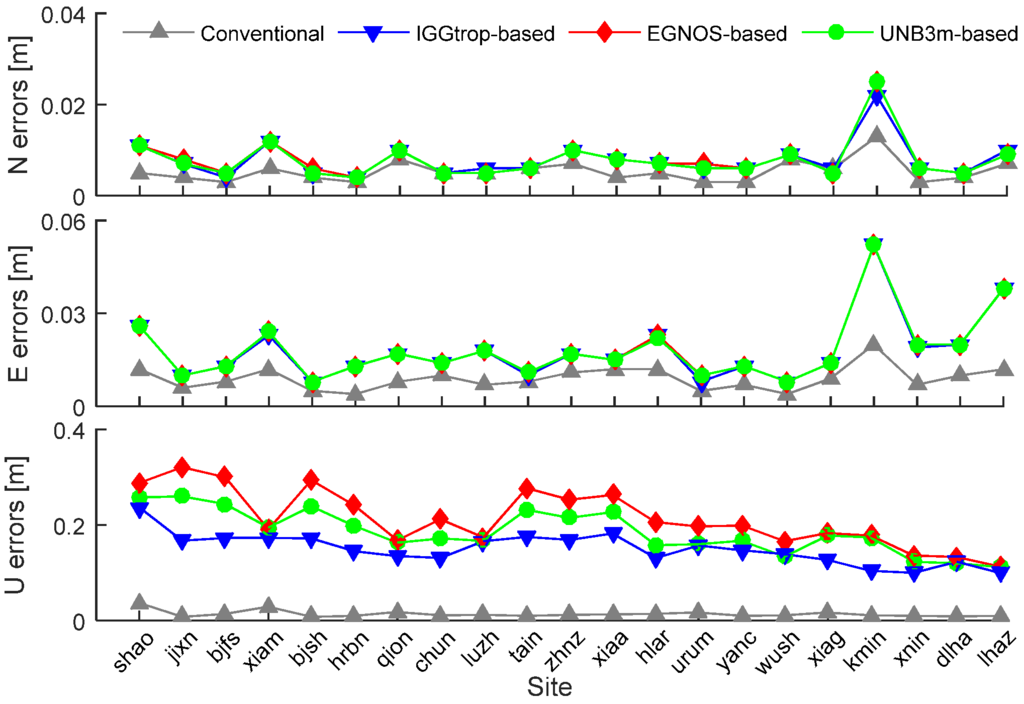

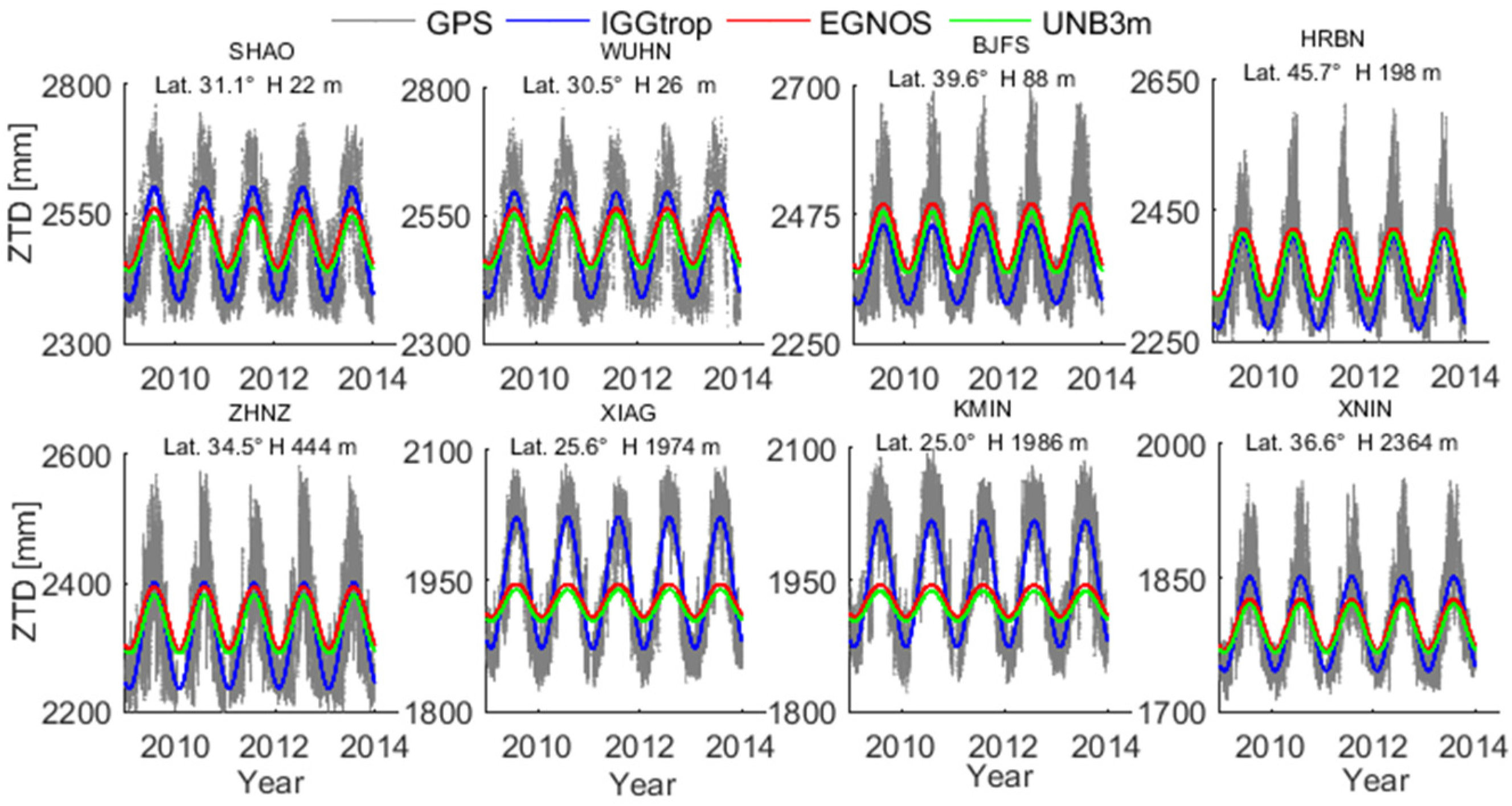

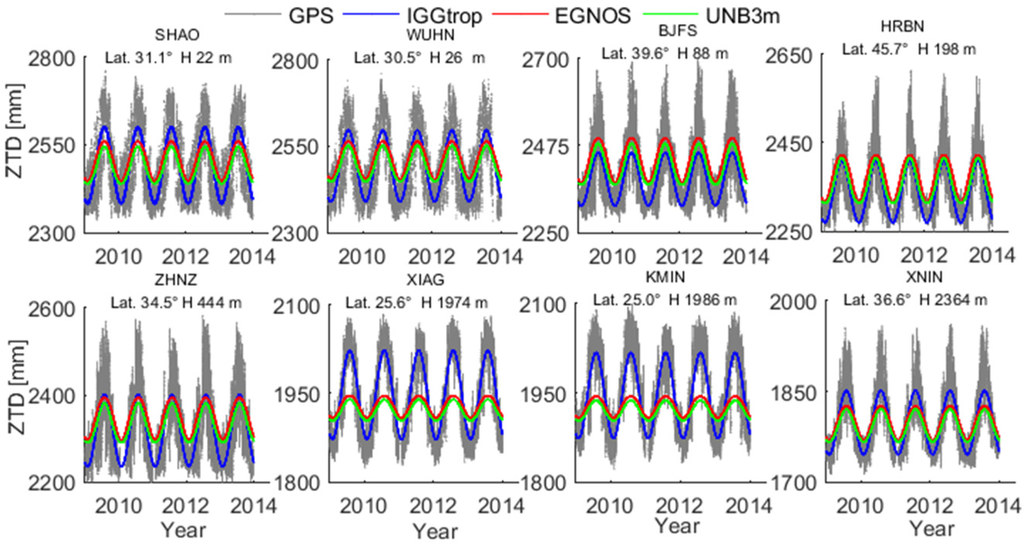

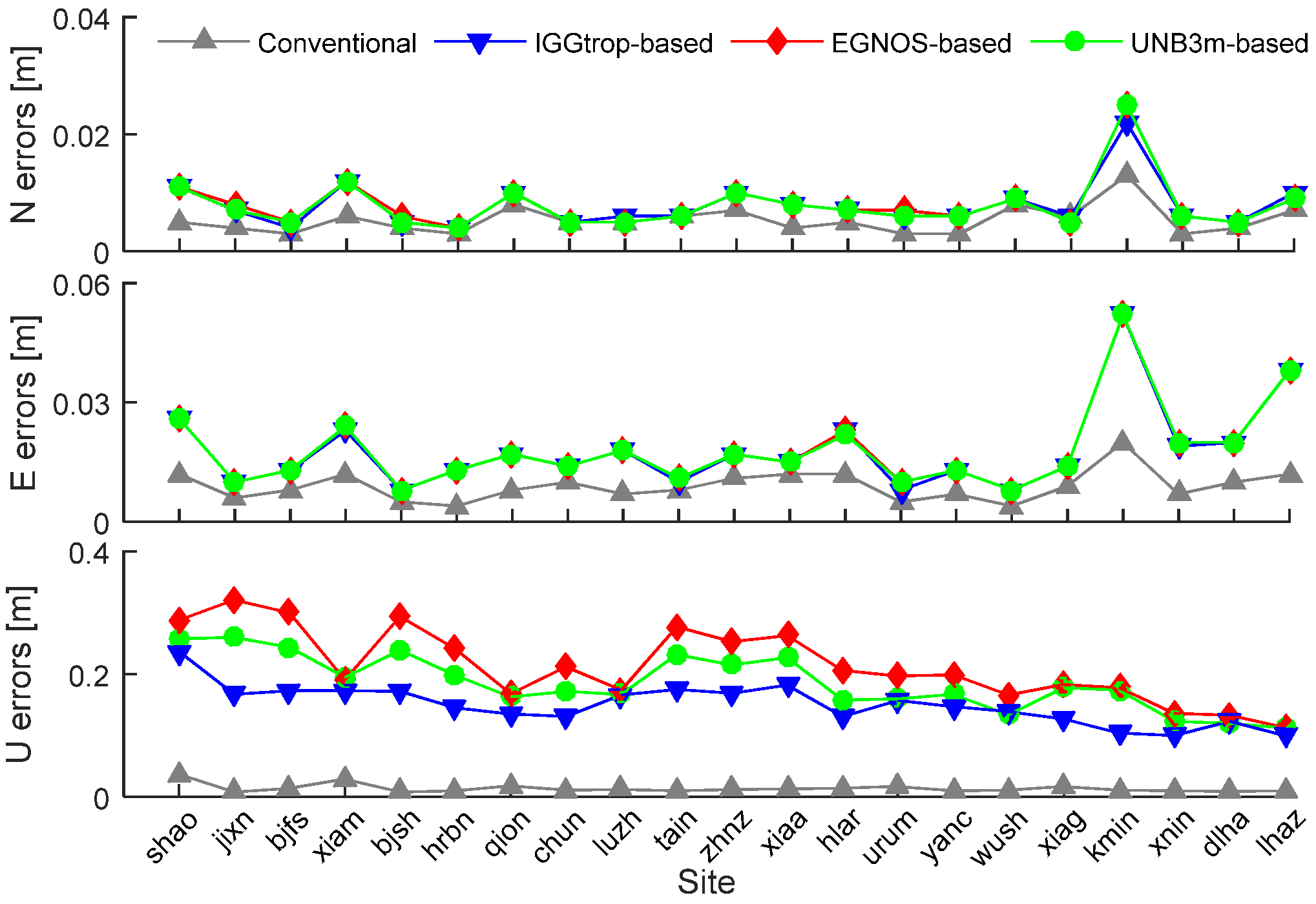

Tropospheric delays are one of the main sources of errors in the Global Navigation Satellite System (GNSS). They are usually corrected by using tropospheric delay models, which makes the accuracy of the models rather critical for accurate positioning. To provide references for suitable models to be chosen for GNSS users in China, we conduct herein a comprehensive study of the performances of the IGGtrop, EGNOS and UNB3m models in China. Firstly, we assess the models using 5 years’ Global Positioning System (GPS) derived Zenith Tropospheric Delay (ZTD) series from 25 stations of the Crustal Movement Observation Network of China (CMONOC). Then we study the effects of the models on satellite positioning by using various Precise Point Positioning (PPP) cases with different tropospheric delay resolutions, the observation data processed in PPP is from 21 base stations of CMONOC for a whole year of 2012. The results show that: (1) the Root Mean Square (RMS) of the IGGtrop model is about 4.4 cm, which improves the accuracy of ZTD estimations by about 24% for EGNOS and 19% for UNB3m; (2) The positioning error in the vertical component of the PPP solution obtained by using the IGGtrop model is about 15.0 cm, which is about 30% and 21% smaller than those of the EGNOS and UNB3m models, respectively. In summary, the IGGtrop model achieves the best performance among the three models in the Chinese region. View Full-Text
Keywords: zenith tropospheric delay; IGGtrop model; EGNOS model; UNB3m model; precise point positioning zenith tropospheric delay; IGGtrop model; EGNOS model; UNB3m model; precise point positioning
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
