Open AccessArticle
Sensors 2015, 15(7), 16642-16653; doi:10.3390/s150716642

Expansion of Smartwatch Touch Interface from Touchscreen to Around Device Interface Using Infrared Line Image Sensors

Device & System Research Center, Samsung Advanced Institute of Technology, 130 Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-803, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M.N. Passaro
Received: 30 April 2015 / Revised: 30 June 2015 / Accepted: 1 July 2015 / Published: 9 July 2015
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3290 KB, uploaded 9 July 2015]   |

Abstract

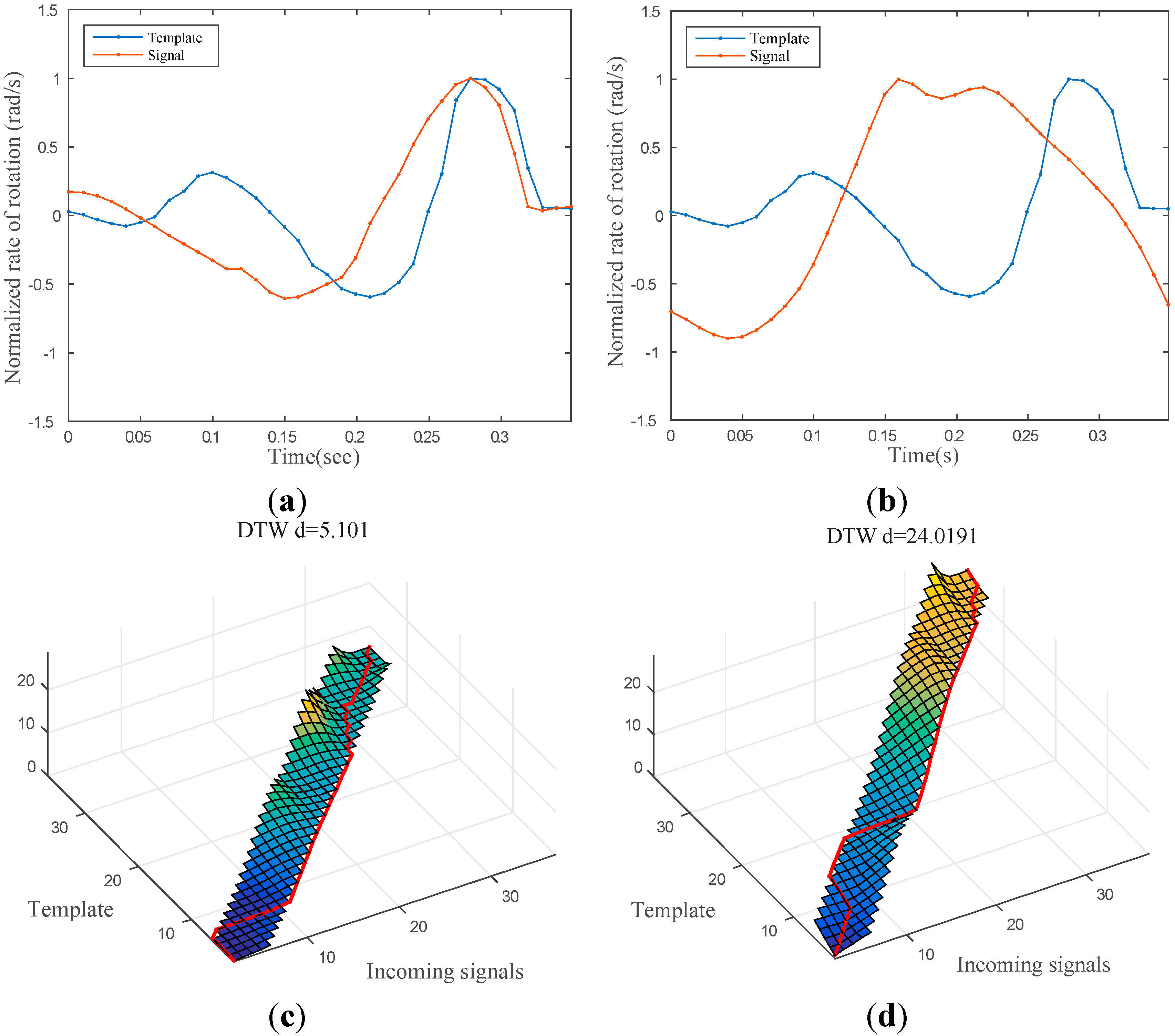

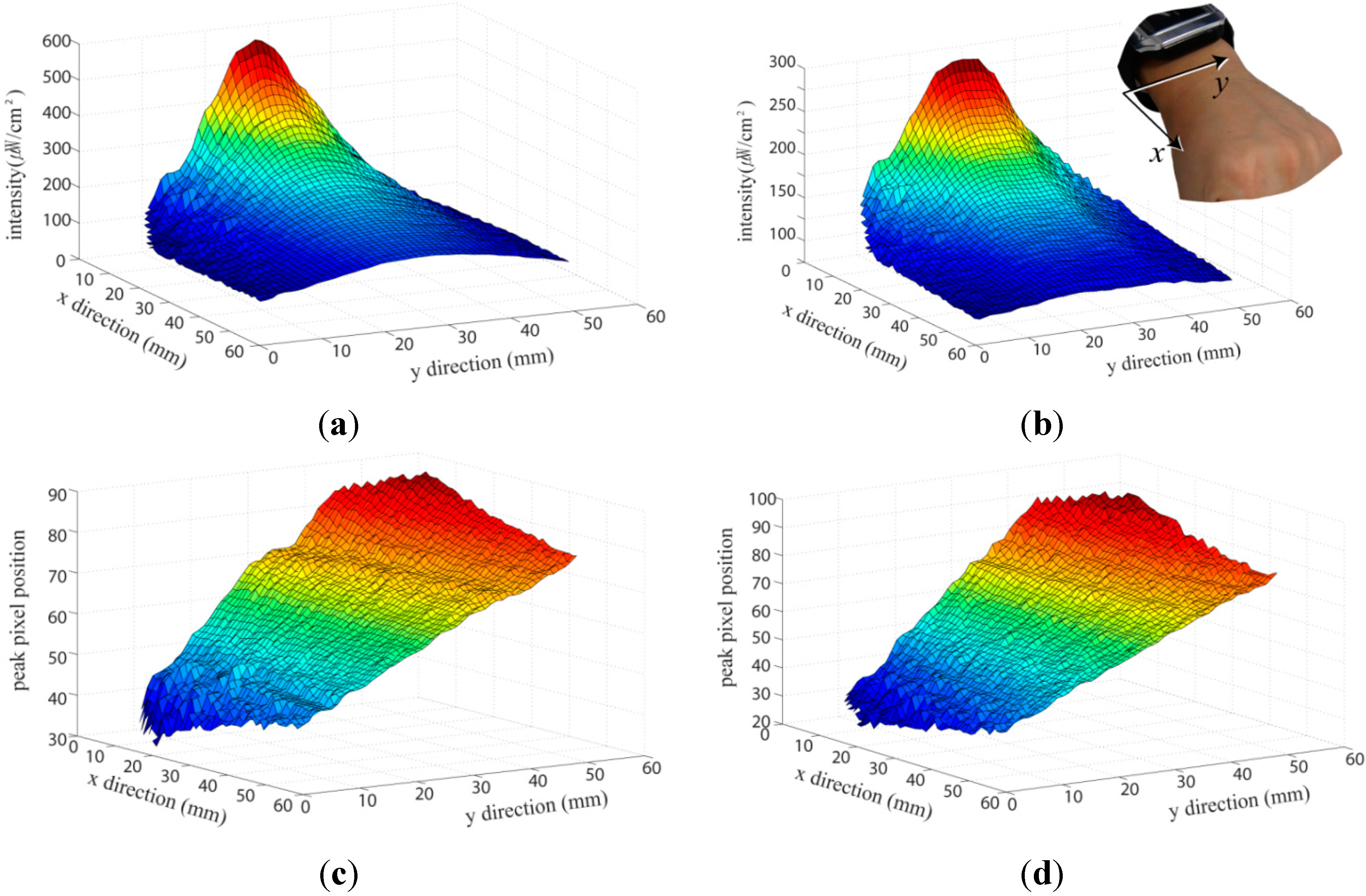

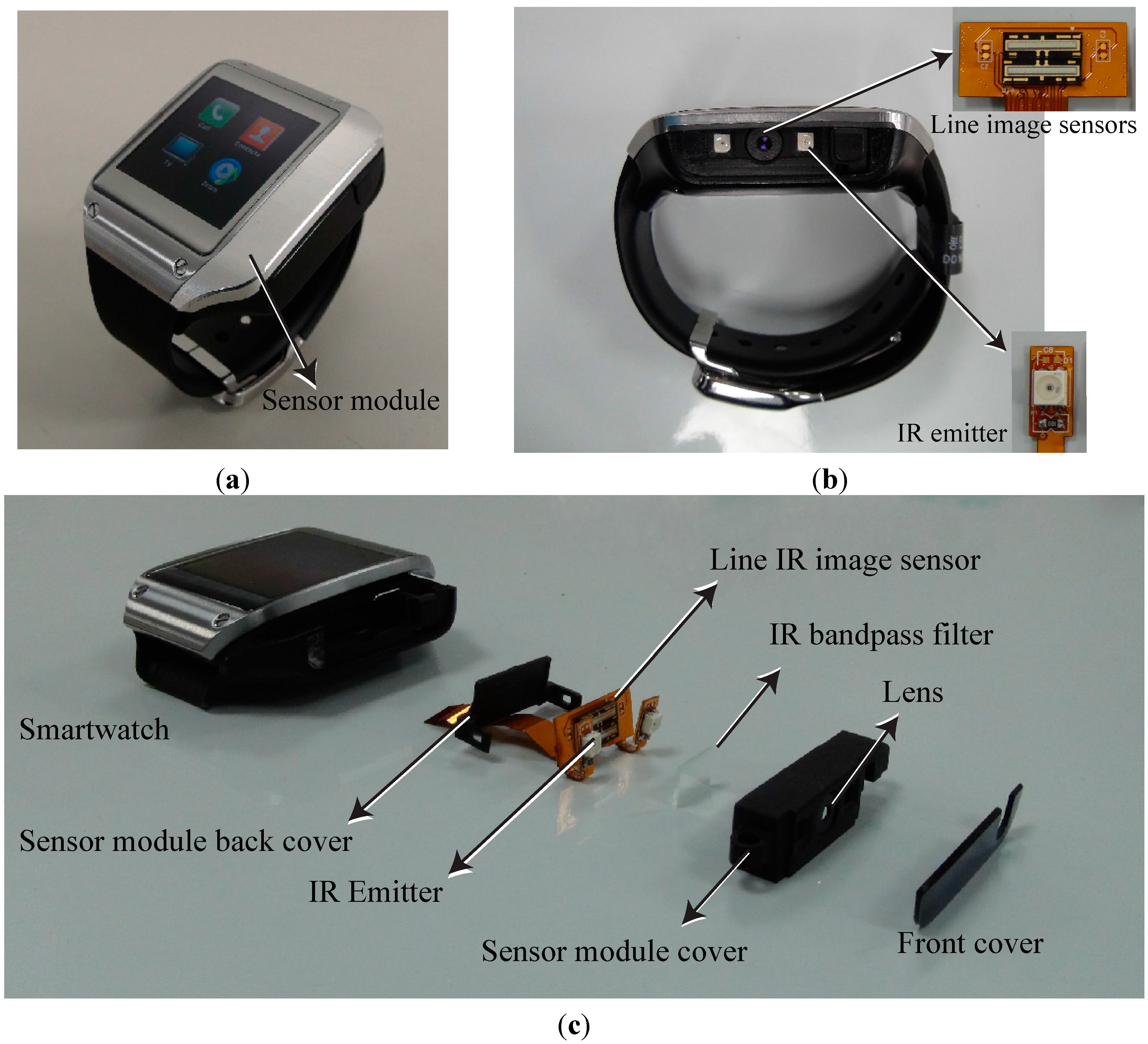

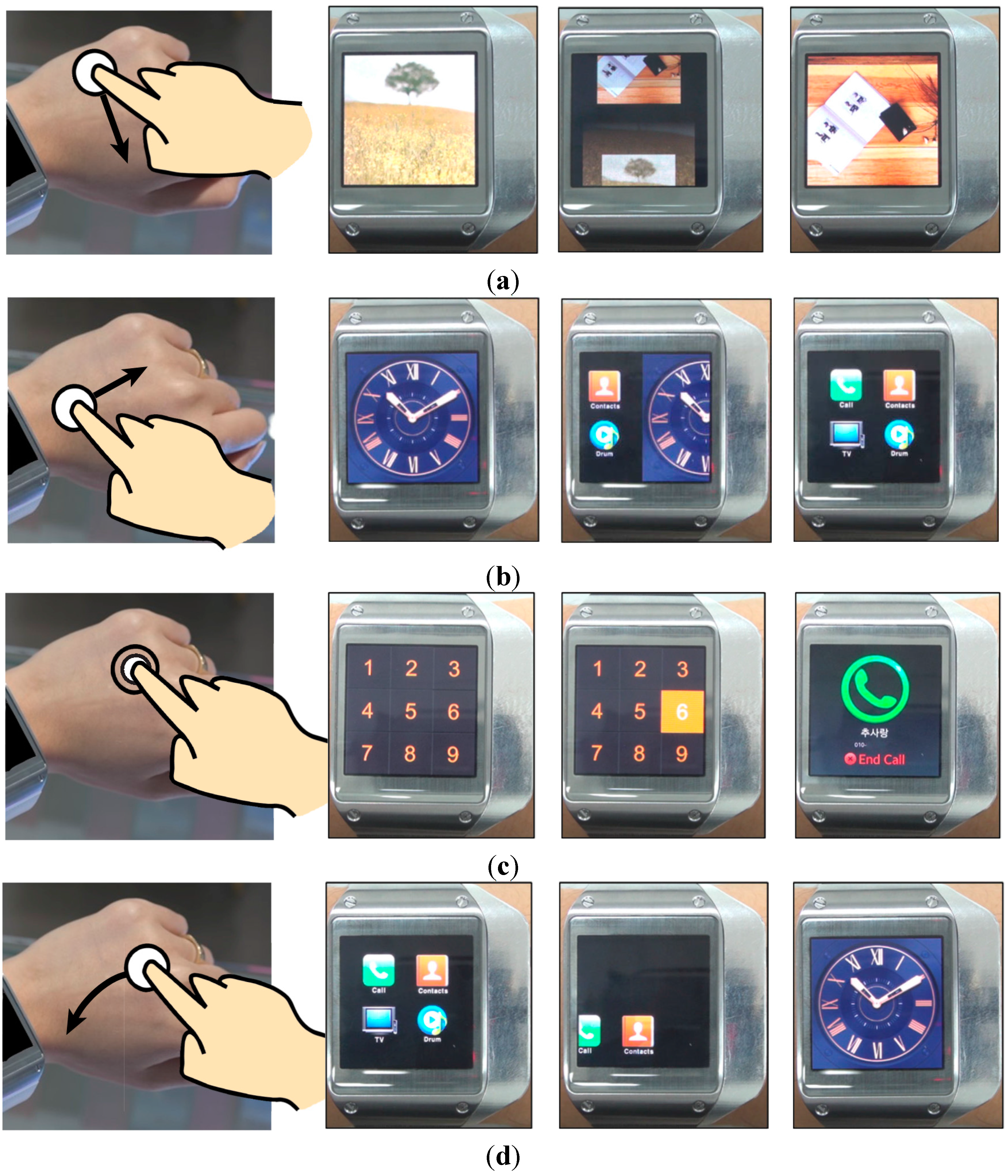

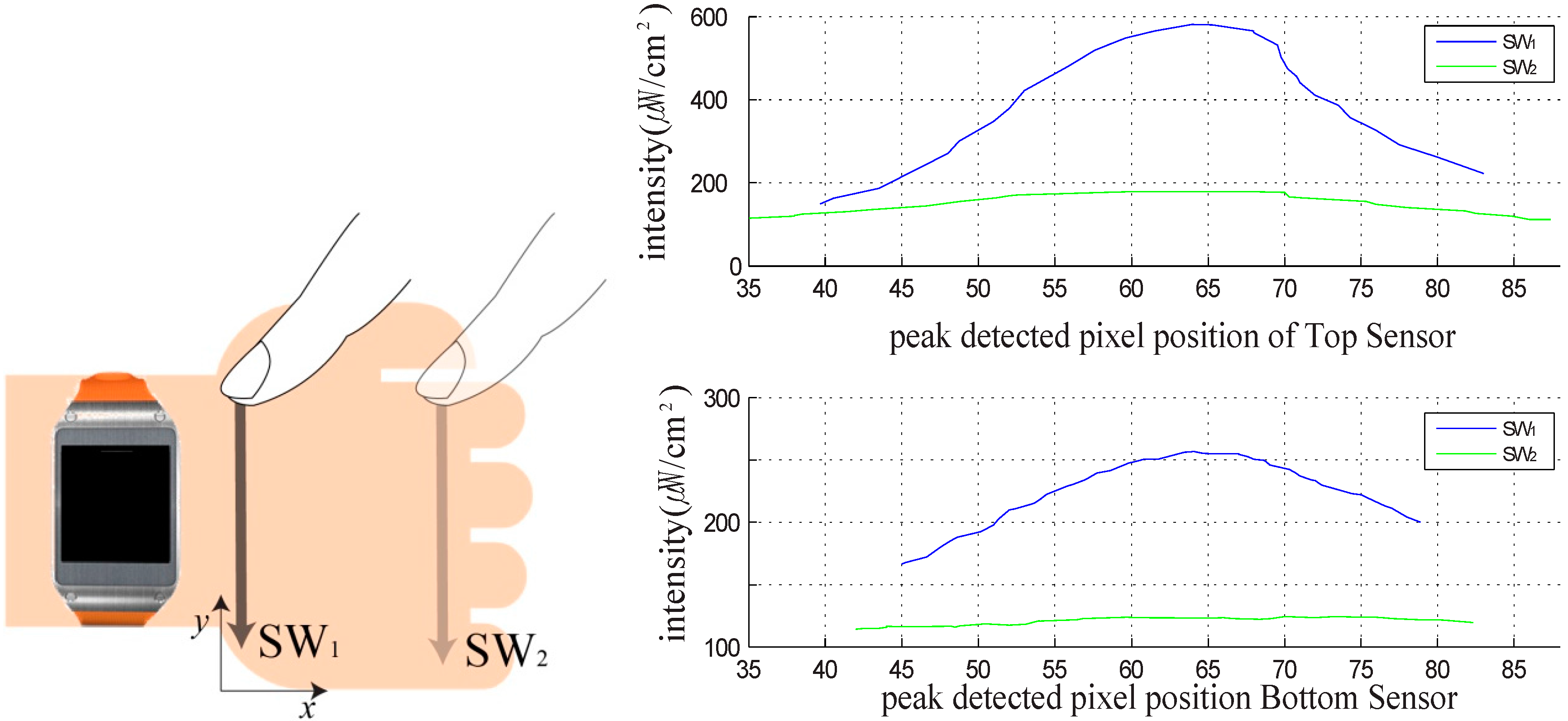

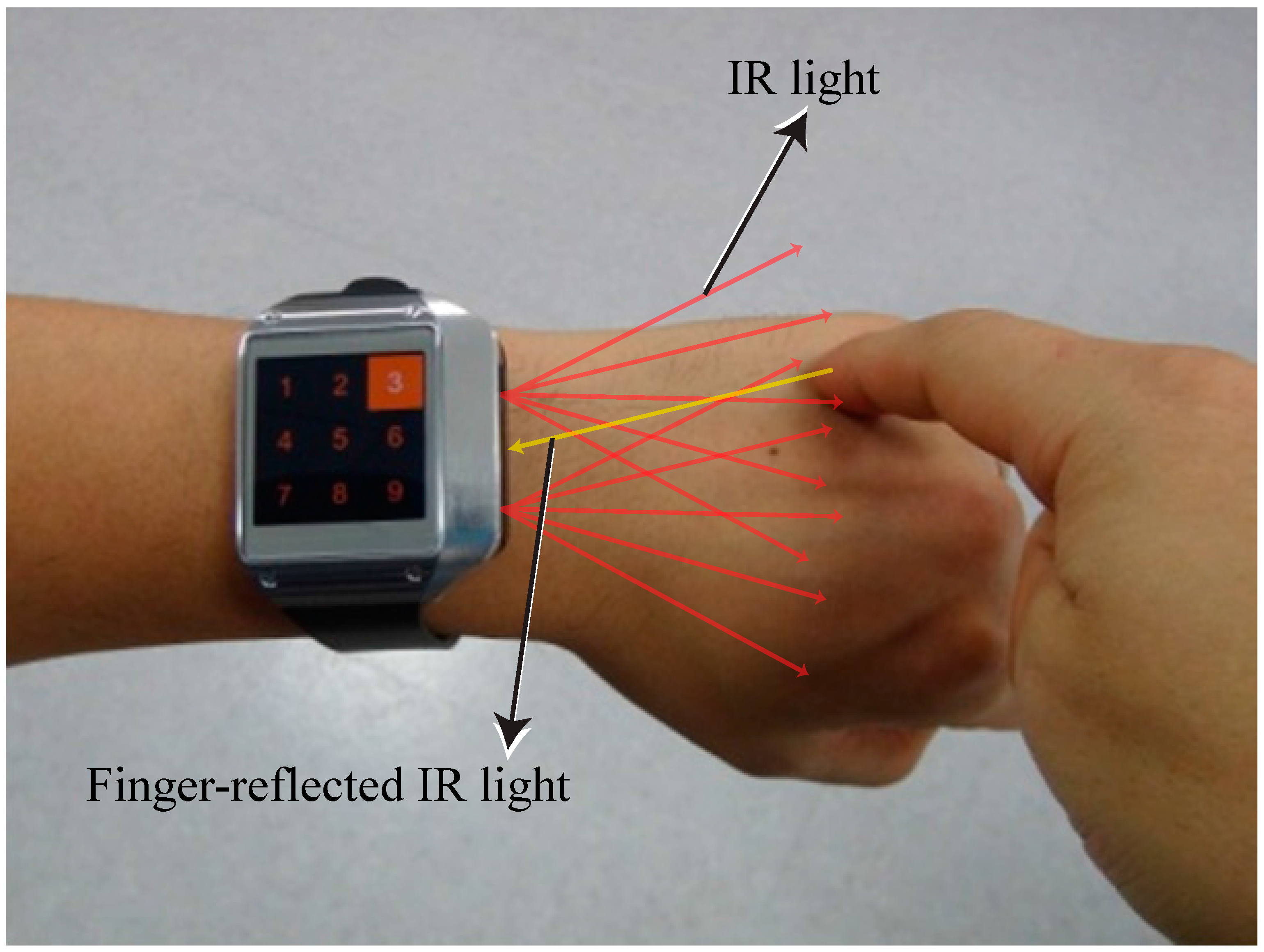

Touchscreen interaction has become a fundamental means of controlling mobile phones and smartwatches. However, the small form factor of a smartwatch limits the available interactive surface area. To overcome this limitation, we propose the expansion of the touch region of the screen to the back of the user’s hand. We developed a touch module for sensing the touched finger position on the back of the hand using infrared (IR) line image sensors, based on the calibrated IR intensity and the maximum intensity region of an IR array. For complete touch-sensing solution, a gyroscope installed in the smartwatch is used to read the wrist gestures. The gyroscope incorporates a dynamic time warping gesture recognition algorithm for eliminating unintended touch inputs during the free motion of the wrist while wearing the smartwatch. The prototype of the developed sensing module was implemented in a commercial smartwatch, and it was confirmed that the sensed positional information of the finger when it was used to touch the back of the hand could be used to control the smartwatch graphical user interface. Our system not only affords a novel experience for smartwatch users, but also provides a basis for developing other useful interfaces. View Full-Text
Keywords: smartwatch touch interface; infrared image sensor; around device interface smartwatch touch interface; infrared image sensor; around device interface
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
