Sensors 2015, 15(5), 9815-9826; doi:10.3390/s150509815

A PDMS-Based 2-Axis Waterproof Scanner for Photoacoustic Microscopy

1
Department of Mechanical Engineering, Pohang University of Science and Technology (POSTECH), Pohang 790-784, Korea
2
Department of Creative IT Engineering, Pohang University of Science and Technology (POSTECH), Pohang 790-784, Korea
3
School of Interdisciplinary Bioscience and Bioengineering, Pohang University of Science and Technology (POSTECH), Pohang 790-784, Korea
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Academic Editor: Stefano Mariani
Received: 22 March 2015 / Revised: 20 April 2015 / Accepted: 20 April 2015 / Published: 27 April 2015
(This article belongs to the Special Issue Modeling, Testing and Reliability Issues in MEMS Engineering)
View Full-Text   |   Download PDF [3680 KB, uploaded 27 April 2015]   |

Abstract

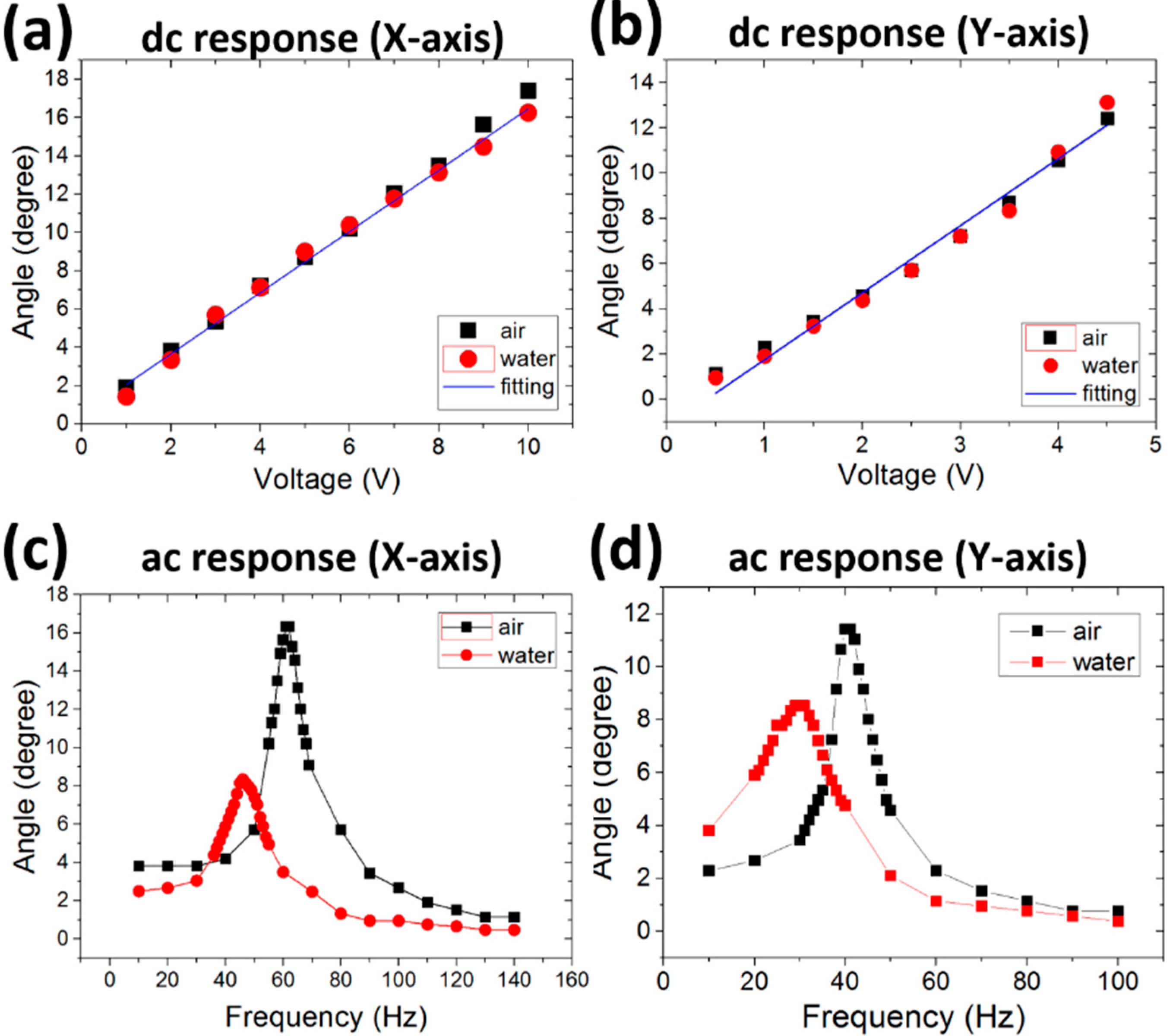

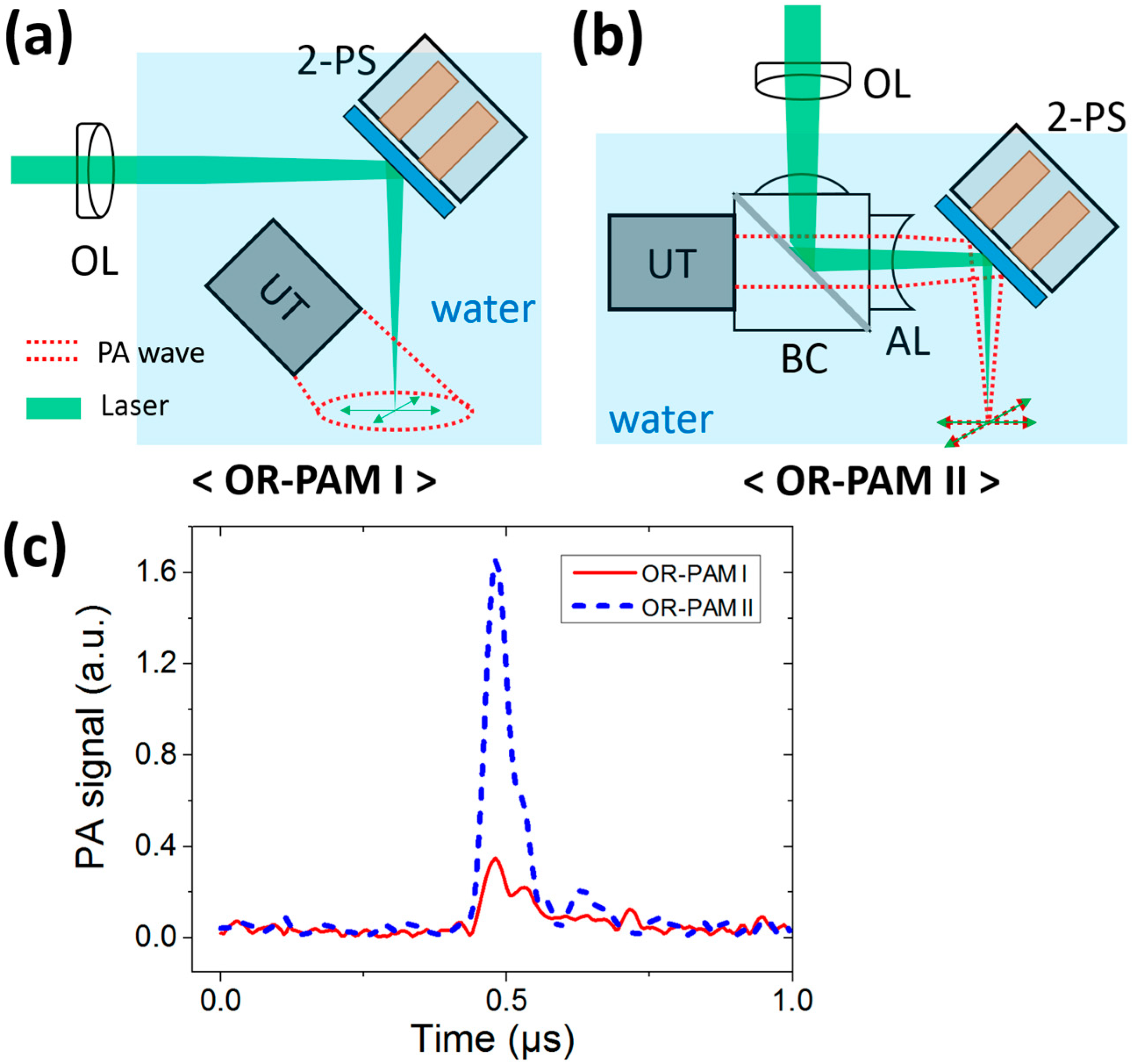

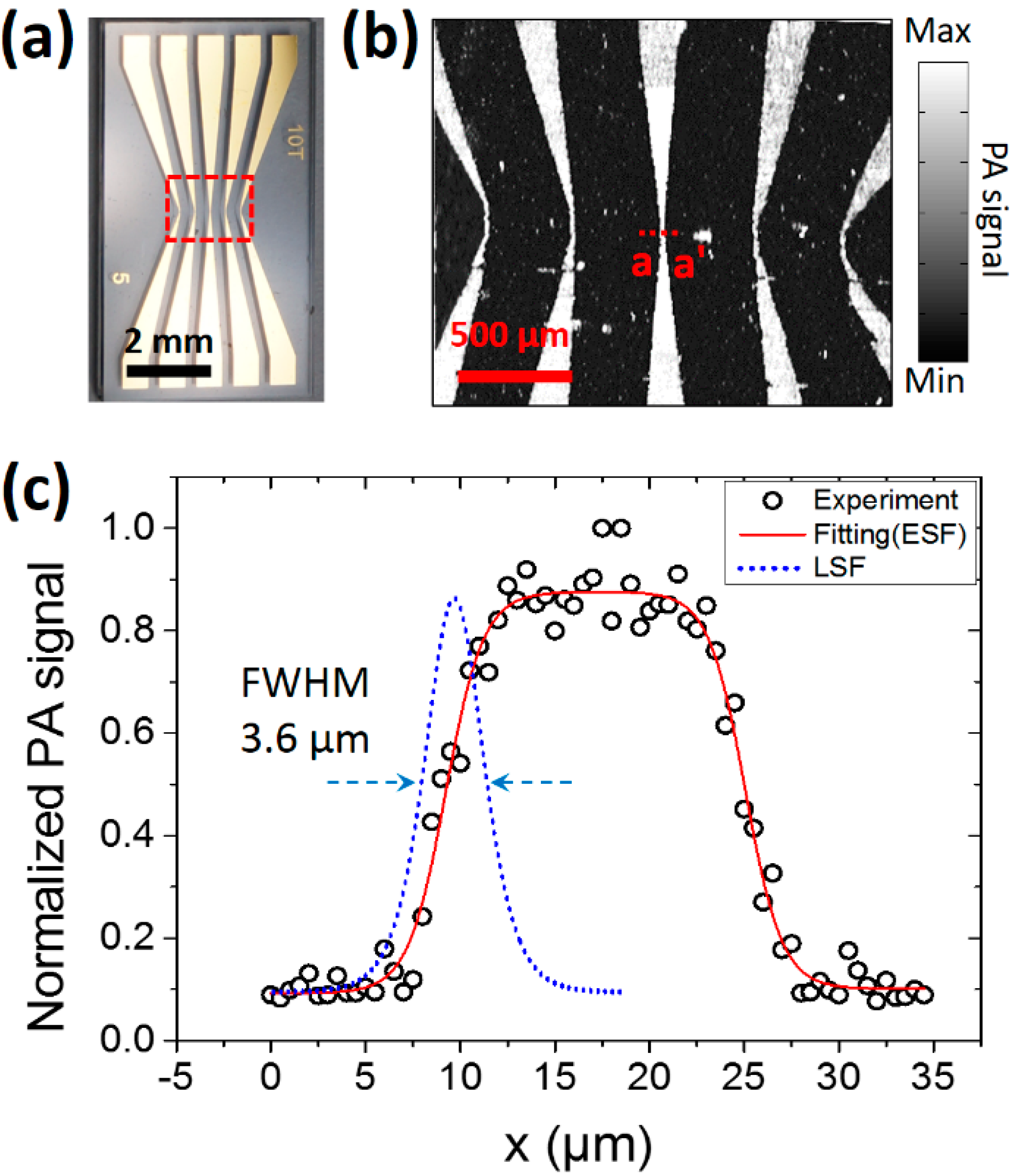

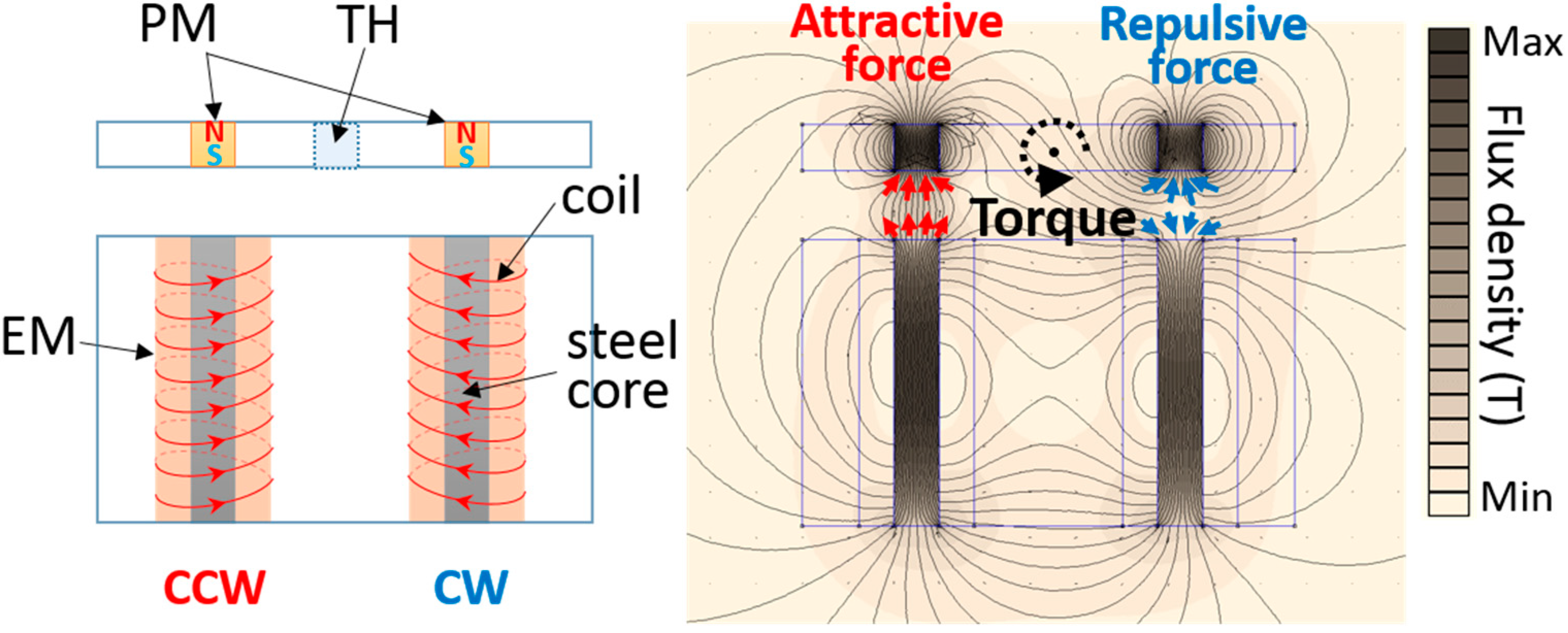

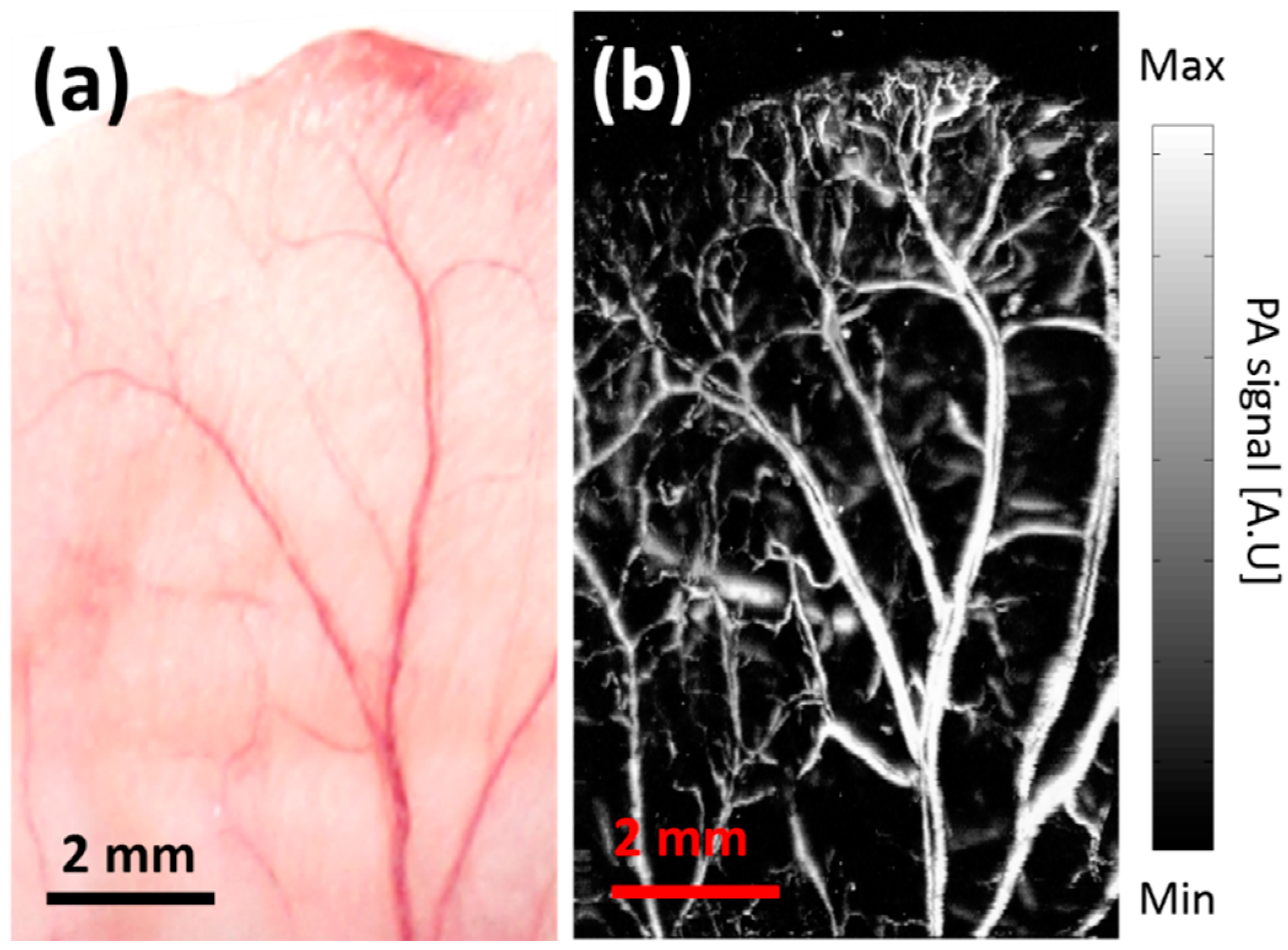

Optical-resolution photoacoustic microscopy (OR-PAM) is an imaging tool to provide in vivo optically sensitive images in biomedical research. To achieve a small size, fast imaging speed, wide scan range, and high signal-to-noise ratios (SNRs) in a water environment, we introduce a polydimethylsiloxane (PDMS)-based 2-axis scanner for a flexible and waterproof structure. The design, theoretical background, fabrication process and performance of the scanner are explained in details. The designed and fabricated scanner has dimensions of 15 × 15 × 15 mm along the X, Y and Z axes, respectively. The characteristics of the scanner are tested under DC and AC conditions. By pairing with electromagnetic forces, the maximum scanning angles in air and water are 18° and 13° along the X and Y axes, respectively. The measured resonance frequencies in air and water are 60 and 45 Hz along the X axis and 45 and 30 Hz along the Y axis, respectively. Finally, OR-PAM with high SNRs is demonstrated using the fabricated scanner, and the PA images of micro-patterned samples and microvasculatures of a mouse ear are successfully obtained with high-resolution and wide-field of view. OR-PAM equipped with the 2-axis PDMS based waterproof scanner has lateral and axial resolutions of 3.6 μm and 26 μm, respectively. This compact OR-PAM system could potentially and widely be used in preclinical and clinical applications. View Full-Text
Keywords: optical-resolution photoacoustic microscopy; MEMS scanner; polydimethylsiloxane optical-resolution photoacoustic microscopy; MEMS scanner; polydimethylsiloxane
