Fast and Flexible Movable Vision Measurement for the Surface of a Large-Sized Object

Ministry of Education Key Laboratory of Precision Opto-Mechatronics Technology, Beihang University, No.37 Xueyuan Rd., Haidian District, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M.N. Passaro
Received: 30 November 2014 / Accepted: 3 February 2015 / Published: 25 February 2015
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [6557 KB, uploaded 25 February 2015]   |

Abstract

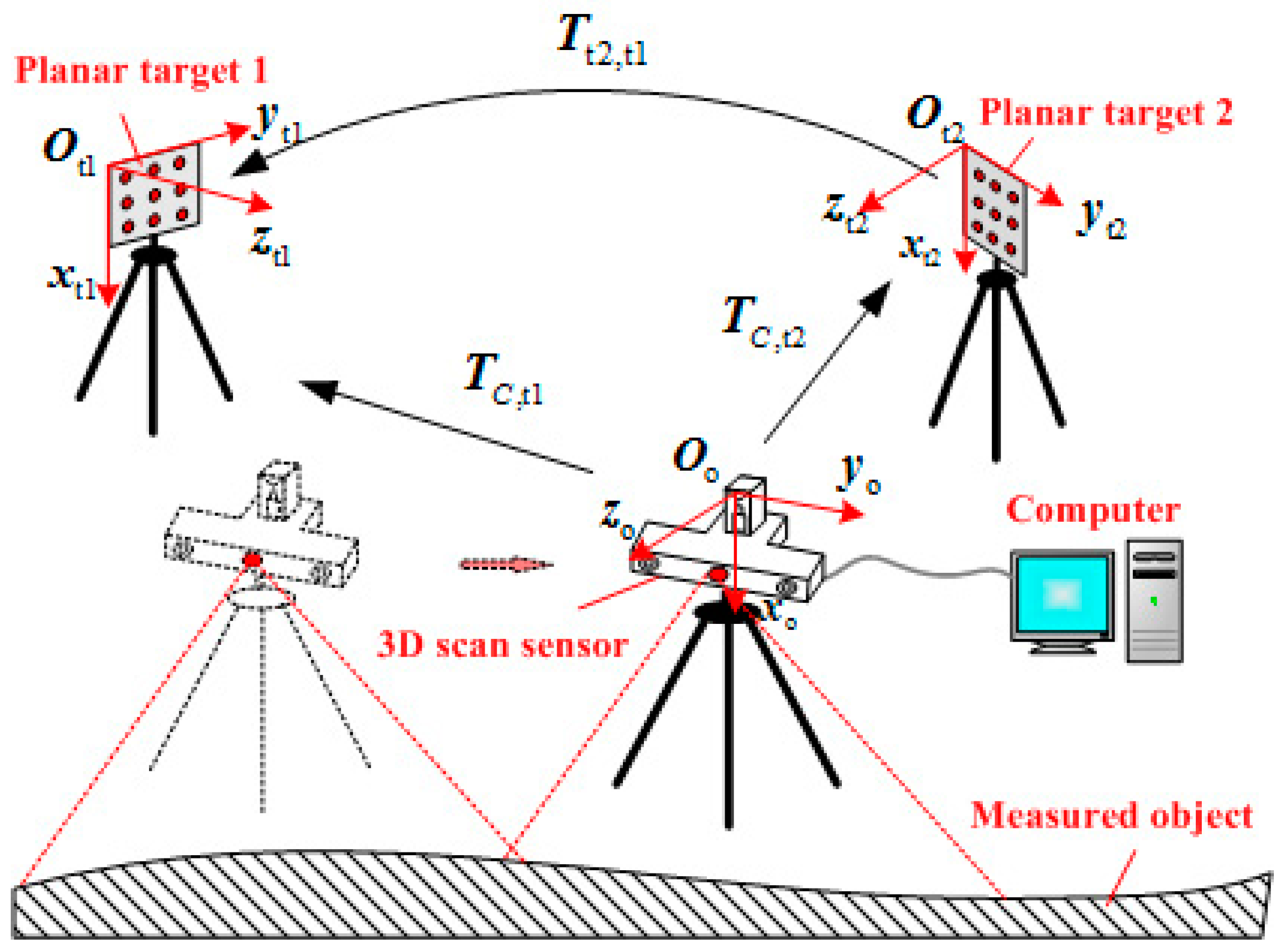

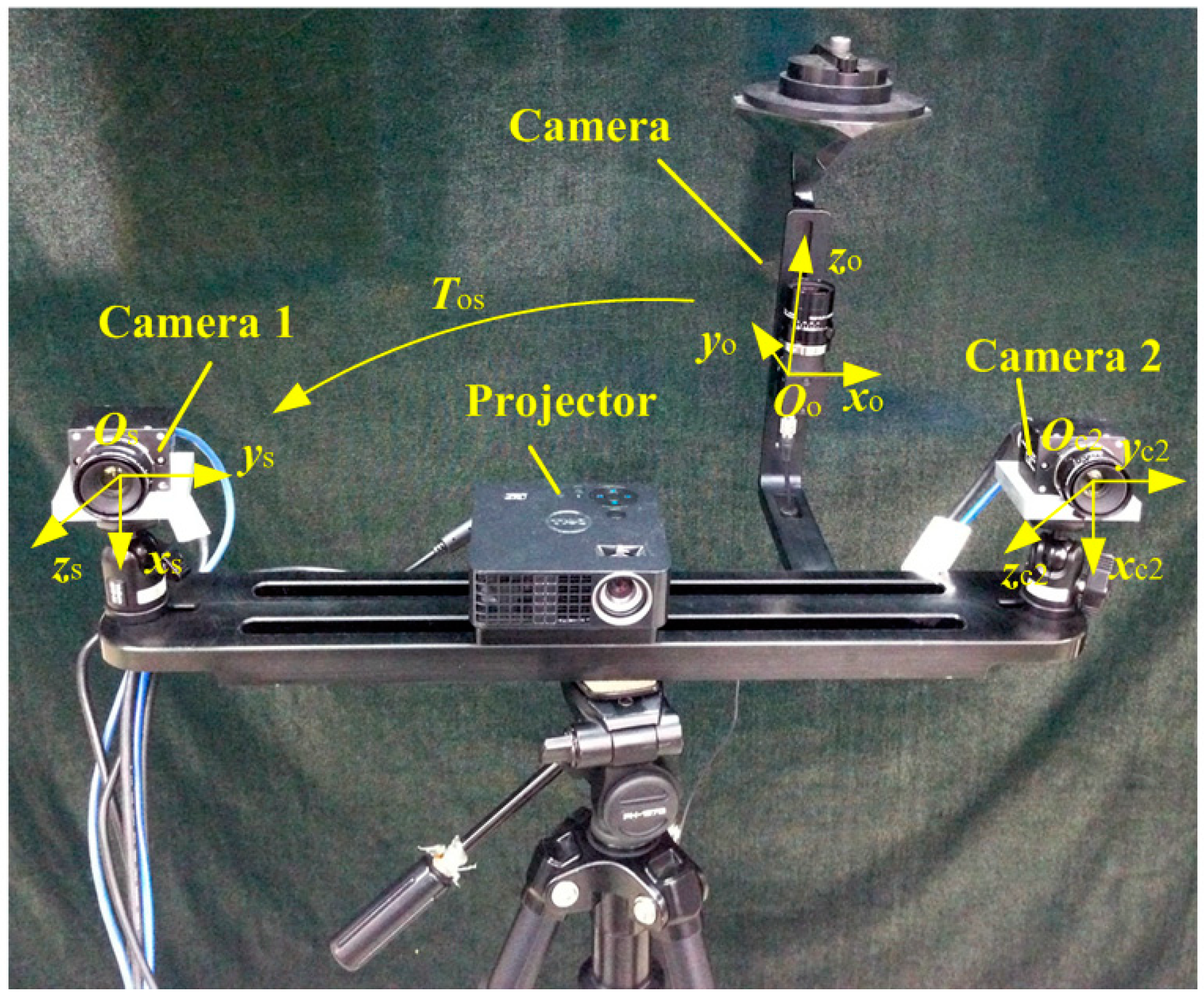

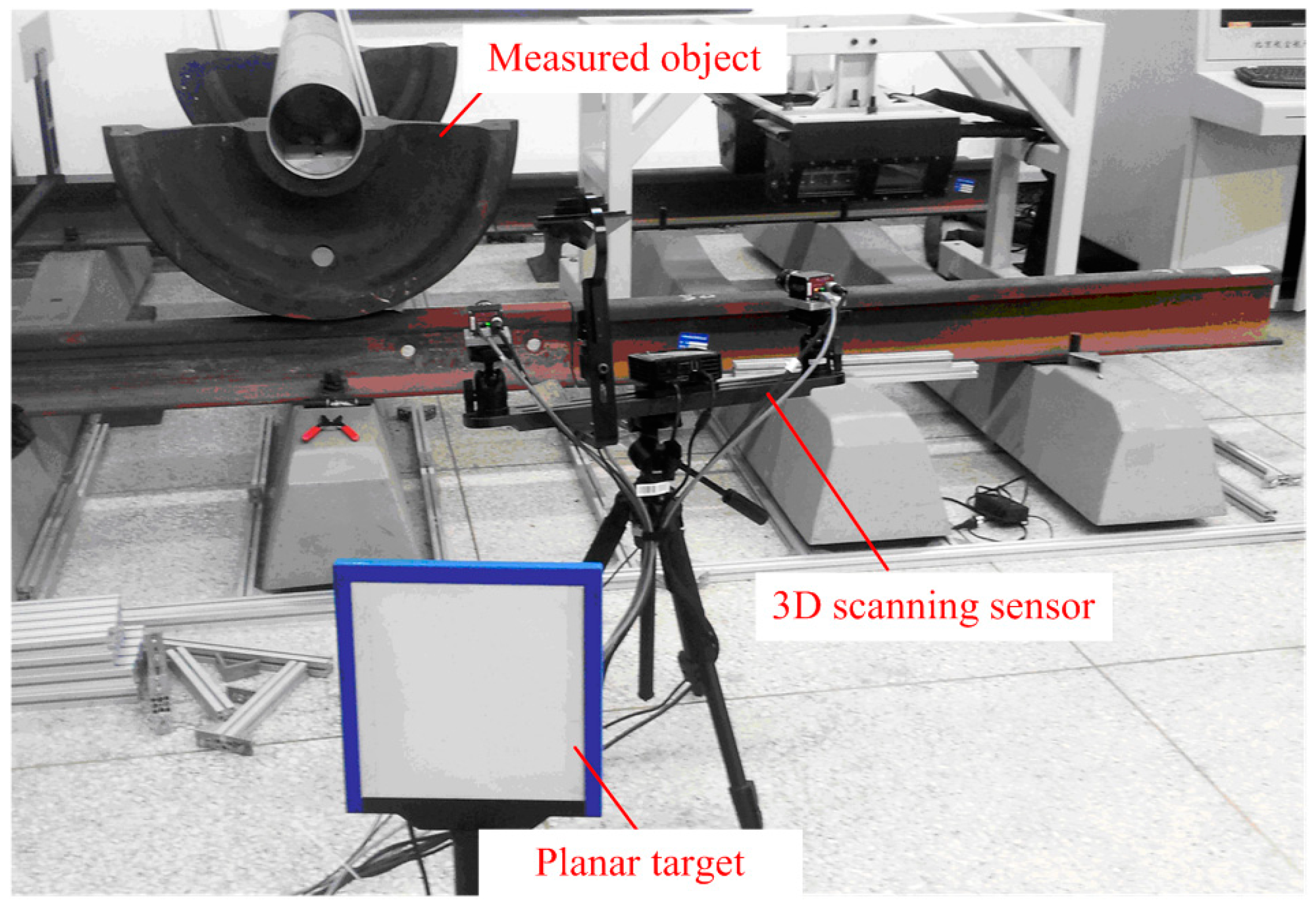

The presented movable vision measurement for the three-dimensional (3D) surface of a large-sized object has the advantages of system simplicity, low cost, and high accuracy. Aiming at addressing the problems of existing movable vision measurement methods, a more suitable method for large-sized products on industrial sites is introduced in this paper. A raster binocular vision sensor and a wide-field camera are combined to form a 3D scanning sensor. During measurement, several planar targets are placed around the object to be measured. With the planar target as an intermediary, the local 3D data measured by the scanning sensor are integrated into the global coordinate system. The effectiveness of the proposed method is verified through physical experiments. View Full-Text
Keywords: machine vision; binocular vision sensor; planar target machine vision; binocular vision sensor; planar target
