Open AccessArticle
Sensors 2015, 15(11), 28979-29002; doi:10.3390/s151128979

A Mode Matched Triaxial Vibratory Wheel Gyroscope with Fully Decoupled Structure

School of Instrument Science and Engineering, Key Laboratory of Micro Inertial Instrument and Advanced Navigation Technology of the Ministry of Education, Southeast University, Nanjing 210096, China
*
Author to whom correspondence should be addressed.
Academic Editor: Stefano Mariani
Received: 13 October 2015 / Revised: 1 November 2015 / Accepted: 9 November 2015 / Published: 17 November 2015
(This article belongs to the Collection Modeling, Testing and Reliability Issues in MEMS Engineering)
View Full-Text   |   Download PDF [4854 KB, uploaded 17 November 2015]   |

Abstract

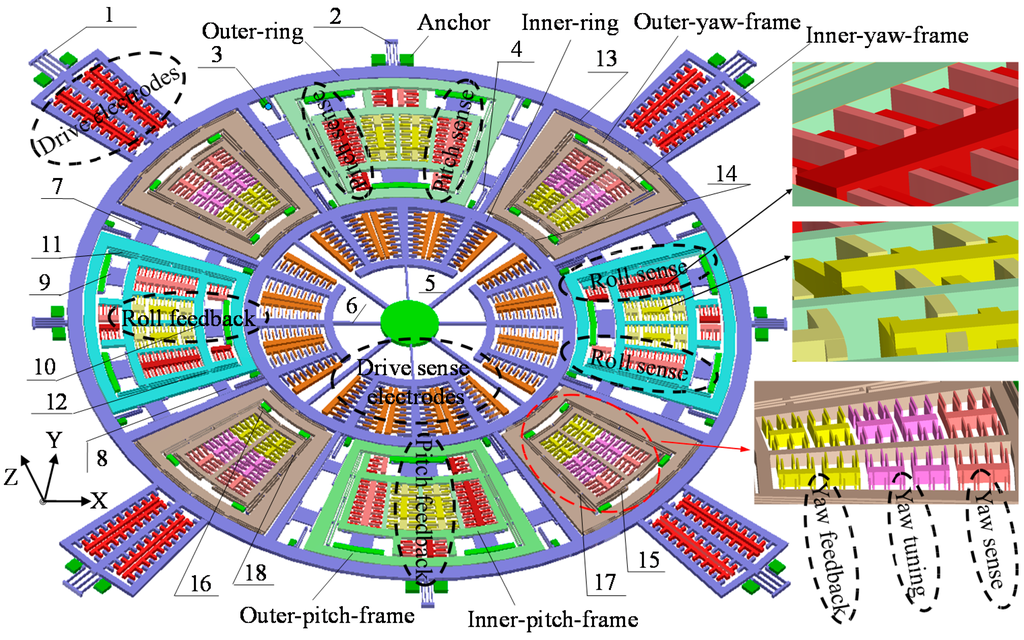

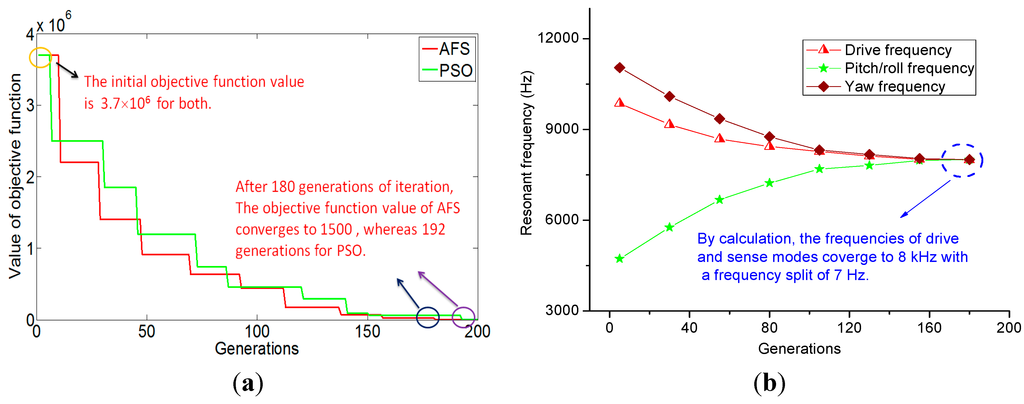

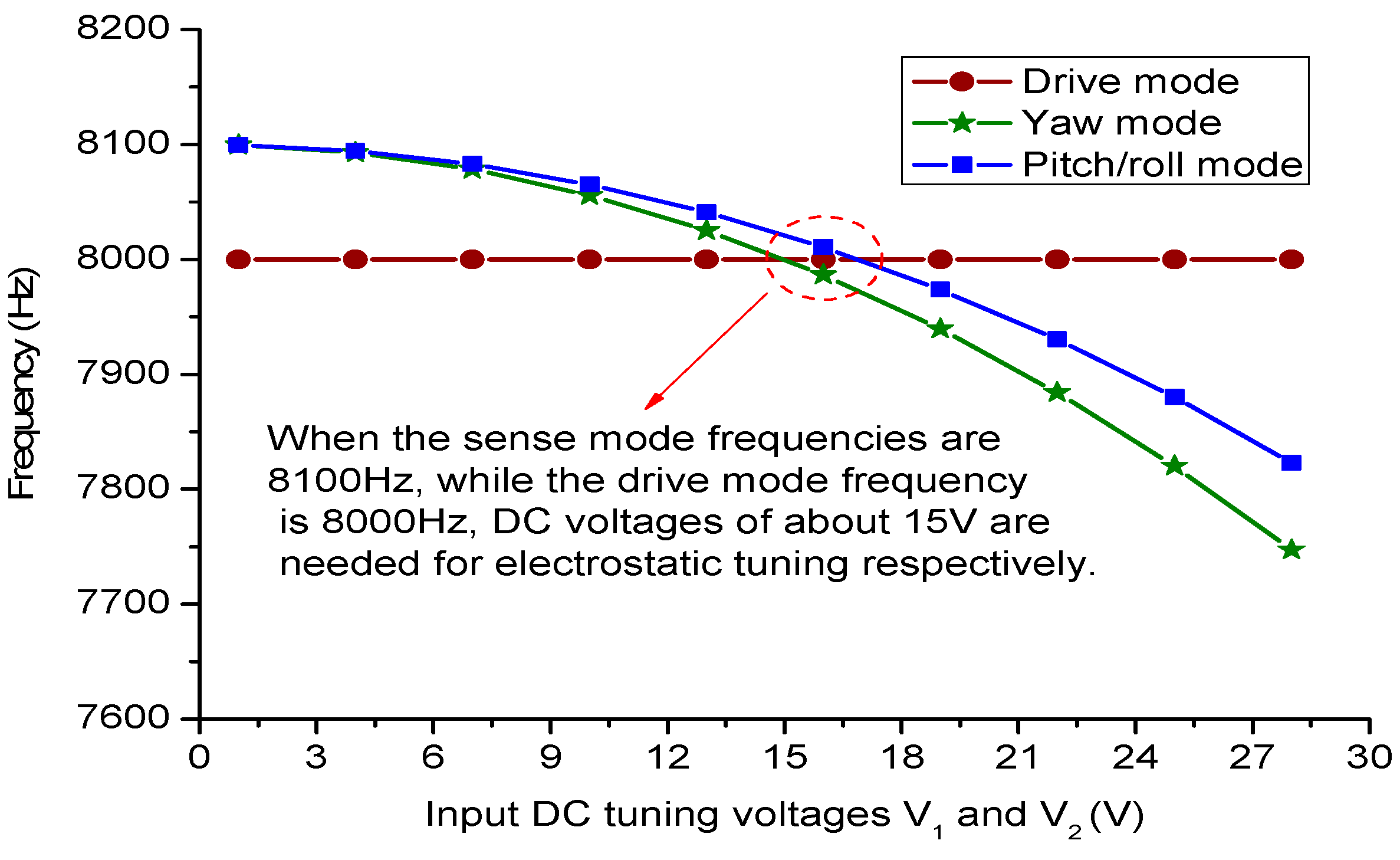

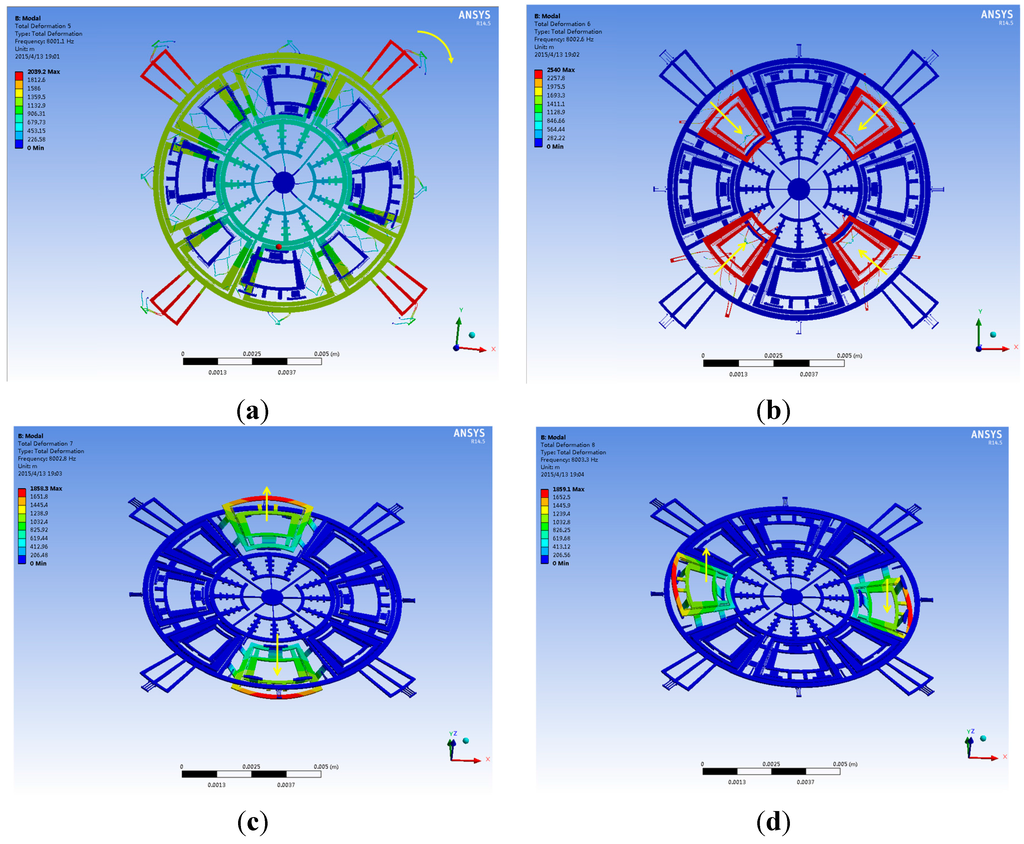

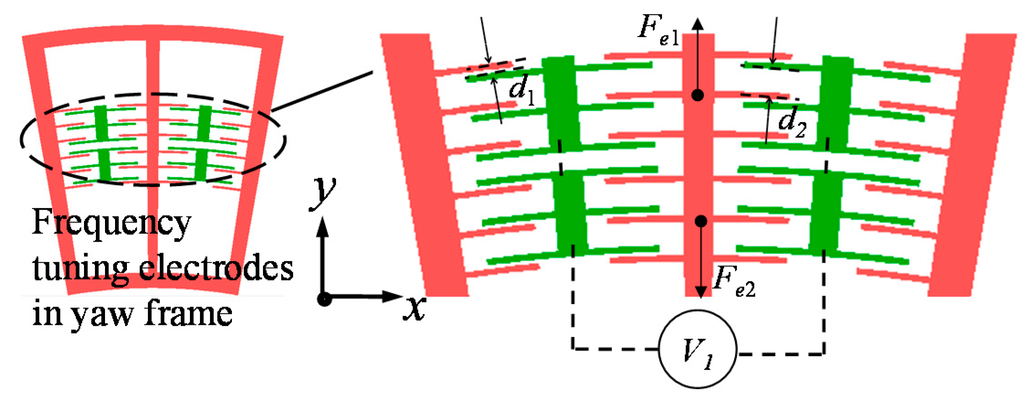

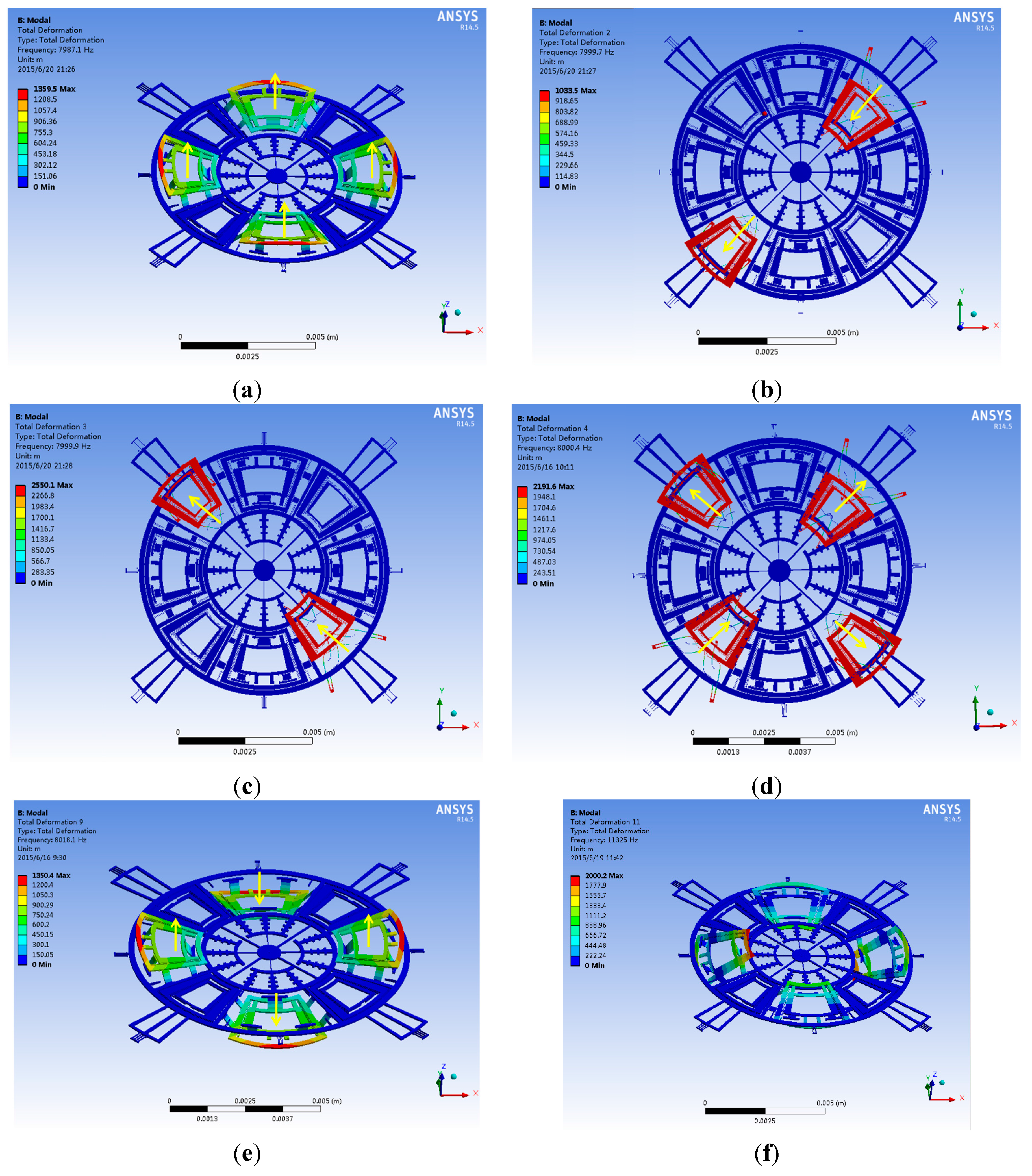

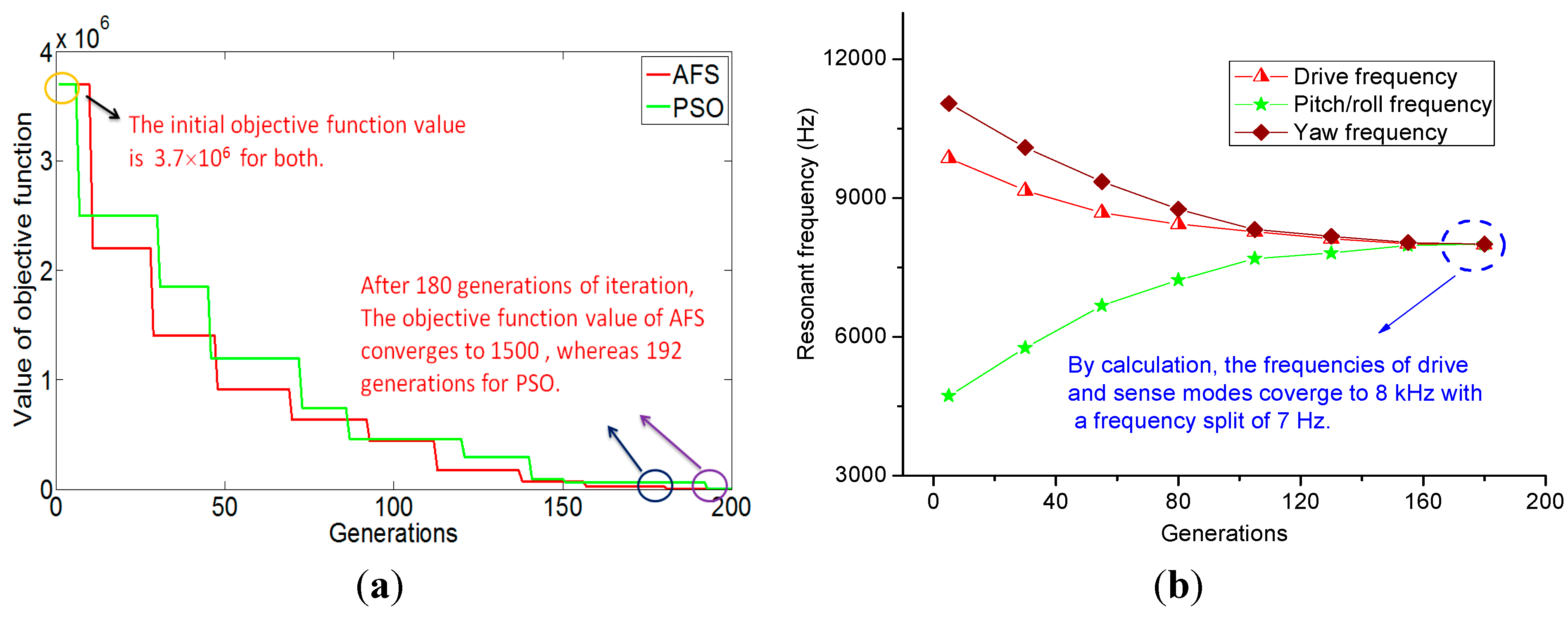

To avoid the oscillation of four unequal masses seen in previous triaxial linear gyroscopes, a modified silicon triaxial gyroscope with a rotary wheel is presented in this paper. To maintain a large sensitivity and suppress the coupling of different modes, this novel gyroscope structure is designed be perfectly symmetrical with a relatively large size of about 9.8 mm × 9.8 mm. It is available for differentially detecting three-axis angular rates simultaneously. To overcome the coupling between drive and sense modes, numerous necessary frames, beams, and anchors are delicately figured out and properly arranged. Besides, some frequency tuning and feedback mechanisms are addressed in the case of post processing after fabrication. To facilitate mode matched function, a new artificial fish swarm algorithm (AFSA) performed faster than particle swarm optimization (PSO) with a frequency split of 108 Hz. Then, by entrusting the post adjustment of the springs dimensions to the finite element method (FEM) software ANSYS, the final frequency splits can be below 3 Hz. The simulation results demonstrate that the modal frequencies in drive and different sense modes are respectively 8001.1, 8002.6, 8002.8 and 8003.3 Hz. Subsequently, different axis cross coupling effects and scale factors are also analyzed. The simulation results effectively validate the feasibility of the design and relevant theoretical calculation. View Full-Text
Keywords: triaxial gyroscope; gyroscope structure; artificial fish swarm algorithm; mode matching triaxial gyroscope; gyroscope structure; artificial fish swarm algorithm; mode matching
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
