Open AccessArticle
Sensors 2014, 14(9), 16754-16765; doi:10.3390/s140916754

Development of an Air Pneumatic Suspension System for Transtibial Prostheses

1
Department of Biomedical Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
2
Department of Mechanical Engineering, University of Malaya, Kuala Lumpur 50603, Malaysia
*
Author to whom correspondence should be addressed.
Received: 24 April 2014 / Revised: 25 July 2014 / Accepted: 28 July 2014 / Published: 9 September 2014
(This article belongs to the Special Issue Biomedical Sensors and Systems)
View Full-Text   |   Download PDF [1578 KB, uploaded 9 September 2014]   |

Abstract

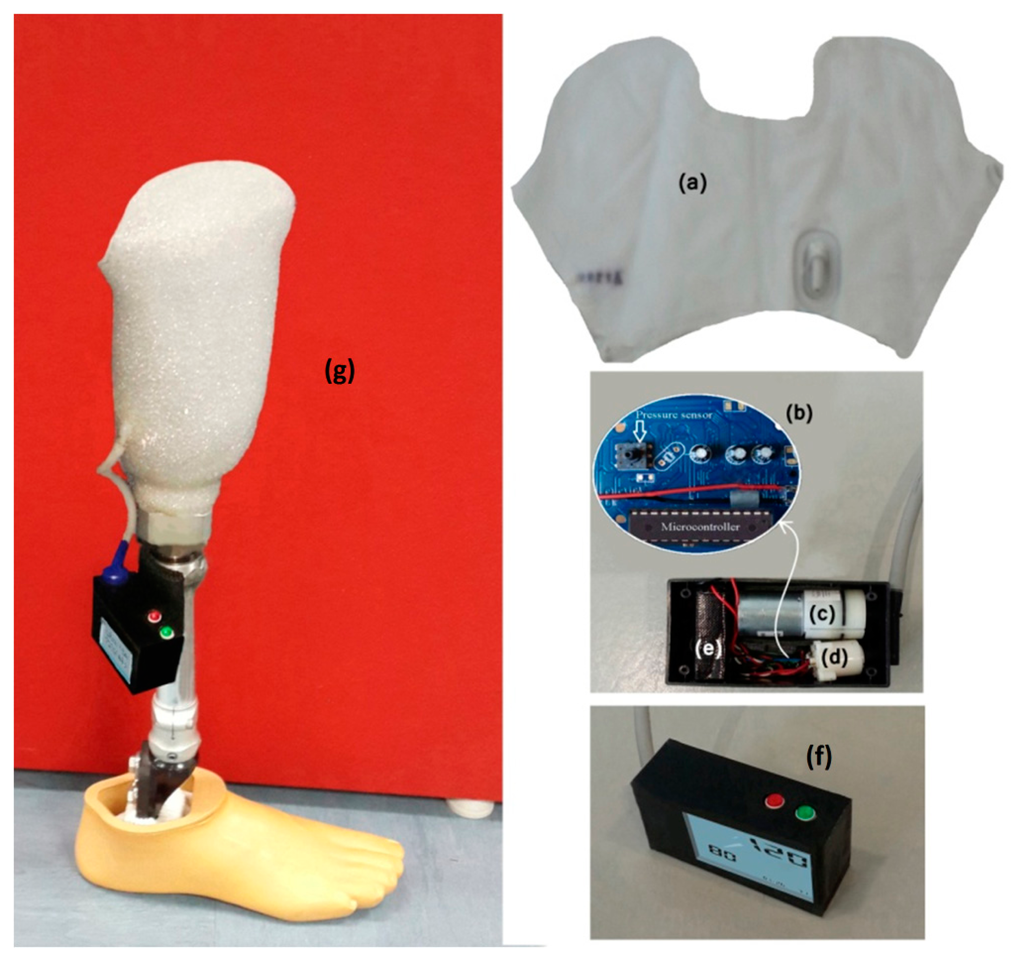

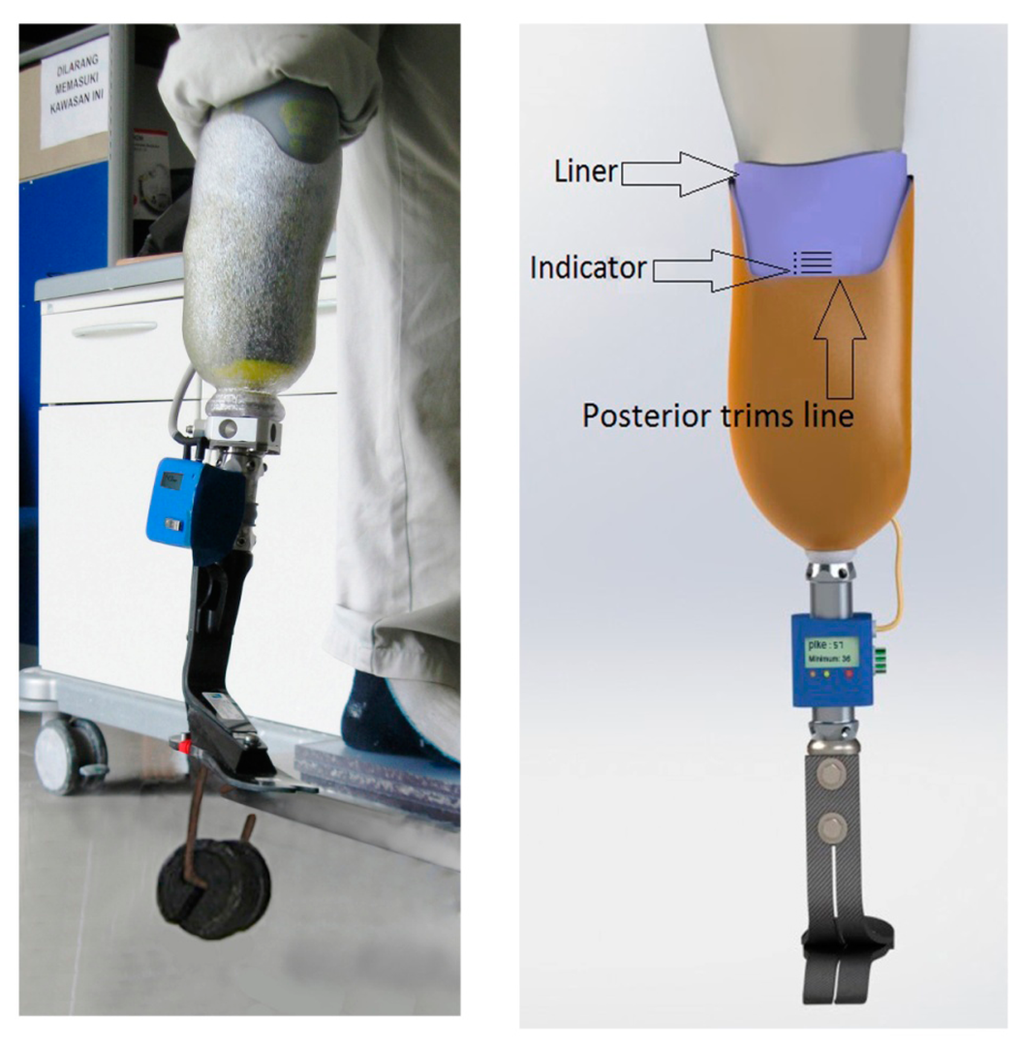

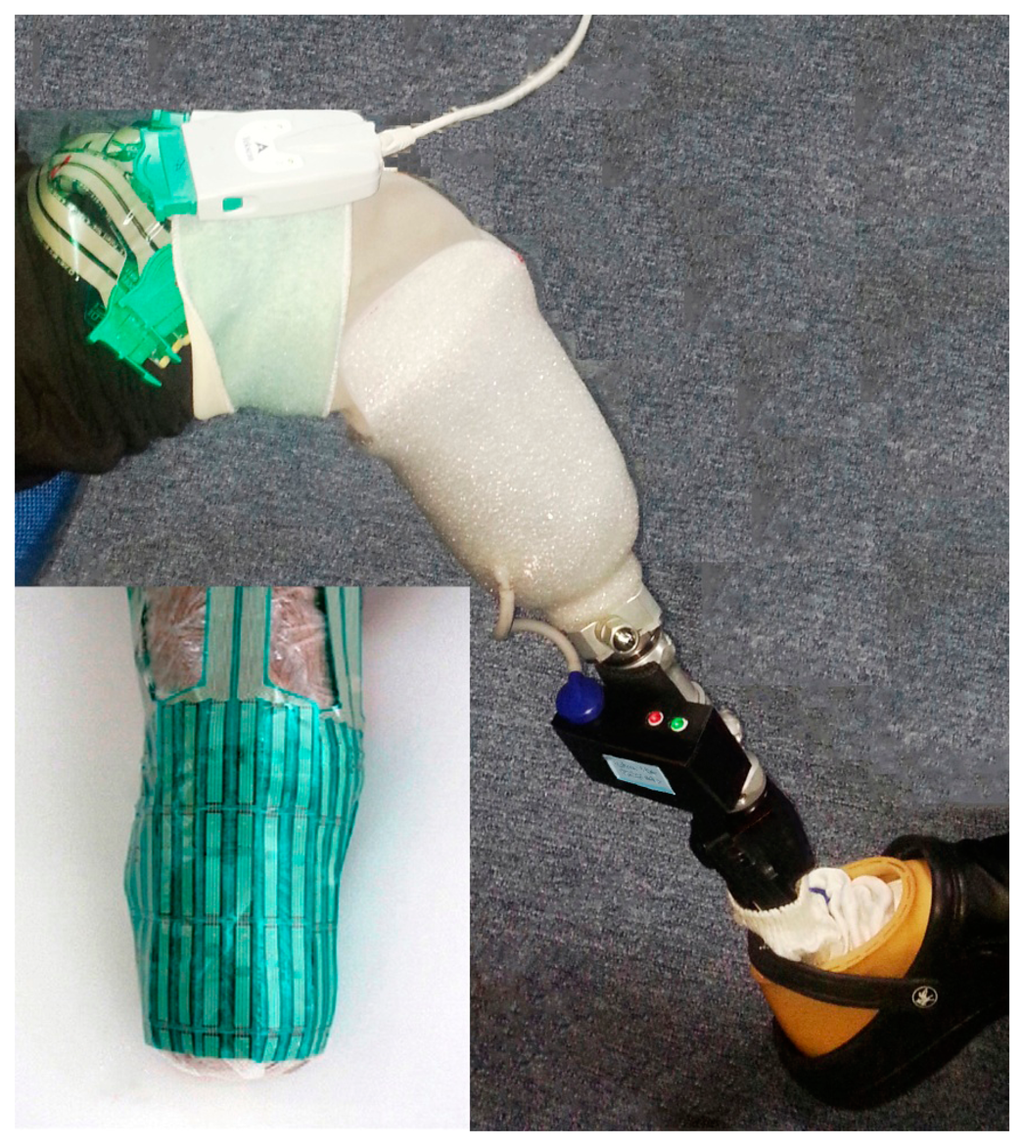

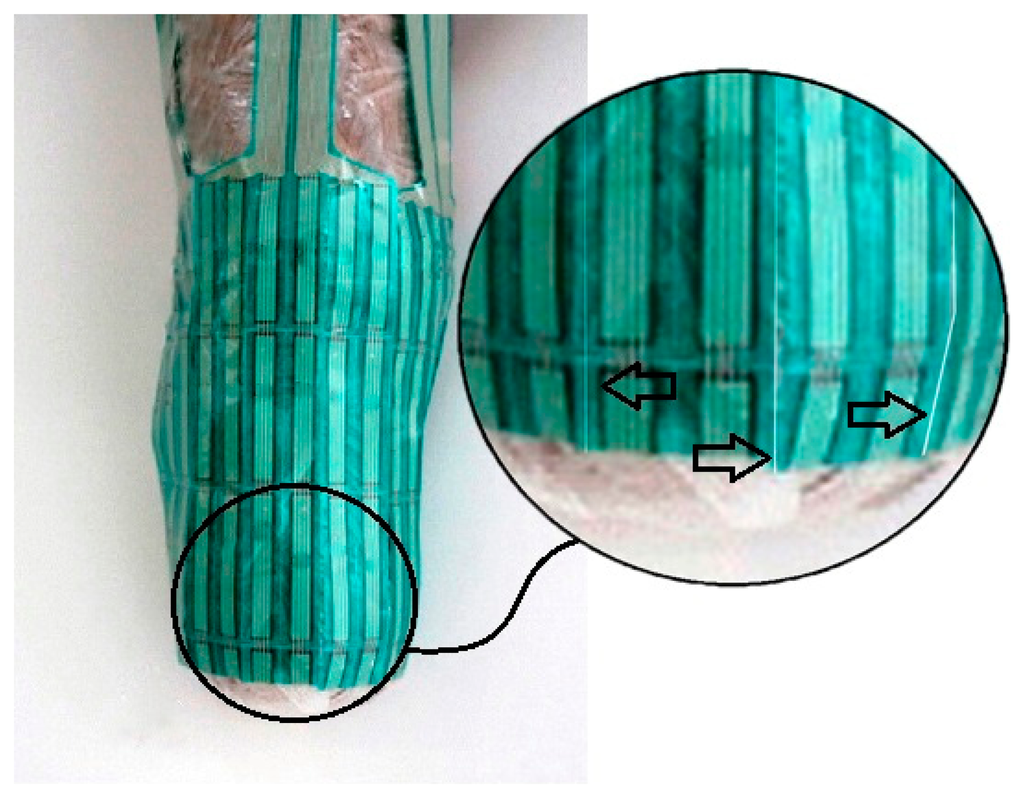

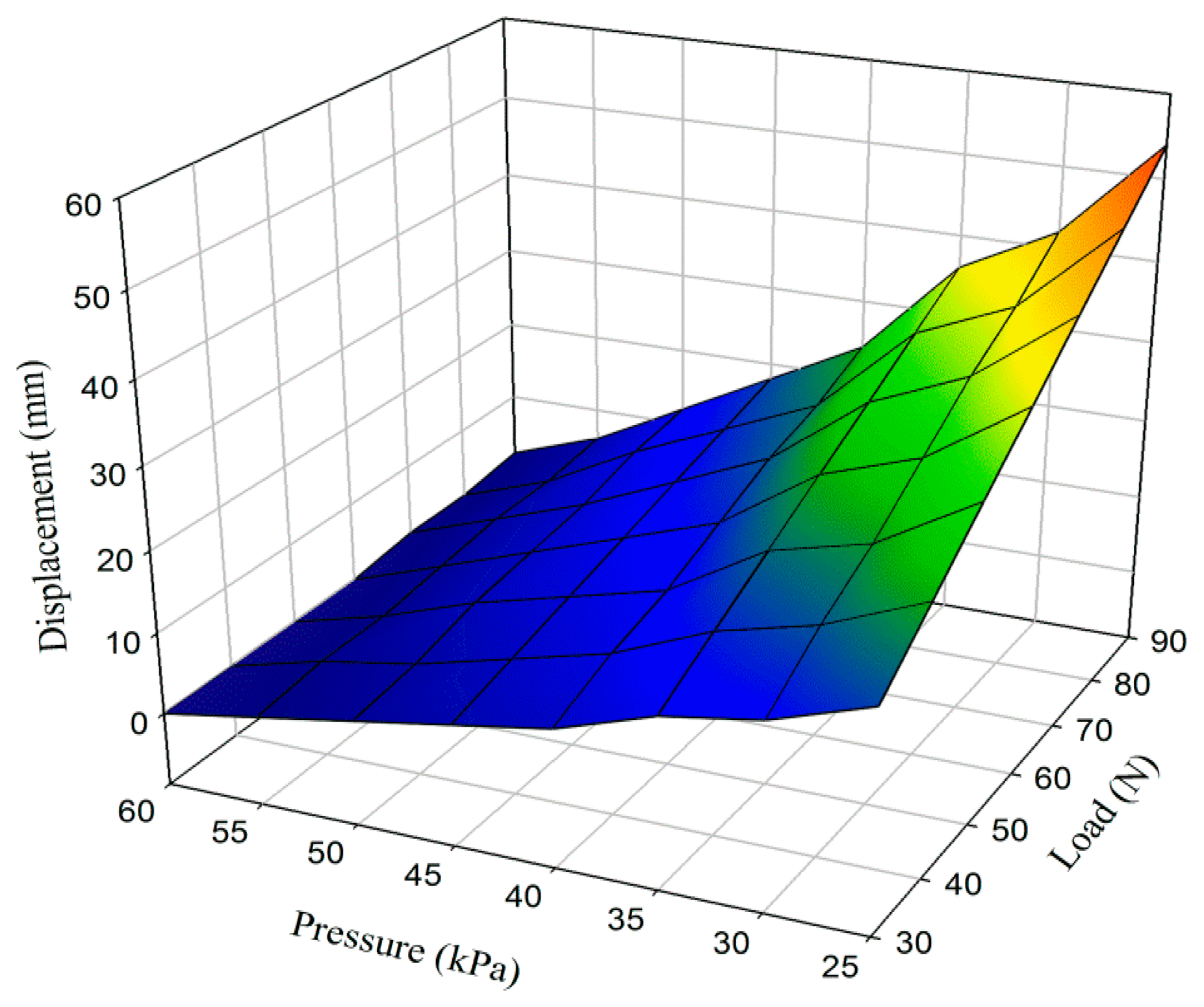

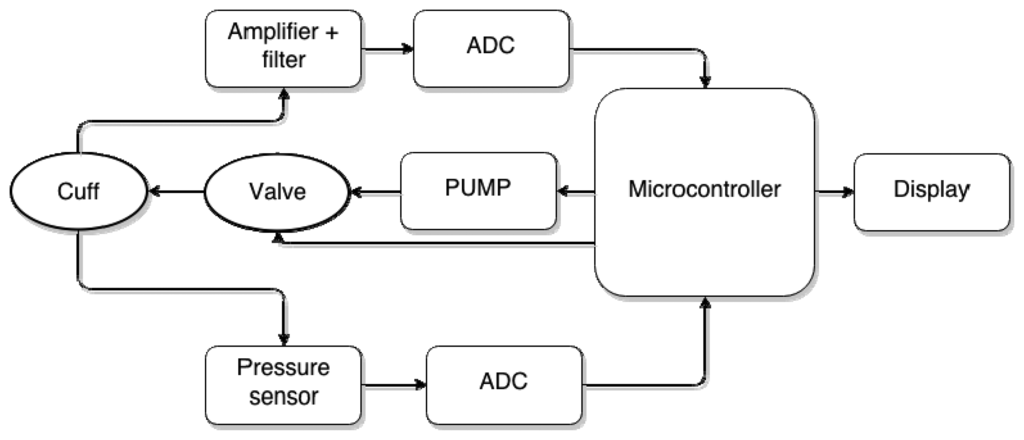

The suspension system and socket fitting of artificial limbs have major roles and vital effects on the comfort, mobility, and satisfaction of amputees. This paper introduces a new pneumatic suspension system that overcomes the drawbacks of current suspension systems in donning and doffing, change in volume during daily activities, and pressure distribution in the socket-stump interface. An air pneumatic suspension system (APSS) for total-contact sockets was designed and developed. Pistoning and pressure distribution in the socket-stump interface were tested for the new APSS. More than 95% of the area between each prosthetic socket and liner was measured using a Tekscan F-Scan pressure measurement which has developed matrix-based pressure sensing systems. The variance in pressure around the stump was 8.76 kPa. APSS exhibits less pressure concentration around the stump, improved pressure distribution, easy donning and doffing, adjustability to remain fitted to the socket during daily activities, and more adaptability to the changes in stump volume. The volume changes were adjusted by utility of air pressure sensor. The vertical displacement point and reliability of suspension were assessed using a photographic method. The optimum pressure in every level of loading weight was 55 kPa, and the maximum displacement was 6 mm when 90 N of weight was loaded. View Full-Text
Keywords: air pneumatic system; semiconductor pressure sensor; socket design; pressure distribution; socket-stump interface; adjustability air pneumatic system; semiconductor pressure sensor; socket design; pressure distribution; socket-stump interface; adjustability
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Pirouzi, G.; Abu Osman, N.A.; Oshkour, A.A.; Ali, S.; Gholizadeh, H.; Wan Abas, W.A.B. Development of an Air Pneumatic Suspension System for Transtibial Prostheses. Sensors 2014, 14, 16754-16765.
