Open AccessArticle
Sensors 2014, 14(9), 16955-16971; doi:10.3390/s140916955

Whole Body Center of Mass Estimation with Portable Sensors: Using the Statically Equivalent Serial Chain and a Kinect

1
INRIA (Institut National de Recherche en Informatique et en Automatique), DEMAR Team, Montpellier 34095, France
2
LIRMM (Laboratoire d'Informatique, de Robotique et de Microélectronique de Montpellier), University of Montpellier 2, Montpellier 34090, France
3
Movement to Health (M2H) Laboratory, EuroMov, University of Montpellier 1, Montpellier 34090, France
*
Author to whom correspondence should be addressed.
Received: 16 April 2014 / Revised: 5 August 2014 / Accepted: 7 August 2014 / Published: 11 September 2014
(This article belongs to the Special Issue Biomedical Sensors and Systems)
View Full-Text   |   Download PDF [829 KB, uploaded 11 September 2014]   |

Abstract

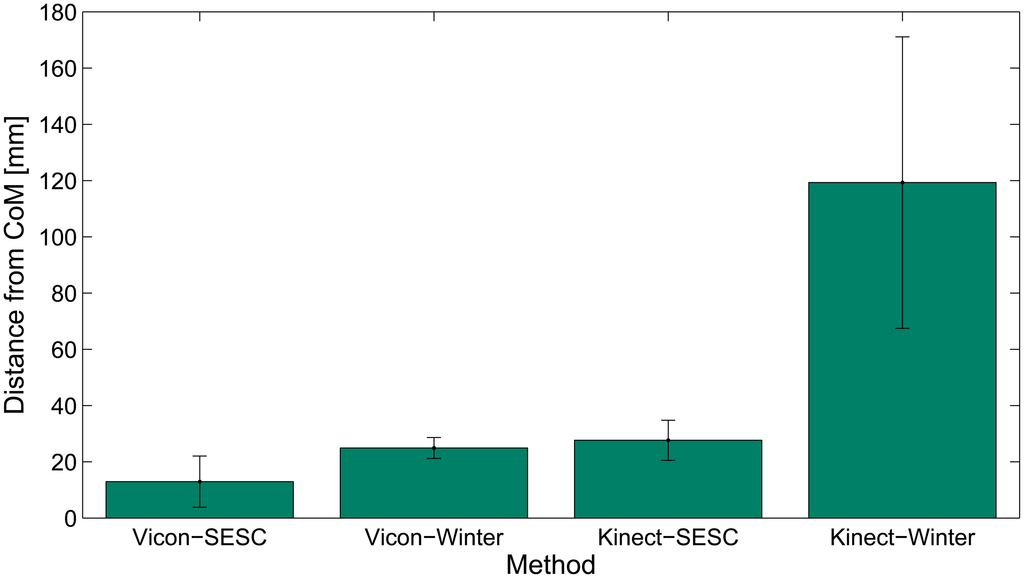

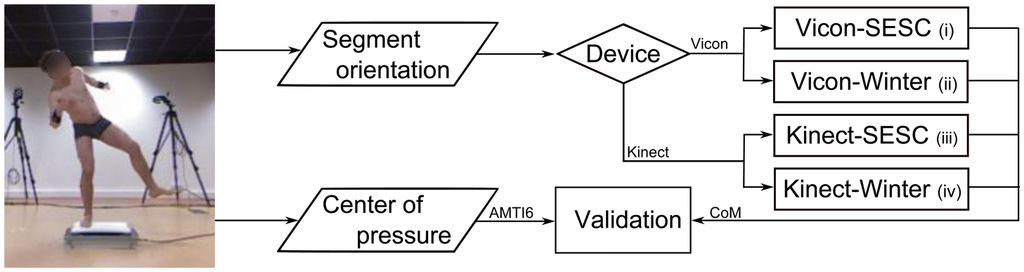

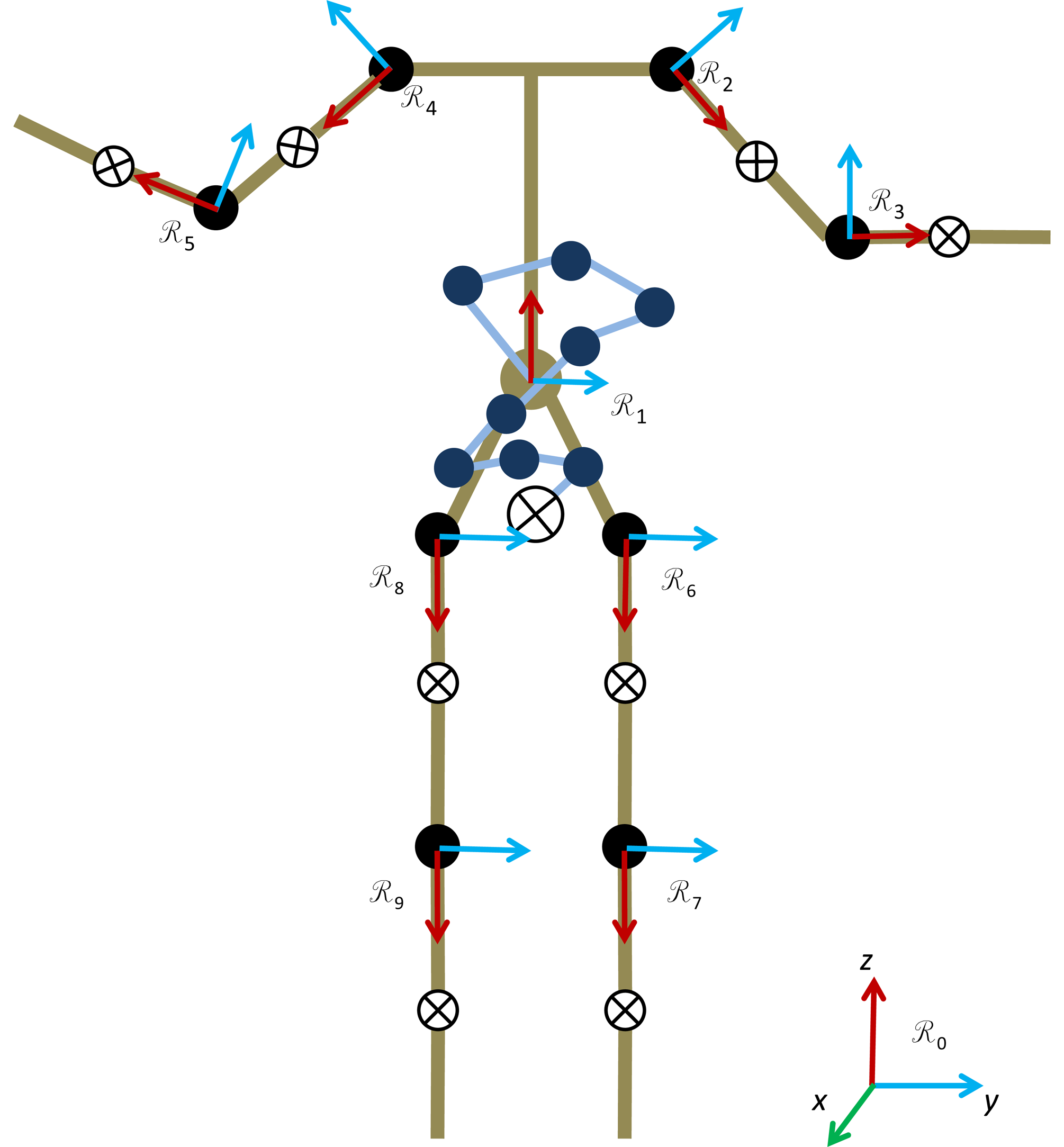

The trajectory of the whole body center of mass (CoM) is useful as a reliable metric of postural stability. If the evaluation of a subject-specific CoM were available outside of the laboratory environment, it would improve the assessment of the effects of physical rehabilitation. This paper develops a method that enables tracking CoM position using low-cost sensors that can be moved around by a therapist or easily installed inside a patient’s home. Here, we compare the accuracy of a personalized CoM estimation using the statically equivalent serial chain (SESC) method and measurements obtained with the Kinect to the case of a SESC obtained with high-end equipment (Vicon). We also compare these estimates to literature-based ones for both sensors. The method was validated with seven able-bodied volunteers for whom the SESC was identified using 40 static postures. The literature-based estimation with Vicon measurements had a average error 24.9 ± 3.7 mm; this error was reduced to 12.8 ± 9.1 mm with the SESC identification. When using Kinect measurements, the literature-based estimate had an error of 118.4 ± 50.0 mm, while the SESC error was 26.6 ± 6.0 mm. The subject-specific SESC estimate using low-cost sensors has an equivalent performance as the literature-based one with high-end sensors. The SESC method can improve CoM estimation of elderly and neurologically impaired subjects by considering variations in their mass distribution. View Full-Text
Keywords: statically equivalent serial chain (SESC); identification; center of mass (CoM); subject-specificity; Kinect statically equivalent serial chain (SESC); identification; center of mass (CoM); subject-specificity; Kinect
Figures

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Supplementary material

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

González, A.; Hayashibe, M.; Bonnet, V.; Fraisse, P. Whole Body Center of Mass Estimation with Portable Sensors: Using the Statically Equivalent Serial Chain and a Kinect. Sensors 2014, 14, 16955-16971.
