Sensors 2014, 14(9), 16017-16034; doi:10.3390/s140916017
Article

Performance of SOI Bragg Grating Ring Resonator for Nonlinear Sensing Applications

1
, 1
, 1
, 2
 and 1,*
Received: 3 July 2014; in revised form: 11 August 2014 / Accepted: 20 August 2014 / Published: 28 August 2014
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Italy 2014)
View Full-Text   |   Download PDF [907 KB, uploaded 28 August 2014]

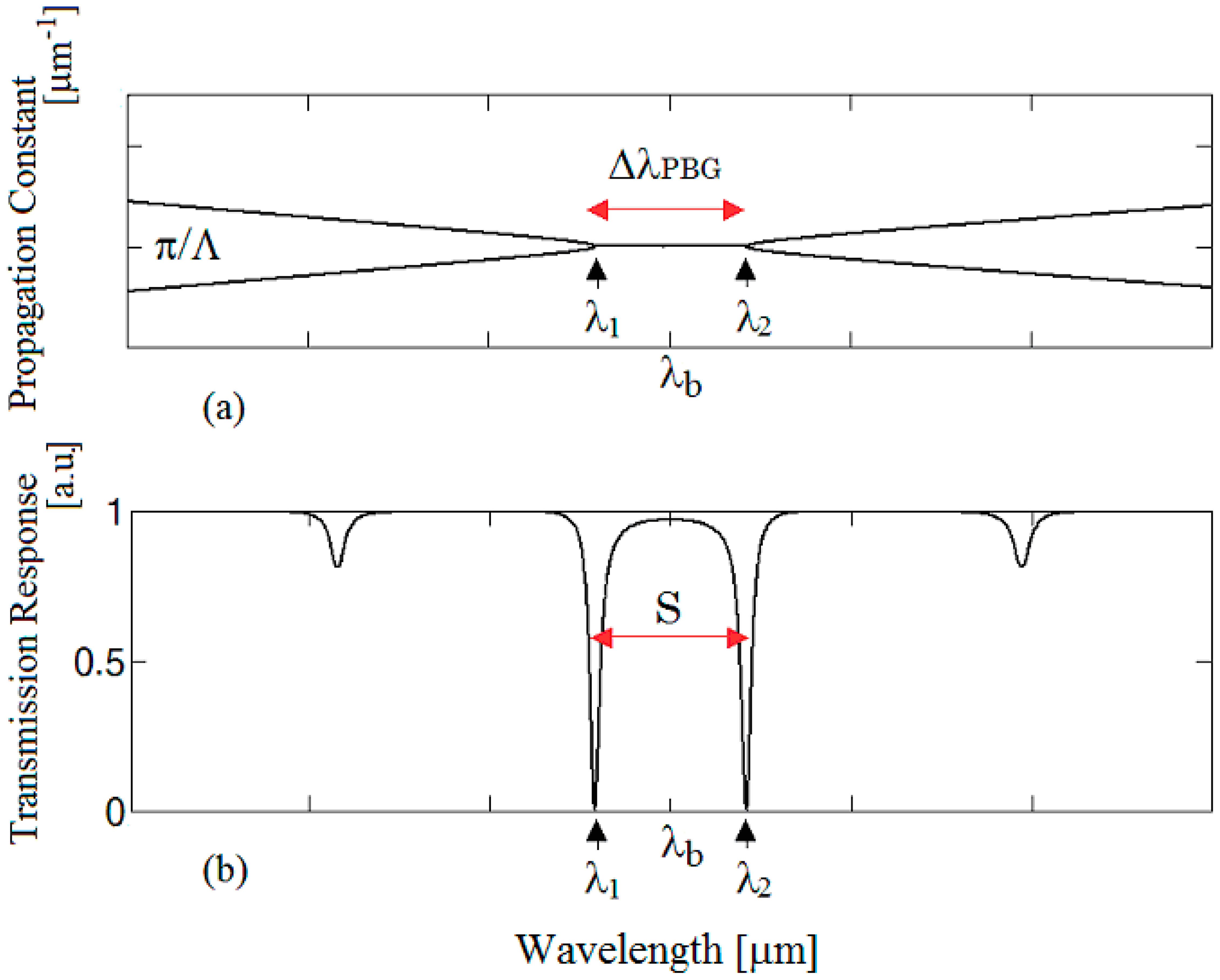

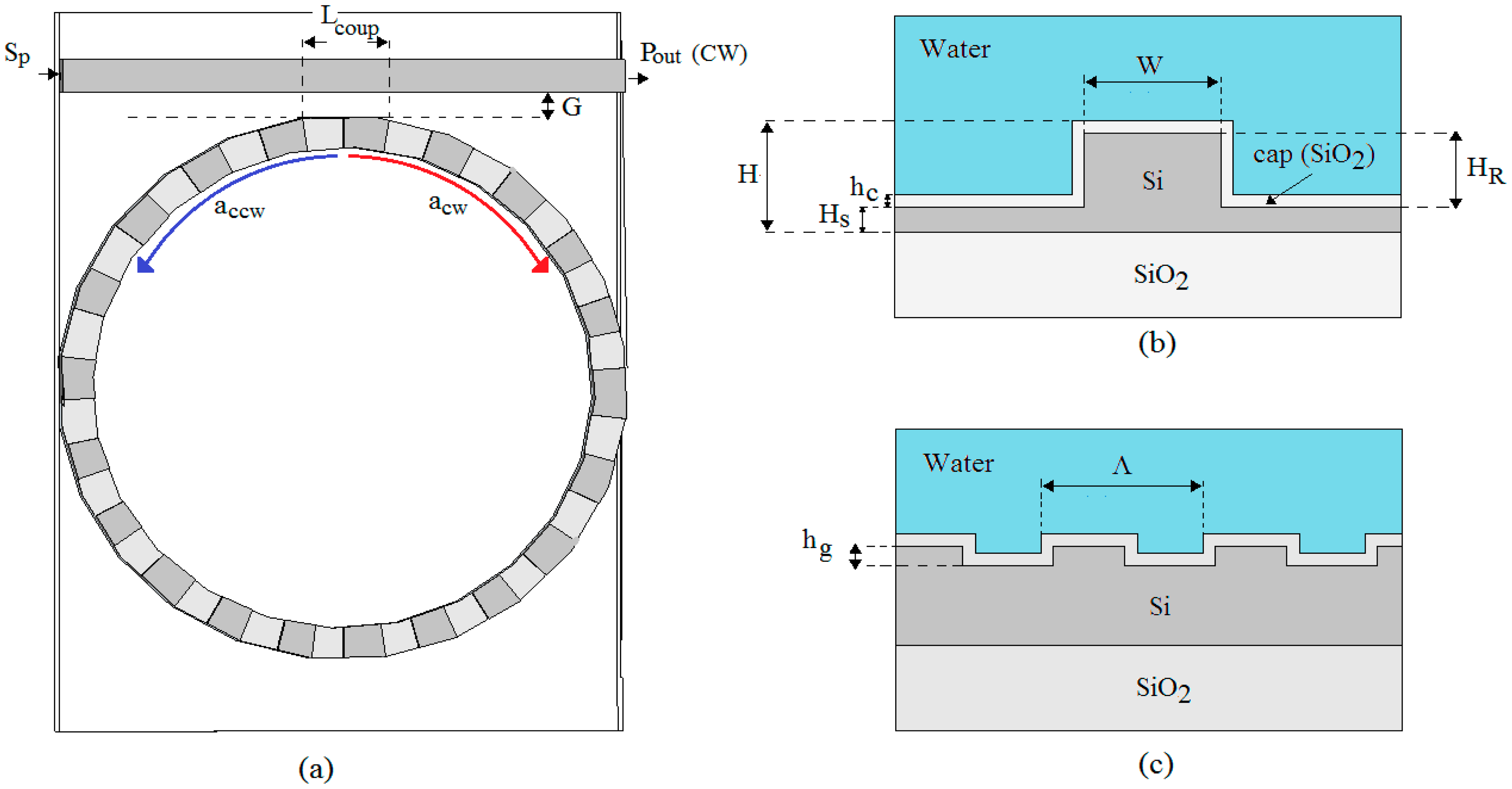

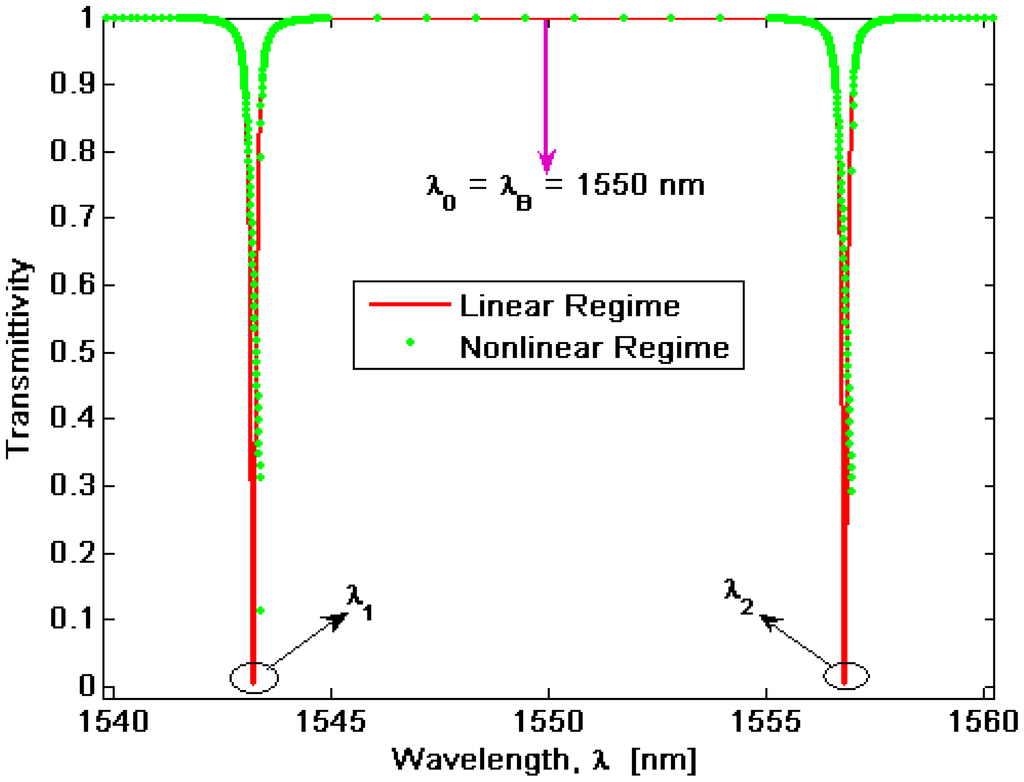

Abstract: In this paper, a spectroscopic sensor formed by a silicon-on-insulator waveguiding Bragg grating ring resonator working in linear and non-linear regime is proposed. In linear regime, the device shows a spectral response characterized by a photonic band gap (PBG). Very close to the band gap edges, the resonant structure exhibits split modes having a splitting magnitude equal to the PBG spectral extension, whose characteristics can be exploited to obtain a RI optical sensor almost insensitive to the fabrication tolerances and environmental perturbations. When the device operates in nonlinear regime, exactly in the spectral region showing the split resonant modes, the RI sensing performance is strongly improved with respect to the linear regime. This improvement, demonstrated by taking into account all the non-linear effects excited in the integrated silicon structure (i.e., Two Photon Absorption (TPA), TPA-induced Free Carrier Absorption, plasma dispersion, Self-Phase-Modulation and Cross-Phase-Modulation effects as induced by Kerr nonlinearity) as well as the deleterious thermal and stress effects, allows enhancing the performance of the RI split mode resonant sensors, while achieving good immunity to the fabrication tolerances and environmental perturbations. The improvement in terms of sensor resolution can be at least one order of magnitude, still without using optimal parameters.
Keywords: integrated optics; optical waveguides; nonlinear optics; sensors; coupled resonators integrated optics; optical waveguides; nonlinear optics; sensors; coupled resonators
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Export to BibTeX |
EndNote


MDPI and ACS Style

De Leonardis, F.; Campanella, C.E.; Troia, B.; Perri, A.G.; Passaro, V.M.N. Performance of SOI Bragg Grating Ring Resonator for Nonlinear Sensing Applications. Sensors 2014, 14, 16017-16034.

AMA Style

De Leonardis F, Campanella CE, Troia B, Perri AG, Passaro VMN. Performance of SOI Bragg Grating Ring Resonator for Nonlinear Sensing Applications. Sensors. 2014; 14(9):16017-16034.

Chicago/Turabian Style

De Leonardis, Francesco; Campanella, Carlo E.; Troia, Benedetto; Perri, Anna G.; Passaro, Vittorio M.N. 2014. "Performance of SOI Bragg Grating Ring Resonator for Nonlinear Sensing Applications." Sensors 14, no. 9: 16017-16034.
