Open AccessArticle
Sensors 2014, 14(7), 13134-13148; doi:10.3390/s140713134

An Aligned-Gap and Centered-Gap Rectangular Multiple Split Ring Resonator for Dielectric Sensing Applications

1
Wireless and Photonic Network Research Centre, Faculty of Engineering, Universiti Putra Malaysia, Selangor 43400, Malaysia
2
Institute of Advanced Technology, Universiti Putra Malaysia, Selangor 43400, Malaysia
*
Author to whom correspondence should be addressed.
Received: 29 April 2014 / Revised: 18 June 2014 / Accepted: 3 July 2014 / Published: 21 July 2014
View Full-Text   |   Download PDF [1219 KB, uploaded 21 July 2014]   |

Abstract

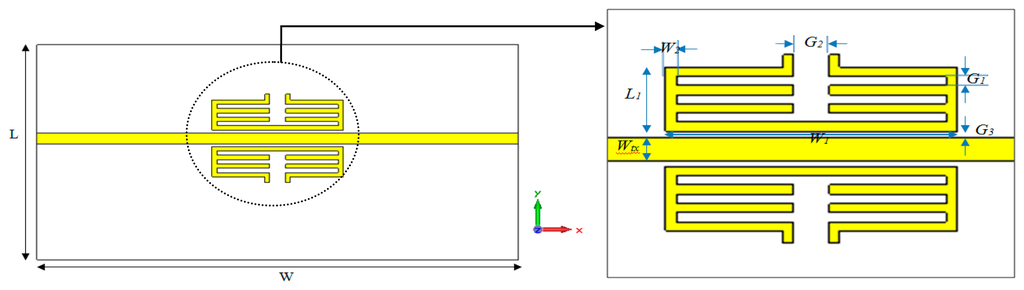

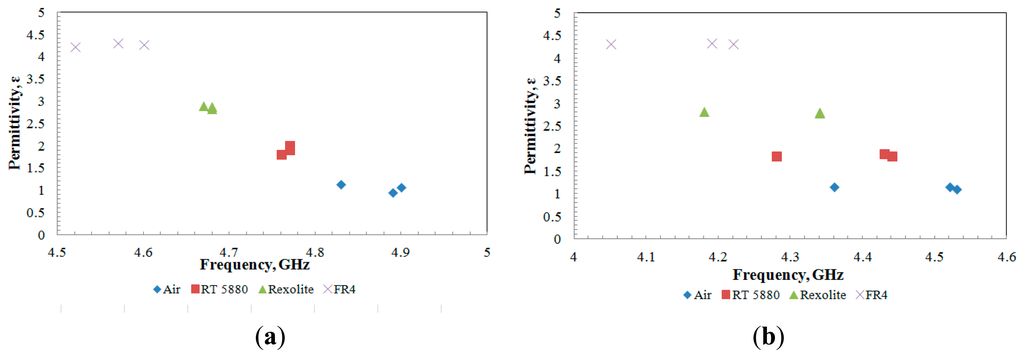

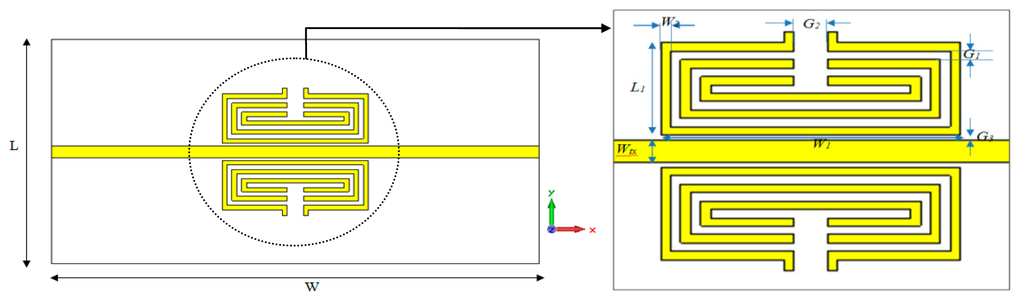

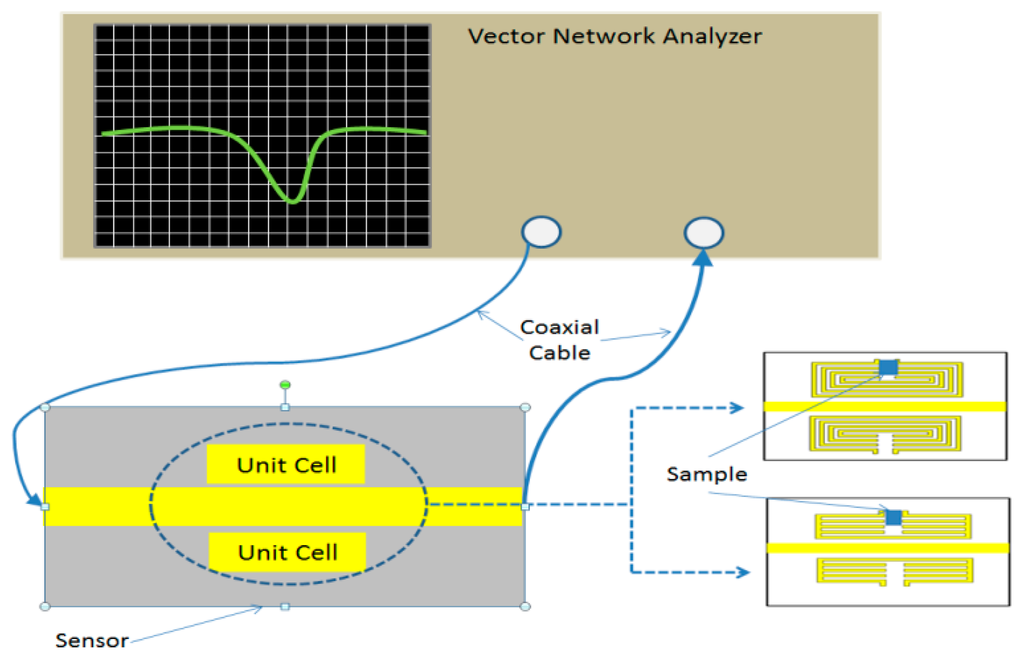

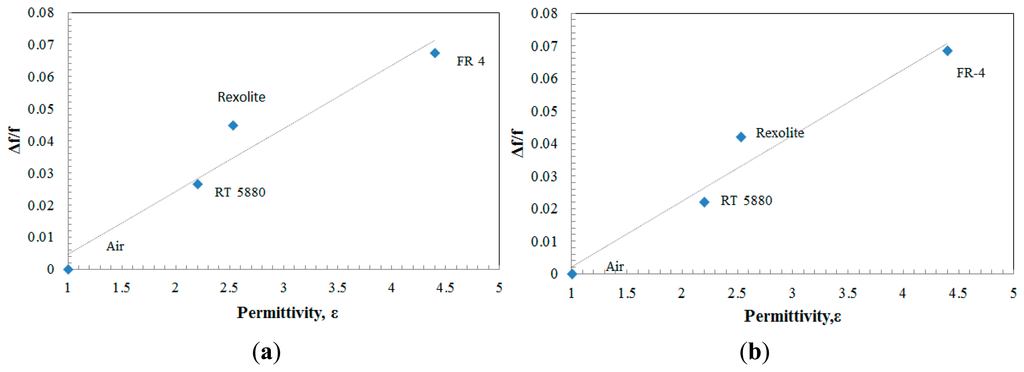

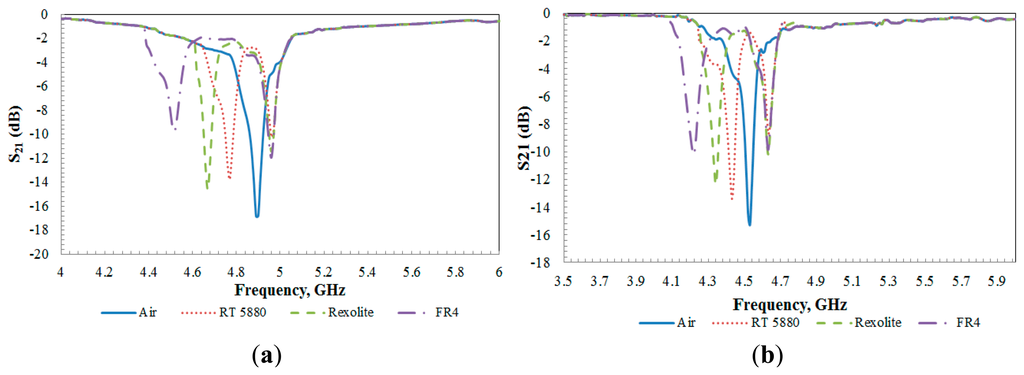

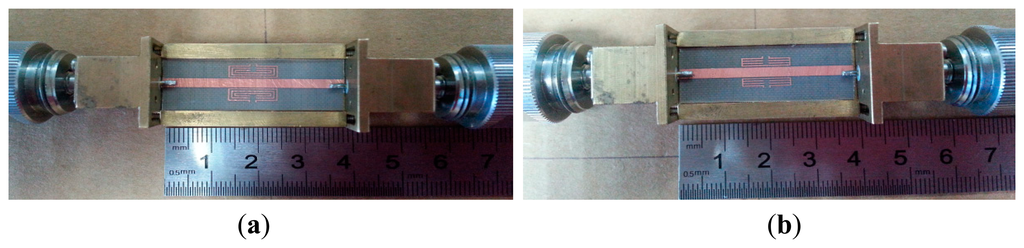

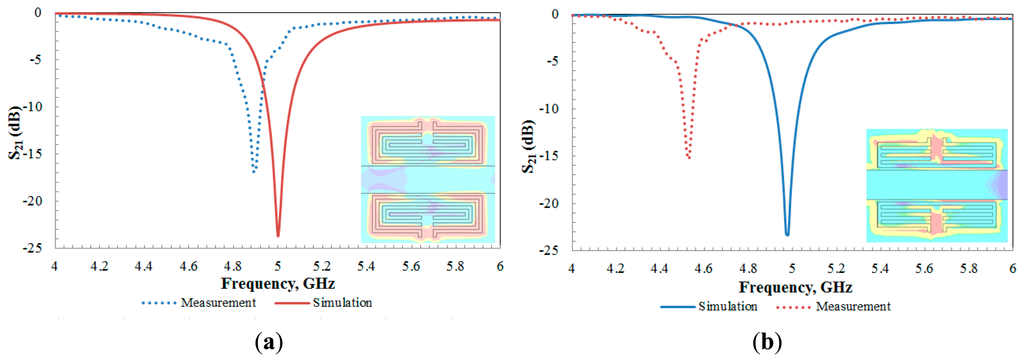

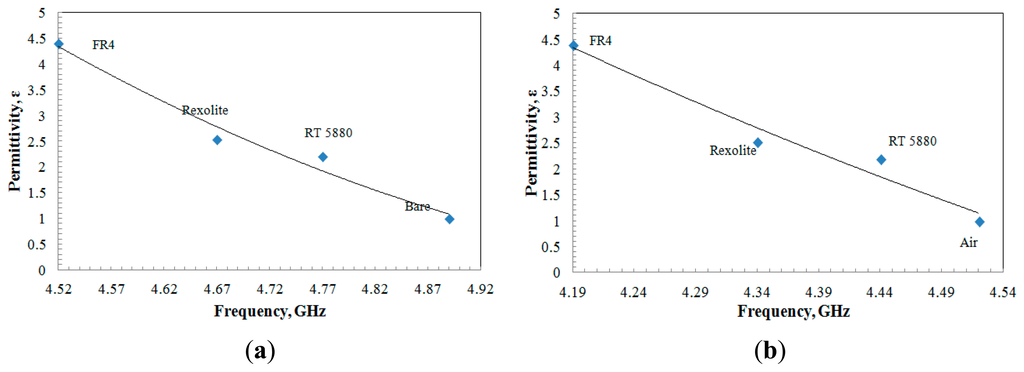

This paper presents the design and development of a planar Aligned-Gap and Centered-Gap Rectangular Multiple Split Ring Resonator (SRR) for microwave sensors that operates at a resonance frequency around 5 GHz. The sensor consists of a microstrip transmission line loaded with two elements of rectangular SRR on both sides. The proposed metamaterial sensors were designed and fabricated on Rogers RT5880 substrate having dielectric constant of 2.2 and thickness of 0.787 mm. The final dimension of the proposed sensor was measured at 35 × 14 mm2. Measured results show good agreement with simulated ones as well as exhibiting high Q-factor for use in sensing application. A remarkably shift of resonance frequency is observed upon introduction of several sample with different dielectric value. View Full-Text
Keywords: sensor; metamaterial; split ring resonator; dielectric sensing sensor; metamaterial; split ring resonator; dielectric sensing
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
