Experimental Investigations on Airborne Gravimetry Based on Compressed Sensing
Yapeng Yang 1,*, Meiping Wu 1,*, Jinling Wang 2, Kaidong Zhang 1, Juliang Cao 1 and Shaokun Cai 1
1
Department of Automatic Control, College of Mechatronics and Automation, National University of Defense Technology, Deya Street 109, Changsha 410073, China; E-Mails: kdzhang@263.net (K.Z.); cjl.nudt@gmail.com (J.C.); csk527@163.com (S.C.)
2
School of Civil and Environmental Engineering, University of New South Wales, Sydney, NSW 2052, Australia; E-Mail: Jinling.Wang@unsw.edu.au
*
Authors to whom correspondence should be addressed; E-Mails: yang830419@126.com (Y.Y.); meipingwu@263.net (M.W.); Tel.: +86-137-8618-8163 (Y.Y.); +86-731-8457-6305 (ext. 8209) (M.W.); Fax: +86-731-8457-6305 (ext. 8212) (Y.Y. & M.W.).
Received: 2 January 2014; in revised form: 6 March 2014 / Accepted: 10 March 2014 /
Published: 18 March 2014

Abstract

: Gravity surveys are an important research topic in geophysics and geodynamics. This paper investigates a method for high accuracy large scale gravity anomaly data reconstruction. Based on the airborne gravimetry technology, a flight test was carried out in China with the strap-down airborne gravimeter (SGA-WZ) developed by the Laboratory of Inertial Technology of the National University of Defense Technology. Taking into account the sparsity of airborne gravimetry by the discrete Fourier transform (DFT), this paper proposes a method for gravity anomaly data reconstruction using the theory of compressed sensing (CS). The gravity anomaly data reconstruction is an ill-posed inverse problem, which can be transformed into a sparse optimization problem. This paper uses the zero-norm as the objective function and presents a greedy algorithm called Orthogonal Matching Pursuit (OMP) to solve the corresponding minimization problem. The test results have revealed that the compressed sampling rate is approximately 14%, the standard deviation of the reconstruction error by OMP is 0.03 mGal and the signal-to-noise ratio (SNR) is 56.48 dB. In contrast, the standard deviation of the reconstruction error by the existing nearest-interpolation method (NIPM) is 0.15 mGal and the SNR is 42.29 dB. These results have shown that the OMP algorithm can reconstruct the gravity anomaly data with higher accuracy and fewer measurements.
Keywords:
compressed sensing; strap-down airborne gravimeter; airborne gravimetry; orthogonal matching pursuit; gravity anomaly data reconstruction

1. Introduction

The Earth's gravity field is a fundamental physical field, which reflects the distribution, motion and variety of the Earth's interior matter. The gravity has connections with all the physical events on Earth and in its near space, and thus provides the basic information to support research on many subjects. Gravity surveys can support fundamental geophysical investigations, which are beneficial to determine the density of the Earth's interior matter and help explain many physical phenomena of the Earth. Meanwhile, gravity surveys are also significant in the exploitation of mineral resources and modern military science, etc.

Airborne gravimetry is a method of determining the Earth's gravity by using instruments on board an aircraft such as accelerometers, global navigation satellite systems (GNSS), altimeters, and attitude sensors [1,2]. Performing gravity surveys from an aircraft is superior to point-wise terrestrial gravimetry in terms of both economy and efficiency. It also offers the opportunity to measure gravity over special terrains which are difficult to access and in the areas with mixed land and ocean [3,4]. Airborne gravimetry can be applied to rapidly get extensively well-distributed information about the Earth's gravity field, so it is an important new geodetic technology and an essential part of airborne geophysical exploration and also is supplemental to terrestrial gravimetry and shipborne gravimetry.

Airborne gravimetry is essentially a discrete digital sampling method. The theoretical foundation of discrete digital sampling on continuous-time band-limited signals was developed by Nyquist and Shannon [5,6]. Their results demonstrated that signals can be recovered from a set of uniformly spaced samples taken at the so-called Nyquist rate of twice the highest frequency present in the signal of interest. However, because of the restrictions posed by national boundaries, economic cost and database size, airborne gravimetry is in practice a sub-Nyquist sampling method. Consequently, there is a question on whether the gravity data can be recovered with a new framework for signal acquisition and sensor design that enables a potentially large reduction in the sampling and computation costs for sensing signals. More recently, Candès, Romberg, Tao and Donoho showed that a signal having a sparse representation can be reconstructed from a small set of linear, non-adaptive measurements [711]. This result suggests that it may be possible to sense sparse signals by taking far fewer flight measurements, and hence such as a method is named Compressed Sensing (CS).

Based on airborne gravimetry technology, a flight test was carried out in China with the strap-down airborne gravimeter (SGA-WZ) developed by the Laboratory of Inertial Technology of the National University of Defense Technology [1214]. This paper investigates a method for large scale gravity anomaly data reconstruction. Taking into account the sparsity of airborne gravimetry by DFT, this paper firstly proposes a method for the reconstruction of gravity anomaly data using the CS theory. The gravity anomaly data reconstruction is an ill-posed inverse problem, which can be transformed into a sparse optimization problem. This paper uses the zero-norm as the objective function and presents the OMP algorithm to solve the corresponding minimization problem [15]. These results have shown that the OMP algorithm can reconstruct the gravity anomaly data with higher accuracy and fewer measurements than existing methods

2. Basic Principle and Mathematical Model

Airborne gravimetry can be classified as airborne scalar gravimetry, airborne vector gravimetry and airborne gradient gravimetry. Our work in this paper studies airborne scalar gravimetry (we study vertical component of the vector only).

2.1. Airborne Gravimetry Technology

An object's gravity is the composition of forces of gravitation caused by the Earth and other celestial bodies and the inertial centrifugal force caused by the Earth's rotation. The non-uniform distribution of the density of the Earth's interior matter makes the gravity vary with the position. In gravity prospecting, the gravity variations caused by the non-uniform density distribution of the Earth's interior rocks and minerals are called gravity anomalies. In fact, the airborne gravity measurements include two parts: the gravity anomaly (denoted as the free air anomaly here) and the normal gravity (which is the reference gravity field of a conventional ellipsoid). Therefore, the gravity anomaly can be expressed as:

Δ g = g γ
where Δg is the gravity anomaly, g is the gravity measurement and γ is the normal gravity.

The principle of strap-down airborne scalar gravimetry is based on Newton's equation of motion in the gravitational field of the Earth, utilizing the principle of relative gravity measurement. First, we must use a terrestrial gravimeter to connect national gravity and a point on the parking apron to obtain its gravity and take it as the gravity reference point. Before the aircraft takes off, static gravimeter data must be recorded so that gravity observations in the air can be associated with the gravity reference point on the parking apron. Then, the strap-down airborne scalar gravimetry model can be written as:

Δ g = ν ˙ D ( f D f D 0 + g b ) + Δ a E γ

Obviously, Equation (2) is an equivalent form of Equation (1), where Δg is the gravity anomaly to be determined, ν̇D is the vertical component of the vehicle acceleration obtained from GPS, fD is the vertical component of the specific force measured by the accelerometers of an inertial measuring unit, f D 0 is the vertical component of the specific force obtained from the static data on the parking apron, called base reading, gb is the gravity of reference point on the parking apron and ΔaE includes all kinds of the error correction [16].

2.2. Mathematical Model of CS

Compressed sensing (CS) is an exciting, rapidly growing field that has attracted considerable attention in fields as diverse as electrical engineering, applied mathematics, statistics, sensor technology and computer science. CS offers a framework for simultaneous sensing and compression of finite dimensional signals. Quite surprisingly, it predicts that sparse high-dimensional signals can be recovered from highly incomplete measurements by using efficient algorithms. CS also holds promise for increasing resolution by exploiting the signal structure. Especially, reducing the sampling rate or increasing resolution in airborne gravimetry can improve survey efficiency, increase data transfer rate and improve data quality.

Let z be an unknown original gravity anomaly in Rn (which can represent a 1-D or 2-D gravity anomaly of interest). Suppose that we have m linear measurements of z with the form:

y i = ϕ i , z + ν i , i = 1 , 2 , , m
where 〈·,·〉 denotes the usual inner product, y = [y1,y2,⋯,ym]TRm is the sampling gravity anomaly, Φ = [ ϕ1,ϕ2,⋯,ϕm]TRm×n is known and called the compressed sensing matrix and ν = [ν1,ν2,⋯νm]TRm is the noise. Standard reconstruction methods require at least n samples. Suppose we know a priori that z is compressible or has a sparse representation in a transform domain, described by the matrix ΨRn×n. The sparse representation of z can be written as:
x = Ψ z
where x is the sparse coefficient matrix and Ψ is the sparse transform matrix. In this case, if vectors ϕi are well chosen, then the number of measurements m can be dramatically smaller than the size n usually considered necessary [11,17].

When Ψ is invertible, CS exploits the sampling gravity anomaly data reconstruction by solving a problem of the form:

minimize x 0 s . t . y = Φ Ψ 1 x
where ‖x0 = |{i:xi ≠ 0}| is the zero-norm of x and denotes the number of nonzero elements within x. Suppose x has at most k nonzero elements, i.e., ‖x0k, we can consider that z is k-sparse in the transform domain Ψ.

2.3. OMP Algorithm

Let A = ΦΨ−1Rm×n; Equation (5) can be rewritten as:

minimize x 0 s . t . y = A x

Equation (6) is the zero-norm sparse optimization problem and can be solved with greedy algorithms. Greedy algorithms rely on iterative approximation of the signal coefficients and support, either by iteratively identifying the support of the signal until a convergence criterion is met, or alternatively, by obtaining an improved estimate of the sparse signal at each iteration that attempts to account for the mismatch to the measured data. Greedy algorithms are classified as greedy pursuits and thresholding type algorithms. Greedy pursuit algorithms include Matching Pursuit [18], OMP [19], Conjugate Gradient Pursuit [20], Stagewise Orthogonal Matching Pursuit [21] and Regularized OMP [22,23], etc.

OMP is a greedy pursuit algorithm. Given that z is k-sparse in the transform domain Ψ, i.e., x has at most k nonzero elements and A = ΦΨ−1 = [a1,a2,⋯,an] whose columns denoted by aiRm, the vector y = Ax is a linear combination of k columns from the matrix A. In the language of sparse approximation, we say that y has an k-term representation over the dictionary A. Therefore, OMP can be used for recovering sparse signals.

To identify the signal x, we need to determine which columns of A participate in the vector y. The idea behind the OMP algorithm is to pick columns in a greedy fashion. At each iteration, we choose the column of A that is most strongly correlated with the remaining part of y. Then we subtract off its contribution to y and iterate on the residual. One hopes that, after k iterations, the OMP algorithm will have identified the correct set of columns. The major advantages of OMP are its speed and its ease of implementation. The procedure of OMP can be carried out by means of the basic steps as follows [15]:

Given the matrix A, the vector y and the sparsity level k of the signal x:

  • Step 1: Initialize the residual r0 = y, the index set Λ0 = Ø and the iteration counter t = 1.

  • Step 2: Find the index λt that solves the easy optimization problem:

    λ t = arg max i = 1 , , n | r t 1 , a i |

    If the maximum occurs for multiple indices, break the tie deterministically.

  • Step 3: Augment the index set and the matrix of chosen atoms: Λt = Λt−1∪{λt} and Ωt = [Ωt−1 aλt]. We use the convention that Ω0 is an empty matrix.

  • Step 4: Solve a least squares problem to obtain a new signal estimate:

    s t = arg min s y Ω t s 2 = ( Ω t T Ω t ) 1 Ω t T y

  • Step 5: Calculate the new residual:

    r t = y Ω t s t

    It is important to note that the residual rt is always orthogonal to the columns of Ωt. Provided that the residual rt−1 is nonzero, the algorithm selects a new atom at iteration t and the matrix Ωt has full column rank. For such a case, the solution st to the least squares problem in Step 4 is unique.

  • Step 6: Increment t, and return to Step 2 if t < m.

  • Step 7: The estimate for the signal x has nonzero indices at the components listed in Λm. The value of the estimate in component λt equals the tth component of sm.

  • Step 8: The estimate for the unknown signal z is: = Ψ−1.

3. Test Results and Discussion

The strap-down airborne gravimeter and the flight test results are presented in this section. By comparing NIPM for the gravity anomaly data reconstruction, the superiority of the OMP algorithm will be shown in this section.

3.1. Flight Test and Data Preprocessing

The strap-down airborne scalar gravimeter called SGA-WZ mentioned in this paper is the first system with this type in China. It was developed by the Laboratory of Inertial Technology of the National University of Defense Technology [13]. This system consists of a high-performance strap-down inertial navigation system (SINS), a GNSS receiver, an anti-vibration system, a data logger and post-processing software. The major advantage of this system is its reliability and robustness in operations. A photograph of the system is shown in Figure 1.

The flight tests were carried out in Shandong Province using SGA-WZ from April 2010 to May 2010. The hardware was installed in the aircraft six days before the flight tests. Two GNSS ground stations were located near the airport where the aircraft took off and landed. GNSS receivers installed on the ground and aircraft can be used to determine the vehicle position, velocity, and acceleration. The strap-down airborne scalar gravimeter onboard a Cessna 208 aircraft was used to collect the data. Figure 2 shows the Cessna 208 aircraft, which is a fixed-wing small aircraft.

The pilots controlled the aircraft with the autopilot, and the test was implemented in days with good weather to minimize the effects of air turbulence. The average flight altitude was approximately 400 m above sea level with a fluctuation of 20 m. The average speed during the flight was 60 m/s. The sampling rate of raw SINS readings was 100 Hz and 2 Hz for the GNSS sampling rate. After being installed in the aircraft, SGA-WZ worked all day for over a month. In the whole flight test campaign there were eight flights. The first and second flights were repeated lines that flew along the same trajectory to test the repeatability of the system, and the valid length of each repeated profile was about 100 km. The other six flights left were grid flights consisting of three flights of survey lines and three flights of control lines. The spacing between survey lines was about 2 km and the spacing between control lines was about 9 km. Figure 3 shows the grid flight lines used in the test [16].

As previously mentioned, the gravity anomaly was determined from the difference between the specific force and the vehicle acceleration using Equation (2). Because of the phugoid modes of the aircraft and the atmospheric turbulence, there were many high frequency noises in the gravity anomaly. The noises should be eliminated by the FIR low-pass filter. When the velocity of aircraft is fixed, the longer the filter length, the more high frequency noises can be eliminated, but the spatial resolution will be lowered. The test results have revealed that the internal accord precision is 1.50 mGal with a spatial resolution of 6 km. Figure 4 shows the gravity anomaly of line 1 in the first flight before low-pass filtering. Figure 5 shows the gravity anomaly after 160 s cutoff low-pass filtering.

3.2. Sparsity Analysis

The first and second flights were repeated lines surveys denoted by F401 and F402, respectively. Each of them consisted of six lines. Figure 6 shows the gravity anomaly curves of F401 and Figure 7 shows the gravity anomaly curves of F402. In the two flights, the repeated lines were surveyed along an east-west direction.

Based on the theory of CS, this study analyzes the sparsity of airborne gravimetry by DFT. Figure 8 shows the amplitude spectrum of all lines in F401 and Figure 9 shows the amplitude spectrum of all lines in F402. From the two figures, we can see that the gravity anomaly is mostly distributed in the low-frequency domain and it has few high-frequency components. The results thus reveal that the gravity anomaly is sparse in the DFT domain, which satisfies the precondition for application of CS.

3.3. OMP Reconstruction Results

To evaluate the OMP algorithm performance and the gravity anomaly data reconstruction precision, we now define the performance indices with standard deviation and SNR. SNR can be calculated by:

SNR = 20 log 10 ( z 2 / z 2 )

In this study, the compressed measurement number was set as m = 432, i.e., the compressed sampling rate was approximately 14%. Figure 10 shows the reconstruction result of line 1 in F401 and the reconstruction error is shown in Figure 11. In Figure 10, the red dashed line denotes the reconstruction gravity anomaly and the blue solid one denotes the original gravity anomaly. The two figures show that the OMP results approximate the original gravity anomaly very well and the reconstruction error is very small. However, we also note that a boundary effect exists in the result and this problem should be solved in the future.

For comparison purposes, we also made the gravity anomaly data reconstruction with NIPM, which is one of the commonly used methodologies for data reconstruction. Figure 12 shows the reconstruction result of line 1 in F401 and the reconstruction error is shown in Figure 13. The comparison of the algorithm performance between OMP and NIPM is shown in Table 1. It shows that the each performance index from OMP is superior to the corresponding one from NIPM. The standard deviation of the reconstruction error and SNR of OMP are 0.03 mGal and 56.48 dB, respectively. Correspondingly, the standard deviation of reconstruction error and SNR of NIPM are 0.15 mGal and 42.29 dB, respectively.

4. Conclusions

This paper has presented a new investigation on a method for high accuracy large scale gravity anomaly data reconstruction. Based on the airborne gravimetry technology, a flight test was carried out in China using a custom designed strap-down airborne gravimeter. Taking into account the sparsity of airborne gravimetry by DFT, this paper proposes a method for gravity anomaly data reconstruction using CS theory. The test results have revealed that the compressed sampling rate is approximately 14%, the standard deviation of the reconstruction error by OMP is 0.03 mGal and SNR is 56.48 dB. In contrast, the standard deviation of the reconstruction error by NIPM is 0.15 mGal and SNR is 42.29 dB. These results have shown that OMP can reconstruct the gravity anomaly data with higher accuracy and fewer measurements. In future investigations, the following considerations should be taken into account:

(1)

The boundary effect exists in the result of gravity anomaly data reconstruction with OMP. Although we can ignore the boundary data, that will result in a waste of data and increase the survey costs.

(2)

The discrete Fourier transform was effective for the 1-D gravity anomaly data sparse transform in this study. In consideration of the 2-D gravity anomaly data reconstruction, future work can pay attention to the Curvelet transform.

This work was supported by the National High Technology Research and Development Program of China under Grant No. SS2013AA060402.

Author Contributions

In this paper, Yapeng Yang analyzed the basic principle of Compressed Sensing and Airborne Gravimetry, implemented the flight test, compiled program codes and wrote the paper. Meiping Wu analyzed the basic principle of Airborne Gravimetry and implemented the flight test. Jinling Wang analyzed test data and modified English errors. Kaidong Zhang developed the SGA-WZ and implemented the flight test. Juliang Cao developed the SGA-WZ and implemented the flight test. Shaokun Cai implemented the flight test and analyzed test data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nettleton, L.L.; LaCoste, L.; Harrison, J.C. Test of an airborne gravity meter. Geophysics 1960, 25, 181–202.
  2. Thompson, L.; LaCoste, L. Aerial gravity measurements. J. Geophys. Res. 1960, 65, 305–322.
  3. Wang, L.H.; Zhang, C.D.; Wang, J.Q. Mathematical models and accuracy evaluation for the airborne gravimetry. J. Geom. Sci. Technol. 2008, 25, 68–71.
  4. Xia, Z.; Sun, Z.M. The technology and application of airborne gravimetry. Sci. Surv. Mapp. 2006, 31, 43–46.
  5. Nyquist, H. Certain topics in telegraph transmission theory. Trans. AIEE 1928, 47, 617–644.
  6. Shannon, C. Communication in the presence of noise. Proc. Inst. Radio Eng. 1949, 37, 10–21.
  7. Candes, E.; Romberg, J. Quantitative robust uncertainty principles and optimally sparse decompositions. Found. Comput. Math. 2006, 6, 227–254.
  8. Candes, E.; Romberg, J.; Tao, T. Robust uncertainty principles: Exact signal reconstruction from highly incomplete frequency information. IEEE Trans. Inf. Theory 2006, 52, 489–509.
  9. Candes, E.; Romberg, J.; Tao, T. Stable signal recovery from incomplete and inaccurate measurements. Commun. Pure Appl. Math. 2006, 59, 1207–1223.
  10. Candes, E.; Tao, T. Near optimal signal recovery from random projections: Universal encoding strategies. IEEE Trans. Inf. Theory 2006, 52, 5406–5425.
  11. Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory 2006, 52, 1289–1306.
  12. Zhang, K.D. Research on the Methods of Airborne Gravimetry Based on SINS/DGPS. Ph.D. Dissertation, National University of Defense Technology, Changsha, China, 2007.
  13. Huang, Y.M.; Olesen, A.V.; Wu, M.P.; Zhang, K.D. SGA-WZ: A new strapdown airborne gravimeter. Sensors 2012, 12, 9336–9348.
  14. Cai, S.K.; Zhang, K.D.; Wu, M.P.; Huang, Y.M. Long-term stability of the SGA-WZ strapdown airborne gravimeter. Sensors 2012, 12, 11091–11099.
  15. Tropp, J.A.; Gilbert, A.C. Signal recovery from random measurements via orthogonal matching pursuit. IEEE Trans. Inf. Theory 2007, 53, 4655–4666.
  16. Cai, S.K.; Wu, M.P.; Zhang, K.D.; Cao, J.L.; Tuo, Z.H.; Huang, Y.M. The first airborne scalar gravimetry system based on SINS/DGPS in China. Sci. China Earth Sci. 2013, 56, 2198–2208.
  17. Kim, S.J.; Koh, K.; Lustig, M.; Boyd, S.; Gorinevsky, D. An interior-point method for large-scale ℓ1-regularized least squares. IEEE J. Sel. Top. Signal Process. 2007, 1, 606–617.
  18. Mallat, S.; Zhang, Z.F. Matching pursuits with time-frequency dictionaries. IEEE Trans. Signal Process. 1993, 41, 3397–3415.
  19. Mallat, S.; Davis, G.; Zhang, Z.F. daptive time-frequency decompositions. SPIE. J. Opt. Eng. 1994, 33, 2183–2191.
  20. Blumensath, T.; Davies, M. Gradient pursuits. IEEE Trans. Signal Process. 2008, 56, 2370–2382.
  21. Blumensath, T.; Davies, M. Stagewise weak gradient pursuits. IEEE Trans. Signal Process. 2009, 57, 4333–4346.
  22. Needell, D.; Vershynin, R. Signal recovery from incomplete and inaccurate measurements via regularized orthogonal matching pursuit. IEEE J. Sel. Top. Signal Process. 2010, 4, 310–316.
  23. Needell, D.; Vershynin, R. Uniform uncertainty principle and signal recovery via regularized orthogonal matching pursuit. Found. Comput. Math. 2008, 9, 317–334.
Sensors 14 05426f1 200
Figure 1. Appearance of the SGA-WZ.

Click here to enlarge figure

Figure 1. Appearance of the SGA-WZ.
Sensors 14 05426f1 1024
Sensors 14 05426f2 200

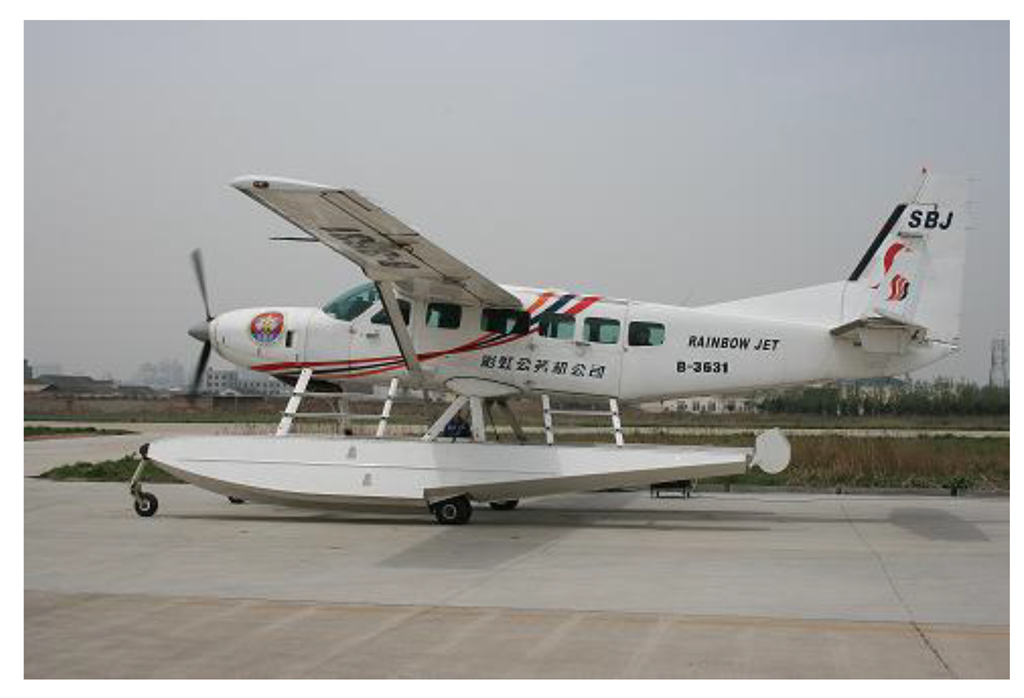

Figure 2. Cessna 208 fixed-wing small aircraft.

Click here to enlarge figure

Figure 2. Cessna 208 fixed-wing small aircraft.
Sensors 14 05426f2 1024
Sensors 14 05426f3 200

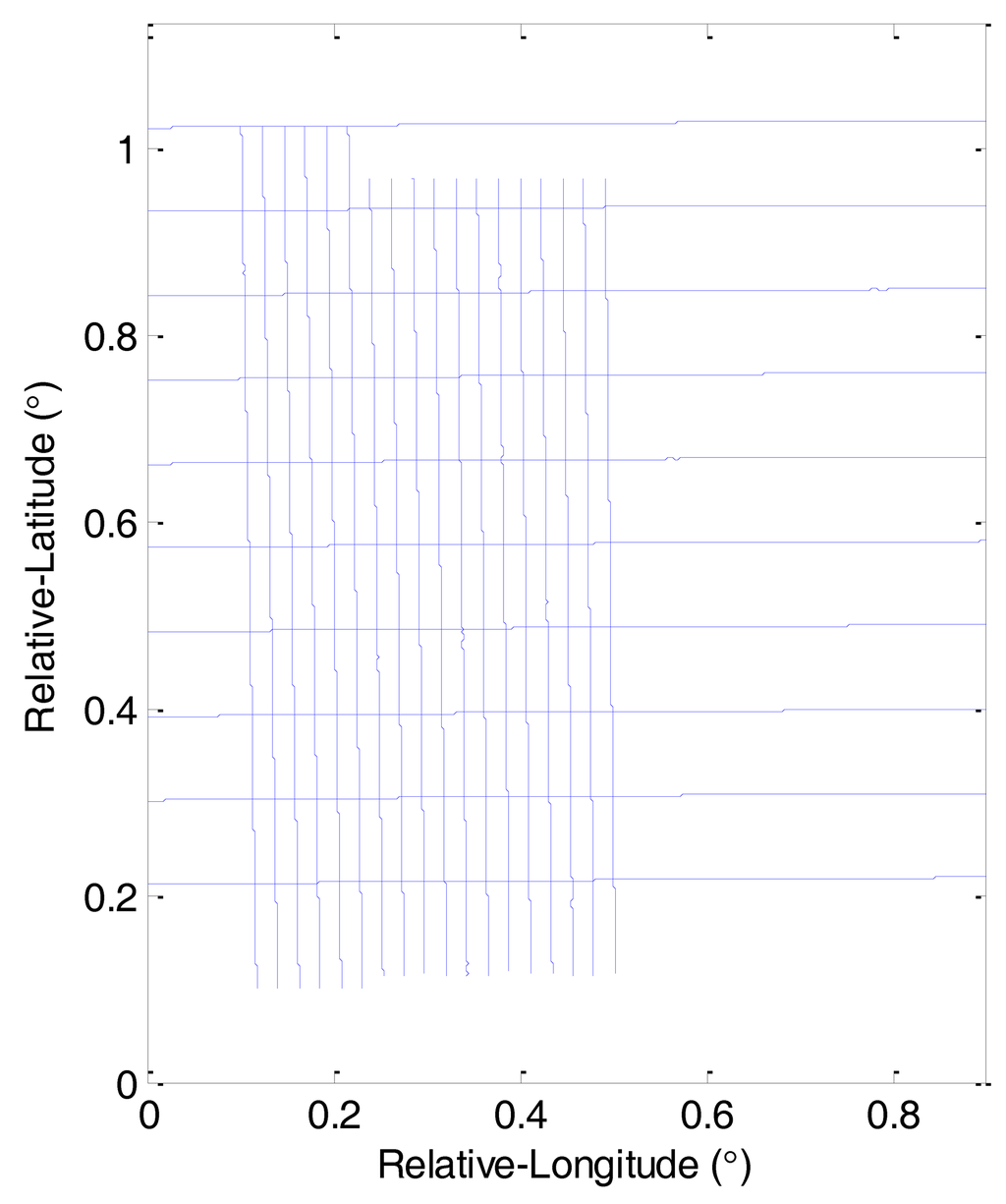

Figure 3. Grid flight lines.

Click here to enlarge figure

Figure 3. Grid flight lines.
Sensors 14 05426f3 1024
Sensors 14 05426f4 200

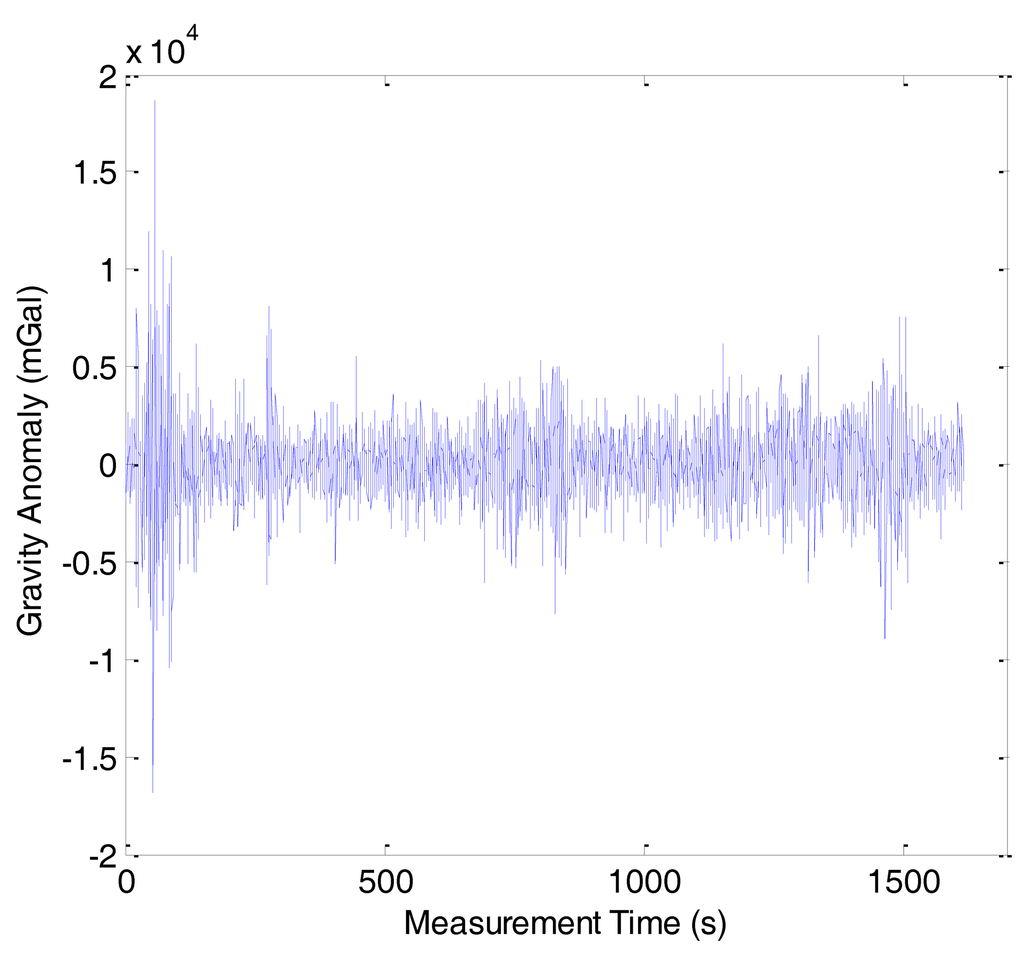

Figure 4. Gravity anomaly before low-pass filtering.

Click here to enlarge figure

Figure 4. Gravity anomaly before low-pass filtering.
Sensors 14 05426f4 1024
Sensors 14 05426f5 200
Figure 5. Gravity anomaly after low-pass filtering.

Click here to enlarge figure

Figure 5. Gravity anomaly after low-pass filtering.
Sensors 14 05426f5 1024
Sensors 14 05426f6 200

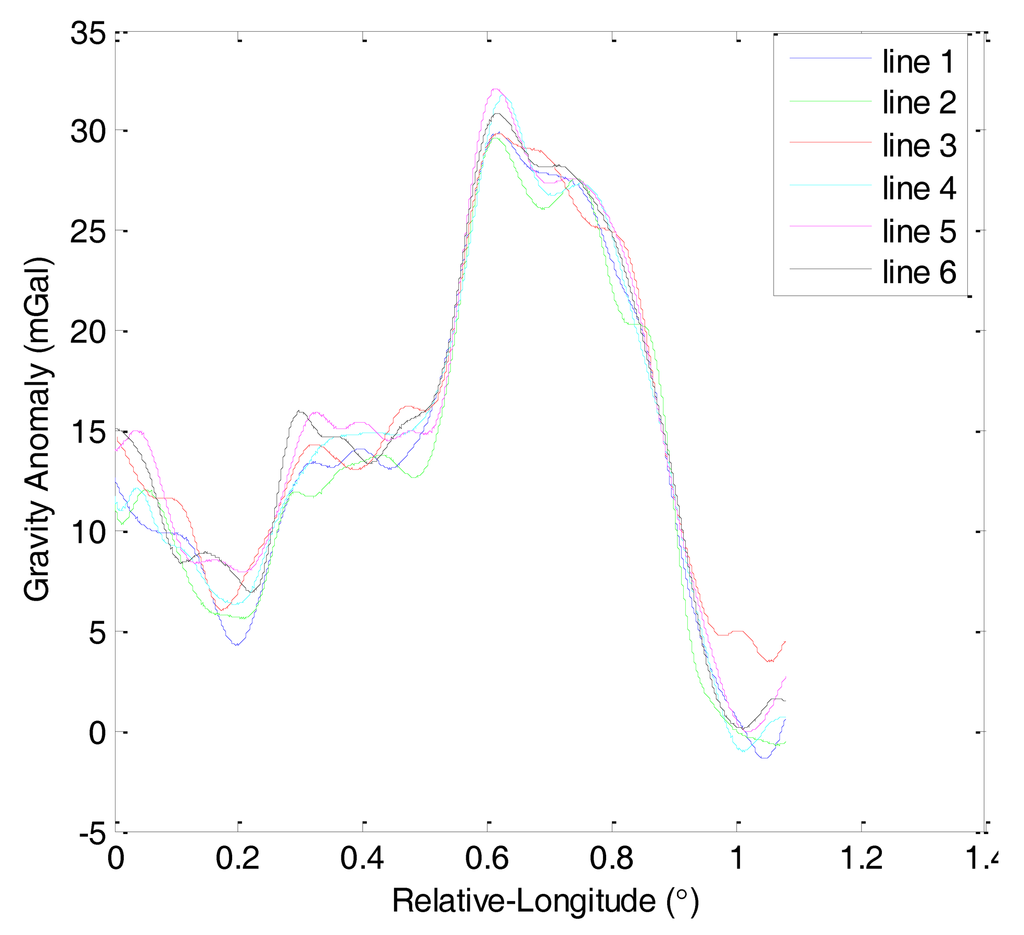

Figure 6. Gravity anomaly curves of F401.

Click here to enlarge figure

Figure 6. Gravity anomaly curves of F401.
Sensors 14 05426f6 1024
Sensors 14 05426f7 200
Figure 7. Gravity anomaly curves of F402.

Click here to enlarge figure

Figure 7. Gravity anomaly curves of F402.
Sensors 14 05426f7 1024
Sensors 14 05426f8 200

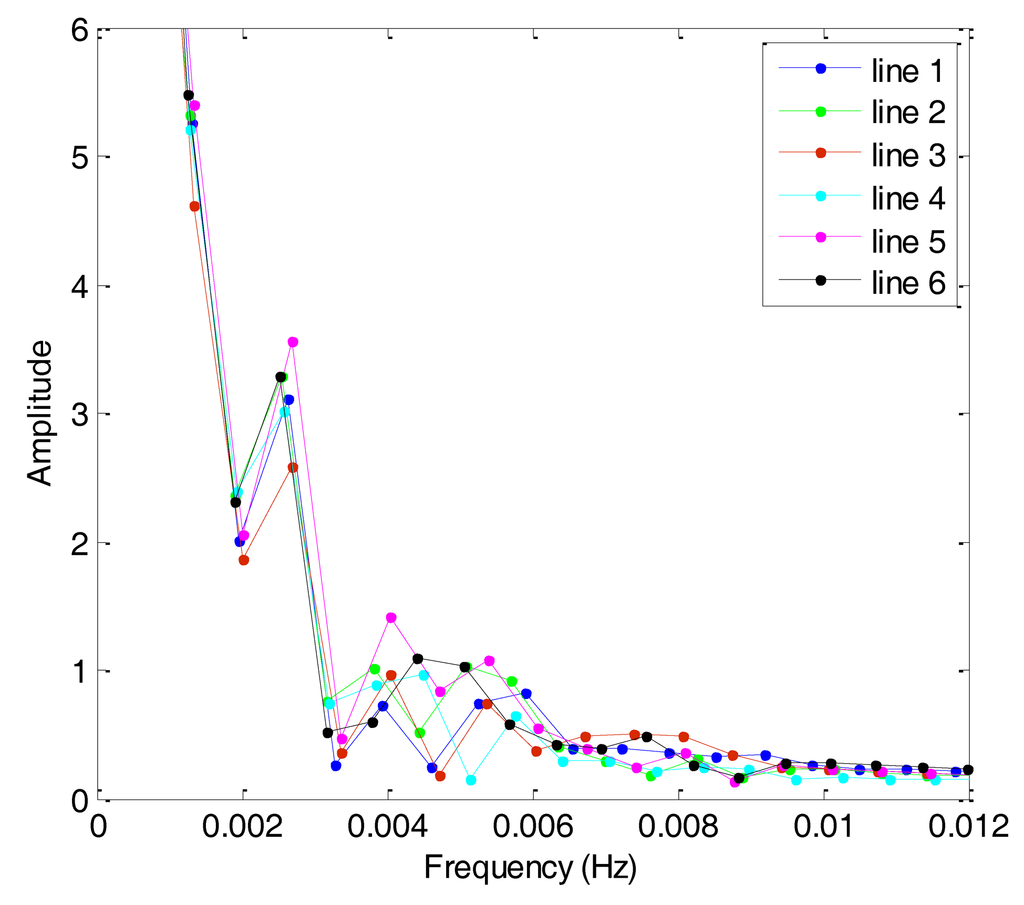

Figure 8. Amplitude spectrum curves of F401.

Click here to enlarge figure

Figure 8. Amplitude spectrum curves of F401.
Sensors 14 05426f8 1024
Sensors 14 05426f9 200

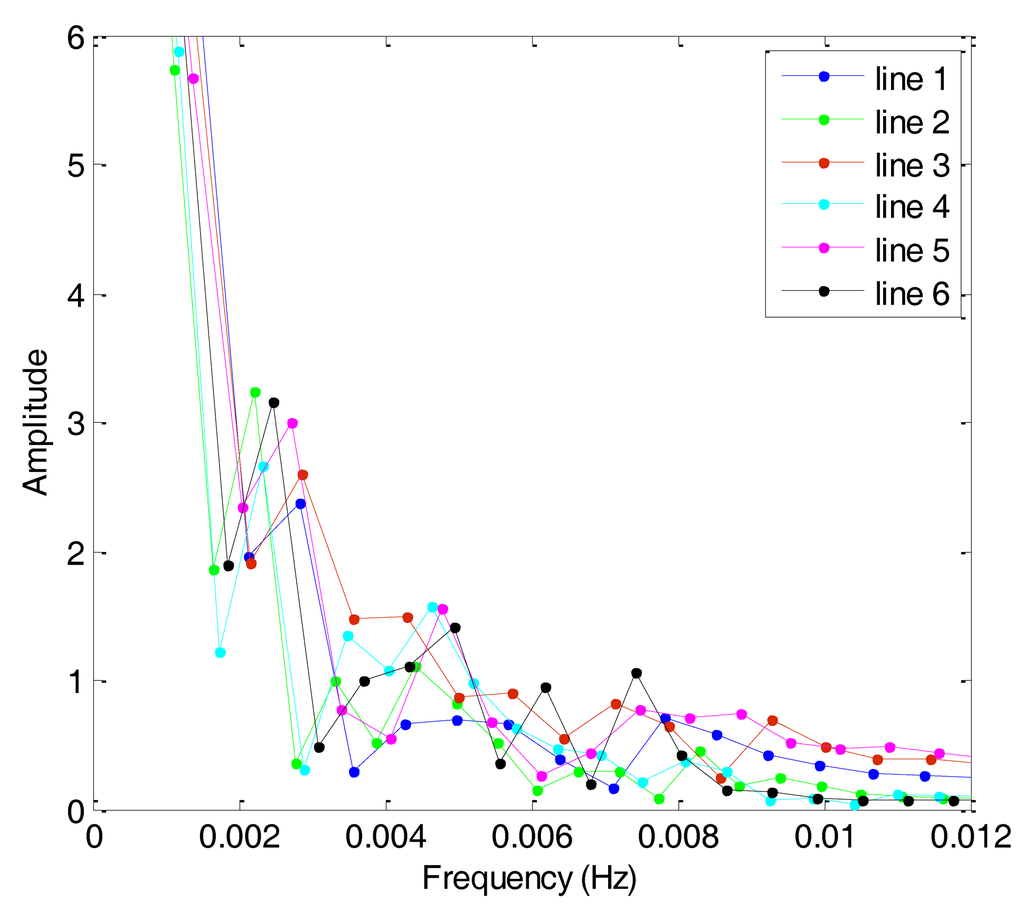

Figure 9. Amplitude spectrum curves of F402.

Click here to enlarge figure

Figure 9. Amplitude spectrum curves of F402.
Sensors 14 05426f9 1024
Sensors 14 05426f10 200
Figure 10. Reconstruction result of OMP in F401.

Click here to enlarge figure

Figure 10. Reconstruction result of OMP in F401.
Sensors 14 05426f10 1024
Sensors 14 05426f11 200

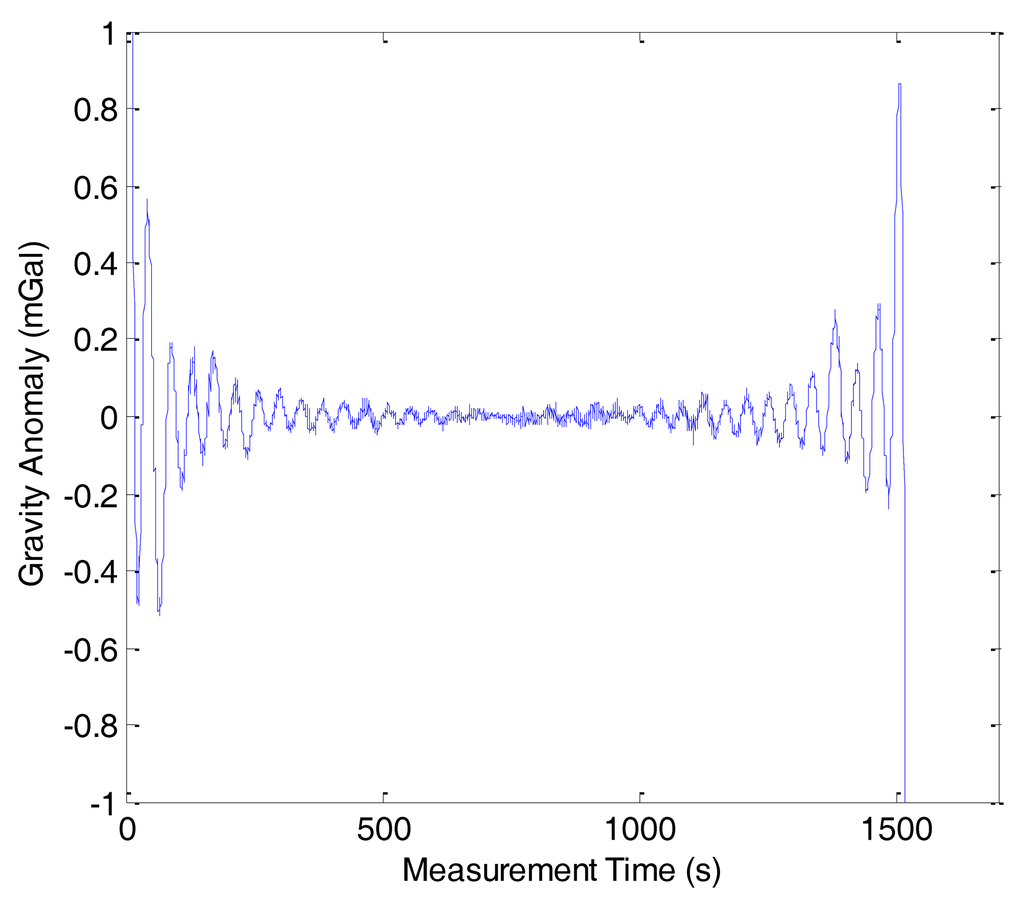

Figure 11. Reconstruction error of OMP in F401.

Click here to enlarge figure

Figure 11. Reconstruction error of OMP in F401.
Sensors 14 05426f11 1024
Sensors 14 05426f12 200

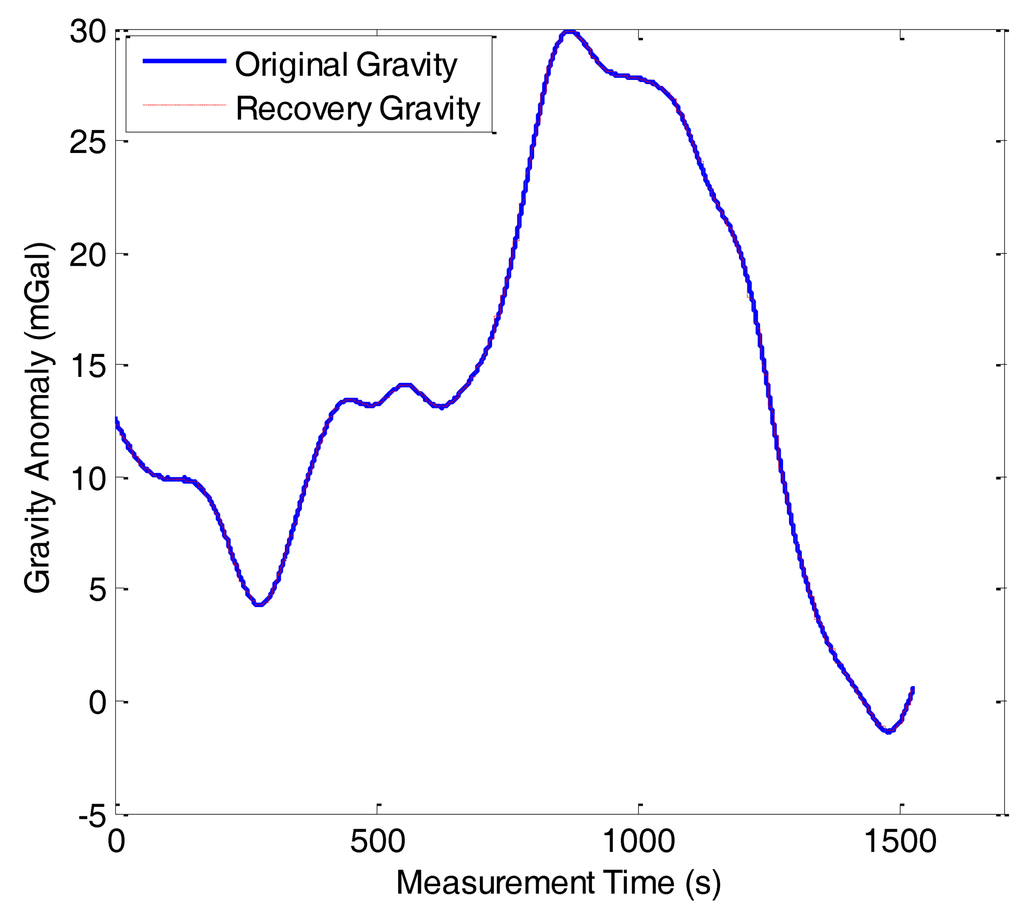

Figure 12. Reconstruction result of NIPM in F401.

Click here to enlarge figure

Figure 12. Reconstruction result of NIPM in F401.
Sensors 14 05426f12 1024
Sensors 14 05426f13 200

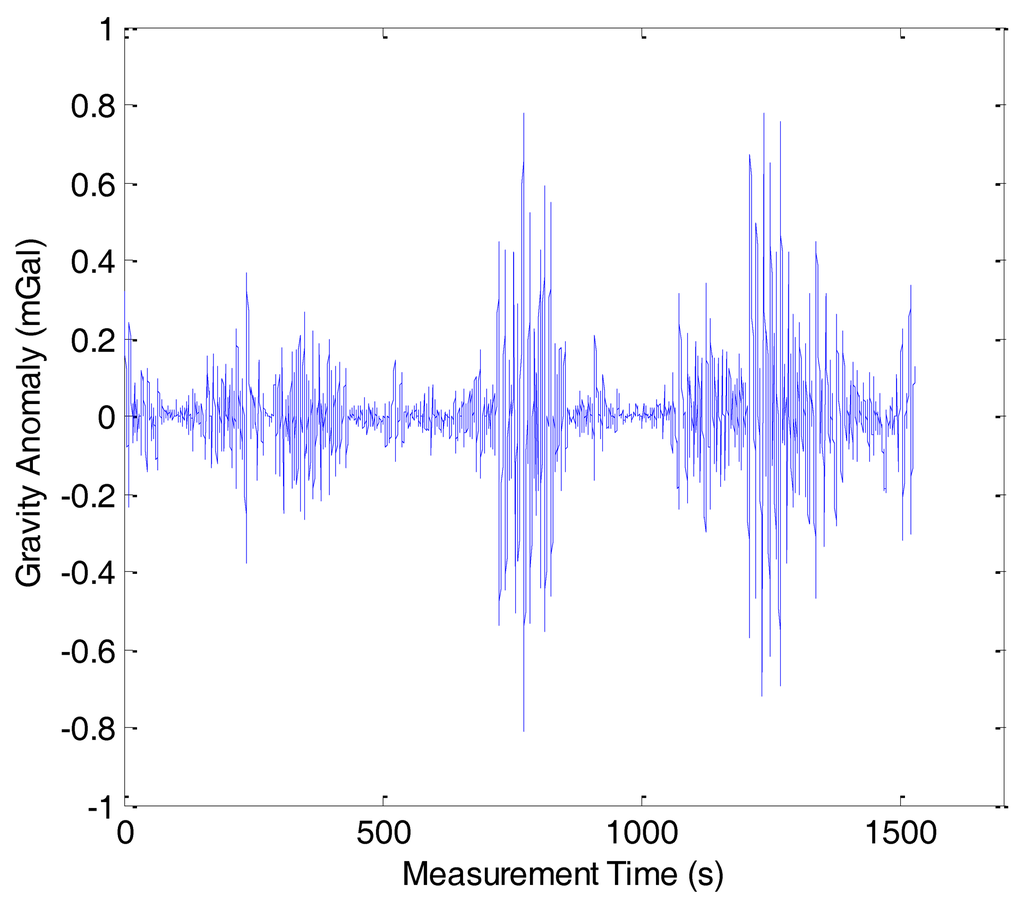

Figure 13. Reconstruction error of NIPM in F401.

Click here to enlarge figure

Figure 13. Reconstruction error of NIPM in F401.
Sensors 14 05426f13 1024
Table Table 1. The comparison of the algorithm performance for F401.

Click here to display table

Table 1. The comparison of the algorithm performance for F401.
NumberPointsStandard Deviation (mGal)SNR (dB)

OMPNIPMOMPNIPM
Line 130500.030.1556.9142.06
Line 231500.030.1655.7641.03
Line 329790.020.1458.1542.81
Line 431200.030.1456.6543.00
Line 529640.030.1657.0842.23
Line 631700.040.1554.3142.60
Average30720.030.1556.4842.29
