Sensors 2014, 14(10), 19354-19370; doi:10.3390/s141019354

Detection of Surface and Subsurface Cracks in Metallic and Non-Metallic Materials Using a Complementary Split-Ring Resonator

Electrical and Computer Engineering Department, University of Waterloo, 200 University Avenue West, Waterloo, ON N2L 3G1, Canada
*
Author to whom correspondence should be addressed.
Received: 22 July 2014 / Revised: 22 September 2014 / Accepted: 29 September 2014 / Published: 16 October 2014
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3500 KB, uploaded 16 October 2014]   |

Abstract

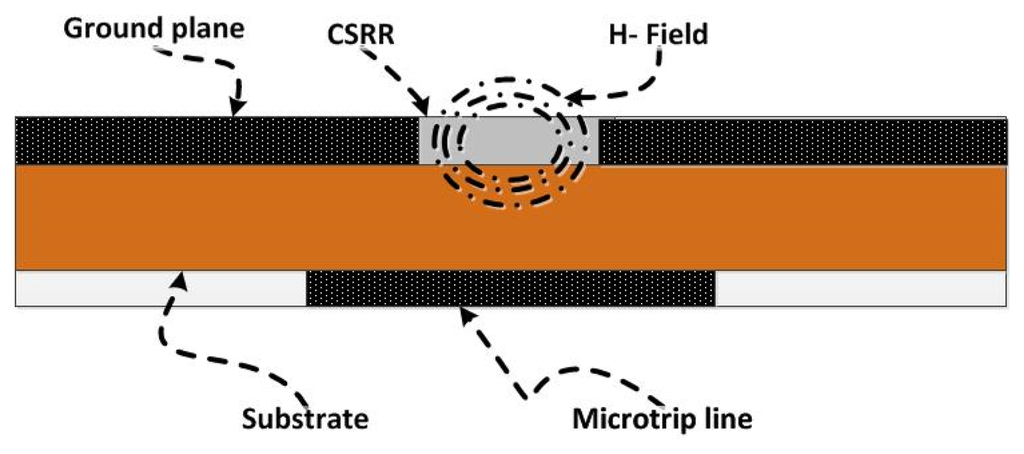

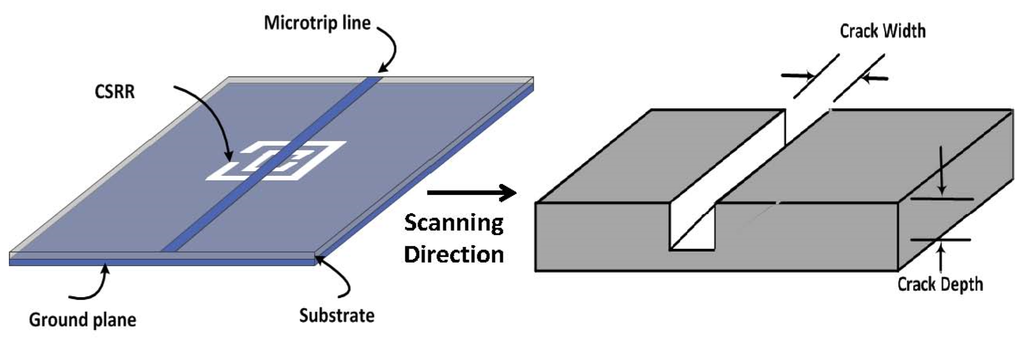

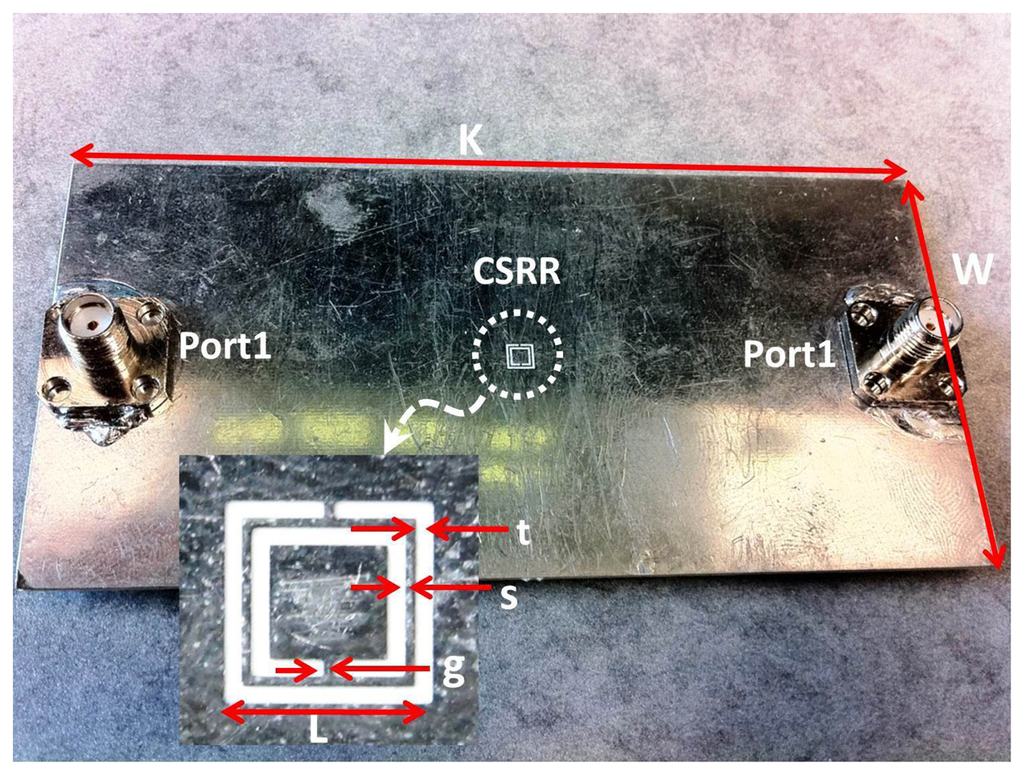

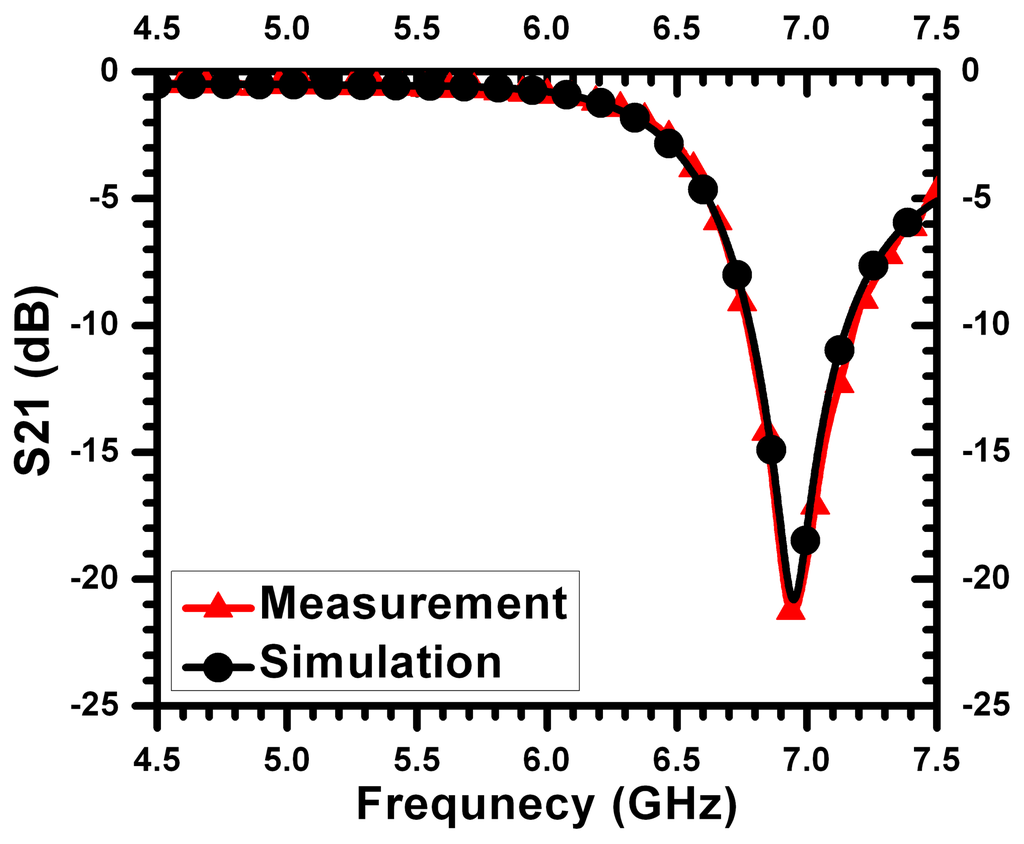

Available microwave techniques for crack detection have some challenges, such as design complexity and working at a high frequency. These challenges make the sensing apparatus design complex and relatively very expensive. This paper presents a simple method for surface and subsurface crack detection in metallic and non-metallic materials based on complementary split-ring resonators (CSRRs). A CSRR sensor can be patterned on the ground plane of a microstrip line and fabricated using printed circuit board technology. Compared to available microwave techniques for sub-millimeter crack detection, the methods presented here show distinct advantages, such as high spatial resolution, high sensitivity and design simplicity. The response of the CSRR as a sensor for crack detection is studied and analysed numerically. Experimental validations are also presented. View Full-Text
Keywords: crack detection; complementary split-ring resonator (CSRR); microstrip linetechnology; near-field detection; metamaterials crack detection; complementary split-ring resonator (CSRR); microstrip linetechnology; near-field detection; metamaterials
