Sensors 2013, 13(9), 12527-12535; doi:10.3390/s130912527
Article

Quantitative Assessment of Birefringent Skin Structures in Scattered Light Confocal Imaging Using Radially Polarized Light

* ,
,
,
,
,
,
 and
Received: 19 July 2013 / Revised: 14 August 2013 / Accepted: 11 September 2013 / Published: 17 September 2013
View Full-Text   |   Download PDF [391 KB, uploaded 21 June 2014]   |   Browse Figures

Abstract

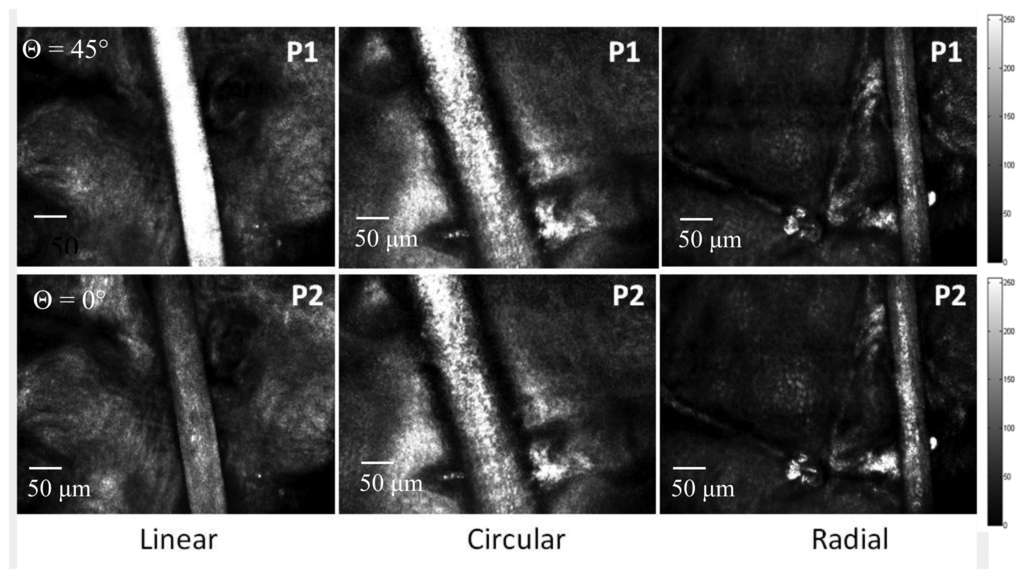

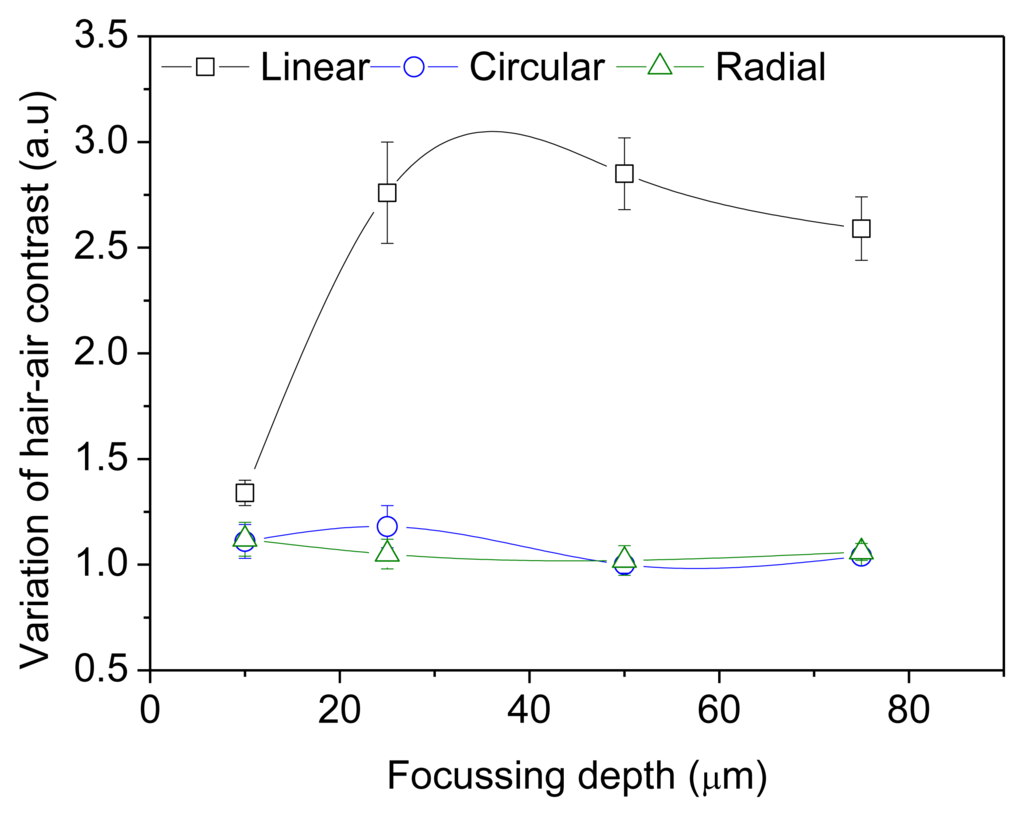

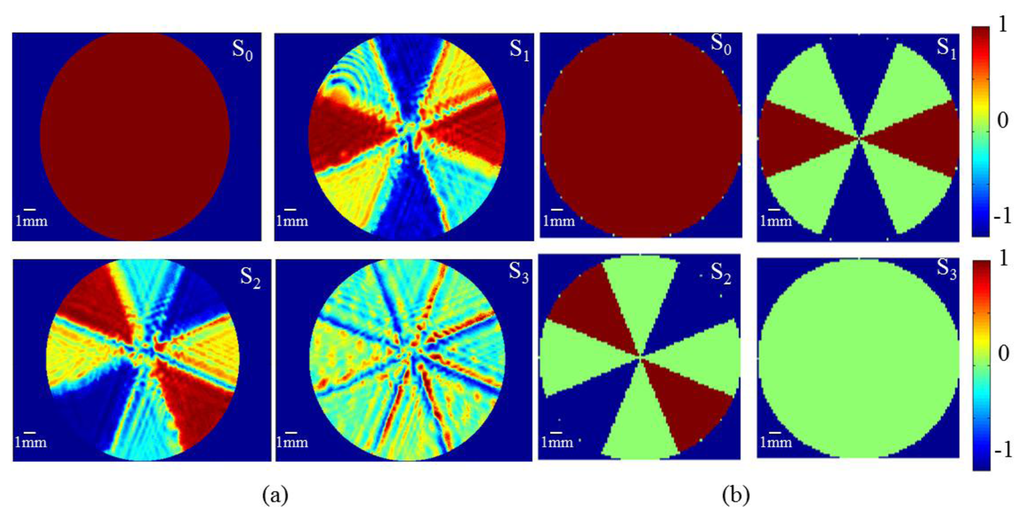

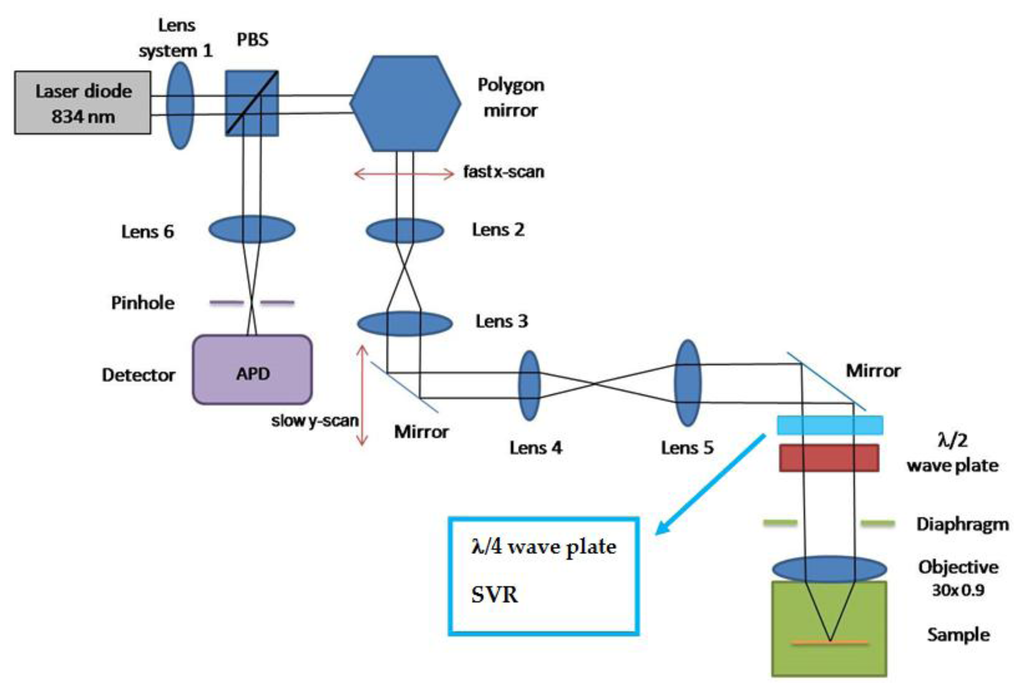

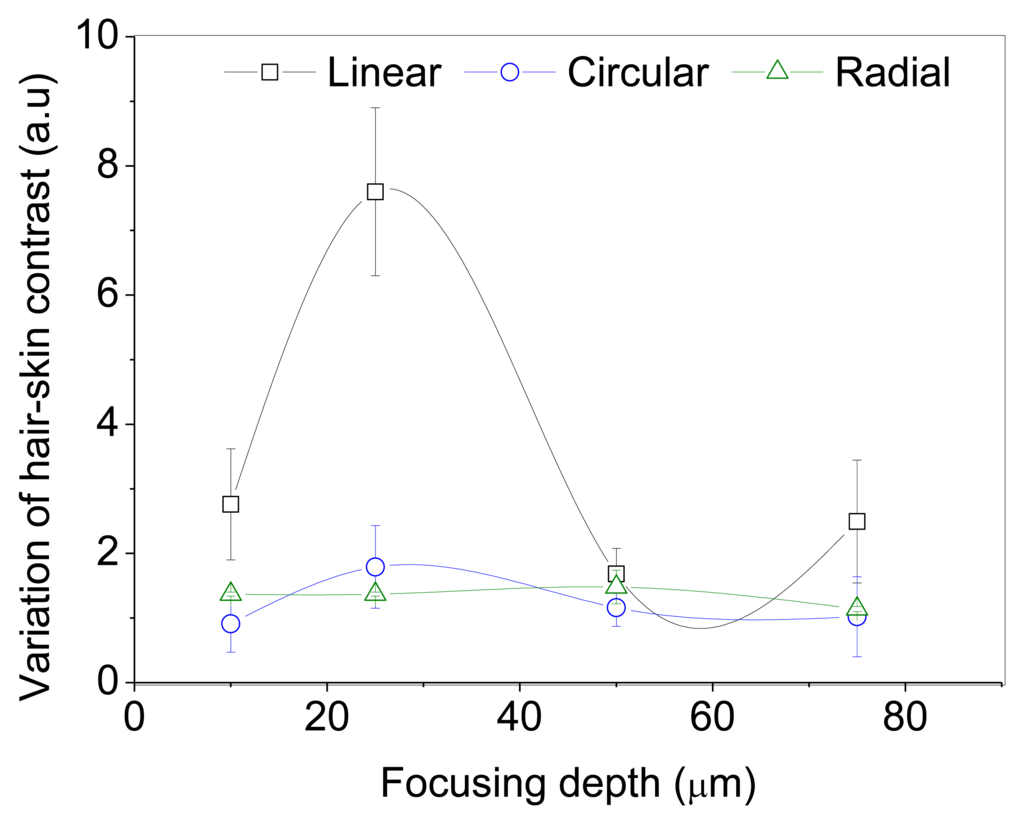

The polarization characteristics of birefringent tissues could be only partially obtained using linearly polarized light in polarization sensitive optical imaging. Here we analyze the change in polarization of backscattered light from birefringent structures versus the orientations of the incident polarizations using linearly, circularly and radially polarized light in a cross-polarized confocal microscope. A spatially variable retardation plate composed of eight sectors of λ/2 wave plates was used to transform linearly polarized light into a radially polarized light. Based on the experimental data obtained from ex-vivo measurements on human scalp hairs and in-vivo measurements on hair and skin, we exemplify that the underestimation of the birefringence content resulting from the orientation related effects associated with the use of linearly polarized light for imaging tissues containing wavy birefringent structures could be minimized by using radially polarized light.
Keywords: radial polarization; birefringence; confocal microscopy; polarization dependent contrast radial polarization; birefringence; confocal microscopy; polarization dependent contrast
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
